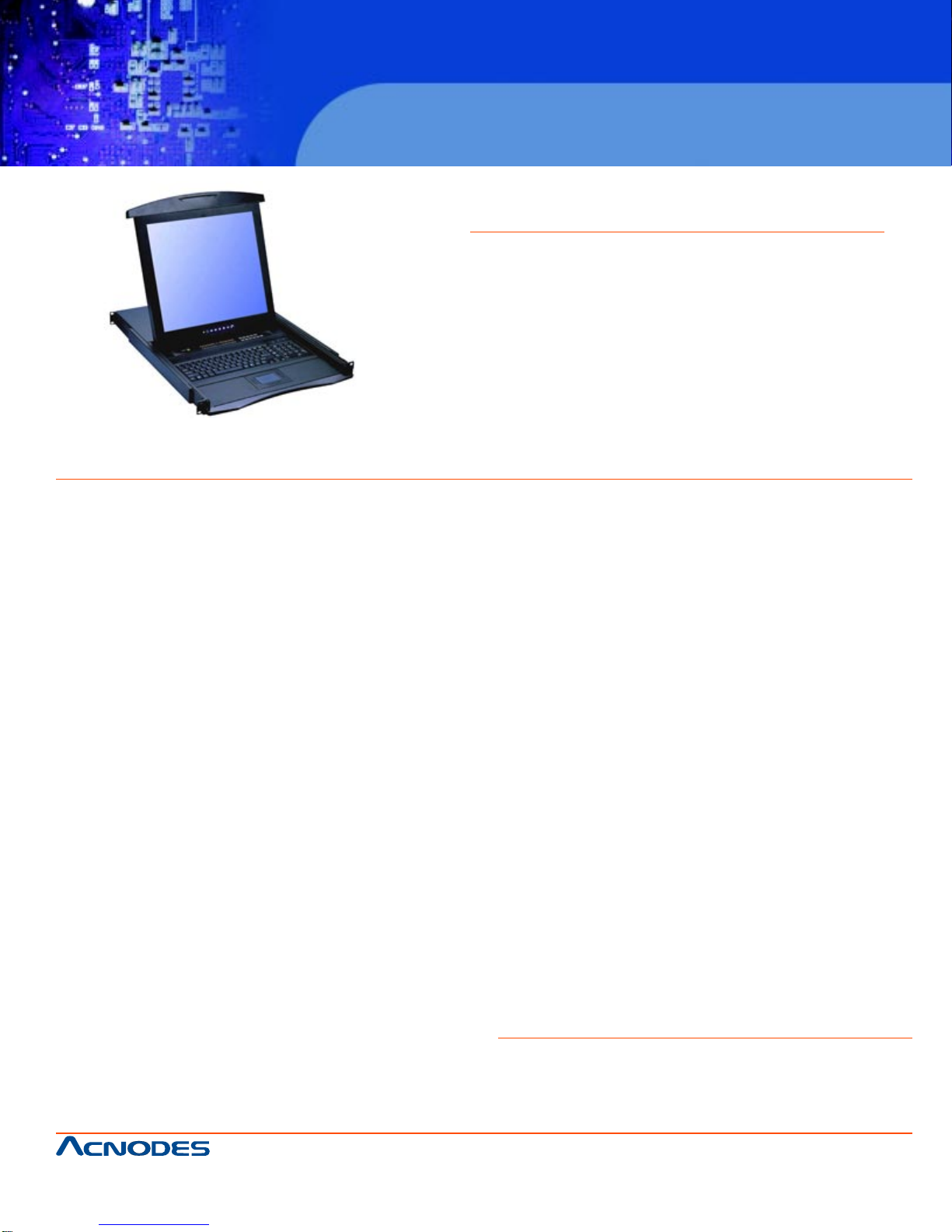

KDC 81732
17” 1280 x 1024 TFT LCD panel
104-key keyboard & touch pad
32-port Cat-5 KVM switch
» Specifications
» Ordering Guide
» Features
Material:
Heavy-duty steel
Keyboard and touch pad:
104-key keyboard with numerical key pad
3-buttons touch pad
LCD Panel:
Size: 17"
Max. Resolution: 1280x1024
Brightness (cd/m^): 300nit
Contrast Ratio: 700:1
Display area: 337 x 270mm
Response Time: 2ms
Viewing Angle: 150°(L/R),135°(U/D)
Colors: 16M colors
Video Input:
VGA, Analog RGB DB-15 (standard)
800 x 600, 1024 x 768: 60/72/75Hz
1152 x 864, 1280 x 1024: 60/70/75Hz
OSD (on screen display):
6 x OSD menu buttons for Brightness, Contrast, Phase &
Color, H & V position, Auto-tune, Recall & Language
Cat-5 KVM switch:
32 x RJ-45 KVM ports
Connectivity: RJ-45 cable with PS/2 or USB dongle (option)
Graphic resolution: up to 1600x1200
Management:
KVM OSD MENU, Hot-key, Front membrane KVM switch
Security:Password enable & disable, up to 8 users profile
for port access.
Expansion: up to 256 servers by 8-level cascade
Connectors:
32 x RJ-45 KVM ports
1 x DB-15 proprietary cascade port
Front control:
OSD Membrane buttons for LCD monitor
KVM membrane buttons for Cat-5 KVM switch
Cables (option):
RJ-45 cat-5 cable 6'/15'/25', PS/2 or USB Dongle cable
proprietary 6' DB-15 Cascade KVM cable
Drawer Design:
1 rack unit height with high load-rating slide rail
Power Supply:
110/220VAC input with 12V 5A 40W output
Optional for 12/24/48VDC power input
Color:
Black
Environmental:
Temperature:
0° to 50°C (operation), -25° to 65°C (storage)
Humidity: 90%, non condensing
Shock: 10G peak acceleration, (11ms, half since wave)
Vibration: 5~500Hz 1G RMS random vib ration
Safty:
CE, VCCI and FCC certificated
Gross Weight:
37lb
Dimension:
19"(W) x 25.6”(D) x 1.75"(H)

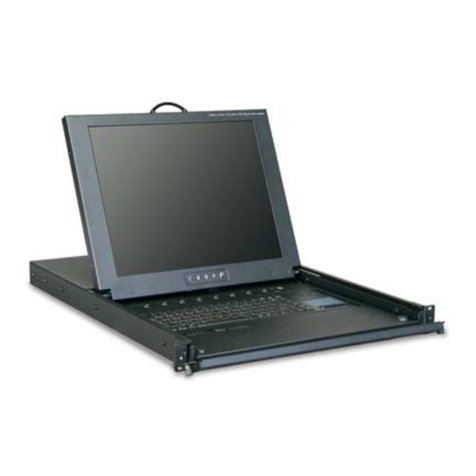

KDC 81716:
17” LCD monitor keyboard drawer with 17” 1280x1024 TFT
LCD monitor, 104-key keyboard, touch pad & 16-port Cat-5
KVM switch. 1U rack drawer type, 25.6” depth.
» 1 U rackmount compact design, only 25.6” depth
» 17" 1280 x 1024 TFT LCD monitor
» 104-key keyboard with numerical key pad
» 3-buttons touch pad
» 32-port Cat-5 KVM switch
» 15-pin D-sub VGA input
» 110/220VAC 40W power supply
