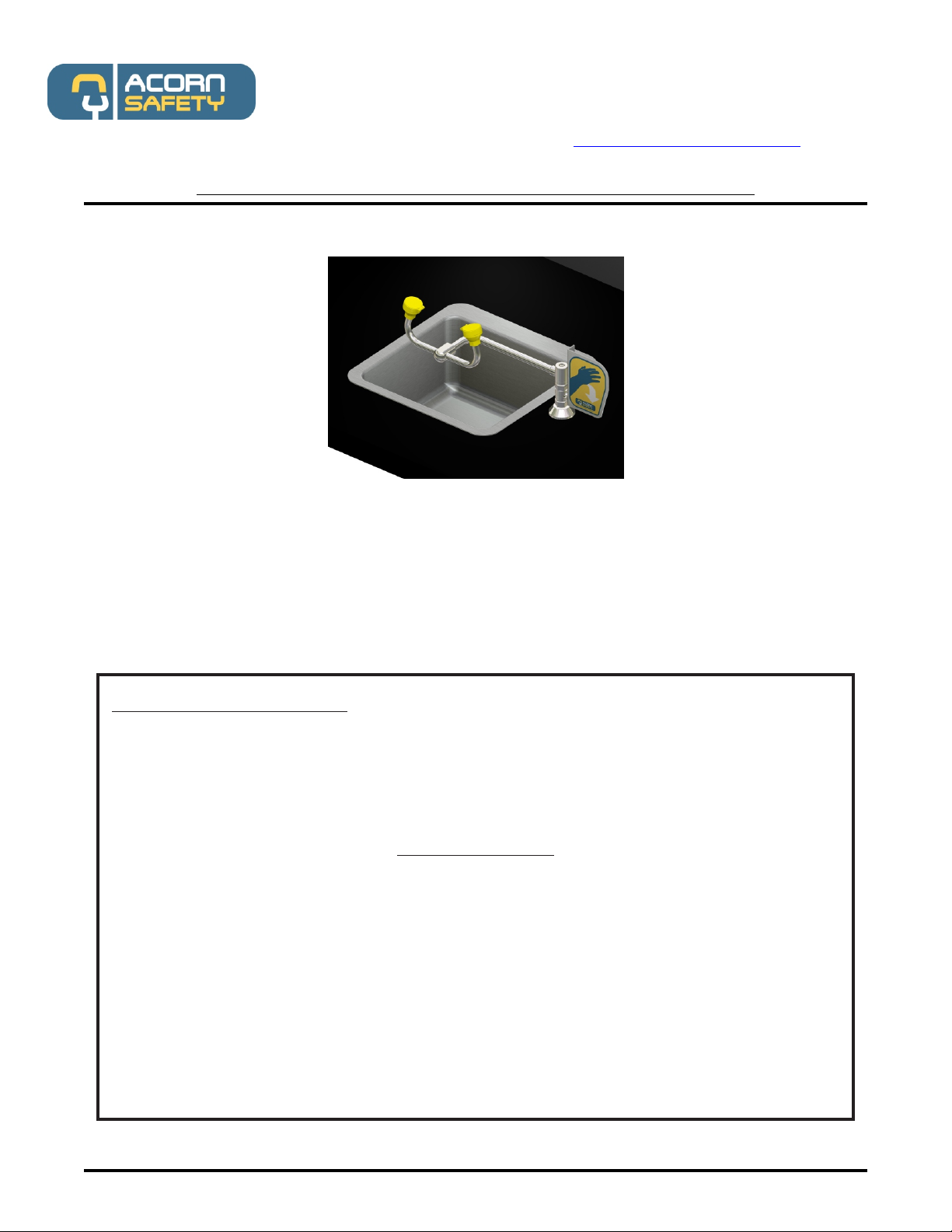

Acorn Safety S0A50-LH Manual

WWW.ACORNSAFETY.COM
INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
EYEWASH / FACEWASH
TECHNICAL ASSISTANCE TOLL FREE TELEPHONE NUMBER
1.800.591.9360
TECHNICAL ASSISTANCE FAX: [phone]
ACORN SAFETY
P.O. BOX 3527
CITY OF INDUSTRY, CA 91744-0527
UNITED STATES OF AMERICA
Date: 05/17/13Manual #7109-401-001
Models S0A50-LH / SOA50-RH / S0A60-LH / SOA60-RH
NOTES TO THE INSTALLER:
1. Please leave this documentation with the owner of the fixture when finished.
2. Please read this entire booklet before beginning the installation.
3. Check your installation for compliance with plumbing, electrical, ANSI Z358.1 and
other applicable codes.
LIMITED WARRANTY
UNITED STATES AND CANADA
Acorn Safety warrants that its products are free from defects in material or workmanship under normal use and
service for a period of one year from date of shipment or 18 months after the date of shipment from factory ,
whichever comes first. Acorn's liability under this warranty shall be discharged solely by replacement of repair of
defective material, provided Acorn is notified in writing within one year from date of shipment, F.O.B. Industry,
California.
This warranty does not cover installation or labor charges and does not apply to materials, which have been
damaged by other causes such as mishandling or improper care or abnormal use. The repair or replacement of the
defective materials shall constitute the sole remedy of the Buyer and the sole remedy of Acorn under this warranty.
Acorn™ shall not be liable under any circumstances for incidental, consequential or direct charges caused by defects
in materials, or any delay in the repair or replacement thereof. This warranty is in lieu of all other warranties
expressed or implied. Product maintenance instructions are issued with each unit and disregard or non-compliance
with these instructions will constitute an abnormal use condition and void the warranty. Stainless steel must be
protected on job sites during construction and must be properly maintained after the water has been introduced into
the safety product or Acorn™ warranty is void.
Acorn Safety a division of Acorn Engineering Company™

Manual #7109-401-001
S0A50-RH ROUGH-IN:
1. Read the installation instructions prior to beginning the installation.
2. Separate parts from packaging and verify all necessary parts are accounted for and undamaged. Obtain missing or
damaged parts from Acorn Safety prior to beginning installation.
3. Flush water supply lines prior to installation. This will remove unwanted debris from the lines and prevent unwanted
blockages in the safety equipment.
4. In order to comply with ANSI Z358.1, the safety equipment must be inspected periodically. An inspection tag is
provided for documentation purposes.
5. All employees at risk of contamination should be informed and trained in the use of this and any other safety
equipment. The signage provided should be posted appropriately in close proximity to this equipment.
6. All employees at risk of contamination should be informed and trained in the use of this and any other safety
equipment. The signage provided should be highly visible, posted in a well-lit area within the area served by the
safety station.
7. For a strong acid or strong caustic hazardous substance the emergency safety equipment should be immediately
adjacent to the hazard.
Installation & Operation Manual
PRELIMINARY STEPS
Acorn Safety a division of Acorn Engineering Company™
Page 2 of 6 Date: 05/17/13

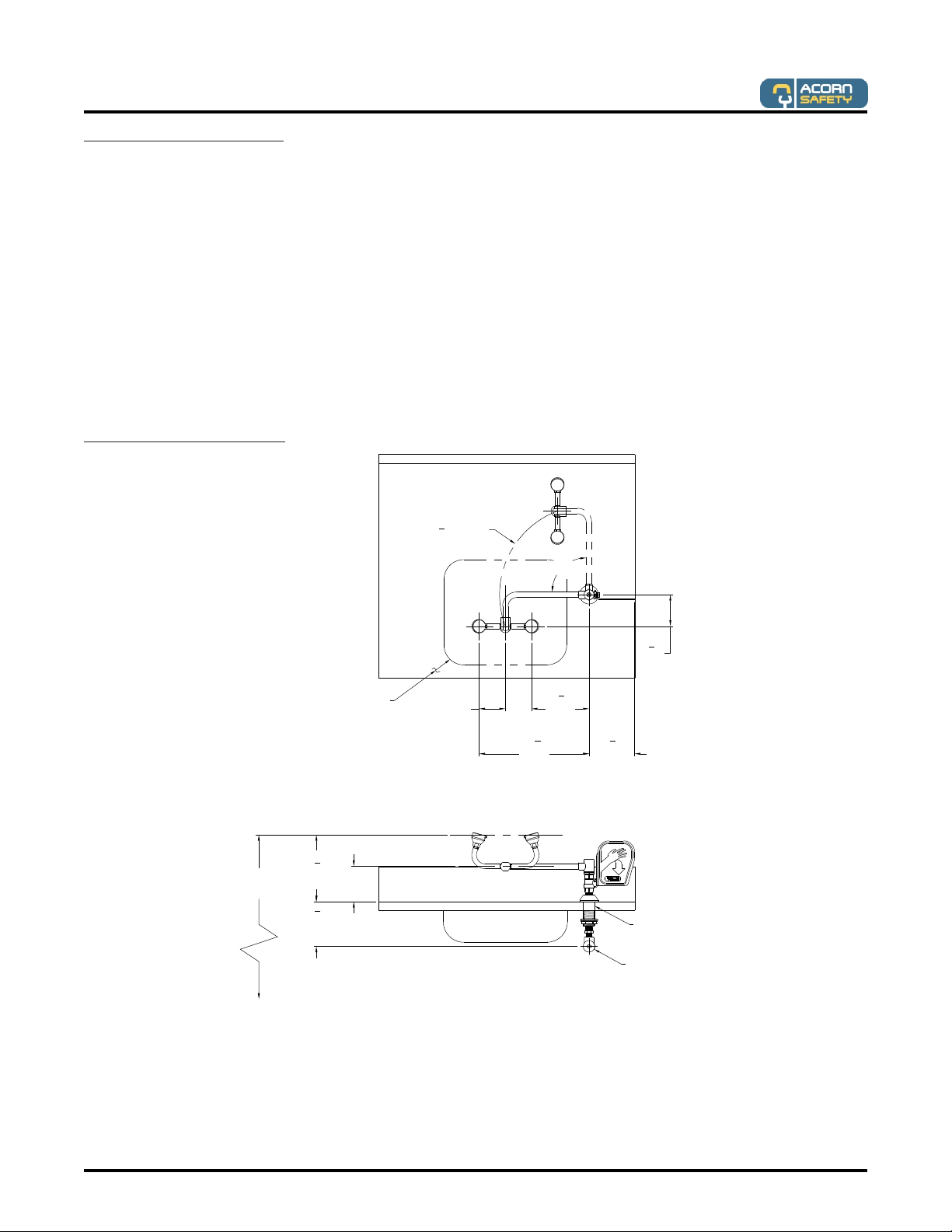

GENERAL NOTES:
1. ALL DIMENSIONS ARE IN INCHES [MM].
2. REFER TO ADA FOR CLEAR FLOOR/GOUND SPACE AND APPROACH REQUIREMENTS.
*3. ANSI Z358.1 REQUIRES NOZZLES TO BE MOUNTED BETWEEN 33" - 45" [838 - 1138]
ABOVE THE FINISHED FLOOR.
4. ANSI Z358.1 REQUIRES A MINIMUM DISTANCE OF 6" FROM ANY WALL OR
OBSTRUCTION.
5. S0A50-RH SHOWN, S0A50-LH OPPOSITE
61
2"
[166]
121
2"
[318]
3"
[76]
90°
35
8"
[91]
*33" - 45"
[838 - 1138]
1/2" NPT SUPPLY
Ø1-3/8" [35]
HOLE REQ'D
4"
[102]
51
8"
[129]
75
8"
[194]
DECK & BASIN SUPPLIED
BY OTHERS
R101
4" [R259]
51
4"
[132]

Manual #7109-401-001
Acorn Safety a division of Acorn Engineering Company™
Page 3 of 6 Date: 05/17/13
Installation & Operation Manual
S0A60-RH ROUGH-IN:
GENERAL NOTES:
1. ALL DIMENSIONS ARE IN INCHES [MM].
2. REFER TO ADA FOR CLEAR FLOOR/GOUND SPACE AND APPROACH REQUIREMENTS.
*3. ANSI Z358.1 REQUIRES NOZZLES TO BE MOUNTED BETWEEN 33" - 45" [838 - 1138] ABOVE
THE FINISHED FLOOR.
4. ANSI Z358.1 REQUIRES A MINIMUM DISTANCE OF 6" FROM ANY WALL OR OBSTRUCTION.
5. S0A60-RH SHOWN, S0A60-LH OPPOSITE
41
4"
[108]
71
2"
[192]
41
2"
[115]
61
2"
[165]
125
8"
[321]
31
8"
[78]
90°
1/2" NPT SUPPLY
Ø1-3/8" [35]
HOLE REQ'D
DECK & BASIN SUPPLIED
BY OTHERS
*33" - 45"
[838 -1138]
35
8"
[91]
51
4"
[132]
R101
4" [R260]

Manual #7109-401-001
Installation & Operation Manual
INSTALLATION INSTRUCTIONS:
Supplies required: (not provided by Acorn )
1. Wall/deck mounting hardware to install assembly.
2. Wall fasteners for sign mounting.
3. Pipe sealant or Teflon tape for sealing water
connections.
IMPORTANT: FLUSH WATER SUPPLY LINES PRIOR
TO CONNECTION TO SAFETY EQUIPMENT.
Notes:
— Top of spray nozzles must be between 33”- 45' from
finished floor in order to meet ANSI Z358.1
— Refer to Rough-in for location of supply and drain lines.
— Fragments of Teflon tape or pipe sealant residue can
interfere with the proper operation of this unit. Ensure
pipe sealant methods do not cause contamination in
the system.

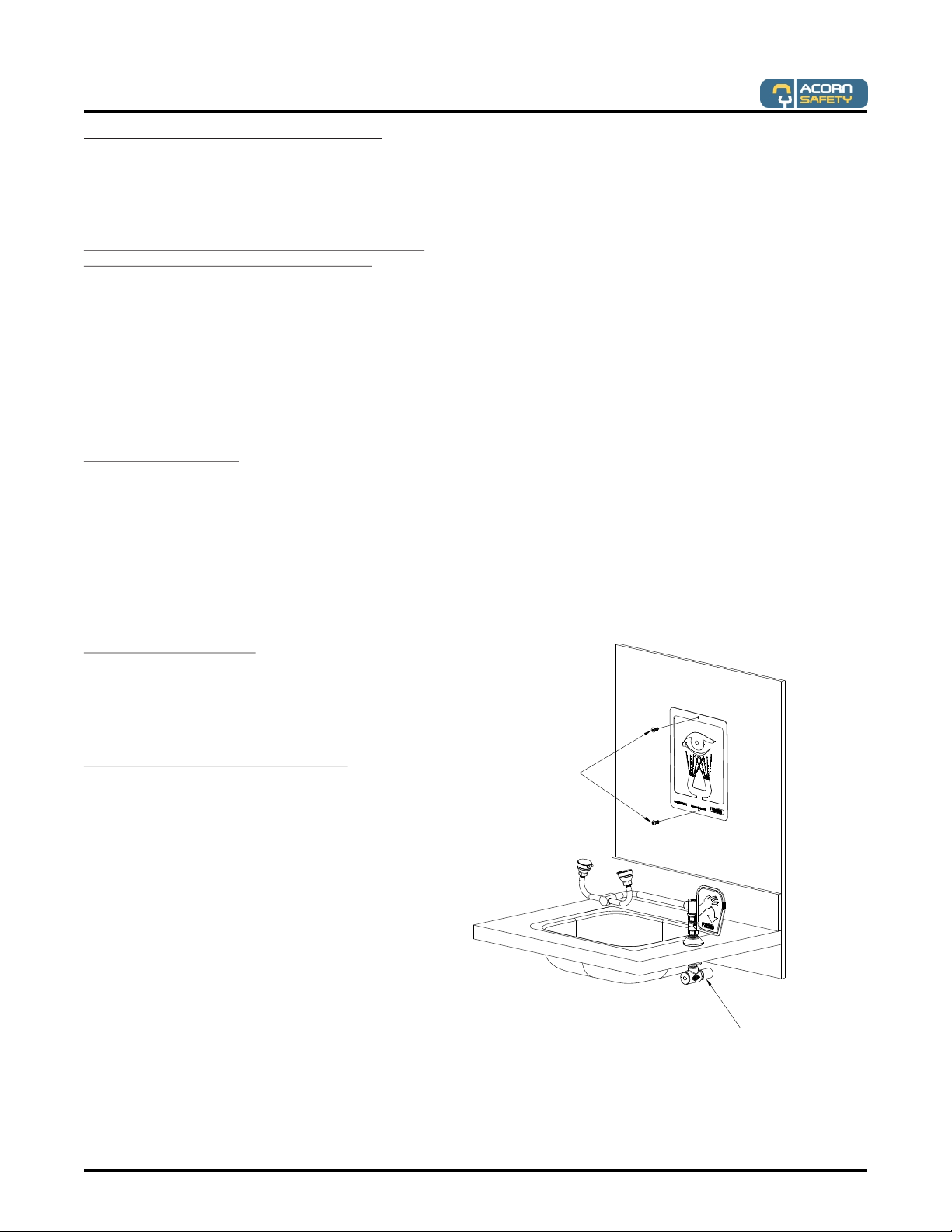

STEP ONE: MOUNTING
1. Mark desired location on counter top and drill a 1.375”
Dia. hole to accept swing arm assembly. Leave space
between backs plash and/or wall for swing arm
assembly to rotate 90 degrees without obstruction.
2. Place swing arm assembly into drilled hole and
secure with supplied washer and nut to hold unit in
place.
3. Assemble strainer to inlet of fitting with close nipple
provided.
STEP TWO: SUPPLY LINE
1. Install water line (supplied by others) in a position to
align with ½” strainer.
2. Open water supply.
3. Test for leaks, proper operation and flow.
STEP THREE: SIGNAGE & INSPECTION
1. Position sign with clear visibility, in close proximity to
safety equipment and mark mounting hole locations.
2. Select appropriate ¼” anchors, screws and washers
(Supplied by others) to install signage.
3. Attach inspection tag supplied, with plastic zip tie.
™
1/2" MALE NPT
CONNECTION TO
WATER LINE
(SUPPLIED BY
INSTALLER)
MOUNTING SCREWS
(PROVIDED BY
INSTALLER)
Acorn Safety a division of Acorn Engineering Company™
Page 4 of 6 Date: 05/17/13

Installation & Operation Manual
Manual #7109-401-001
OPERATION INSTRUCTIONS:
become familiar with the location and operation of the
nearest emergency plumbing fixture. Emergency
plumbing fixtures stations are simple to use and require
hands free operation once the station is activated.
Regular instruction regarding proper care and use will
increase confidence that the units are accessible and
function properly.
The route and area surrounding the Eye Wash should
be clear and unobstructed; the sooner eyes are flushed,
the less likelihood of damage. Eye Wash stations should
be located in close proximity to the hazard and take no
more than 10 seconds to reach. In the case of sever eye
contamination the victim may require assistance to the
Eye Wash station and help flushing their eyes.
Safety plumbing fixture equipment should be operated
weekly for a period long enough to verify operation,
clear the supply line of any sediment build-up and
minimize microbial contamination due to sitting water.
1. To start the Eye Wash, swing spray nozzle assembly
over the basin and push the paddle forward to the
horizontal or fully “ON” position. Flushing should start,
popping the spray nozzle caps open.
2. Lower both eyes into flow. Both eyes should be
flushed to prevent contamination from one eye from
being delivered to unaffected eye. Personnel who
wear contact lenses should remove them immediately
prior to or during the flush to prevent the
contamination from remaining against the cornea
possibly causing unnecessary damage or pain.
3. Using thumb and forefingers, fully open eyelids and
flush eyes thoroughly for approximately 15 minutes or
until medical personnel arrive. Be prepared to let the
doctor know what type of contamination has entered
the eye.
4. When finished return the push paddle to the vertical
or fully “OFF” position and return spray nozzle
assembly to standby position. Flushing fluid should
stop. Once flushing fluid has stopped flowing, return
spray nozzle lids to the closed position to protect from
airborne contaminates.
MAINTENANCE GUIDE:
Maintain and inspect in accordance with ANSI Z358.1-
2009
1. Check for obvious signs of wear, broken or defective
equipment. Re-paint if necessary. Replace missing or
defective equipment such as broken push paddles,
missing signs and inspection tags.
2. Remove strainer and washout any debris collected
–replace as required.
3. Operate Eye Wash nozzles using the push paddle to
place ball valve in the fully “ON” position checking for
smooth operation of valve push paddle mechanism at
the same time ensuring that the Eye Wash spray
nozzle caps pop off immediately when actuated. If the
ball valve does not operate smoothly check the
actuating assembly for binding or missing parts. If the
Employees who work with hazardous materials should
Eye Wash spray nozzle caps do not pop off
immediately when actuated check for correct supply
inlet pressure.
4. While in operation, inspect spray nozzles for clogs or
debris correct or replace as required.
5. Return push paddle to vertical or fully “OFF” position
and swing back to stand by position. To prevent Eye
Wash spray nozzles from becoming contaminated,
always close nozzle lids after each use.
Acorn Safety a division of Acorn Engineering Company™
Page 5 of 6 Date: 05/17/13

Manual #7109-401-001
Installation & Operation Manual
ITEM # PART NUMBER DESCRIPTION
7101-100-001 EYEWASH NOZZLE
7101-104-001 FACEWASH NOZZLE
7104-307-001 YOKE ARM ASSEMBLY - LH
7104-308-001 YOKE ARM ASSEMBLY - RH
7104-362-004 S/S YOKE ARM ASSEMBLY - LH
7104-362-003 S/S YOKE ARM ASSEMBLY - RH
7104-325-001 SWING ARM SWIVEL ASSEMBLY
7104-339-001 S/S SWING ARM SWIVEL ASSEMBLY
7101-233-001 VALVE ACTUATOR ASSEMBLY - LH
7101-232-001 VALVE ACTUATOR ASSEMBLY - RH
7101-435-001 S/S VALVE ACTUATOR ASSEMBLY - LH
7101-434-001 S/S VALVE ACTUATOR ASSEMBLY - RH
7104-356-000 1/2" CLOSE NIPPLE, CHROME
2014-001-000 1/2" S/S CLOSE NIPPLE
7105-098-001 DECK MOUNT ESCUTCHEON ASSEMBLY
7105-111-001 S/S DECK MOUNT ESCUTCHEON ASSEMBLY
7104-190-000 1/2" X 3/8" REDUCING NIPPLE, BRASS
7104-361-000 1/2" X 3/8" REDUCING NIPPLE, S/S
7100-140-001 STRAINER ASSEMBLY
7101-075-001 S/S STRAINER ASSEMBLY
9 7104-357-001 GASKET KIT, SWING ARM ASSEMBLY
7
8
2
3
4
5
6
1
PARTS LIST
Acorn Safety a division of Acorn Engineering Company™
Page 6 of 6
1
2
3
4
5
6
7
8
9
Date: 05/17/13
