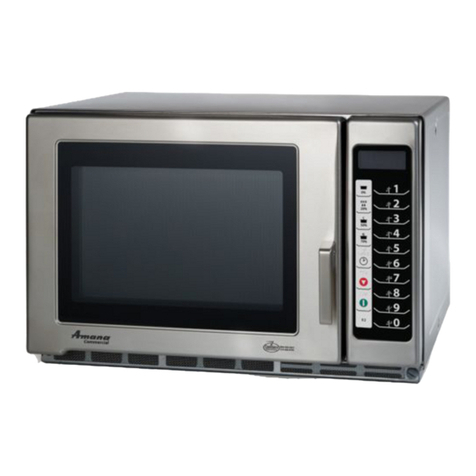

ACP RCS511TS Manual

International Commercial Microwave-Technical Information
November 2013 16500043
©2013 ACP Inc.
1
230 VAC, 50 Hz model
RCS511TS P2002405M RCS511TSA P2002407M
RCS511TSU P2002409M CRCS511TS P2002410M
•Due to possibility of personal injury or property damage, always contact an authorized technician for servicing or
repair of this unit.
•Refer to Service Manual for installation, operating, testing, troubleshooting, and disassembly instruction.
All safety information must be followed as provided in Service Manual.
To avoid the risk of electrical shock, personal injury or death; disconnect power to oven and discharge capacitor
before servicing, unless testing requires power.
Models
CRCS511TS
RCS511TS
RCS511TSA
RCS511TSU
Power Source
Voltage AC 220 VAC 230 VAC 230 VAC 230 VAC
Amperage (Single Unit) 15A 15 A 15 A 15 A
Frequency 50 Hz 50 Hz 50 Hz 50 Hz
Single Phase, 3 wire grounded X X X X
Receptacle JIS 8303 CEE 7/7 Schuko KKP-550A KKP-650
Plug JIS 8303 CEE 7/7 Schuko KKP-550A KKP-650
Power Output −
−−
−Microwave
Nominal microwave energy (IEC705) 1000 Watts 1000 Watts 1000 Watts 1000 Watts
Minimum temperature rise (∆T) 10ºF / 5ºC 10ºF / 5ºC 10ºF / 5ºC 10ºF / 5ºC
Operating Frequency 2450 MHz 2450 MHz 2450 MHz 2450 MHz
Power Consumption
Microwave only 1550 Watts 1550 Watts 1550 Watts 1550 Watts
Dimensions
Cabinet (in cm)
Width 22" 56 cm 22" 56 cm 22" 56 cm 22" 56 cm
Height 13 3/4" 4.9 cm 13 3/4" 4.9 cm 13 3/4" 34.9 cm 13 3/4" 34.9 cm
Depth 19" 48.2 cm 19" 48.2 cm 19" 48.2 cm 19" 48.2 cm
Oven Interior (in cm)
Width 14 1/2" 36.8
cm
14 1/2" 36.8 cm 14 1/2" 36.8 cm 14 1/2" 36.8 cm
Height 8 1/2" 21.6 cm 8 1/2" 21.6 cm 8 1/2" 21.6 cm 8 1/2" 21.6 cm
Depth 15 " 38.1 cm 15 " 38.1 cm 15 " 38.1 cm 15 " 38.1 cm
Weight
Uncrated 41 lbs. 18.6 kg 41 lbs. 18.6 kg 41 lbs. 18.6 kg 41 lbs. 18.6 kg
Features
Timer 60 minute 60 minute 60 minute 60 minute
Power Selection 4 Levels 4 Levels 4 Levels 4 Levels
Cavity Volume 1.2 cu. Ft. 1.2 cu. Ft. 1.2 cu. Ft. 1.2 cu. Ft.
CAUTION
!
!
WARNING

Component Testing Procedures
To avoid risk of electrical shock, personal injury or death; disconnect power to oven and discharge capacitor
before servicing, unless testing requires power.
16500043 November 2013
©2013 ACP Inc.
!
WARNING
2
Illustration Component Testing Results
Thermal cutout Disconnect all wires from TCO.
Measure resistance across terminals.
Cavity TCO ...........................................
Magnetron TCO ....................................
Opens at 100ºC (212ºF)
Closed at 60ºC (140ºF) and
Opens at 160ºC (320ºF)
Diode Discharge Capacitor
Remove diode lead from capacitor and
connect ohmmeter.
Reverse leads for second test.
Infinite resistance should be
measured in one direction and 50KΩ
or more in the opposite direction.
NOTE: Ohmmeter must contain a
battery of 6 volts minimum.
Capacitor Discharge Capacitor
Remove wires from capacitor terminals
and connect ohmmeter, set on highest
resistance scale to terminals.
Also check between each terminal and
capacitor case.
Between Terminals: Meter should
momentarily deflect towards zero
then return to over 5 MΩ. If no
deflection occurs, or if continuous
deflection occurs, replace capacitor.
Terminal to Case: Infinite resistance
Magnetron Discharge Capacitor
Remove wires from magnetron and
connect ohmmeter to terminals. Also
check between each terminal and
ground.
Between Terminals: Less than 1
Ω
Each terminal to ground measures
Infinite resistance.
Note: This test is not conclusive. If
oven does not heat and all other
components test good replace the
magnetron and retest.
Blower motor Remove all wires from motor.
Measure resistance across coil .............
Approximately 160 Ω
Stirrer motor Remove all wires from motor.
Measure resistance across terminals ....
Approximately 14.7K Ω
Transformer Discharge Capacitor
Remove all wires from terminals.
Measure resistance from:
Primary................................................
Filament...............................................
Secondary to Ground screw on
transformer stack.................................
Less than <1 Ω
Less than <1 Ω
Approximately 110 Ω
Lamp and receptacle Test continuity of receptacle terminals. Indicates continuity with bulb
installed.
Wire Harness Test continuity of wires Indicates continuity
Secondary
Filament
Primary

Component Testing Procedures
To avoid risk of electrical shock, personal injury or death; disconnect power to oven and discharge capacitor
before servicing, unless testing requires power.
November 2013 16500043
©2013 ACP Inc.
!
WARNING
3
Illustration Component Testing Results
Fuse block / Filter
assembly
Power In terminals......................................
Power Out terminals ...................................
230 VAC
230 VAC
If no power in, check power outlet
If no power out, check fuses
Interlock switch assembly
(Mechanical)
Disconnect wires to switch.
With door open measure resistance from:
Monitor – Terminals 3 - 4..................
Primary – Terminals 1 - 2..................
Secondary – Terminals 5 - 6.............
With door closed measure resistance from:
Monitor – Terminals 3 - 4..................
Primary – Terminals 1 - 2..................
Secondary – Terminals 5 - 6.............
After verifying or replacing the module,
re-connect wires to switch and check
operation of monitor circuit before
operating the oven.
Indicates continuity
Infinite Ω
Infinite Ω
Infinite Ω
Indicates continuity
Indicates continuity
Electronic control board
1. CN1 connector) Measure voltage at
BN (1) and BL(3) terminal leads .....
2. (Relay 1) Measure voltage across BL
and WH terminal leads ...................
3. (CN1) Measure voltage across
BN (3) and WH (4) terminal leads...
Approximately 230-240 VAC
230-240 VAC OFF position (Door
Closed)
0 volts Cook mode (Door
Closed)
230-240 VAC OFF position
(Fan/Light Off)
0 volts (Fan/Light ON)
1
2
3
4
5
6
PRIMARY
INTERLOCK SWITCH
MONITOR
INTERLOCK SWITCH
SECONDARY
INTERLOCK SWITCH
Relay 1
Relay 2
(CN1)
1 3 4 6 7
(CN3)

Power Test
To avoid risk of electrical shock, personal injury or death; disconnect power to oven and discharge capacitor
before servicing, unless testing requires power.
16500043 November 2013
©2013 ACP Inc.
!
WARNING
4
All microwave oven power outputs are rated using the IEC705 standards. Using the IEC705 test method requires
precision measurements and equipment that is not practical to be performed in the field. Using the test shown below
will indicate if the oven performance is satisfactory.
Test equipment required:
•1000 ml test container and thermometer
•Digital watch / watch with a second hand for use on ovens with electromechanical timers.
Important Notes:
•Low line voltage will cause low temperature rise / power output.
•Ovens must be on a dedicated circuit, properly grounded, and polarized. Other equipment on the same
circuit may cause a low temperature rise / power output.
•This test and results are not a true IEC705 test procedures and are only intended to provide servicers with
an easy means of determining if the microwave oven cooking output is correct.
Procedure
1. Fill the test container to the 1000 ml line with cool tap water.
NOTE: Water temperature should be approximately 60°F / 16°C
2. Using the thermometer, stir water for five to ten seconds; measure, and record the temperature (T1).
3. Place test container of water in the center of oven cavity and close door.
4. Heat the water for a 33-second full power cycle.
NOTE: Use a digital watch or a watch with a second hand for ovens with electromechanical timers.
5. At end of the cycle, remove test container. Using the thermometer, stir water for five to ten seconds and record
temperature (T2).
6. Subtract the starting water temperature (T1) from the ending water temperature (T2) to obtain the temperature
rise (∆T).
7. If the temperature rise (∆T) meets or exceeds the minimum, the test is complete. If the temperature rise (∆T)
fails to meet the minimum temperature rise, test the line voltage to verify it is correct. Then repeat steps 1 - 6
making sure to change the water. If the temperature rise (∆T) fails to meet the minimum temperature rise again
the oven will require service.
Minimum Temperature Rise at Thirty -Three (33) Seconds Run Time
∆T Cooking ∆T Cooking ∆T Cooking ∆T Cooking
(°F) Power Output (°F) Power Output (°C) Power Output (°C) Power Output
10 ................. 1000 20................. 2000 5 .............. 1000 11............ 2000
11 ................. 1100 21................. 2100 5.5 ............ 1100 11.5......... 2100
12 ................. 1200 22................. 2200 6.5 ............ 1200 12............ 2200
14 ................. 1400 24................. 2400 7.5 ............ 1400 13............ 2400
17 ................. 1700 25................. 2500 9.5 ............ 1700 13.5......... 2500
18 ................. 1800 27................. 2700 10 ............. 1800 15............ 2700
19 ................. 1900 30................. 3000 10.5 .......... 1900 16.5......... 3000

Wiring Diagram and Schematic
To avoid risk of electrical shock, personal injury or death; disconnect power to oven and discharge capacitor
before servicing, unless testing requires power.
November 2013 16500043
©2013 ACP Inc.
!
WARNING
5
