ACR STOVES Tenbury T400ECO User manual

Tenbury
Multifuel Stove • Model T400ECO
To be retained by the user for future reference
Thank you for purchasing an ACR Heat Products stove
TECHNICAL MANUAL
Document T400ECO 0101 • Version 1 Date 02/03/20
Serial Number:
MULTI
FUEL
DEFRA
EXEMPT
AIRWASH
SYSTEM
10
YEAR
10
YEAR
WARRANTY
Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 1

Important!
• Before installation and/or use of this
appliance please read these instructions
carefully to ensure that all requirements are
fully understood.
• This appliance must be installed by a
registered engineer, or approved by building
control, failure to do so may endanger life and
property.
• All the instructions in this manual should work
in conjunction with building regulations
document J, if there is a variation the most
stringent requirement should be adhered to.
• The installation of this appliance must comply
with current Building Regulations and local
regulations, including those referring to
national and European standards need to be
complied with when installing the appliance.
• Do not operate this appliance if it becomes
damaged.
• Improper use, maintenance or fitting parts
other than those approved by the
manufacturer could lead to the appliance
becoming damaged or unsafe which in turn
could lead to personal injury or damage to
the property and will void the warranty.
• The appliance must not be modified in
anyway unless authorised by ACR Heat
Products Ltd.
• The appliance should be inspected regularly
to ensure the airways are clean and free from
obstruction and the chimney swept at least
once a year.
• The external surfaces of this appliance will be
very hot to the touch when in operation and
due care will need to be taken when
operating the appliance to ensure safety. A
fire guard should be fitted if it is likely that the
elderly, infirm or children may come into
contact with the appliance.
• This appliance has been designed for
intermittent operation.
• This appliance must not be used as an
incinerator.
• Each installation is unique to the property, the
information contained in this manual may not
give exact installation requirements for your
installation.
• The installation must comply with Building
Regulations, European Standards and Local
authority bylaws. Asbestos This appliance
contains no asbestos, if there is the
possibility of disturbing any asbestos in the
installation of this appliance then specialist
advise must be sought and appropriate
precautions taken. Metal Parts This appliance
may contain sharp metal edges, take care
when installing or servicing this appliance to
avoid personal injury. Please use appropriate
personal protective equipment at all times.
To ensure that you gain the most from your purchase, please take a few minutes
to read through this manual before lighting the appliance for the first time.
Since April 2002 only registered competent installers can install solid fuel appliances. Installations
carried out by non-registered installers must be inspected by local authority building control.
For more information please contact hetas at: www.hetas.co.uk or telephone: [phone]
Before installation, please ensure that the correct model has been supplied.
Please make a note of the serial number of your appliance in the space provided on the front cover of
this manual as this will be requested if you require technical assistance in the future.
Please also ensure that the commissioning checklist at the rear of the manual is completed in full.
2
Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 2

Tenbury Specifications
*** Please note that Building Regulations Document J advises that additional permanent air supply is
required for appliances with an output of above 5Kw.
With modern properties additional air may be required as Document J suggests that additional air
would be a benefit.
• If design air permeability ≥5.0m³/ (h.m²) then 550mm²/kW of appliance rated output above 5kW
Or
• If design air permeability ≤5.0m³/ (h.m²) then 550mm²/kW of appliance rated output
• If in doubt, please consult your registered installer for advice.
Nominal heat output 5 kW - Wood 5 kW - Maxibrite
Chimney draft required 12Pa (on start up after initial 3 minutes)
Height 550 mm (Internal Box) 588 mm (External Trim)
Width 396 mm (Internal Box) 470 mm (External Trim)
Depth 337 mm (Recessed) 347 mm (External Trim)
Weight 60 kg
Air Requirement N/A ***
Flue Mass Gas Flow 4.4g/s - Wood 3.1g/s - Maxibrite
CO @ 13% O20.06 Wood Vol% 0.07 Maxibrite Vol%
Mean Flue Gas Temperature 292°C - Wood 277°C - Maxibrite
Efficiency 78.3% - Wood 82.1% - Maxibrite
Mean CnHm @13% O231 Nmg/m3- wood 42 Nmg/m3- Maxibrite
Mean NOX @13° O287 Nmg/m3- wood 81 Nmg/m3- Maxibrite
DIN Plus Dust @13° O219 Nmg/m3- wood 17 Nmg/m3- Maxibrite
Log Length Up To 250 mm
Hearth Temperature 181ºC
DO NOT INSTALL IN A ROOM CONTAINING AN EXTRACTOR FAN UNLESS THE APPLIANCE
HAS BEEN CORRECTLY TESTED IN ACCORDANCE WITH BUILDING REGS DOC J
470
40
628 588
337
168
550
3
Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 3

Technical Data & Declaration of Performance
4
Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 4

The Clean Air Act 1993 and Smoke Control Areas
DEFRA
EXEMPT
Under the Clean Air Act local authorities
may declare the whole or part of the
district of the authority to be a smoke
control area. It is an offence to emit
smoke from a chimney of a building,
from a furnace or from any fixed boiler if
located in a designated smoke control
area. It is also an offence to acquire an
"unauthorized fuel" for use within a
smoke control area unless it is used in
an "exempt" appliance ("exempted"
from the controls which generally apply
in the smoke control area).
In England appliances are exempted by
publication on a list by the Secretary of
State in accordance with changes made
to sections 20 and 21 of the Clean Air
Act 1993 by section 15 of the
Deregulation Act 2015. Similarly in
Scotland appliances are exempted by
publication on a list by Scottish
Ministers under section 50 of the
Regulatory Reform (Scotland) Act 2014.
In Northern Ireland appliances are
exempted by publication on a list by
the Department of Agriculture,
Environment and Rural Affairs under
Section 16 of the Environmental Better
regulation Act (Northern Ireland) 2016.
In Wales appliances are exempted by
regulations made by Welsh Ministers.
• The Tenbury (T400Eco)
has been recommended
as suitable for use in
smoke control areas
when burning wood. As
such, when the
secondary/tertiary slider is in the
closed position it remains open by
3mm and is prevented from closing
by a screw.
Further information on the requirements
of the Clean Air Act can be found here:
www.gov.uk/smoke-control-area-rules
Your local authority is responsible for
implementing the Clean Air Act 1993
including designation and supervision of
smoke control areas and you can
contact them for details of Clean Air Act
requirements.
CO Alarms
It is required by building regulations that
whenever a new or replacement
wood/solid fuel or biomass appliance is
installed in a dwelling a carbon monoxide
alarm to BS EN 50292:2002 must be fitted
in the same room as the appliance.
The alarm should be installed according
to the alarm manufacturers instructions
and should not be considered a substitute
for the appliance being installed
incorrectly or regular maintenance of the
appliance or flue system by a competent
person.
5
Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 5

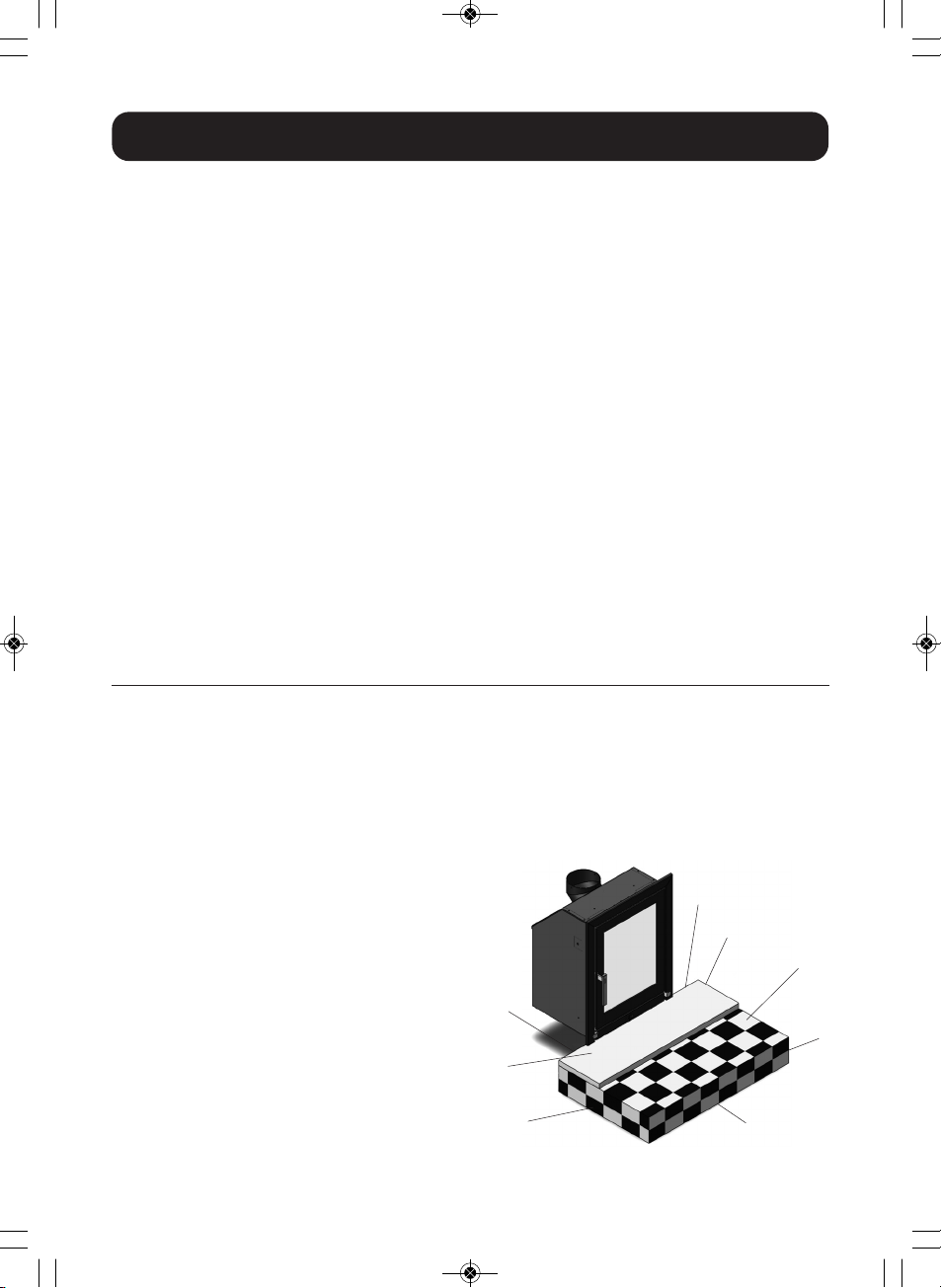

Installation Instructions
Location of the unit
The appliance must stand on a non-
combustible constructional hearth
which is at least 125mm thick with the
minimum dimensions as shown in the
opposite diagram (please see Building
regs. Document J for further
information).
If the appliance is to be fitted in a raised
application, due consideration should
be given to extending the depth of the
superimposed hearth to safely contain
any falling embers or logs.
The hearth and building construction
must be of a suitable material to comply
with current building and local authority
regulations. The fabrication of the
construction must have a suitable load
bearing capacity for the appliance and
hearth.
If in any doubt, please consult a
competent person for advice before
proceeding.
150mm
150mm
225mm
Constructional
Hearth
Superimposed
Hearth
500mm 772mm
125mm
Important information
Before installation and/or use of this
appliance please read these instructions
carefully to ensure that all requirements
are fully understood.
This appliance must be installed by a
registered engineer, or approved by
building control, failure to do so may
endanger life and property.
All the below instructions should work in
conjunction with building regulations
document J, if there is a variation the
most stringent requirement should be
adhered to.
Asbestos
This appliance contains no asbestos, if
there is the possibility of disturbing any
asbestos in the installation of this
appliance then specialist advice must
be sought and appropriate precautions
taken.
Metal Parts
This appliance may contain sharp metal
edges, take care when installing or
servicing this appliance to avoid
personal injury. Please use appropriate
personal protective equipment at all
times.
Each installation is unique to the
property, the information contained in
this manual may not give exact
installation requirements for your
installation.
The installation must comply with
Building Regulations, European
Standards and Local authority bylaws.
Fire Cement
Some types of fire cement are caustic
and should not be allowed to come into
contact with the skin. In case of contact
wash immediately with plenty of water.
6
Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 6

Minimum Builders
Opening
For ease of installation the builders
opening may be made slightly larger
than the appliance dimensions, please
see diagram opposite.
The construction of fireplace recess
should be of a suitable non-combustible
material such as brick or concrete
blockwork, and have a minimum
thickness of 200mm to the sides and
rear of the appliance, unless it is a back
to back recess within the same property.
Please refer to building regs document J
for more information.

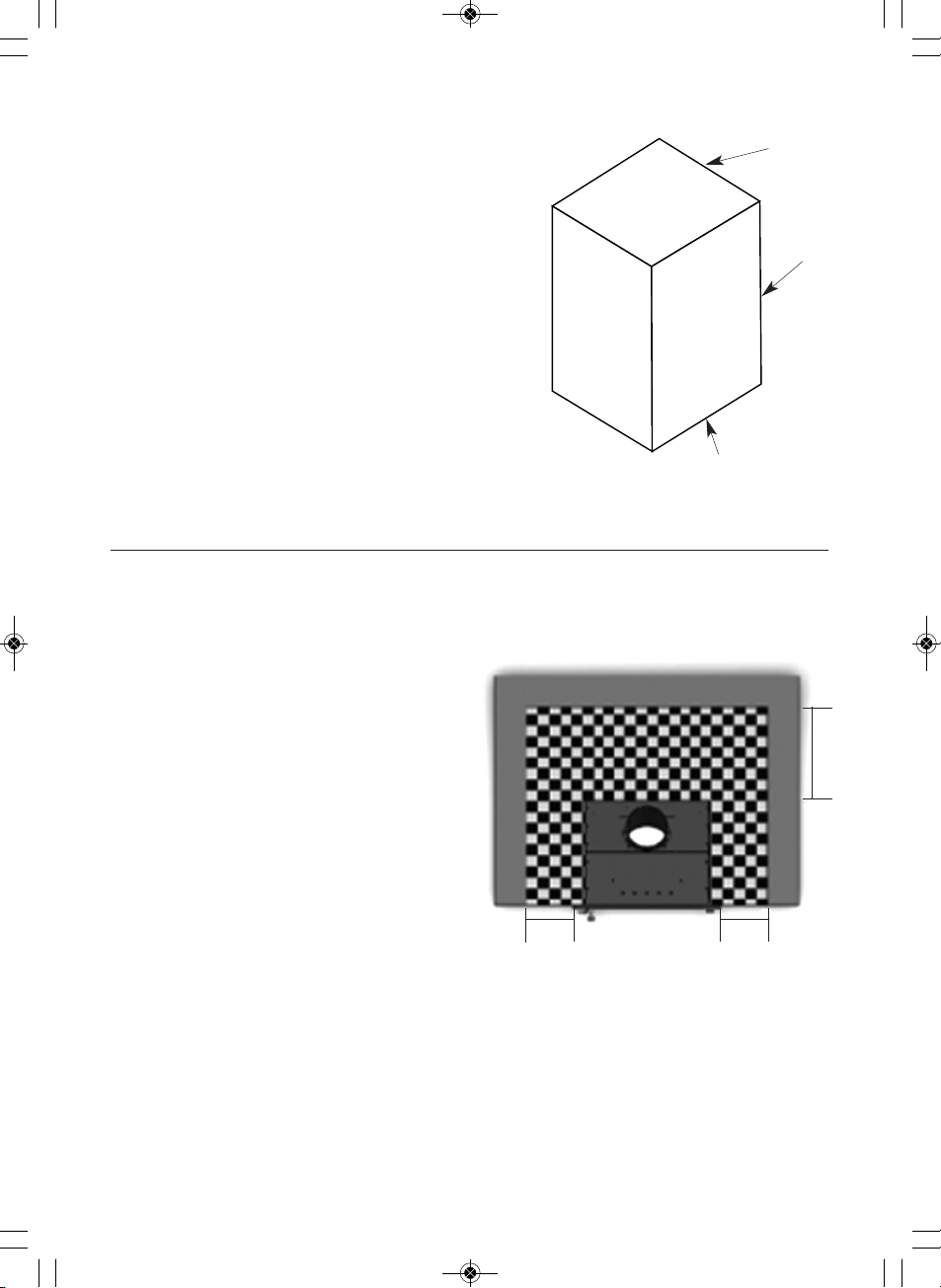

Clearances to
combustible materials
Installation into a false
chimney breast
All parts of the false studwork chimney
must be constructed of a non-
combustible material i.e. metal
studwork.
Do not use combustible materials within
the chequered area (200mm to the sides
of the appliance and 300mm to the rear
of the appliance).
Do not fill the area surrounding the
appliance with insulating material, the
void around the appliance must be
ventilated to prevent a buildup of excess
heat.
There must be minimum ventilating area
at both high and low levels of 50 cm²
each, the vents should take ambient air
from the room in which the appliance is
installed and return the warm air back
into the same room environment.
Consideration should also be taken to
provide adequate access to the
connecting flue for service and
maintenance purposes.
384mm
560mm
420mm
200mm 200mm
300mm
7
Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 7

Installation into a wooden
decorative fireplace
If the appliance is to be fitted in
conjunction with a combustible fire
surround the minimum clearances must
be maintained, please see diagram
opposite (100mm to the sides if
protruding 50mm, 200mm if protruding
100mm and 400mm above to
combustible shelf) these dimensions
should be adhered to from any point of
the appliance to any combustible
material.
If granite, stone, marble or any other
non-combustible decorative material is
to be used as a superimposed hearth
and back panel provision should be
made for heat and expansion. The use
of a slabbed and split back panel and
hearth is recommended, if in doubt
please seek the recommendation of a
competent person or manufacturer of
the above mentioned product.
Curtains and soft furnishings should be
a minimum of 1m away from the
appliance.
We do not recommend that plasma
televisions and expensive artwork are
hung over the fireplace.
Flue Requirements
The flue must comply with current
Building Regulations Document J.
The construction of masonry, flue block,
insulated flue systems and flexible flue
liners must comply with the
manufacturers instructions at all times.
The flue must be:
A 150mm flue diameter is
recommended, 125mm may be
used if the appliance still has its
smoke exempt stop in place
In sound condition and provide
sufficient draft (minimum 12pa
within 3 minutes of ignition)
Suitable for use with solid fuel
burning appliances
Be able to clean the entire length of
the flue system without removal of
the appliance
Free from deposits
Well insulated
At least 4m in height from hearth
level to termination, with no more
than 4 x 45º bends in any one flue
system and have a maximum
horizontal length of no more than
20% of the overall vertical height
The termination should be sited as
to avoid a negative pressure zone
The flue must not be:
Shared with other appliances
Weight bearing on the appliance
A smaller diameter than the
appliance flue collar size (125mm
100mm 100mm
400mm
8
Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 8

Installation of the unit
The appliance is supplied pre-assembled
with the flue spigot in the top exit position
and the Smoke Exempt stop in place.
The Smoke Exempt stop must not be
removed unless the appliance is
installed in a non-smoke exempt area
and this action should only be
undertaken by a competent person.
To remove the smoke exempt stop,
remove the M8 smoke exempt bolt from
the front of the secondary air slider.
• This appliance cannot be installed with a
rear flue option, please note that if
using a 4 sided trim this must be
installed between step 7 and 8.
Remove the trim by pulling it towards
the front of the appliance.
Remove the vermiculite baffle by lifting
and rotating through the combustion
chamber. Remove the upper steel
baffle.
Remove the 4 x 10mm bolts located
above the baffle.
Remove the 2 x 10mm bolts located on
the left and right half way up between
the outer convection box and the inner
combustion chamber.
Seperate the outer box from the inner
chamber and remove the remaining 2 x
10mm bolts that hold the flue collar in
place.
Slide the outer box into the prepared
opening and affix, connect the flue
adaptor and liner to the flue collar,
screw and seal using an appropriate
sealant.
Reconnect the flue collar using the 2 x
10mm bolts, if fitting with a 4 sided trim
please fit the trim at this time before the
combustion chamber is reinstalled.
Slide the combustion chamber back
into place and replace the 6 x 10mm
screws, replace the baffle and install
the trim if not already in place.
3
4
5
6
7
8
Operating your stove
Using your appliance for the
first time
• To allow the appliance to bed in, and
fixing glues and paint to fully cure, only
fire the appliance using kindling and just
get hot for at least three fires.
• Before lighting the next small fire please
allow the appliance to return back to
room temperature.
• During these first small fires you may
experience a haze and unpleasant smell
as the paint cures, do not touch the paint
and keep the room well ventilated.
Please note that during the first firing, we
recommend a small fire is lit and that you
slowly increase the temperature to enable
the various parts to expand normally.
You may also experience fumes and a
haze being given off by the stove during
the first firing and possibly for the next
couple of firings as the paint cures. This is
normal but please ensure that the room is
well ventilated during this period.
The appliance should not be operated in
mild weather with smokeless fuel. Under
certain weather circumstances e.g. fog the
chimney will not draw sufficiently and
could cause asphyxiation. Either await
better weather conditions or burn wood
only.
In the rare event of a malfunction due to
overheating or a chimney fire, the air slides
should be shut down completely and the
fuel allowed to burn out. In the event of a
chimney fire, once the air slides have been
Always ensure that the ash draw is fully located before operation of
the appliance
2
1
9
Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 9

closed completely, dial 999 for assistance.
If the appliance has overheated, the
appliance and flue will need to be
inspected for any damage before it can be
operated again.
Recommended Fuels
Wood: hardwood such as ash, oak and
beech which have been cut for at least 2
years and stored under shelter. The logs
should have a maximum moisture content
of 20%. Maximum log length 250mm,
maximum width 125mm.
Smokeless Fuels: below 20% Petroleum
coke content such as Anthracite,
Phurnacite, Maxibrite suitable for use with
a closed heating appliance.
Prohibited Fuels
Green wood: i.e wood which is less than 2
years old with a moisture content of above
20%
Recovered wood: i.e pallets, railway
sleepers etc. These will have been
chemically treated and will pollute the
atmosphere and possibly overheat the
appliance.
Housecoal or Bituminous coal: these
fuels will soot up the airways of the stove
and possibly overheat the appliance.
Petroleum Based Coke: over 20%
content - this will overheat the appliance
and possibly damage the unit.
Liquid fuels
Paraffin fire lighter blocks: these can
cause damage to the glass of your
appliance.
Always check with your dealer or directly with
the manufacturer as using the incorrect fuel
may invalidate your guarantee and damage
your appliance.
Instructions for use with wood
• Please ensure that flat steel grate top is
in place if burning wood logs, this will
help to maintain a bed of ash and allow
for correct combustion of the wood logs.
• Open the secondary air slider to the left
hand side of the door, and open the
primary air slider to the right hand side of
the door by fully pushing the levers
inwards.
• Lay firelighters or rolled up newspapers
on the grate and add a small amount of
kindling wood to the top. Place 1 or 2
small logs on the top.
• Light the newspaper or firelighters using
a long taper and push the door closed
but do not engage the locking handle
fully.
• When the fire is burning fiercely, after a
couple of minutes add more logs and
close the door.
• When the fire has become established,
close the primary air, to the right hand
side of the door, by pulling the lever fully
outwards.
• The burning rate can be altered by
moving the secondary air slider, to the
left hand side of the door - pull the lever
outwards to close down and push the
lever inwards to increase the burn rate.
• Care should be taken to ensure that the
logs are not placed where there is a
danger that they may fall onto the glass
or out of the chamber when the door is
opened.
• Never load logs into the appliance that
are oversized or too long for the
combustion chamber, they could press
against the glass and cause damage
when alight. The maximum log length is
250mm.
Instructions for use with
smokeless fuel
• Open the secondary air slider to the left
hand side of the door, and open the
Before using this appliance with approved
smokeless fuel, please ensure that the steel
grate top is cold and removed to a safe
place. Smokeless fuel is ONLY to be burnt
directly on the cast iron grate.
10
Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 10

primary air slider to the right hand side of
the door by fully pushing the levers
inwards.
• Lay firelighters or rolled up newspapers
on the grate and add a small amount of
kindling wood to the top. Place a small
quantity of smokeless fuel on top.
• Light the newspaper or firelighters using
a long taper and push the door closed
but do not engage the locking handle
fully.
• When the fire is burning fiercely, after a
couple of minutes add more smokeless
fuel and close the door.
• When the fire has become established,
close the secondary air by 50%, to the
left hand side of the door, by pulling the
lever outwards.
• The burning rate can be altered by
moving the primary air slide, to the right
hand side of the door - pull the lever
outwards to close down and push the
lever inwards to increase the burn rate.
• Care should be taken to ensure that the
firebox is not overfilled with smokeless
fuel - it should be no higher than the log
guard.
Re-fueling
When refueling the stove always refuel
onto a bed of hot embers, fully open the
secondary and primary air controls until
the new fuel is well alight, before adjusting
the air controls for the desired setting.
If there is insufficient burning material in
the firebed to light a new fuel charge,
excessive smoke emission can occur.
Refueling must be carried out onto a
sufficient quantity of glowing embers and
ash that the new fuel charge will ignite in a
reasonable period. If there are too few
embers in the fire bed, add suitable
kindling to prevent excessive smoke.
Fuel overloading
Never overload the stove - it will work very
well with two medium sized logs. The
amount of fuel specified in this manual
should not be exceeded, overloading can
cause excess smoke.
Glass
Never operate the appliance if the glass
panel is broken or cracked. This can cause
the appliance to overfire, which may
damage the appliance and flue system
and may cause a danger to persons and
property. Only use once the glass is
replaced and the sealing gaskets checked
for integrity, only replace with a
manufactures approved glass.
Operation with door left open
Operation with the door open can cause
excess smoke and overfiring of the
appliance. The appliance must not be
operated with the appliance door left open
except as directed in the instructions.
Dampers left open
Operation with the air controls or
appliance dampers open can cause
excess heat within the appliance. The
appliance must not be operated with air
controls, appliance dampers or door left
open except as directed in the
instructions.
Never leave the stove unattended
until the new fuel is well alight.
Persistent fume emission is
dangerous and must be
investigated.
If fume emission persists, open doors and
windows to ventilate the room and let the
fire die out. Have the chimney inspected
for blockages and clean if required. Do not
relight the fire until the cause has been
found. We recommend that you seek
professional advice.
This appliance has been designed to be
burned with the door closed at all times
other than when refueling.
It should not be operated as an open fire.
Typical refueling intervals for wood is 1
hour and smokeless fuel is 2 hours.
11
Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 11

Maintenance
Daily Maintenance
• The grate should be cleaned regularly
and the ash pan emptied daily.
Never allow the ash in the ashpan to
overfill allowing ash to be in contact
with the underside of the grate.
This will overheat the grate and cause
premature wear and distortion.
• The glass can be cleaned using a soft
damp cloth or a stove glass cleaner
(available from your local stockist)
• Do not clean the glass of your stove
with abrasive cleaners or scratch pads
as this may damage the surface of the
glass causing it to weaken and wear
prematurely.
• Never allow the door gasket to
become wet when cleaning the glass,
this will deteriorate the gasket
prematurely.
Periodic Maintenance
• The chimney should be swept at least
once a year together with the flue pipe
connection. Care should be taken to
ensure that there is not a build up of
soot on the baffle and in the airways of
the appliance.
• If the appliance has not been operated
for long periods, the flue should be
inspected and swept before use to
ensure there are no blockages within
the flue.
• The internal vermiculite panels of the
appliance should be checked regularly
for soundness. If any wear and tear is
found, we recommend these parts are
replaced immediately.
• Check the rope door seals are intact
and are not worn. These should be
replaced on an annual basis to ensure
the correct operation of this appliance.
• Is advisable as part on the periodic
maintenance of your appliance to
lubricate the moving parts of your
stove i.e. handle, air sliders, door
hinges, with a suitable high
temperature lubricant this will ensure
the correct operation of your
appliance.
• It may be necessary to adjust to
tension of the door closing mechanism
during the lifetime of the appliance as
the sealing rope will compress over
time, this is achieved by the adjusting
the bracket on the body of the stove
to the required tension.
Summer
• When the stove is not going to be
used for long periods e.g. the summer
months, we recommend that you keep
the air slides fully open and the door
slightly ajar if possible. This will help to
prevent condensation which may in
turn lead to internal corrosion of
component parts.
We recommend that the appliance is serviced
annually by a competent engineer to ensure it’s
continued safe operation.
12
Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 12

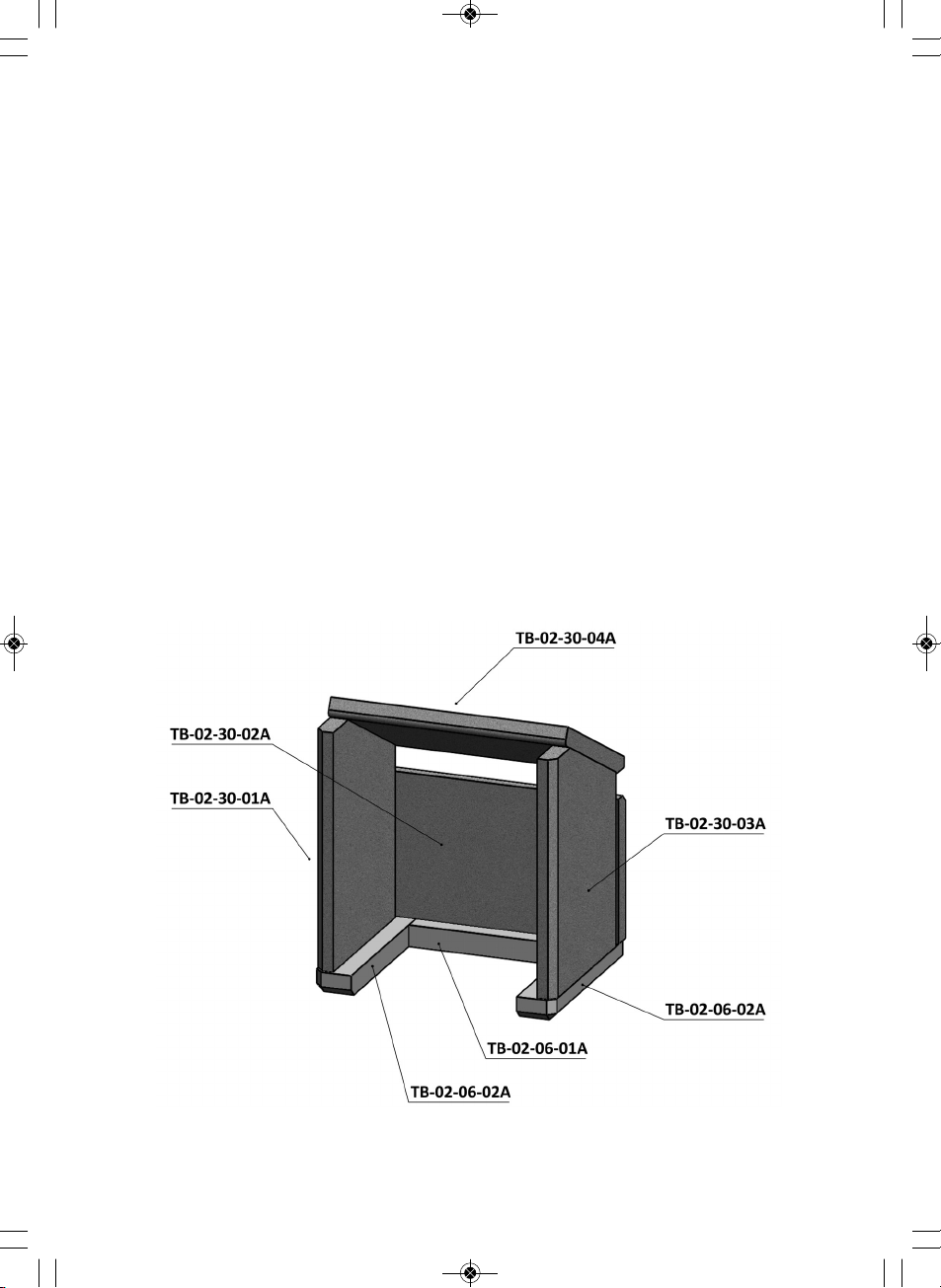

Refractory internal panels
During the normal operation of your
ACR stove, the refractory panels will
experience heating and cooling.
Sometimes minor hairline cracks can
occur. All ACR stoves have a steel or
cast iron structure behind the panels
and therefore even if the cracks get
larger, the stove will still operate safely.
It is advisable to replace the internal
panels when:
• The cracks are greater than 3mm.
• The surface of the refractory panel has
eroded more than 25% of it's original
thickness, or
• When the panel starts to crumble and
fall apart in chunks.
To prevent the issue from happening
and prolong the life of your internal
panels, the homeowner should "burn in"
the refractory panels in the new
appliance by building small kindling fires
to begin with and then gradually
working up to a larger fire. When adding
more fuel to the fire, caution should be
used to prevent excessive mechanical
damage to the panels.
ACR Heat Products bears no
responsibility for the loss or damage of
any kind to the internal panels during or
after installation or during the normal
operation of the appliance.
Use only replacement parts
recommended by the manufacturer.
13
Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 13

Commissioning Check List
Please tick boxes when each procedure is completed
Ensure that the serial number has been recorded on the
front of the manual for future use
Visual Inspection of appliance and flue ensure that all
internal components are fitted correctly (these may
have shifted in transit)
Ensure the door seals are in good condition and that
the glass is secured correctly in the door (do not over
tighten the glass as this will prohibit its expansion and
could cause the glass to crack)
Test on flue including satisfactory smoke test: Record
flue draught reading
Spillage test preformed in accordance with available
guidance
Check socket joints and seals on the flue and
appliance
Instruct user on correct fuels and fuel storage
Ensure the customer is aware that fumes may be given
off during the first firings as the paint cures
Instruct user on essential maintenance in particular
annual maintenance of appliance and flue
Hand over user instructions & demonstrate operation
and all controls to the user
Ensure that a Notice plate has been completed and
fixed in position
Ensure that an approved Carbon Monoxide alarm has
been fitted
Installation Company:
Installation Engineers Name:
Pa/Wg
14
Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 14

18
20
19
16
7
15
3
8
9
214
12
13
4
17
17
21
6
5
1
10
11

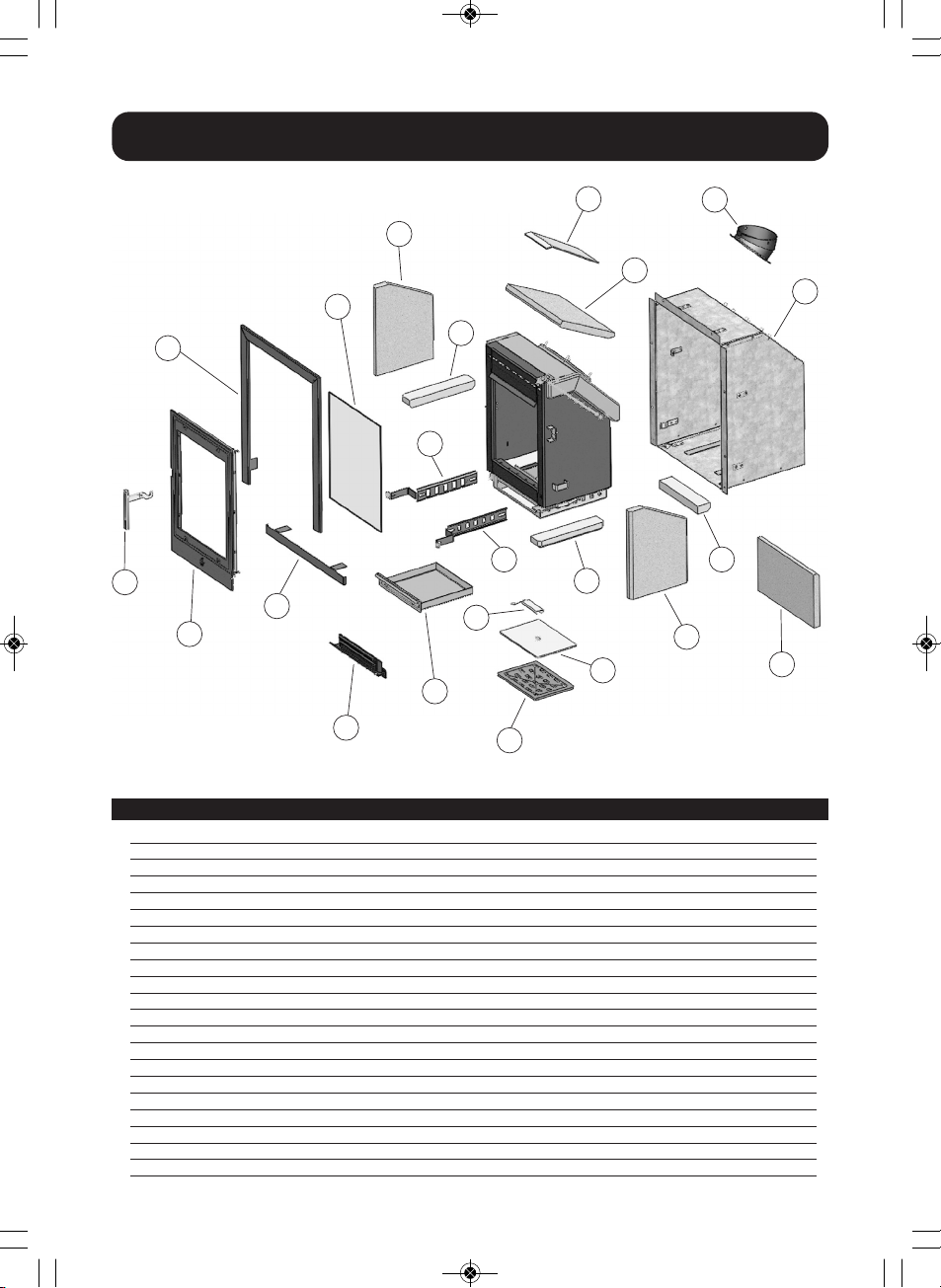

Parts Information
1 TB-03-10-00 Handle
2 TB-03-00-00A Steel door
3 TB-07-00-00 Three sided trim
4 TB-07-00-04A Fourth/Bottom side trim
5 S-4-310x400 Glass panel
6 TB-04-00-00 Fuel retainer
7 TB-05-00-00 Ashpan
8 TB-200 Cast Iron solid fuel grate
9 TB-02-80-00A Steel wood grate top
10 TB-100A Wood grate top removing tool
11 TB-02-11-05A Primary air slider
12 TB-02-11-04A Secondary/Tertiary air slider
13 TB-02-30-01A Left hand vermiculite panel
14 TB-02-30-03A Right hand vermiculite panel
15 TB-02-30-04A Lower vermiculite baffle
16 TB-02-20-00A Upper steel baffle
17 TB-02-06-02A Bottom grate side bricks x 2
18 TB-02-06-01A Bottom grate rear brick
19 TB-02-30-02A Rear vermiculite panel
20 TB-01-00-00A Outer convection box
21 TB-01-08-00 Steel flue collar
Diagram No. Part No. Description
15
Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 15

Troubleshooting
Rapid creosote build-up in
the chimney or flue system
Wet wood
(≥20% moisture)
Use dry seasoned wood (≤20% moisture content).
Operate at a high temperature for short periods each time
the appliance is used to avoid large build-ups of tars and
creosotes
Tar coming from flue joints Appliance operated at
continuous low
temperature
Operate at a high temperature for short periods each time
the appliance is used to avoid large build ups of tar and
creosotes. See user instructions for correct use of air
control
Using poor quality wood Use dry seasoned wood (≤20% moisture content)
Strong acrid smell after the
appliance is lit
Appliance operated at
continuous low output
Operate at high output for short periods. See user
instructions for correct use of air control
Using poor quality wood Use dry seasoned wood (≤20% moisture content)
Wind noise from the air
control
High flue draught Consult your installer for advice on suitable flue system
Dirty firebricks Wet wood
(≥20% moisture)
Use dry seasoned wood (≤20% moisture content)
Dirty glass Wet wood
(≥20% moisture)
Use dry seasoned wood (≤20% moisture content)
Glass blackening Using poor quality wood Use dry seasoned wood (≤20% moisture content)
Low flue draught Consult your installer for advice on suitable flue system
Incorrect use of air control See user instructions for correct use of air control
Appliance operated at
continuous low
temperatures
Operate at high output for short periods. See user
instructions for correct use of air control
Windy days, intermittent
smoke spillage into room
when appliance door is
opened
Down draught in flue
caused by air turbulence
caused by nearby
buildings or trees
Weather conditions combined with the flue terminal
position can have an effect on the appliance performance.
Consult your installer
Calm days, intermittent
smoke spillage into room
when appliance door is
opened
Over size flue giving poor
flue draught
Weather conditions combined with the flue terminal
position can have an effect on the appliance performance.
Consult your installer
Damp/rainy days lighting
and burning problems
Flue temperature low/rain
water inside flue
Use good quality wood to start and maintain the fire,
consult your installer to fit a rain cowl
Wind noise from the air
control
High flue draught Consult your installer for advice on suitable flue system
Problem Reason Action
Problem Reason Action
Your StoveWeather Effects
Key to Symbols: ≤- Less Than ≥- More Than 16
Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 16

Difficulty starting the fire
and keeping it burning well
Low flue draught Consult your installer
Wet wood
(≥20% moisture)
Use dry seasoned wood (≤20% moisture content)
Poor burning control High flue draught Consult your installer
Short burn times Wet wood
(≥20% moisture)
Insufficient amount of fuel
or excessive softwood fuel
Use dry seasoned wood (≤20% moisture content)
Using poor quality wood Use dry seasoned wood (≤20% moisture content)
Excessive heat output (over
firing)
Air control left fully open Close air control to reduce output
Wet wood
(≥20% moisture)
Use dry seasoned wood (≤20% moisture content)
Low heat output Low flue draught Consult your installer for advice on suitable flue system
Wet wood
(≥20% moisture)
Use dry seasoned wood (≤20% moisture content)
Excessive fuel consumption High flue draught Consult your installer for advice on suitable flue system
Excessive use of softwood Do not use building off cut timber or pallet wood
Smoke and small flames Wet wood
(≥20% moisture)
Use dry seasoned wood (≤20% moisture content)
Intermittent smoke spillage
into room when appliance
door is opened
Low flue draught Consult your installer for advice on suitable flue system
Incorrect additional
ventilation air into building
Consult your installer
Continuous smoke spillage
into room when appliance in
use
Blocked flue Open all doors and windows to ventilate the room. Allow
the fire to burn out. Check flue for blockage. Do not re-use
until cause of spillage is identified. Consult your installer
for advice.
Excessive smoke from
chimney
Wet wood
(≥20% moisture)
Use dry seasoned wood (≤20% moisture content)
Problem Reason Action
Smoke Emission Guidance
Issues Using Your Stove
The flue system has two main functions:
• To safely remove the smoke, fumes and combustion gases from the appliance.
• To provide a sufficient amount of flue draught in the appliance to ensure the correct amount of combustible air is introduced to
keep the fire burning.
• The flue draught is caused by rising hot gases when the appliance is lit.
• Tar and creosote are a major cause of chimney fires. If the appliance experiences problems with tar build up, consult a chimney
sweep before continued use of the appliance.
For advice on the correction of persistent flue problems consult a qualified competent engineer before continuing to use
the appliance.
Key to Symbols: ≤- Less Than ≥- More Than
17
Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 17

Warranty Claim Form
In the unlikely event of a warranty claim, please complete the below claim form
and return it to your supplying dealer:
Customer Name:
Customer Address:
Postcode:
Daytime Tel: Mobile Tel:
Model Name: Model Number:
Serial Number: Date of purchase:
Date of installation:
Installer’s Name and address:
Installer’s Registration Number:
Building Control Certificate Number:
(if not installed by a registered competent installer)
Dealer Name and address:
18
Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 18

Warranty Information
The specifications within this document are provided for information purposes only and are under no circumstances binding.
Full warranty information can be viewed on our website www.acrheatproducts.com/warranties
10
YEAR
10
YEAR
WARRANTY
With the aim of constantly
improving our products, all
modifications considered
necessary may be made without
notice.
This manual is correct at time of
printing.
Our appliances are guaranteed
against faults and hidden defects
subject to the following
conditions:
The appliance must have been
installed by a registered competent
installer (e.g. HETAS) or inspected
by local authority Building Control.
The appliance must be installed
and operated in accordance with
our instruction manual.
All Stoves are covered by a 10 year
warranty which covers all stove
body castings / stove body steel
panels. It does not include
consumable items such as glass,
door seals, vermiculite panels,
baffle plates and ashpan runners.
This 10 year warranty is only
applicable when the stove is
purchased from one of our
recommended retailers.
If a stove from any of our brands is
purchased from a non-
recommended retailer then only a
12 month warranty will be
applicable as outlined below.
All stoves are covered by a 1 year
warranty when purchased through
a non-recommended retailer. The
warranty covers the stove body
castings only and does not include
consumable items such as grates,
firebricks, vermiculite panels,
baffles, log guards, door rope and
glass.
Your statutory rights are not
affected by this warranty.
19
Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 19

ACR Heat Products Limited, Unit 1, Weston Works,
Weston Lane, Tyseley Birmingham B11 3RP, England.
• Tel: [phone]
• E-mail: [email protected] • www.acrheatproducts.co.uk
Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 20
