ACR STOVES Oakdale FB1MF User manual

Oakdale
Multifuel Cast Iron Stove • Model FB1MF
To be retained by the user for future reference
Thank you for purchasing an ACR Heat Products stove
TECHNICAL MANUAL
Document FB1MF 0101 • Version 1 Date 03/03/14
Serial Number:
MULTI
FUEL
DEFRA
APPROVED
AIRWASH
SYSTEM
5
YEAR
5
YEAR
WARRANTY
Oakdale FB1 A5 0414-1 30/04/2014 16:27 Page 1

Important!
• The installation of this appliance must
comply with current Building
Regulations and local regulations,
including those referring to national
and European standards need to be
complied with when installing the
appliance.
• Do not operate this appliance if it
becomes damaged.
• Improper use, maintenance or fitting
parts other than those approved by
the manufacturer could lead to the
appliance becoming damaged or
unsafe which in turn could lead to
personal injury or damage to the
property and will void the warranty.
• The appliance must not be modified in
anyway unless authorised by ACR
Heat Products Ltd.
• The appliance should be inspected
regularly to ensure the airways are
clean and free from obstruction and
the chimney swept at least once a
year.
• The external surfaces of this
appliance will be very hot to the touch
when in operation and due care will
need to be taken when operating the
appliance to ensure safety. A fire
guard should be fitted if it is likely that
the elderly, infirm or children may
come into contact with the appliance.
• This appliance must not be used as
an incinerator.
• This appliance has been designed for
intermittent operation.
To ensure that you gain the most from your purchase, please
take a few minutes to read through this manual before lighting
the appliance for the first time.
Since April 2002 only registered competent installers can install solid
fuel appliances. Installations carried out by non-registered installers
must be inspected by local authority building control.
For more information please contact hetas at: www.hetas.co.uk or
telephone: [phone]
Before installation, please ensure that the correct model has been supplied.
Please make a note of the serial number of your appliance in the space
provided on the front cover of this manual as this will be requested if you
require technical assistance in the future.
Please also ensure that the commissioning checklist at the rear of the manual
is completed in full.
Oakdale FB1 A5 0414-1 30/04/2014 16:27 Page 2

Oakdale Specifications
*** Please note that Building Regulations Document J advises that additional permanent air supply is
required for appliances with an output of above 5Kw.
With modern properties additional air may be required as Document J suggests that adequate air
would be a benefit.
• If design air permeability ≥5.0m³/ (h.m²) then 550mm²/kW of appliance rated output above 5kW
Or
• If design air permeability ≤5.0m³/ (h.m²) then 550mm²/kW of appliance rated output
• If in doubt, please consult your registered installer for advice.
Nominal heat output 5 kW - Wood 5 kW – Smokeless Fuel
Chimney draft required 12Pa
Height 550 mm
Width 440 mm
Depth 370 mm
Weight 90 kg
Air Requirement N/A ***
Flue Mass Gas Flow 3.4g/s - Wood 4.7g/s - Smokeless Fuel
CO @ 13% O20.08 vol %
Mean Flue Gas Temperature 274°C - Wood 273°C - Smokeless Fuel
Efficiency 78.3% - Wood 81.5% - Smokeless Fuel
Log Length Up To 300 mm
NOTE: DO NOT INSTALL IN A ROOM CONTAINING AN EXTRACTOR FAN
550 430
120
440 370
Oakdale FB1 A5 0414-1 30/04/2014 16:27 Page 3

The Clean Air Act 1993 and Smoke Control Areas
DEFRA
APPROVED
Under the Clean Air Act local authorities
may declare the whole or part of the
district of the authority to be a smoke
control area. It is an offence to emit
smoke from a chimney of a building,
from a furnace or from any fixed boiler if
located in a designated smoke control
area. It is also an offence to acquire an
"unauthorised fuel" for use within a
smoke control area unless it is used in
an "exempt" appliance ("exempted"
from the controls which generally apply
in the smoke control area).
The Secretary of State for Environment,
Food and Rural Affairs has powers
under the Act to authorise smokeless
fuels or exempt appliances for use in
smoke control areas in England. In
Scotland and Wales this power rests
with Ministers in the devolved
administrations for those countries.
Separate legislation, the Clean Air
(Northern Ireland) Order 1981, applies in
Northern Ireland. Therefore it is a
requirement that fuels burnt or obtained
for use in smoke control areas have
been "authorised" in Regulations and
that appliances used to burn solid fuel
in those areas (other than "authorised"
fuels) have been exempted by an Order
made and signed by the Secretary of
State or Minister in the devolved
administrations.
• The Oakdale
(FB1MF) has been
recommended as
suitable for use in
smoke control areas
when burning wood,
as such, when the secondary air
slider is in the closed position it
remains open by 25mm and the
tertiary air control should be fully
open and is prevented from closing
by a screw.
Further information on the requirements
of the Clean Air Act can be found here:
http://smokecontrol.defra.gov.uk
Your local authority is responsible for
implementing the Clean Air Act 1993
including designation and supervision of
smoke control areas and you can
contact them for details of Clean Air Act
requirements.
CO Alarms
It is required by Building Regulations that
whenever a new or replacement
wood/solid fuel or biomass appliance is
installed in a dwelling a carbon monoxide
alarm to BS EN 50292:2002 must be fitted
in the same room as the appliance.
The alarm should be installed according
to the alarms manufacturers instructions
and should not be considered a substitute
for the appliance being installed correctly
and regular maintenance of the appliance
and flue system by a competent person.
Oakdale FB1 A5 0414-1 30/04/2014 16:27 Page 4

Installation Instructions
Location of the unit
Clearances to non-
combustible materials
There is a recommended minimum
clearance of 150mm at each side of the
appliance. A clearance of 150mm is
required at the back of stove (if the rear
wall has a thickness of 200mm or more
this measurement can be reduced to
50mm) a minimum clearance of 300mm
is required above the appliance.
Clearances to combustible
materials
There must be a minimum clearance of
400mm at each side and 300mm at the
rear of the appliance from any
combustible materials. If using single
wall flue pipe, there must be a clearance
of at least 3 times the diameter of the
flue pipe (e.g. 125mm diameter pipe =
375mm minimum clearance) from any
combustible materials e.g. wooden
beam.
Curtains and soft furnishings should be
a minimum of 1m away from the
appliance.
Adequate space should be provided for
servicing the appliance.
We do not recommend that plasma
televisions and expensive artwork are
hung over the fireplace.
Please remember that this appliance
has been designed to provide heat and
if installed into a recess enough space
should be left around the appliance to
enable the heat produced to rise and
escape from the recess back into the
room.
Hearth Requirements
The appliance must stand on a level
fireproof hearth with a minimum
thickness of 12mm. The hearth
temperature created by this stove is
below 100˚C. The hearth must protrude
at least 300mm in front of the appliance
and 150mm either side of the appliance.
The appliance shall be installed on a
floor with an adequate load bearing
capacity. If an existing construction
doesn’t meet with prerequisite, suitable
measures (e.g. load distributing plate)
shall be taken to achieve it.
Flue Requirements
The chimney must comply with current
Building Regulations. Provision must be
made to provide access for cleaning the
appliance, the flue gas connector and
the chimney flue.
The flue must be:
In sound condition and provide
sufficient draft (minimum 12pa)
Suitable for use with solid fuel burning
appliances
Be able to clean the entire length of the
flue system without removal of the
appliance
Free from deposits
Well insulated
At least 4.5m in height
The flue must not be:
Shared with other appliances
Weight bearing on the appliance
A smaller diameter than the appliance
flue collar size (125mm)
Oakdale FB1 A5 0414-1 30/04/2014 16:27 Page 5

Assembly of the unit

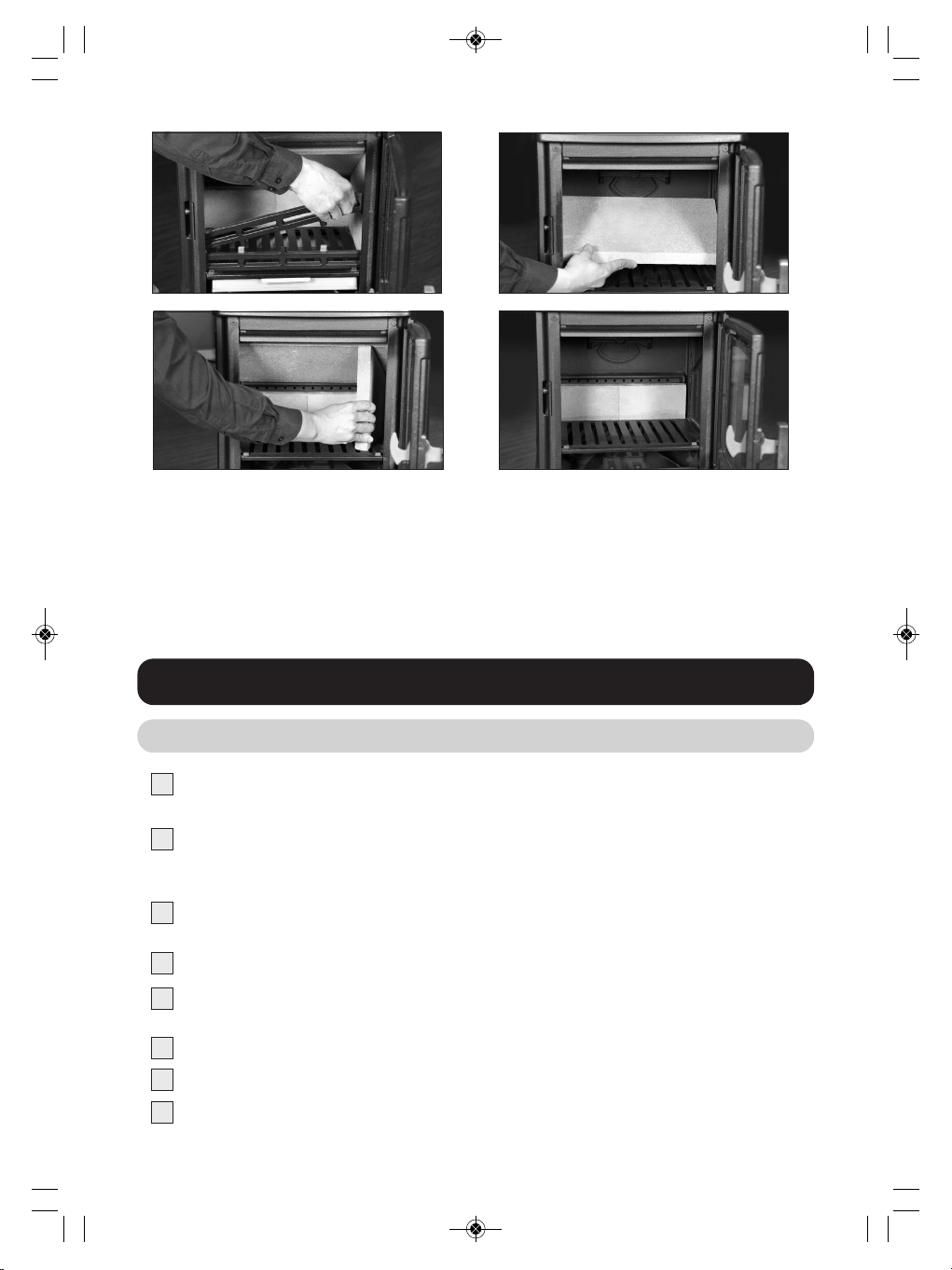

• Remove the internal baffle plate
• Remove the rear metal plate from the
back of the stove
• Remove the rear blanking plate
• Remove the flue spigot from the top
exit by removing the securing bolts
and rope seal
• Refit the rope seal and flue spigot to
the rear exit and secure with the bolts
• Refit the blanking plate to the top exit
using the rope seal and retaining bar
This appliance is equipped with a pre-fitted manufacturers smoke
exempt stop. Under no circumstances should it be tampered with or
removed unless expressly authorised by a competent person and the
appliance is not installed in a smoke exempt area.
If the appliance is to be installed in a non smoke exempt area you can
remove the restricting screw on the secondary air control (indicated by
the two holes) to allow full movement of the secondary air slider.
The appliance is supplied pre-assembled with the flue spigot in the top exit
position.
If you intend to install the appliance using a rear flue connection, the blanking
plate should be swapped over as follows:
Oakdale FB1 A5 0414-1 30/04/2014 16:27 Page 6

Operating your stove
Please note that during the first firing,
we recommend a small fire is lit and
that you slowly increase the
temperature to enable the various
parts to expand normally.
You may also experience fumes and a
haze being given off by the stove during
the first firing and possibly for the next
couple of firings as the paint cures. This
is normal but please ensure that the
room is well ventilated during this
period.
The appliance should not be operated in
mild weather with smokeless fuel. Under
certain weather circumstances e.g. fog
the chimney will not draw sufficiently
and could cause asphyxiation. Either
await better weather conditions or burn
wood only.
In the rare event of a malfunction due to
overheating or a chimney fire, the air
slides should be shut down completely
and the fuel allowed to burn out. In the
event of a chimney fire, once the air
slides have been closed completely, dial
999 for assistance. If the appliance has
overheated, the appliance and flue will
need to be inspected for any damage
before it can be operated again.
Recommended Fuels
Wood: hardwood such as ash, oak and
beech which have been cut for at least 2
years and stored under shelter. The logs
should have a maximum moisture
content of 20%. Maximum log length
300mm, maximum width 125mm.
Smokeless Fuels: below 20%
Petroleum coke content such as
Anthracite, Phurnacite, Ancit suitable for
use with a closed heating appliance.
Prohibited Fuels
Green wood: i.e wood which is less
than 2 years old with a moisture content
of above 20%
Recovered wood: i.e pallets, railway
sleepers etc. These will have been
chemically treated and will pollute the
atmosphere and possibly overheat the
appliance.
Housecoal or Bituminous coal: these
fuels will soot up the airways of the
stove and possibly overheat the
appliance.
Petroleum Based Coke: over 20% -
this will overheat the appliance and
possibly damage the unit.
Liquid fuels.
Always check with your dealer or directly with the manufacturer as
using the incorrect fuel may invalidate your guarantee and damage
your appliance.
Oakdale FB1 A5 0414-1 30/04/2014 16:27 Page 7

Operating your stove
Instructions for use with
wood
• Pull the secondary air slider (marked
with a double hole) fully forward and
open the primary air slider (marked
with a single hole) fully by pulling the
lever forward.
• Pull the tertiary air slider (Marked with
no holes located under the body of the
appliance) out by approximately 50%
• Lay firelighters or rolled up
newspapers on the grate and add a
small amount of kindling wood to the
top. Place 1 or 2 small logs on the
top.
• Light the newspaper or firelighters
using a long taper and push the door
closed but do not engage the locking
handle fully.
• When the fire is burning fiercely, after a
couple of minutes add more logs and
close the door.
• When the fire has become established,
close the primary air (marked with a
single hole) down by pushing the lever
inwards.
• The burning rate can be altered by
moving the secondary air slider
(marked with a double hole) - push the
lever inwards to close down and pull
outwards to increase the burn rate.
• Care should be taken to ensure that
the logs are not placed higher than
the log guard allows. This stove
features a split log guard to allow
differing loads to be managed, only
alter the log guard when the appliance
is fully cold.
Instructions for use with
smokeless fuel
• Pull the secondary air slider (marked
with a double hole) under the ashlip
and open the primary air slider
(marked with a single hole) fully by
pulling the lever forward.
• Make sure that the tertiary slider
(Marked with no holes located under
the body of the appliance) is fully
pushed in.
• Lay firelighters or rolled up
newspapers on the grate and add a
small amount of kindling wood to the
top. Place a small quantity of
smokeless fuel on top.
• Light the newspaper or firelighters
using a long taper and push the door
closed but do not engage the locking
handle fully.
A
A
B
B
C
C
A
B
Oakdale FB1 A5 0414-1 30/04/2014 16:27 Page 8

Operating your stove
• When the fire is burning fiercely, after a
couple of minutes add more
smokeless fuel and close the door.
• When the fire has become established,
close the secondary air (marked with a
double hole) down by pushing the
lever inwards.
• The burning rate can be altered by
moving the primary air slide (marked
with a single hole) - pull forward to
fully open and push inward to close
down.
• Care should be taken to ensure that
the firebox is not overfilled with
smokeless fuel - it should be no
higher than the log guard. This stove
features a split log guard to allow
differing loads to be managed.
Re-fueling
When refueling the stove always refuel
onto a bed of hot embers, fully open
the secondary and primary air controls
until the new fuel is well alight, before
adjusting the air controls for the desired
setting.
If there is insufficient burning material in
the firebed to light a new fuel charge,
excessive smoke emission can occur.
Refuelling must be carried out onto a
sufficient quantity of glowing embers
and ash that the new fuel charge will
ignite in a reasonable period. If there are
too few embers in the fire bed, add
suitable kindling to prevent excessive
smoke.
Fuel overloading
Never overload the stove - it will work
very well with two medium sized logs.
The amount of fuel specified in this
manual should not be exceeded,
overloading can cause excess smoke.
Operation with door left open
Operation with the door open can cause
excess smoke. The appliance must not
be operated with the appliance door left
open except as directed in the
instructions.
Air controls left open
Operation with the air controls or
appliance dampers open fully can cause
damage to the appliance. The appliance
must not be operated with air controls,
appliance dampers or door left open
except as directed in the instructions.
• Never leave the stove unattended
until the new fuel is well alight.
Persistent fume emission is
dangerous and must be investigated.
If fume emission persists, open doors
and windows to ventilate the room and
let the fire die. Have the chimney
inspected for blockages and clean if
required. Do not relight the fire until the
cause has been found. We recommend
that you seek professional advice.
This appliance has been designed to
be burned with the door closed at all
times other than when refueling.
It should not be operated as an open
fire.
Typical refueling intervals for wood is
1 hour and smokeless fuel is 2 hours.
Daily Maintenance
The ashpan should be checked and
emptied regularly.
• You should never allow the ashes in
the pan to build up to the level of
the grate.
If they are allowed to build up, the grate
will become sandwiched between the
ash below it and above it. This will
overheat the grate and cause distortion
and premature wear.
C
Oakdale FB1 A5 0414-1 30/04/2014 16:27 Page 9

Maintenance
Troubleshooting
The chimney should be swept at least
once a year together with the flue pipe
connection. Care should be taken to
ensure that there is not a build up of
soot on the baffle and in the airways of
the appliance.
If the appliance has not been operated
for long periods, the flue should be
inspected and swept before use to
ensure there are no blockages within the
flue.
The grate should be cleaned regularly
and the ashpan emptied daily.
Never allow the ash in the ashpan to
overfill allowing ash to be in contact
with the underside of the grate.
This will overheat the grate and cause
premature wear and distortion.
• The internal vermiculite panels of the
appliance should be checked regularly
for soundness. If any wear and tear is
found, we recommend these parts are
replaced immediately.
• Check the rope door seals are intact
and are not worn. These should be
replaced on an annual basis to ensure
the correct operation of this appliance.
• The glass can be cleaned using a soft
damp cloth or a ceramic glass cleaner
(available from your local stockist)
Use only replacement parts
recommended by the manufacturer.
We recommend that the appliance is serviced annually by a competent
engineer to ensure it’s continued safe operation.
Fire difficult to • Green wood / wet wood Use hardwood logs with a maximum
start / goes out moisture content of 20%
• Logs are too large Use kindling and small logs to start the
fire and once established use split logs
• Not enough primary air Open air control
• Insufficient draft Check the flue is not obstructed
Fire burns too quickly • Too much draft Reduce the air control
• Excessive draft Install a draft stabiliser
Smokes on initial • Flue is cold Burn paper and kindling to increase
lighting heat in flue
Smokes while burning • Insufficient draught Check the flue is not obstructed
Low heat output • Poor quality wood Use seasoned Hardwood (this has a
Higher calorific value)
Problem Probable Cause Action Recommend
Oakdale FB1 A5 0414-1 30/04/2014 16:27 Page 10

Commissioning Check List
Ensure the serial number has been recorded on the front of this manual for any
future use
Ensure the door seals are in good condition and that the glass is secured correctly
in the door (do not over tighten the glass as this will prohibit its expansion and
could cause the glass to crack)
Ensure that all internal components are fitted correctly (these may have shifted in
transit)
Ensure that the appliance operates correctly during the first firing
Ensure the customer is aware that fumes may be given off during the first firings
as the paint cures
Advise the customer on the safe operation of the appliance
Leave the instruction manuals, operating tool and glove for the customer’s use.
Record the flue draught reading of the appliance
Please tick boxes when each procedure is completed
To remove the internal vermiculite baffle:
Firstly remove the front fuel retaining
bars.
Then slightly lift the baffle and ease one
of the side bricks forward by pulling the
front edge of the side brick into the
combustion chamber. Remove the
second side brick in the same manner,
the flue baffle can now be removed by
lowering the front edge and rotating the
baffle and removing through the front
door.
Oakdale FB1 A5 0414-1 30/04/2014 16:27 Page 11

Parts Information
Oakdale FB1 A5 0414-1 30/04/2014 16:27 Page 12

1 03.09244.005 BOTTOM PLATE
2 03.05634.005 ASH LIP
3 03.00395.002 FLUE COLLAR
4 03.52269.005 LEG
5 03.37696.002 AIR TUNNEL
6 03.02476.005 BACK PLATE
7 03.15366.005 BLANKING PLATE
8 03.07216.002 LOCKING PLATE
9 03.79287.005 SIDE LEFT CASTING
10 03.03198.005 COVER PLATE
11 03.79290.005 SIDE RIGHT CASTING
12 03.24473.005 FRONT UPPER CASTING
13 03.37105.002 AIR DEFLECTOR
14 03.37693.002 AIR TUNNEL
15 03.15981.005 DOOR
16 03.69228.005 TOP PLATE
17 03.00314.100 FLUE COLLAR Ø125 INSIDE
18 03.66545.002 FIRE GRATE
19 03.77527.000 BACK FIRE BRICK x 2
20 03.77526.000 SIDE FIRE BRICK x 2
21 03.77543.000 VERMICULITE BAFFLE PLATE
22 03.77430.002 LOG RETAINER
23 03.38016.000 DRAFT CONTROL PRIMARY
24 03.38017.000 DRAFT CONTROL SECONDARY
25 03.38018.000 DRAFT CONTROL TERTIARY
26 03.31452.000 CLAMPING PLATE
27 03.37697.000 AIR TUNNEL
28 02.27046.000 LATCH
29 03.05241.000 ASH BOX
30 03.26374.000 GLASS
31 03.26163.000 GLASS RETAINER
32 03.29042.000 SUPPORT ROPE
33 03.26101.041 GLASS RETAINER
34 03.22201.041 HEXAGON FLANGE BOLT M8X20 BLACK
35 03.13612.000 BUSH Ø12XØ8X3.5
36 03.18710.000 WASHER 8X25
37 04.26419.000 GLASS FIBRE ROPE Ø6MM SELF ADHESIVE
38 03.22204.041 HEXAGON FLANGE BOLT M8X35 BLACK
39 03.22202.041 HEXAGON FLANGE BOLT M8X30 BLACK
40 03.76320.000 ADJUSTBLE LEG
42 04.26422.000 GLASS FIBRE BAND 10X3MM SELF ADHESIVE
43 03.19505.000 STUD M6X35
44 03.18701.000 WASHER 6X18
45 03.19410.000 HEXAGON NUT M6
46 03.19303.041 HEXAGON HEAD SCREW M6X12
47 03.13623.041 BUSH Ø13XØ10X7.5
48 03.13619.100 BUSH LATCH 10X8.5X6
49 03.19304.000 HEXAGON HEXAGON HEAD SCREW M6X16
50 03.18601.041 SCREW M6X12
51 03.18605.041 SCREW M6X30 BLACK
52 03.19507.000 STUD M8X20
53 03.22203.041 HEXAGON BLIND RIVET NUT M8
54 03.19701.000 SCREW M8X25
55 03.19401.000 HEXAGON NUT M8
56 04.26408.000 GLASS FIBRE ROPE Ø8MM
58 03.13644.041 BUSH LOCKING Ø11.5XØ9X7.4
59 03.16601.000 SPRING WASHER 6MM
60 03.20360.000 SCREW M6X16
61 03.21701.041 SET SCREW M6X6 BLACK
62 03.17806.000 COILED SPRING PIN 6X30
63 03.58610.100 HINGE PIN
65 04.26420.000 GLASS FIBRE ROPE Ø8MM SELF ADHESIVE
66 03.19801.041 SCREW M5X10 BLACK
Diagram No. Part No. Description
Oakdale FB1 A5 0414-1 30/04/2014 16:27 Page 13

Warranty Information
The specifications within this document are provided for information purposes
only and are under no circumstances binding.
5
YEAR
5
YEAR
WARRANTY
With the aim of constantly improving our
products, all modifications considered
necessary may be made without notice.
This manual is correct at time of
printing.
Our appliances are guaranteed
against faults and hidden defects
subject to the following conditions:
The appliance must have been installed
by a registered competent installer
(HETAS) or inspected by local authority
Building Control.
The appliance must be installed and
operated in accordance with our
instruction manual.
The guarantee is for a period of 5 years
on the appliance body from the date of
purchase.
The following components are
considered as consumables and are
excluded from the guarantee:
• Grates
• Rope seals
• Ashpan
• Internal vermiculite panels
• Glass
• Baffle plates
Your statutory rights are not
affected by this warranty.
Oakdale FB1 A5 0414-1 30/04/2014 16:27 Page 14

Warranty Claim Form
Customer Name:
Customer Address:
Postcode
Daytime Tel: Mobile Tel:
Model Name: Model Number:
Serial Number: Date of purchase:
Date of installation:
Installer’s Name and address:
Installer’s Registration Number:
Building Control Certificate Number:
(if not installed by a registered competent installer)
Dealer Name and address:
In the unlikely event of a warranty claim, please return the above claim form to:
ACR Heat Products Limited, Unit 1, Weston Works,
Weston Lane, Tyseley, Birmingham, B11 3RP, England.
• Tel: [phone] • Fax: [phone]
• E-mail: [email protected] • www.acrheatproducts.co.uk
Oakdale FB1 A5 0414-1 30/04/2014 16:28 Page 15

ACR Heat Products Limited, Unit 1, Weston Works,
Weston Lane, Tyseley Birmingham B11 3RP, England.
• Tel: [phone] • Fax: [phone]
• E-mail: [email protected] • www.acrheatproducts.co.uk
Oakdale FB1 A5 0414-1 30/04/2014 16:28 Page 16
