ACS WTAU-100 User manual

Technical manual BA 0314
Signal converter
WTAU – 100 / 120 / 200 / 220
Isolation amplifier Pt100 – active
for galvanic isolation, conversion and
adjustment of a Pt100 temperature signal
Input signals Pt100 in 2- or 3-wire-technology
 Zero value –100°C...+35°C
 Measuring range 25K...660K
Output signals
 Direct voltage 0…10V / 2…10V – simultaneous outputs
 Direct current 0…20mA / 4…20mA - simultaneous outputs
Signal adjustment of zero value and amplification – optional
Single or double channel version – optional
Space saving safe isolation with 4kV~
Wide range power supply from 20 to 253V AC and DC
L a u t e r b a c h s t r . 5 7 – 8 4 3 0 7 E g g e n f e l d e n – G e r m a n y
T e l : + 4 9 8 7 2 1 / 9 6 6 8 - 0 – F a x : + 4 9 8 7 2 1 / 9 6 6 8 - 30
i n f o @ a c s - c o n t r o l s y s t e m . d e – w w w . a c s - c o n t r o l s y s t e m . d e

WTAU –100 / 120 / 200 / 220
page 2 of 8
Index
Order code .................................................................................................................... 2
Application .................................................................................................................... 3
Function ........................................................................................................................ 3
Safety notes .................................................................................................................. 4
Installation ..................................................................................................................... 4
Maintenance ................................................................................................................. 4
Repair ............................................................................................................................ 4
Electrical connection ................................................................................................ 5 / 6
Operation and display elements ................................................................................... 7
Technical data ............................................................................................................... 8
Order code
WTAU – 100 – U0 Version single channel device, adjustable
WTAU – 120 – AB – U0 Version single channel device, fix adjusted
temperature range
code no. A
output 1
code no. B
0°C…+50°C
A
0…10V
1
0°C…+100°C
B
0…20mA
2
0°C…+150°C
C
4…20mA
3
0°C…+200°C
E
special range
Y
0°C...+250°C
F
0°C…+300°C
G
0°C…+400°C
H
0°C…+500°C
J
0°C…+600°C
L
output 2
code no. C
-40°C...+60°C
Q
0…10V
1
-50°C...+100°C
O
0…20mA
2
-100°C...+50°C
M
4…20mA
3
special range
Y
special range
Y
WTAU – 220 – ABC – U0 Version double channel device, fix adjusted
WTAU – 200 – U0 Version double channel device, adjustable
WTAU –
100 – U0
WTAU –
120 – U0
WTAU –
200 – U0
WTAU –
220 – U0
Fix adjusted version
x
x
Adjustable version
x
x
Single channel version
x
x
Double channel version
x
x

WTAU –100 / 120 / 200 / 220
page 3 of 8
Application
The active isolation amplifier of the series WTAU is used to linearize Pt100 temperature signals, to convert it
into one resp. two galvanic isolated electrical standard signals or to adjust the signals in the zero value and/or
end value resp. amplification.
A galvanic isolation is sometimes the only possibility at error generating ground loops, unwished signal
overlapping and potential problems.
Thus, a current flow between more signal current circuits that distort the signal is avoided.
The free configurable resp. fix signal conversion, dependent on version, allows the flexible adaption of the Pt100
temperature signal to different systems, e.g. to the standard signal input of a SPS control.
The adjustable version is suitable, if sections, e.g. +10°C...+40°C of a standard temperature signal 0°C...+50°C
should be amplified to a complete standard signal e.g. 4...20mA or for zero value adjustment e.g. because of
temperature losses caused by heat transfer.
At the versions WTAU – 200 – U0 / WTAU – 220 – U0 the Pt100 temperature signal is converted in parallel into
two electrical standard signal. Thus the Pt100 temperature signal can be doubled, to use it in two separated
evaluation circuits.
Function
Measuring principle
Version WTAU – 100 – U0 / WTAU – 200 – U0 – adjustable version
The connected resistance proportional electrical Pt100 voltage signal is measured by the evaluation circuit,
linearized, adjusted according to the front-sided trimmer and transmitted galvanically isolated to the
simultaneous output signals 0...10V and 0...20mA or 2...10V and 4...20mA according to the settings of the
internal configuration switches.
The respective current resp. voltage signals at the output can be used simultaneous. Therefore there are
simultaneous 2 output signals at the single channel versions WTAU – 100 – U0 and simultaneous 4 output
signals at the double channel version WTAU – 200 – U0 are available.
Examples:
 WTAU – 100 – U0 Input signal 0°C..+100°C is converted to output signal 0...10V / 0...20mA
 WTAU – 100 – U0 Input signal 0°C..+50°C is converted to output signal 2...10V / 4...20mA
 WTAU – 200 – U0 Input signal 0°C..+50°C is converted to output signal 1 0...10V / 0...20mA
output signal 2 2...10V / 4...20mA
Version WTAU – 120 – U0 / WTAU – 220 – U0 – fix adjusted version
The connected resistance proportional electrical Pt100 voltage signal is measured by the evaluation circuit,
linearized and transmitted galvanically isolated to the to the output signal 0...10V or 0...20mA or 4...20mA.
At the version WTAU – 220 – U0 the Pt100 input signal is transmitted simultaneously to the both output
channels.
Examples:
 WTAU – 120 – U0 Input signal 0°C..+100°C is converted to output signal 0...10V
 WTAU – 220 – U0 Input signal 0°C..+50°C is converted to output signal 1 0...10V
output signal 2 0...20mA

WTAU –100 / 120 / 200 / 220
page 4 of 8
Safety notes
Each person that is engaged with inauguration and operation of this device, must have read and
understood this technical manual and especially the safety notes.
Installation, electrical connection, inauguration and operation of the device must be made by a qualified
employee according to the informations in this technical manual and the relevant standards and rules.
The device may only be used within the permitted operation limits that are listed in this technical manual.
Every use besides these limits as agreed can lead to serious dangers.
The device meets the legal requirements of all relevant EC directives.
Installation notes

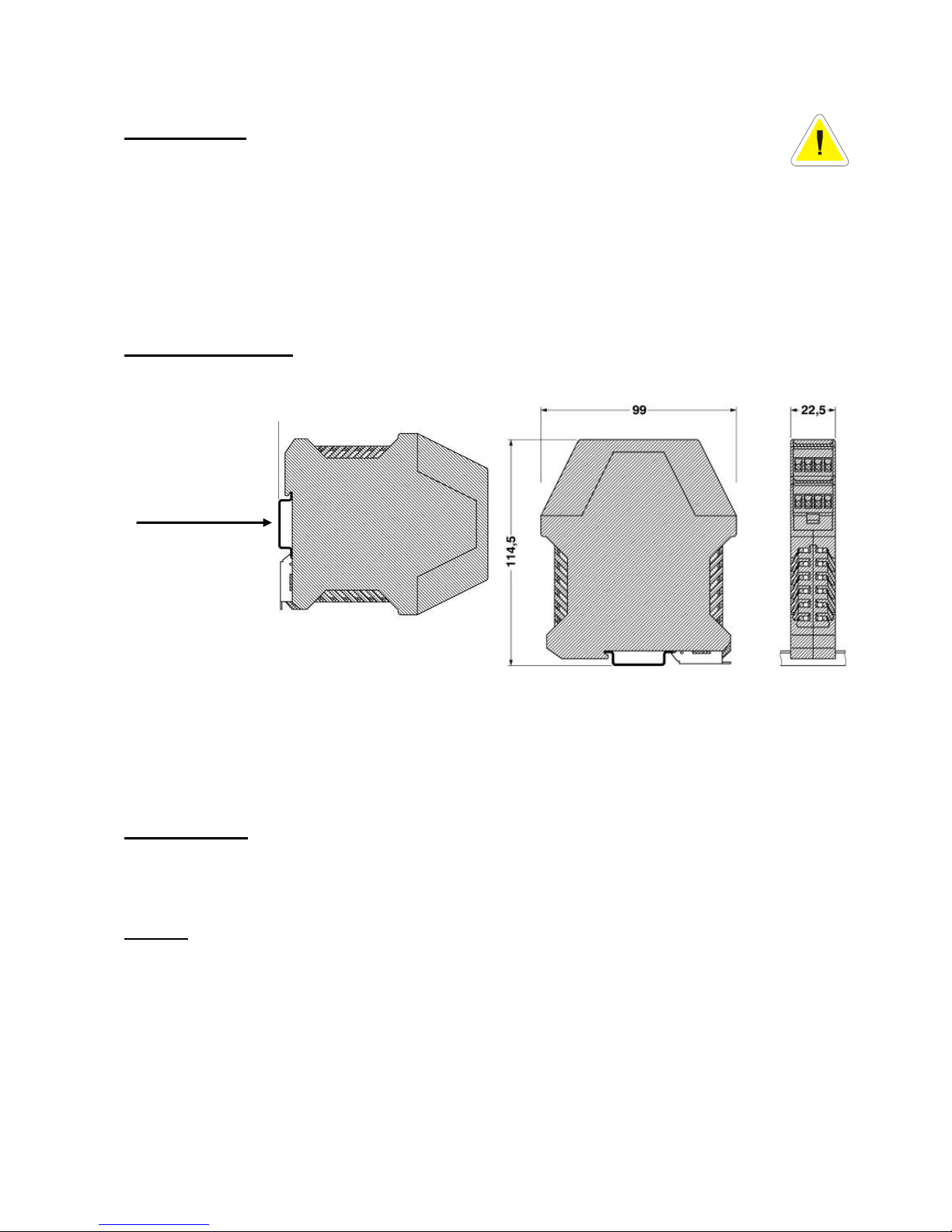

The device is conceived for vertical installation on a standard fastening rail acc. to DIN EN 60715 TH 35-7,5
resp. TH 35-15.
DIN EN 60715 TH 35-7,5
DIN EN 60715 TH 35-15
The device must be installed protected against dust and humidity, e.g. in control stations or in a suitable
protection housing with a minimum protection classification IP55 acc. to DIN EN 60529.
The devices must be installed wheather and stroke protected, ideally at places without direct solar radiation.
This is especially important in warm climatic regions.
Maintenance
The device is free of maintenance.
Repair
A repair may only be carried out by the manufacturer. When sending back the device, add a note with the
description of the error and the application.

WTAU –100 / 120 / 200 / 220
page 5 of 8
Electrical connection
The electrical connection of the device must be carried out according to the respective country specific
standards. Incorrect installation or adjustment could cause applicationally conditioned risks.
Power supply input, measuring input and signal output channels are safe galvanically isolated from each other.
This is also valid for both signal output channels among each other.
Connection of the Pt100 – measuring input
For the two or three-wire connection cable between the isolation amplifier and the Pt100 a standard installation
cable or multi-wire cable for measuring intends with a maximum of 25  per wire can be used.
Pt100 in 2- or 3-wire-measurement can be connected.
At a 2-wire-measurement the terminals 1 and 2 must be connected by a wire link.
A 4-wire-measurement of the Pt100 is not possible. When connecting a 4-wire Pt100 this must be proceeded in
3-wire-measurement, whereas the not used fourth wire may not be connected..
The use of a shielded signal cable is recommended, if strong electromagnetic influences could happens, e.g.
due to machines or radio equipment. In that case the shielding of the cable should be connected to earth only at
the side of the Pt100.
The signal cable should be installed separated from power leading wires.
Terminal occupation
Connection scheme

WTAU –100 / 120 / 200 / 220
page 6 of 8
Electrical connection
Connection of the output
For the two-wire connection cable between the isolation amplifier and the connected devices a standard
installation cable or multi-wire cable for measuring intends with a maximum of 25  per wire can be used.
The use of a shielded signal cable is recommended, if strong electromagnetic influences could happens, e.g.
due to machines or radio equipment. In that case the shielding of the cable should be connected to earth only at
the side of the connected device. When connecting a SPS input stage there must be paid attention that mostly
the signal circuit must be connected to earth by connection the minus terminal with measuring earth.
The signal cable should be installed separated from power leading wires.
For inauguration it is suggested, to deactivate all connected control devices, to avoid unwanted control reactions.
Connection of the power supply voltage
Due to the integrated wide range power supply, for connection to supply voltages from 20...253V AC / DC, the
isolation amplifier is suitable for using in all common energy supply networks.
The connection is reverse polarity protected.
A fuse is integrated internally at the power supply circuit. Due to this the installation of a fine protection is not
necessary.
Terminal occupation
Connection scheme

WTAU –100 / 120 / 200 / 220
page 7 of 8
Channel 2
Trimmer for zero and
end value adjustment
only at version
WTAU – 200
Function indicator
1 LED for indication of
ready status
Channel 1
Trimmer for zero and
end value adjustment
only at version
WTAU – 100 / 200
Configuration switch
inside the housing
only at versions
WTAU – 100 / 200
Operation and display elements
Function indicator
 ON  green LED  ready status, power supply voltage on
Trimmer
For adjustment of zero and end value per channel. Only available at versions WTAU – 100 / 200.
At the Pt100 – isolation amplifier WTAU – 200 – U0 both output signals (output 1 and output 2) are changed uniform by the
configuration switches and by the trimmer channel 1.
The output 2 can be additionally separately changed in the zero value by  3% and in the end value by  6% by the further
trimmer at the front side (channel 2).
For an accurate results the adjustment zero value – end value must be proceeded repeatedly with connected signal,
because zero and end value adjustment effects each other.
Configuration switches
The configuration of the input and output signal ranges is made per dip switches inside the housing.
Dangerous voltage
Ensure a safe switching off the supply voltage when opening the housing
For configuration release the upper housing part at top and bottom side behind the terminals by using a screwdriver and pull
it out of the housing. Drop-in pin's avoid a complete pulling out. Following the respective dip switches can be set according to
the desired functions to ON or OFF.
The switch S3 of switcher block S3 must be set to position ON. The position of all other not described switches are without
importance.
Input signal range zero value switcher block SB1
Switch 2 (SB1)  zero value
switch
switching state ON
switching state OFF
2
zero value 0°C
zero value –50°C
Input signal range measuring range switcher block SB2
Switch 1, 2, 3, 4, 5, 6 (SB2)  measuring range
S1
S2
S3
S4
S5
S6
measuring range
OFF
OFF
OFF
OFF
OFF
ON
50 Kelvin
OFF
OFF
OFF
OFF
ON
OFF
100 Kelvin
OFF
OFF
OFF
ON
OFF
OFF
150 Kelvin
OFF
OFF
ON
OFF
OFF
OFF
200 Kelvin
OFF
ON
OFF
OFF
OFF
OFF
300 Kelvin
ON
OFF
OFF
OFF
OFF
OFF
500 Kelvin
Output signal range channel 1 switcher block SB1
Switch 4 (SB1)  signal range
switch
switching state ON
switching state OFF
4
0...10V / 0...20mA
2...10V / 4...20mA
Output signal range channel 2 switcher block SB3
Switch 4 (SB3)  signal range
switch
switching state ON
switching state OFF
4
0...10V / 0...20mA
2...10V / 4...20mA

WTAU –100 / 120 / 200 / 220
page 8 of 8
Technical data
Auxiliary power supply
Permitted supply voltage: 20 V to 253 V AC / DC 48...62 Hz, reverse polarity protected
Power consumption:  3 VA / 2 W (WTAU –100 / 120) resp.
 6 VA / 3 W (WTAU – 200 / 220)
Overvoltage category: II acc. to DIN EN 61010-1
Protection classification: II double or reinforced insulation
Isolation voltage: 4kV~ auxiliary power to signal inputs to signal outputs
Galvanic isolation: All supply, input and output channels among each other as well as both
output channels from each other are safe galvanically isolated.
Signal input
Temperature resistor Pt100: 3-wire- / 2-wire-measurement, temperature linear, current 2 x 0,680mA  20µA
Measuring signal range: -100°C...+660°C, dependent on settings resp. configuration
Wire resistance:  40  per wire
Signal output (1x resp. 2x available, depends on version)
Direct voltage: 0…10 V / 2...10 V, max. 15V  5%, overload and short circuit protected
Permitted load direct voltage:
 WTAU –100 / 120 RL  1250 at 10V / RL  2000 at 10V (at simultaneous output Iout with 20mA)
 WTAU – 200 / 220 RL  3333 at 10V / RL  6666 at 10V (at simultaneous output Iout with 20mA)
Direct current: 0…20mA / 4…20mA, max. 25mA  5%
Permitted load direct current:
 WTAU –100 / 120 RL  880 at 20mA / RL  680 at 20mA (at simultaneous output Uout with 5mA)
 WTAU – 200 / 220 RL  570 at 20mA / RL  530 at 20mA (at simultaneous output Uout with 1,5mA)
Adjustment range zero value: –100...+35°C depends on setting configuration switch zero value
Adjustment range measuring range 25...660K depends on setting configuration switch measuring range
Adjustment range zero output 2:  3% of respective nominal measuring range
Adjustment range - range output 2:  6% of respective nominal measuring range
Limit value deviation:  0,1% of factory calibrated measuring range (delivery setting)
Range changing deviation:   5% of respective nominal measuring range
Characteristic deviation:  0,1% of respective nominal measuring range
 0,2% at range 50K of respective nominal measuring range
Temperature deviation:  0,05% / 10 K of respective nominal measuring range
Long term deviation:  0,1% of respective nominal measuring range / year
Influence output load:  0,05% of respective nominal measuring range
Influence auxiliary power:  0,005%/10V at range 500K of respective nominal measuring range
 0,06%/10V at range 50K of respective nominal measuring range
Error supervision: Output signal  20mA/10V at wire break
Output signal 0mA/0V at short circuit of terminals 1/3 resp. 2/3
Measurement in 2-wire-technology at short circuit of terminals 1/2
Materials
Connection housing: PA – polyamide
Terminal housing: PA – polyamide
Sticker: PE – polyester
Connection terminals
Number: 3 terminal blocks with each 4 terminals, everlasting screws
Connection cross-section: maximum 1 x 2,5 mm or 2 x 1,5 mm
Housing style
Housing: Series installation housing, 22,5mm wide
Weight: 100 g
Environmental conditions
Environmental temperature: Single installation – 40°C...+70°C
Series installation – 40°C...+60°C
Climatic classification: 3K3 resp. 3M2 DIN EN 60721-3-3
Protection classification: IP20 DIN EN 60529
EM – compatibility: emission DIN EN 61326-1 operation device class B
immunity DIN EN 61326-1 industrial range
