ACTi A421 User manual
A4x Bullet Camera Series
Hardware Manual
A44, A45, A46, A48, A421
Ver. 2021/04/26
www.acti.com
Hardware Manual
2
Table of Contents
Precautions 3
Safety Instructions ...........................................................................5
Introduction 6
List of Models....................................................................................6
Package Contents.............................................................................7
Physical Description ........................................................................8
Mounting Options...........................................................................20
Installation Procedures 21
Step 1: Prepare for Installation......................................................21
Step 2: Mount the Camera ............................................................. 22
Step 3: Waterproof and Connect the Cable(s)..............................23
Connect the Ethernet Cable.........................................................23
Connecting a Power Adapter (Optional).......................................27
How to Connect Audio Input / Output Devices (Optional).............27
Connecting the Digital Input / Output Devices (Optional).............28
Step 4: Connect to Network...........................................................29
Step 5: Access the Camera Live View........................................... 29
Other Adjustments and Accessories 30
How to Install / Remove the Memory Card ................................... 30
How to Insert the Memory Card ...................................................30
How to Remove the Memory Card...............................................30
Accessing the Camera 31
Configure the IP Addresses........................................................... 31
Access the Camera.........................................................................35
www.acti.com
Hardware Manual
3
Precautions
Read these instructions
You should read all the safety and operating instructions before using this product.
Heed all warnings
You must adhere to all the warnings on the product and in the instruction manual. Failure to follow
the safety instruction given may directly endanger people, cause damage to the system or to
other equipment.
Servicing
Do not attempt to service this video device yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
Trademarks
All names used in this manual are probably registered trademarks of respective companies.
Liability
Every reasonable care has been taken during the writing of this manual. Please inform your local
office if you find any inaccuracies or omissions. We cannot be held responsible for any
typographical or technical errors and reserve the right to make changes to the product and
manuals without prior notice.
www.acti.com
Hardware Manual
4
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class Adigital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy, and if it is
not installed and used in accordance with the instruction manual, it may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case the user will be required to correct the interference at
their own expense.
European Community Compliance Statement
This product has been tested and found to comply with the limits for Class A
Information Technology Equipment according to European Standard EN 55022
and EN 55024. In a domestic environment, this product may cause radio interference in which
cause the user may be required to take adequate measures.
www.acti.com
Hardware Manual
5
Safety Instructions
Cleaning
Disconnect this video product from the power supply before cleaning.
Attachments
Do not use attachments not recommended by the video product manufacturer as they may cause
hazards.
Water and Moisture
Do not use this video product near water, for example, near a bathtub, washbowl, kitchen sink, or
laundry tub, in a wet basement, or near a swimming pool and the like.
Don’t use accessories not recommended by the manufacturer
Only install this device in a dry place protected from weather
Servicing
Do not attempt to service this video product yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
Damage Requiring service
Disconnect this video product from the power supply immediately and refer servicing to qualified
service personnel under the following conditions.
1) When the power-supply cord or plug is damaged
2) If liquid has been spilled, or objects have fallen into the video product.
3) If the video product has been directly exposed to rain or water.
4) If the video product does not operate normally by following the operating Instructions in this
manual. Adjust only those controls that are covered by the instruction manual, as an improper
adjustment of other controls may result in damage, and will often require extensive work by a
qualified technician to restore the video product to its normal operation.
Safety Check
Upon completion of any service or repairs to this video product, ask the service technician to
perform safety checks to determine if the video product is in proper operating condition.
www.acti.com
Hardware Manual
6
Introduction
List of Models

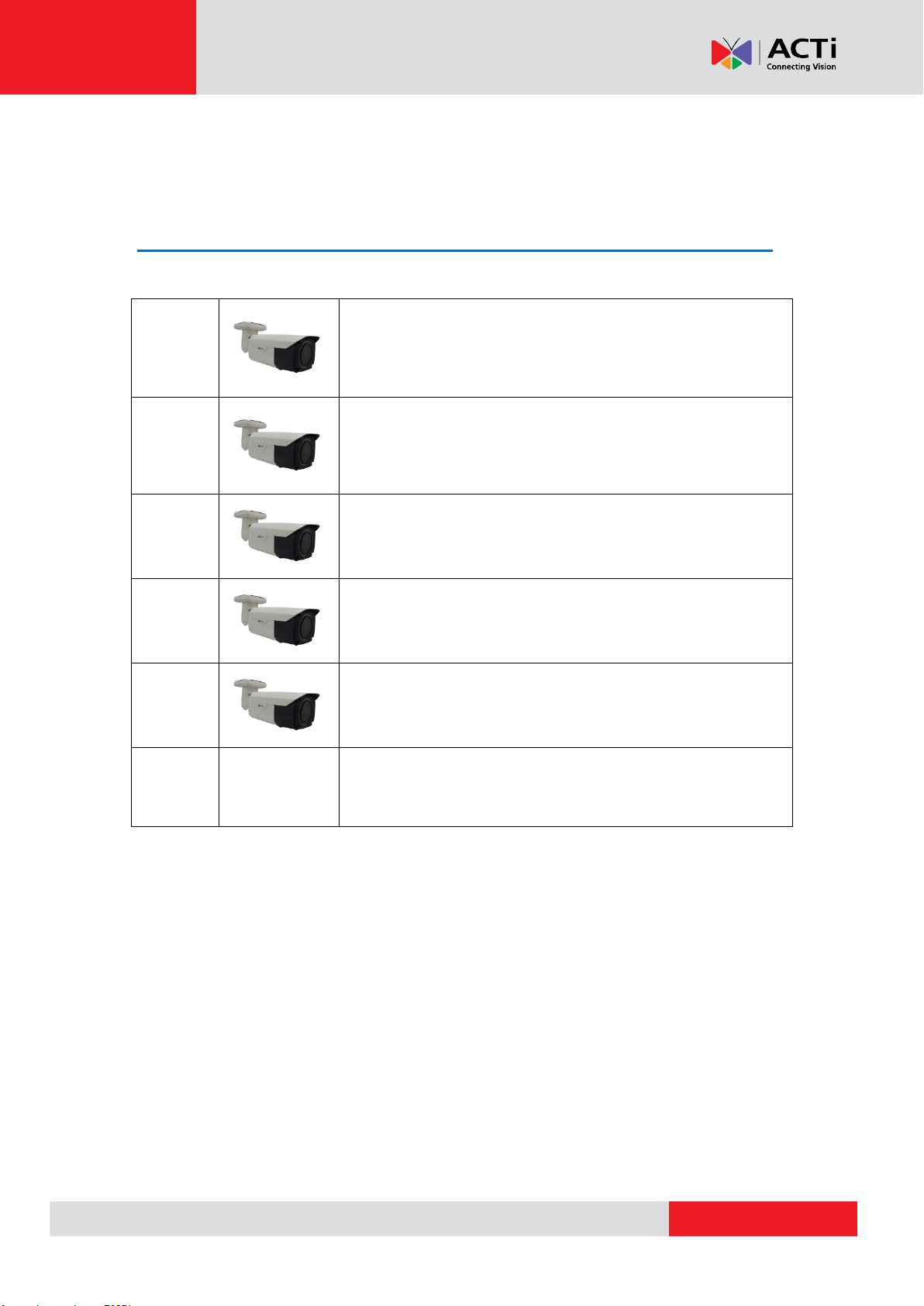

This hardware manual contains the following models:
A44
12MP Video Analytics Zoom Bullet with D/N, Adaptive IR,
Extreme WDR, SLLS, 3x Zoom lens
A45
2MP Zoom Bullet with D/N, Adaptive IR, Extreme WDR, ELLS,
4.3x Zoom lens
A46
5MP Zoom Bullet with D/N, Adaptive IR, Extreme WDR, SLLS,
5x Zoom lens
A48
2MP Video Analytics Zoom Bullet with D/N, Adaptive IR,
Extreme WDR, ELLS, 10x Zoom lens
A421
8MP Face, People and Car Detection Zoom Bullet with D/N,
Adaptive IR, Extreme WDR, SLLS, 4.3x Zoom lens
www.acti.com
Hardware Manual
7

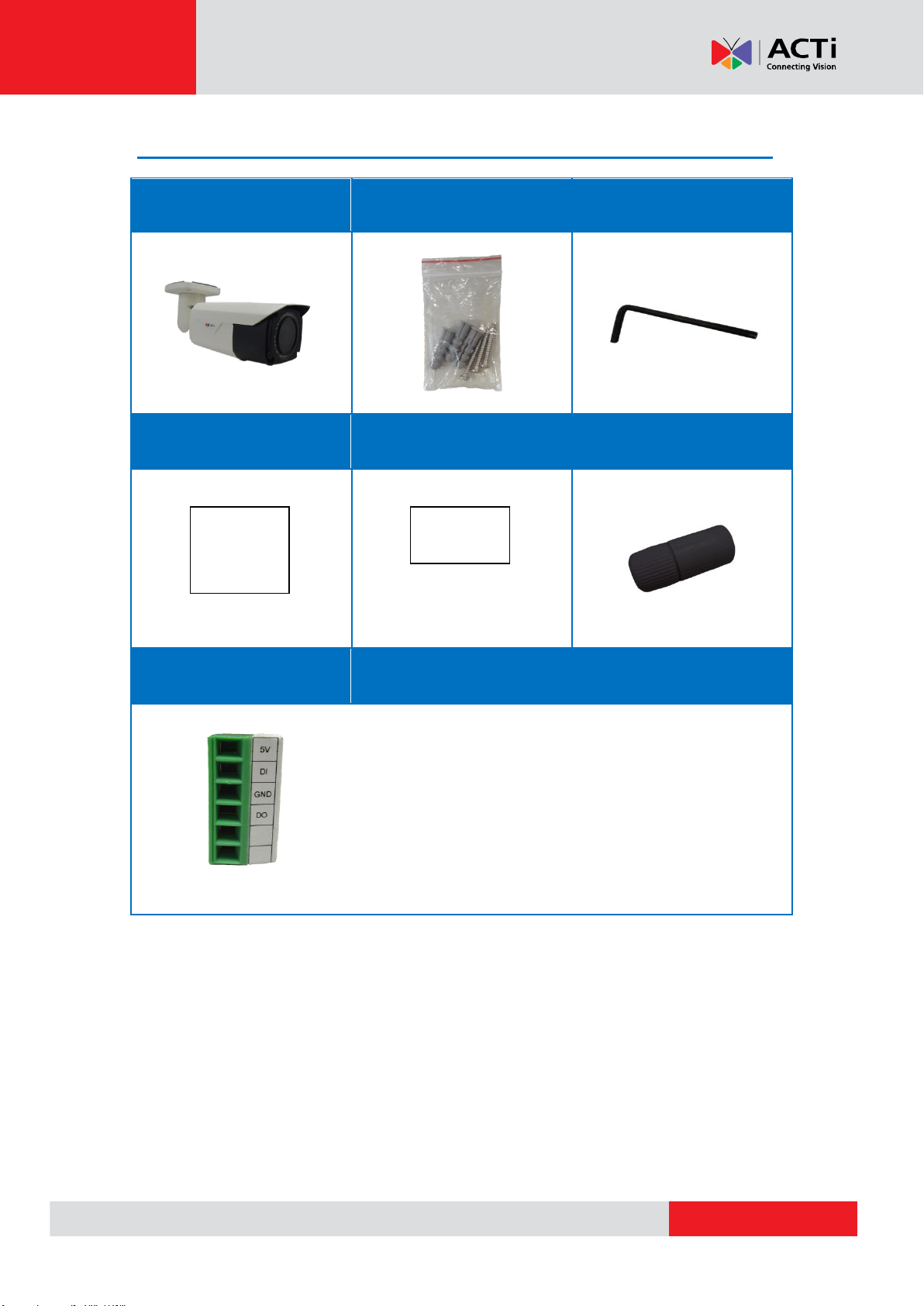

Package Contents
Camera
Mounting Screw Kit
Hex Wrench
Drill Template
Quick Installation Guide
& Warranty Card
Cable Gland
(for A45, A46, A421 only)
DI/DO Terminal Block
(A44, A48)
NOTE: For A45, A46, A421 models, the terminal block comes
connected to the DIO port of the camera
Drill Template
WARRANTY
CARD
www.acti.com
Hardware Manual
8
Physical Description

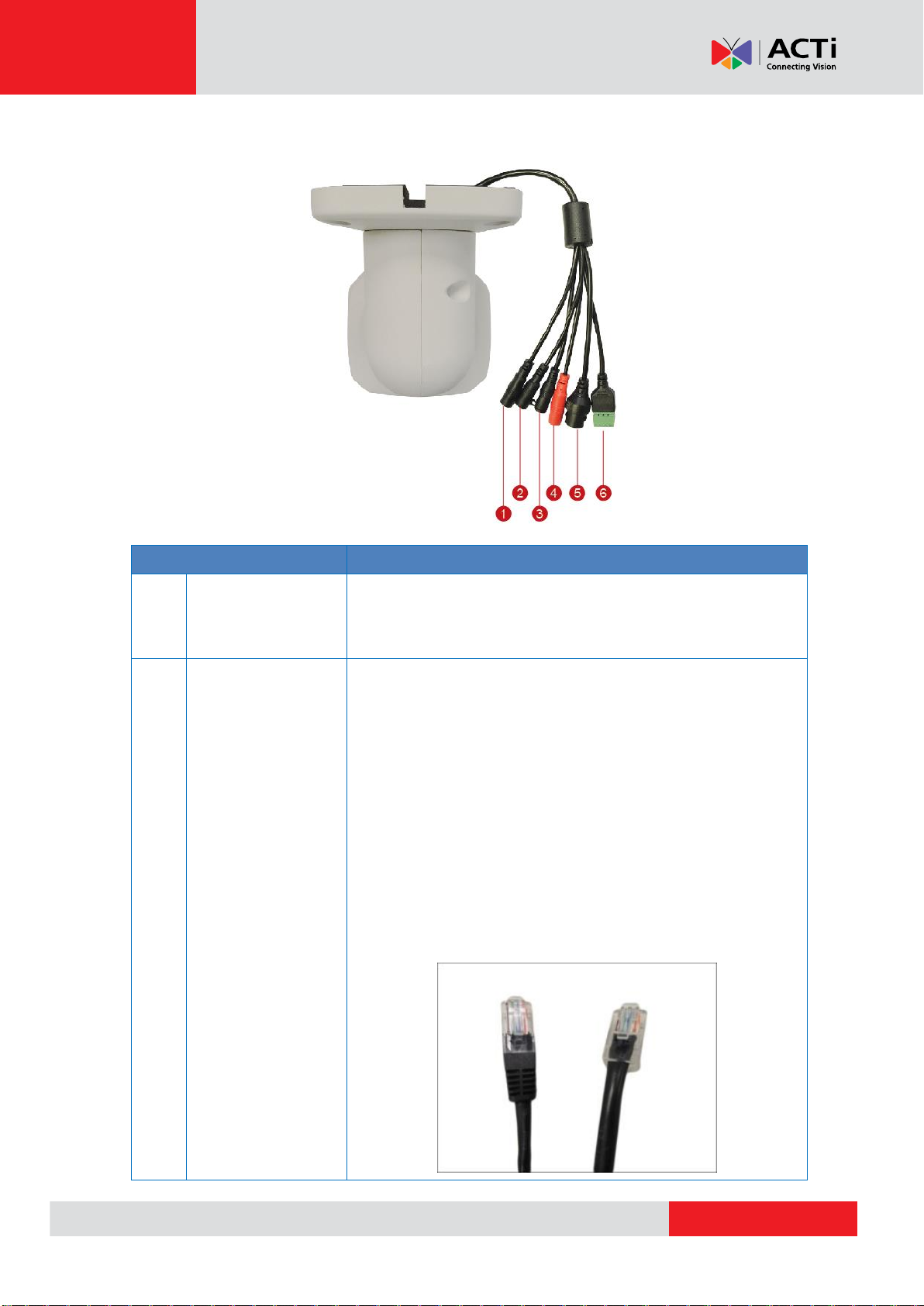

A44, A48
Item
Description
1
Audio Output
This jack connects to an audio output device, such as a speaker.
See How to Connect Audio Input / Output Devices (Optional)
on page 27.
2
DC 12V Power Input
Connects the camera to an external power adapter (not
included). See A45, A46, A421
This section describes how to waterproof the Ethernet
cable of A45, A46 and A421 models using the bundled cable
gland.
Before connection, prepare an exterior-grade Ethernet cable with
RJ-45 connector but without sleeves.
NOTE: The images below are for reference only. The color or
actual cable may slightly vary.
www.acti.com
Hardware Manual
12
Item
Description
9. Attach the clamping nut to the gland body to complete the
cable solution.
NOTE: Make sure the clamping nut is tightly attached to the
cable gland body and the sealing insert is squeezed tightly.
DISCLAIMER: ACTi will not be responsible for camera damage
caused by water entering the cable
connections.
Connecting a Power Adapter (Optional) on page 24 for more
information.
3
Reset Button
Restores the factory default settings of the camera, including the
www.acti.com
Hardware Manual
13
Item
Description
administrator’s password. To reset the camera, press and hold
the Reset button for at least 10 seconds.
4
BNC Video Output
Connects the camera directly to a monitor with BNC input.
5
Audio Input
This jack connects to a microphone. See How to Connect
Audio Input / Output Devices (Optional) on page 27.
6
Ethernet Port
Connects to a network using a standard Ethernet cable.
7
Digital Input / Output
Connects to digital input or output devices, such as an alarm
trigger, panic button, etc. Digital Input (DI) and Digital Output
(DO) devices are used in applications like motion detection,
event triggering, alarm notifications, etc. See Connecting the
Digital Input / Output Devices (Optional) on page 28.
www.acti.com
Hardware Manual
14
A45, A46, A421
Item
Description
1
Audio Output
This jack connects to an audio output device, such as a speaker.
See How to Connect Audio Input / Output Devices (Optional)
on page 27.
2
DC 12V Power Input
Connects the camera to an external power adapter (not
included). See A45, A46, A421
This section describes how to waterproof the Ethernet
cable of A45, A46 and A421 models using the bundled cable
gland.
Before connection, prepare an exterior-grade Ethernet cable with
RJ-45 connector but without sleeves.
NOTE: The images below are for reference only. The color or
actual cable may slightly vary.
www.acti.com
Hardware Manual
15
Item
Description

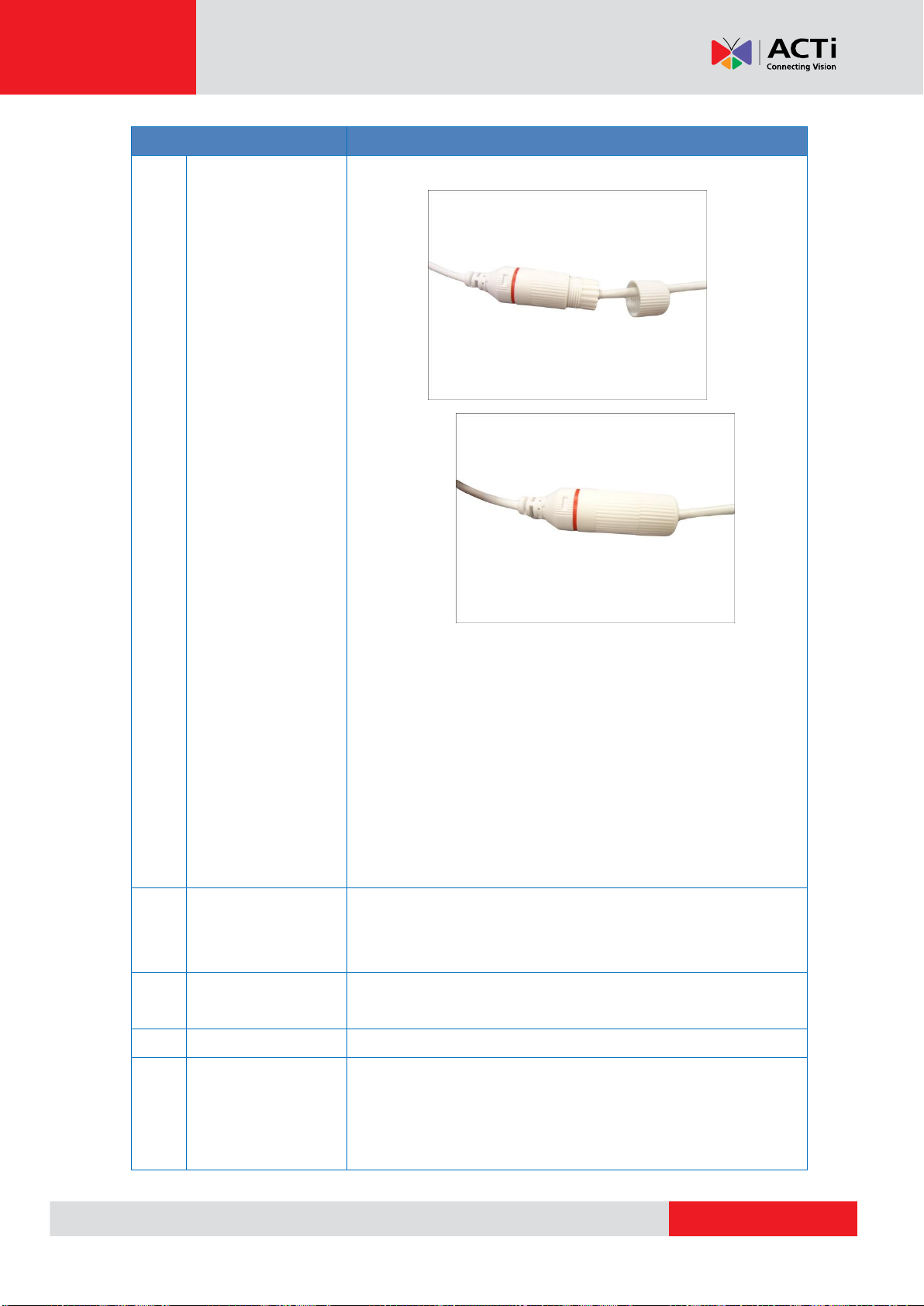

Perform the following to waterproof the “pigtail” using the cable
gland:
10. Attach the washer to the Ethernet connector of the camera.
11. Detach the clamping nut and sealing insert from the gland
body:
12. Insert the clamping nut into the Ethernet cable.
www.acti.com
Hardware Manual
18
Item
Description
cable solution.
NOTE: Make sure the clamping nut is tightly attached to the
cable gland body and the sealing insert is squeezed tightly.
DISCLAIMER: ACTi will not be responsible for camera damage
caused by water entering the cable
connections.
Connecting a Power Adapter (Optional) on page 24 for more
information.
3
Reset Button
Restores the factory default settings of the camera, including the
administrator’s password. To reset the camera, press and hold
the Reset button for at least 10 seconds.
4
Audio Input
This jack connects to a microphone. See How to Connect
Audio Input / Output Devices (Optional) on page 27.
5
Ethernet Port
Connects to a network using a standard Ethernet cable.
6
Digital Input / Output
Connects to digital input or output devices, such as an alarm
trigger, panic button, etc. Digital Input (DI) and Digital Output
(DO) devices are used in applications like motion detection,
event triggering, alarm notifications, etc. See Connecting the
www.acti.com
Hardware Manual
20
Mounting Options
There are several mounting options that you can use to install the camera. Select the most
suitable solution for your installation environment.
Mount Types
Accessories
Wall
Suitable when mounting the camera directly on walls using the integrated
bracket. See Installation Procedures on page 21.
Ceiling
Suitable when mounting the camera directly on walls using the integrated
bracket. See Installation Procedures on page 21.
Vertical Pole
Suitable when mounting the camera on vertical poles.
NOTE:
For more information about the mounting solutions and accessories, please check the
Mounting Accessory Selector in our website (http://www.acti.com/mountingselector).
The above mounting accessories are not included in the package. Contact your sales
agents to purchase.
This manual suits for next models
5
