To ensure trouble-free operation, please observe the following precautions:
Optical communications are easily affected by external light sources, weak batteries, transfer distance,
transfer angle, etc.
Any of these conditions may cause a data transfer failure, incomplete, missing or incorrect data. Make
sure that the wireless interface is away from direct sunlight and other strong light source.
!"Do not terminate arbitrarily during file transfer process between DUT and computers until finished.
Otherwise DUT internal data integrity may be damaged, which is due to the violation of DUT’s.
!"Do not expose the unit to moisture, as this will damage the internal circuitry.
!"Do not expose the unit to extreme temperatures. It should not be placed in direct sunlight or in a
closed vehicle, neither should it be placed near heaters nor other heat sources.
!"Do not store the unit in a humid or dusty place.
!"Use a soft, dry cloth to clean the unit. Do not use a wet cloth or any solvent.
!"Do not drop the unit or handle the unit carelessly.
CAUTION:
!"Never touch the pins of computer connection terminal. The internal circuits can be damaged by a
static electricity discharge. If this device requires any servicing, use only an ACTiSYS service dealer,
an ACTiSYS approved service facility, or an ACTiSYS repair service.
!"When exchanging data with host computer, be sure the appropriate serial communication port is
available and is not in conflict with other peripheral device or software.




Here the settings for the R11 ~ R18 are displayed. When power is thrown for any resistor
besides R13~R15, they will be sampled at the time NMI is reinstated. After that, there will be no
problems with operation even if the settings are changed; however the settings will become invalid.

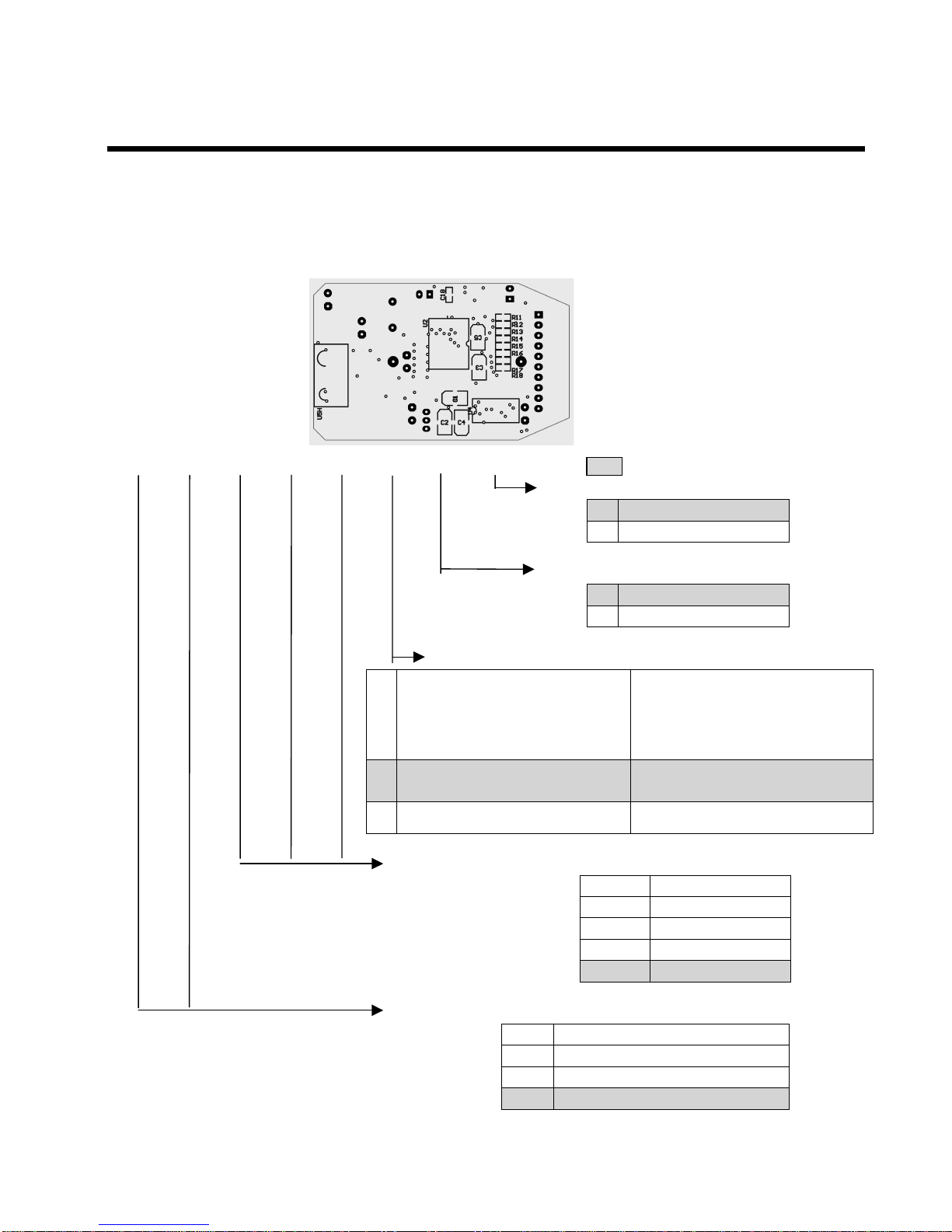

PCB bottom view
R11 R12 R13 R14 R15 R16 R17 R18 R: Initial Setting
Data Length (R18)
1 8 bit 
0 7 bit
Parity (R17)
1 None 
0 Even
Control Line Extension Mode (R16)
Serial Settings
(bps, data length, parity)
Condition for starting discovery
(primary channel)
Condition for permission to
Connect (secondary channel)
1 Self channel R13~R15
Settings When DSR : ON, CTS : ON 
0 Settings from partner channel ---
RS-232C Communication Speed Setting (R13,R14,R15)
0 0 0 9600 bps
1 0 0 19200 bps
0 1 0 38400 bps
1 1 0 57600 bps
0 0 1 115200 bps 
IrDA operation mode configuration (R11,R12)
0 0 Reserver
1 0 primary channel
0 1 secondary channel
1 1 primary / secondary 


0



It is possible to select the primary channel mode, secondary channel mode, and the primary channel as
well as the secondary channel according to the settings of R11 and R12.
Operation mode mode setting terminal
R11 R12
Reservation 0R 0R
primary channel 0R
secondary channel 0R 
Primary / secondary channel 
 ! " ##
It is possible to set the RS-232C communication speed with R13, R14, and R15.
However when the control line extension mode of R16 is not installed, the settings will be valid for all
self-channels. But, when it is 0R, if the R11 and R12’s IrDA mode setting is primary or primary /
secondary channel, then the self-channel with be valid. If it is set to the secondary channel, regardless of
the communication speed setting, the other device will set the communication speed. (Figure 2-2).
When the communication rate has established an IrDA link, it will be sampled, so it is okay to change the
speed settings while it is in operation. In the event that the speed is changed while communicating, the
current communication link will be severed and with any following communication the new speed will
become valid.
Figure 2-1
Communication Speed Communication Speed Setting Terminal
R13 R14 R15
9600bps 0R 0R 0R
19200bps 0R 0R
38400bps 0R 0R
57600bps 0R
115200bps 0R 0R 
Figure 2-2
R16 Primary Channel
R12:0R , R11:Secondary Channel R12:, R11:0R Primary / Secondary Channel R12:, R11:
self channel self channel self channel
0R self channel other channel self channel


 $%
In order to confirm that the device is operating correctly there is an indicate function installed.
By looking at the flash of the LED you can check the state of communication.
There are 2 flashing speeds, during standbyon the secondary channelthere is noflashing. If the primary
channel commences discovery, it will flash once every 3 seconds (for approx. 0.7 seconds). After
discovering the other device and communication becomes possible it will flash every 0.4 seconds.
Operating condition LED
during connection standby Low
during discovery low speed
flashing flashing once every 3 seconds (for approx. 0.7 seconds)
during communication with
other device high speed flashing switches from High to Low every 0.4 seconds
"#
D-sub 9-pin Male connector: (RS-232C)
*** Electricity source:
a) With Voltage Regulator b) Without Voltage Regulator
(U6_ is placed, R25 is removed) (U6_ is removed, R25 is placed)
AC Adaptor DC 7.5V / 300mA above DC 5V / 450mA above, stable source.
+DC 5V
– Gnd
Pin No. Name Descriptions I/O
1 DCD Data Carrier Detect I
2 RxD Receiver Data I
3 TxD Transmitter Data O
4 DTR Data Terminal Ready O
5 GND Signal Ground Gnd
6 DSR Data Set Ready I
7 RTS Request to Send O
8 CTS Clear to Send I
9 RI Ring Indicator I



&'(
●Serial Port: When connecting modems etc. to the Data Communication Equipment
(DCE) side, connect the corresponding signal names of the modem and IR100S+.
When connecting to PC’s to the Data Terminal Equipment (DTE) side use a cross
connection for IR100S+ and the PC or Plotter/Printer(with RS232 port).
Example Connection Reference #1: Modem (DCE) Connection
IR100S+ I/F < Straight Cable > Modem(DCE)
RxD RxD : Data Receiving
RDRDOnly valid with received data
when the DCD (CD) signal is on.
TxD TxD : Data Transmission
SDSDValid with sending data when
RTS (RS), CTS (CS), DSR (DR),
DTR (ER) are on.
/DTR /DTR: Data Terminal Ready
ERERTurns on when receiving and
transmitting of data is possible
and when the terminal has power.
/DSR /DSR: Data set ready
DRDRTurns ON when the modem
is able to send and receive.
/RTS /RTS: Transmission Request
RSRSInstructs the modem to be in
transmission mode. The terminal is
turned on before the transmission.
/CTS /CTS: Transmissible
CSCSIndicates that the modem is able to
transmit. When CS is ON the
modem is able to receive.


Example Connection Reference #2: PC Terminal (DTE) Connection
IR100S+ I/F < Cross Cable > PC Terminal(DTE)
RxD RxD : Data Receiving
(RD) (RD) Only valid with received data
when the DCD (CD) signal is on.
TxD TxD : Data Transmission
(SD) (SD) Valid with sending data when
RTS (RS), CTS (CS), DSR (DR),
DTR (ER) are on.
/DTR / DTR : Data Terminal Ready
(ER) (ER) Turns ON when the device
is able to send and receive.
/DSR / DSR : Data Set Ready
(DR) (DR) Turns ON when the device
is able to send and receive.
/RTS / RTS : Transmission Request
(RS) (RS) Instructs the device to be in
transmission mode. The terminal
is turned on before transmission.
/CTS / CTS : Transmissible
(CS) (CS) Indicates that the device is able
to transmit. When CS is ON the
device is able to receive.



Product Name: ACT-IR100S
Compatibility: Fully compatible with IrDA -1.0 Physical spec. and
IrDA-1.0 protocol spec.: IrLAP, IrLMP, IAS, TinyTp, IrCOMM
Specifications of IrDA-1.0 (SIR):
Transmission Speed 9.6kbps, 19.2kbps, 38.4kbps, 57.6kbps, 115.2kbps
Communication
Distance within 100cm
Radiating Angle ±15º~±30º (±15 to ±30 degrees)
Peak Wave Length of
Radiated Light 880~1050nm
Specifications of RS-232 port:
Transmission Speed 9.6kbps, 19.2kbps, 38.4kbps, 57.6kbps, 115.2kbps
Cable Length 110 - 120 cm
Connector DB-9M (DTE) or DB-F (DCE)
Signal Definition DTE or DCE
Power Source: 5 VDC (Stable) or 7.5 VDC (AC adapter).
Power Consumption: Active: < 80mA
Dimensions: 61mmL x 35mmW x 18mmH (2.4"L x 1.4"W x 0.7"H)
Weight: 65 gr. (2.5 Oz)
Operating Temperature: 0° C TO 60° C
Storage Temperature: -20° C TO 85° C


77+9;6?%60+69>@;+,890689708+;$0+
)*
Many PC peripherals use serial cable to communicate with PC. They cannot talk with Infrared Devices,
such as IrDA capable PC, notebooks. ACT IR-100S’s aim is to make those devices into IrDA compatible
product by simply connecting it to their serial port. And these devices with IR100S COM-port IrDA bridge
can communicate with PC wirelessly and don't need to modify neither hardware nor software
This simply test uses two PCs, one is IrDA installed and another is not. Both Run Windows
HyperTerminal Program (one of the communication accessories). You should be able to type on one
keyboard and see results on another PC's screen, or transfer files between them through the infrared
connection.
'(+(,
PC#1:
HW: x386 or better PC.
ACTiSYS' IR2000B board (based on NS87108A) with IR2000L dongle, or
ACT-IR220L Com-port Adapter, connected to COM1 or COM2.
SW: WIN95/98, IrDA Driver for SIR (if using IR220L) or FIR (if using IR2000B)
HyperTerminal, IR Monitor
PC#2:
HW: x386 or better PC,
ACT-IR100S, DTE-DCE Converter, RS232 Mini Tester (Option)
DC Power Supply (5V stable source or 7.5V adapter for regulator-installed)
SW: WIN95/98, HyperTerminal
















"#+
PC#1: Install IrDA Driver. The assigned IR virtual port must be COM4 or less, otherwise HyperTerminal
will not be able to connect it
IR Monitor: Speed limit = 115.2K or lower
HyperTerminal: Connect Using -> direct to COM4 (assigned virtual port of IR)
PC#2:
100S:
R11-18 or DSW8-1: 1100, 0111
Primary/Secondary, 9.6k, Self channel setting, 8-N,
HyperTerminal: Connect Using -> direct to COM1 or COM2 (the port IR100S using)
9.6k, 8-n-1, Hardware flow-control
&-
1. Connect all devices as FigA-1
2. Switch on PC#2 and the power supply of 100s.
3. Run HyperTerminal on PC#2. Set its properties according to the above configuration guide (Fig
A-2 ..4).
The LED DTR and RTS of the RS232 Mini Tester should be Red (True) when it is connected. The
DTR will go to Green (False) if you disconnect it. When both DTR and RTS are True (high level) the
100S will begin discovery if you set it to Primary or Primary/Secondary. The 100S' LED will blink once
every 3 seconds.
4. Switch on PC#1.
You will see the IR Found icon and hear the sound of found IR device when windows has started.
Open the IR Monitor, you will see the Status are:









 
!"
#
$%&$
''
()

)!*+
,-) ,-



Communicating with
Name: ACTiSYS IR100S-115 (Nickname of 100s, might be different with different version)
Description: Intelligent SIR Adapter
Communication efficiency (…)
Good at 115.2 Kbps (or 57.6 Kbps. Depends on the highest speed both sides can support)
5. Run HyperTerminal on PC#1 now. Set its properties according to the above configuration guide.
Click the Call icon to connect to the assigned IR port. The LED DSR and CTS of the RS232 Mini
Tester on PC#2 side should turn to Red (True) when it is connected and the 100S' LED will blink once
every half second.
6. Type keys on PC#1's keyboard and you should see the results will display on the remote
HyperTerminal's screen. If you have got strange letters, the baud rate you set for the HyperTerminal
is not the same as 100s.
7. File Transfer: Click the menu Transfer and Receive File on PC#1 …
Click the menu Transfer and Send File on PC#2 (Fig A-5)…
The operation is similar to use cable connection.
The real data transfer speed depends on the lower one of IR speed and RS-232 speed. For example,
the IR Speed is limited to 57.6kbps and the RS-232 speed of 100s is 9600, the effective speed
(throughput) is 9570bps (Fig A-6). If the RS-232 speed set to 115.2kbps. The throughput would be
around 5kbytes/Sec.
Figure A-2


Figure A-3
Figure A-4


Figure A-5
Figure A-6


77+9;6?%$60.,26;,
)*
If your device has no built-in modem and wants to connect to Internet, normally you will buy an external
modem and use cable to connect them together. But some mobile devices are so small that have no
RS-232 port for cable connection. Most of them have IrDA wireless built-in interface so that they can
connect with an IrDA modem without cable.
One usage of ACT IR-100S is to make those normal modem into IrDA compatible product by simply
connecting it to their serial port. And these devices with IR100S COM-IrDA bridge can communicate with
PC or your IrDA-cable devices wirelessly and don't need to modify neither hardware nor software
This simply test uses one PC with IrDA adapter with driver installed and an external modem connected
with IR100S. On PC uses 'Make New Connection' wizard of Dial-Up Networking to create a new dial-up
connection to your ISP through the IR modem. It should be able to find the modem, dial phone number,
establish a connection to internet and browse the web.
'(+(,
PC:
HW: x386 or better PC.
ACTiSYS IR2000B board (based on NS87108A) with IR2000L dongle, or
ACT-IR220L Com-port Adapter, connected to COM1 or COM2.
SW: WIN95/98, IrDA Driver for SIR (if using IR220L) or FIR (if using IR2000B)
Dial-Up Networking, IR Monitor75
External Modem, IR100S, RS232 Mini Tester (Option)
DC Power Supply (5V stable source or 7.5V adapter for regulator-installed)


"#+
Connect all devices as Fig B-1.
PC:
Install IrDA Driver.

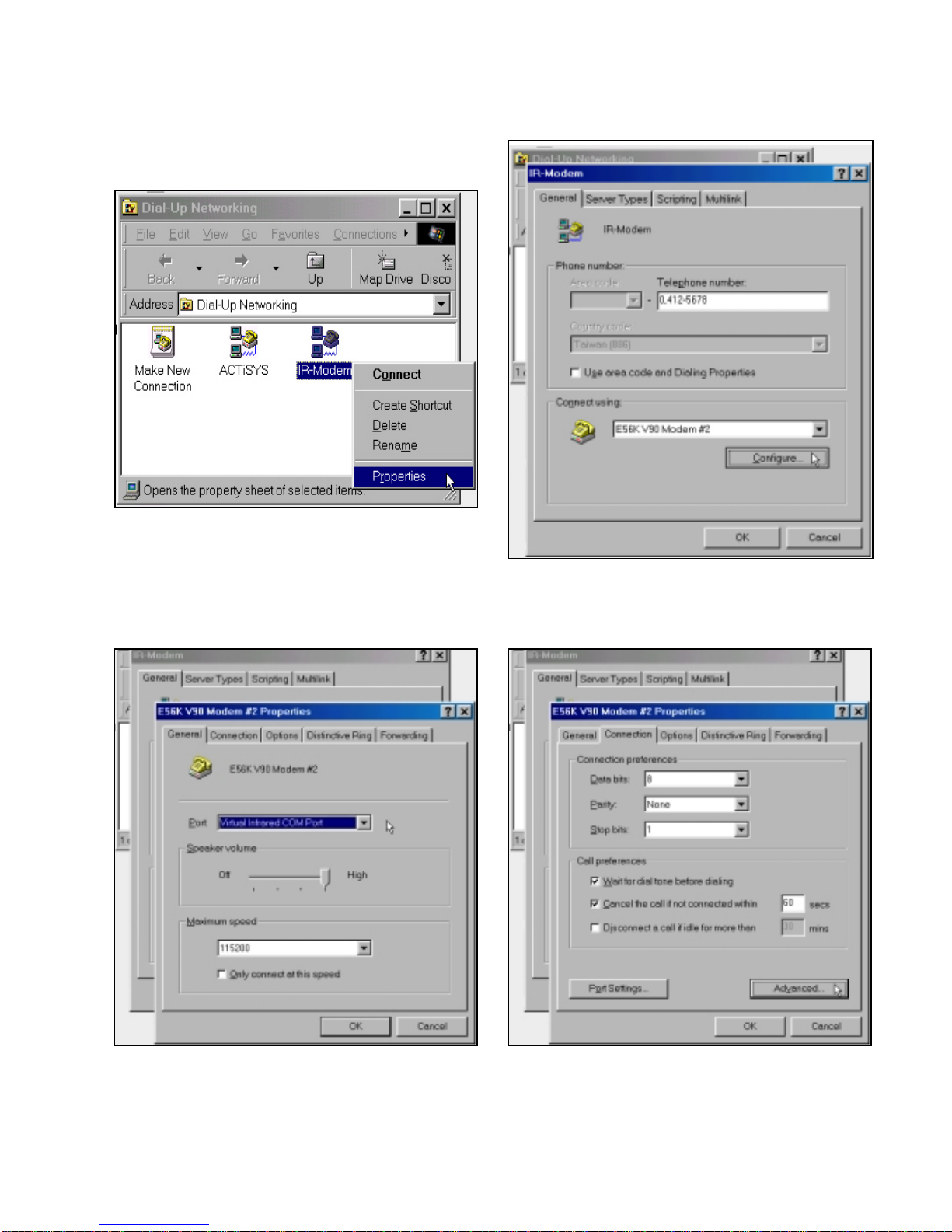

Configure the Modem: (Fig B-2..6)
Port: Virtual Infrared COM Port
Maximum Speed: 115.2 Kbps
Data bits-Parity-Stop bits: 8-N-1
Use flow control: Hardware (RTS/CTS)
100S:
R11-18 or DSW8-1: 1100,0111
Primary/Secondary, 9.6k, Self channel setting, 8-N,
&%./#
Switch on modem and the power supply of 100s. The CTS and DSR LED on the Mini RS-232 Tester
should change color from Green (False) to Red (True)
Put the two IR dongles face to face. Start up PC Win95/98 and the program IR Monitor should find
IR100S device. (Fig B-8). You will see the IR Found icon and hear the sound of found IR device.

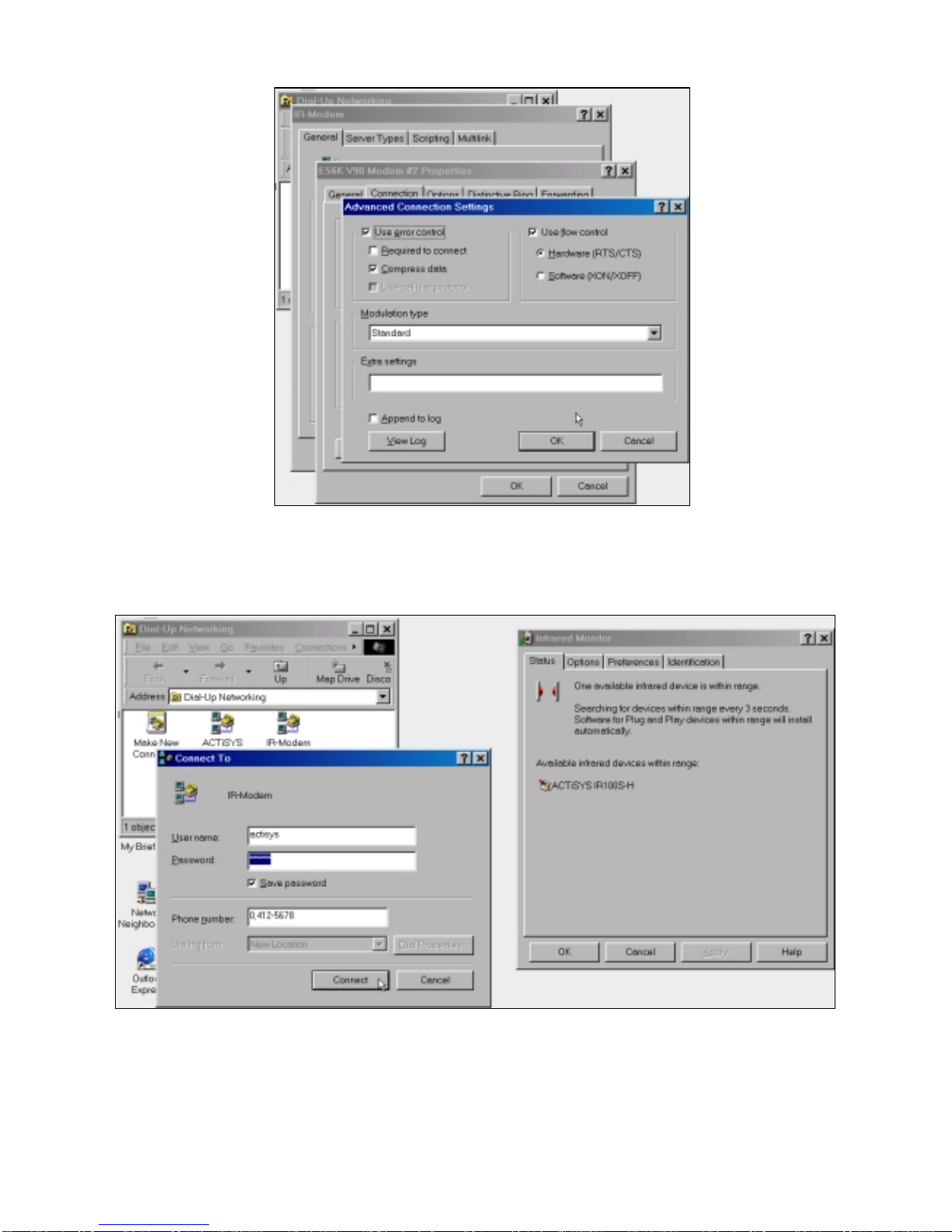

Run Dial-up network connection on PC. Set its properties according to the upper configuration guide (Fig
B-2 ..6).
If a connection is established DTR and RTS are turned ON (Red, True).
Open the IR Monitor, you will see the Connection Status. (Fig B-10)
Start the connect procedure, you will see phone dialing and negotiations. (Fig B-9)






 !
"#$"
%% &'
%

()* !
&
+,













 


!
