Activ8rlives SmartOne User manual

www.activ8rlives.com
SmartOne Peak Flow Meter connects via Bluetooth 4.0 (Smart)
& upload data to Activ8rlives.
FREE App that works with: iOS 10 and above (iPhone 5s or later & iPad 4 or later)
and select Android devices running Android 5.0 and above.
Apple Health App compatible.
Pulmonary Health

2
Contents

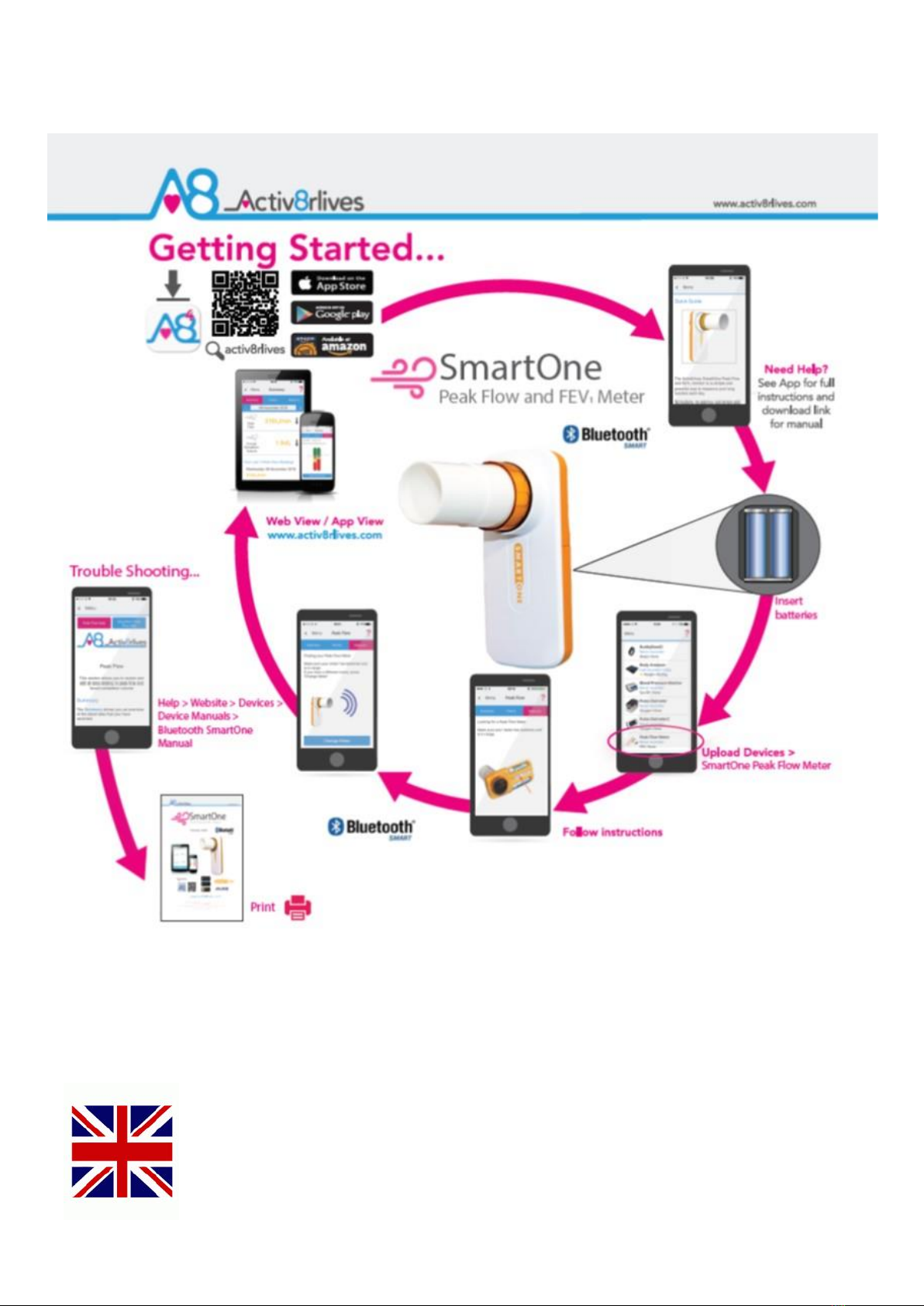

Getting started 4
Your SmartOne Peak Flow & FEV1Meter 5-6
Health and Safety Notices 7
Adding the Batteries 8-9
Cleaning your device 9
How does the device work? 10-13
Installing Activ8rlves App 14-15

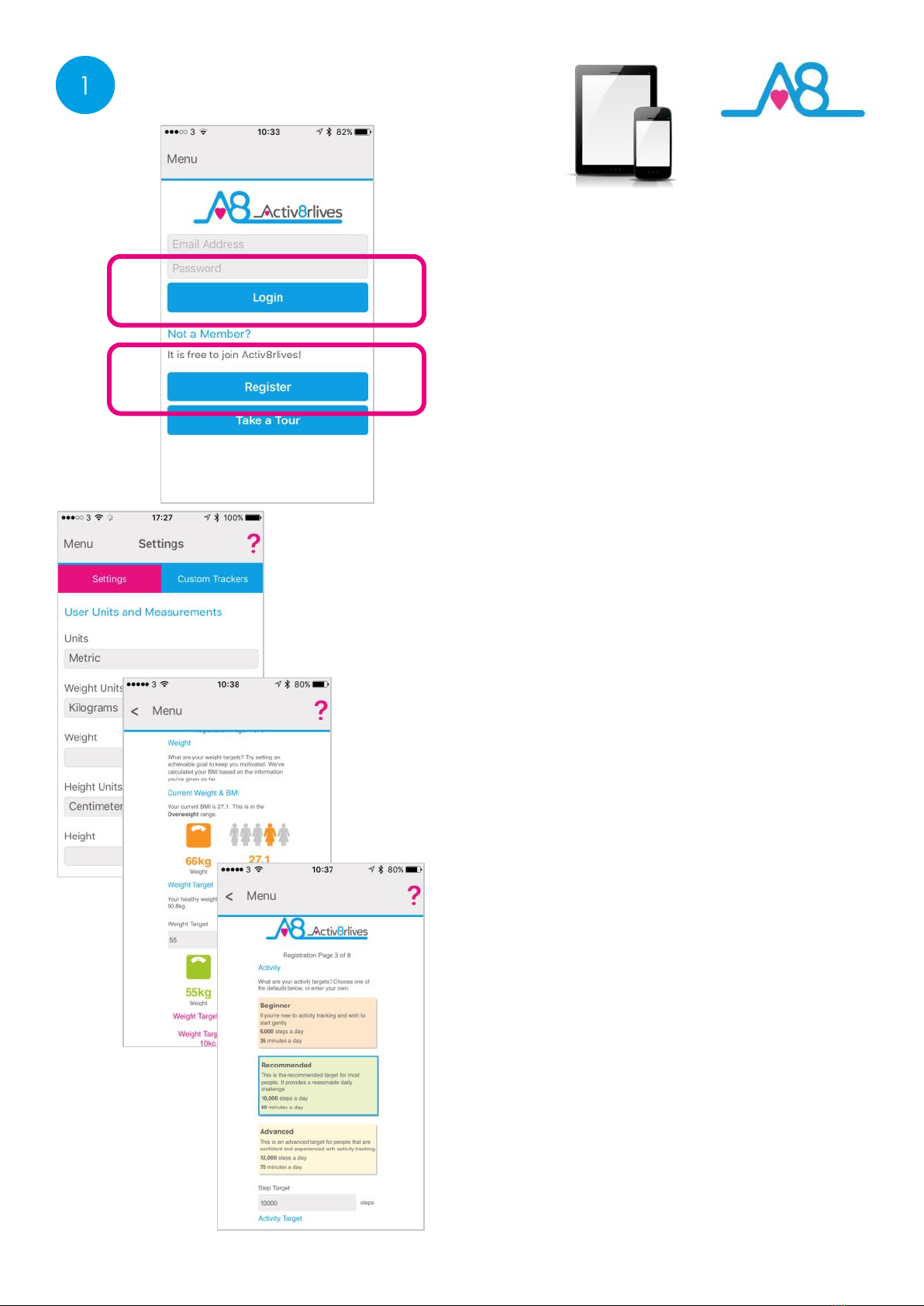

Register for Activ8rlives account 16-17
Start-up Screens 18-19
Connecting by Bluetooth 20
Taking a Reading 21
Viewing Data 22
Sending data to cloud 23
Viewing data on PC or Mac 24-25
Apple Health Integration 27
Trouble shooting 29
Manual data entry and Custom trackers 31
Case Study 33
Specifications 34
Warranty 35
Website 36
Groups and Adventures 37
Rewards and Medals 38
Food Diary 39

3
We are a healthcare company. Our mission is to empower you to take care of
your health and that of your family by self-management through self-
monitoring.
From tracking levels of physical activity, weight, food intake, cardiovascular and lung
function, to a new generation of at-home testing for long-term lung disease, we provide
the devices and web-based tools to help you be active, eat well and stay healthy. Learn
more at www.activ8rlives.com

4
Need Help Setting-Up?
Call us 7 days a week, between 9:00—18:00
UK [phone]

5
Your Activ8rlives SmartOne Peak Flow & FEV1 Meter
Please read this manual carefully before you use your new device so that you do not injure
yourself or others, or cause damage to your new device through improper use.
The Activ8rlives SmartOne® Peak Flow and FEV1 Meter is a simple electronic device, which allows
you to monitor your lung function especially useful if you have Asthma, Chronic Obstructive
Pulmonary Disease (COPD), Cystic Fibrosis (CF) or Bronchiectasis and need to track your Peak
Expiratory (PEF) and Forced Expiratory Flow at 1 second (FEV1).
It sends information to your private free Activ8rlives account via Bluetooth connection to your
smart device. You can see how well you are doing and keep track of your health and wellbeing.
You can stay committed to your goals by forming groups with other members of your family,
club, school or by joining our online communities. By working together in groups, we are more
successful in achieving our health goals. Activ8rlives is designed to help you achieve this.
The Activ8rlives SmartOne Peak Flow Meter helps you to understand how your lung function can
change throughout the week, during periods of ill health, change of medication or as you
change your weight and activity levels. It measures your Peak Expiratory Flow rate (PEF) and also
determines how restricted your airways are (FEV1) using a non-invasive monitoring technology.
When you view your data with either the Activ8rlives website or App, this device will help you to
work out how close to your target values you are at any given time. This manual shows you how
to quickly set-up your Activ8rlives SmartOne Peak Flow Meter —it will take just 5 minutes if you
follow this guide through.
Optional: Included is a Smartphone App, which also tracks your food intake via our photo-based
Food Diary and these images are sent directly to your Activ8rlives account. Your activity, body
composition and food intake can then all be viewed on a single page. Talk about cause and
effect—very powerful.
If in any doubt about your health, please consult your medical team first and follow their advice
closely.
® MIR Medical International Research s.r.l.

6
Your Activ8rlives SmartOne Peak Flow
Your Activ8rlives SmartOne Peak Flow Bluetooth has several parts, the Main Unit or Device,
Turbine, and Mouthpiece. The Main Unit houses all the electronics and Bluetooth component
and the Turbine and Mouthpiece then slot into it. The Activ8rlives SmartOne Peak Flow has two
replaceable and non-rechargeable batteries (instructions on Page 8-9). Other than the battery
compartment, the Device has no user-serviceable parts and opening the case will void your
warranty.
The Activ8rlives SmartOne Peak Flow has a non-washable Main Unit and washable Turbine and
Mouthpiece (instructions for cleaning and disinfecting are on Page 9).
SmartOne
Device or
Main Unit
Mouthpiece
Battery
compartment
Turbine

7
Health and Safety Notices
WARNINGS: The Activ8rlives SmartOne Peak Flow Meter main unit is NOT waterproof. Do not
submerge it in water.
PLEASE seek medical advice before undertaking strenuous exercise or weight loss
programmes. Seek advice from your Doctor about any long-term condition. This device
should not be used to make a primary diagnosis.
 This device is not a toy. It is not calibrated for persons under 16 years of age, pregnant
women, or professional athletes.
 Do not wash the main unit in water. Use a soft, microfiber cloth for cleaning. Don’t use
harsh cleaning products as these will cause damage to your Activ8rlives SmartOne Peak
Flow. Don’t allow sharp objects to scratch the surface as this may damage it and make
it difficult to clean.
 Do not allow your Activ8rlives SmartOne Peak Flow to be subjected to excessive forces,
shocks, dust, temperature changes or humidity over the range specified. Harsh physical
treatment may stop your Activ8rlives SmartOne Peak Flow from working properly. Don’t
expose your Activ8rlives SmartOne Peak Flow to direct sunlight for long periods of time.
 Don’t remove the back cover to the battery compartment and tamper with the internal
components. If you do, you will invalidate your warranty and may cause irreparable
damage. Other than the replacement of the batteries, there are no user serviceable
parts.
 Take precautions when handling all battery types and dispose of batteries properly.
Remove the batteries if you are planning to store the device for a long period of time.
We hope you use your device for many years of course, but long periods of storage with
the batteries in place may damage the device and will cause the batteries to
discharge. Only use the battery type recommended in this manual. Do not touch the
exposed electronic circuits, as there is a danger of electric shock.
 The Mouthpiece and Turbine can be disconnected from the main unit for washing as per
the instructions listed on page 9.
 Do not immerse the Turbine or Mouthpiece in BOILING WATER, ALCOHOL or OILY
CLEANING SOLUTIONS. Never try to clean the Turbine under a DIRECT JET of WATER or
other liquids. Do not use a JET of HOT AIR from a HAIRDRYER or similar to dry the Turbine or
Mouthpiece.
 The measurement functions built into the Activ8rlives SmartOne Peak Flow are not meant
to substitute professional measurement or industrial precision devices. Values produced
by the unit should be considered as reasonable representations only.
 The technical specifications for this product and the contents of the user manual are
subject to change without notice.
 Contact us if your Activ8rlives SmartOne Peak Flow does not work properly.
Call us 7 days a week, between 9:00-18:00
t: [phone] or [e-mail]

8
Note: Do not tamper or attempt to open the unit in which the non-
rechargeable batteries are housed, your warranty will be invalidated.
Substances contained within the battery may damage the environment or
human health if handled and thus is a risk of electrical shock or burns. When
disposing of this product and its batteries, ensure that it is collected separately
for special treatment and not as normal household waste.
+
+
_
+
_

9

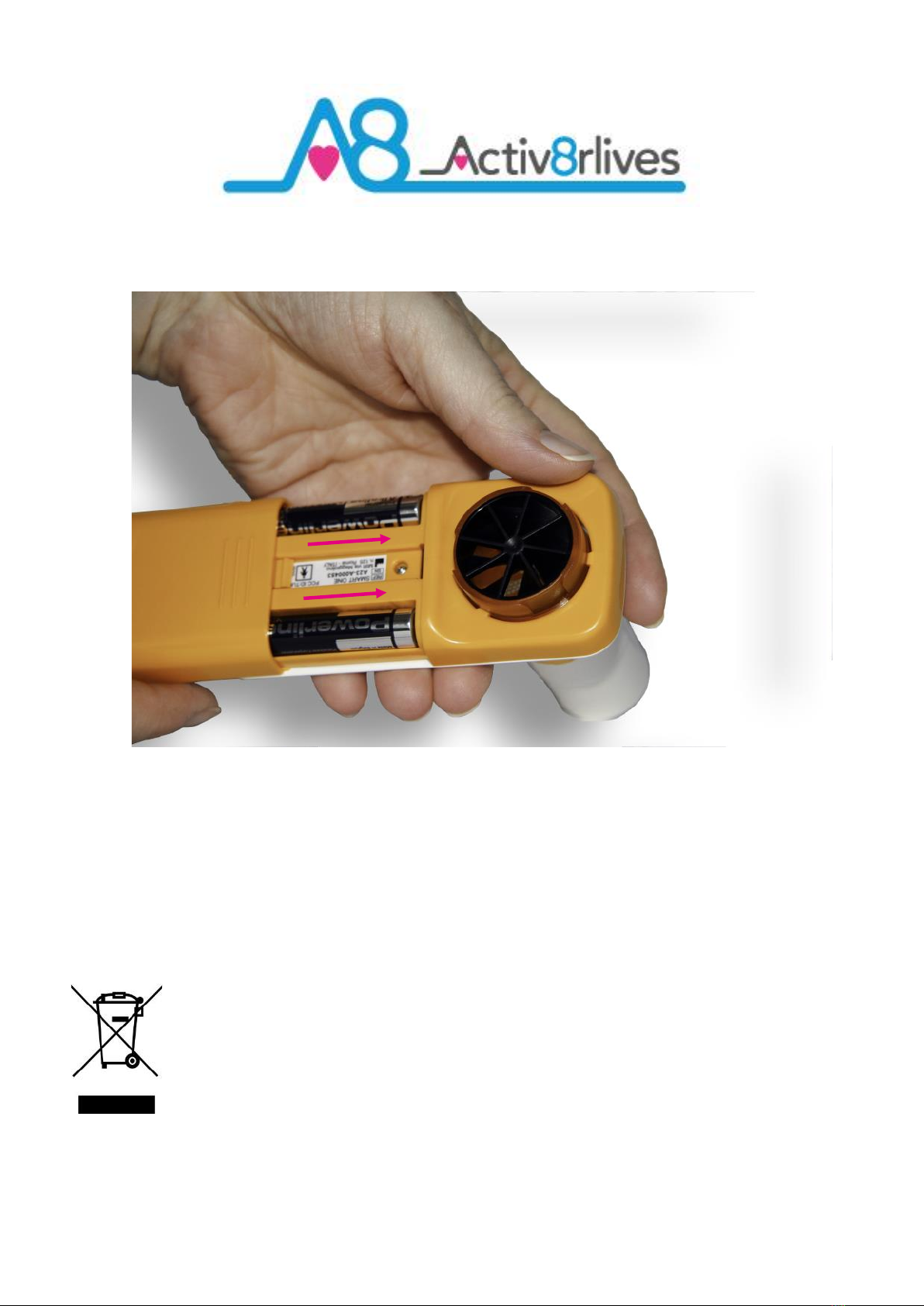

Adding the Batteries
Your Activ8rlives SmartOne Peak Flow meter uses two AAA 1.5V alkaline batteries, which are
supplied. These are non-rechargeable batteries and no attempt should be made to recharge
these.
Open the battery compartment from underneath and insert 2 x AAA batteries in the direction
indicated. Replace the cover.

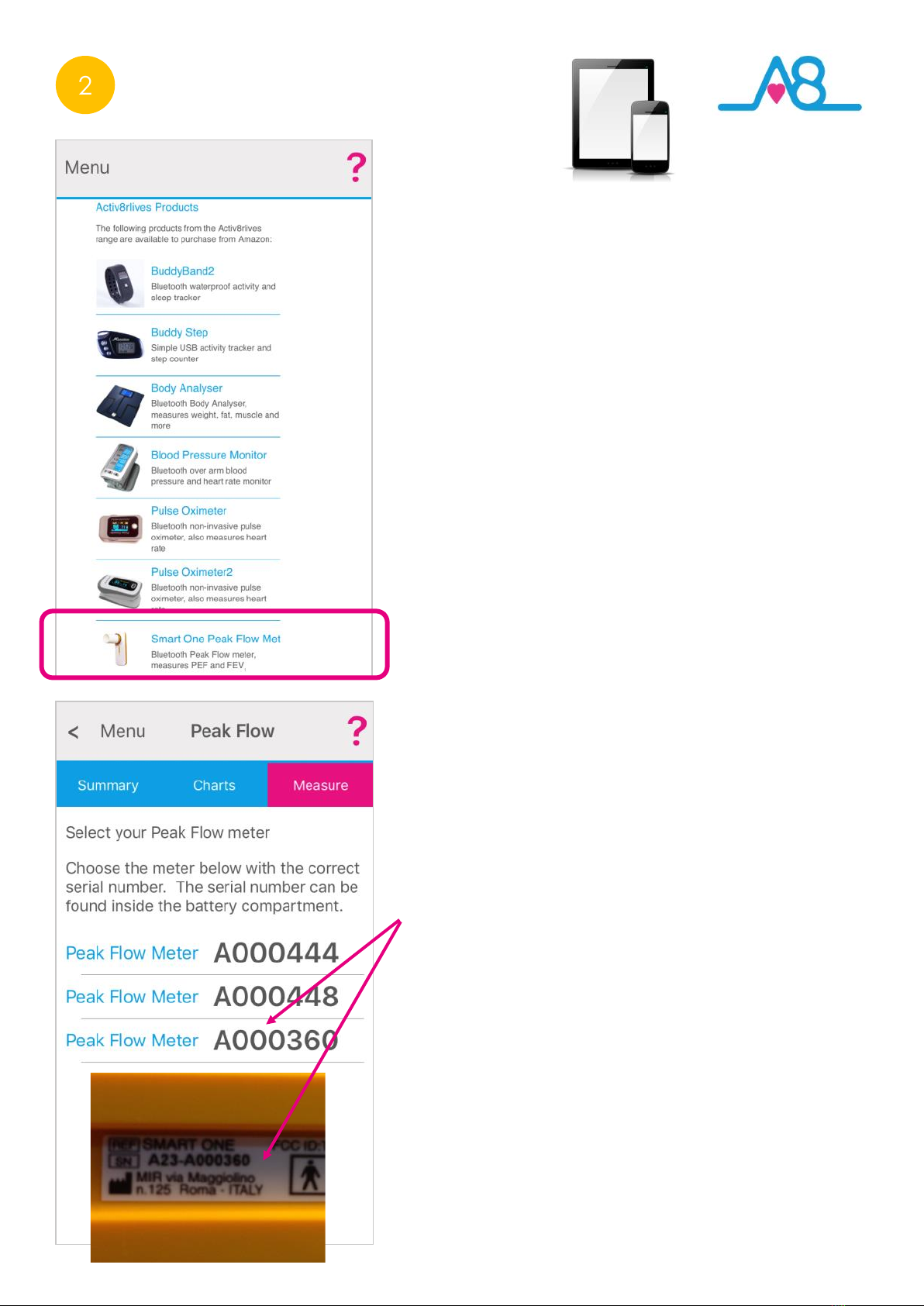

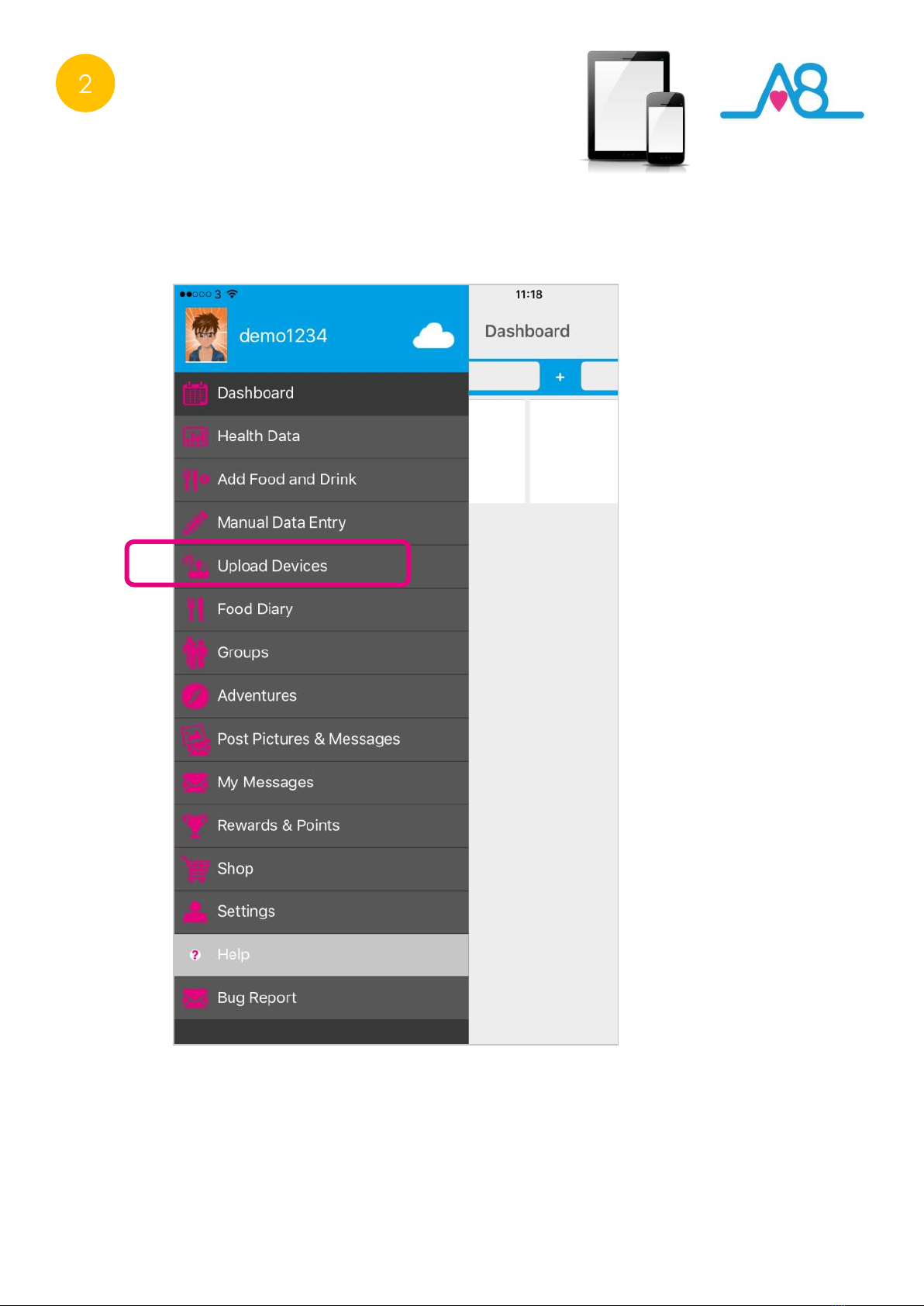

There is no DISPLAY to show whether the Activ8rlives SmartOne Peak Flow is on, but once you
connect the Activ8rlives4Wellness and Diary App and Bluetooth is switched on, once selection
of the Upload Devices page, the App displays all devices serial number within range for more
details see Page 20.
Remove the batteries if you are planning to store the device for a long period of time. We hope
you use your device for many years of course, but long periods of storage with the batteries in
place may damage the device and will cause the batteries to discharge.
Replace the set of batteries (2 x 1.5V AAA) in the right direction when the batteries are
exhausted. No data is stored on the device in memory, so exchange of batteries will not affect
data storage.
Cleaning and Disinfection
It is recommended that you disinfect the Mouthpiece and Turbine before its first use and at
least once a week using the following procedures. Never immerse the Activ8rlives SmartOne
Peak Flow meter’s central unit in water or disinfecting solution.
Disconnect the Mouthpiece and Turbine from the central device by twisting it counterclock-
wise and simply pulling it out.
Soak the Turbine and Mouthpiece in a cold detergent or disinfection solution and shake it to
remove any impurities inside it. Leave it to soak for the length of time suggested by the clean-
ing or disinfection solution manufacturers.
Rinse both the Turbine and Mouthpiece by dipping it in clean cold water. Drain the Turbine and
Mouthpiece and shake it vigorously. Leave it to dry by laying it with the shaft vertical on a
clean piece of paper towel. Reassemble the Mouthpiece onto the Turbine and lock into posi-
tion by turning the Turbine in a clockwise direction and as indicated on the Main Unit.
Do not immerse the Turbine or Mouthpiece in BOILING WATER, ALCOHOL or OILY CLEANING SO-
LUTIONS. Never try to clean the Turbine under a DIRECT JET of WATER or other liquids. Do not use
a JET of HOT AIR from a HAIRDRYER or similar to dry the Turbine or Mouthpiece.

10

11
How Does Activ8rlives SmartOne Peak Flow Work?
The Activ8rlives SmartOne Peak Flow and FEV1 meter is a non-invasive method allowing the
monitoring of the Peak Expiratory Flow (PEF), also called Peak Expiratory Flow Rate (PEFR), which
is a person’s maximum speed of expiration. FEV1is also measured and is the volume of air
expelled during the first second of the same exhalation.
The Activ8rlives SmartOne Peak Flow meter is a small, hand-held device used to monitor a
person’s ability to breathe out air. It measures the airflow through the bronchi of the lungs and
can be used to estimate the degree of obstruction in the airways. When there is an episode of
obstruction the air cannot generally be expelled as forcefully as possible, so your PEF and FEV1
will be lower.
Peak Flow readings are higher when we are well, and lower when the airways are constricted.
From changes in recorded values, we may determine lung functionality, severity of Asthma or
other respiratory symptoms and treatment, and how well our treatment is working.
Measurement of PEF requires some practise to correctly use a meter and the normal expected
value depends on a patient’s gender, age and height. It is classically reduced in lung disorders
such as Asthma, COPD, Bronchiectasis or Cystic Fibrosis.
Due to the wide range of Normal values and high degree of variability, peak flow is not the
recommended test to identify respiratory disease. However, it can be useful in some
circumstances to monitor the severity of it or efficacy of treatment.
It is important to use the same peak flow meter every time to ensure consistency of the
readings.
It is generally recommended to take one measurement in the morning and one in the evening,
every day, before inhaling your prescribed medication. Also it is advisable to carry out
additional measurements whenever you feel unwell or have a perceived shortness of breath.
The highest peak flow value is the measurement of interest. Repeat your measurement three
times to get the best possible result for the moment. Take care to have sufficient relaxation
between measurements.

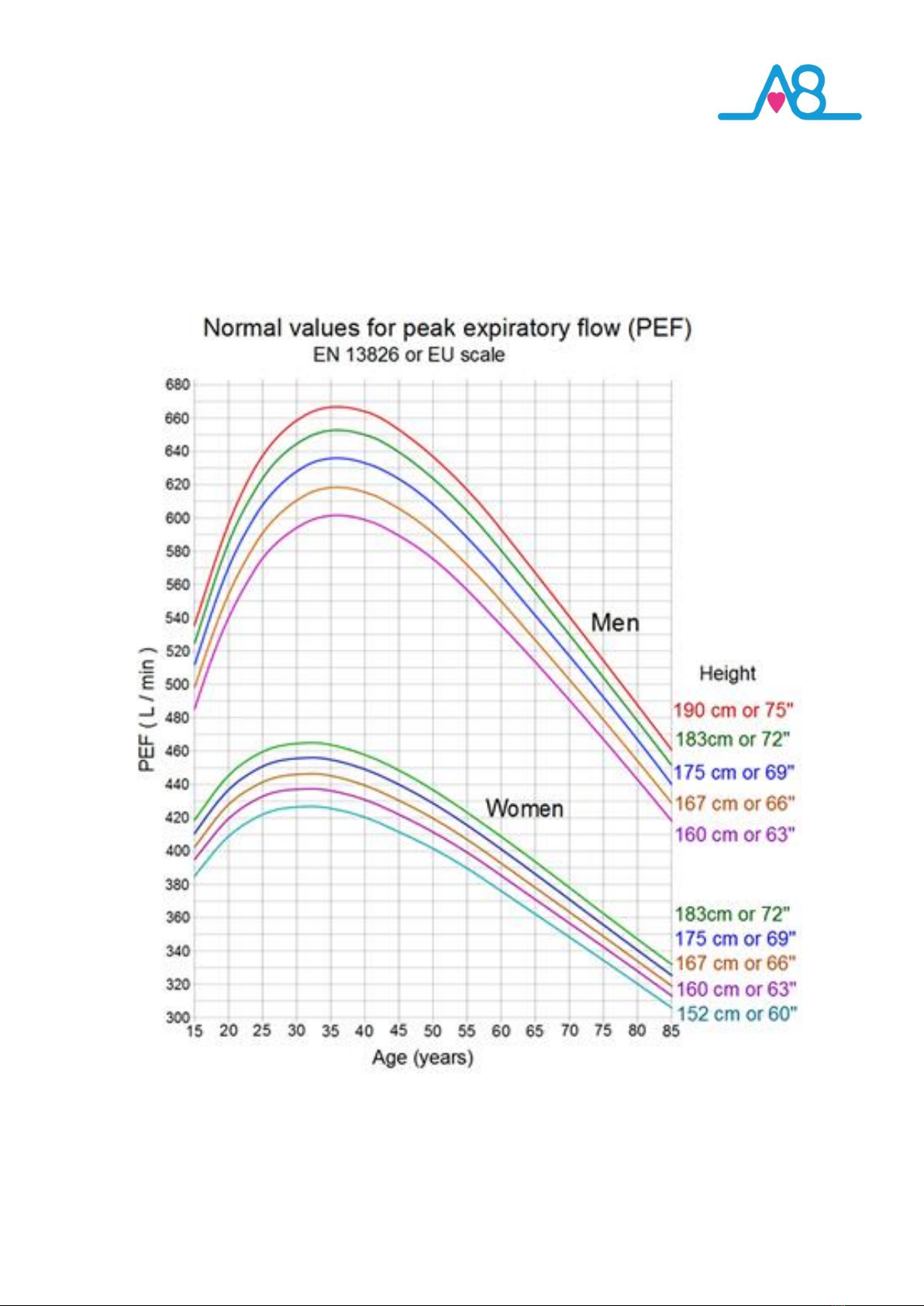

The Normal value (Target value) for PEF varies according to gender age and height. The chart
on page 12 of this manual can be used to read-off your Normal value. This is calculated for you
automatically in Activ8rlives. Enter this value in your Target PEF when registering for your Free
Activ8rlives account.
If in doubt, contact your Doctor or Respiratory Nurse for advice.

12
Reference: Nunn A. J., Gregg I., British Med J, 1989: 298, 1068-70. For use with EN13826 / EU
scale peak flow meters.

13

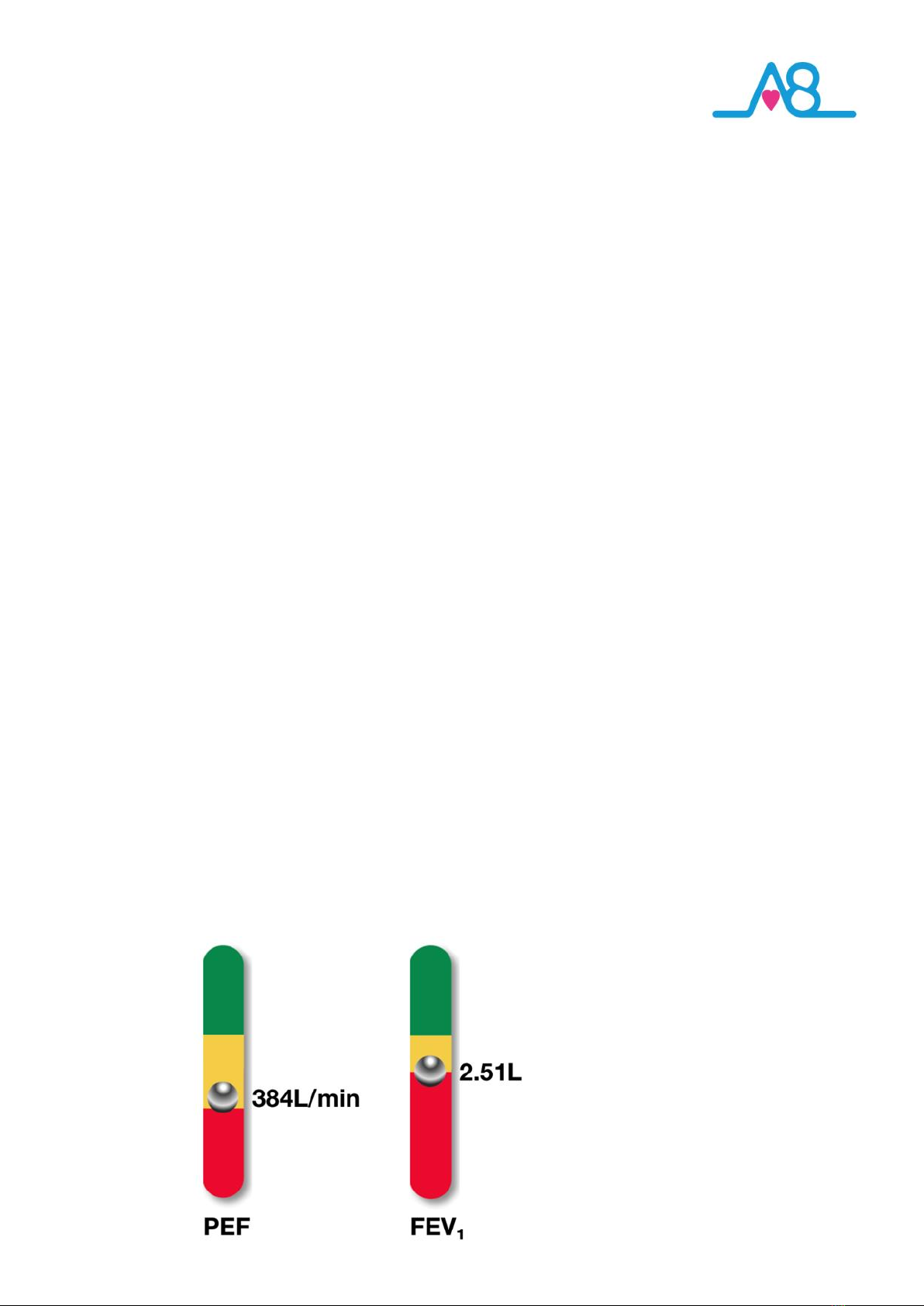

What Your Measurement Means
Peak flow values are often classified into 3 zones of measurement according to the American
Lung Association: Green, Amber and Red.
Doctors and health practitioners develop self-management plans based on the green-amber-
red zones.
This device automatically stores the highest (best) value to date, with the green range being
any reading above 80% of this best value. A reading in the yellow range indicates a reading be-
tween 60% and 80% of the best value. A reading in the red range indicates a reading below
60% of the best value. However, these ranges can be set manually within the software.
Green Zone: 80 to 100 percent of the usual or normal peak flow readings indicating that your
lungs are clear. A peak flow reading in the green zone indicates that the lung function manage-
ment is under good control.
Amber Zone: 50 to 79 percent of the usual or normal peak flow readings indicates caution. It
may mean respiratory airways are narrowing and additional medication may be required.
Red Zone: Less than 50 percent of the usual or normal peak flow readings. Indicates a medi-
cal emergency. Severe airway narrowing may be occurring and immediate action needs to be
taken. This would usually involve contacting a doctor or hospital.
The readings for this female volunteer indicates that her Peak Flow (PEF) and FEV1 on this reading
are within the Amber zones and it may mean that there is narrowing or constriction of her air-
ways and needs to seek advice from a medical professional.
If in doubt as to what your reading means,
contact your Doctor or Respiratory Nurse.

14
1 Install the Activ8rlives4Wellness and Diary App to your iOS or Android
Smartphone or Tablet;
How to operate, use and take care of your Activ8rlives SmartOne Peak
Flow and connect to your Smartphone or Tablet; and
How to take routine readings and upload directly to your Activ8rlives
account.
2
3
If you follow these directions sequentially, it will take you about 5-10 minutes to learn how to
measure your lung capacity and level of congestion and connect to the Activ8rlives4Wellness
and Diary App.
Help Videos in App, follow this ?
Website www.Activ8rlives.com
YouTube http://bit.ly/Activ8rlives
OK, let’s get started with the Setup
This guide will instruct you how to:
The Activ8rlives SmartOne Peak Flow & FEV1Meter is programmed by and uploads information
directly to and from your Activ8rlives account each time your Bluetooth Smart (also known as
4.0 or Bluetooth Low Energy BLE) Smartphone or Tablet is connected to it (not included).

15
1
Installing the Activ8rlives App on Your Smartphone or Tablet
requires Bluetooth 4.0 Enabled Devices
Download the Activ8rlives4Wellness and Diary App from the App Store appropriate to your
device. Search for Activ8rlives in the search bar of your App Store or scan the QR code below
and it will take you to the appropriate App Store for your device.
iOS 10 or above (iPhone 5s or later, iPad 4 or later, all iPad minis, Airs and
Pros). Earlier versions do not support Bluetooth Smart (also known as Blue-
tooth 4.0).
Select Android devices running Android 5.0 or later. Devices must support
Bluetooth Smart (4.0).
Amazon App Store for Android 5.0 or later is now available for devices
that support Bluetooth Smart (4.0).
IMPORTANT NOTE: Please adjust the screen lock function on your
Smartphone or Table to be longer than 2 minutes to allow the Activ8rlives
SmartOne Peak Flow & FEV1Meter time to sync with your device.
Short times of less than 2 minutes cause frequent loss of connectivity.
Compatible Bluetooth 4.0 Smartphones or Tablets

16
1
Register for Activ8rlives Account
Once you have installed the Activ8rlives4Wellness
and Diary App, open the App making sure your
Smartphone or Tablet is connected to the internet
with Bluetooth switched on.
If you have already Registered, you can Login to
your Activ8rlives account. Click the Login icon and
enter your Username and Password.
If you have not previously Registered for your
Activ8rlives account, then click the Register icon
of the App screen.
Completing Your Registration
To complete the Registration for your Activ8rlives
Account, add the correct details for yourself by
following the instructions on the App and selecting
Next at the bottom of each page.
As you complete the information, your Activ8rlives
account begins to learn more about you and your
health. These data are used to help you with your
self-care through self-monitoring. You can always
edit these data later if you make an error, but
please try to be accurate in entering your weight,
your height, your age and gender. These are
important data.

17
1

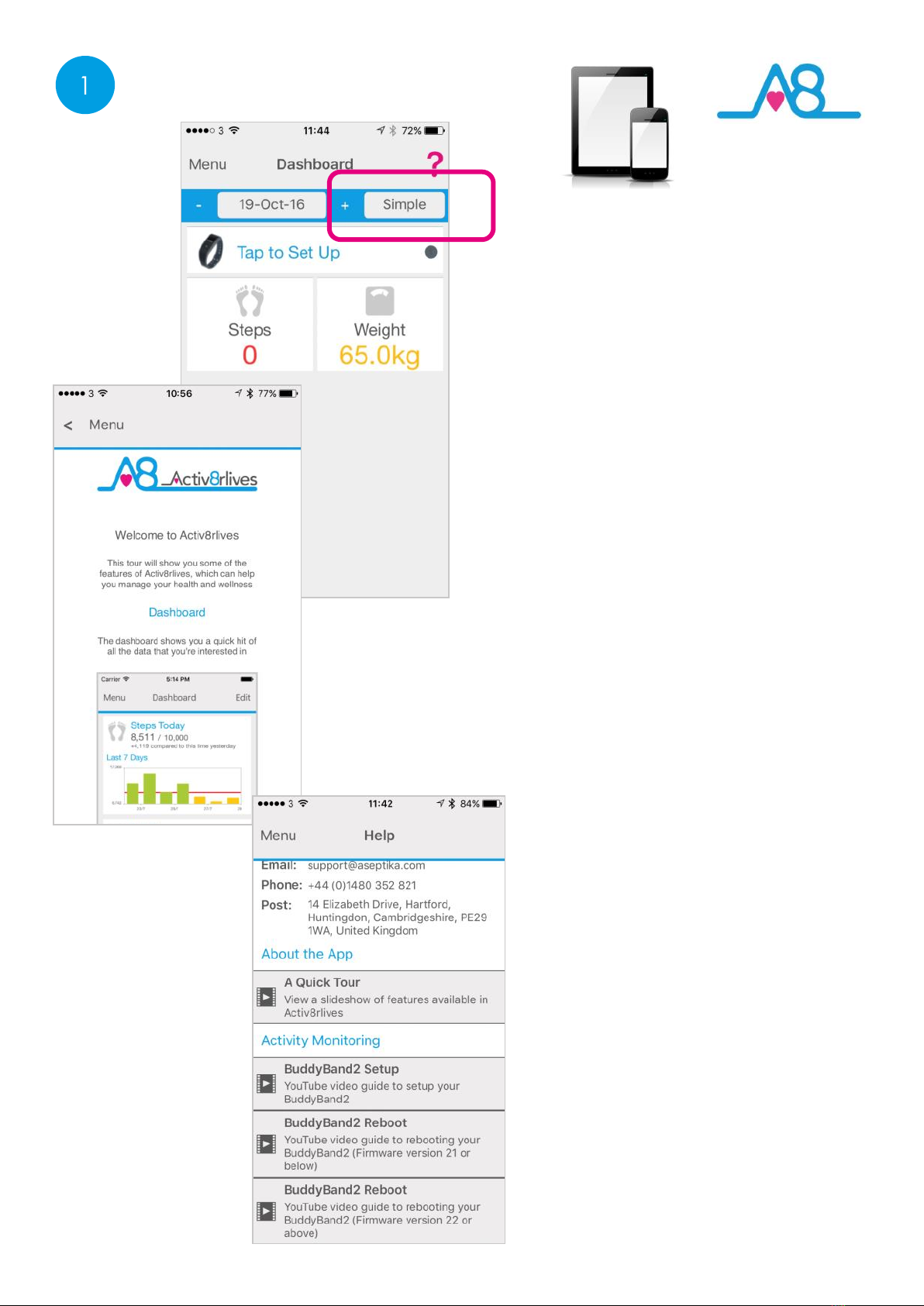

Completed Registration
Once you have completed your
Registration you will automatically be
directed to your Dashboard and a
summary of your activity and weight
targets are set into this Simple Dashboard.

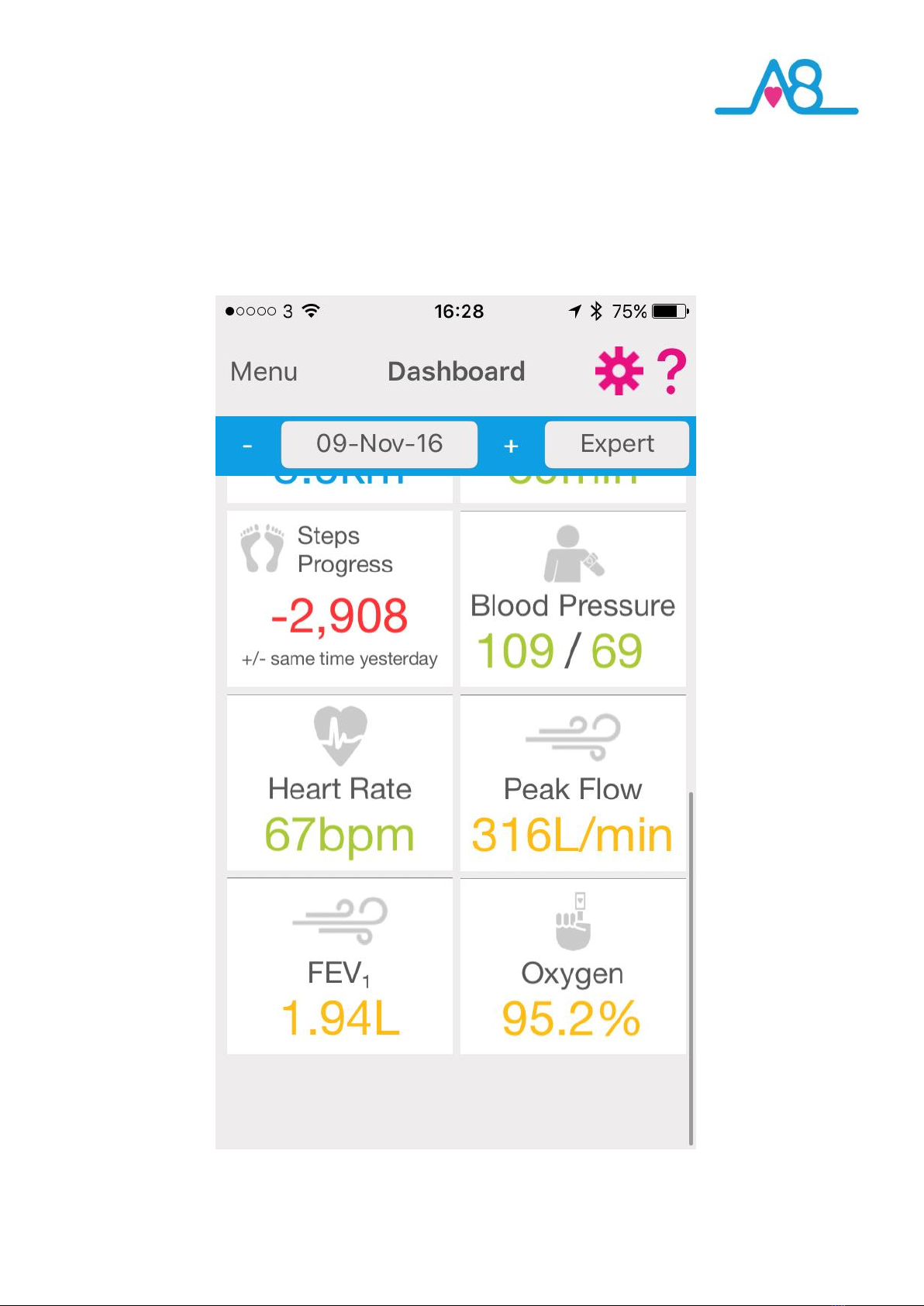

To add other health parameters to your
Dashboard, change and select either the
Advanced or Expert Dashboard, that
include increasing number of trackers.
Remember your Username (email) and
Password details associated with your
account and keep these safe. You use
the same Username and Password to
access your account via the web:
www.activ8rlives.com.
How to Videos on App
A Quick Tour showing what the
Activ8rlives Activ8rlives4Wellness and
Diary App can do is available from the
App. Scroll down to see a quick overview
of what you can do with this App.
Also access available Help Videos from
this page.

18
2

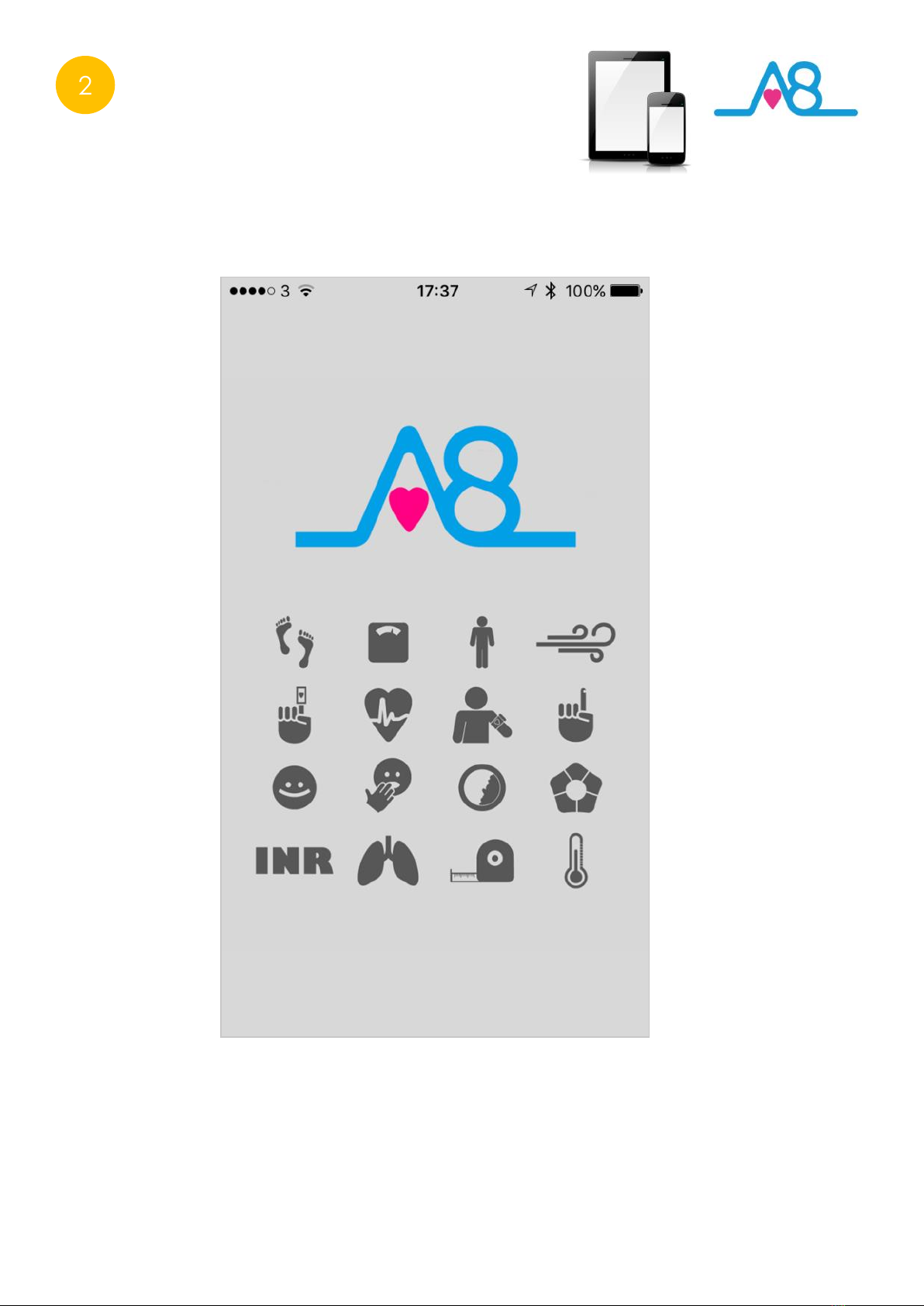

Start-up Screen moves to Main Menu automatically.
Make sure that Bluetooth on your Smartphone or Tablet is switched on.

19
2
From the Main Menu, select Upload Devices.
Make sure you have also set your Screen lock to longer than 2 minutes.

20
2
Connecting to Activ8rlives App by
Bluetooth
Ensure that Bluetooth 4.0 is switched on, on your
Smartphone or Tablet.
Launch the Activ8rlives4Wellness and Diary App on
your Smartphone or Tablet.
Select the Upload Devices from the Menu and touch
the image of the Activ8rlives SmartOne Peak Flow,
which then takes you through easy steps to prepare
your device for connecting by Bluetooth 4.0 and
uploading your first of three readings.
Pairing Activ8rlives SmartOne Peak
Flow
The Activ8rlives SmartOne Peak Flow meter now needs
to be paired with your Smartphone or Tablet.
The App will display the Serial Number of your
Activ8rlives SmartOne Peak Flow meter if it is within
Bluetooth range. If this Serial Number matches the
number on your Activ8rlives SmartOne Peak Flow,
confirm by pressing the corresponding numbered
meter.
We use this Serial Number so that your data
transmission is secure and cannot be hacked.
The Activ8rlives4Wellness and Diary App will remember
your Serial Number but if your Smart Device is
rebooted you may need to start from the pairing
process again. Press the Change button to select
another device.
Full instructions and Pairing Help are also built into the
App to guide you through this pairing process and
there are also Help Videos within the App.
