active fun Knightswood TP804P Quick guide

Robovision Ltd t/a TP Toys
Unit 11, Enterprise Way, Flitwick, Bedfordshire, MK45 5BX England
www.tptoys.com
THIS PRODUCT CONTAINS SMALL PARTS AND IS NOT SUITABLE FOR CHILDREN UNDER 36 MONTHS.
CONTAINS SMALL PARTS. CHOKING HAZARD.
ONLY FOR DOMESTIC USE. FOR OUTDOOR USE.
TOY MUST BE ASSEMBLED BY AN ADULT BEFORE USE.
ADULT SUPERVISION IS REQUIRED
CHILDREN MUST NOT USE THE EQUIPMENT UNTIL PROPERLY INSTALLED.
REMOVE ALL PACKAGING BEFORE GIVING TO YOUR CHILDREN.
THIS PRODUCT IS INTENDED FOR USE BY CHILDREN FROM AGES 3 TO 12 YEARS.
ANCHORS THAT ARE SUPPLIED WITH THIS PRODUCT MUST BE FITTED BEFORE USE.
SINGLE SWING FRAME - MAXIMUM COMBINED USER WEIGHT 100KGS
DOUBLE & TRIPLE SWING FRAMES - MAXIMUM COMBINED USER WEIGHT 200KGS
WARNING!
x2
TP804 / TP881
Build Time
2 Hrs
TP804P Knightswood Single Wooden Swing Frame
TP802P Knightswood Double Wooden Swing Frame
TP803P Knightswood Triple Wooden Swing Frame
TP825P Knightswood Double Wooden Swing Frame
& Extension
TP881P Eagle Wooden Swing Set
Instructions for assembly, maintenance and safe use.
Please retain for future reference.
TP803
TP802 TP825
TP802 803 804 825 881 Roundwood Swings New In8047-B 23.03.18 Option 2.indd 1 23/03/2018 16:17

TP802 803 804 825 & 881
2
Important advice for assembly, maintenance and safe use
1. Toys must be assembled by an adult before use exactly in accordance with the instructions.
2. Check all parts are present before you start to assemble the product.
3. Place small parts on a tray or similar, to ensure they are not lost.
4. If any parts are missing do not use the product until the replacement parts are fitted.
5. Remove all packaging before giving to your children or allowing them to play with this product.
6. Ensure your product is sited on level ground. Failure to do this may put additional stress on connections and joints
and in time could cause them to fail.
7. Ensure your product is located on a soft impact surface like grass. Never locate your product on hard surfaces like
concrete or asphalt.
8. Children must not use this product until properly installed.
9. Adult supervision is required at all times to ensure children play safely. Ensure children’s clothing is appropriate for
the play activity.
10. Equipment should be checked by an adult at the beginning of each season and at regular intervals during the
usage season to ensure it is safe.
11. Pay special attention to all connections and fastenings.
12. Parts may need to be replaced if they show signs of wear and tear. Replace any defective parts in accordance
with these instructions.
13. Any changes to this toy, e.g. changing or adding an accessory, must be done in accordance with our instructions.
Failure to do this will render your guarantee null and void and may make your product unsafe.
14. The age recommendation for this product is clearly stated on the packaging and these instructions. Please adhere
to it at all times.
15. When you dispose of this equipment please do so responsibly.

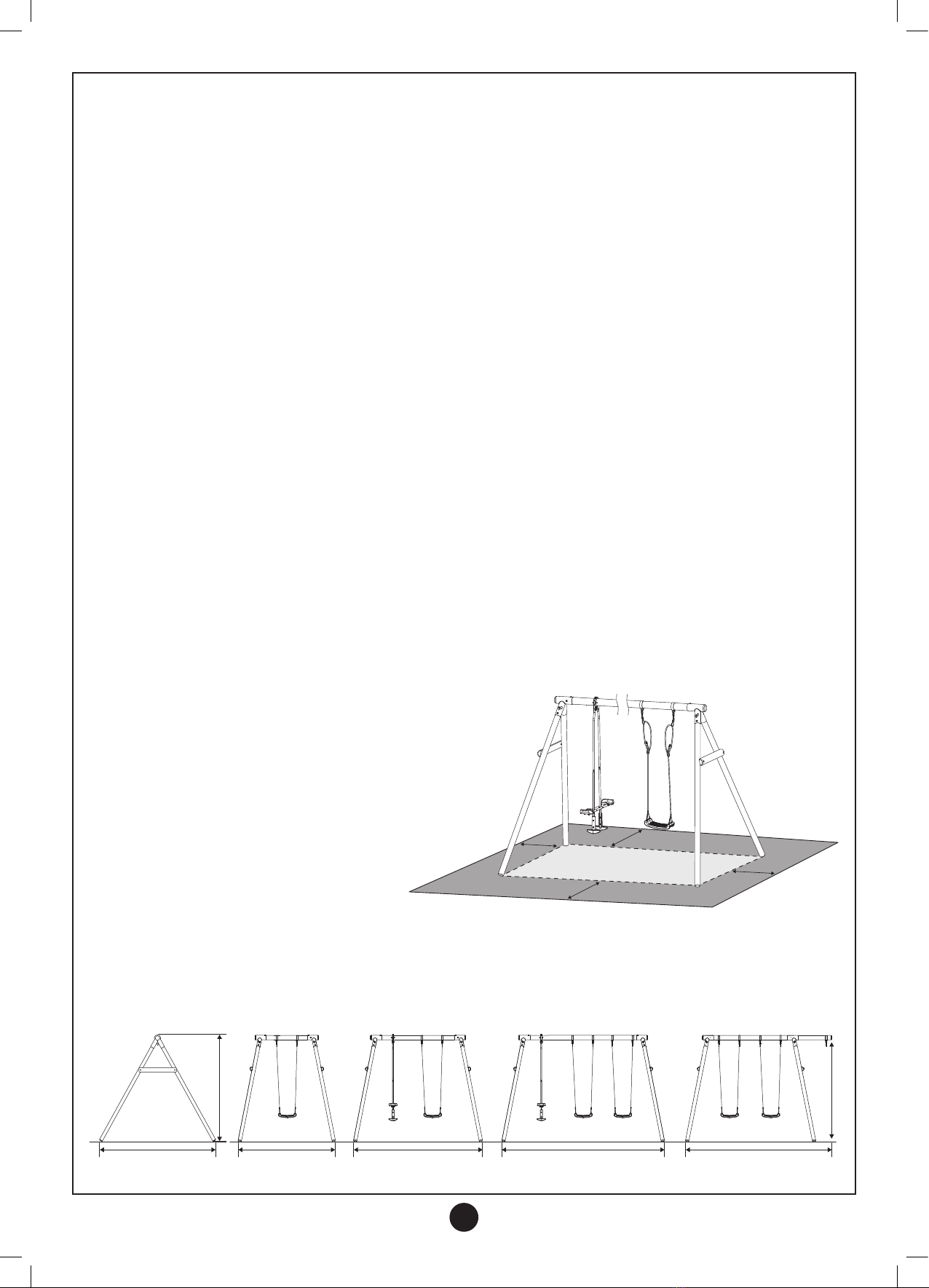

Safe play free space area
The safe play area refers to the zone extending 200cm
around the toys on all sides and 250cm above the toy.
The safe play area must be free from all obstacles.
Dimensions
2m
2m
2m
2m
TP804 / TP881
TP802
TP803
TP825
276cm
240cm
300cm219cm 375cm 337cm
TP804
TP881
TP802 TP803 TP825
TP802 803 804 825 881 Roundwood Swings New In8047-B 23.03.18 Option 2.indd 2 23/03/2018 16:17

TP802 803 804 825 & 881
3

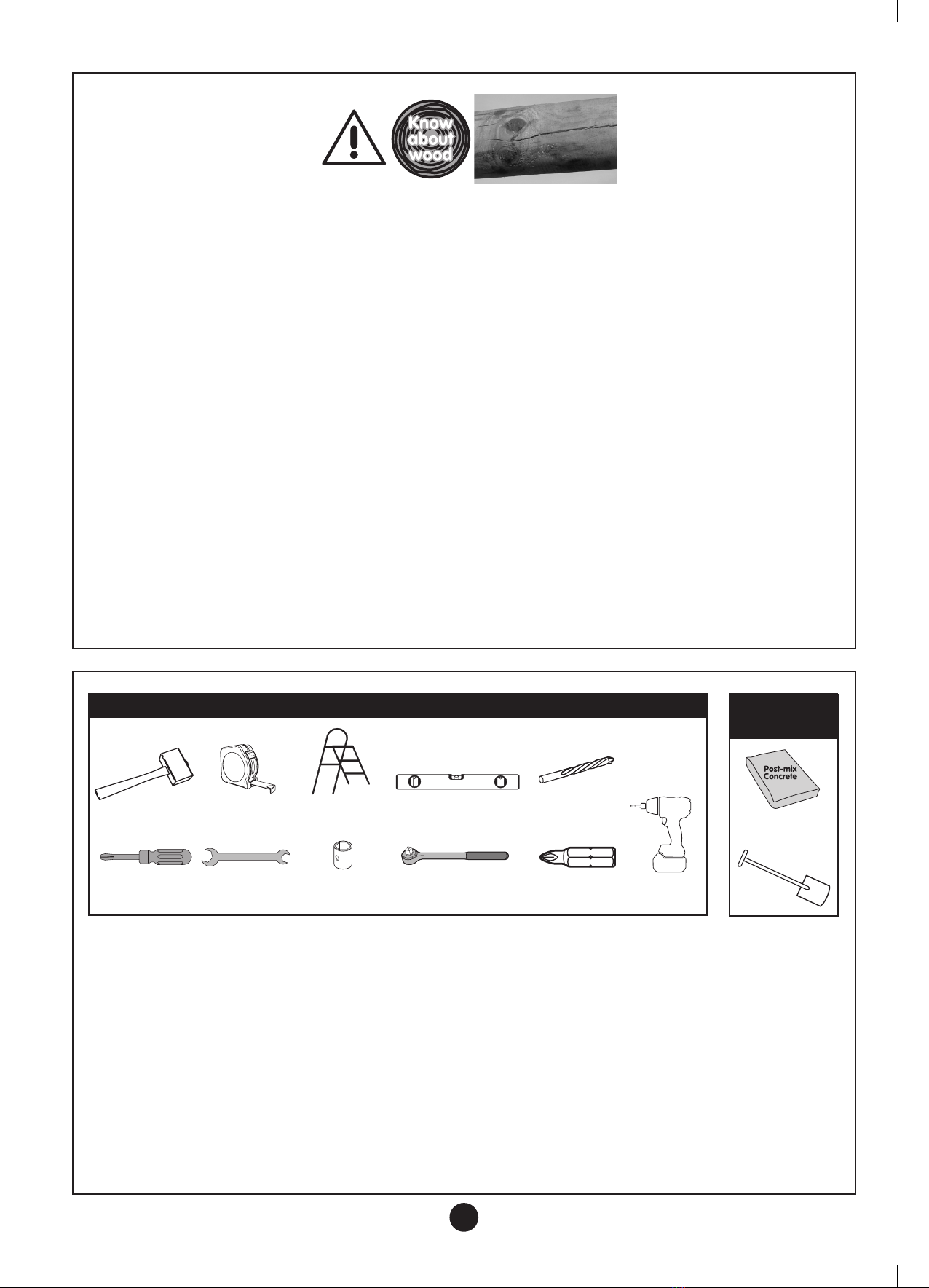

Know Your TP Round Wood.
Timber is a very popular choice for active outdoor toys. For reasons of affordability and the environment, all wood playset
manufacturers use softwood rather than hardwood. Each piece of timber is unique, bearing its own knots, cracks and
variations in colour.
Round timbers tend to come from younger smaller trees and are complete tree poles, stripped of any bark and other
rough materials but subject to no further processing apart from the application of a suitable environmentally friendly
preservative.
Our round wood frames are rustic in appearance. The heartwood that they are made from naturally has cracks and
splits. Theses cracks will change over time due to atmospheric conditions. When wet, the wood will take in water, swell
and the cracks will close up (not disappear), when dry the wood contracts and the cracks will open up.
Whilst this can sometimes seem alarming, the round timber frames are designed and dimensioned to ensure these
natural characteristics do not have an impact upon the structural integrity of the frame. All of our wooden play frames
are rigorously tested by an independent test house and fully comply with the relevant toy safety regulations.
Because of the natural characteristics of such wood products, it is vital that parents check their play frame regularly to
identify any splintering or lifting of the surface layers of the wood or any exposure of rough wood due to changes in
cracks and splits. Affected areas must be rubbed down using coarse sandpaper to restore a smooth. Safe surface.
Very occasionally these characteristics can develop to a point where replacing the pole may be required. This can be if a
crack is in a particular position or if a crack exceeds certain parameters. Examples of this are:
• Where cracks open up in excess of 5mm in width.
• Where cracks of a significant width extend over half the total length of the timber.
• Where cracks run through fixing points.
5mm
Drill Bit
Step Ladder Spirit LevelTape MeasureMallet
Combi Drill
Pozi #2
Pozi #3
Screwdriver WrenchSockets
10 & 13mm
Spanner
10 & 13mm
Not Supplied
Shovel
Also
Required:
Tools - You will need:
TP802 803 804 825 881 Roundwood Swings New In8047-B 23.03.18 Option 2.indd 3 23/03/2018 16:17

4
TP802 803 804 825 & 881
801
MW0200 2700mm x2
MW0202 900mm x2
M8 x25mm
FA8440
x16
70mm FA8439
x16
PR5069
x4
40mm FA8380
x6
4 x 16mm FA4527
x2
FB6051
x2
PM1007
Flag x1
PM1968
x1
804 - 1 / 881 - 1
MW0200 2700mm x2
MW1500 x1
PR7757
TP804 x2
TP881 x2
Fixings - SP0075
Please note: There may be some fixings left over after the assembly build.
800S

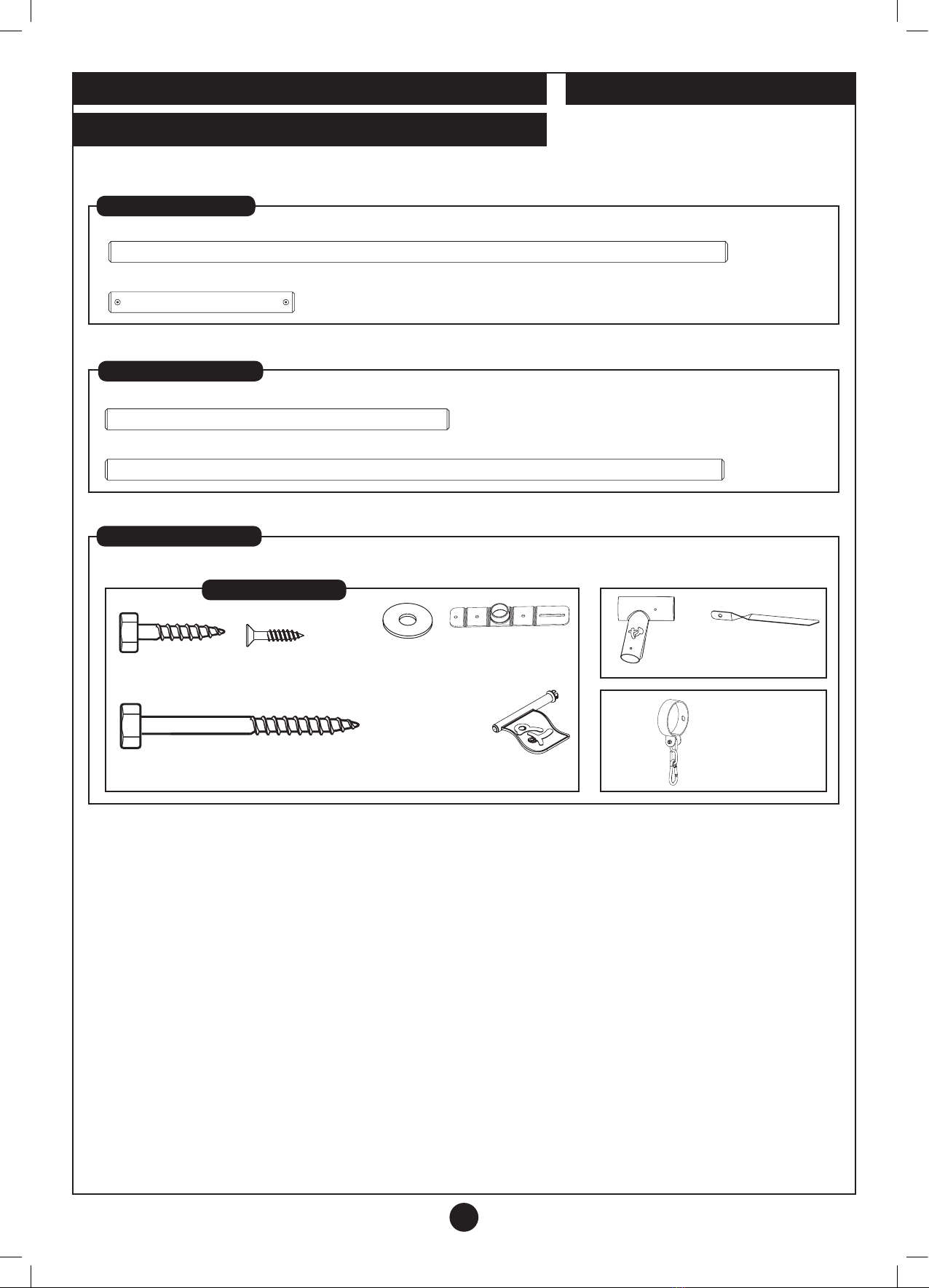

Contents - Please check
TP804P Knightswood Single Wooden Swing Frame
TP881P Eagle Wooden Swing Set
TP802 803 804 825 881 Roundwood Swings New In8047-B 23.03.18 Option 2.indd 4 23/03/2018 16:17

5
TP802 803 804 825 & 881
PR7757
TP804 x2
TP881 x2
70mm FA8439
x4
M8 x25mm
FA8440
x4
2
15mm
x2
FB6038 x2
MW0204
or
MW1500
1
MW1500 x1
5mm

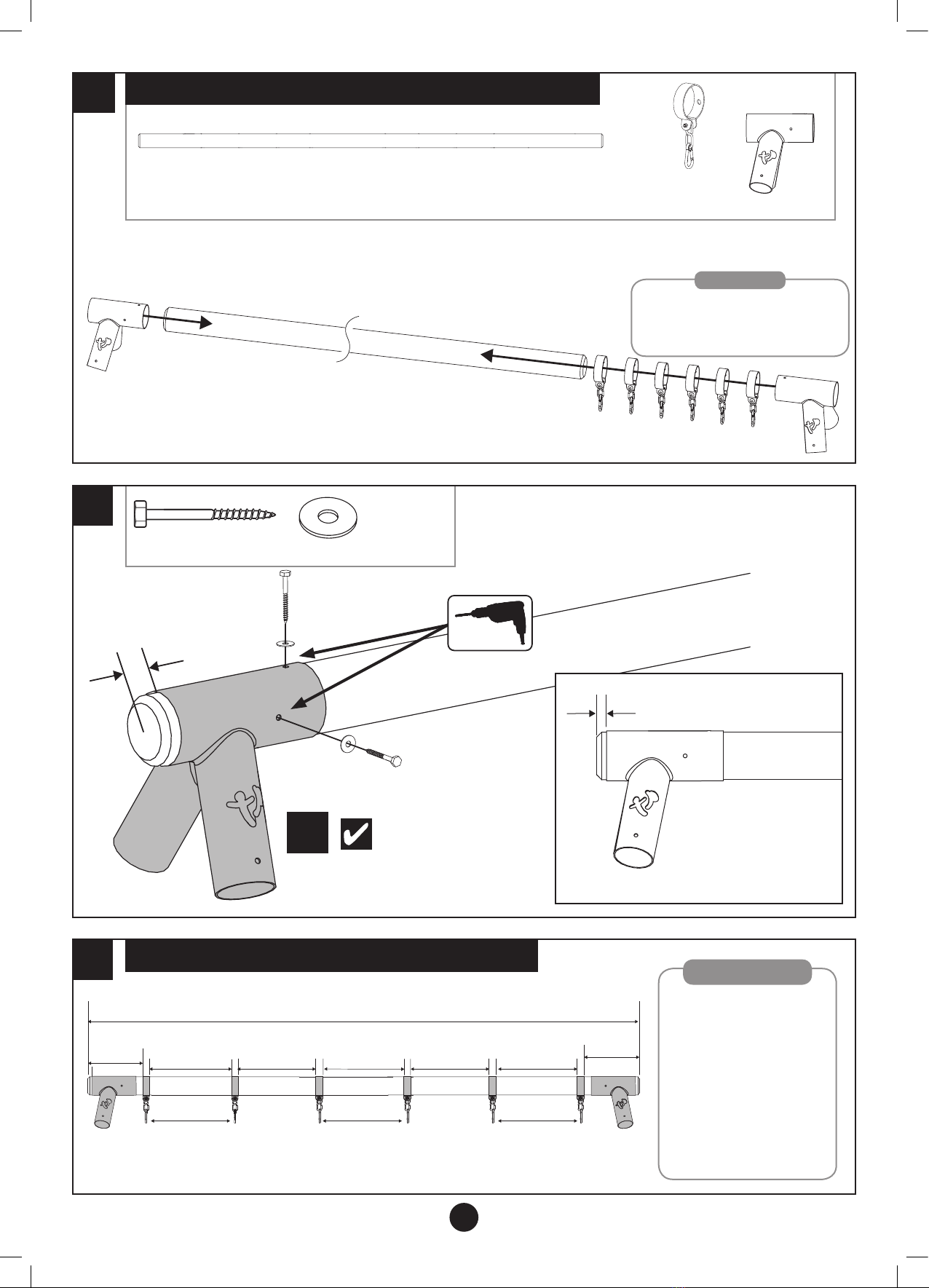

3Locate your swing seats correctly:
Xmm
X X
Swing Seat Position
X
For correct spacing
and fixing of your
chosen swing
accessories please
go to
page 12 stage 3.
ASSEMBLY TIP
Make sure you thread
the metal
collars (PR7757) onto
your top bar
before the securing the
brackets to each end of
the wood
ASSEMBLY TIP
15mm
TP804P Knightswood Single Wooden Swing Frame
TP881P Eagle Wooden Swing Set
TP802 803 804 825 881 Roundwood Swings New In8047-B 23.03.18 Option 2.indd 5 23/03/2018 16:17

6
TP802 803 804 825 & 881

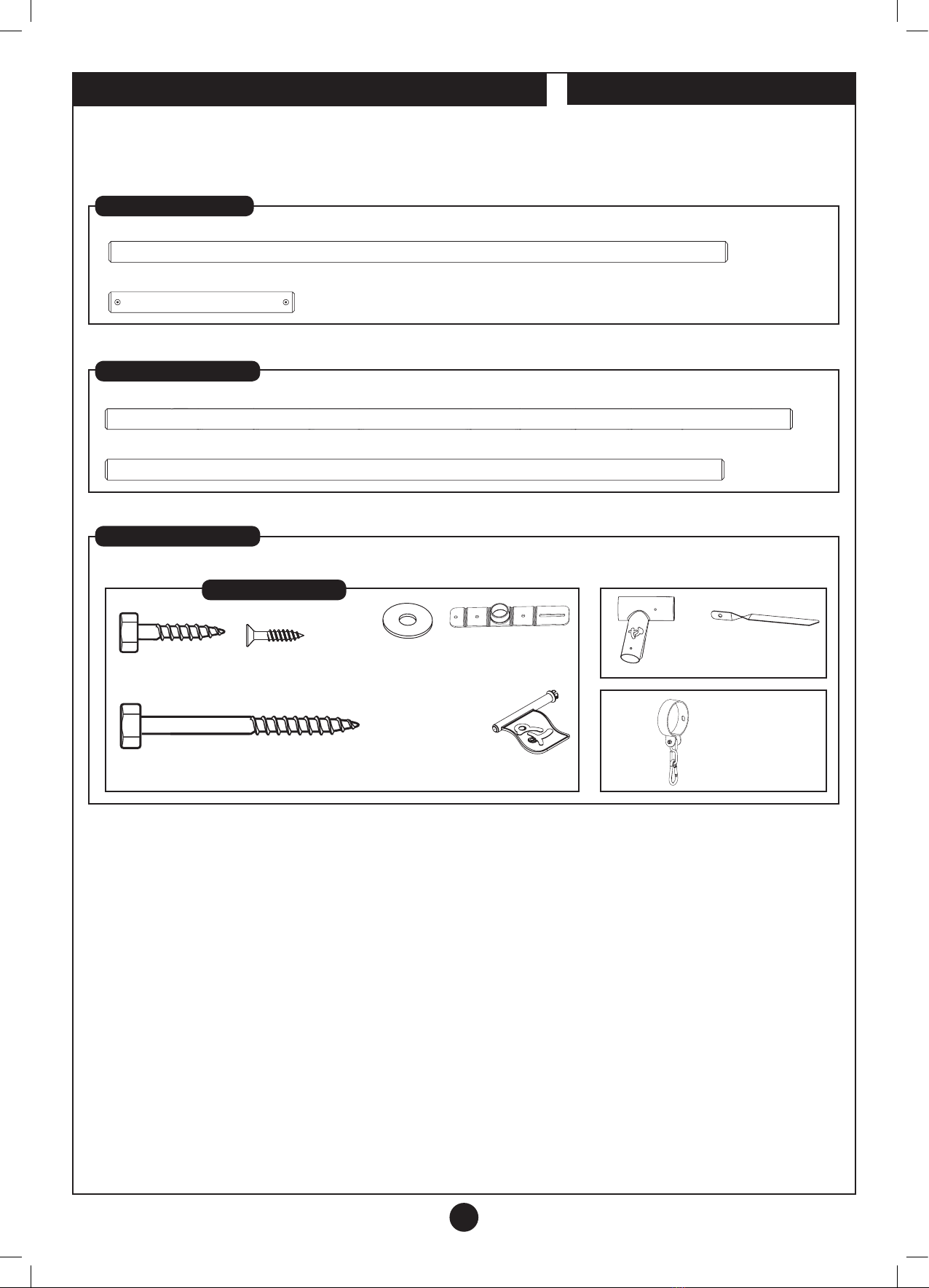

Contents - Please check
TP802 Knightswood Double Wooden Swing Frame
MW0200 2700mm x2
MW0202 900mm x2
801
MW0200 2700mm x2
MW0203 2250mm x1
802 - 1
M8 x25mm
FA8440
x16
70mm FA8439
x16
PR5069
x4
40mm FA8380
x6
4 x 16mm FA4527
x2
Fixings - SP0075
Please note: There may be some fixings left over after the assembly build.
FB6051
x2
PM1007
Flag x1
PM1968
x1

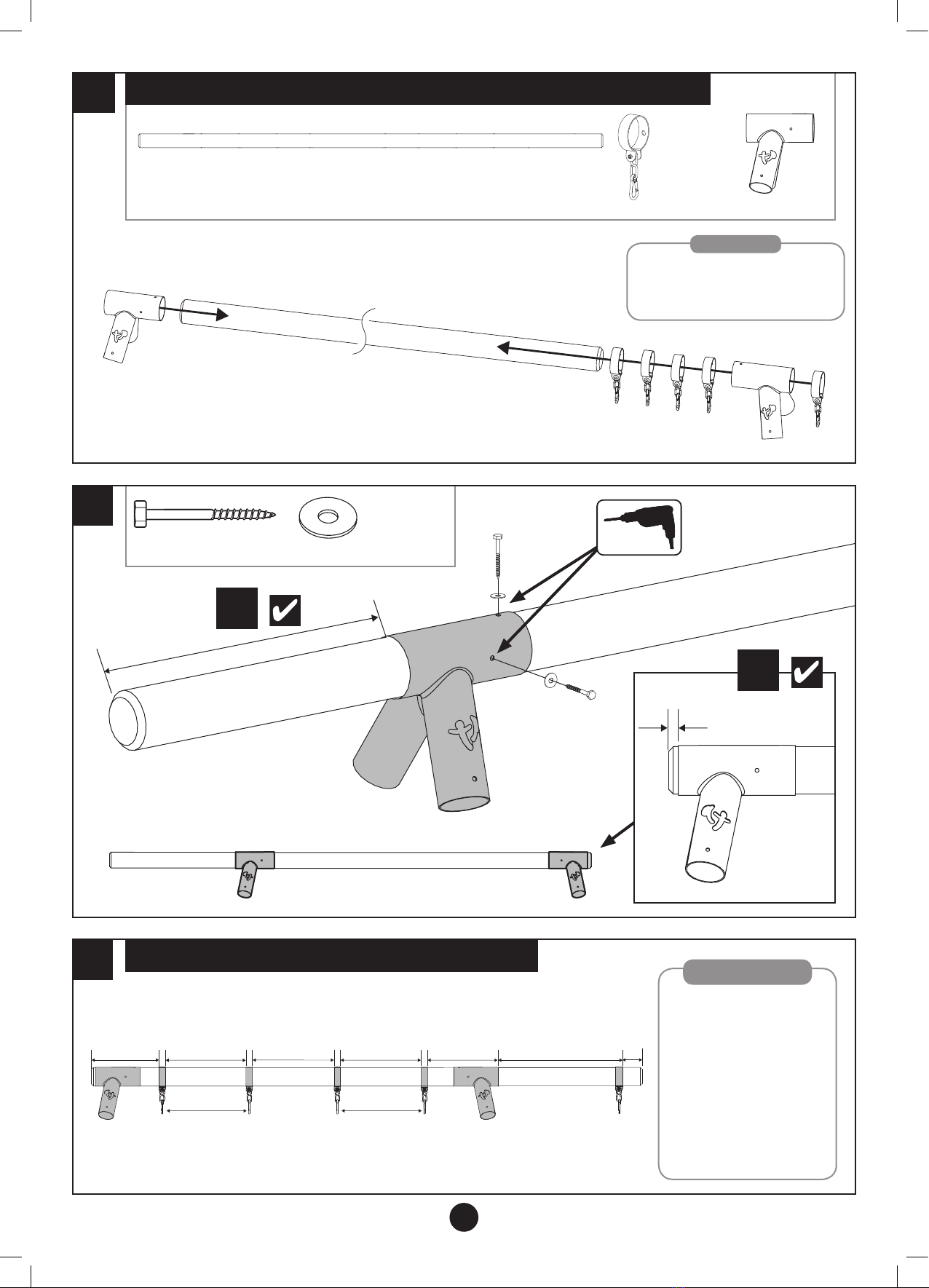

PR7757
TP802 x4
800D
TP802 803 804 825 881 Roundwood Swings New In8047-B 23.03.18 Option 2.indd 6 23/03/2018 16:17

7
TP802 803 804 825 & 881
PR7757
TP802 x4
FB6038 x2
MW0203
1
Make sure you thread the metal
collars (PR7757) onto your top bar
before the securing the brackets to
each end of the wood
ASSEMBLY TIP
MW0203 2250mm x1
70mm FA8439
x4
M8 x25mm
FA8440
x4
2
15mm
x2
5mm
3Locate your swing seats correctly:
For correct spacing
and fixing of your
chosen swing
accessories please
go to
page 13 stage 3.
ASSEMBLY TIP
2250mm
X X X
Swing Seat Position Swing Seat Position
X X
TP802 Knightswood Double Wooden Swing Frame
15mm
TP802 803 804 825 881 Roundwood Swings New In8047-B 23.03.18 Option 2.indd 7 23/03/2018 16:17

8
TP802 803 804 825 & 881
Contents - Please check
TP803 Knightswood Triple Wooden Swing Frame
MW0200 2700mm x2
MW0202 900mm x2
801
MW0200 2700mm x2
MW0201 3000mm x1
803 - 1
M8 x25mm
FA8440
x16
70mm FA8439
x16
PR5069
x4
40mm FA8380
x6
4 x 16mm FA4527
x2
Fixings - SP0075
Please note: There may be some fixings left over after the assembly build.
FB6051
x2
PM1007
Flag x1
PM1968
x1
PR7757
TP803 x6
800T
TP802 803 804 825 881 Roundwood Swings New In8047-B 23.03.18 Option 2.indd 8 23/03/2018 16:17

9
TP802 803 804 825 & 881
PR7757
TP803 x6 FB6038 x2
MW0201
1
Make sure you thread the metal
collars (PR7757) onto your top bar
before the securing the brackets to
each end of the wood
ASSEMBLY TIP
MW0201 3000mm x1
70mm FA8439
x4
M8 x25mm
FA8440
x4
2
15mm
x2
15mm
5mm
3Locate your swing seats correctly:
For correct spacing
and fixing of your
chosen swing
accessories please
go to
page 14 stage 3.
ASSEMBLY TIP
X
Swing position Swing position Swing position
XX X X X X
X
TP803 Knightswood Triple Wooden Swing Frame
TP802 803 804 825 881 Roundwood Swings New In8047-B 23.03.18 Option 2.indd 9 23/03/2018 16:17

10
TP802 803 804 825 & 881
Contents -
Please check
M8 x25mm
FA8440
x16
PR5069
x4
FB6051
x2
PM1007
Flag x1
PM1968
x1
PR7757
TP825 x5
TP825 Knightswood Double Wooden Swing Frame & Extension
MW0200 2700mm x2
MW0202 900mm x2
801
MW0200 2700mm x2
MW0201 3000mm x1
803 - 1
70mm FA8439
x16
40mm FA8380
x6
4 x 16mm FA4527
x2
Fixings - SP0075
Please note: There may be some fixings left over after the assembly build.
825-3
TP802 803 804 825 881 Roundwood Swings New In8047-B 23.03.18 Option 2.indd 10 23/03/2018 16:17

11
TP802 803 804 825 & 881
PR7757
TP825 x5
FB6038 x2
MW0201
1
Make sure you thread the metal
collars (PR7757) onto your top bar
before the securing the brackets to
each end of the wood
ASSEMBLY TIP
MW0201 3000mm x1
70mm FA8439
x4
M8 x25mm
FA8440
x4
2
750mm
5mm
3Locate your swing seats correctly:
For correct spacing
and fixing of your
chosen swing
accessories please
go to
page 15 stage 3.
ASSEMBLY TIP
x1
X X X X X X
Swing Seat Position Swing Seat Position
X
15mm
x1
TP825 Knightswood Double Wooden Swing Frame & Extension
TP802 803 804 825 881 Roundwood Swings New In8047-B 23.03.18 Option 2.indd 11 23/03/2018 16:17

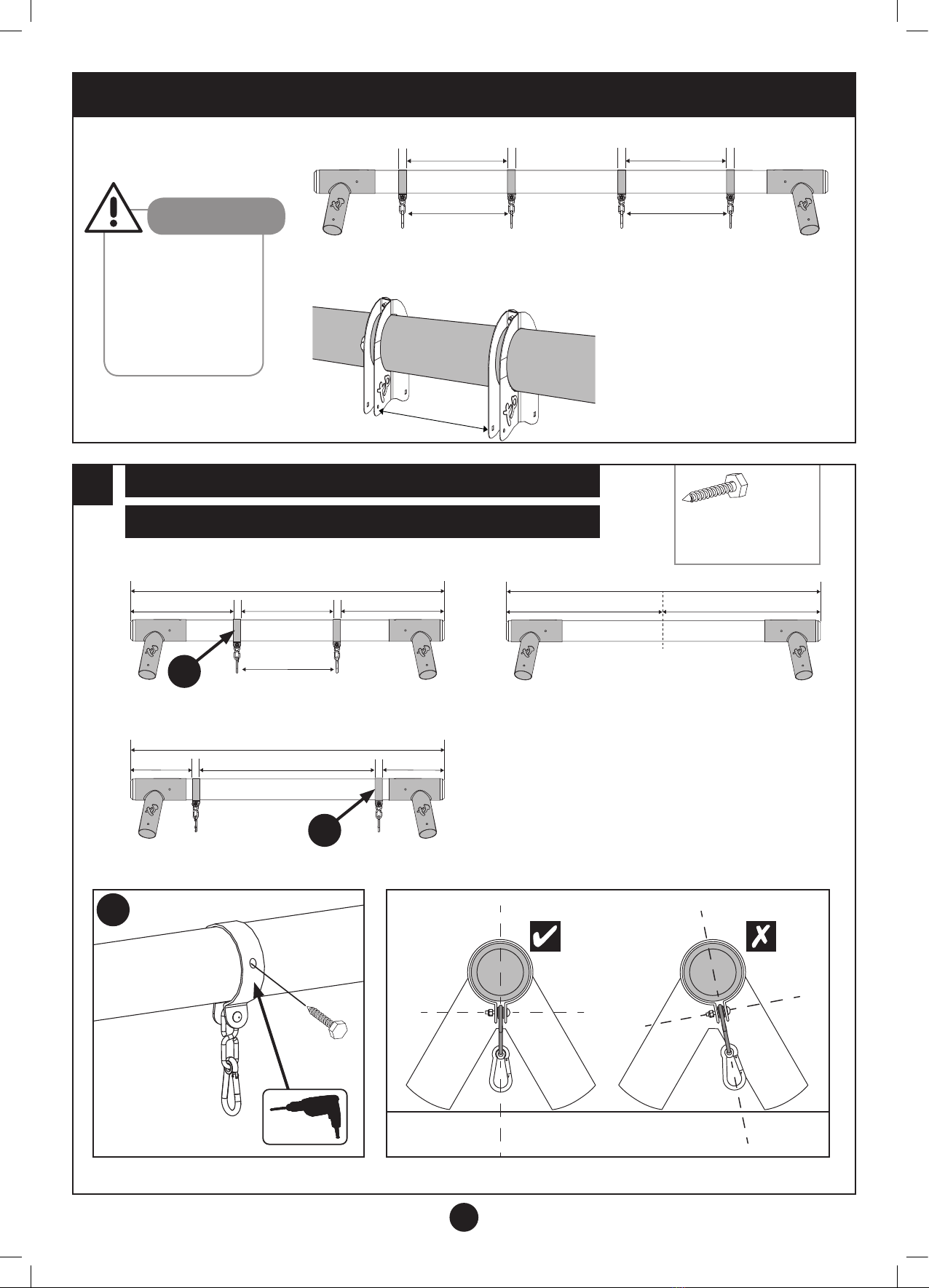

12
TP802 803 804 825 & 881
5mm
A
3
SWING FRAME CONFIGURATIONS
40mm
FA8380
TP804 x2
TP881 x2
X
445mmX X
Swing Seat Position
With 1 single swing seat
A
445mm 445mm
Swing Seat Position
Using
2 collar fixings
or
2 Duo Ride Brackets
Using
2 collar fixings
or
2 Duo Ride Brackets
Swing Seat Position
445mm
Duo Ride Brackets
When attaching a swing
accessory that requires
2 Duo Ride Brackets
(TP784 or PR5070), fixing
locations for these brackets
will be the same as the
Swing seat positions
using collars.
IMPORTANT
ASSEMBLY TIP
Fixing postions using Collars (PR7757) or Duo Ride Brackets
X
X X
Bracket for rigid
downtube Glide Ride
With 1 glide ride
TP804P Knightswood Single Wooden Swing Frame
TP881P Eagle Wooden Swing Set
X
X277 277
With 1 Nest Swing (85cm)
A
TP802 803 804 825 881 Roundwood Swings New In8047-B 23.03.18 Option 2.indd 12 23/03/2018 16:17

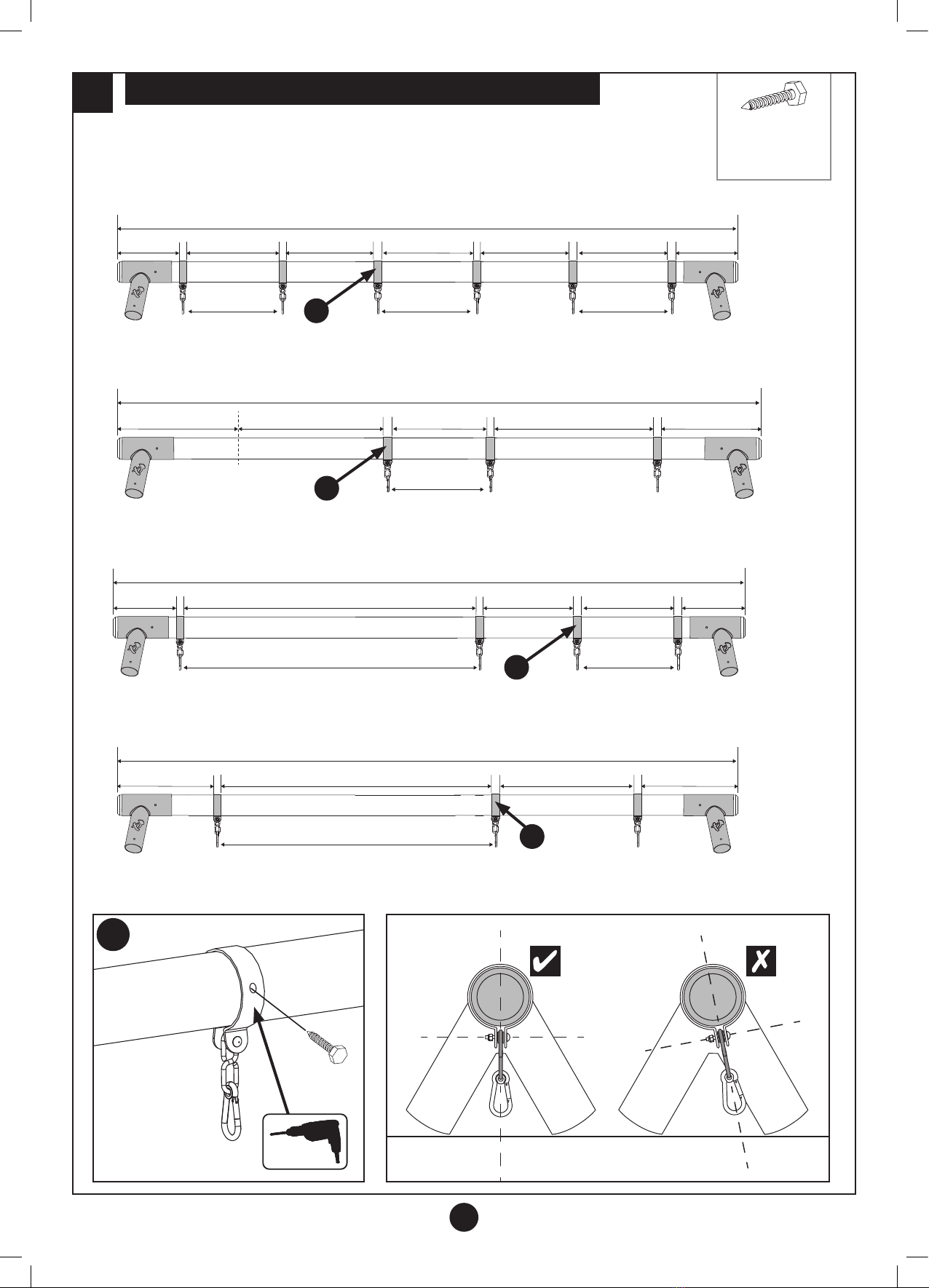

13
TP802 803 804 825 & 881
2250mm
445mm612mm 573mm550mm
Bracket for rigid
downtube Glide Ride
Swing Seat Position
With 1 glide ride and 1 single swing seat
2250mm
385mm385mm 1410mm
With 1 Nest Swing (120cm)
2250mm
445mm577mm 573mm550mm
Swing Seat Position
Single Roped Seat
With 1 single swing seat and 1 single roped accessory
3
5mm
A
A
A
A
A
2250mm
445mm 450mm 445mm 385mm385mm
Swing Seat Position Swing Seat Position
With 2 single swing seats
2250mm
836mm 829mm550mm
Bracket for rigid
downtube Glide Ride
Single Roped Seat
With 1 glide ride 1 single roped accessory
A
TP802 Knightswood Double Wooden Swing Frame
40mm
FA8380
TP804 x4
TP802 803 804 825 881 Roundwood Swings New In8047-B 23.03.18 Option 2.indd 13 23/03/2018 16:17

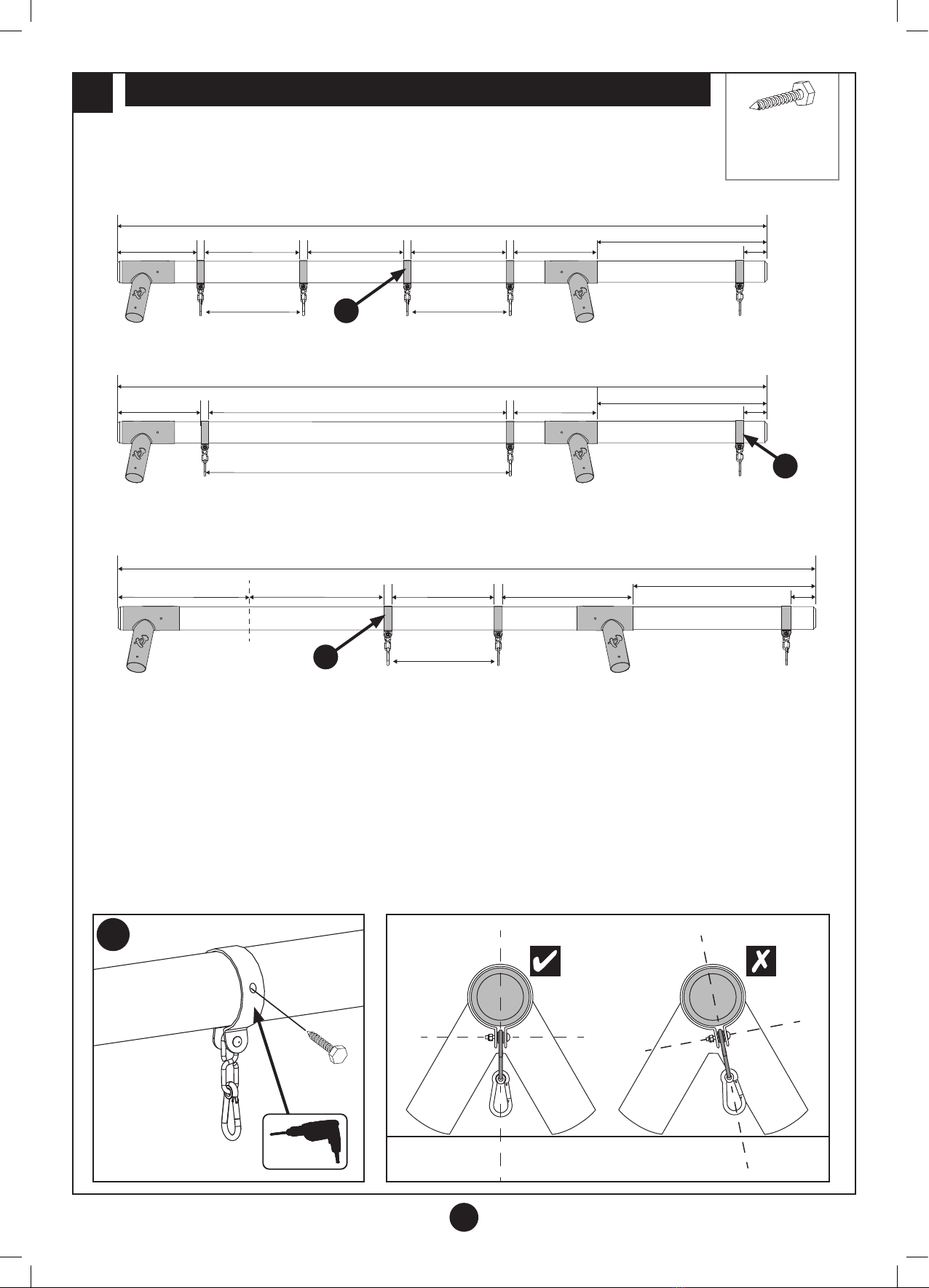

3000mm
445mm
445mm 445mm
Swing positionSwing positionSwing position
277mm450mm450mm277mm
With three single swing seats
3000mm
445mm
Swing position
753mm693mm550mm
Bracket for rigid
downtube Glide Ride Single Roped Seat
454mm
With 1 glide ride, 1 single swing and 1 single roped accessory
3000mm
1410mm
445mm
Swing positionSwing position
277mm450mm
277mm
With 1 nest swing and 1 single swing seat
3000mm
1410mm
577mm
Swing position Single Roped Seat
454mm
454mm
With 1 nest swing and 1 roped accessory
14
TP802 803 804 825 & 881
3
5mm
A
A
A
A
A
TP803 Knightswood Triple Wooden Swing Frame
40mm
FA8380
TP803 x6
TP802 803 804 825 881 Roundwood Swings New In8047-B 23.03.18 Option 2.indd 14 23/03/2018 16:17

40mm
FA8380
TP825 x5
3000mm
750mm
445mm 450mm 445mm 385mm 100mm 385mm
Swing Seat Position Swing Seat Position Single Roped Seat
With 2 single swing seats and 1 single roped accessory
3000mm
750mm
385mm 100mm
385mm
Swing Seat Position Single Roped Seat
1410mm
With 1 Nest swing seat and 1 single roped accessory
3000mm
750mm
735mm 445mm 500mm 100mm 500mm
Swing Seat Position
Bracket for rigid
downtube Glide Ride
Single Roped Seat
With 1 glide ride, 1 single swing seat and 1 single roped accessory
15
TP802 803 804 825 & 881
3
5mm
A
A
A
A
TP825 Knightswood Double Wooden Swing Frame & Extension
TP802 803 804 825 881 Roundwood Swings New In8047-B 23.03.18 Option 2.indd 15 23/03/2018 16:17

70mm FA8439
x2
MW0200 2700mm x2
M8 x25mm
FA8440
x2
4
5mm
5mm
ASSEMBLY TIP
Step
ladders
required.
70mm FA8439
x2
MW0200 2700mm x2
M8 x25mm
FA8440
x2
5
5mm
5mm
16
TP802 803 804 825 & 881
Generic view of Top Bar only.
Actual Top Bar will vary
depending on product purchased.
ASSEMBLY TIP
TP804 / TP802 / TP803 / TP825 / TP881
TP802 803 804 825 881 Roundwood Swings New In8047-B 23.03.18 Option 2.indd 16 23/03/2018 16:17

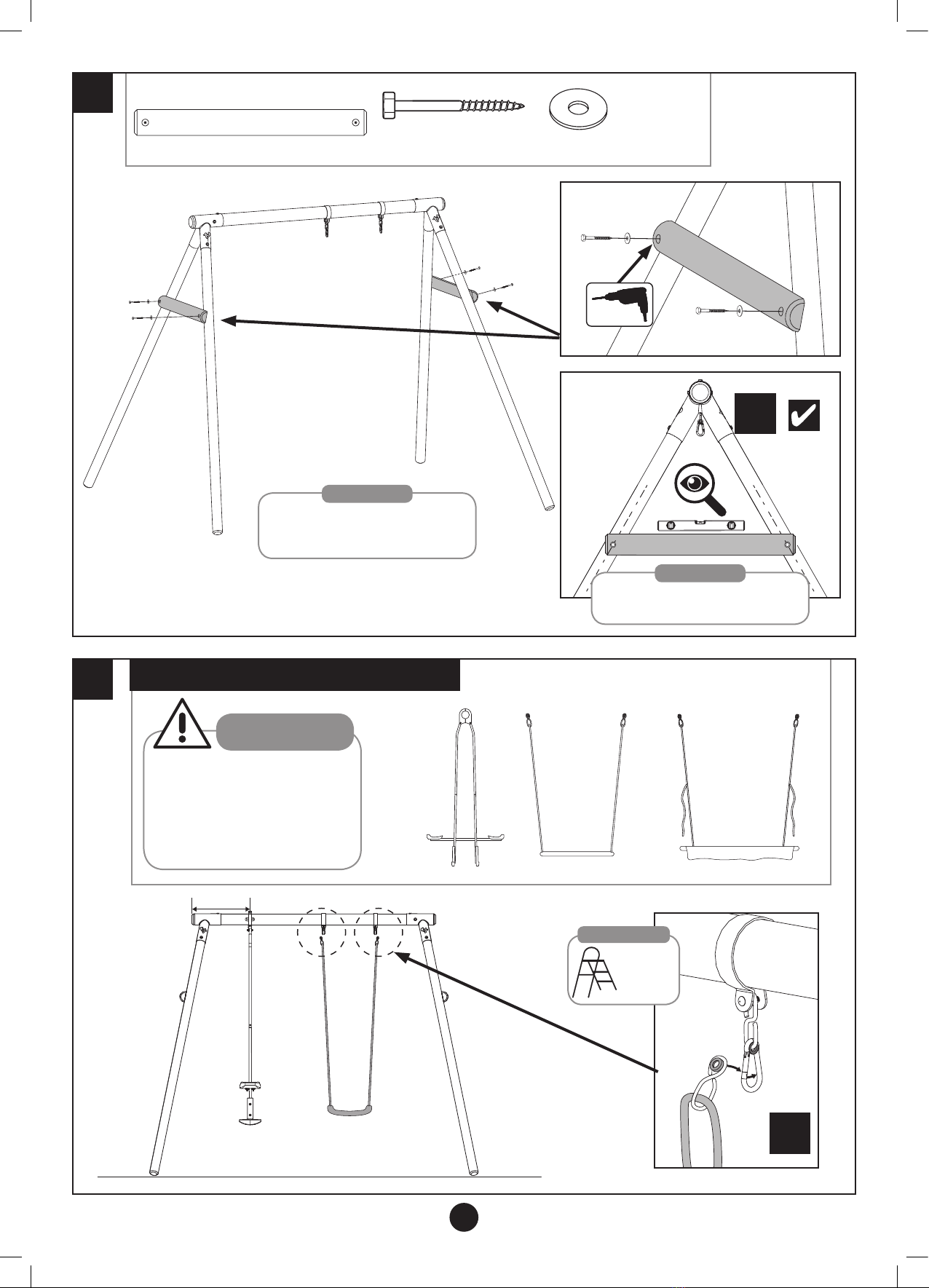

MW0202 900mm x2
70mm FA8439 x4
M8 x25mm
FA8440
x4
x2
Make sure that the fixing points
are centred on the legs.
ASSEMBLY TIP
6
Generic view of Top Bar only.
Actual Top Bar will vary
depending on product purchased.
ASSEMBLY TIP
5mm
17
TP802 803 804 825 & 881
Attaching Swing Accessories
TP940
Glide Ride
TP932
Nest Swing
Glide Ride, Nest Swing & Pirate
Boat need to be built before
attaching to the Top Bar.
Please refer to product
instruction manuals supplied
with these products.
IMPORTANT
ASSEMBLY TIP
TP940
Glide Ride
7
TP928
Lime Seat x2
ASSEMBLY TIP
Step
ladders
required.
TP933
Pirate Boat
TP802 803 804 825 881 Roundwood Swings New In8047-B 23.03.18 Option 2.indd 17 23/03/2018 16:17

350mm
Min

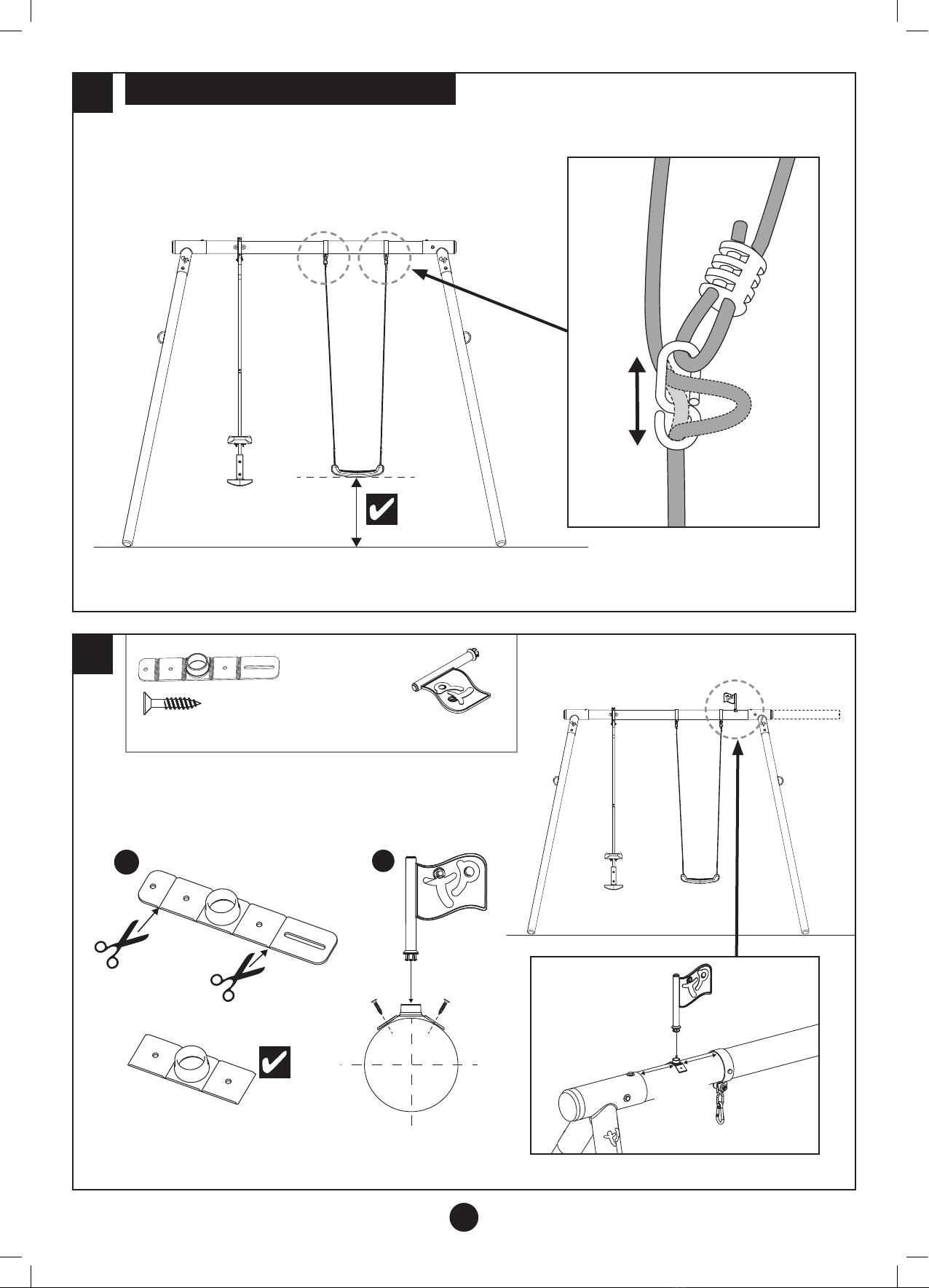

Swing seat height adjustment
8
4 x 16mm x2
FA4527
PM1968
x1
9
12
18
TP802 803 804 825 & 881
Equal
spacing
PM1007
x1
TP802 803 804 825 881 Roundwood Swings New In8047-B 23.03.18 Option 2.indd 18 23/03/2018 16:17

19
TP802 803 804 825 & 881
70mm FA8439
x4
PR5069
x4
x4
Ensure the stakes are
positioned into the
setting Post-Mix concrete.
Warning: Never
set the legs of the
playset in concrete.
Dig holes:
300mm x
300mm x
300mm deep.
Mark leg/hole position.
Not
Supplied.
Fill holes with Post-Mix concrete.Fix stakes to legs.
1 2 3
5 64
x4
TP814
300mm
300mm
300mm
M8 x25mm
FA8440
x4
45°
10
5mm
TP802 803 804 825 881 Roundwood Swings New In8047-B 23.03.18 Option 2.indd 19 23/03/2018 16:17

Instruction Part No: IN8047 Issue-B 23.03.18
Your TP Guarantee Number/Product Batch No is
Thank you
Thank you for purchasing this product.
Please register your new product on line at tptoys.com
www.tptoys.com/customer/productregistration
Find out about the guarantee for this product,
visit www.tptoys.com/customer/pages/guaranteeinformation
For customer services and help with your product,
visit www.tptoys.com/customer/help
TP802 803 804 825 881 Roundwood Swings New In8047-B 23.03.18 Option 2.indd 20 23/03/2018 16:17
