Active Silicon AS-BCAM-S32-00-A Product manual


Oriole series camera .
Edition: v1.02
Issued Date: 26 July 2022
Oriole HD-SDI Board Camera
(HD-SDI/EX-SDI/CVBS)
AS-BCAM-S32-00-A / -B
Technical
Reference Manual


Oriole series camera .
July 2022
www.activesilicon.com
Page 2 of 34
Contents
FEATURES.................................................................................................... 3
CAUTIONS.................................................................................................... 4
SPECIFICATION........................................................................................... 5
CONNECTORS............................................................................................. 7
BLOCK DIAGRAM........................................................................................ 9
PROTOCOL ................................................................................................ 10
VISCA COMMAND LIST............................................................................. 14
VISCA INQUIRY COMMAND LIST............................................................. 18
OSD MENU ................................................................................................. 24
CAMERA DIMENSIONS............................................................................. 33
ORDERING INFORMATION....................................................................... 34
CONTACT DETAILS ................................................................................... 34


Oriole series camera .
July 2022
www.activesilicon.com
Page 3 of 34
Features
◆ 1/3“ CMOS sensor
2.5M Pixels(Total) / 2.3M Pixels(Active)
◆ Full HD Resolution
1920x1080p / 30fps(25fps)
1280x720p / 30fps(25fps)
1280x720p / 60fps(50fps)
◆ DAY & NIGHT (optional function)
AS-BCAM-S32-00-B uses a DC Motor controller to drive a switchable IR-cut filter for day and
night mode functionality. The filter state can be changed between day and night depending
on the luminance level. It can be also controlled by the external Day and Night port.
◆ WDR (Wide Dynamic Range)
WDR applies an optimum fusion ratio when combining the high-speed shutter used in bright
areas and the low-speed shutter used in dark areas.
◆ DNR (Digital Noise Reduction, 2D+3D)
The DNR technology eliminates noise thus generating a distinct and clear image. This
camera DNR function utilizes both an adaptive 2D filter reducing noise in the brightness of the
image and an adaptive 3D filter reducing noise caused by movement.
◆ Privacy Mask Function
The privacy zone function makes it possible to mask specific areas of the scene from view.
◆ On Screen Display
The camera can be controlled by selecting menu text displayed on the video output.
◆ Intelligent motion detection
Can transmit an alert signal when motion of an object on the screen is detected. This feature
is useful when you have to monitor several screens simultaneously.
◆ Output
Digital output: HD-SDI, EX-SDI
Analog output: NTSC, PAL Composite (without WDR)
◆ Protocol
The camera can be controlled by the VISCA, PELCO-D and PELCO-P serial communications
protocols.


Oriole series camera .
July 2022
www.activesilicon.com
Page 4 of 34
Cautions
◆ Power Supply
This camera must always be operated at 12V DC
◆ Handling of the unit
Be careful not to spill water or other liquids on the unit.
◆ Operating and storage location
Avoid viewing a very bright object (such as light fittings) during an extended period. Avoid
operating or storing the unit in the following locations.
-Extremely hot or cold places (operating temperature -10 °C ~ 50 °C, however, we
recommend that the unit be used within a temperature range of 0 °C ~ 45 °C)
-Damp or dusty places
-Places exposed to rain
-Places subject to strong vibration
-Close to generators of powerful electromagnetic radiation such as radio or TV
transmitters.
◆ Care of the unit
-Remove dust or dirt on the surface of the CMOS sensor with a blower (commercially
available).
-Avoid the use of volatile solvents such as thinners, alcohol, benzene and insecticides.
They may damage the surface finish and/or impair the operation of the camera.


Oriole series camera .
July 2022
www.activesilicon.com
Page 5 of 34
Specification
Model
AS-BCAM-S32-00-A / -B
Image Sensor
1/3" CMOS Sensor
Total Pixels
1,981(H) x 1,288(V) = 2.55M Pixels
Effective pixels
1,944(H) x 1,212(V), 2.35M Pixels
Scanning system
Progressive Scan
Video modes
Digital: 1080p/30(25)fps, 720p/60(50)fps, 720p/30(25)fps
Analog: 700TVL
Minimum illumination
Color(1/30s) : 0.03lux , BW(1/30s) : 0.004lux
Color DSS(1/8s) : 0.0075ux , BW DSS(1/8s) : 0.001lux
Video Output
HD: HD-SDI / EX-SDI
Analog SD: VBS (without WDR)
Function
Model
D&N / IR-CDS (external sensor) – can only be set by OSD menu
Exposure
Lens
Normal / Deblur
Brightness
0 ~ 20 steps
Shutter Speed
Auto / Manual 1/30(1/25) ~ 1/30,000 sec
Digital Slow Shutter
(DSS)
Off / x2 / x4 (/ x8: 60 or 50 fps mode only)
Gain Control (AGC)
Off / On
Flickerless Off / On
WDR/BLC
OFF / WDR / BLC
Day&Night
Auto / Day / Night / Ext
White Balance
Auto / One Push / Manual / Indoor / Outdoor
HLC
Off / On / Night Only
DNR
Auto / Off / Low / Middle / High
Mirror
Off / H / V / H&V
Sharpness
0 ~ 10 steps
ACE
Off / Low / Middle / High (Adaptive Contrast Enhancement)
Defog
Off / On (Auto / Manual)
Freeze
Off / On
Gamma
0.45 / 0.55 / 0.65 / 0.75
Digital Zoom
x2 ~ x32


Oriole series camera .
July 2022
www.activesilicon.com
Page 6 of 34
Model
AS-BCAM-S32-00-A / -B
Intelligence
Privacy / Motion / DIS
Privacy Mask
Off / On (24 masks)
Motion Detection
Off / On (3 positions)
Digital Image Stabilizer
Off / On
Special Function
Defect / Image Range / System / HD Format / EX-SDI / COMM
Defect Det.
Off / On
Image Range
Full / Comp. / User
System NTSC / PAL
HD Format
1080p/30(25)fps / 720p/30(25)fps / 720p/60(50)fps
EX-SDI
Off / On
Communication
ID: 1 ~ 255
Baud Rate: 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200
Protocol: Pelco-P / Pelco-D / VISCA
Display
Disp Sel / Set Title / Init Sel / Set Init Msg / Language
Disp Sel (Off / On) ID / Title / Zoom Ratio / System Message
Set Title
Text Edit
Init Sel (Off / On)
ID / Baud Rate / Protocol / Version / Init. Message
Set Init Msg Text Edit
Language
English / Simplified Chinese / Traditional Chinese / Japanese
Electrical
Power Source
12V±10% DC
Power Consumption
250mA
General
Power Input
Header Connector
Video Output
SDI/EX-SDI MMCX Connector
Operating Temperature
-10°C ~ +50°C (Humidity: 0%RH ~ 90%RH)
Storage Temperature
-20°C ~ +60°C (Humidity: 0%RH ~ 90%RH)
Dimension (mm)
32(L) x 32(W) x 10(H) mm (not including lens or mount)


Oriole series camera .
July 2022
www.activesilicon.com
Page 7 of 34
Connectors
J201 (I/O Connector)
Pin No.
Name Level Pin No. Name Level
1
DC+12V In
4
ADKEY
See ADKEY section
2 GND 5 D&N-IN
(Active High)
Day&Night Control i/p
Night input: 0V (GND)
Day input: +3.3V
3 VBS Out 6 IR-ON Night output: +3.3V
Day output: 0V (GND)
12512WS-06 (YEONHO)
J202 (Connector for upgrading Camera Firmware)
Pin No.
Name
Level
Pin No.
Name
Level
1 JMODE
JT=JTAG Upgrade
J Mode Setting
Normal: 3.3V
Active 0V
5 JTMS JT Chip Selector
2
JTCK
JT Clock 6
GND
3
JTDI
JT Data In 7
RXD
UART In
4
JTDO
JT Data Out 8
TXD
UART Out
53047-08 (MOLEX)
J203 (HD-SDI Connector) J301 (Day&Night Motor Control Drive)
Pin No.
Name Level Pin No. Name Level
1 SDO HD-SDI Output 1 CONT(+) Day: 0V (GND)
Night: 5V
2 GND 2 CONT(-) Day: 5V
Night: 0V (GND)
RF Connector - MMCX 12512WS-02 (YEONHO)
J203
J301
J202
J201
Top View ( AS-BCAM-S32-00-B)
Bottom View


Oriole series camera .
July 2022
www.activesilicon.com
Page 8 of 34
1. D&N IN (J201-5)
Port for input of external signal in Day&Night “Ext-In” Mode (active high polarity)
•Day Mode: High (+3.3V)
•Night Mode: Low (Ground)
The polarity of this signal can be reversed using the OSD menu Polarity option
(Exposure -> DAY&NIGHT).

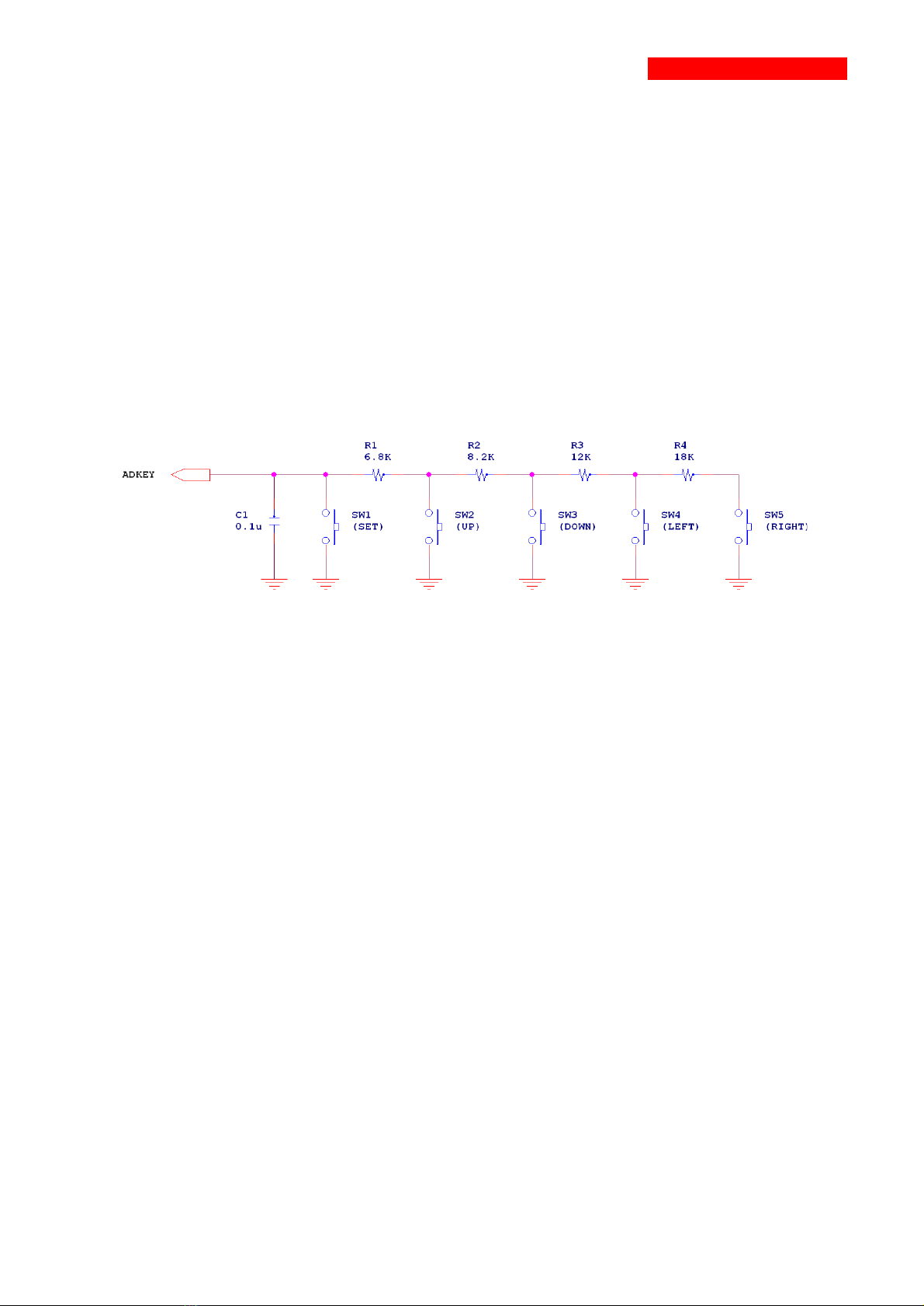

2. AD KEY (J201-4)
The external wired remote controller connector.


Oriole series camera .
July 2022
www.activesilicon.com
Page 9 of 34
Block Diagram
LENS
CPU
ISP
MEMORY
CMOS VIDEO
AMP
HD-SDI
OUTPUT
POWER
+3.3V
+1.2V
+1.8V
+12V


Oriole series camera .
July 2022
www.activesilicon.com
Page 10 of 34
Protocol
1. Timing

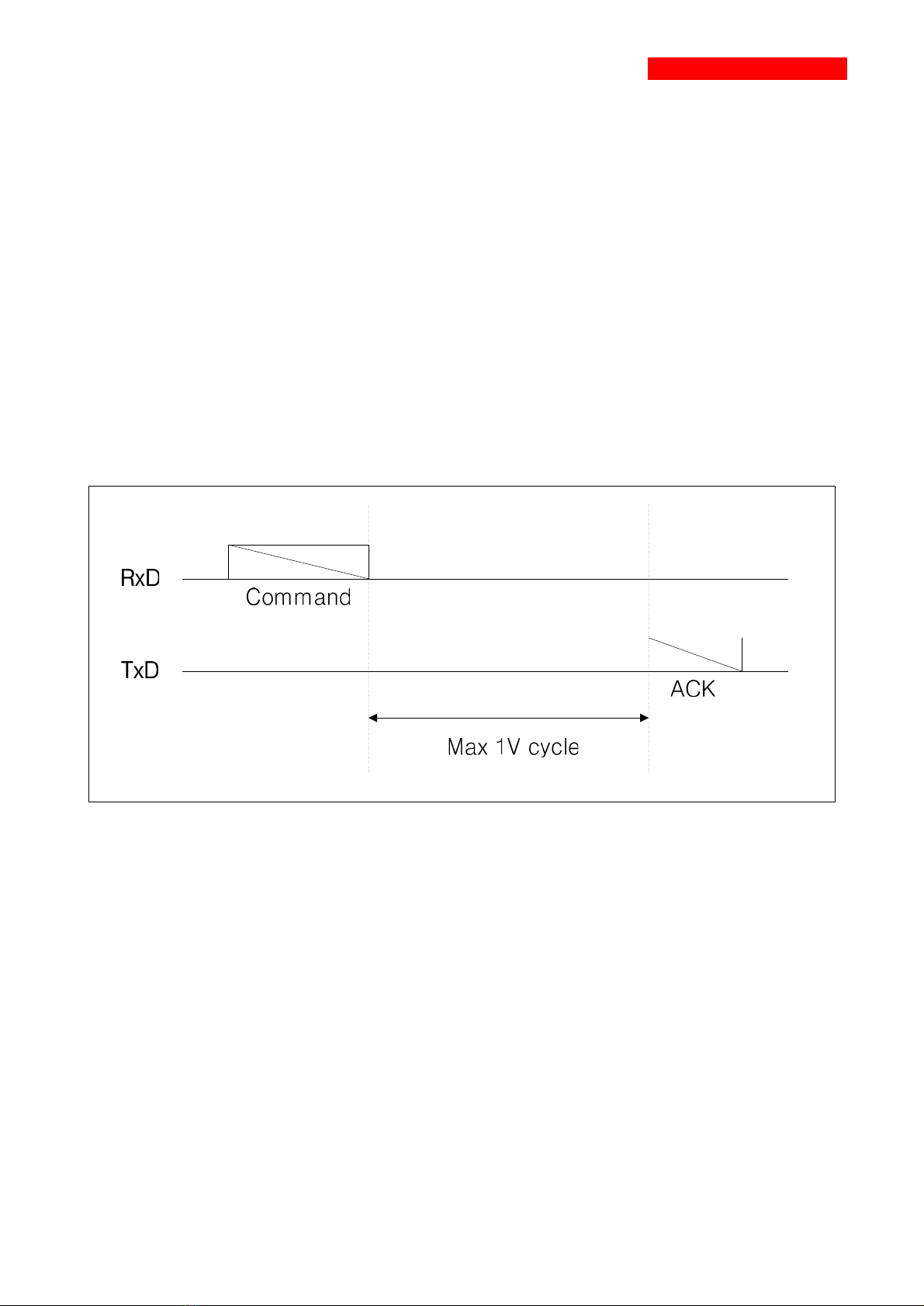

As Command processing can only be carried out one time in a Vertical cycle, it takes the
maximum 1V cycle time for an ACK/Completion to be returned. If the Command
ACK/Completion communication time can be cut shorter than the 1V cycle time, then every
1V cycle can receive a Command.
※1V cycle
- 30fps mode: 33.3ms
- 60fps mode: 16.7ms
- 25fps mode: 40.0ms
- 50fps mode: 20.0ms
2. Communication parameter
•Protocol: VISCA, Pelco-D, Pelco-P
•ID: 1~7 (VISCA), 1~255 (Pelco-D, Pelco-P)
•Baud rate: 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
•Data bit: 8
•Start bit: 1
•Stop bit: 1
•Non parity bit


Oriole series camera .
July 2022
www.activesilicon.com
Page 11 of 34
3. Pelco-D Protocol Command List
Function Message Format (Hex)
Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7
Zoom Tele FF ID 00 20 00 00 CS
Zoom Wide FF ID 00 40 00 00 CS
Stop FF ID 00 00 Don’t care CS
Menu (Set) FF ID 00 03 or 07 00 5F CS
Esc FF ID 00 03 or 07 00 60 CS
Up FF ID 00 08 00 XX CS
Down FF ID 00 10 00 XX CS
Left FF ID 00 04 XX 00 CS
Right FF ID 00 02 XX 00 CS
• ID: Camera ID (1 ~ 255)
• XX: Speed (10h < XX ≤40h)
• CS (Check Sum): An 8bit sum of byte 2 ~ 6 in the message.
4. Pelco-P Protocol Command List
Function Message format (Hex)
Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8
Zoom Tele A0 ID 00 20 00 00 AF CS
Zoom
Wide
A0 ID 00 40 00 00 AF CS
Stop A0 ID 00 00 Don’t care AF CS
Menu (Set) A0 ID 00 03 or 07 00 5F AF CS
Esc A0 ID 00 03 or 07 00 60 AF CS
Up A0 ID 00 08 00 XX AF CS
Down A0 ID 00 10 00 XX AF CS
Left A0 ID 00 04 XX 00 AF CS
Right A0 ID 00 02 XX 00 AF CS
• ID: Camera ID (1 ~ 255)
• XX: Speed (10h < XX ≤40h)
• CS(Check Sum): An XOR sum of byte 1 ~ 7 in the message.


Oriole series camera .
July 2022
www.activesilicon.com
Page 12 of 34
5. Visca Protocol
• Command packet (Variable packet length)
- X: 1 ~ 7 (Camera address)
- QQ: 01 (Command), 09 (Inquiry)
• Ack message packet (Variable packet length)
- Y: 9 ~ F (Camera address + 8)
- Q: 4 (Receive Ack), 5 (Completion message), 6 (Error message)
- R: Socket Number (1 ~ 3)
※When command messages are sent to the camera, it is normal to send the next command
message after waiting for the completion message or error message to return. However, to
deal with advanced uses, the camera has three buffers (memories) for commands, so that up
to three commands including the commands currently being executed can be received.
When the camera receives commands, it notifies the sender which command buffer was used
using the socket number of the ACK message.


Oriole series camera .
July 2022
www.activesilicon.com
Page 13 of 34
• Example of communication
- Camera ID: 1
- Socket number: 1
※Command
※Inquiry command
• Network change message
- Sent from the peripheral device to the controller when a device is removed from
or added to the network. The address must be re-set when this message is
received:
Y0 38 FF
– Y: 9 ~ F (Camera address + 8)


Oriole series camera .
July 2022
www.activesilicon.com
Page 14 of 34
VISCA Command List
Command Set Command Command Packet Comments
AddressSet
Broadcast
88 30 01 FF
Address setting
IF_Clear
Broadcast
88 01 00 01 FF
I/F Clear
8x 01 00 01 FF
CommandCancel
8x 2p FF
p : Socket No.(1 ~ 3)
CAM_Power Power Reset 8x 01 04 00 03 FF Camera Rebooting
CAM_DZoom
On 8x 01 04 06 02 FF Digital Zoom ON/OFF
Off 8x 01 04 06 03 FF
Stop 8x 01 04 06 00 FF
Tele (Variable) 8x 01 04 06 2p FF p : 0(Slow) ~ 7(Fast)
Wide (Variable) 8x 01 04 06 3p FF
x1/Max 8x 01 04 06 10 FF x1/Max Magnification switchover
Direct 8x 01 04 46 00 00 0p 0q FF pq : D-Zoom Position
CAM_Initialize
Comp Scan
8x 01 04 19 02 FF
Execute White spot compensation
Comp Scan Thrs
8x 01 04 19 03 00 0p 0q FF
pq : Threshold of White spot compensation
CAM_WB
Auto
8x 01 04 35 00 FF
Normal Auto
Indoor
8x 01 04 35 01 FF
Indoor Mode
Outdoor
8x 01 04 35 02 FF
Outdoor Mode
One Push AWB
8x 01 04 35 03 FF
One Push AWB Mode
Manual
8x 01 04 35 05 FF
Manual Control Mode
One Push Trigger
8x 01 04 10 05 FF
One Push AWB trigger
CAM_Rgain
Reset 8x 01 04 03 00 FF
R Gain Manual setting
Up 8x 01 04 03 02 FF
Down 8x 01 04 03 03 FF
Direct 8x 01 04 43 00 00 0p 0q FF pq : R Gain(0~14h)
CAM_Bgain
Reset 8x 01 04 04 00 FF
B Gain Manual setting
Up 8x 01 04 04 02 FF
Down 8x 01 04 04 03 FF
Direct 8x 01 04 44 00 00 0p 0q FF pq : B Gain(0~14h)
CAM_Chroma
Direct
8x 01 04 13 00 00 0p 0q FF
pq : Chroma level (0~14h)
CAM_LENS Mode 8x 01 04 49 01 0p 00 FF
p : Lens Mode (0:Normal, 1:Deblur)
CAM_ShutterMode Auto 8x 01 04 39 00 FF Auto exposure mode
Manual 8x 01 04 39 03 FF Manual control mode
CAM_Shutter
Reset 8x 01 04 0A 00 FF Shutter setting
Up 8x 01 04 0A 02 FF
Down 8x 01 04 0A 03 FF
Direct 8x 01 04 4A 00 00 0p 0q FF pq : Shutter Position
CAM_AGC
On
8x 01 04 5C 02 FF
AGC Mode
Off
8x 01 04 5C 03 FF
CAM_SlowShutter Auto (On) 8x 01 04 5A 02 FF Auto Slow Shutter ON/OFF
Manual (Off) 8x 01 04 5A 03 FF
CAM_MaxDSSLev Direct 8x 01 04 5A 1p FF p :Max Slow shutter level (0:x2, 1:x4, 2:x8)
※You can't select “x8” in 30 or 25 fps mode
CAM_ExpComp On 8x 01 04 3E 02 FF Exposure Compensation ON/OFF
Off 8x 01 04 3E 03 FF
Reset 8x 01 04 0E 00 FF Exposure Compensation amount setting
Up 8x 01 04 0E 02 FF
Down 8x 01 04 0E 03 FF
Direct
8x 01 04 4E 00 00 0p 0q FF
pq : ExpComp Position (0 ~ 14h)


Oriole series camera .
July 2022
www.activesilicon.com
Page 15 of 34
Command Set
Command
Command Packet
Comments
CAM_Flickerless On 8x 01 04 7A 02 FF Flickerless ON/OFF
Off 8x 01 04 7A 03 FF
CAM_BLC On 8x 01 04 33 02 FF Back Light Compensation
Off 8x 01 04 33 03 FF
CAM_BLCFunc
Area OSD Display 8x 01 04 3C 0p FF p : 0(Area OSD Off), 1(Area OSD On)
Area Start X 8x 01 04 3C 10 00 0p 0q FF pq : Start Horizontal Position (0 ~ 36h)
Area Start Y 8x 01 04 3C 20 00 0p 0q FF pq : Start Vertical Position (0 ~ 3Ch)
Area End X 8x 01 04 3C 30 00 0p 0q FF pq : End Horizontal Position (4~3Ah)
Area End Y 8x 01 04 3C 40 00 0p 0q FF pq : End Vertical Position (4~40h)
CAM_HLC
Mode 8x 01 04 32 0p FF p : HLC Mode - 0(Off), 1(On), 2(Night)
Level 8x 01 04 32 10 00 0p 0q FF pq : HLC Level (0~14h)
Clip Color 8x 01 04 32 3p FF
p : HLC Color - 0 ~ Dh
(0:BLK, 1~6:Gray1~6, 7:WHT, 8:RED, 9:GRN,
Ah:BLU, Bh:CYN, Ch:YEL, Dh:MAG)
CAM_WD On 8x 01 04 3D 02 FF Wide-D ON/OFF
Off 8x 01 04 3D 03 FF
CAM_WD_Level Direct 8x 01 04 7D 0p FF p : WDR Level (0 ~ 4)
CAM_ACE On 8x 01 04 1A 02 FF ACE ON/OFF
Off 8x 01 04 1A 03 FF
CAM_ACELevel Direct 8x 01 04 1A 10 0p FF p : ACE Level (0 ~ 2)
CAM_Defog
On 8x 01 04 65 02 FF Defog ON/OFF
Off 8x 01 04 65 03 FF
Level 8x 01 04 65 10 0p FF p : Defog Level(0 ~ 2)
Mode 8x 01 04 65 20 0p FF p : 0(Manual), 1(Auto)
CAM_DNR Mode 8x 01 04 53 0p FF p : 0 (Off), 1 ~ 3 (Manual Level), 4 ( Auto)
CAM_GAMMA Direct 8x 01 04 5B 0p FF p: Gamma setting
(0:0.45, 1:0.55, 2:0.65, 3:0.75)
CAM_Aperture
Reset 8x 01 04 02 00 FF
Aperture Control
Up 8x 01 04 02 02 FF
Down 8x 01 04 02 03 FF
Direct 8x 01 04 42 00 00 0p 0q FF pq : Aperture Gain (0~Ah)
CAM_LR_Reverse On 8x 01 04 61 02 FF Mirror Image ON/OFF
Off 8x 01 04 61 03 FF
CAM_Freeze On 8x 01 04 62 02 FF Freeze Picture ON/OFF
Off 8x 01 04 62 03 FF
CAM_PictureFlip On 8x 01 04 66 02 FF Picture Reverse On/Off (Rotate 180º)
Off 8x 01 04 66 03 FF


Oriole series camera .
July 2022
www.activesilicon.com
Page 16 of 34
Command
Command Setting
Command Packet
Comments
CAM_ICR
Night
8x 01 04 01 02 FF
ICR Mode ON/OFF
Day
8x 01 04 01 03 FF
Auto
(D&N mode only)
8x 01 04 51 02 FF ICR is changed automaticaly by AGC Gain
Ext-In 8x 01 04 51 05 FF ICR is changed by external input
Threshold (Auto) 8x 01 04 21 00 00 0p 0q FF
pq : Trheshold level of Auto mode (0 ~ 1Ch)
Gap (Auto) 8x 01 04 21 10 00 00 0p FF
pq : On/Off
Threshold Gap of Auto mode (0 ~ 4)
Threshold (Ext-in)
8x 01 04 21 40 00 0p 0q FF
pq : Trheshold level of Ext mode (0 ~ 7)
Gap (Ext-in) 8x 01 04 21 50 00 00 0p FF pq : On/Off Threshold Gap of Ext.
mode (0 ~ 2)
ANTI-SAT 8x 01 04 21 A0 00 0p 0q FF pq : ANTI-SAT level (0 ~ 14h)
Auto ICR Delay 8x 01 04 41 00 00 0p 0q FF pq : Auto mode delay –
0 (0sec) ~ FFh (255sec)
Ext-In Delay 8x 01 04 71 00 00 0p 0q FF pq : Ext-In mode delay –
0(0sec) ~ FFh(255sec)
Burst On
8x 01 04 72 02 FF
Burst On/Off
Burst Off
8x 01 04 72 03 FF
IR Detection On 8x 01 04 6E 02 FF IR Detection On/Off
IR Detection Off 8x 01 04 6E 03 FF
IR Detection Level
8x 01 04 6E 10 0p FF
p : IR Detection Threshold Level ( 0 ~ 4h)
CAM_Stabilizer
On
8x 01 04 34 02 FF
Stabilizer ON/OFF/HOLD
Off 8x 01 04 34 03 FF
Hold 8x 01 04 34 00 FF
CAM_StabilizerFunc
Range 8x 01 04 54 00 0p FF p : DIS Dzoom Range
(0:10%, 1:20%, 2:30%)
Filter
8x 01 04 54 10 0p FF
p : DIS Filter (0:Low, 1:Middle, 2:High)
Auto Center 8x 01 04 54 20 0p FF p : Auto centering mode
(0:OFF, 1:Half, 2:Full)
CAM_MEMORY
Reset
8x 01 04 3F 00 0p FF
p : Memory number (0 ~ 8)Set 8x 01 04 3F 01 0p FF
Recall 8x 01 04 3F 02 0p FF
CAM_CUSTOM
Reset
8x 01 04 3F 00 7F FF
Starts in this mode at Power On
Set
8x 01 04 3F 01 7F FF
Recall 8x 01 04 3F 02 7F FF
CAM_MemSave Write
8x 01 04 23 0t 0p 0q 0r 0s FF
t : 00 ~ 07 (Address) Total 16Byte
CAM_Display
On
8x 01 04 15 02 FF
pqrs : 0000 ~ FFFFh (Data)Off 8x 01 04 15 03 FF
On/Off 8x 01 04 15 10 FF
CAM_DispSel 8x 01 04 14 00 0p FF
Display Item : On(1)/Off(0)
p : bit[0] - ID, bit[1] - Title, bit[2] - Zoom
Position bit[3] - System Message
(MD, Zoom Preset)
CAM_MultiLineTitle
Title Set1 8x 01 04 73 1L 00 nn 00
00 00 00 00 00 00 00 FF
L : Line Number (0 ~ Eh)
nn : H-Position (0 ~ 27h)
Title Set2 8x 01 04 73 2L mm nn pp
qq rr ss tt uu vv ww FF
L : Line Number (0 ~ Eh)
mnpqrstuvw : Set of characters (1 ~ 10)
Title Set3 8x 01 04 73 3L mm nn pp
qq rr ss tt uu vv ww FF
L : Line Number (0 ~ Eh)
mnpqrstuvw : Set of characters (11~ 20)
Title Clear 8x 01 04 74 1p FF Title Set clear (p: 0 ~ Eh, Fh= all line)
On
8x 01 04 74 2p FF
Title display On/Off (0 ~ Eh, Fh= all line)
Off
8x 01 04 74 3p FF


Oriole series camera .
July 2022
www.activesilicon.com
Page 17 of 34
Command Command Setting Command Packet Comments
CAM_MENUKey
Up
8x 01 04 16 01 FF
Operates OSD menu cursor
Menu opens menu or selects menu item
Down
8x 01 04 16 02 FF
Left 8x 01 04 16 04 FF
Right 8x 01 04 16 08 FF
Menu
8x 01 04 16 10 FF
ESC
8x 01 04 16 20 FF
CAM_Use OSD
Display String 8x 01 05 10 xx yy cc ss
"nnnnnnnnnnnnn" FF
xx : X position ( 0 ~ 27h )
yy : Y Position ( 0 ~ Eh )
cc : Color (Fixed, 07 : White)
ss : NORMAL = 00
INVERSE = 01
BLINK = 02
"nnnnn…." : Display String (Max 26 char)
Blue Screen 8x 01 05 20 0p FF p : Blue Screen Display - 0(Off), 1(On)
Screen Clear 8x 01 05 30 01 FF Screen All clear
CAM_Mute
On 8x 01 04 75 02 FF
Mute On/OffOff 8x 01 04 75 03 FF
On/Off
8x 01 04 75 10 FF
CAM_PrivacyZone
Display 8x 01 04 77 pp pp pp pp FF Mask Display On/Off
pppppppp : Mask Settings (0: OFF, 1: ON)
SetMaskColor 8x 01 04 78 pp pp pp pp
qq rr FF
pppppppp : Mask Color Settings
qq : Color Setting when 0 is selected rr :
Color Setting when 1 is selected
Non_InterlockMask 8x 01 04 6F mm mm : Non-Interlock Mask Number pp : X,
qq : Y, rr : W, ss : H
CAM_KeyLock Off 8x 01 04 17 02 FF Key Lock On/Off
On
8x 01 04 17 03 FF
CAM_IDWrite 8x 01 04 22 0p 0q 0r 0s FF pqrs : Camera ID（0000 ~ FFFFh)
CAM_MD
On 8x 01 04 1B 02 FF Motion Detection On/Off
Off 8x 01 04 1B 03 FF
Function Set 8x 01 04 1C 0m 0n 0p
0q 0r 0s FF
m : Display mode
n : Detection Frame Set (bit[0]:1, bit[1]:2,
bit[3]:3)
pq : Threshold Level (00 ~ 14h)
rs : Interval Time set (00 ~ FFh
Window Set 8x 01 04 1D 0m 0p 0q
0r 0s FF
m : Select Detection Frame Number (0,1,2)
p : Start Horizontal Position ( 00 ~ 0Eh)
q : Start Vertical Position (00 ~ 07)
r : End Horizontal Position (01 ~ 0Fh)
s : End Vertical Position (01 ~ 08h)
Alarm(Reply)
y0 07 04 1B 0p FF
p : Detection Frame Number
CAM_RegisterValue
8x 01 04 24 mm 0p 0q FF
mm : Register No.
(00, 52h, 60h, 72h, 73h, 90h,91h,9Ah)
pq : Register Value


Oriole series camera .
July 2022
www.activesilicon.com
Page 18 of 34
VISCA Inquiry Command List
Inquiry Command Command Packet Inquiry Packet Comments
CAM_DZoomModeInq 8x 09 04 06 FF y0 50 02 FF D-Zoom On
y0 50 03 FF
D-Zoom Off
CAM_DZoomPosInq 8x 09 04 46 FF y0 50 00 00 0p 0q FF pq : D-Zoom Position
CAM_CompScanThrsInq 8x 01 04 19 03 FF y0 50 00 00 0p 0q FF pq : White spot compensation Threshold
(0~FFh)
CAM_WBModeInq 8x 09 04 35 FF
y0 50 00 FF Auto
y0 50 01 FF Indoor
y0 50 02 FF Outdoor
y0 50 03 FF One Push AWB
y0 50 05 FF Manual
CAM_RGainInq
8x 09 04 43 FF
y0 50 00 00 0p 0q FF
pq : R Gain (0~14h)
CAM_BGainInq
8x 09 04 44 FF
y0 50 00 00 0p 0q FF
pq : B Gain (0~14h)
CAM_ChromaInq 8x 09 04 13 FF y0 50 00 00 0p 0q FF pq : Chroma level (0~14h)
CAM_LensModeInq 8x 09 04 49 01 FF y0 50 00 00 0p 00 FF p : Lens Mode (0 : Normal, 1 : Deblur)
CAM_ShutterModeInq 8x 09 04 39 FF y0 50 00 FF Auto
y0 50 03 FF Manual
CAM_ShutterPosInq 8x 09 04 4A FF y0 50 00 00 0p 0q FF pq : Shutter Position
CAM_SlowShutterModeInq 8x 09 04 5A FF y0 50 02 FF Auto
y0 50 03 FF Off
CAM_MaxDSSLevInq 8x 09 04 5A 10 FF y0 50 0p FF p :Max Slow shutter level (0:x2, 1:x4, 2:x8)
※
You can't select “x8” in 30 or 25 fps mode
CAM_AGCModeInq 8x 09 04 5C FF y0 50 02 FF On
y0 50 03 FF
Off
CAM_ExpCompModeInq 8x 09 04 3E FF y0 50 02 FF On
y0 50 03 FF Off
CAM_ExpCompPosInq
8x 09 04 4E FF
y0 50 00 00 0p 0q FF
pq : ExpComp Position
CAM_FlickerlessInq 8x 09 04 7A FF y0 50 02 FF On
y0 50 03 FF Off
CAM_BLCModeInq 8x 09 04 33 FF y0 50 02 FF On
y0 50 03 FF Off
CAM_BLCAreaInq 8x 09 04 3C 00 FF y0 50 0p FF p : BLC Mode – 0 (AREA OSD Off),
1 (AREA OSD On)
CAM_BLC_StartXInq 8x 09 04 3C 10 FF y0 50 00 00 0p 0q FF pq : Start Horizontal Position (0 ~ 36h)
CAM_BLC_StartYInq 8x 09 04 3C 20 FF y0 50 00 00 0p 0q FF pq : Start Vertical Position (0 ~ 3Ch)
CAM_BLC_EndXInq
8x 09 04 3C 30 FF
y0 50 00 00 0p 0q FF
pq : End Horizontal Position (4~3Ah)
CAM_BLC_EndYInq
8x 09 04 3C 40 FF
y0 50 00 00 0p 0q FF
pq : End Vertical Position (4~40h)
CAM_HLCModeInq 8x 09 04 32 00 FF y0 50 0p FF p : HLC Mode - 0(Off), 1(On), 2(Night)
CAM_HLCLevelInq 8x 09 04 32 10 FF y0 50 00 00 0p 0q FF pq : HLC Level (0 ~ 14h)
CAM_HLCColorInq 8x 09 04 32 30 FF y0 50 0p FF
p : HLC Color - 0 ~ Dh
(0:BLK, 1~6:Gray1~6, 7:WHT, 8:RED,
9:GRN, Ah:BLU, Bh:CYN, Ch:YEL, Dh:MAG)
CAM_WDModeInq 8x 09 04 3D FF y0 50 02 FF On
y0 50 03 FF Off
CAM_WDLevelInq 8x 09 04 7D FF y0 50 0p FF p : WDR Level (0 ~ 4)


Oriole series camera .
July 2022
www.activesilicon.com
Page 19 of 34
Inquiry Command
Command Packet
Inquiry Packet Comments
CAM_ACEInq 8x 01 04 1A FF y0 50 02 FF On
y0 50 03 FF Off
CAM_ACELevelInq 8x 09 04 1A 10 FF
y0 50 0p FF p : ACE Level (0 ~ 2)
CAM_DefogInq 8x 09 04 65 FF y0 50 02 FF On
y0 50 03 FF Off
CAM_DefogLevelInq 8x 09 04 65 10 FF
y0 50 0p FF p : Defog Level (0 ~ 2)
CAM_DefogModeInq 8x 09 04 65 20 FF
y0 50 0p FF p : Defog Mode - 0(Manual), 1(Auto)
CAM_DNRModeInq 8x 09 04 53 FF y0 50 0p FF p : 0 (Off), 1 ~ 3 (Manual Level), 4 (Auto)
CAM_GammaInq 8x 09 04 5B FF y0 50 0p FF
p: Gamma setting
(0:0.45, 1:0.55, 2:0.65, 3:0.75)
CAM_ApertureInq 8x 09 04 42 FF y0 50 00 00 0p 0q FF
pq: Aperture Gain (0 ~ Ah)
CAM_LR_ReverseModeInq 8x 09 04 61 FF y0 50 02 FF On
y0 50 03 FF Off
CAM_FreezeModeInq 8x 09 04 62 FF y0 50 02 FF On
y0 50 03 FF Off
CAM_PictureFlipModeInq 8x 09 04 66 FF y0 50 02 FF On
y0 50 03 FF Off
CAM_ICRStateInq 8x 09 04 01 FF y0 50 02 FF Night
y0 50 03 FF Day
CAM_ICRModeInq 8x 09 04 51 FF
y0 50 02 FF Night
y0 50 03 FF Day
y0 50 04 FF ICR is changed automaticaly by AGC Gain
y0 50 06 FF ICR is changed by external input
CAM_ICRThresholdInq(Auto) 8x 09 04 21 FF y0 50 00 00 0p 0q FF pq : Trheshold level of Auto Mode (0 ~ 1Ch)
CAM_ICRGapInq(Auto) 8x 09 04 21 10 FF
y0 50 0p FF
p : On/Off Threshold Gap of Auto mode
(0 ~ 4)
CAM_ICRThresholdInq(Ext) 8x 09 04 21 40 FF
y0 50 00 00 0p 0q FF
pq : Trheshold level of Ext Mode (0 ~ 7)
CAM_ICRGapInq(Ext) 8x 09 04 21 50 FF
y0 50 0p FF p : On/Off Threshold Gap of Ext mode(0 ~ 2)
CAM_ICRANTI-SATInq 8x 09 04 21 A0 FF
y0 50 00 00 0p 0q FF
pq : ANTI-SAT level (0 ~ 14h)
CAM_AutoICRDelayInq 8x 09 04 41 FF
y0 50 00 00 0p 0q FF
pq : Auto mode delay - 0(0sec)~FFh(255sec)
CAM_Ext-InICRDelayInq 8x 09 04 71 FF y0 50 00 00 0p 0q FF
pq : Ext-In mode delay -
0(0sec)~FFh(255sec)
CAM_BurstInq 8x 09 04 72 FF
y0 50 02 FF
On
y0 50 03 FF Off
CAM_IRDetectionInq 8x 09 04 6E FF y0 50 02 FF On
y0 50 03 FF
Off
CAM_IRDetectionLevelInq 8x 09 04 6E 10 FF
y0 50 0p FF p : IR Detection Threshold Level (0 ~ 4)
CAM_StabilizerModeInq 8x 09 04 34 FF
y0 05 02 FF
On
y0 05 03 FF Off
y0 05 00 FF
Hold
CAM_StabilizerRangeInq 8x 09 04 54 00 FF
y0 50 0p FF
p : DIS Dzoom Range (0:10%, 1:20%, 2:30%)
CAM_StabilizerFilterInq 8x 09 04 54 10 FF
y0 50 0p FF
p : DIS Filter (0:Low, 1:Middle, 2:High)
CAM_StabilizerAutoCInq 8x 09 04 54 20 FF
y0 50 0p FF
p : Auto centering mode
(0:OFF, 1:Half, 2:Full)
CAM_MemoryInq 8x 09 04 3F FF y0 50 0p FF p: Last Recall Memory No.


Oriole series camera .
July 2022
www.activesilicon.com
Page 20 of 34
Inquiry Command Command Packet Inquiry Packet Comments
CAM_MemSaveInq 8x 09 04 23 0t FF y0 50 0p 0q 0r 0s FF
t : 0 ~ 7 (Address)
pqrs : 0000 ~ FFFFh (Data)
CAM_DisplayInq 8x 09 04 15 FF y0 50 02 FF On
y0 50 03 FF Off
CAM_DispSelInq 8x 09 04 14 00 FF y0 50 0p FF
Display Item On(1)/Off(0)
p : bit[0] - ID, bit[1] - Title,
bit[2] - Zoom Position,
bit[3] - System Message
CAM_TitleDisplayModeInq 8x 09 04 74 FF y0 50 02 FF On
y0 50 03 FF
Off
CAM_MenuModeInq 8x 09 04 16 FF y0 50 02 FF OSD menu On
y0 50 03 FF OSD menu Off
CAM_BlueScreenModeInq 8x 09 05 20 FF
y0 50 0p FF
p : Blue Screen Display - 0(Off), 1(On)
CAM_MuteModeInq 8x 09 04 75 FF
y0 50 02 FF
On
y0 50 03 FF Off
CAM_PrivacyPosInq 8x 09 04 76 mm FF y0 50 0n 0p 0p 0r 0r
0s 0s FF
mm : Mask Number
n : 0(Non-interlock Mode), 1(Interlock Mode)
pp : X, qq : Y, rr : W, ss : H
CAM_PrivacyDisplayInq 8x 09 04 77 FF
y0 50 pp pp pp pp FF
pppppppp : Mask Display (0: OFF, 1: ON)
CAM_PrivacyColorInq 8x 09 04 78 FF y0 50 pp pp pp pp
qq rr FF
pppppppp : Mask Color Setting
qq : Color Setting when 0 is selected Rr :
Color Setting when 1 is selected
CAM_PrivacyMonitorInq 8x 09 04 6F FF
y0 50 pp pp pp pp FF
pppppppp : Mask is displayed now
CAM_KeyLockInq 8x 09 04 17 FF
y0 50 02 FF
On
y0 50 00 FF
Off
CAM_IDInq 8x 09 04 22 FF y0 50 0p 0q 0r 0s FF pqrs: Camera ID
CAM_VersionInq 8x 09 00 02 FF y0 50 00 20
mn pq rs tu vw FF
mnpq : Model Code (0466h)
rstu : ROM version (0100h)
vw : Socket Number (3)
CAM_ModelInq 8x 09 00 37 FF y0 50 pp pp pp
qq qq FF
pppppp : Model Code
*MM-18-32 : YY4C3Ch
(YY : Custom. Code, standard model = 00)
qqqq : Version
CAM_MDModeInq 8x 09 04 1B FF
y0 50 02 FF
On
y0 50 03 FF Off
CAM_MDFunctionInq 8x 09 04 1C FF y0 50 0m 0n 0p
0q 0r 0s FF
m : Display mode
n : Detection Frame Set
(bit[0]:1, bit[1]:2, bit[3]:3)
pq : Threshold Level (00 ~ 14h)
rs : Interval Time set (00 ~ FFh)
CAM_MDWindowInq 8x 09 04 1D 0m FF y0 50 0p 0q 0r 0s FF
m : Select Detection Frame Number (0,1,2)
p : Start Horizontal Position ( 00 ~ 0Eh)
q : Start Vertical Position (00 ~ 07)
r : Stop Horizontal Position (01 ~ 0Fh)
s : Stop Vertical Position (01 ~ 08h)
CAM_RegisterValueInq 8x 09 04 24 mm FF y0 50 0p 0p FF
mm : Register No.
(00, 52h, 60h, 72h, 73h, 90h,91h,9Ah)
pp : Register Value
