Active Silicon AS-CAM-23IP4K-A Product manual


Harrier series camera
.
Edition: v1.01
Issued Date: 05 September 2022
Harrier 23x Autofocus-Zoom
IP 4K Camera
(H.264/H.265)
AS-CAM-23IP4K-A
Technical
Reference Manual


Harrier series camera
.
September 2022
www.activesilicon.com
Page 2 of 52
Contents
SAFETY INSTRUCTIONS............................................................................. 3
MAINTENANCE ............................................................................................ 3
CONNECTING TO THE CAMERA................................................................ 6
CONNECTORS............................................................................................. 6
EVALUATION BOARD CONNECTORS ....................................................... 7
ACESSING THE CAMERA WEB PAGES ..................................................... 8
CHANGING THE PASSWORD ..................................................................... 9
BASIC WEB PAGE OPERATION ............................................................... 10
PTZ CONTROL PANEL.................................................................................................................................... 12
OSD SETTING ............................................................................................................................................... 14
ALARM INFO................................................................................................................................................... 14
PLAYBACK ..................................................................................................................................................... 15
CAMERA SETTINGS ........................................................................................................................................ 17
NETWORK SETTINGS...................................................................................................................................... 32
SMART FEATURES.......................................................................................................................................... 49
CONTACT DETAILS ................................................................................... 52


Harrier series camera
.
September 2022
www.activesilicon.com
Page 3 of 52
Safety Instructions
These instructions are intended to ensure that user can use the product correctly to avoid danger
or property loss.
In the use of the product, you must be in strict compliance with the electrical safety
regulations of the nation and region.
Make sure the power supply voltage is correct before using.
Do not drop the block camera or subject it to physical shock, and do not expose it to high
electromagnetism radiation. Avoid installation on vibrations surface or places subject to
shock (ignorance can cause device damage).
Do not touch senor modules with fingers. If cleaning is necessary, use clean cloth with a
bit of ethanol and wipe it gently. If the block camera will not be used for an extended
period, replace the lens cap to protect the sensor from dirt.
Do not aim the block camera at the sun or extra bright places. Blooming or smearing may
occur otherwise (which is not a malfunction), and affect the endurance of sensor at the
same time.
The sensor may be burned out by a laser beam, so when any laser equipment is in using,
make sure that the surface of sensor will not be exposed to the laser beam.
Do not place the block camera in extremely hot, cold, dusty or damp locations, and do not
expose it to high electromagnetic radiation.
To avoid heat accumulation, good ventilation is required for operating environment.
Keep the block camera away from liquid while in use.
While in delivery, the block cameras shall be packed in its original packing, or packing of
the same type.
Maintenance
If the product does not work properly please contact Active Silicon.
Never attempt to disassemble the block camera yourself as this will invalidate the warrantee.
Active Silicon shall not assume any responsibility for problems caused by unauthorized repair or
maintenance.)


Harrier series camera
.
September 2022
www.activesilicon.com
Page 4 of 52
Feature
AS-CAM-23IP4K-A
Optical
Sensor 1/1.8ʺProgressive CMOS (IMX334)
Focal Length 6.7~154.1mm, 23x optical
Aperture Range F1.58~F3.95
Shutter 1/25~1/100000
FOV 59.6°~3.5° (Wide-Tele)
Min. Distance 10mm-1500mm (Wide-Tele)
AF Speed 5s (Optical, Wide-Tele)
D/N Shift ICR, Auto, Color, White/Black
Scanning Progressive Scanning
Resolution
Main Stream PAL: (3840 x 2160, 1920 x 1080, 1280 x 720) 25fps
NTSC: (3840 x 2160, 1920 x 1080, 1280 x 720) 30fps
Sub Stream
PAL: (720 x 576, 352 x 288) 25fps
NTSC: (720 x 480, 352 x 240) 30fps
3rd Stream
PAL: (1280 x 720, 720 x 576, 352 x 288) 25fps
NTSC: (1280 x 720, 720 x 480, 352 x 240) 30fps
Illumination
0.002Lux @ (F1.5, AGC ON) color, 0.0002Lux @ (F1.5, AGC ON) B/W
Video Output
Network Coding
Image Adjustment
Saturation, Brightness, Contrast, Sharpness, Hue Adjustment
Image Setting
Privacy Mask, Anti Flicker, Defog, Corridor Mode, Mirror, Rotate, BLC,
HLC, Defect Point Compensation, Watch mode, Power off Memory,
EIS, 3D Positioning
ROI (Region of interest) 4 regions
Focus Mode
Auto/Manual/Semi Auto/One Time Focus (auto mode)
Exposure Mode
Auto/Manual/Shutter Priority/Low light Priority/High light
Priority/Aperture Priority
Shutter Time
1/25~1/100000
White Balance
Auto 1/Auto 2/Indoor/Outdoor/Manual/Sodium Lamp/White Lamp/One
time Tracking/Auto Tracking
WDR
(Wide Dynamic Range) Super WDR, Digital WDR, 0-100 digital
adjustment
DNR
(Digital Noise Reduction) 2D/3D
Lens Initialization
Built-in shutter priority
Digital Zoom
16x
System Mode
PAL/NSTC
Network
Storage
SD card 128G (class10)
Smart Function
Motion Detection, Tampering, Area Intrusion, Line Crossing, Off-line,
IP conflict, HDD Full
Protocol
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP,
NTP, UPnP, SNMP, FTP, QoS
Compatibility
ONVIF, Active register
Audio
Compression
G.711A, G.711U, G.726, AAC
Video
Compression
H.265 / H.264
General
Heartbeat, Password Protection, Black/White list
Interface 36-way FFC/FPC
RJ45 10M/100M LAN self-adaptive, 1ch
Network light, 1ch
RS485, 1ch
RS232, 1ch
Alarm in, 1ch


Harrier series camera
.
September 2022
www.activesilicon.com
Page 5 of 52
Alarm out, 1ch
Audio in, 1ch
Audio out, 1ch
Power
SD card socket
Reset
Expansion
1x UART, 1x GPIO
Other
Working Temp. -10°C~60°C
Working Humidity ≤95% (non-condensing)
Power DC12V±10%
Power Cons. 2.5W~4.5W
Dimension 98.5 x 52 x 62 mm


Harrier series camera
.
September 2022
www.activesilicon.com
Page 6 of 52
Connecting to the Camera
Download and install the ONVIF Device Manager from https://sourceforge.net/projects/onvifdm/
This program can be used to identify the IP address of the camera (e.g. 192.168.1.7).
Streaming video can be displayed in the ONVIF device manager or a media player that can
display RTSP streams. E.g. GStreamer or VLC player.
For VLC player: Select the Media menu, select Open Network Stream.
In the Open Media dialog, enter rtsp://192.168.1.7:554/type=0&id=0. Click the Play button.
Connectors
J2
Pin No.
Name
Level
Pin No.
Name
Level
1
12V
21
GND
2 12V 22 SD_EN
3
12V
23
SD1_WP
4
GND
24
SD1_CD
5
GND
25
SD_CLK
6
CVBS_OUT
26
SD_CMD
7
GND
27
SD_DATA3
8
AUDIO_LINE_OUT
28
SD_DATA2
9
GND
29
SD_DATA1
10
AUDIO_LINE_IN
30
SD_DATA0
11
NC
31
GND
12
ETH_TX+
32
RS-485_B (-)
13
ETH_TX−
33
RS_485_A (+)
14
ETH_RX+
34
UART_TX
15
ETH_RX−
35
UART_RX
16 GND 36 RESET
17
LINK_LED
18
ACT_LED
19
ALARM_OUT
20
ALARM_IN
Ref.
36-Way FFC 0.5mm pitch


Harrier series camera
.
September 2022
www.activesilicon.com
Page 7 of 52
Evaluation Board Connectors
J3 - Power
Pin No.
Name
Pin No.
Name
1
UART4_TXD
4
RS485_B
2
UART4_RXD
5
GND
3
RS485_A
6
VIN_12V
J4 – Ethernet
Pin No.
Name
Pin No.
Name
1
ETH_RX
−
4
ETH_TX+
2
ETH_RX+
5
LINK_LED
3
ETH_TX−
6
ACT_LED
J5 – Alarm and Audio
Pin No.
Name
Pin No.
Name
1
GPIO9_6_K
4
AUDIO_LINE_OUT
2
GND
5
ALARM_OUT1_K
3
AUDIO_LINE_IN
6
ALARM_IN1_K


Harrier series camera
.
September 2022
www.activesilicon.com
Page 8 of 52
Acessing the Camera Web Pages
Steps:
1. Power on the camera, and connect the camera to the network.
2. Open the web browser.
3. In the address field, input the IP address of the network camera, e.g., 192.168.1.107 and press
the Enter key to enter the login interface.
4. The default IP address of the camera is 192.168.1.107.
5. Select English as the interface language on the bottom-right of login interface
6. Create a password and input the password in the password field, and confirm the password.
7. The admin user should configure the device accounts and user/operator permissions properly.
Delete the unnecessary accounts and user/operator permissions.
8. Install the plug-in before viewing the live video and operating the camera. Follow the installation
prompts to install the plug-in.
Caution：Please follow the installation prompts to install the plug-in.
Caution：You may have to close the web browser to install the plug-in. Reopen the web
browser and log in again after installing the plug-in.
Default user name: admin
Default password: password123 or 123456


Harrier series camera
.
September 2022
www.activesilicon.com
Page 9 of 52
Changing the Password
For your privacy and to better protect your system against security risks, we strongly recommend
the use of strong passwords for all functions and network devices. The password should be
something of your own choosing (using a minimum of 8 characters, including upper case letters,
lower case letters, numbers and special characters) in order to increase the security of your
product. Proper configuration of all passwords and other security settings is the responsibility of
the installer and/or end-user


Harrier series camera
.
September 2022
www.activesilicon.com
Page 10 of 52
Basic Web Page Operation
In this and the following chapters, operation of the block camera by the web browser will be
described as an example.
Figure 1. Camera Web server Live Page


Harrier series camera
.
September 2022
www.activesilicon.com
Page 11 of 52
Live View Parameters:
LOGO Description
Login
PTZ Control
Image Setting
Alarm Info
Latency
Regional Zoom
Quick PTZ
Zone Focus
Main Stream Live View
Second Stream Live View
Third Stream Live View
1:1 Display
Local Record
Local Snapshot
IPC Snapshot
Audio Detect
Intercom
Stop Live View
Full Screen


Harrier series camera
.
September 2022
www.activesilicon.com
Page 12 of 52
PTZ Control Panel
PTZ Control: Panning, tilting, focusing and zooming actions of the network. The lighter, wiper,
one-touch focus and lens initialization control.
Preset/patrol/pattern: Set and call the preset/patrol/pattern for the camera
PTZ Control Panel
Figure 2. PTZ control panel
: Start/stop digital zoom.
/ : Focus near/far
/: Iris Close/Open
Step: Control by Clicking on -/+ (Adjust speed of pan/tilt movements)
Setting a Preset: In the PTZ control panel, Input a preset number from 1-255, Click to add a
Preset, then click to call the PTZ to the Preset, Delete the Preset by clicking on .
PTZ menu : Patrol/Line Scan/Pattern/Preset/Auto Pan/Aux
In the PTZ control panel, input a defined preset/pattern.
“Open”“Close”：Turn ON/OFF function.


Harrier series camera
.
September 2022
www.activesilicon.com
Page 13 of 52
1) PTZ Setting
Figure 3. PTZ Setting Menu
2) Line Scan：
Figure 4. Line Scan. Setting the Left and Right boundary
3) Pattern：
Figure 5. Pattern


Harrier series camera
.
September 2022
www.activesilicon.com
Page 14 of 52
4) Preset：
Figure 6. Preset: You can configure up to 255 presets
5)Patrol：
Figure 7. Patrol
OSD Setting
Figure 8. Image Setting
Alarm Info
Figure 9. Alarm Info


Harrier series camera
.
September 2022
www.activesilicon.com
Page 15 of 52
Playback
Purpose:
This section explains how to view the video files stored in the network disks or memory
cards.
Figure 10. Playback
Description of the buttons:
Logo Description
The window size is 1:1
Local Recording
Local Snapshot
IPC Snapshot
Audio Recording
Play
Speed Down
Speed Up
Full Screen


Harrier series camera
.
September 2022
www.activesilicon.com
Page 16 of 52
Drag the progress bar with the mouse to locate the exact playback point.
The different colors of the video on the progress bar stand for the different video types
Search by Date
Figure 11. Query Date
Search Video
Figure 12. Query Terms
Choose the file paths locally for downloaded playback video files and pictures in Local
Configuration interface.
Recording Status
Figure 13. Status Information
Input the time and click to locate the playback point in the Set playback time field. You can also
click to zoom out/in the progress bar.


Harrier series camera
.
September 2022
www.activesilicon.com
Page 17 of 52
Camera Settings
Click Settings to enter the Configuration Interface
Figure 14. Settings tab
The configuration interface functions are as follows:

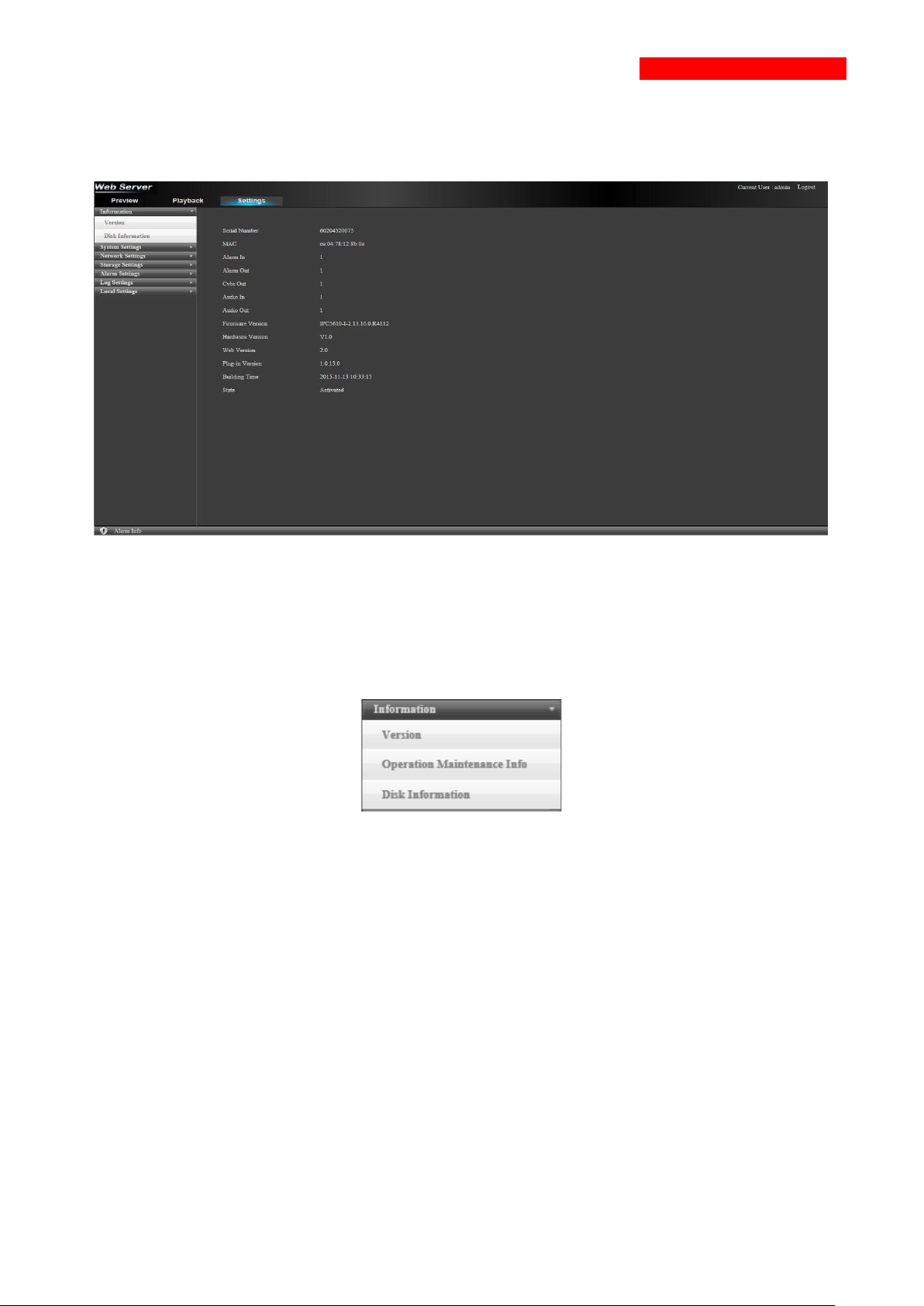

System information
Figure 15. System information


Harrier series camera
.
September 2022
www.activesilicon.com
Page 18 of 52

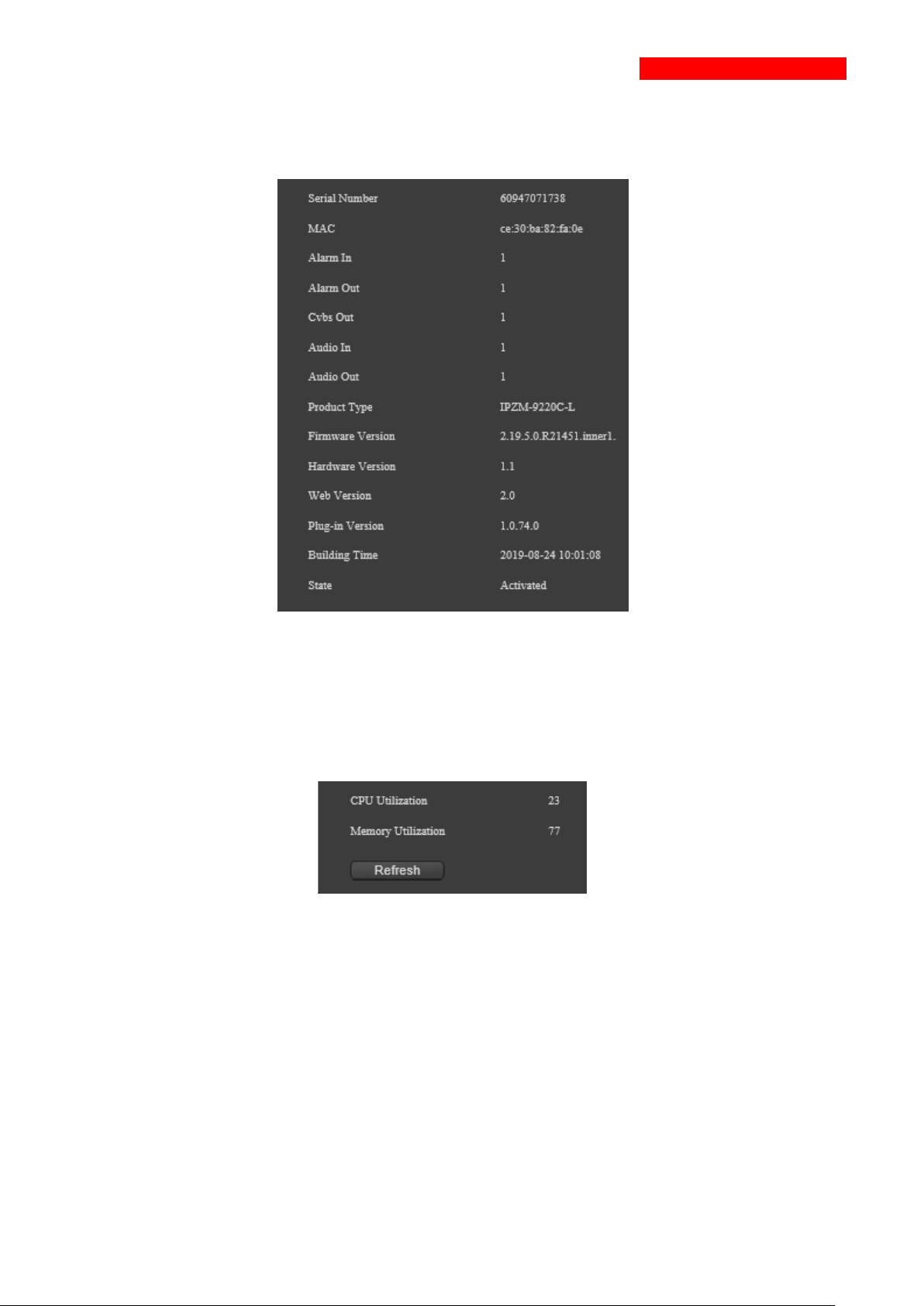

1）“Version information”
Figure 16. Version information
View the device's "serial number, MAC, product type, software version, hardware version,
WEB version, control version, compilation date, activation status" and other information.
2）“Operation and maintenance information”:
Figure 17. Version information
View CPU utilization and memory utilization.


Harrier series camera
.
September 2022
www.activesilicon.com
Page 19 of 52
3）“Hard disk information”：
Figure 18. Hard disk information
View "hard disk serial number", "physical serial number", "disk group", "hard disk status",
"properties", "residual capacity", "total capacity", and refresh status information.
System setup
Figure 19. System setup
General setting
Figure 20. General setting


Harrier series camera
.
September 2022
www.activesilicon.com
Page 20 of 52
"Date Settings" can set "year", "month", "day", "time", "minute" and "second" separately.
Synchronized PC: Time synchronization with PC terminal.
"Automatic Synchronization": Automatically synchronize with PC after selecting.
"Save time": After setting up, click Save, it will pop up and save successfully.
Refresh: Click to refresh the display.
"Summer saving time": Check and set menu, set parameters according to demand, can set
"week" or "date".
"Date format": According to the needs of the sort of year, month and day set, can choose
"year, month, day and year", "day, month and year". "Delimiter": Set according to the
requirement. Optional". "," -","/".
"Time zone": Set up 12 hours and 24 hours display according to requirement.
"Time zone": Set up according to requirements.
"Storage device full time": according to the needs of settings, optional "coverage" or "stop".
"Language": Set up according to the requirement, choose "Simplified Chinese" or "English".
"Video format": Depending on the requirements, choose "PAL" or "NTSC"
"Local Number": Local Number Display.
"Save": After setting up, click Save, it will pop up and save successfully.
Refresh: Click to refresh the display.

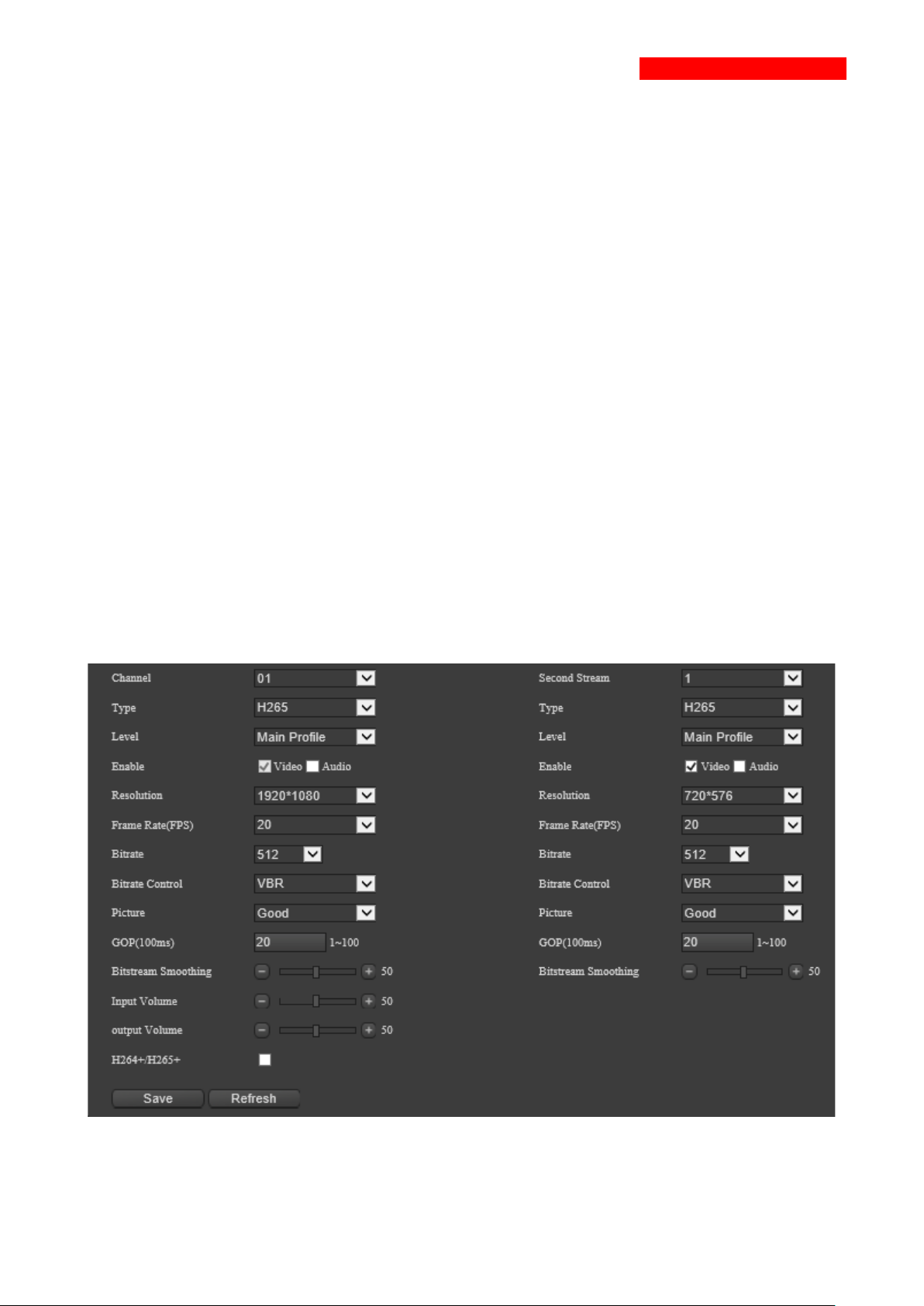

Encoding setting
Figure 21. Encoding Setting
