Active Silicon Harrier Series Product manual


Harrier series camera .
Edition: v1.00
Issued Date: 20 May 2021
Harrier 40x Autofocus-
Zoom Camera
(LVDS / CVBS)
AS-CAM-40LHD-A
Technical
Reference Manual


Harrier series camera .
May 2021
www.activesilicon.com
Page 2 of 61
Contents
FEATURES.................................................................................................... 3
CAUTIONS.................................................................................................... 4
SPECIFICATION........................................................................................... 5
CONNECTORS............................................................................................. 8
INTERFACE ................................................................................................ 11
LVDS RECEIVER CIRCUITS ...................................................................... 12
CABLE SPECIFICATIONS ......................................................................... 15

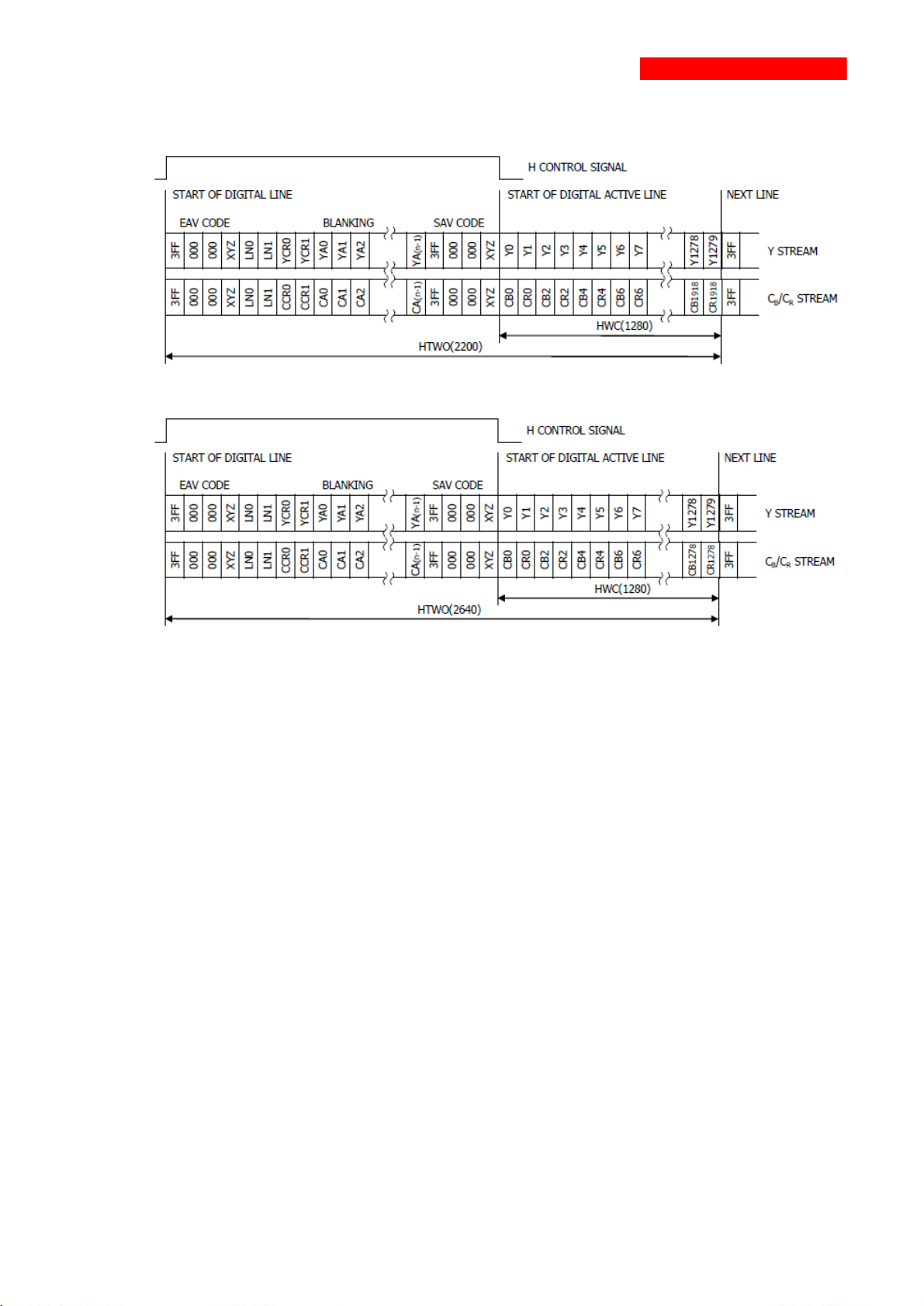

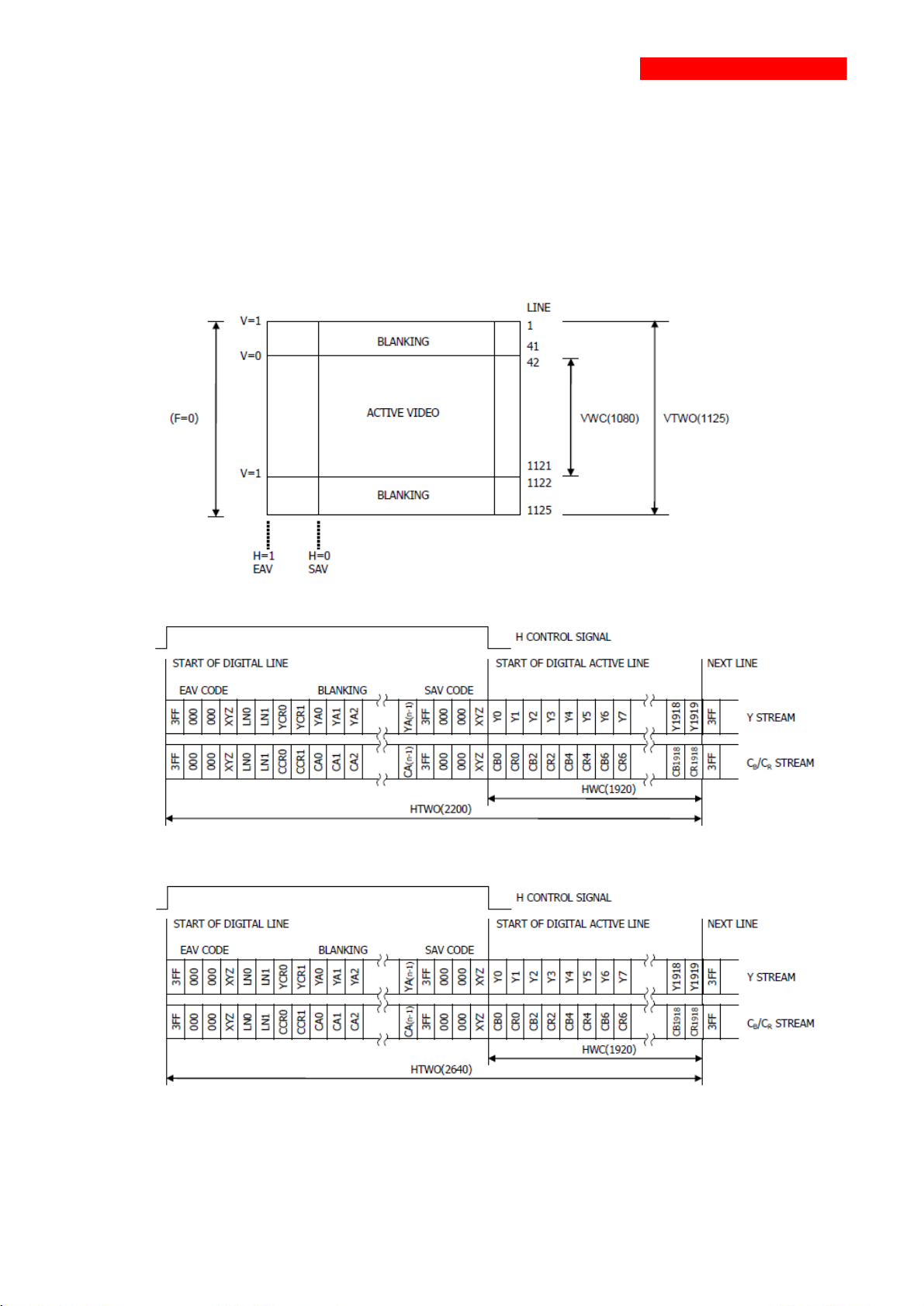

TIMING CHARTS........................................................................................ 16
PIXEL DATA FORMAT................................................................................ 20
BLOCK DIAGRAM...................................................................................... 21
RELIABILITY............................................................................................... 22
FUNCTIONS ............................................................................................... 24
PROTOCOLS.............................................................................................. 31
VISCA COMMAND LIST............................................................................. 36
VISCA INQUIRY COMMAND LIST............................................................. 41
OSD MENU................................................................................................. 50
CAMERA DIMENSIONS............................................................................. 60
ORDERING INFORMATION....................................................................... 61
CONTACT DETAILS ................................................................................... 61


Harrier series camera .
May 2021
www.activesilicon.com
Page 3 of 61
Features
◆ 1/2.8" Sony STARVIS CMOS sensor
2.16M Pixels (Total)
2.12M Pixels (Active)
◆ 40x Optical Zoom
High reliability built-in 40x optical zoom lens with autofocus, auto-iris and auto-D&N functions.
◆ Full HD Resolution
1920x1080p 60/50/30/25fps
1280x720p 60/50/30/25fps
◆ DAY & NIGHT (ICR)
The ICR will automatically engage depending on the ambient light, allowing the camera to be
effective in day and night environments.
◆ DNR (Digital Noise Reduction, 2D+3D)
The DNR technology eliminates noise thus generating a distinct and clear image. This camera
DNR function utilizes both an adaptive 2D filter reducing noise in the brightness of the image
and an adaptive 3D filter reducing noise caused by movement.
◆ Privacy mask Function
The privacy zone function makes it possible to hide specific areas of the scene from view.
◆ On Screen Display
This camera supports an OSD function and the camera can be controlled by selecting text
displayed on the monitor screen.
◆ Intelligent motion detection
The camera can transmit an alert signal when it detects motion of an object on the screen.
This feature is useful when several screens have to be monitored simultaneously.
◆ Digital Image Stabilizer(DIS)
The Image Stabilizer function reduces image blurring caused by, for example, vibration,
which allows you to obtain images without much blurring.
◆ Output
Digital output: LVDS
Analog output: CVBS
◆ Protocol
This camera supports multiple control protocols: VISCA, PELCO-D, PELCO-P.


Harrier series camera .
May 2021
www.activesilicon.com
Page 4 of 61
Cautions
◆ Power Supply
This camera must always be operated at 9V to 15V DC
◆ Handling of the unit
Be careful not to spill water or other liquids on the unit.
Be cautious not to get combustible or metallic material inside the camera body.
If used with foreign matter inside, the camera is liable to fail or to cause fire or electric shock.
◆ Operating and storage location
Avoid viewing a very bright objects (such as light fittings) during an extended period. Avoid
operating or storing the unit in the following locations:
-Extremely hot or cold places (operating temperature -10℃~ 50℃, however, we
recommend that the unit be used within a temperature range of 0℃~ 45℃)
-Damp or dusty places
-Places exposed to rain
-Places subject to strong vibration
-Close to generators of powerful electromagnetic radiation such as radio or TV
transmitters.
◆ Care of the unit
-Remove dust or dirt on the surface of the lens with a blower (commercially
available).
-Avoid the use of volatile solvents such as thinners, alcohol, benzene and
insecticides. They may damage the surface finish and/or impair the operation of the
camera.


Harrier series camera .
May 2021
www.activesilicon.com
Page 5 of 61
Specification
Model
AS-CAM-40LHD-A
Image Sensor
1/2.8" Sony IMX462LQR-C CMOS Sensor
Total Pixels
1945(H) x 1109V) = 2.16M pixels
Effective pixels
1945(H) x 1097(V) = 2.13M pixels
Active pixels
1937(H) x 1097(V) = 2.12M pixels
Shutter type
Rolling shutter
Sync. System
Internal
Resolution
Digital: 1080p 60/50/30/25fps, 720p 60/50/30/25fps
Analog: CVBS
Min. illumination (50%)
Color(1/30s, 79.5dB) : 0.01 lux , BW(1/30s, 79.5dB) : 0.002 lux
Color DSS(1/1s, 79.5dB) : 0.001 lux , BW DSS(1/1s, 79.5dB) : 0.0002
lux
Video Output
Digital: LVDS
Analog: CVBS
S/N Ratio
more than 50dB (AGC off)
Lens
Lens type
40x Day & Night Zoom Lens
Zoom Ratio
Optical x40 Zoom, Digital x32 Zoom
Focal Length
f = 4.25mm ~ 170.0mm
Aperture Ratio
F1.6 (wide) ~ F4.95 (tele)
Angle of View (D, H, V)
Wide
73.80°
66.35°
39.98°
Tele
2.16°
1.90°
1.11°
Function
Zoom/Focus
Focus Mode
Auto / One Push / Manual / Auto-Ext
Distance (m)
Wide: 0.1m, Tele: 1.5m (may be set higher using near focus limit)
Zoom Speed
0 (Slow) ~ 7 (Fast)
Lens Refresh
One Push / 1day ~ 10days
E.Zoom
Off / MAX 2x ~ 32x
Zoom Preset
5 preset


Harrier series camera .
May 2021
www.activesilicon.com
Page 6 of 61
Model
AS-CAM-40LHD-A
Exposure
Mode
Auto / Iris. Priority / Shut. Priority / Manual
AGC(Gain Control)
0 ~ 10 steps
Shutter Speed
1/1 ~ 1/30,000 sec
Iris
Close ~ F1.6
DSS
(Digital Slow Shutter)
Off / 2x / 4x / 8x / 16x / 32x (/64x: 60 or 50fps mode only)
Flickerless
Off / On / Auto
Brightness
0 ~ 14 steps
Back Light
Off / BLC / HLC / WDR
Day&Night
Auto / Day / Night / Ext-in
White Balance
Mode
Auto / One Push / Manual / Indoor / Outdoor
Red Gain
0 ~ 100 steps (Manual mode only)
Blue Gain
0 ~ 100 steps (Manual mode only)
Chroma
0 ~ 20 steps
Hue
0 ~ 20 steps
DNR
2D/3D, 2D+3D
LEVEL
0 ~ 15 steps (2D+3D)
2D-NR
0 ~ 15 steps (2D/3D)
3D-NR
0 ~ 15 steps (2D/3D)
Mirror
Off / H / V / H&V
Sharpness
0 ~ 10 steps
Contrast
0 ~ 20 steps
Image Bright
0 ~ 20 steps
DWDR
Off / Manual / Auto
Defog
Off / Manual / Auto
Freeze
Off / On
Gamma
0.35 ~ 0.70
Intelligence
Privacy Mask
Off / On (8 points)
Motion Detection
Off / On (4 points)
DIS(Digital Image
Stabilizer)
Off / On
Special Functions
Defect DET
Off / On
System
NTSC / PAL
HD Format
720p30(25)fps / 720p60(50)fps / 1080p30(25)fps / 1080p60(50)fps
Communication
ID: 1 ~ 255
Baud Rate: 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 bps
Protocol: Pelco-P / Pelco-D / VISCA


Harrier series camera .
May 2021
www.activesilicon.com
Page 7 of 61
Model
AS-CAM-40LHD-A
Display
Disp Sel (Off / On)
ID / Title / Zoom Ratio / System Message
Set Title
Text Edit
Init Sel (Off / On)
ID / Baud Rate / Protocol / Version / Init. Message
Set Init Msg
Text Edit
Electrical
Power Source
9V to 15V DC
Power Consumption
600mA (@ 12VDC)
General
Power Input
Connector
Video Output
Connector
Operating Temperature
-10⁰C ~ +50⁰C (Humidity: 0%RH ~ 90%RH)
Storage Temperature
-20⁰C ~ +60⁰C(Humidity: 0%RH ~ 90%RH)
External Dimension (mm)
54(W) x 64(H) x 101(D)
Weight
355 g
* Note: Design and specifications are subject to change without notice


Harrier series camera .
May 2021
www.activesilicon.com
Page 8 of 61
Connectors
J301
Pin No.
Name
Level
Pin No.
Name
Level
1
TXOUT3+
21
TXOUT7+
Single mode: open
2
TXOUT3−
22
TXOUT7-
Single mode: open
3
TXCLKOUT+
23
TXOUT6+
Single mode: open
4
TXCLKOUT−
24
TXOUT6-
Single mode: open
5
TXOUT2+
25
NC
6
TXOUT2−
26
NC
7
TXOUT1+
27
TXOUT5+
Single mode: open
8
TXOUT1−
28
TXOUT5-
Single mode: open
9
TXOUT0+
29
TXOUT4+
Single mode: open
10
TXOUT0−
30
TXOUT4-
Single mode: open
11
GND
12
TxD
CMOS 5V
13
RxD
CMOS 5V
14
DC IN
9 ~ 15V DC
15
DC IN
9 ~ 15V DC
16
DC IN
9 ~ 15V DC
17
DC IN
9 ~ 15V DC
18
DC IN
9 ~ 15V DC
19
GND
20
GND
Ref.
USL00-30L-C (KEL Cop.)
J301
J302
J303


Harrier series camera .
May 2021
www.activesilicon.com
Page 9 of 61
J302
Pin No.
Name
Level
Pin No.
Name
Level
1
GND
13
485-DIR
RS-485 control
signal
2
TxD
CMOS 5V
14
NC
3
RxD
CMOS 5V
15
GND
4
NC
16
+5V
Output
5
GND
17
GND
6
NC
18
CVBS-OUT
Composite Video
Output
7
GND
19
GND
8
ADKEY
OSD Control
20
DC IN
9 ~ 15V DC
9
NC
21
DC IN
9 ~ 15V DC
10
D/N-IN
Day & Night
Control Input
(Normal: open,
Active: 0V)
22
DC IN
9 ~ 15V DC
11
NC
23
DC IN
9 ~ 15V DC
12
MD-OUT
Motion Detection
output
24
DC IN
9 ~ 15V DC
Ref.
05002HR-24J05 (YEONHO)
J303
Pin No.
Name
Level
1
GND
2
CVBS-OUT
Composite Video Output
Ref.
12505WR-02 (YEONHO)


Harrier series camera .
May 2021
www.activesilicon.com
Page 10 of 61
1. D&N IN (J302-10)
Port giving input of any external signal in Day&Night “Ext-In” Mode
⚫Day Mode: High (+3.3V)
⚫Night Mode: Low (Ground)

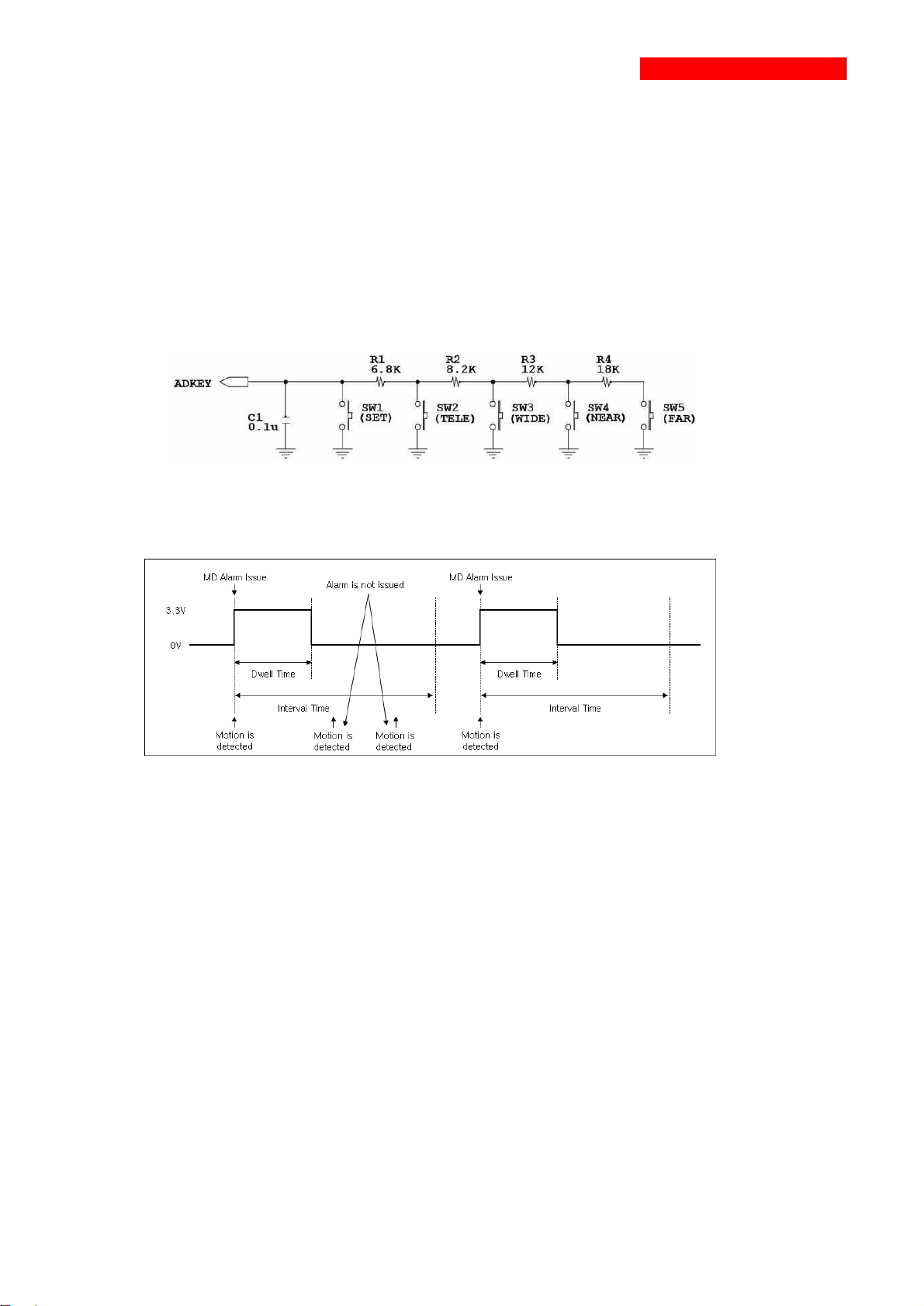

2. AD KEY (J302-8)
The externally wired remote controller connector.
3. MD (J302-12)
Port giving signal output of Motion Detection Alarm
4. 485-DIR (J302-13)
Port giving output of TxD/RxD direction in RS-485 communication
⚫TxD: High (+3.3V)
⚫RxD: Low (Ground)


Harrier series camera .
May 2021
www.activesilicon.com
Page 11 of 61

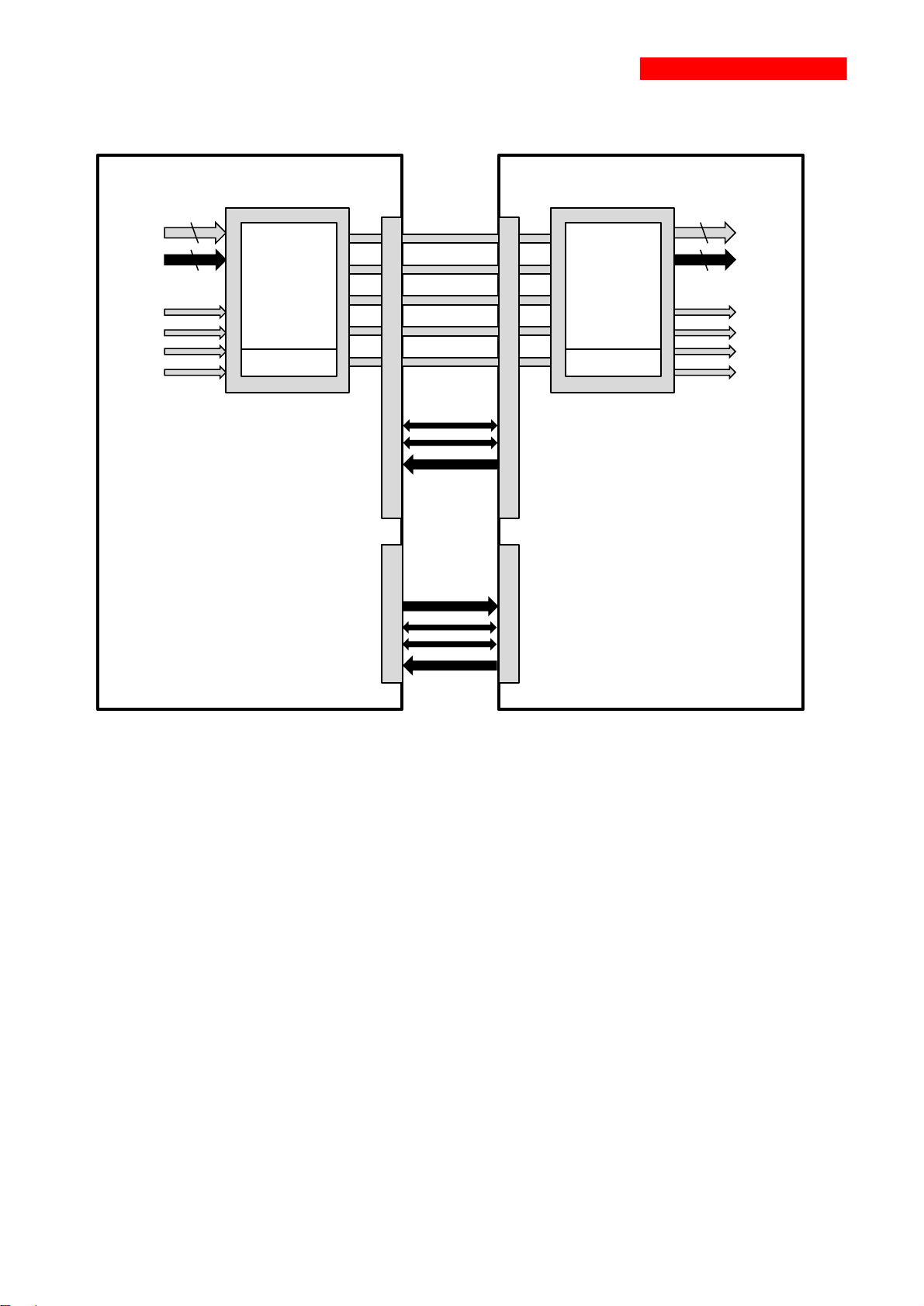

Interface
The AS-CAM-40LHD-A uses a LVDS transmitter IC chip.
The THC63LVD1024, THC63LVD104C, BU90R102 LVDS receiver IC is recommended.
Recommended connectors and cables.
- Cable: #42 thin coaxial cable
- Connector: USL20-30S (KEL)
8 bits x 2
8 bits x 2
CN
TTL
Parallel
to
LVDS
PLL
Y
Cr/Cb
HD
VD
FLD
CLK
TX
THC63LVD827
(Thine Electronics, Inc.)
CN
LVDS
to
TTL
Parallel
PLL
RX
Y
Cr/Cb
HD
VD
FLD
CLK
TXD
RXD
POWER
USL20-30S (KEL)
CN
CN
05002HR-24J05
(YEONHO)
POWER
TXD
RXD
VBS(SD Video)
AS-CAM-40LHD-A
LVDS
5 pairs (10pin)


Harrier series camera .
May 2021
www.activesilicon.com
Page 12 of 61
LVDS receiver circuits

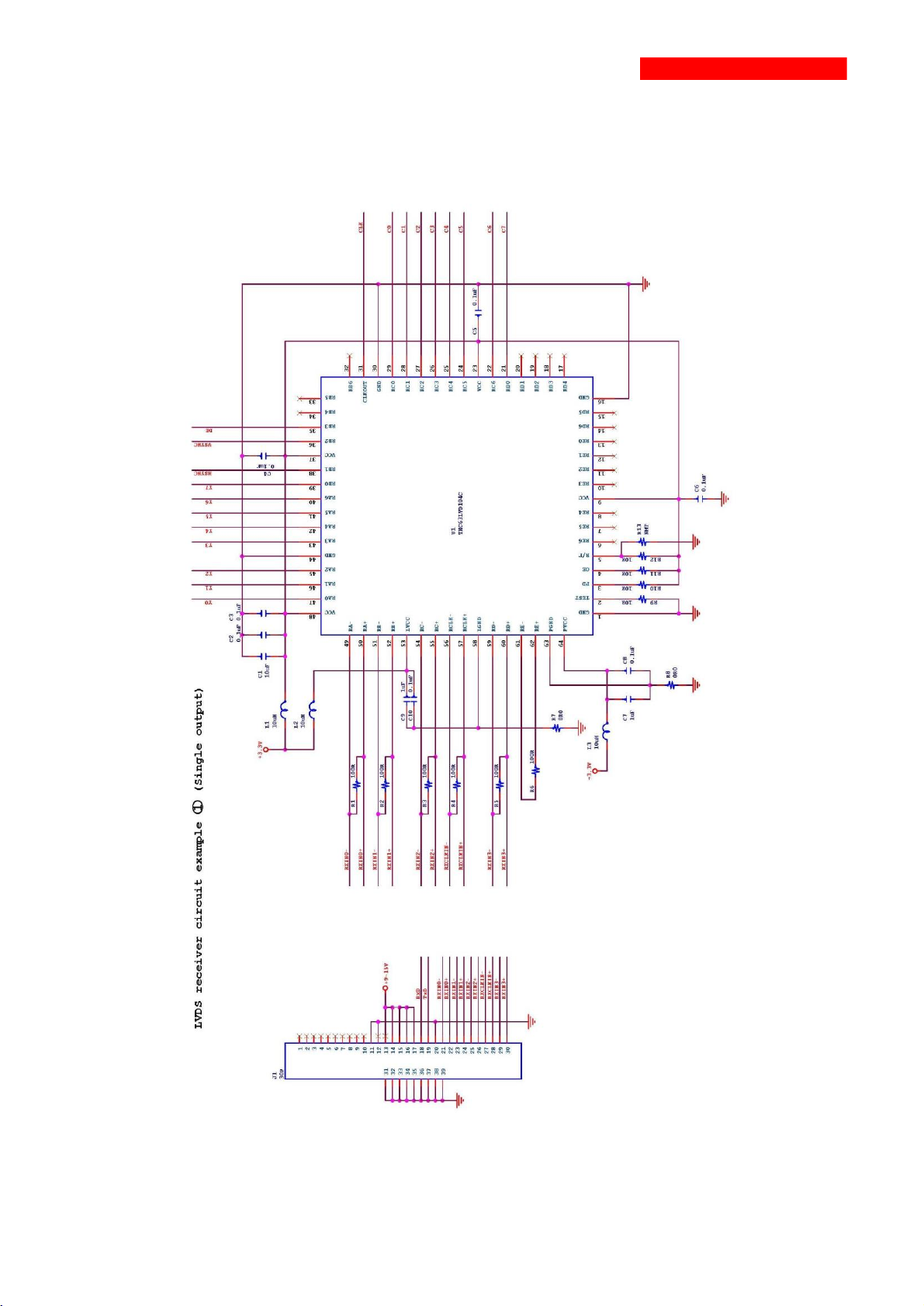

THC63LVD104C circuit example (Single output)


Harrier series camera .
May 2021
www.activesilicon.com
Page 13 of 61
THC63LVD1024 circuit example (Single output)


Harrier series camera .
May 2021
www.activesilicon.com
Page 14 of 61

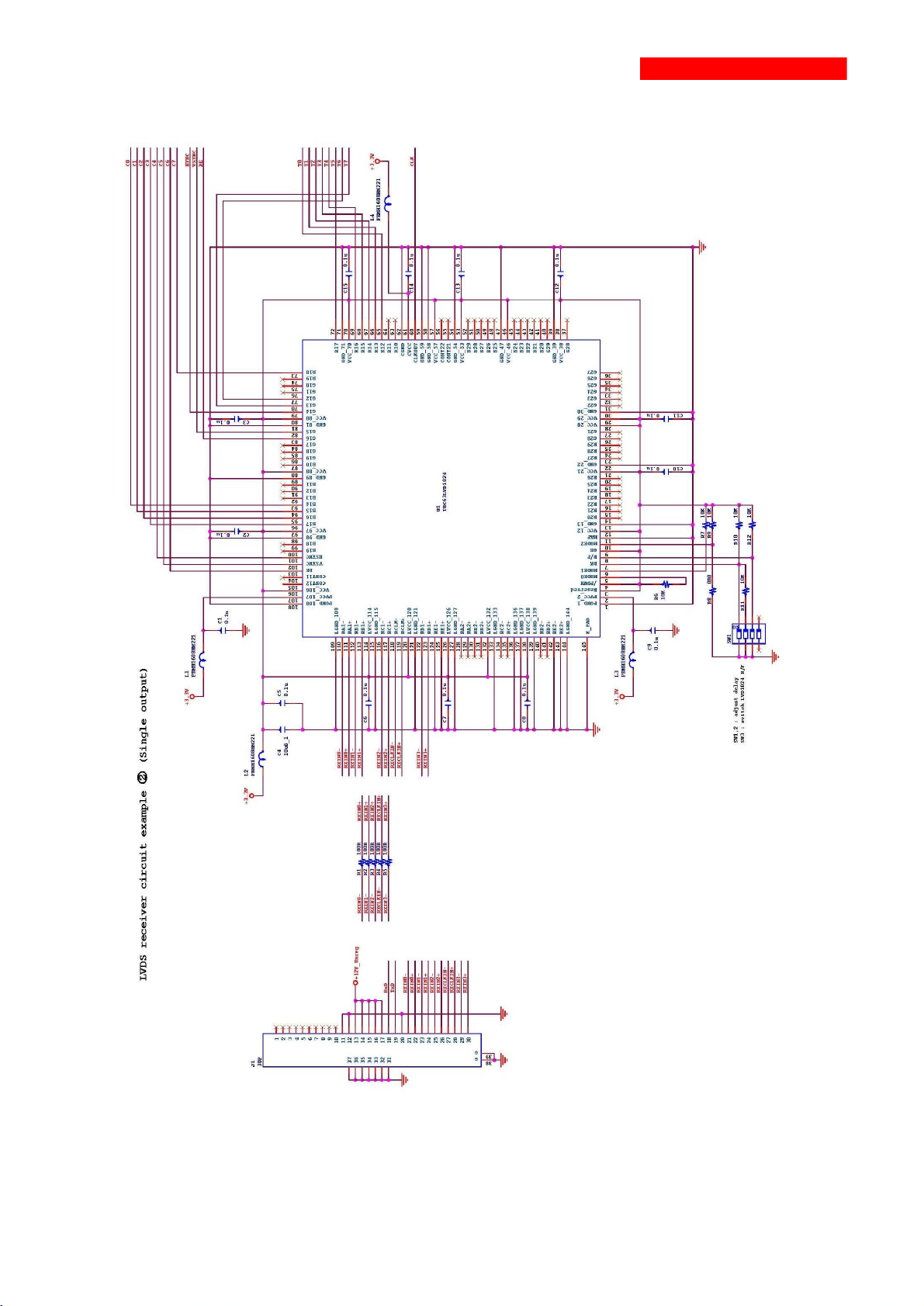

THC63LVD1024 circuit example (Double output)


Harrier series camera .
May 2021
www.activesilicon.com
Page 15 of 61
Cable specifications
①, ②: Connecting to USL20-30S (KEL)
③: #42 thin coaxial cable
④: Binding tape


Harrier series camera .
May 2021
www.activesilicon.com
Page 16 of 61
Timing Charts
1. 1080p Output Timing Chart
ITU-R BT.1120 also includes progressive scan formats with 1080 active lines, with Y'C'BC'R
4:2:2 sampling at pixel rates of 74.25MHz (30/25fps) or 148.5MHz (60/50fps). The following
diagrams show horizontal and vertical timing for 1080-line progressive systems.
①Frame timing relationship for 1080-line progressive systems.
②Data stream over one video line –1080p 60/30 fps
③Data stream over one video line –1080p 50/25 fps


Harrier series camera .
May 2021
www.activesilicon.com
Page 17 of 61
2. 720p Output Timing Chart
ITU-R BT.1120 also includes progressive scan formats with 720 active lines, with Y'C'BC'R
4:2:2 sampling at pixel rates of 74.25MHz. The following diagrams show horizontal and
vertical timing for 720-line progressive systems.
①Frame timing relationship for 720-line progressive systems.
②Data stream over one video line- 720p 60fps
③Data stream over one video line- 720p 50fps


Harrier series camera .
May 2021
www.activesilicon.com
Page 18 of 61
④Data stream over one video line- 720p 30fps
⑤Data stream over one video line- 720p 25fps


Harrier series camera .
May 2021
www.activesilicon.com
Page 19 of 61
3. EAV and SAV Sequence
The EAV and SAV sequences are shown in Table A. The status word is defined as:
F = “0” or “1” (Selectable)
V = “1” during vertical blanking
H = “0” at SAV, H = “1” at EAV
P3–P0 = protection bits
P3 = V ⊕H
P2 = F ⊕H
P1 = F ⊕V
P0 = F ⊕V ⊕H
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Preamble
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Status word
1
F
V
H
P3
P2
P1
P0
0
0
Table A.


Harrier series camera .
May 2021
www.activesilicon.com
Page 20 of 61
Pixel data format
1. Camera LVDS Tx IC settings (THC63LVD827)
i. R/F (Input Clock Triggering Edge): H (Rising edge)
ii. RS(LVDS swing mode): H (350mV)
iii. MAP(LVDS mapping table): L (Mapping Mode 2)
iv. MODE (Pixel data mode): Select Single or Dual output using VISCA command
(Register No.74 LVDS mode)
※Initial setting: Single mode
v. 6B/8B (6bit/8bit mode): L (8bit mode)
vi. DDRN (DDR function): H (Disabled)
2. Output format (Single mode)
i. Single mode
ii. Dual mode
