Activeforever BC-08581-2A User manual

Clamp Assembly
Main Tube Assembly
Hitch Mount Assembly
1x
1x
1x
Nut, Nylock 2x
Washer 4x
Wheel Holder 4x
Platform
1x
Strap 4x
PART LIST
HITCH BIKE PLATFORM
BC-08581-2A
Warnings:
1. For 2" receiver. Carries up to 2 bikes (max 15kg/33lbs per bike).
2. Check periodically to assure that the bikes have not moved and that even weight distribution is
being maintained.
3. It is the owner's responsibility to periodically check to assure all hardware, straps, etc. are securely
tightened for continued safety.
4
5. Do not install bike racks on trailers, campers or RVs.
. Do not create any downward vertical force on any part of the carrier when securing and tying
the bike(s) to the carrier . Excessive downward vertical force beyone the carrier's load capacity
may cause damage to the carrier, bikes and/or vehicle.
B
Pin
olt,Hex Head 2x
2x

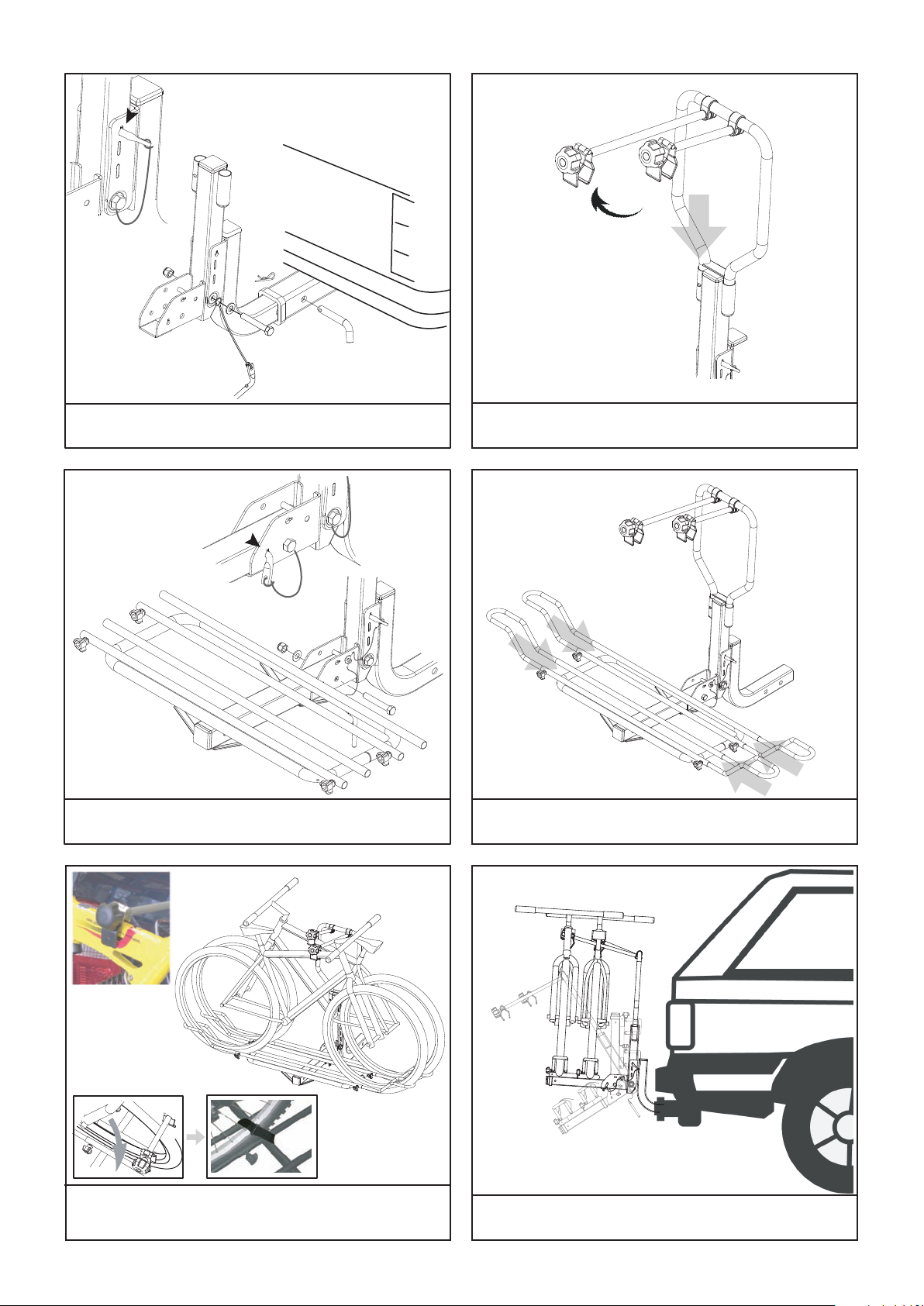

STEP 2. Slide Clamp Assembly into Main Tube Assembly by
pressing the spring pin to secure it into the hole.
STEP 1. Assemble Main Tube Assembly with Bolt and Nut ,
Slide the assembly(Base Tube) into the receiver.
Be sure to insert
the safety pin.
Be sure to insert
the safety pin.
STEP 3. Assemble Platform to the Main Tube Assembly. STEP 4. Assemble Wheel holders.
STEP 5. Adjust the Wheel Holders to fit the dimension of the
tires, secure the tires with Straps, and
Hold the bike tube with Clamps.
POINT: Safety Pin must be secured in place at all times when the
Carrier is in either folded or unfolded positions.
