Fcar F501 EOBD User manual

1
Disclaimer
The manual is designed only for the use of FCAR series products. Without written approval of Shenzhen FCAR
Technology Co., Ltd., any corporation or individual cannot copy and backup in any form (electronic,
mechanical, photocopying, recording or other means).
This manual is only used for professional automobile maintenance technicians.
This manual offers FCAR product operating methods only. The company accepts no responsibility for any
possible consequence of the use of this manual as applied to other equipment.
The company will not take any responsibility for the user or third parties for equipment damages, losses,
costs, or expenses resulted in accidents, abuse or misuse of this product, or unauthorized modifications,
repairs or alterations to this product or operation or maintenance to not comply with FCAR instructions.
This manual is based on the latest configurations and functions of product. The new description, data and
illustration may change compared to those described in this manual. FCAR reserves the rights to make
changes to its products without prior notice.
FCAR has registered trademark in Mainland China with logo . In the countries and areas where
FCAR trademark, service identification, domain name, icon, company name, etc. have not been registered,
FCAR claims ownership for non-registered trademark, service identification, domain name, and icon and
company name. Other products and trademark of company name referred in this manual still belong to the
original registered company. Without the consent of owner in written form, any individual or third parties
cannot use FCAR or any other referred trademark of other company, service identification, domain name or
company name, etc.
FCAR series product is only for normal vehicle maintenance. Our company accepts no responsibility for illegal
purposes used by purchasers.
FCAR Technology Co., Ltd. reserves the right of the final explanation



2
FCAR Code Reader User Manual
Before using FCAR Coder Reader series product, please read the manual carefully. 

The manual is based on the current specifications and functions of the product. If new specifications and
functions are added to the product, there will be corresponding changes in the manual. The new manual
can be downloaded from the FCAR Company’s website (http://www.fcar.com). 
Please carefully read the "Note", ＂Remark＂and “Introductions” of the manual to ensure that use our
products properly and safely.
FCAR Code Reader Main Unit Maintenance and Notes
Do not allow unauthorized demolition. 

Avoid violent collision. 

Avoid closing to magnetic field. 

Do not keep in hot environment for a long time. 

Do not keep in cold environment for a long time. 

Avoid collision of screen and keep the keys clean. 

Clean the machine with soft clean cloth and neutral detergent, instead of water or chemical solvents. 
Automobile Inspection Notes
Should operate the machine according to safety rules in auto repair industry. Special attentions should
be paid in order to prevent the machine from being affected or damaged because of the environmental
factors such as the surrounding pH, poison gas, high pressure, heavy objects, etc.

Vehicle battery fluid contains sulfuric acid, while sulfuric acid is corrosive to the skin. Therefore, in
operation you should protect your skin from directly contacting with battery fluid. Particularly, make
sure that they won’t splash into your eyes. You should also avoid closing to fire. 

Engine exhaust emissions contains a variety of toxic compounds, so you should protect yourself from
inhaling them. During operating, the vehicle should be parked in a well-ventilated place. 

The temperature of the working engine is high, so you should protect yourself from contacting with high
temperature components such as water tank and exhaust pipes. 

Before starting the engine, you should hold the handbrake and have gear lever placed in neutral (Guide
transmission) or P gear position (automatic transmission), so as to avoid the vehicle rushing out and
result in accidents when you start the engine. 

Before repairing the vehicles, you should hold parking brake well, shift transmission gear into the neutral
position or P gear, and lower the glass doors and windows on the driver's seat side. 

If the engine can be started, you should firstly warm up it to a normal temperature (water temperature
is at about 80 ℃), and close the auxiliary electrical appliances (such as air conditioning, lighting,
loudspeaker, etc.).

3

Find the diagnostic socket of this car, and check, confirm that whether the wires of the diagnostic
socket are in good condition, and then connect the main unit for diagnosis. Otherwise, do not test, and
avoid damage to the main unit. If necessary, you can use a multimeter to measure the voltage of
diagnostic socket. 
Instrument Use Notes
When you use FCAR series products for testing, you must handle it with care and keep them away from
heat source and electromagnetic field, so as to avoid interference with the main unit. 

When electrical components are energized, you cannot disconnect the circuit to prevent the
self-inductance, mutual inductance from attacking sensors and automotive ECU. 

When electrical equipment works normally, you should avoid putting magnetic objects close to the
vehicle control unit, otherwise the vehicle control unit may be damaged. 

Vehicle control unit or electrical components dismounting should be done only 1 minute after the ignition
switch is turned off. 

4
Content
Statement ........................................................................................................ ……………………………1
1.1 Introduction to FCAR Code Readers .......................................................... 5
1.2 Introduction to Its Appearance and Basic Function ................................................................. 5
1.2.1 F501 Gasoline OBDⅡCode Reader............................................................................................. 6
1.2.2 F502 Diesel OBD Code Reader..................................................................................................... 7
1.3 Product Parameters ................................................................................................................ 7
1.4 Operation Methods ................................................................................................................ 8

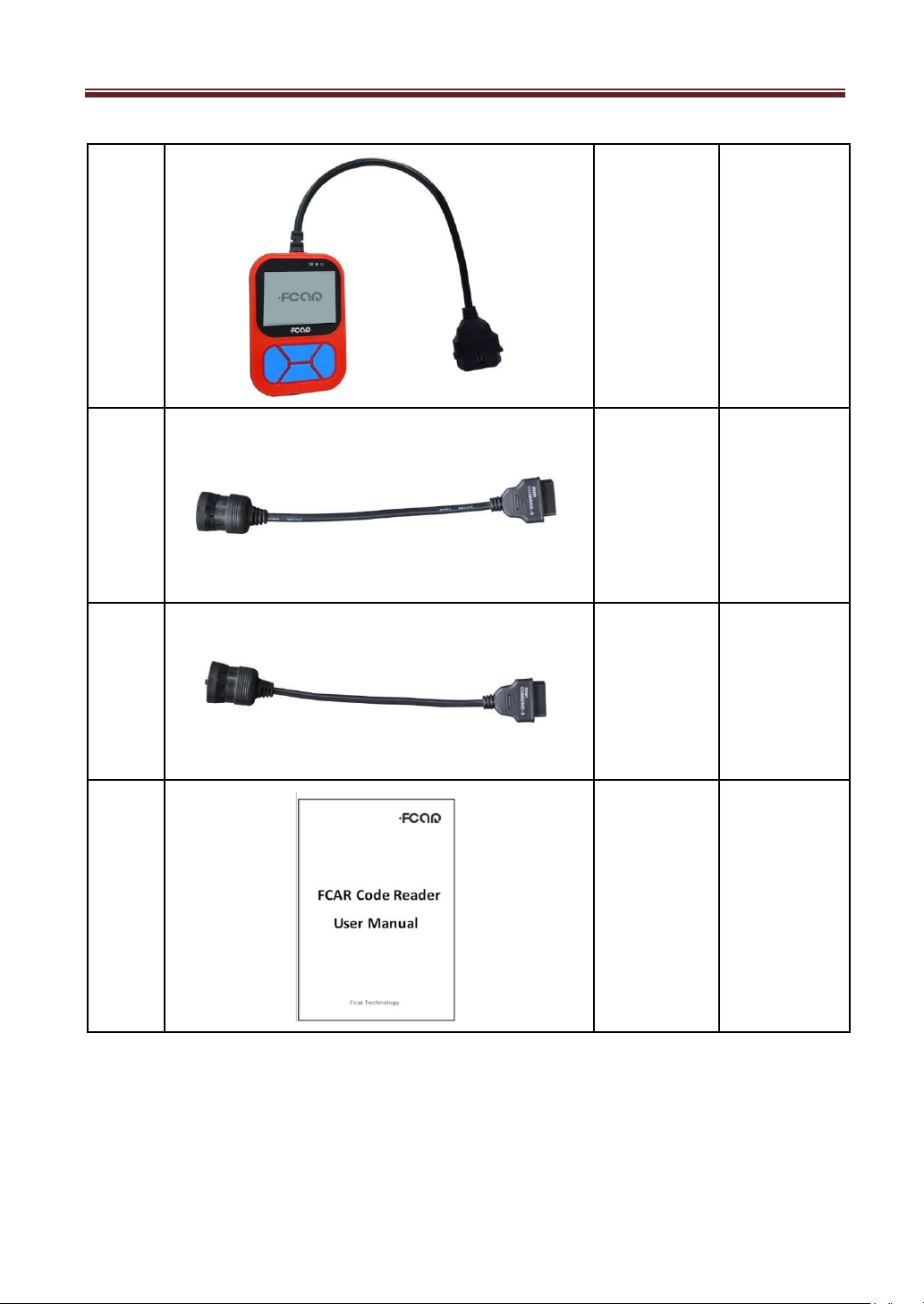

1.5 Product Configuration List…………………………………………………………………………………………………..12
1.6 Warranty Clause………………………………………………………………………………………….……………………..14

5
1.1 Introduction of Code Reader
FCAR F501, F502 OBDⅡ/EOBD code readers are the latest portable vehicle code readers launched by FCAR
Company. With them, users can fast and efficiently read out DTC in automobile electric control system, diagnose
fault position and find out fault cause. FCAR code reader is applicable in all auto repairing factories. It is portable
for car owners to diagnose DTC in automobile electric control system anytime and anywhere. LED signal lights
make easy and practical operation.
FCAR series code readers apply to vehicles equipped with standard OBDⅡdiagnostic socket with read and
erase fault code and read data stream functions.
1.2 Product Introduction and Functions
FCAR F501 and F502 series products are in same appearance with same hardware configurations (mode, and
serial number are affixed to the back of product). Adopting 2.8 inch and 320*240 LED display to meet the
operation habit of each individual user, the well-designed appearance, menu and functions of products support
all-in-one function of OBD / EOBD vehicle, multi-language, and LED-guided operations. Easy operation, high
practicality.
This product is also applicable to vehicles with 8V ~ 30V working voltage. With good working stability, this can
fully meet customers’ different demands of diagnosis.

6
1. OK Normal Diagnosis Indicator: The indicator lights up in communication diagnosis.
2. XFailure Diagnosis: The indicator lights up when communication diagnosis fails.
3. Voltage Indicator: The indicator lights up when the tool is connected to OBDⅡdiagnostic sockets of vehicle.
4. Diagnosing communication cable with direct connection to OBDⅡdiagnostic sockets of vehicle.
5. Up and Down buttons
6. Enter: For confirmation.
7. USB Interface: Backup interface for connection;
8. Exit: For cancel and back.
1.2.1 F501 Gasoline OBDⅡCode Reader
Features
➢Support OBDⅡ/EOBD gasoline cars (1996~2013) in America, Europe, Asia, etc.

➢Check DTC of general manufacturers (P0、P2、P3、U0) and particular manufactures (P1、P3、U1)

➢Display definition of live data and storage, confirm “Check the reasons of Malfunction Indicator Lamp (MIL)
of engine ”

➢Clear DTC , reset historical storage, and turn off the MIL of engine

➢Display freeze frame data

➢Retrieve vehicle information (VIN、CIN、CVN)
Diagnosis Protocols
Generic OBDII and EOBDII 

OBDII SAEJ1850 VPW Mode 

OBDII SAEJ1850 PWM Mode 

OBDII ISO9141-2 ISO Address Mode 

OBDII ISO14230-4 KWP Address Mode 

OBDII ISO14230-4 KWP Fast Mode 

OBDII ISO15765-4 CANBUS 11BIT Mode 

OBDII ISO15765-4 CANBUS 29BIT Mode
Functions 

✓Read Stored Codes
✓Read Pending Codes
✓Erase Codes

✓Read Freeze Frame
✓Current Data

✓I/M Readiness
✓O2 Monitor Test

✓On-Board Monitor Test
✓Component Test

✓Vehicle Information
✓DTC Lookup

7
1.2.2 F502 Heavy truck Code Reader
Features
➢Support heavy-duty trucks that is compatible with standard protocols (J1939 and J1708). 

➢Read DTC (Diagnose fault code)

➢Support ECU like CUMMINS, Bosch, DELPHI 

➢Connection to OBD16 via diesel 6PIN and diesel 9PIN 
Diagnostic Protocols
SAE J1939

SAE J1708 / J1587

Functions 

✓Engine
✓Transmission 
✓Body Controller
✓Chassis Control 
✓Cruise Control 
✓ABS
✓Instrument Cluster 
✓Gateway
✓…
1.3 Product Parameters
Display
2.8 inch 320*240 LCD
Input Voltage
8.0 - 30.0V power provided via vehicle battery
Working Current
Typical value <100mA
Vehicle Cables
OBD-II / 9-PIN / 6-PIN
Operating Temperature
0℃ - 50℃
Storage Temperature
-20℃ - 70℃
Relative Humidity
60%
Dimension
123mm*88mm*27mm
Unit Weight
0.28kg (0.62lb)

8
1.4 Operating Methods

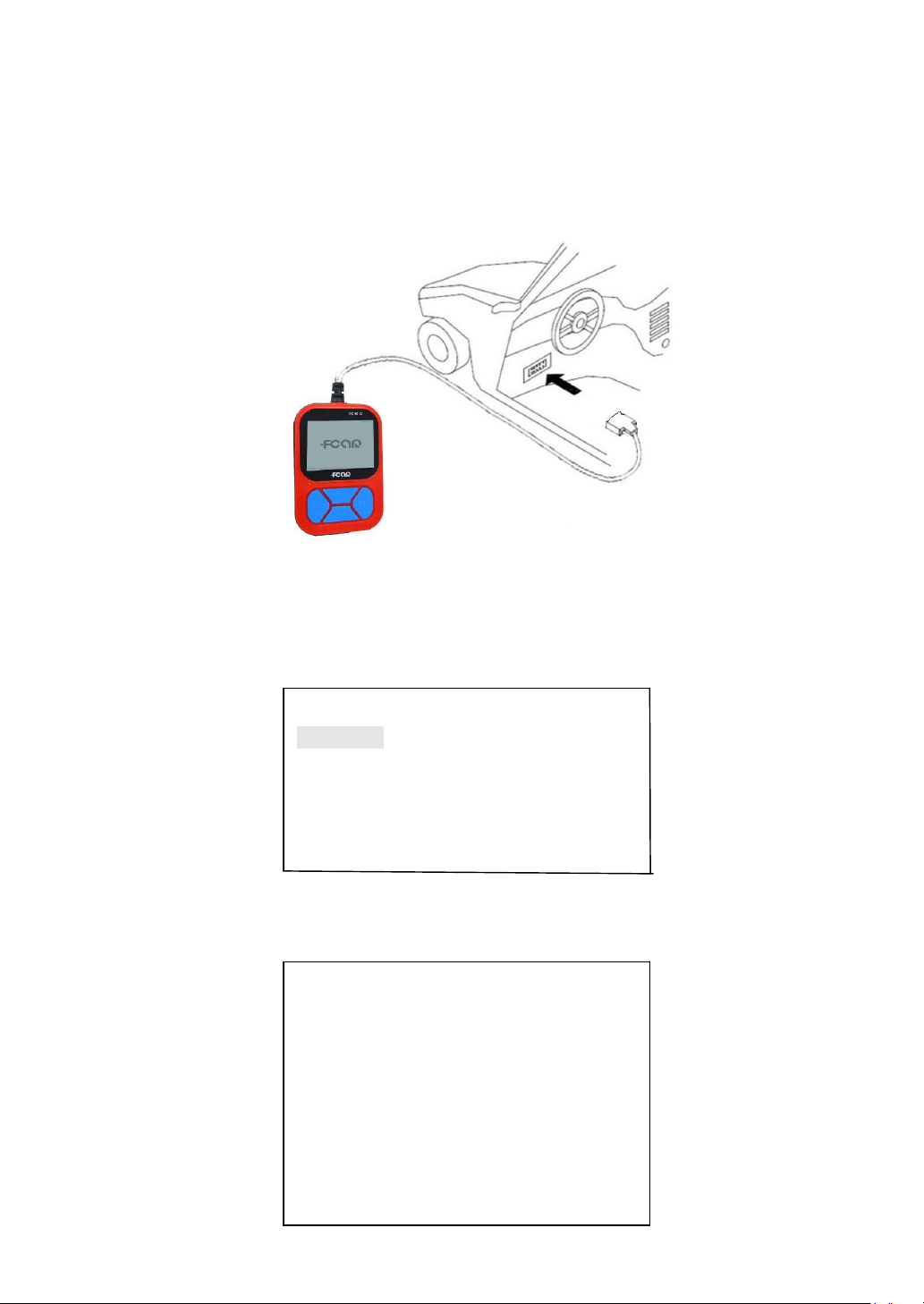

1. When Engine MIL of vehicle with standard OBDⅡlights up, driver must stop the vehicle and hold the
handbrake, turn on the key switch and then insert the FCAR code reader into 16pin diagnostic socket of the
vehicle. Standard OBDⅡdiagnostic socket is generally set below the steering wheel at the driver side.
2. Take F501 as an example (similar with F502 diesel code reader). After being connected to diagnostic socket,
FCAR reader will start automatically and display the logo of FCAR. A few seconds later, you will enter diagnosis
interface and choose the functions. Choose “Diagnostics” if users want to diagnose and enter by clicking the key
“Enter”.
===========Select Menu============1/6
Vehicle Information
Fast Scan
Complete Scan
Settings
Update Mode
3. Vehicle Diagnosis：Now you can see the communication protocol available for standard OBDⅡdiagnosis of
gasoline vehicle, and choose the item according to the actual conditions of the vehicle.
===========Select Menu============1/8
Generic OBDII and EOBDII
OBDII SAEJ1850 VPW Mode
OBDII SAEJ1850 PWM Mode
OBDII ISO9141-2 ISO Address Mode
OBDII ISO14230-4 KWP Address Mode
OBDII ISO14230-4 KWP Fast Mode
OBDII ISO15765-4 CANBUS 11BIT Mode
OBDII ISO15765-4 CANBUS 29BIT Mode

9
4. After enter the system, users can read fault code, erase fault code, read data stream and others (When menu
exceeds the available largest interface, users can click up and down to choose). If it indicates “communication
failure”during the diagnosis, please check whether the key switch is turned on, selected diagnostic protocol is
right and vehicle diagnostic socket has signal voltage, etc.
==========Select Menu===========1/10
Read Stored Codes
Read Pending Codes
Erase Codes
Read Freeze Frame
Current Data
I/M Readiness
O2 Monitor Test
On-Board Monitor Test
5. Read Stored Codes, e.g.:
========Read Freeze Frame=========1/1
P0130 O2 Sensor Circuit (Bank 1 Sensor 1)
6. Erase Codes, e.g.:
==========Select Menu===========1/10
Read Stored Codes
Read Pending Codes
Erase Codes
Read Freeze Frame
Current Data
I/M Readiness
O2 Monitor Test
On-Board Monitor Test

10
7. Erase Codes succeeds：
============Message
Box============ Message: Successful
Press any key to continue
8. Current Data: Read the status of all current data stream timely.
==========Select Menu===========1/10
Read Stored Codes
Read Pending
Codes Erase Codes
Read Freeze Frame
Current Data
I/M Readiness
O2 Monitor Test
On-Board Monitor Test
9. Current Data is displayed as follows, and users can browse by clicking up and down buttons.
==========Current Data===========1/21
Number of fault codes stored
1
Fuel system 1 status
OL
Fuel System 2 status
Reserved
Calculated Load Value
0.0%

11
5. DTC Query: Select DTC Lookup. DTC Query function applies to general standard OBD DTC. If users cannot find
on the screen, it suggests that the DTC is set by manufacturer.
===========Select
Menu============1/3 Diagnostics
DTC Lookup
Tool Information
6. Now users can find all standard OBDⅡDTC. According to below tips, users can query DTC by changing
DTC number. This interface indicates that when you press up or down, the DTC number will increase or
reduce 1000 (“Step” for short) for once. If users need to change step, please press “Enter”, and step will
change cyclically (like 1000→100→10→1→1000).
============ DTC Lookup===========1/1
P0001 Fuel Volume Regulator Control
Circuit/Open
[Enter ] Scaling =0100
[Up
] Value
+1000
[Down] Value
-1000
[Exit
] Exit to menu
7. The interface shows as follow when step is 10.
============ DTC Lookup===========1/1
P0001 Fuel Volume Regulator Control
Circuit/Open
[Enter ] Scaling =0001
[Up
] Value
+0010
[Down] Value
-0010
[Exit
] Exit to menu

12
7. Product system information: contains information like product serial number.
===========Select
Menu============1/3 Diagnostics
DTC Lookup
Tool Information
8. Serial Number, Release Date, Software Version, Hardware Version, Database Version, etc.
==========Tool Information==========1/5
Serial Number
： A13010101
Release Date
： 2013-03-18
Software Version ：V1.0
Hardware Version：V8.5
Database Version：V5.8
1.5 Product Configuration List
Number
Physical Map
Name
Description
1
Outer Package

13
FCAR Code Readers User Manual
2
Main unit of
code reader
Note ： This
3
Diesel-6
connector is
only limited to
F502
Note ： This
4
Diesel-9
connector is
only limited to
F502
Production
introduction,
5
User Manual
operating
methods,
warranty clause,
etc.

14
1.6 Warranty Clauses
Welcome to choose FCAR Series products. In order to use our product better, we warmly suggest you maintain
your products well, and operate the products in accordance with User Manual whenever you use it. If your
operating method is pursuant to this requirement, long-term quality service will be provided by your products.
1．After you are sure that the following terms and conditions are met and you have carefully read the warranty
clause of this product, you can enjoy the free maintenance service provided by FCAR Technology if there are
defects related to materials or workmanship on your products.
2．Your product must be purchased from product dealer that is authorized by Shenzhen FCAR Technology Co.,
Ltd (Hereinafter referred to FCAR Technology). You have to bear the maintenance cost for your product if you buy
the product through non-normal channels.
3. The following objects of the product is out of the warranty range: User Manual, items that are easy to wear
and tear such as inner and outer package box.
4. After the date of purchase, if the products suffer performance failure caused by non-artificial factors, you can
choose our maintenance services or replace the product in same model within 15 days. You can enjoy one year
warranty service for the main unit.
5. Free warranty service is unavailable if the products are in any case as follows:
1）Failure, defect or flaw that is not caused by the quality of FCAR Technology products: including your
operation is not according to the manual, improper operation of the product, crash, fall, disassembly by yourself,
connection to improper accessories, damage owing to crash because of improper transport or storage, the
erosion and corrosion that caused by infiltration of liquid or food.
2）Natural wear and tear of product: Including but not limited to cover, keypad, accessories etc.
3）Product serial number of main unit and warranty serial number do not match, and product quality
inspection tag or bar code is removed, altered or damaged.
4）Maintenance and modification without the approval of FCAR Technology.
6. In case of product quality problem or failure occurs during the warranty period, you can take the following
measures:
1）You can dial customer service hot-line of FCAR Technology: （[phone], and get right service
information.
2）After you get the valid response of our company, you have to post your products to the address (see the
details following the warranty clause) designated by our company for repairing and maintenance, otherwise, you
will not get timely repairing and maintenance. You will be responsible for the loss of your products.
7. In the process of product warranty, you should bear relevant cost arising before post your products to the
places designated by FCAR Technology: including costs for package, transportation, delivery and insurance, etc.

15
8. If enjoying your free warranty service under this warranty clause is the only measure for the losses due to
product defect within the product warranty period, FCAR technology shall not be liable for your direct or indirect
loss.
9. All product warranty information, product features and specification changes will be posted on FCAR
Technology latest promotional materials and Web site without further notice.
FCAR Tech USA, LLC
Tel: 844-FCAR-USA
Fax: [phone]
Support: [email protected]
Web: www.fcarusa.com

16
Quality Certificate
This Certificate indicates that this product is qualified and has passed the strict
inspection and reached the stipulated standard of Shenzhen FCAR Technology Co.,
Ltd. See details in Warranty Clauses.
Product Name
FCAR Auto Diagnostic Computer Equipment
- Code Reader Series
Product Model
□ F501
□ F502
Product S/N
Date of Production
Inspector
Shenzhen Fcar Technology Co., Ltd
Address: N401-N406, No.39, Keji Middle 2nd Rd., Hi-Tech Park, Nanshan District,
Shenzhen, Guangdong, China
Postcode：518057
Tel：[phone]
Fax：[phone]
Website：www.fcar.com
E-mail:[email protected]
