ACU-RITE 01141 User manual

Instruction Manual
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Questions? Contact Customer Support at
[phone] or visit www.AcuRite.com.
CONTENTS
Unpacking Instructions ........... 2
Package Contents .................. 2
Product Registration ............... 2
Features & Benets: 5-in-1....... 3
Features & Benets: Display.... 4
Setup .................................... 7
5-in-1 Sensor Setup ................ 7
Display Setup ........................ 8
Set the Time, Date & Units ...... 9
Backlight Settings................... 9
Placement Guidelines ............10
5-in-1 Sensor Installation........ 11
Using the Weather Center .....12
Programmable Alarms...........13
Troubleshooting ....................14
Care & Maintenance.............16
Calibrate the Rain Gauge......17
Specications........................18
FCC Information ...................18
Customer Support .................19
Warranty..............................19
Professional Weather Center
model 01141

2
Congratulations on your new AcuRite product. To ensure the best
possible product performance, please read this manual in its entirety
and retain it for future reference.
Unpacking Instructions
Remove the protective lm that is applied to the LCD screen prior to using this
product. Locate the tab and peel off to remove.
Package Contents
1. Display with Tabletop Stand
2. 5-in-1 Sensor
3. Sensor Mounting Bracket
4. Mounting Hardware
5. Power Adapter
6. Instruction Manual
PRODUCT REGISTRATION
Register online to receive 1 year warranty protection
www.AcuRite.com
IMPORTANT PRODUCT MUST BE REGISTERED
TO RECEIVE WARRANTY SERVICE

3
Features & Benets
10
11
9
7
2
1
8
5
6
4
3
5-in-1 SENSOR
1. Rainfall Collector Funnel
2. Solar Cell Panel
Converts sunlight into power to run
internal aspirating fan.
Internal Aspirating Fan
(not shown)
Draws ambient air into
sensor to reduce solar radiation
heating, resulting in more accurate
temperature measurement.
3. A-B-C Switch
ID code that must match display’s
A-B-C switch to ensure units
synchronize.
4. Battery Compartment
5. Temperature & Humidity Sensors
(internal)
6. Mounting Point
7. Wind Speed Anemometer
8. Wind Direction Vane
9. Mounting Bracket
10. Mounting Hardware
Includes 5 anchors and the following
screws:
Qty Diameter Length
5 #4 3/4”
1 #4 1/2”
1 #6 1/2”
11. Debris Filter
Pre-installed to prevent debris from
entering the rain gauge.

4
Features & Benets
Display
216543 7 98 10 11
15 1614 1817 19 2322 24 25 20 2726 28 2920
12 13
21

5
1. Sensor Low Battery Indicator
2. Outdoor Sensor Signal Strength
3. Current Outdoor Temperature
Arrow icon indicates direction the
temperature is trending.
4. Icon
Indicates high records are being
viewed.
5. Previous 2 Wind Directions
6. Current Wind Direction
7. Current Wind Speed
8. Learning Mode Icon
Disappears after weather forecast
self-calibration is complete
(see page 12).
9. 12 to 24 Hour Weather Forecast
Self-Calibrating Forecasting pulls
data from outdoor sensor to
generate your personal forecast.
10. Current Rainfall
Rainfall recorded since 12:00 am.
11. Icon
Indicates an alarm value has
been activated.
12. Previous Rainfall Data
13. Rainfall Rate
Only applies to current rainfall data.
14. Current Outdoor Humidity
Arrow icon indicates the direction
the humidity is trending.
15. Seasonal Display
Heat Index calculation displays
when temperature is 80°F (27°C)
or higher. Dew Point calculation
displays when temperature is
79°F (26°C) or below. Wind
chill calculation displays when
temperature is 40°F (4°C) or
lower.
16. Button
For viewing all-time high and
low records.
17. Icon
Indicates low records are being
viewed.
18. Average Wind Speed
Average of all speeds over the
past 2 minutes.
19. Date
20. V and
V
Buttons
For setup preferences and viewing
today's high & low records.
21. Peak Wind Speed
Highest speed from past
60 minutes.
22. Icon
Indicates display is in
auto-dimming brightness mode
(see page 9).
23. Button
For setup preferences.
24. Clock
25. Current Barometric Pressure
Arrow icon indicates the direction
the pressure is trending.
26. Moon Phase
27. Button
For alarm setup.
28. Current Indoor Temperature
Arrow icon indicates the direction
the temperature is trending.
29. Current Indoor Humidity
Arrow icon indicates the direction
the humidity is trending.
DISPLAY FRONT

6
7

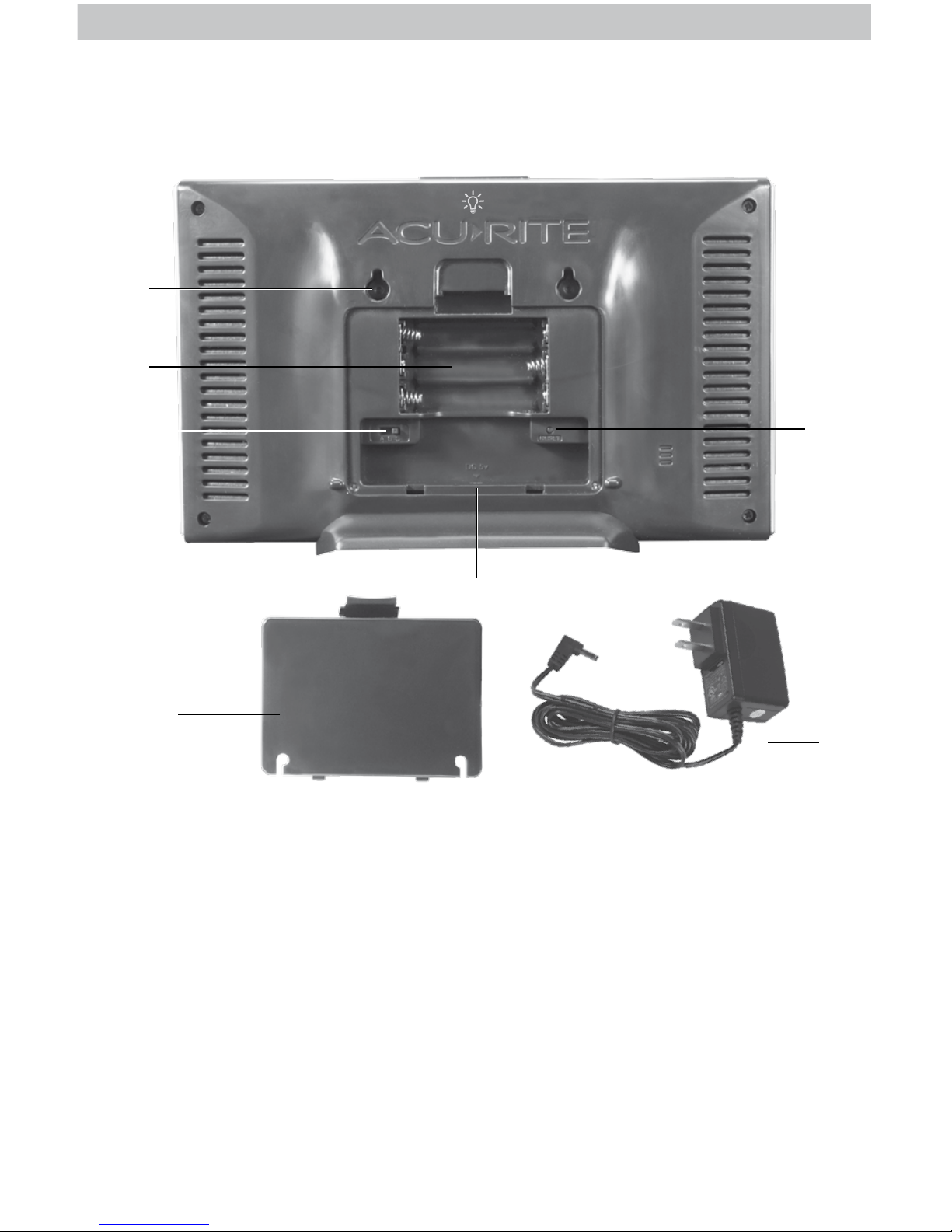

DISPLAY BACK
1. Backlight Button
For momentary backlight and dimmer
settings.
2
. In tegrated Hang Holes
For easy wall mounting.
3. Backup Battery Compartment
4. A-B-C Switch
ID code that must match sensor’s A-B-C
switch to ensure units synchronize.
5. Plug-in for Power Adapter
6. Battery Compartment Cover
7. Power Adapter
8. RESET Button
Press and release to clear historical
record. Press and hold for 10 seconds
for full reset to factory defaults.
Features & Benets
4
3
2
5
1
6
8

7
SETUP

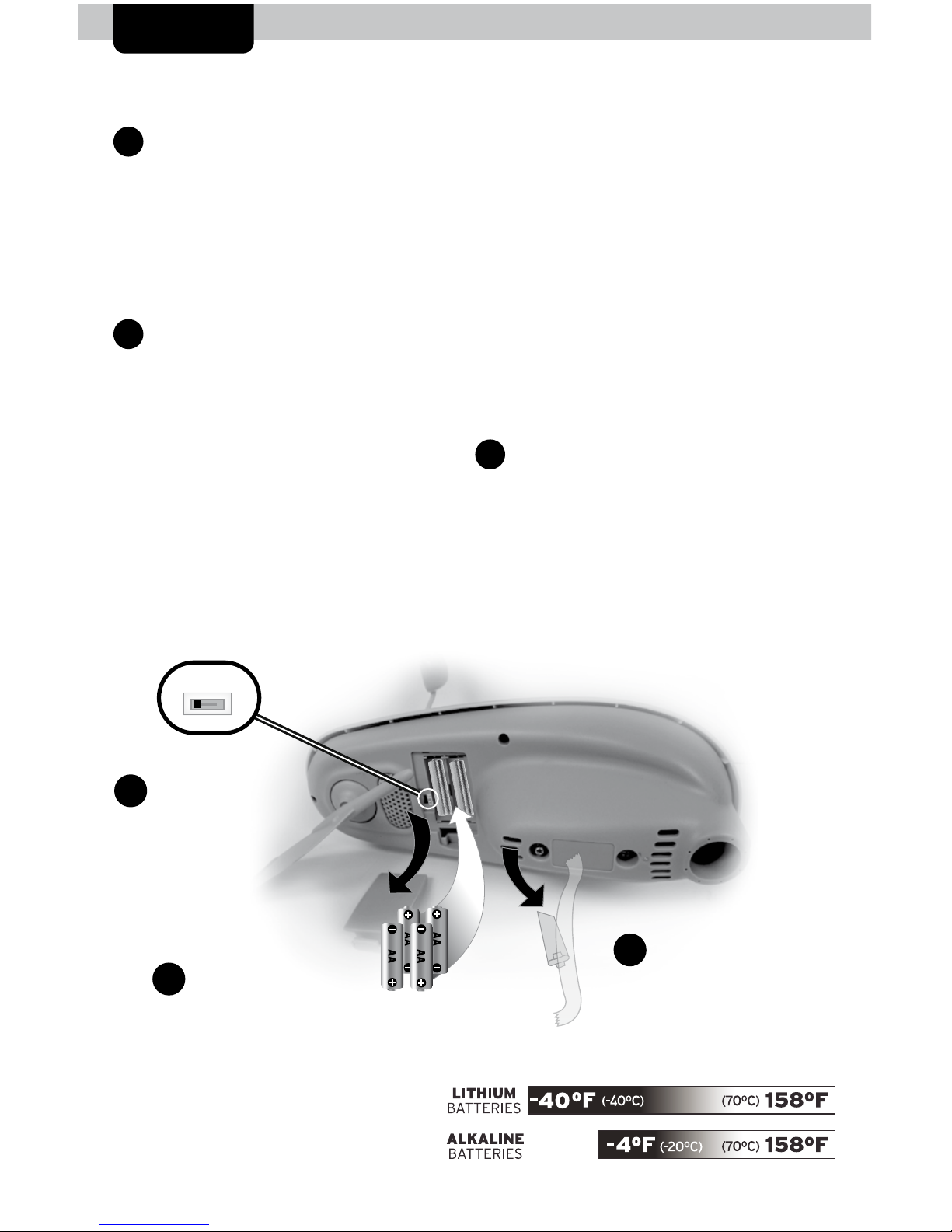

5-in-1 Sensor Setup
Set the A-B-C Switch
Locate the A-B-C switch inside the
battery compartment. Set the A-B-C
switch to A, B or C. You must select
the same letter choices for both the
sensor and the display in order for
the units to synchronize.
Install or Replace Batteries
Batteries MUST be installed for
this product to operate. AcuRite
recommends high quality alkaline
or lithium batteries for the best
product performance. Heavy duty
or rechargeable batteries are not
recommended.
The 5-in-1 sensor requires lithium
batteries in low temperature
conditions. Cold temperatures can
cause alkaline batteries to function
improperly. Use lithium batteries in
the 5-in-1 sensor for temperatures
below -4ºF/-20ºC.
1. Slide off the battery
compartment cover.
2. Insert 4 x AA batteries into the
battery compartment, as
shown. Follow the polarity
(+/-) diagram in the battery
compartment.
3. Replace the battery cover.
Remove Rain Gauge Stabilizer
Locate and remove the rain gauge
stabilizer (plastic tab) taped into
the bottom of the sensor. The rain
gauge will not function until this is
removed.
2
3
1
A B C
1A-B-C Switch
Set to match
display
2Install Batteries
4 AA Batteries
3Rain Gauge Stabilizer
Remove and discard

8
Display Setup
Set the A-B-C Switch
The A-B-C switch is located inside
the battery compartment. It can
be set to A, B or C. However, you
must select the same letter choices
for both the 5-in-1 Sensor and the
display in order for the units to
synchronize.
Plug Power Adapter into
Electric Outlet
Install or Replace Backup
Batteries (optional)
Insert 3 x AAA alkaline batteries
into the battery compartment,
as shown. Follow the polarity
(+/-) diagram in the battery
compartment.
PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE
WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.
BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to
be used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of
used batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries
in re, as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT
recharge non-rechargeable batteries. DO NOT short-circuit the supply terminals.
2
3
1
Install Backup
Batteries
3 AAA Batteries
(optional)
A B C A-B-C Switch
Set to match sensor's
ABC switch
IMPORTANT: Batteries are a backup power source to
preserve records in the event of a power outage. Power
adapter is the recommended primary power source to
enjoy the full functionality of this product.
Plug in
Power Adapter
2
1 3

9
Set the Time, Date & Units
Press the “ ” button, located on the front of the display, to enter SET MODE.
Once in set mode, the preference you are currently setting will blink on the display.
To adjust the currently selected (ashing) item, press and release the “
V
“ or
“
V
“ buttons (press and HOLD to fast adjust).
To save your adjustments, press and release the “ ” button again to adjust the
next preference. The preference set order is as follows:
CLOCK HOUR
CLOCK MINUTE
CALENDAR MONTH
CALENDAR DATE
CALENDAR YEAR
TEMPERATURE UNITS (°F or °C)
WIND SPEED UNITS (mph, km/h, knots)
RAINFALL UNITS (inches or mm)
PRESSURE UNITS (inHg or hPa)
You will automatically exit SET MODE if no buttons are pressed for 20 seconds.
Enter setup mode at any time by pressing the “ ” button.
Display Backlight Settings
This weather station’s color display features three different lighting settings:
High (100%) brightness, Medium (60%) brightness and Low (15%) brightness.
When display is powered with the power adapter, backlight remains on at
100% brightness. Press the “ ” button once to dim to 60% brightness; press
again to dim to 15%, press a third time to enter AUTO-DIM mode. “ ” will
appear next to the clock.
NOTE: Pressing and holding the “ ” button for 5 seconds will disable the
backlight. Once any button is pressed, the backlight will return to your selected
setting.
AUTO DIM MODE: Automatically adjusts display brightness based on time of day.
6:00 a.m. - 9:00 p.m. = 100% brightness
9:01 p.m. - 5:59 a.m.= 15% brightness

10
View Video
Placement for Maximum Accuracy
AcuRite sensors are sensitive to surrounding environmental conditions. Proper
placement of both the display and the sensor are critical to the accuracy and
performance of this product.
Display Placement
Place the display in a dry area free of dirt and dust. To ensure
accurate temperature measurement, place out of direct sunlight
and away from heat sources or vents. Display stands upright for
tabletop use or is wall-mountable.

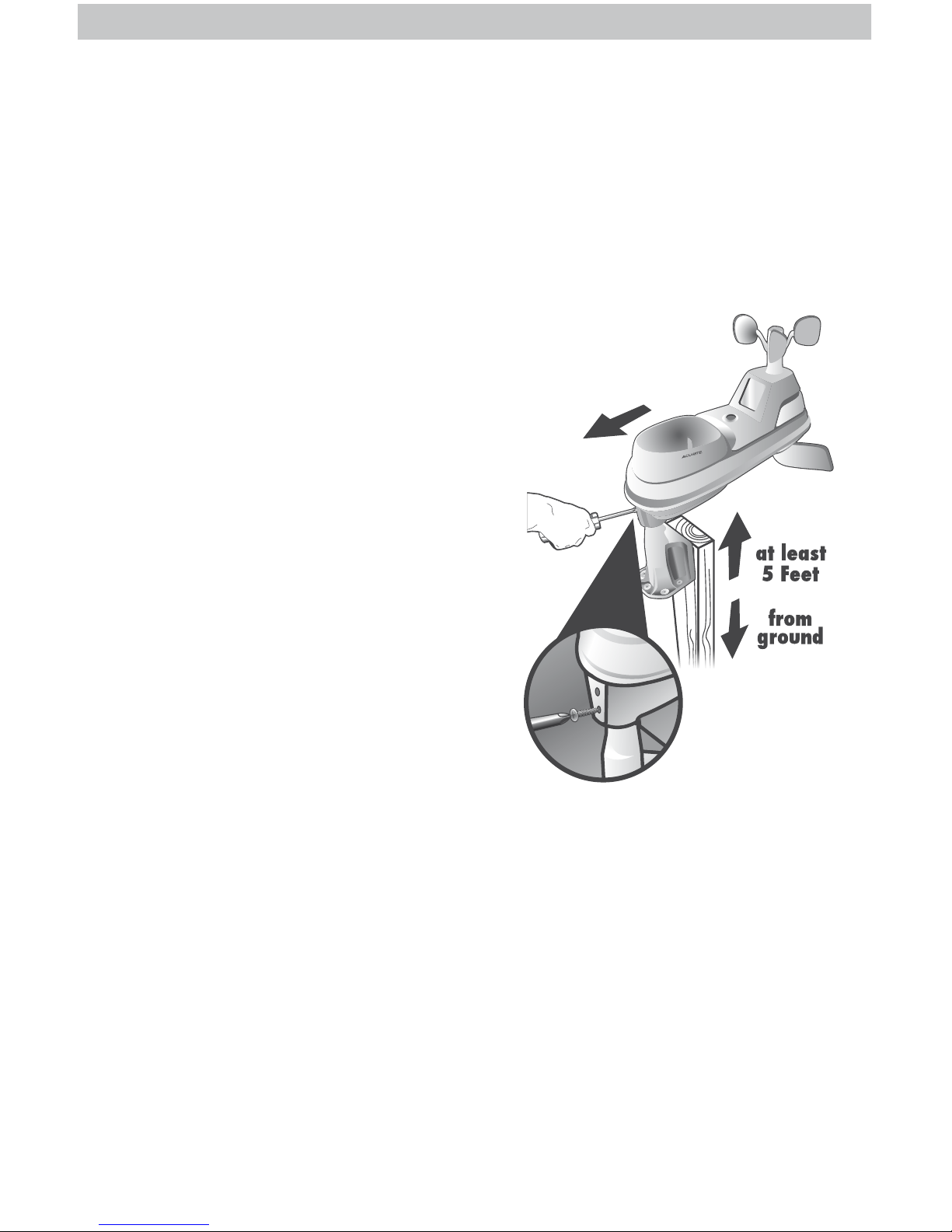

5-in-1 Sensor Placement
The 5-in-1 sensor is designed to remain outdoors all year long.
Choose an open location with no obstructions above or around
the sensor for the most accurate measurements.
Important Placement Guidelines
Display and sensor must be within 330 feet (100 m) of each other.
MAXIMIZE WIRELESS RANGE
Place units away from large metallic items, thick walls, metal surfaces, or other
objects that may limit wireless communication.
PREVENT WIRELESS INTERFERENCE
Place both units at least 3 feet (.9 m) away from electronic devices (TV,
computer, microwave, radio, etc.).
LOCATE AWAY FROM HEAT SOURCES
Position sensor away from heaters, air conditioners, chimneys, exhaust vents,
asphalt and concrete (surfaces that radiate heat).
LOCATE AWAY FROM HUMIDITY SOURCES
Avoid installing the sensor near pools, spas, or other bodies of water. Water
sources may impact humidity accuracy.
LOCATE AWAY FROM SPRINKLER HEADS
DO NOT install the sensor where it will be sprayed by a sprinkler system. This
may force water inside the sensor.
LOCATE AWAY FROM WIND & RAIN OBSTRUCTIONS
DO NOT mount the sensor with obstructions around it.
Consider a location that is a wide open area, with few
structures around to ensure accurate wind measurement.
Visit us online to view installation photos and
video, or learn more about AcuRite technology:
www.AcuRite.com/5in1
