ACV Glass BL Series Owner's manual

Glass BL & ST
50 - 75 - 100 - 150 - 200 - 300
I,
O &
M
Instructions for the User
and the Installer
1221114201/02_661Y3300 • A
EN

Glass BL-ST: 1221114201/03_661Y3300 • A
Table of Contents
GENERAL RECOMMENDATIONS...............................................................4
APPLIANCE DESCRIPTION........................................................................5
Models ..........................................................................................................................................................5
TECHNICAL CHARACTERISTICS...............................................................6
Dimensions ..............................................................................................................................................6
INSTALLATION .........................................................................................12
Safety instructions...............................................................................................................................12
Packing Contents................................................................................................................................. 14
Tools Required for the Installation ........................................................................................... 14
Principles of Operation.................................................................................................................... 14
Connecting Single Phase Appliances...................................................................................15
Connecting Three-phase Appliances.................................................................................... 15
Wiring Diagrams ...................................................................................................................................16
Hydraulic Connections.....................................................................................................................16
Connection............................................................................................................................................... 21
Hydraulic Connection .......................................................................................................................21
STARTING UP ...........................................................................................22
Safety Instructions to Fill the Tank..........................................................................................22
Filling the Tank......................................................................................................................................22
Checks before Starting Up........................................................................................................... 23
Starting Up............................................................................................................................................... 23
EN
2

Glass BL-ST:: 1221114201/03_661Y3300 • A
Table of Contents
MAINTENANCE ........................................................................................24
Periodic Checks by the User...................................................................................................... 24
Annual Maintenance......................................................................................................................... 24
Descaling the Appliance................................................................................................................25
Draining......................................................................................................................................................26
Bringing back into Service after Maintenance...............................................................26
TROUBLESHOOTING ...............................................................................27
Problems and Solutions - for the Installer ......................................................................... 27
3
EN

We accept no liability should any damage result from the failure to comply with theins-
tructions contained in this technical manual.
Essential recommendations for safety
• It is strictly prohibited to carry out any modifications to the appliance without
the manufacturer’s prior and written agreement.
• The product must be installed by a qualified engineer, in accordance with
applicable local standards and regulations.
• The installation must comply with the instructions contained in this manual and
with the standards and regulations applicable to domestic hot water tanks.
• Failure to comply with the instructions in this manual could result in personal
injury or a risk of environmental pollution.
• The manufacturer declines all liability for any damage caused as a result of
incorrect installation or in the event of the use of appliances or accessories that
are not specified by the manufacturer.
Essential recommendations for the correct operation of the appliance
• In case of anomaly, please call your installer for advice.
• Faulty parts may only be replaced by genuine parts.
• Our water heaters are designed and manufactured for the exclusive purpose of
heating and storing domestic hot water.
• The domestic hot water heaters must only be heated using hot water in a closed
circuit.
General remarks
• The availability of certain models as well as their accessories may vary according
to markets.
• The manufacturer reserves the right to change the technical characteristics
and features of its products without prior notice. Please check for an updated
version of this manual on the website www.acv.com.
• The part number (P/N) and serial number (S/N) of the appliance are indicated on
its rating plate and must be provided to ACV in case of warranty claim. Failure
to do so will make the claim void.
• In spite of the strict quality standards that ACV applies to its appliances during
production, inspection and transport, faults may occur. Please immediately
notify your approved installer of any faults.
NOTES
This manual contains important information with respect to the installation, the starting up
and the maintenance of the appliance.
This manual must be provided to the user, who will read it carefully and keep it in a safe
place.
Glass BL-ST: 1221114201/03_661Y3300 • A
G R
EN
4

Glass BL-ST:: 1221114201/03_661Y3300 • A
A D
MODELS
"Glass" electric water heaters oer a full range of appliances that can be installed
either vertically or horizontally (H-models), on the wall or on the floor (S-models).
The enamelled tank oers capacities from 50 to 300 L, with either single or three-
phase electrical connection according to the model.
The ST Series includes a soapstone heating element while the BL Series is equipped
with a shielded heating element.
The appliance is protected against corrosion through an anode.
Vertical wall
installation
Vertical floor
installation
Horizontal
wall
installation
Electrical
supply
ST 50  — — Mono
ST 75  — — Mono
ST 100  — — Mono
ST 150  — — Mono/Tri
ST 150 S —  — Tri
ST 200  — — Mono/Tri
ST 200 S —  — Tri
ST 300 S —  — Tri
BL 50  — — Mono
BL 75  — — Mono
BL 100  — — Mono
BL 100 H — —  Mono
BL 150  — — Mono
BL 150 H — —  Mono
BL 150 S —  — Mono
BL 200  — — Mono
BL 200 H — —  Mono
BL 200 S —  — Mono
5
EN

Glass BL-ST: 1221114201/03_661Y3300 • A
T C

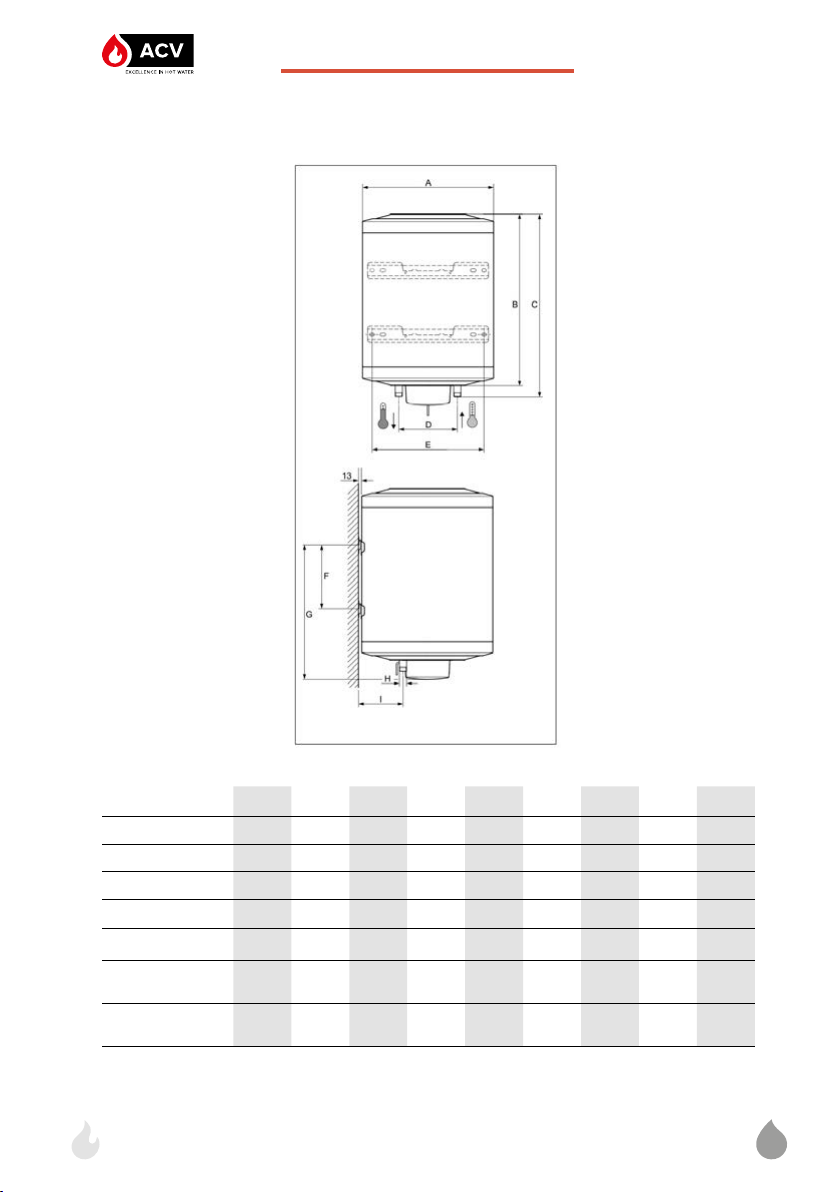

DIMENSIONS
A B C D E F G H I
GLASS BL 50 515 521 554 160 440  340 1/2” 120
GLASS BL 75 515 695 735 230 440  530 3/4” 175
GLASS BL 100 515 845 880 230 440  605 3/4” 175
GLASS BL 150 544 1191 1225 230 440 800 1035 3/4” 175
GLASS BL 200 595 1270 1315 230 440 800 1050 3/4” 175
GLASS BL 150S 231 510 317 595 669 1035   
GLASS BL 200S 231 803 317 595 669 1330   
GLASS BL.... GLASS BL....S
EN
6

Glass BL-ST:: 1221114201/03_661Y3300 • A
Technical Characteristics
A B C D E F G H

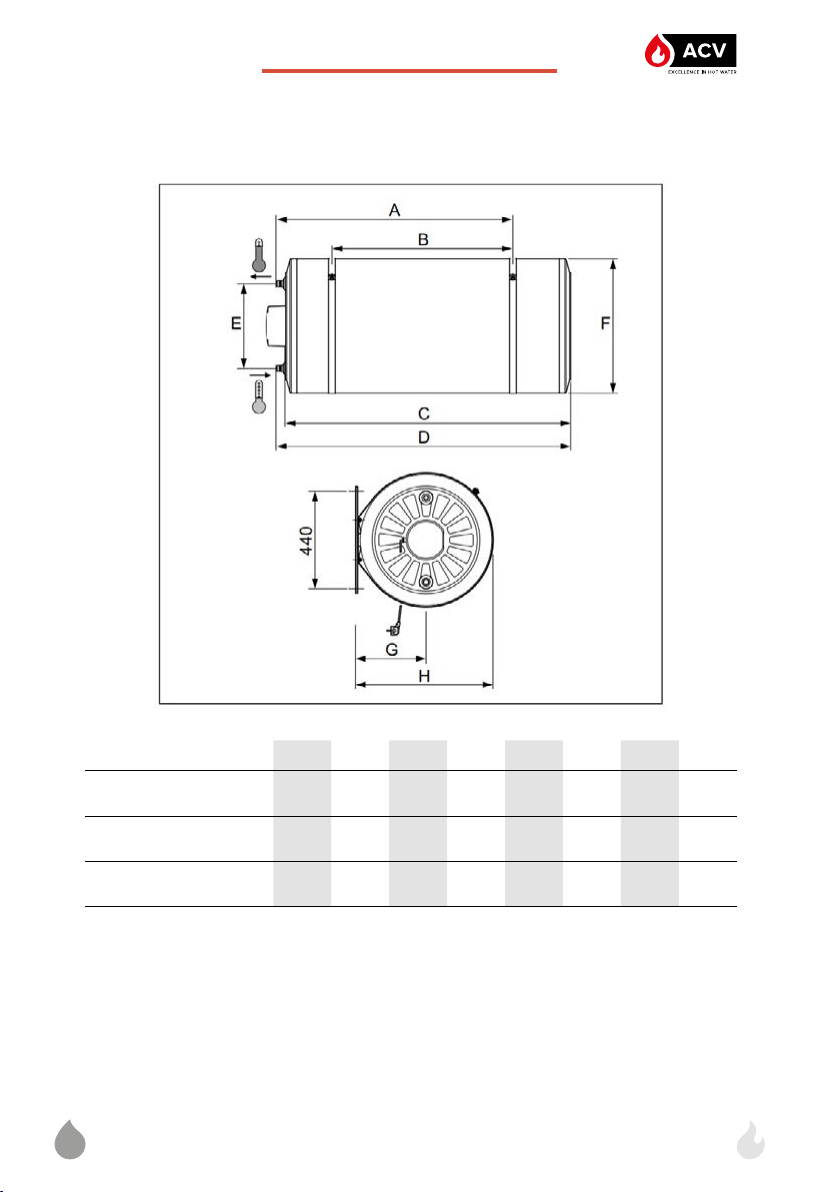

GLASS BL 100H 563 320 866 900 384 515 273 528
GLASS BL 150H 1028 800 1170 1205 384 544 288 557
GLASS BL 200H 1043 800 1260 1298 375 595 314 608
GLASS BL....H
7
EN

Glass BL-ST: 1221114201/03_661Y3300 • A
Technical Characteristics
A B C D E F G H I
GLASS ST50 515 521 554 160 440  340 1/2” 120
GLASS ST75 515 695 735 230 440  530 3/4” 175
GLASS ST100 515 845 880 230 440  605 3/4” 175
GLASS ST150 544 1191 1225 230 440 800 1035 3/4” 175
GLASS ST200 595 1270 1315 230 440 800 1050 3/4” 175
GLASS
ST150m/tri 544 1191 1225 230 440 800 1035 3/4” 175
GLASS
ST200m/tri 595 1270 1315 230 440 800 1050 3/4” 175
GLASS ST....
EN
8

Glass BL-ST:: 1221114201/03_661Y3300 • A
Technical Characteristics

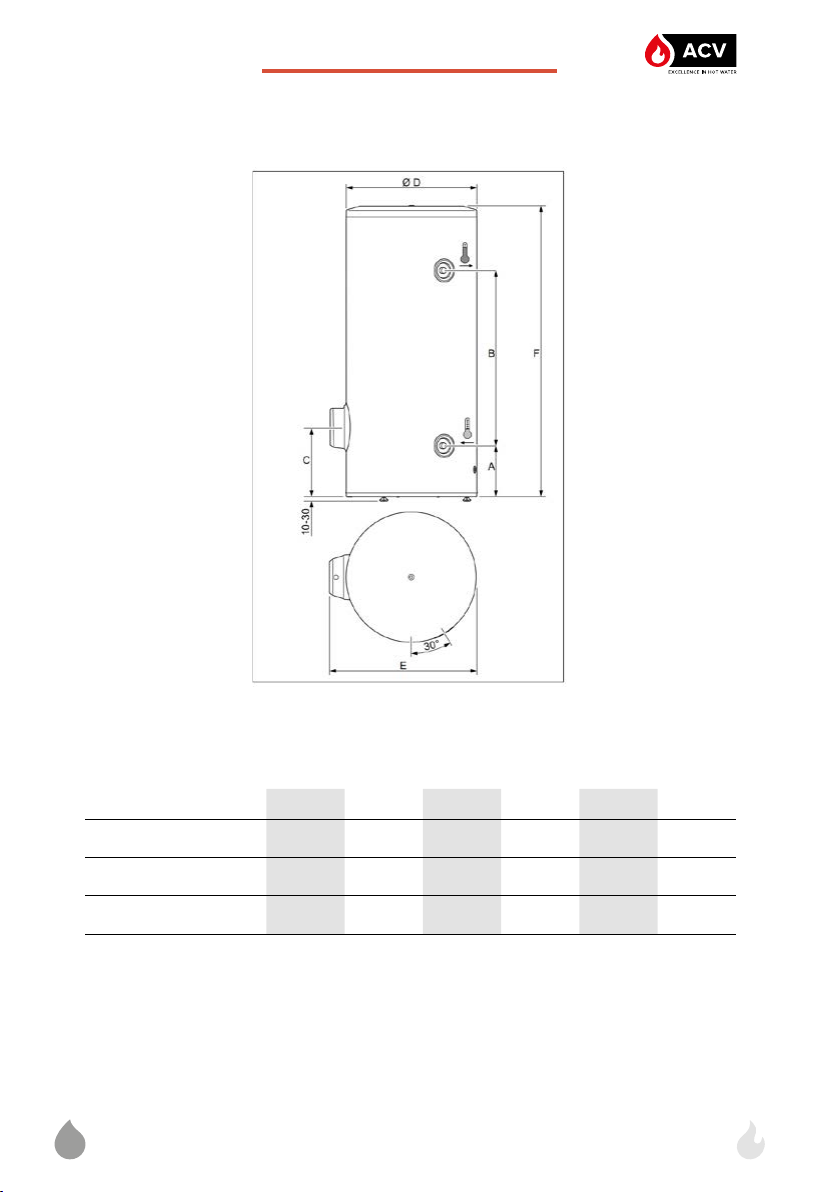

GLASS ST....S
A B C D E F
GLASS ST150S 231 510 317 595 669 1035
GLASS ST200S 231 803 317 595 669 1330
GLASS ST200S 231 972 296 660 734 1500
9
EN

Glass BL-ST: 1221114201/03_661Y3300 • A
Technical Characteristics
Main characteristics Glass
ST 50 ST 75 ST 100 ST 150 ST 200
Water capacity L 50 75 100 150 200
Empty weight Kg 25 31 36 50 63
Power W 1200 2400 2400 2400 2400
Voltage V 230 Mono 230 Mono 230 Mono 230 Mono 230 Mono
Nominal current (fuse) A 10 16 16 16 16
Electrical cable section mm23x2.5 3x2.5 3x2.5 3x2.5 3x2.5
Protection class IP X4 X4 X4 X4 X4
Heating time from 10°C
to 60°C (Δ50°C) 2 h 42 2 h 00 2 h 41 3 h 10 5 h 23
Glass
ST 150m/tri ST 200m/tri ST 150S ST 200S ST 300S
Water capacity L 150 200 150 200 300
Empty weight Kg 51 64 64 72 93
Power W 2400 2400 2400 2400 3200
Voltage V 230 Mono
400 Tri
230 Mono
400 Tri
230 Mono
400 Tri
230 Mono
400 Tri
230 Mono
400 Tri
Nominal current (fuse) A 16 16 16 16 16
Electrical cable section mm23x2.5
4x2.5
3x2.5
4x2.5
3x2.5
4x2.5
3x2.5
4x2.5
3x2.5
4x2.5
Protection class IP X4 X4 X4 X4 X4
Heating time from 10°C
to 60°C (Δ50°C) 3 h 10 5 h 23 4 h 00 5 h 23 6 h 00
EN
10

Glass BL-ST:: 1221114201/03_661Y3300 • A
Technical Characteristics
Main characteristics Glass
BL 50 BL 75 BL 100 BL 150 BL 200
Water capacity L 50 75 100 150 200
Empty weight Kg 23 28 34 47 63
Power W 1200 1200 1200 1800 2400
Voltage V 230 Mono 230 Mono 230 Mono 230 Mono 230 Mono
Nominal current (fuse) A 10 10 10 16 16
Electrical cable section mm23x1.5 3x1.5 3x1.5 3x12.5 3x2.5
Protection class IP X4 X4 X4 X4 X4
Heating time from 10°C
to 60°C (Δ50°C) 2 h 42 4 h 00 5 h 23 5 h 23 5 h 23
Glass
BL 100 H BL 150 H BL 200H BL 150S BL 200S
Water capacity L 100 150 200 150 200
Empty weight Kg 39 52 67 58 71
Power W 1200 1800 2400 1800 2400
Voltage V 230 Mono 230 Mono 230 Mono 230 Mono 230 Mono
Nominal current (fuse) A 10 16 16 16 16
Electrical cable section mm23xA.5 3x1.5 3x2.5 3x1.5 3x2.5
Protection class IP X4 X4 X4 X4 X4
Heating time from 10°C
to 60°C (Δ50°C) 5 h 23 5 h 23 5 h 23 5 h 23 5 h 23
11
EN

SAFETY INSTRUCTIONS
General remarks
• Connections (electrical, hydraulic) must be carried out in accordance
with applicable standards and regulations, by an approved installer.
• The start-up and commissioning must be carried out by an approved
installer.
• If the water drawing off point is far from the tank, installing an auxiliary
DHW loop can allow to get hot water more quickly at all times.
Essential instructions forthecorrect operation ofthesystem
• The appliance must be installed in a dry and protected area.
• Install the appliance to ensure easy access at all times.
• Before fixing the appliance to the wall, make sure that the wall can bear
the weight of the appliance filled up with water.
• In the case of hydraulic connection to a water system made of brass, it
is compulsory to use reduced dielectric sleeves or equal male-female
sleeves made of malleable cast iron. Should the thread of the tubes,
which are not provided with such sleeves, be attacked by corrosion, our
warranty will be void.
• Make sure to install a pressure reducing valve set at 4.5 bar in the DHW
circuit if the supply pressure is higher than 6 bar.
• Do not expose the appliance to pressure exceeding 7 bars, otherwise
the appliance will suffer irreparable damages. Install an approved safety
group, comprised of a safety valve set at 6 bar, a check valve and a stop
valve.
• Make sure that the outlet of the safety unit goes directly to the sewer to
avoid any potential damage and that the drain pipe is never obstructed
and protected from freezing.
• Do not install the safety group above the tank to avoid water discharge
on to the appliance.
• If one or several mixing valves are used, a check valve is to be mounted
to the cold water column supplying the mixing valves. A stop valve must
be installed on the cold water supply of the appliance.
Glass BL-ST: 1221114201/03_661Y3300 • A
I
EN
12

Essential instructions forthe safety of persons and the environment
• ACV recommends using apre-set thermostatic mixing valve in order to
provide hot water at a maximum of 60°C.
• In order to avoid exposure to extremely hot water that can cause serious
burns, never leave children, old people, disabled or handicapped people
in the bath orshower alone.
• Never allow young children to turn on the hot water or fill their own bath.
• Adjust the water temperature in accordance with usage and plumbing
regulations.
• The risk of developing bacteria exists, including “Legionella
pneumophila”, if aminimum temperature of 60°C is not maintained in
both the DHW tank andthe hot water distribution network.
Essential instructions for the electrical safety
• Only an approved installer is authorized to carry out the electrical
connections.
• Make sure that the appliance is connected to the earth.
• Install a 2-way switch and a fuse or circuit breaker of the recommended
rating outside the appliance, so as to be able to shut power down when
servicing the appliance or before performing any operation on it.
• Shut down external electrical supply of the appliance before performing
any operation on the electrical circuit.
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless supervised or unless they have
been given instruction concerning the use of the appliance by a person
responsible for their safety.
Glass BL-ST:: 1221114201/03_661Y3300 • A
Installation
13
EN

Glass BL-ST: 1221114201/03_661Y3300 • A
Installation
• One BL or ST Glass electric hot water tank.
• Multilingual Installation, Operation and Maintenance Instructions
• One Energy label
PACKING CONTENTS
PRINCIPLES OF OPERATION
This closed-system appliance is
intended to produce hot water in
households and institutions.
The hot water can be used for both
sanitary and consumption purposes.
The water temperature of the appliance
can be adjusted depending on your
needs (65 °C).
The installation of a safety group is mandatory, but the safety group IS
NOT part of the delivery.
After having achieved the adjusted or
preferred temperature, the temperature
regulator switches o the heating
automatically. In this way there is hot
water in the appliance for a long time.
The insulation in the internal tank
prevents the fast cooling of the hot
water, therefore, the water remains
hot for a long time. Hot water flows out
without mixing with cold water.
TOOLS REQUIRED FOR THE INSTALLATION
EN
14

Glass BL-ST:: 1221114201/03_661Y3300 • A
Installation
CONNECTING THREE-PHASE
APPLIANCES
This procedure is to be carried out by an
approved electrician:
1. Connect using four conductors of
2.5 mm2, (one green/yellow for the
earth.)
2. Connection to the mains via termi-
nals B1, B2 and B3 of the thermo-
stat (see "Figure 3" to "Figure 5",
page 17).
3. Connect green/yellow conductor
to terminal
4. For a 400 V Tri supply without
neutral, modify the internal con-
nections by following the wiring
diagram in "Figure 3", page 17.
5. Regarding a 230 V Tri connection,
see diagram in "Figure 4", page 17.
CONNECTING SINGLE PHASE
APPLIANCES
This procedure is to be carried out by an
approved electrician:
1. Use three conductors of 2.5 mm2,
(one green/yellow for the earth).
2. Connect to the mains via terminals
A and B or 1 and 2 of the thermo-
stat (see page 16).
3. Connect the green/yellow conduc-
tor to terminal
Essential instructions for the electrical safety
• The protection class of the appliance is: I.
• The covers closing the electric group provide protection against the
involuntary touching of the active electric parts under voltage.
• Connection to the mains is to be carried out in accordance with the
installation diagram found in this installation manual and on the plate
at the bottom of the appliance, by paying attention to the connection
to the correct phases.
• It is FORBIDDEN AND DANGEROUS to start-up the appliance without
the professional installation by a specialist provided with protection
against the electric contacts.
• For the correct operation of the appliance, we recommend the use of a
protection relay in the mains of your building.
• CAUTION! Before doing any maintenance or repair tasks, disconnect
the appliance from the electric supply. The maintenance and repair
works have to be carried out by qualified personnel.
• After repair and maintenance works, the appliance has to be restored
to its original condition.
• The repair works must be documented by the technician in order to
preserve the validity of the warranty.
15
EN

Glass BL-ST: 1221114201/03_661Y3300 • A
Installation
WIRING DIAGRAMS
BL…, BL…H, BL…S ST…M
Figure 1a - TSE-type thermostat (circular)
Figure 1b - TUS-type thermostat (rectangular)
Figure 2
BL…H
BL…, BL…H, BL…S ST…M
Connect to
terminals A & B
See detail on page 19
Connect to
terminals 1 & 2
See detail on page 20
Applicable to
products built as
from 2021
EN
16

Glass BL-ST:: 1221114201/03_661Y3300 • A
Installation
Figure 3
Figure 4
Figure 5
17
EN

Glass BL-ST: 1221114201/03_661Y3300 • A
Installation
ST…M/TRI, ST…S M/TRI
Figure 6
EN
18

Glass BL-ST:: 1221114201/03_661Y3300 • A
Installation
Power supply cable
Thermostat
Resistor
Earth wire
(Yellow/Green)
Phase wire
(Brown)
230 V power supply
Terminal A
Neutral wire
(Blue)
230 V power supply
Terminal B
Detail view - TSE Thermostat Layout
19
EN

Glass BL-ST: 1221114201/03_661Y3300 • A
Installation
Power supply cable
Thermostat
Resistor
Earth wire
(Yellow/Green)
Phase wire
(Brown)
230 V power supply
Terminal 1
Neutral wire
(Blue)
230 V power supply
Terminal 2
Detail view - TUS Thermostat Layout
EN
20
