ACV Smart ME 200 Manual

A1003499 - 661Y2000 • C
EN
FR
NL
ES
IT
DE
PL
RU
INSTALLATION, OPERATION AND
MAINTENANCE INSTRUCTIONS,
for the User and the Installer
Smart ME
200 - 300 - 400 - 600 - 800
SMART Line

en
2Smart ME : A1003499 - 661Y2000 • C
EN
NL
ES
IT
DE
PL
RU
FR
TABLE OF CONTENTS
GENERAL RECOMMENDATIONS..............................................................4
PRODUCT INFORMATION........................................................................5
Energy labelling....................................................................................................................................................... 5
Rating Plate.................................................................................................................................................................. 6
USER'S GUIDE.............................................................................................7
Control panel (Only Smart ME 200 - 300 - 400)............................................................................. 7
APPLIANCE DESCRIPTION........................................................................8
TECHNICAL CHARACTERISTICS............................................................10
Main characteristics : Smart ME 200 - 300 .......................................................................................10
Dimensions : Smart ME 200 - 300............................................................................................................11
Main characteristics : Smart ME 400 - 600 - 800 .........................................................................12
Dimensions : Smart ME 400 - 600 - 800 .............................................................................................13
Heating connections .........................................................................................................................................14
Domestic hot water connections............................................................................................................16
Domestic hot water performances........................................................................................................17
G3 Requirements and Guidance - UK only ..................................................................................18
Maximum Operating Conditions.............................................................................................................22
Electrical characteristics ................................................................................................................................22
INSTALLATION ........................................................................................24
Package contents .................................................................................................................................................24
Tools required for the installation...........................................................................................................25
Safety instructions...............................................................................................................................................26
Preparation of the Tank (Smart ME 600 - 800)..............................................................................28
Connection................................................................................................................................................................30
Connection to the DHW circuit.................................................................................................................31

en
3
Smart ME : A1003499 - 661Y2000 • C
EN
FR
NL
ES
IT
DE
PL
RU
TABLE OF CONTENTS
Connection to the primary circuit..........................................................................................................32
Examples of dierent possible combinations of the Smart ME.....................................33
Smart ME tank used as electric DHW tank only..........................................................................34
STARTING UP ...........................................................................................35
Safety instructions to ll the tank...........................................................................................................35
Filling ..............................................................................................................................................................................36
Checks before starting up.............................................................................................................................38
Starting up .................................................................................................................................................................38
MAINTENANCE........................................................................................39
Periodic checks by the user .........................................................................................................................39
Annual maintenance .........................................................................................................................................39
Draining........................................................................................................................................................................40
Bringing back into service after maintenance .............................................................................41
Fault nding..............................................................................................................................................................42

We accept no liability should any damage result from the failure to comply with theinstruc-
tions contained in this technical manual.
Essential recommendations for safety
• It is strictly prohibited to carry out any modifications to the appliance without the
manufacturer’s prior and written agreement.
•
The product must be installed by a qualified engineer, in accordance with
applicable local standards and regulations.
• The installation must comply with the instructions contained in this manual and
with the standards and regulations applicable to domestic hot water tanks.
• Failure to comply with the instructions in this manual could result in personal
injury or a risk of environmental pollution.
• The manufacturer declines all liability for any damage caused as a result of
incorrect installation or in the event of the use of appliances or accessories that are
not specified by the manufacturer.
Essential recommendations for the correct operation of the appliance
• In order to ensure that the appliance operates correctly, it is essential to have it
serviced by a certified installer or maintenance contractor every year.
• In case of anomaly, please call your installer for advice.
• Faulty parts may only be replaced by genuine parts.
• Our water heaters are designed and manufactured for the exclusive purpose of
heating and storing domestic hot water.
• The domestic hot water heaters must only be heated using hot water in a closed
circuit.
General remarks
• The availability of certain models as well as their accessories may vary according to
markets.
• The manufacturer reserves the right to change the technical characteristics and
features of its products without prior notice.
• The part number (P/N) and serial number (S/N) of the appliance are indicated on its
rating plate and must be provided to ACV in case of warranty claim. Failure to do
so will make the claim void.
•
In spite of the strict quality standards that ACV applies to its appliances during
production, inspection and transport, faults may occur. Please immediately notify
your approved installer of any faults.
NOTES
This manual contains important information with respect to the installation, the starting up and
the maintenance of the appliance.
This manual must be provided to the user, who will read it carefully and keep it in a safe place.
en
4Smart ME : A1003499 - 661Y2000 • C
EN
NL
ES
IT
DE
PL
RU
FR
GENERAL RECOMMENDATIONS

en
5
Smart ME : A1003499 - 661Y2000 • C
EN
FR
NL
ES
IT
DE
PL
RU
PRODUCT INFORMATION
ENERGY LABELLING

en
6Smart ME : A1003499 - 661Y2000 • C
EN
NL
ES
IT
DE
PL
RU
FR
PRODUCT INFORMATION

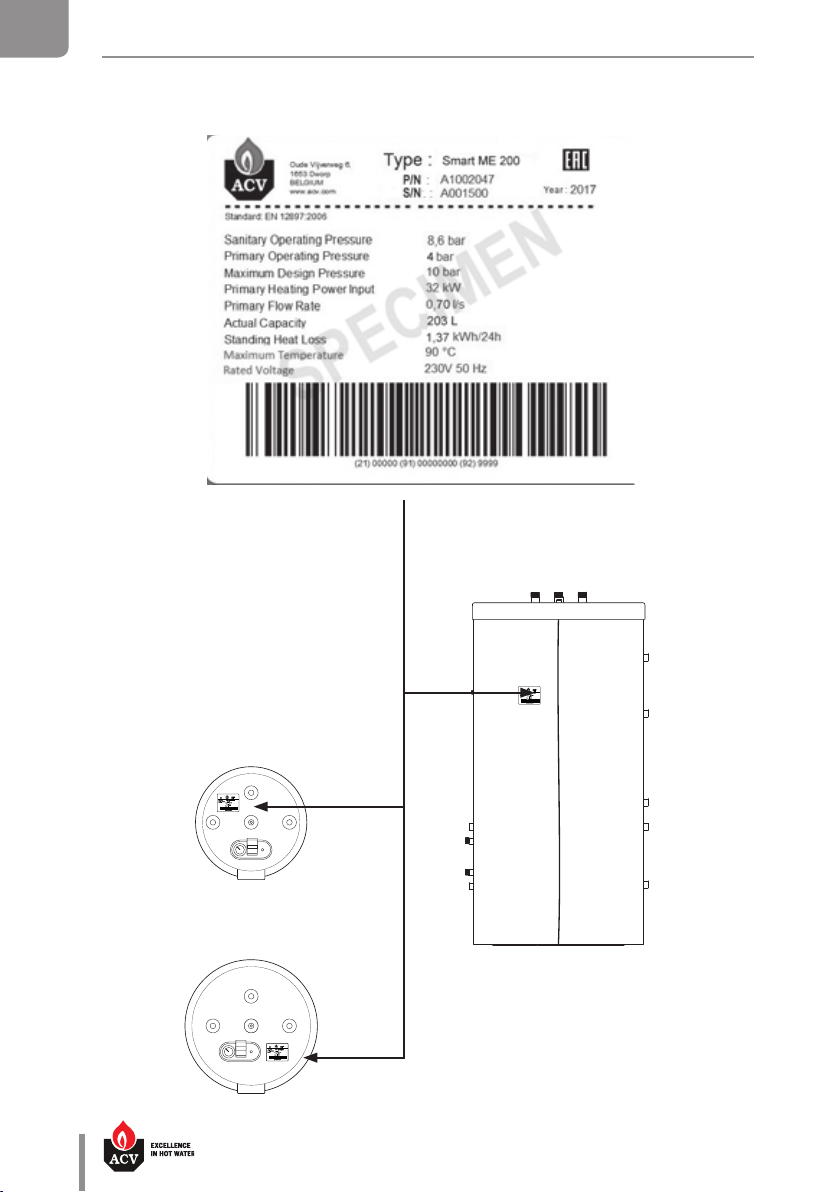

RATING PLATE
Smart ME 120 Smart ME 600 / 800
Smart ME 200
Smart ME
300 / 400

en
7
Smart ME : A1003499 - 661Y2000 • C
EN
FR
NL
ES
IT
DE
PL
RU
USER'S GUIDEUSER'S GUIDE

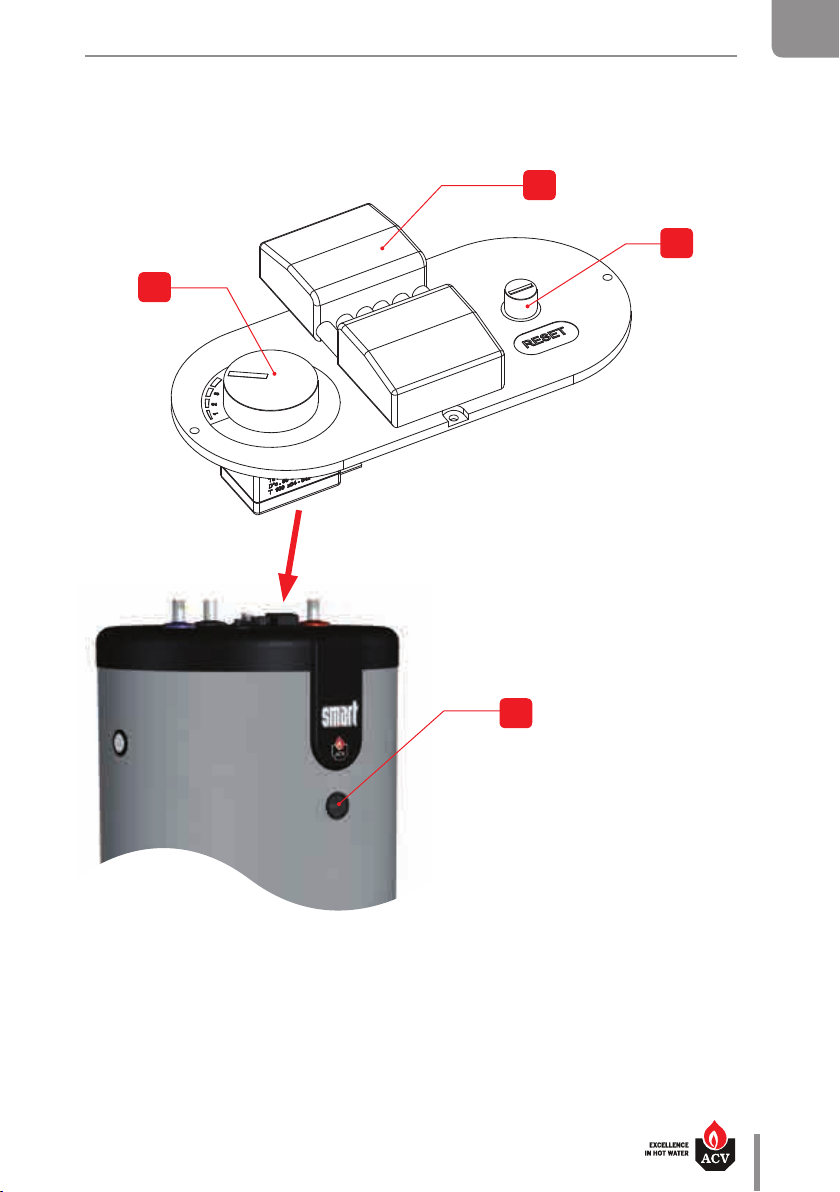

CONTROL PANEL ONLY SMART ME 200  300  400
Key :
1. Control thermostat [60/80°C] - to set the domestic hot water (DHW) temperature.
2. Manual reset high limit thermostat - to restart the tank after overheating of the primary circuit.
3. Connection plug - to connect the electrical power supply.
4. Thermometer - indicates the temperature of the DHW. (Only Smart ME 200 - 300 - 400)
4
1
3
2

en
8Smart ME : A1003499 - 661Y2000 • C
EN
NL
ES
IT
DE
PL
RU
FR
APPLIANCE DESCRIPTIONAPPLIANCE DESCRIPTION
Smart ME 200
MODELS  Smart ME 200 - 300 - 400 - 600 - 800
High eciency storage water tanks, multi-energy type, to be installed on the oor. Possibility to
heat by coil, by heat transfer uid or by optional electrical resistance (except for Smart ME 800).
6
2
4
3
5
1
10
7
9
8
11

en
9
Smart ME : A1003499 - 661Y2000 • C
EN
FR
NL
ES
IT
DE
PL
RU

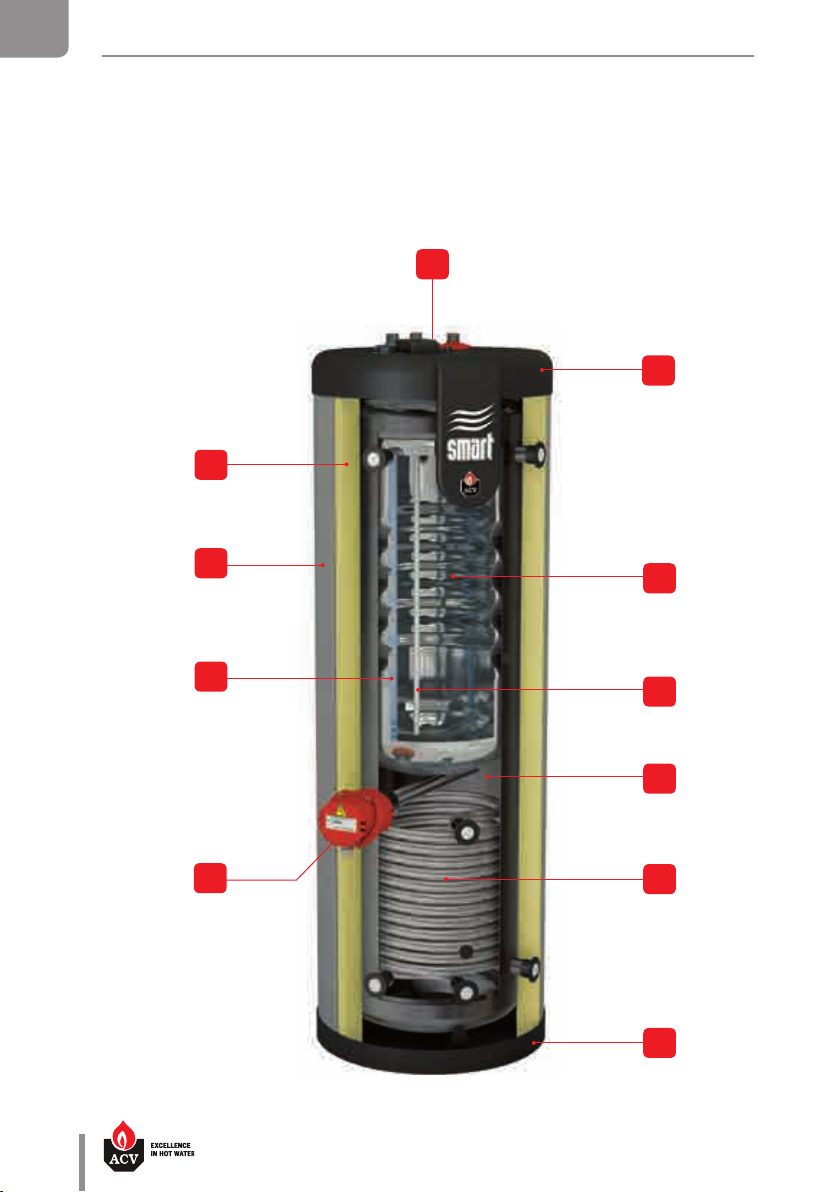

APPLIANCE DESCRIPTION
Smart ME 800
1. Manual air bleed valve
2. Polyurethane foam insulation
3. Polypropylene shell
4. Dip tube
5. Electrical heating element (optional)
6. Polypropylene top lid
7. Stainless steel tank (DHW)
8. Dry well
9. Outer steel tank (primary circuit)
10. Steel coil
11. Polypropylene bottom lid
12. Soft insulation
13. Soft insulation disk
13
12
9
7
6
1
10
8
4

en
10 Smart ME : A1003499 - 661Y2000 • C
EN
NL
ES
IT
DE
PL
RU
FR
TECHNICAL CHARACTERISTICSTECHNICAL CHARACTERISTICS
MAIN CHARACTERISTICS : SMART ME 200  300
Main characteristics
Smart ME
200 300
Total capacity L 203 303
Primary circuit capacity (heating) L 95.7 165
DHW circuit capacity L 99 126
Coil capacity L 8.3 12
Primary pressure drop* mbar 41.6 51.2
Coil pressure drop mbar 460 533
Tank heating surface m² 1.26 1.46
Coil heating surface m² 1.42 1.80
Max. Design Pressure * bar 10 10
Reheat Performance - Primary Heating Power
Input* kW 24.7 29.7
Primary ow rate (to achieve Reheat Performance) * L/s 0.7 1.23
Coil uid ow rate L/h 3000 3000
Reheat time (heating source = internal coil) min 70 75
Reheat time* (heating source = external boiler) min 10 10
Standing Heat Loss*
kWh/24h 1.37 1.85
W57 77
Empty weight kg 68 99
* According to EN12897:2006

en
11
Smart ME : A1003499 - 661Y2000 • C
EN
FR
NL
ES
IT
DE
PL
RU
TECHNICAL CHARACTERISTICS

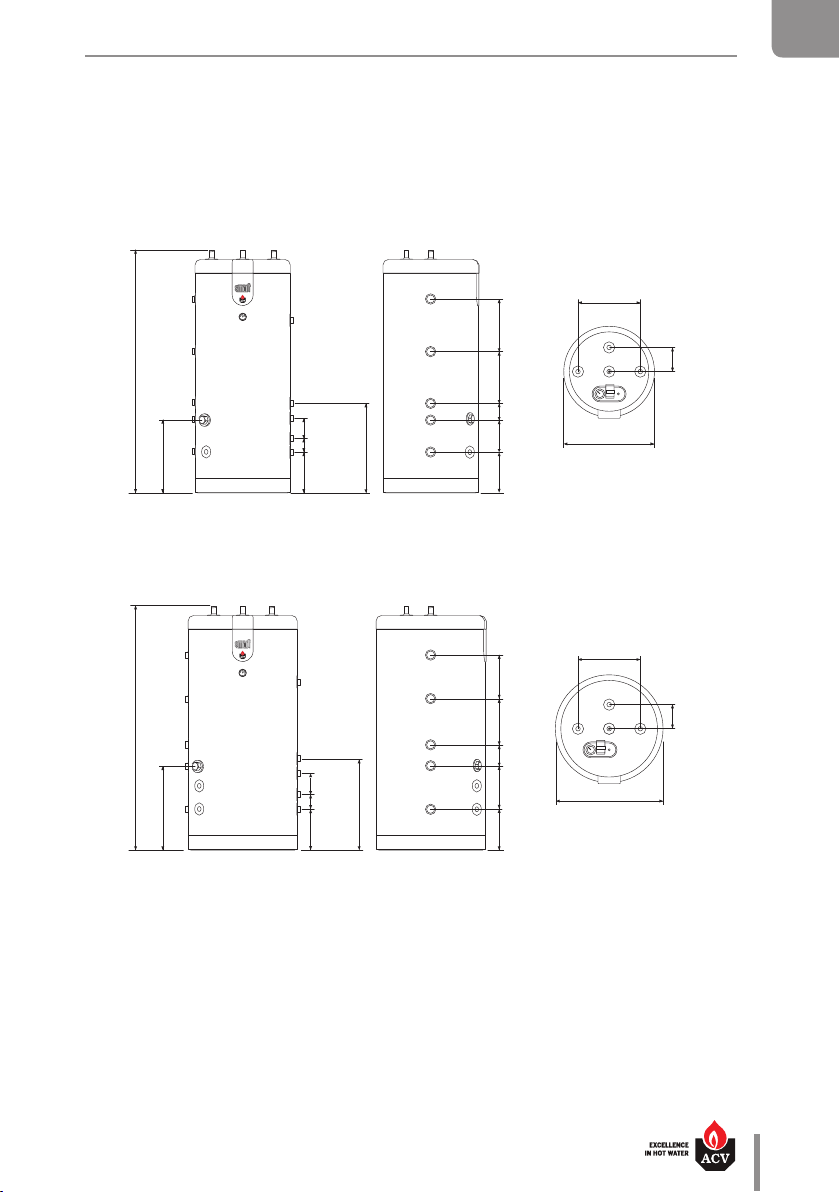

DIMENSIONS : SMART ME 200  300
Smart ME 200
565
360
150
245
80
120
525
1500
540
235
305
95
300
300
Smart ME 300
250
255
145
350
300
240
80
120
1610
505
520
675
360
150

en
12 Smart ME : A1003499 - 661Y2000 • C
EN
NL
ES
IT
DE
PL
RU
FR
TECHNICAL CHARACTERISTICS
MAIN CHARACTERISTICS : SMART ME 400  600  800
Main characteristics
Smart ME
400 600 800
Total capacity L 395 606 800
Primary circuit capacity (heating) L 219 365 517
DHW circuit capacity L 164 225 263
Coil capacity L 12 16 20
Primary pressure drop* mbar 53.5 5.6 58.5
Coil pressure drop mbar 533 186 216
Tank heating surface m² 1.94 1.90 2.65
Coil heating surface m² 1.80 2.50 3.00
Max. Design Pressure * bar 10 10 10
Reheat Performance - Primary Heating Power
Input* kW 45.6 50.2 54
Primary ow rate (to achieve Reheat Performance) * L/s 1.25 1.25 1.25
Coil uid ow rate L/h 3000 3000 3000
Reheat time (heating source = internal coil) min 75 99 109
Reheat time* (heating source = external boiler) min 10 10 10
Standing Heat Loss*
kWh/24h 2.09 2.88 3.22
W87 120 134
Empty weight kg 120 180 220
* According to EN12897:2006

en
13
Smart ME : A1003499 - 661Y2000 • C
EN
FR
NL
ES
IT
DE
PL
RU
TECHNICAL CHARACTERISTICS

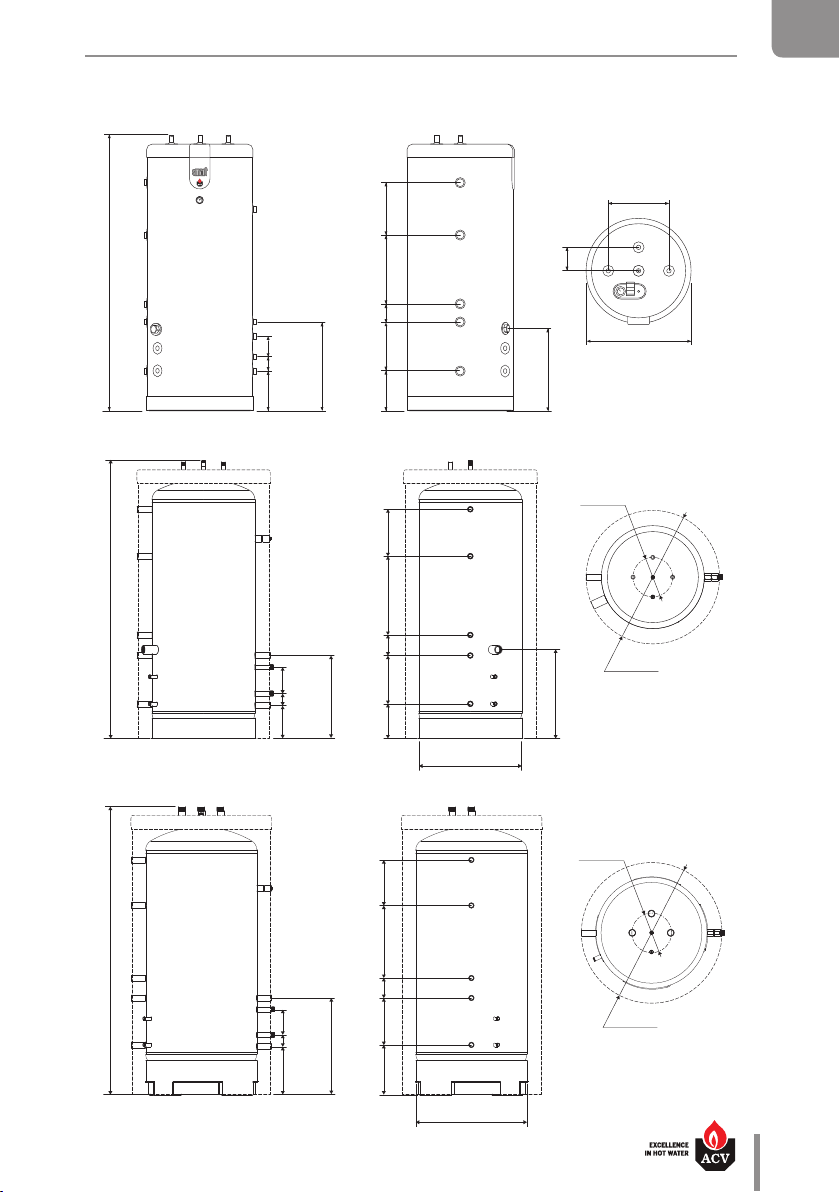

DIMENSIONS : SMART ME 400  600  800
Smart ME 400
520
240
80
120
1950
250
280
520
120
600
400
675
360
150
230
80
180
570
Smart ME 600
1890
610
240
330
145
538
320
700
Ø 270
Ø 910
340
80
180
680
Smart ME 800
2000
350
330
140
510
320
780
Ø 270
Ø 990

en
14 Smart ME : A1003499 - 661Y2000 • C
EN
NL
ES
IT
DE
PL
RU
FR
TECHNICAL CHARACTERISTICS

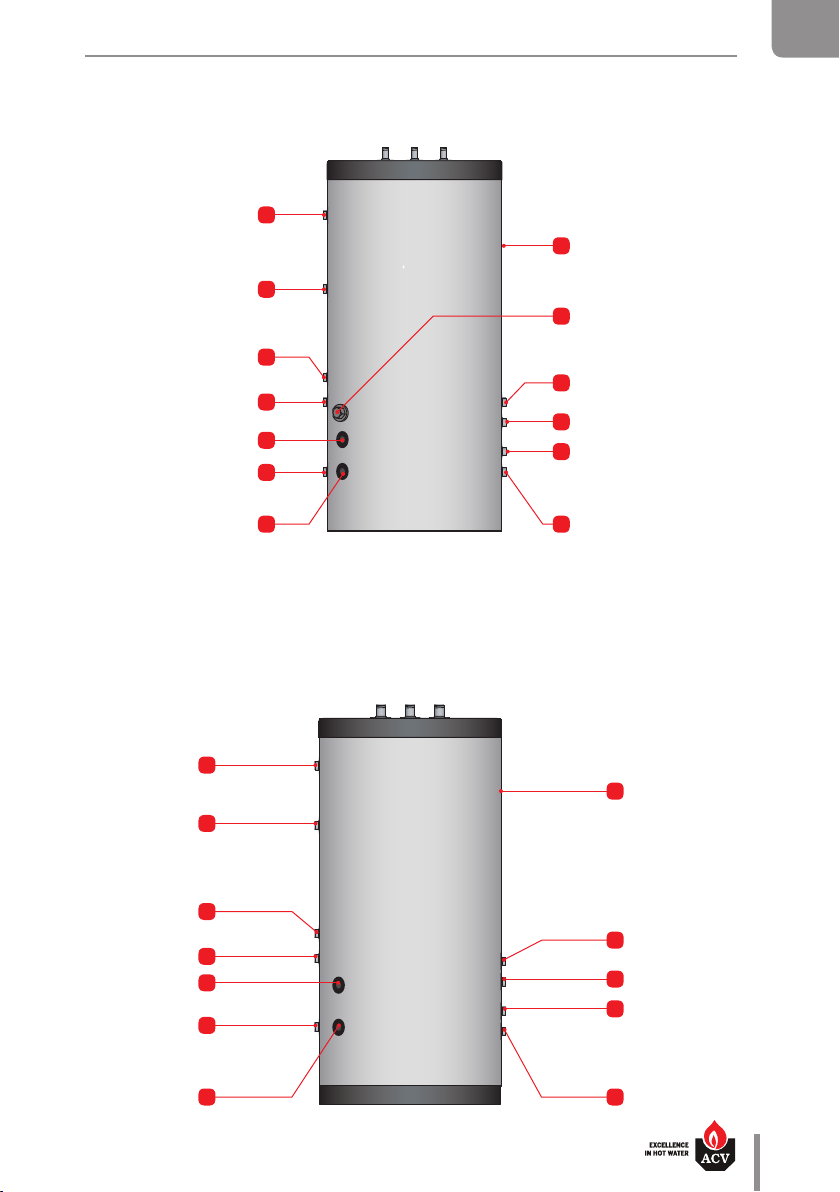

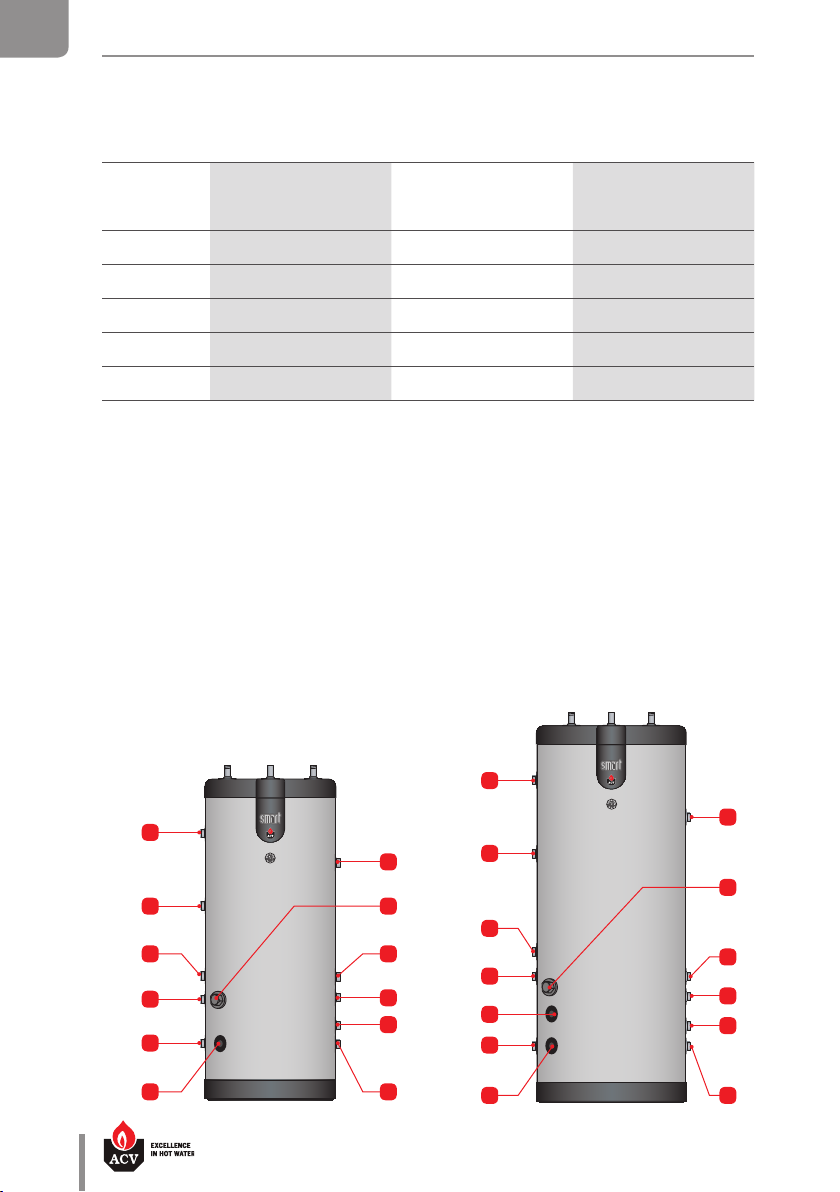

HEATING CONNECTIONS
1. After-heating ow connection
2. After-heating return connection
3. Coil ow connection
4. Coil return connection
5. Heating ow connection
6. Heating return connection
7. Sensor pocket (coil)
8. Sensor pocket (lowest temperature tank)
9. Optional electrical heating element connection
10. Attachment point for hydraulic kit (optional)
Connections dimensions
Models Heating
connection
Coil
connection
Optional electrical
heating element
connection
Smart ME 200 Ø 1" [F] Ø 1" [M] Ø 1"½ [F]
Smart ME 300 Ø 1" [F] Ø 1" [M] Ø 1"½ [F]
Smart ME 400 Ø 1" [F] Ø 1" [M] Ø 1"½ [F]
Smart ME 600 Ø 1" [F] Ø 1" [M] Ø 1"½ [F]
Smart ME 800 Ø 1" [F] Ø 1" [M] —
Smart ME 200
1
2
2
7
5
6
10
3
4
5
6
9
Smart ME 300 / 400
1
2
2
8
5
6
7
10
3
4
5
6
9

en
15
Smart ME : A1003499 - 661Y2000 • C
EN
FR
NL
ES
IT
DE
PL
RU

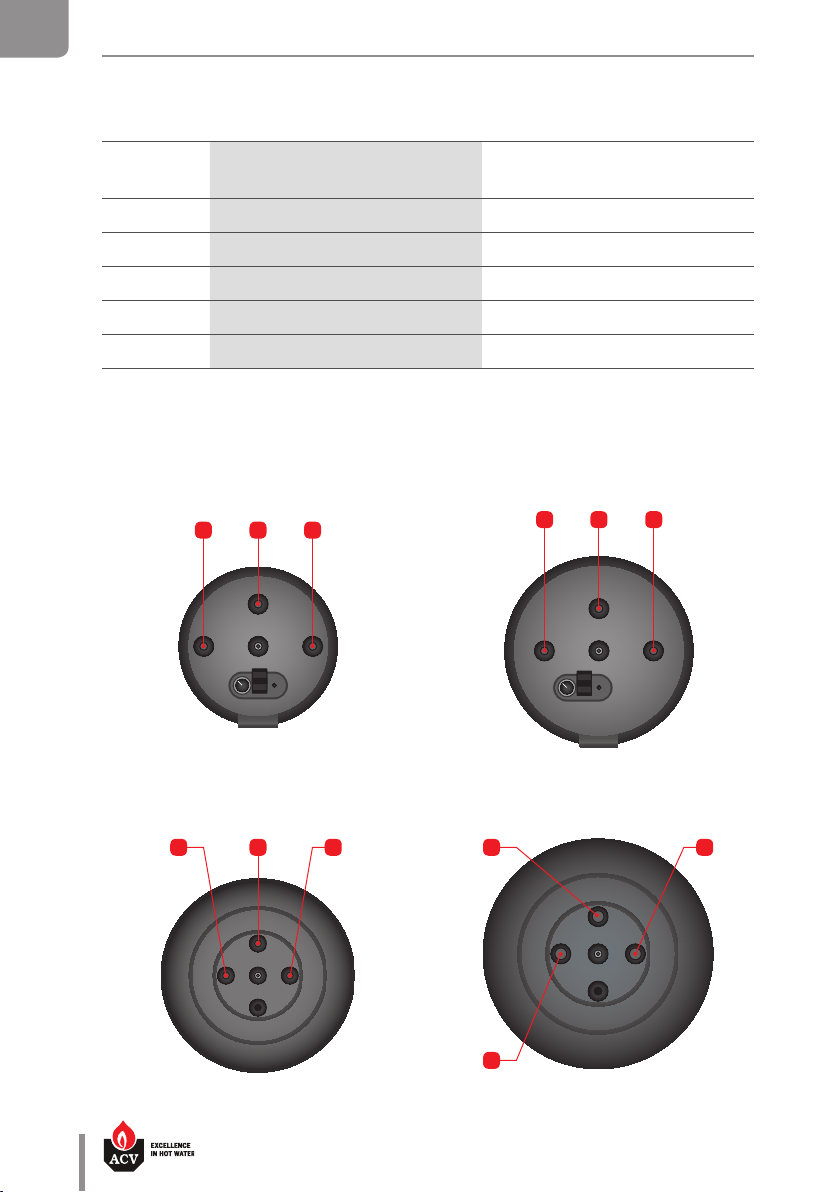

TECHNICAL CHARACTERISTICS
Smart ME 600
Smart ME 800
10
3
4
5
6
9
1
2
2
8
5
6
7
10
3
4
5
6
1
2
2
8
5
6
7

en
16 Smart ME : A1003499 - 661Y2000 • C
EN
NL
ES
IT
DE
PL
RU
FR
TECHNICAL CHARACTERISTICS
DOMESTIC HOT WATER CONNECTIONS
1. Cold water inlet connection
2. Auxiliary connection (DHW)
3. Domestic hot water connection
Pipe dimensions
Models Cold / hot water
connections
Auxiliary
connections
Smart ME 200 Ø 3/4" [M] Ø 3/4" [M]
Smart ME 300 Ø 3/4" [M] Ø 3/4" [M]
Smart ME 400 Ø 3/4" [M] Ø 3/4" [M]
Smart ME 600 Ø 3/4" [M] Ø 3/4" [M]
Smart ME 800 Ø 1"½ [M] Ø 1"½ [M]
Smart ME 200
Smart ME 300 / 400
Smart ME 600 Smart ME 800
21 3
21 3
1 2
1
2 3 3

en
17
Smart ME : A1003499 - 661Y2000 • C
EN
FR
NL
ES
IT
DE
PL
RU
TECHNICAL CHARACTERISTICS
DOMESTIC HOT WATER PERFORMANCES
DHW performance :
Heating source = Coil *
Smart ME
200 300 400 600 800
Peak ow at
40°C [∆T = 30K] L/10' 321 418 558 686 860
45°C [∆T = 35K] L/10' 275 348 464 582 737
60°C [∆T = 50K] L/10' 161 206 274 358 444
Constant ow at
40°C [∆T = 30K] L/h 501 564 752 876 998
45°C [∆T = 35K] L/h 401 460 614 702 855
60°C [∆T = 50K] L/h 207 235 314 364 437
Peak ow 1st hour at
40°C [∆T = 30K] L/60' 738 888 1184 1416 1691
45°C [∆T = 35K] L/60' 609 732 976 1167 1450
60°C [∆T = 50K] L/60' 333 402 536 661 808
Maximum absorbed power ** kW 16 19 25 29 35
DHW performance :
Heating source = External boiler connected to
tank *
Smart ME
200 300 400 600 800
Peak ow at
40°C [∆T = 30K] L/10' 321 418 558 686 922
45°C [∆T = 35K] L/10' 275 348 464 582 790
60°C [∆T = 50K] L/10' 161 206 274 358 504
Constant ow at
40°C [∆T = 30K] L/h 890 967 1289 1423 2093
45°C [∆T = 35K] L/h 763 786 1048 1172 1794
60°C [∆T = 50K] L/h 450 461 614 693 1037
Peak ow 1st hour at
40°C [∆T = 30K] L/60' 1063 1225 1633 1872 2666
45°C [∆T = 35K] L/60' 911 1003 1338 1559 2285
60°C [∆T = 50K] L/60' 536 590 786 935 1368
Maximum absorbed power ** kW 31 32 43 48 73
* Conditions : Primary circuit temperature : 85°C, water intake temperature : 10°C
** Domestic hot water (DHW) : 45°C

en
18 Smart ME : A1003499 - 661Y2000 • C
EN
NL
ES
IT
DE
PL
RU
FR
TECHNICAL CHARACTERISTICS
G3 REQUIREMENTS AND GUIDANCE  UK ONLY
Discharge pipe from safety valves
The Building Regulation G3 requires that any discharge from an unvented system is conveyed to
where it is visible, but will not cause danger to persons in or about the building.
The tundish and discharge pipes should be tted in accordance with the requirements and guid-
ance notes of Building Regulation G3. The G3 Requirements and Guidance sections 3.50 - 3.63 are
detailed below.
For discharge pipe arrangements not covered by G3 Guidance advice should be sought from your
local Building Control Ocer.
Main characteristics :
• Any discharge pipe connected to the pressure relief devices (Expansion Valve and Tempera-
ture/Pressure Relief Valve) must be installed in a continuously downward direction and in a
frost free environment.
• Water may drip from the discharge pipe of the pressure relief device.
• This pipe must be left open to the atmosphere.
• The pressure relief device is to be operated regularly to remove lime deposits and to verify that
it is not blocked.
A typical discharge pipe arrangement is shown further on.
General remarks
• Discharge pipe-work D2 can now be a plastic pipe but only pipes that have been
tested to a minimum 110°C must be used.
• Discharge pipe D2 can now be plumbed into the soil stack but only soil stacks that
can handle temperatures of 99°C or greater should be used.
Extract from “The Building Regulation G3” :
Discharge pipe D1
3.50 Safety devices such as temperature relief valves or combined temperature and pressure and
pressure relief valves (see paragraphs 3.13 or 3.18) should discharge either directly or by way of a
manifold via a short length of metal pipe (D1) to a tundish.
3.51 The diameter of discharge pipe (D1) should be not less than the nominal outlet size of the tem-
perature relief valve.
3.52 Where a manifold is used it should be sized to accept and discharge the total discharge from the
discharge pipes connected to it.
3.53 Where valves other than the temperature and pressure relief valve from a single unvented hot
water system discharge by way of the same manifold that is used by the safety devices, the ma-
nifold should be factory fitted as part of the hot water storage system unit or package.
Tundish
3.54 The tundish should be vertical, located in the same space as the unvented hot water storage sys-
tem and be fitted as close as possible to, and lower than, the valve, with no more than 600mm of
pipe between the valve outlet and the tundish.
Note: To comply with the Water Supply (Water Fittings) Regulations, the tundish should incorporate a
suitable air gap.
3.55 Any discharge should be visible at the tundish. In addition, where discharges from safety de-
vices may not be apparent, e.g. in dwellings occupied by people with impaired vision or mobi-
lity, consideration should be given to the installation of a suitable safety device to warn when
discharge takes place, e.g. electronically operated.

en
19
Smart ME : A1003499 - 661Y2000 • C
EN
FR
NL
ES
IT
DE
PL
RU
TECHNICAL CHARACTERISTICS
Discharge pipe D2
3.56 The discharge pipe (D2) from the tundish should:
(a) have a vertical section of pipe at least 300mm long below the tundish before any elbows or
bends in the pipework; and
(b) be installed with a continuous fall thereafter of at least 1 in 200.
3.57 The discharge pipe (D2) should be made of:
(a) metal; or
(b) other material that has been demonstrated to be capable of safely withstanding tempera-
tures of the water discharged and is clearly and permanently marked to identify the product and
performance standard (e.g. as specified in the relevant part of BS 7291)
3.58 The discharge pipe (D2) should be at least one pipe size larger than the nominal outlet size of
the safety device unless its total equivalent hydraulic resistance exceeds that of a straight pipe
9m long, i.e. for discharge pipes between 9m and 18m the equivalent resistance length should
be at least two sizes larger than the nominal outlet size of the safety device; between 18 and
27m at least 3 sizes larger, and so on; bends must be taken into account in calculating the flow
resistance. See figure, table and the worked example.
3.59 Where a single common discharge pipe serves more than one system, it should be at least one
pipe size larger than the largest individual discharge pipe (D2) to be connected.
3.60 The discharge pipe should not be connected to a soil discharge stack unless it can be demonstra-
ted that that the soil discharge stack is capable of safely withstanding temperatures of the water
discharged, in which case, it should:
(a) contain a mechanical seal, not incorporating a water trap, which allows water into the
branch pipe without allowing foul air from the drain to be ventilated through the tundish;
(b) be a separate branch pipe with no sanitary appliances connected to it;
(c) if plastic pipes are used as branch pipes carrying discharge from a safety device they should
be either polybutalene (PB) to Class S of BS 7291-2:2006 or cross linked polyethylene (PE-X) to
Class S of BS 7291-3:2006; and (d) be continuously marked with a warning that no sanitary ap-
pliances should be connected to the pipe.
Note:
1. Plastic pipes should be joined and assembled with fittings appropriate to the circumstances in
which they are used as set out in BS EN ISO 1043-1.
2. Where pipes cannot be connected to the stack it may be possible to route a dedicated pipe along-
side or in close proximity to the discharge stack.
Termination of discharge pipe
3.61 The discharge pipe (D2) from the tundish should terminate in a safe place where there is no risk
to persons in the vicinity of the discharge.
3.62 Examples of acceptable discharge arrangements are:
(b) to a trapped gully with the end of the pipe below a fixed grating and above the water seal;
(c) downward discharges at low level; i.e. up to 100mm above external surfaces such as car
parks, hard standings, grassed areas etc. are acceptable providing that a wire cage or similar
guard is positioned to prevent contact, whilst maintaining visibility; and
(d) discharges at high level: e.g. into a metal hopper and metal downpipe with the end of the di-
scharge pipe clearly visible or onto a roof capable of withstanding high temperature discharges
of water and 3m from any plastic guttering system that would collect such discharges.

en
20 Smart ME : A1003499 - 661Y2000 • C
EN
NL
ES
IT
DE
PL
RU
FR
TECHNICAL CHARACTERISTICS
3.63 The discharge would consist of high temperature water and steam. Asphalt, roofing felt and
non-metallic rainwater goods may be damaged by such discharges.
600mm maximum
300mm minimum
temperature relief valve to tundish
Metal discharge pipe (D2) tundish with
continuous fall. See 3.56, Table G3 and
worked example
Tundish
Discharge below fixed
grating (3.61 gives
alternative points of
discharge)
Fixed grating
Trapped gulley
Valve
outlet
size
Minimum size
of discharge
pipe D1
Minimum size of
discharge pipe D2
from tundish
Maximum resistance
allowed, expressed as a
length of straight pipe
(i.e. no elbows or bends)
Resistance created by
each elbow or bend.
G½ 15mm
22mm
28mm
35mm
Up to 9m
Up to 8m
Up to 27m
0.8m
1.0m
1.4m
G¾ 22mm
28mm
35mm
42mm
Up to 9m
Up to 8m
Up to 27m
1.0m
1.4m
1.7m
G1 28mm
35mm
42mm
54mm
Up to 9m
Up to 8m
Up to 27m
1.4m
1.7m
2.3m
Figure G3: Typical discharge pipe arrangement
Table G3 – Sizing of copper discharge pipe ‘D2’ for common temperature relief valve outlet sizes
