Adande STODDART VCC1.SCW User manual

Models:
VCC
SPECIFICATION, INSTALLATION
AND OPERATION MANUAL
READ ALL INSTRUCTIONS BEFORE USE
Revision: 01 - 28/10/2020 - A

Page Intentionally Left Blank
Page 1
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz

Page 2
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Introduction
Your New Adande Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Australia and New Zealand Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Warranty Period
Warranty Registration
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Electrical
Operational Use and Cleaning
General
Installation

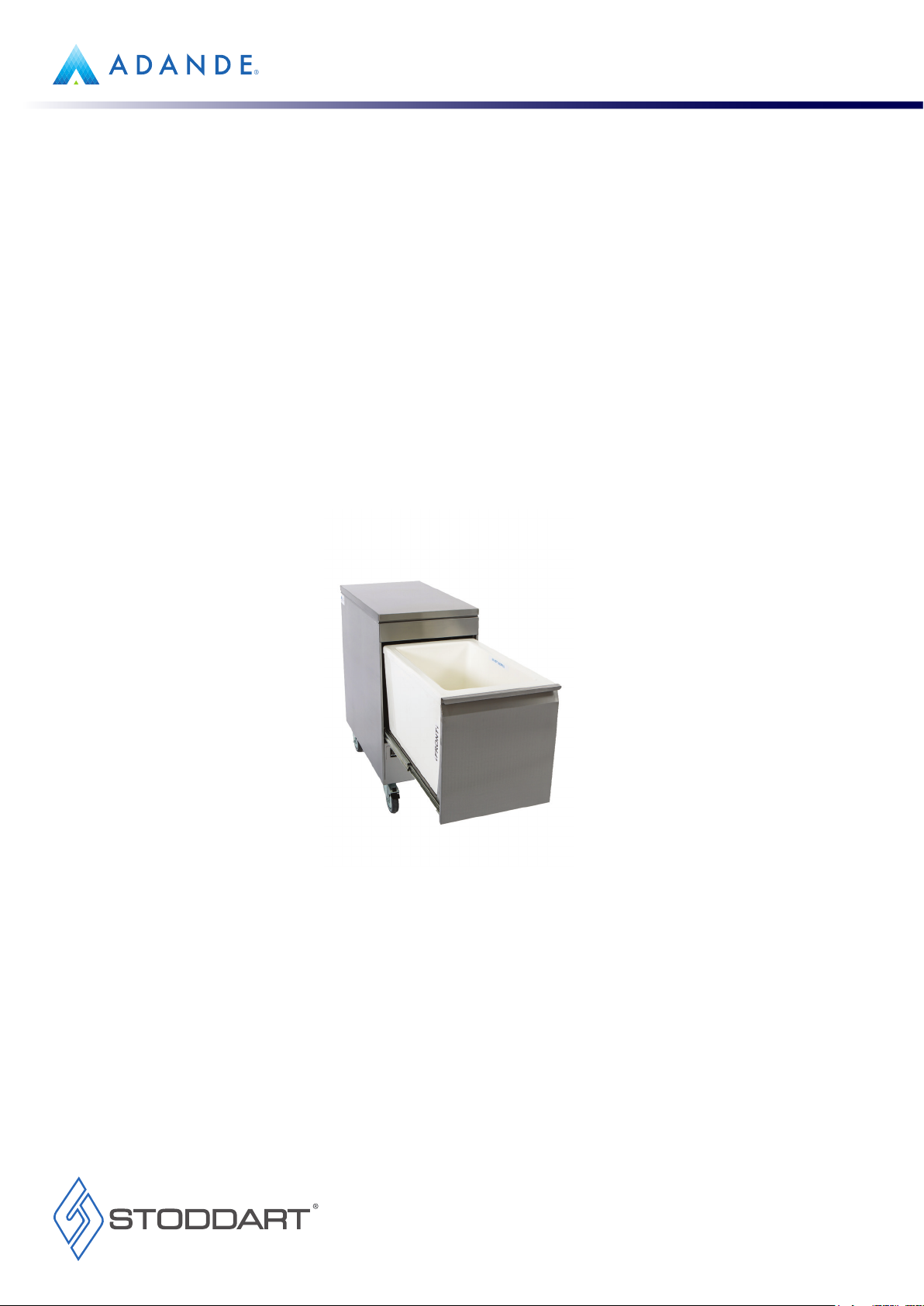

What is Adande®. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Adande®Explained . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Setting Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Handling
Unpacking
Positioning
Refrigeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Climate Classes
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Information
Plumbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Specification

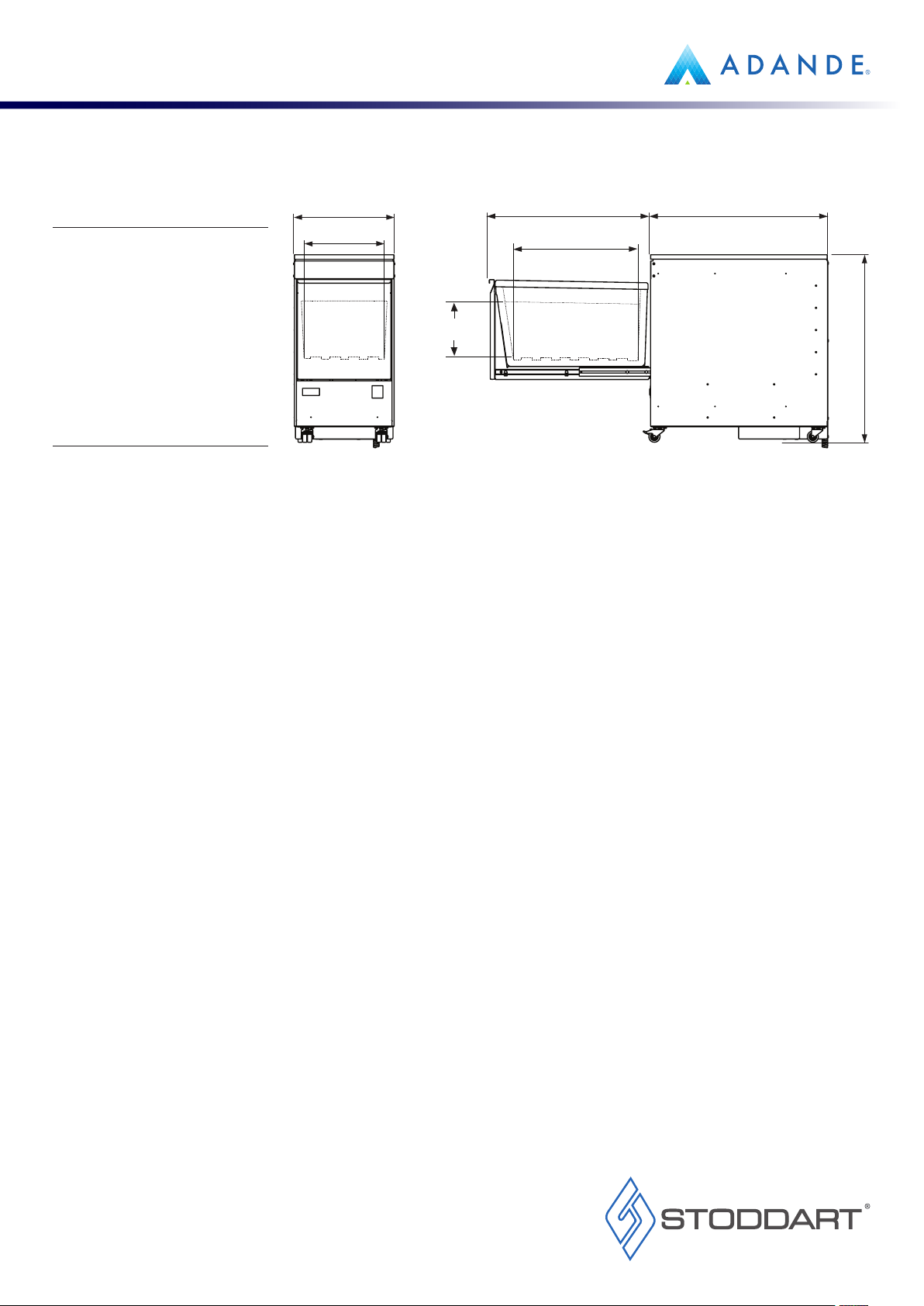

General Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
VCC1.SCW / VCC1.GCW
Operation
Initial Start-up & Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Controller
Initial Start Up
Food Temperature
Loading Restrictions
Temperature adjustment
Locking and Unlocking the Display Panel

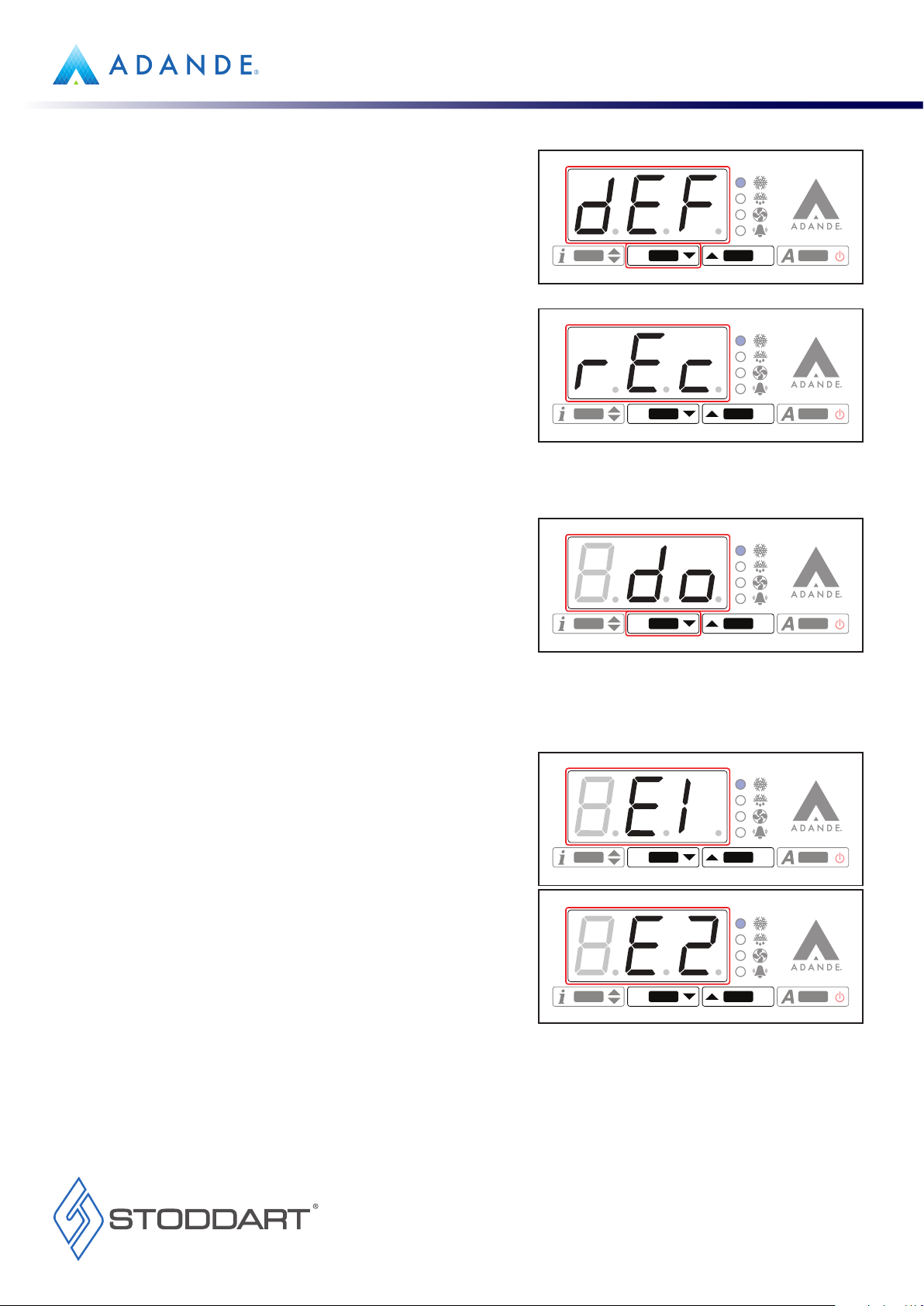

Defrost
Drawer Alarm
Error Alarm
Temperature Alarm
After Service - Information
After Service - Storage
Cleaning and Maintenance
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
General Information
Corrosion Protection
Surface Finish
Cleaning Schedule
Materials Required
Internal / External Surfaces
Ventilation Panels
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Troubleshooting Procedures
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Page 3
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Introduction
Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance.
Keep this booklet on hand in a safe place for future reference by other operators or users.
Stoddart design, manufacture and distribute Food Service Equipment (appliances) exclusively for the commercial market.
This appliance is not designed nor intended for household or domestic use and must not be used for this purpose.
This product is intended for commercial use, and in line with Australian electrical safety standards the following warnings are provided:
• This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning the use of the product by a person
responsible for their safety. Children should be supervised to ensure that they do not play with the product
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid
a hazard
The manufacturer and distributor cannot be held responsible or liable for any injuries or damages of any kind occurred to persons,
units or others, due to abuse and misuse of this unit in regards to installation, removal, operation, servicing or maintenance, or lack of
conformity with the instructions indicated in this documentation.
Disclaimer
All units made by the manufacturer are delivered assembled, where possible, and ready to install. Any installation, removal, servicing,
maintenance and access or removal of any parts, panels or safety barriers that is not permitted, does not comply in accordance to this
documentation, or not performed by a TRAINED AND AUTHORISED SPECIALIST will result in the
IMMEDIATE LOSS OF THE WARRANTY.
The manufacturer cannot be held responsible or liable for any unauthorised modifications or repairs. All modifications or repairs must
be approved by the manufacturer in writing before initiating. All modifications or repairs performed to this unit must be performed at all
times by a TRAINED AND AUTHORISED SPECIALIST.
Thank you for choosing this quality Adande product.
All Adande products are designed and manufactured to meet the needs of food service professionals. By caring for and maintaining your new
Adande product in accordance with these instructions, will provide many years of reliable service.
Stoddart is a wholly Australian owned company, which manufactures and/or distributes a comprehensive range of food service equipment for
kitchens, food preparation and presentation. Stoddart products are manufactured and/or engineered in Australia to provide excellent results
whilst offering value-for-money, ease-of-use and reliability.
Your New Adande Product
To register your new product, Follow the below Link/QR code.
www.stoddart.com.au/warranty-information
All Stoddart manufactured and distributed products are covered by Stoddart’s standard Australia and New Zealand Product Warranty (minimum
12 month on-site parts and labour, terms and conditions apply). Further to this standard warranty, certain products have access to an extended
warranty. Full terms, conditions and exclusions can be found using the below Link/QR code.
Warranty & Registration

Page 4
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Introduction
Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance.
Keep this booklet on hand in a safe place for future reference by other operators or users.
Stoddart design, manufacture and distribute Food Service Equipment (appliances) exclusively for the commercial market.
This appliance is not designed nor intended for household or domestic use and must not be used for this purpose.
This product is intended for commercial use, and in line with Australian electrical safety standards the following warnings are provided:
• This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning the use of the product by a person
responsible for their safety. Children should be supervised to ensure that they do not play with the product
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid
a hazard
The manufacturer and distributor cannot be held responsible or liable for any injuries or damages of any kind occurred to persons,
units or others, due to abuse and misuse of this unit in regards to installation, removal, operation, servicing or maintenance, or lack of
conformity with the instructions indicated in this documentation.
Disclaimer
All units made by the manufacturer are delivered assembled, where possible, and ready to install. Any installation, removal, servicing,
maintenance and access or removal of any parts, panels or safety barriers that is not permitted, does not comply in accordance to this
documentation, or not performed by a TRAINED AND AUTHORISED SPECIALIST will result in the
IMMEDIATE LOSS OF THE WARRANTY.
The manufacturer cannot be held responsible or liable for any unauthorised modifications or repairs. All modifications or repairs must
be approved by the manufacturer in writing before initiating. All modifications or repairs performed to this unit must be performed at all
times by a TRAINED AND AUTHORISED SPECIALIST.
Thank you for choosing this quality Adande product.
All Adande products are designed and manufactured to meet the needs of food service professionals. By caring for and maintaining your new
Adande product in accordance with these instructions, will provide many years of reliable service.
Stoddart is a wholly Australian owned company, which manufactures and/or distributes a comprehensive range of food service equipment for
kitchens, food preparation and presentation. Stoddart products are manufactured and/or engineered in Australia to provide excellent results
whilst offering value-for-money, ease-of-use and reliability.
To register your new product, Follow the below Link/QR code.
www.stoddart.com.au/warranty-information
All Stoddart manufactured and distributed products are covered by Stoddart’s standard Australia and New Zealand Product Warranty (minimum
12 month on-site parts and labour, terms and conditions apply). Further to this standard warranty, certain products have access to an extended
warranty. Full terms, conditions and exclusions can be found using the below Link/QR code.
Warranty & Registration
Warranty Registration
Warranty Period
Australia and New Zealand Warranty

Page 5
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Introduction
Safety Symbols
Warnings
Symbol Description
Electrical Warning Symbol
To indicate hazards arising from high voltages
General Warning
To signify a general warning/caution
An appropriate safety instruction should be followed
Flammable Materials
Flammable Gas
Hydrocarbon Refrigerant
Low Temperature
Low temperature/Freezing conditions
An appropriate safety instruction should be followed
Protective Earth (Ground)
To identify any terminal which is intended for connection to an external conductor for protection against
electric shock in case of a fault, or the terminal of a protective earth (ground) electrode
Do Not Pressure Wash
Do Not Pressure Wash the appliance
Disposal of Hazardous Waste
Disposal of Hazardous Waste The appliance contains hazardous waste which is harmful to the environment.
Correct procedures in line with WEEE directive should be followed when disposing of the appliance, including
removable/replaceable items like:
a) Refrigerant Gas/oil
b) Insulated container
c) Controller
Recycling of Packaging
Dispose of packaging responsibly, recycling where possible in accordance to applicable local regulations
WARNING
DO NOT store explosive substances such as aerosol cans with a flammable propellant in or near this unit
This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning the use of the product by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with the product
Keep clear of obstruction all ventilation openings in the appliance enclosure or in the structure for building-in
Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer
Do not damage the refrigerant circuit
Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the
manufacturer
In order to reduce flammability hazards the servicing of this appliance must be carried out by a technician, qualified and trained in the use
of Hydrocarbon Refrigerant
WARNING
Follow the IMPORTANT SAFETY INSTRUCTIONS outlined in this
user guide before operating this appliance. Failing to do so can
result in death, electric shock, fire or injury to persons

Page 6
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Introduction
Important Safety Instructions
• This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning the use of the product by a person
responsible for their safety. Children should be supervised to ensure that they do not play with the product
• The appliance should be used as provided and in accordance with this manual
• Adequate provision should be made for lifting and positioning the appliance in accordance with local policy codes
• Do not overfill the drawer or exceed the maximum loading of 40kg per drawer
• Do not sit, stand or apply additional downward pressure on an open drawer
• Do not operate appliance with any panels removed
• Do not clean appliance with any panels removed
• When the appliance is being transported it should be sat firmly on its castors/feet with the brakes applied. The machine should be
strapped upright to a flat pallet during transport
• Ensure appliance is installed and maintained on a flat, clean and level surface
• If mounted on a castor base, ensure brakes are applied to the front two castors
• The room in which the appliance is kept should be dry and sufficiently ventilated
• No obstructions should be placed directly in front of the condenser air outlet (vent at the front of the unit, at the rear on VCR model)
• The machine should be regularly inspected and checked against the requirements of this Operations Manual
• Should a fault occur with the appliance immediately isolate/disconnect the incoming power supply
• Only Adande trained engineers are permitted to service or carry out repairs to this appliance
Electrical
Operational Use and Cleaning
General
• The operator/end user shall not remove ANY of the access panels
• Disconnect the electrical supply before any maintenance or cleaning by removing the plug from the electrical socket
• Only one mains supply should be inserted to the unit at any time
• Ensure safe routing of the electrical cabling
• Check Inlet Cables for damage before use. If damaged, isolate from the electrical supply and replace the cabling
• Only the electrical cables supplied with the appliance at the point of purchase, or by a qualified service engineer is to be used with this
appliance
• This appliance is to be installed in accordance with regional and local electrical codes
• Cleaning and user maintenance shall not be made by children without supervision.
• All cleaning and servicing requires the appliance to be switched off at the front/ isolated from the power source and disconnected.
• Ensure the drawers are kept shut between openings.
• Do not lean on the drawer when fully extended.
• If modules have been stacked, into a VCS2, avoid opening more than one drawer at a time.
• Ensure foodstuffs that give out acidic odours like vinegar, onions, etc. are sealed before placing in the insulated container.
• Do not place hot pans directly onto the plastic surface of the container, always use the metal cooling racks.
• Remove all foodstuffs from the drawer container before removing for cleaning.
• Do NOT drop the container into the container support cradle.

Page 7
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Installation
What is Adande®
Adande®Explained
Adande®is a new method of cold storage developed as a series of refrigerated drawers that offer storage temperature flexibility in 1°C
increments between –22°C and +15°C.
Each refrigerated drawer:
• Provides stable temperature storage
• A removable container to act as temporary cool and safe product storage
• Gives full plan area access providing space efficient storage
• Is easily cleaned or replaced
Adande®uses standard technology and refrigeration parts but in a completely new and patented way.
A dedicated fridge engine supplies refrigerant to an evaporator coil assembly. The evaporator coil assembly then supplies cooling to the
insulated container and is sized to maintain up to 40kg of product at any set point temperature, in the range of –22°C and +15°C.
VCC

Page 8
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Installation
Setting Up
Handling
Unpacking
Positioning
• Use suitable means to move the unit;
- For smaller items use two people
- For large items a fork lift, pallet trolley or similar (the forks should reach completely beneath the pallet)
• Check the unit for damage before and after unpacking. If unit is damaged, contact the distributor and manufacturer
• Should any item have physical damage, report the details to the freight company and to the agent responsible for the dispatch within
seven (7) days of receipt. No claims will be accepted or processed after this period
• The unit is supplied fully assembled
• Remove all protective plastic film, tapes, ties and packers before installing and operating
• Clean off any remaining residue from the interior/exterior of the unit using a clean cloth dampened with warm soapy water
• Ensure the Adande®units cord-set is firmly secured in place by the supplied P clip
• Ensure the Adande®unit is positioned on a clean, level and stable surface
• Ensure the unit is positioned on a level surface to allow all the condensation to properly burn off and prevent the burn off tray
overflowing
• It is important that the Adande®drawer is installed and maintained on a flat, clean and level surface to ensure correct operation
• The room should be dry and sufficiently ventilated to allow good airflow around the clearance stated above, and to minimize moisture
intake
• When positioning the unit, avoid direct sunlight, warm drafts and heated areas for the unit to maintain the normal operating
temperature. Do not position the unit in:
- Wet areas
- Near heat and/or steam sources
- Near flammable substances
• Optimum performance is obtained at ambient temperatures between 16°C and 40°C
• The air outlet grill MUST be kept clear at all times to maintain optimum performance
• The Adande®drawer can be mounted on rubber feet, rollers or castors. When mounted on a castor base, the front two castors should
have their brakes ON during normal use
• Please consult national and local standards to ensure that your unit is positioned in accordance with any existing requirement
WARNING
Improper installation, adjustments, alterations, service or
maintenance can cause property damage, injury or death.
IMPORTANT
THE INSULATED CONTAINER SHOULD BE UNLOADED
BEFORE MOVING

Page 9
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
The unit has been designed and tested to operate at climate class 4. Refer to the Technical Specifications of this manual or the unit rating label
for the climate class number.
The system is fully operational as soon as it leaves the factory. No addition setup is required.
CLIMATE CLASSES
Test Room Climate Class Ambient temperature °C Relative humidity %
020°C 50
116°C 80
222°C 65
325°C 60
430°C 55
540°C 40
627°C 70
Climate Classes
Refrigeration
Single Phase Units:
• Supplied and fitted with an appropriately rated plug and lead, indicated as:
- 10A plug & lead fitted
DANGEROUS VOLTAGE
Some procedures in this manual require the power to the equipment to be turned off and
isolated. Turn the power OFF at the power point and unplug the power supply lead by the plug
body. If the power point is not readily accessible turn the equipment off at the isolation switch
or the circuit breaker in the switchboard. Attach a yellow “CAUTION-DO NOT OPERATE” tag.
This must be performed where relevant unless the procedures specify otherwise.
FAILURE TO DO SO MAY RESULT IN ELECTRIC SHOCK.
WARNING
Notes:
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a
hazard. Please contact Stoddart for parts and we will advise how to do this in order to avoid any electrical hazard
• The power cable should be dry and/or isolated from moisture or water
Electrical Connection
Information
Warning
FLAMMABLE GAS
R600a
SYSTEM CHARGED WITH FLAMMABLE REFRIGERANT
AND MUST BE SERVICED BY A QUALIFIED TECHNICIAN
The unit is supplied with a condensate burn-off tray. No additional drainage or plumbing is required.
Plumbing

Page 10
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Specification
General Drawing
VCC1.SCW / VCC1.GCW
Specifications
Model VCC1.SCW
W x D x H (mm) 450 x 800 x 845
Weight 113kg
Capacity 60 Litres
Operation -22°C to +15°C
Refrigerant R600a
Climate Class 4
Max Ambient 40°C
Power 220 - 240V
10A plug & lead
Specifications
Model VCC1.GCW
W x D x H (mm) 450 x 800 x 900
Weight 113kg
Capacity 60 Litres
Operation -22°C to +15°C
Refrigerant R600a
Climate Class 4
Max Ambient 40°C
Power 220 - 240V
10A plug & lead
728mm
drawer opening
560mm
tub depth
350mm
max fill height
800mm deep
Variable height
450mm wide
300mm
tub width

Page 11
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Operation
Initial Start-up & Operation
Initial Start Up
• Before switching ON the unit, ensure the unit is installed correctly
• Once switched ON, check that the air is flowing within the unit
• After 45 minutes check the cabinet temperature has reached 3°C
• Leave the unit to operate for 1-2 hours to remove any fumes or odours
• Clean the whole unit before placing in product
• A helpful video tutorial for the Adande controller can be viewed using the QR Code:
Food Temperature
• Ensure the unit is maintaining temperature is between -22°C - 15°C
• Ensure the drawers are CLOSED when not loading to maintain temperature
Loading Restrictions
• Drawer must not be filled past the MAX fill line
Controller
Set Temperature/Scroll Menu
Decrease Temperature/Manual Defrost
Increase Temperature
Manual Defrost

Page 12
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Temperature adjustment
Locking and Unlocking the Display Panel
1. Press and hold the “set temperature” button, this will display the current
set point
1. Press and hold the “set temperature” button six times until the LOC
parameter is displayed
2. Press and hold the “set temperature” button, this will display the current
set point
3. Adjust this parameter simply keep the set temperature button held down
and press the +/– button to change from YES to NO
4. Release all buttons. The temperature is now set
2. Adjust the set point by holding the “set temperature” button and press
the +/- buttons until desired set point is displayed
3. Release all buttons. The temperature is now set
Operation

Page 13
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Operation
Defrost
Drawer Alarm
Error Alarm
The refrigeration system automatically defrosts.
If a manual defrost is required:
1. Press the “manual defrost” button on the control panel for 3 seconds
During a defrost “DEF” will show up on the display panel. Once defrost
has finished “REC” (recovery) will be displayed until the unit reaches its
set point
If the drawer is open for more than 3 minutes, the Drawer Open alarm will be
triggered, an audible alarm will sound and “DO” will flash on the display panel.
When the alarm has been activated, the Adande®drawer will alarm both
visually and audibly.
To silence the audible alarm, press ANY button on the display, or close the
drawer. The alarm light and flashing display will continue to show until the
drawer has been fully closed.
If display reads “E1” or “E2”, a temperature probe has failed, contact the
Stoddart service department.
The Adande®drawer will operate with a 5 minute on / 5 minute off cycle in the
event of an “E1” failure. This will help to maintain the stored product at a safe
temperature, but precise temperature control will be lost. “E2” will only affect
defrosts, and these will be timed to maintain operation of the unit. Contact the
Stoddart service department, as soon as possible for either fault.
Note: there is no cooling to the insulated container when the drawer is open

Page 14
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Operation
Temperature Alarm
If “HI” should appear on the display, the drawer temperature has exceeded
its set point by 7°C and product core temperature should be checked. This
alarm may also be triggered if the Adande® drawer has recently been turned
on loaded with warm product or left open for a long period of time. If the
temperature does not return to the set point temperature, contact the Stoddart
service department.
If “LO” should appear on the display, the drawer temperature has fallen below
its set point by 7°C and product core temperature should be checked. This
alarm may also be triggered if the Adande® drawer’s temperature set point
has recently been increased. If the temperature does not return to the set point
temperature, contact the Stoddart service department.
After Service - Information
• The unit should NOT be turned OFF after service
• The unit will maintain set temperature after service
• Switch OFF lights and door heaters to minimise power. Ensure all doors are closed
After Service - Storage
• Products can either be stored in the unit or placed in night storage. Do NOT place warm items in the unit to chill over night
• All storage of product should comply with local health standards and regulations

Page 15
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Cleaning and Maintenance
• Cleaning is recommended for health and safety purposes and to prolong the life of the unit
• DO NOT use abrasive pads or cleaners on the stainless steel or any other metal parts of the unit
• DO NOT use industrial chemical cleaners, caustic based cleaners or bleaches and bleaching agents, as many will damage the metals
and plastics used on this unit
• DO NOT remove any screws and/or panels for cleaning (unless directed)
• This unit is NOT waterproof, DO NOT hose, DO NOT pour water directly onto the unit, DO NOT immerse in water
• Stainless steel exhibits good resistance to corrosion however, if not properly maintained stainless steel can rust and/or corrode
• Any sign of mild rust and/or corrosion should be thoroughly cleaned with warm soapy water and dried as soon as possible
• NEVER use abrasive pads or cleaners for cleaning
• All metal surfaces should be checked while cleaning for damage, scuffs or scrapes as these can lead to rust and further damage to the
product
• Mild rust and/or corrosion can be treated with a commercial cleaning agent that contains citric/oxalic/nitric/phosphoric acid.
DO NOT use cleaning agents with chlorides or other harsh chemicals as this can cause corrosion.
After treatment, wash with warm (not hot) soapy water and dry thoroughly
• Thoroughly wipe the surfaces dry after cleaning. DO NOT let water pool on the unit. Check crevices and folds for pooling
• When using, ensure all liquids and moisture is cleaned up straight away.
Food liquids such as juices from vegetables and fruits should not be left on preparation surfaces
• DO NOT leave items on the stainless steel such as cutting boards, rubber mats and bottles
• To protect the polish, stainless steel should be dried by wiping a dry soft cloth in the same direction as grained polished finish
• For NON-food contact surfaces, a light oil can be wiped on the surfaces with a cloth to enhance the stainless steel surface.
Wipe in the direction of the grain
• Some commercial stainless steel cleaners can leave residue or film on the metal; this may trap fine particles of food on the surface,
thus deeming the surfaces not food safe
IMPORTANT
Threaded fasteners can loosen in service.
Regular inspection and adjustment
should be carried out as required
WARNING
This unit is NOT waterproof, DO NOT
hose. DO NOT pour water directly onto
the unit. DO NOT immerse in water
IMPORTANT
Some commercial stainless steel
cleaners leave residue or film on the
metal that may entrap fine particles of
food, deeming the surface not
FOOD SAFE
WARNING
This unit includes refrigeration
components.
Cold surfaces can burn DO NOT touch
these surfaces
Cleaning
General Information
Corrosion Protection
Surface Finish

Page 16
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Cleaning and Maintenance
Cleaning Schedule
• It is recommended that cleaning should be performed at minimum weekly or in accordance with local codes.
• The airflow through the Adande drawer is designed to deposit grease and dirt on the outside surface of the insulated container and
internal surfaces of the drawer housing.
• The insulated container must be removed from the drawer to clean these surfaces
Internal / External Surfaces
1. Isolate the unit from the power supply
2. Clean the heated seal using a clean cloth dampened (not wet) with clean warm soapy water
3. Always remove any contents from the containers before lifting from the supports.
4. Clean the insulated container with an anti-bacterial cleanser.
5. Brush any loose dirt from the condenser situated inside at the back of the drawer cavity
6. Clean the steel surfaces with an anti-bacterial cleaner, with the active ingredient that
confers its antiseptic property being chloroxylenol (C8H9ClO), comprising of 4.8% of the total
admixture.
7. Do not use steel pads, wire brushes, scrapers or chloride cleaners to clean the stainless steel,
some parts have painted surfaces, these should be cleaned with a mild soap solution as
previously instructed
1. Use a vacuum and/or brush to remove dust and debris from the filter and all ventilation panels
2. Do NOT use water or a hose to remove dust or debris
Ventilation Panels
Heated Seal
Condenser
Materials Required
• Stainless Cleaner
• Non Abrasive Cleaning pad
• Clean Sanitised Cloth
• Paper Towel
• Warm Soapy Water
• Appropriate PPE (Personal Protective Equipment)
IMPORTANT
Always isolate the appliance before doing any cleaning or
maintenance. The dirt and grease deposits should be removed
weekly using the following procedures:

Page 17
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Cleaning and Maintenance
Troubleshooting
(O) = Operator (T) = Technician Task
WARNING
Technician tasks are only to be completed by qualied service
people. Check faults before calling service technician.
Troubleshooting Procedures
• If any faults/issues occur with the unit, follow the below troubleshooting procedures
• If the troubleshooting procedures do not correct the problem, contact the Stoddart Service Department
Problem Possible Causes Task Possible Corrective Action
Unit does not operate/start
The main switch of the unit is OFF O Turn the main switch ON
Condenser unit is OFF O Turn ON condenser unit
Electrical wiring damaged T Replace / Fix electrical wiring
Condenser unit broken T Replace / Fix refrigeration unit
Faulty electronic controller T Replace controller
Unit is too warm
Warm items in unit O "Pre-chill / Remove items / Wait 30min for items to chill"
Air not circulating O Remove some items / Clear air vents
Too many items in the unit (overloaded) O Remove some items
Defrost cycle is ON / just finished O Wait 30min for cabinet to cool
Temperature probe broken / disabled T Replace / Enable probe
Set point temperature too high T Adjust the set point temperature
Temperature probe damaged T Replace temperature probe
Undercharge T Add refrigerant
Faulty electronic controller T Replace controller
Direct sunlight O Block sunlight, window shades
Unit is too cold
Temperature probe broken/disabled T Replace / Enable probe
Faulty electronic controller T Replace controller
Continuous cycle setting ON (integral units) T Turn OFF continuous cycle
Set point temperature too low T Adjust set point temperature
Disposal
If the appliance is no longer of use, please dispose in an environmentally correct way.
Contact a qualified service technician:
• To recover all refrigerant
• To remove the compressor or remove the oil from the compressor
The distributor / retailer can contact their local metal recycling centre to collect the remaining cabinet, shelves, etc.
There may be special requirements or conditions. Information on the disposal of refrigeration appliances can be obtained from:
• Your supplier
• Government authorities (The local council, Ministry of the Environment, etc.)
Discarded electric appliances are recyclable and should not be discarded in the domestic waste! Please actively support us in
conserving resources and protecting the environment by returning this appliance to the collection centres (if available).
Dispose of packaging in accordance to applicable legal regulations.

Page 18
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Declaration of Conformity
ADANDE®REFRIGERATION
45 Pinbush Road, South Lowestoft Industrial Estate
Lowestoft, Suffolk, United Kingdom, NR33 7NL
Product: Professional Refrigerated open deck display cabinet
Serial nos.: 5000-10000
We declare that the following product models:
VCS R2 V1
VCR R2 V1
VCM R2 V1
VLS R2 V1
VCC R2 V1
HCS R2 V1; HCR R2 V1;
VCM-BC R1 V1; VCS-T R2 V1; VCM-T R2 V1;
Comply with the requirements of the European Directives:
The Machinery Directive 2006/42/EC
The Low Voltage Directive 2014/35/EU
The Electromagnetic Compatibility Directive 2014/30/EU
The Pressure Equipment Directive 2014/68/EU
The Food Equipment Regulation (EC) 2004/1935
The Ecodesign Regulation (EU) 2015/1095
The Energy Labelling Regulation (EU) 2015/1094
The Fluorinated Greenhouse gases Regulation (EU) 517/2014
The Restriction of use of Hazardous Substances (RoHS2) Directive 2011/65/EU
In accordance with the transposed harmonised European Standards:
EN ISO 12100:2010 Safety of machinery. General principles for design. Risk assessment and risk reduction
EN ISO 13857:2008 Safety of machinery. Safety distances to prevent hazard zones being reached by upper and lower limbs
EN 60204-1:2006+A1:2009 Safety of machinery –Electrical equipment of machines –Part 1: General requirements
EN 378-1:2016 Refrigerating systems and heat pumps. Safety and environmental requirements. Basic requirements, definitions, classification
and selection criteria
EN 61000-6-1:2007 Electromagnetic compatibility (EMC). Generic standards. Immunity for residential, commercial and light-industrial
environments
EN 61000-6-3:2007+A1:2011 Electromagnetic compatibility (EMC). Generic standards. Emission standard for residential, commercial and light-
industrial environments
EN IEC 60335-1:2012 + A11:2014 Household and similar electrical appliances –Part 1: General requirements
EN IEC 60335-2-89:2010 + A1:2016 Household and Similar Electrical Appliances –Safety –Part 2–89: Particular requirements for commercial
refrigerating appliances with incorporated or remote refrigerant condensing unit or compressor
EN 50581:2012 Technical documentation for the assessment of electrical and electronic products with respect to the restriction of
hazardous substances
EN ISO 1459 with the ergonomic principles of EN614-1 and EN 614-2
Signed for and on behalf of: ADANDE®REFRIGERATION
Place of issue: Lowestoft
Date of issue: 03/03/20
Name: Ian Wood
Position: Managing Director
Signature:
The technical file for this machinery will be prepared on demand by Adande Refrigeration

www.stoddart.com.au
International
Sales
Tel: [phone]
Email: [email protected]
Service / Spare Parts
Tel: [phone]
Email: [email protected]
Email: [email protected]
www.stoddart.co.nz
New Zealand Business Number: 6837694
New Zealand
Sales
Tel: [phone]
Email: [email protected]
Service / Spare Parts
Tel: [phone]
Email: [email protected]
Email: [email protected]
www.stoddart.com.au
Australian Business Number: 16009690251
Australia
Sales
Tel: [phone]
Email: [email protected]
Service / Spare Parts
Tel: [phone]
Email: [email protected]
Email: [email protected]
Revision Date: 28/10/2020
