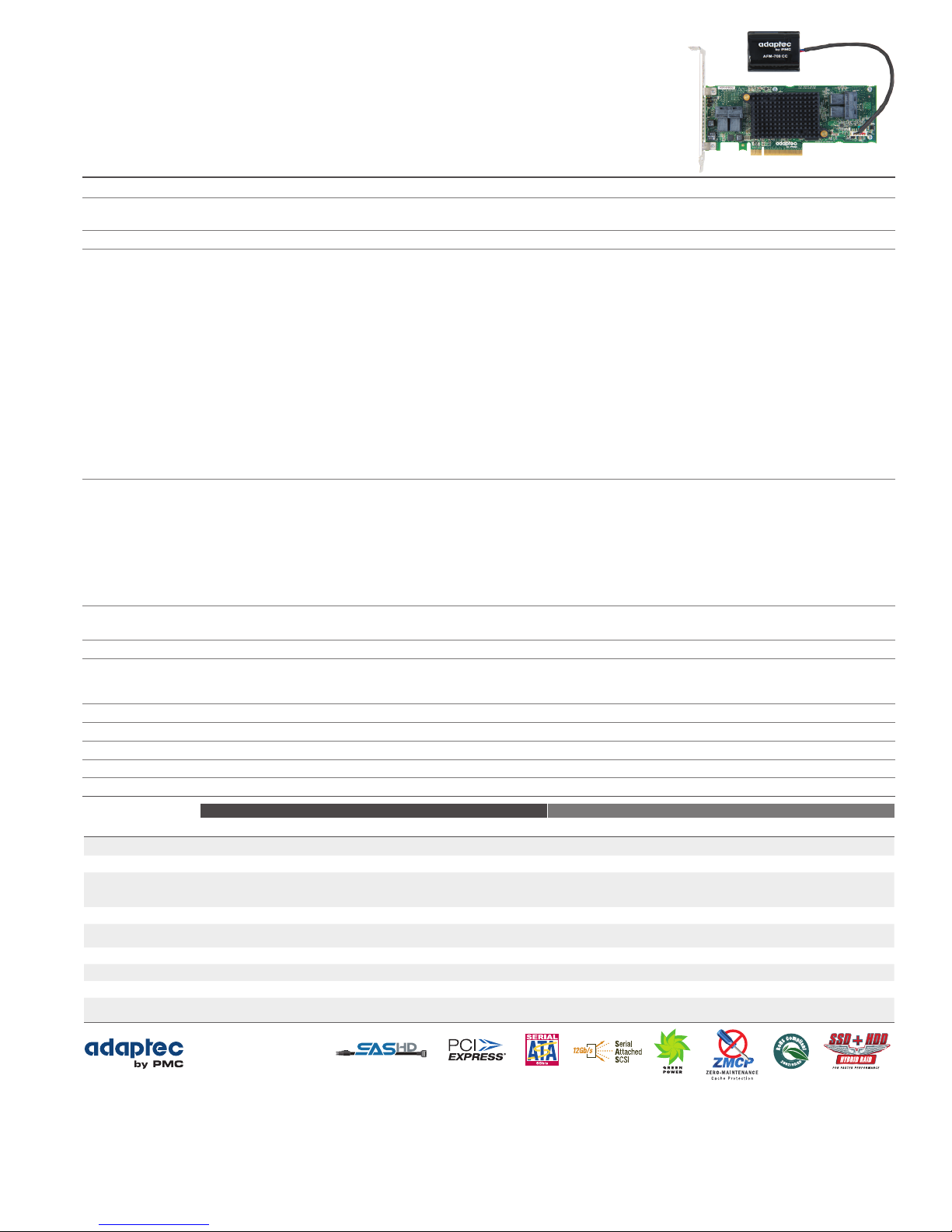

Adaptec 12Gb/s PCIe Gen3 Product Family
High Port Count SAS/SATA RAID Adapters
(81605ZQ, 8885Q, 8885, 8805)
www.adaptec.com
Data Sheet | Series 8 RAID
New maxCache Plus Introduces Tiering Technology
The ability to assign different categories of data to different types of storage media is
essential for enhancing data access (performance) while reducing overall storage costs.
Adaptec maxCache Plus introduces tiering that provides virtualized pools of storage
using any block level storage device. Series 8Q products with maxCache Plus caching
and tiering are the most optimized server storage solutions in the market.
Integrated Cache Protection
The Series 8 family continues Adaptec by PMC’s battery-free portfolio. Series 8 adapters
can be combined with the AFM-700 ash-based cache protection module (sold separately)
to enable instant cache protection. New with Series 8, the Adaptec 81605ZQ has ash
backup embedded on the board, eliminating the need for a daughterboard and further
enabling Adaptec by PMC customers to do more with less.
Advanced Data Protection and Ease of Use
Advanced data protection and ease of use have not been forgotten in Series 8. Adaptec
RAID Code (ARC) delivers maximum reliability with an industry-leading feature set,
including all of the RAID levels the industry has come to expect, plus unique features like
Flexible Conguration modes for the adapter, Hybrid RAID, and Optimized Disk Utilization
(ODU) where no available space is wasted. Adaptec’s maxView provides an HTML5 web
interface, which can be used in standard desktops and mobile browsers, for all storage
conguration and management needs.
PMC’s PM8063 RAID-on-Chip (ROC), x8 PCIe Gen3 interface
with 12Gb/s SAS ports to enable a new generation of performance
16 native SAS/SATA ports in a LP/MD2 design
12Gb/s throughput with mini SAS HD connectors
>700K IOPS; 6.6GB/s sequential reads, 5.2GB/s sequential writes
2
3
4
1
1
3
4
2
Maximum Performance for 12Gb/s Ecosystems
Data center, IT, and general consumer server environments have a broad range of requirements — from basic connectivity to extreme data
storage capacities. The effectiveness at which their data is accessed and protected is crucial to their ultimate success. Adaptec 12Gb/s PCIe
Gen3 Series 8 RAID adapters, coupled with 12Gb/s SSDs, provide maximum read/write bandwidth and IOPS for the most performance-hungry
transactional and database applications.
The Series 8 family features:
PMC-Sierra, Inc.
1380 Bordeaux Dr.
Sunnyvale, CA 94089 USA
Tel: +1 (408) 239-8000
World Wide Web: www.adaptec.com
Pre-Sales Support: US and Canada: 1 (800) 442-7274 or (408) 957-7274 or [email protected]
UK: +44 1276 854 528 or [email protected]
Australia: +61-2-90116787
Germany: +49-89-45640621 or [email protected]
Singapore: +65-92351044
© Copyright PMC-Sierra, Inc. 2013. All rights reserved. PMC, PMC-SIERRA and Adaptec are registered trademarks of PMC-Sierra, Inc.“Adaptec by PMC” is a trademark of PMC-Sierra, Inc. Other product and company names mentioned
herein may be trademarks of their respective owners. For a complete list of PMC-Sierra trademarks, see www.pmc-sierra.com/legal. DS_Series8_112113_US Information subject to change without notice.
Benets Ideal for 12Gb/s performance-hungry server and workstation platforms, without compromising proven Adaptec reliability
Key Differentiators — maxCache Plus caching/tiering software (Series 8Q only)
— Third generation ZMCP; AFM-700 (optional for Series 8)
— LP/MD2 form factor for up to 16 native SAS/SATA ports
Customer Needs — High I/O transaction and high bandwidth processing; solutions that reduce energy consumption and maintenance costs.
Key Software Features — maxCache Plus caching/tiering software (Series 8Q)
— Flexible Conguration: HBA Mode & Auto Volume Mode
for automatic deployment
— Optimized Disk Utilization (multiple arrays per disk)
— Supports up to 256 SATA or SAS devices using SAS expanders
— Support for native 4K sector SAS and SATA devices in addition
to 512 byte sector devices
— Hybrid RAID 1 & 10
— Quick initialization
— Online Capacity Expansion
— Copyback Hot Spare
— Dynamic caching algorithm
— Native Command Queuing (NCQ)
— Background initialization
— Hot-plug drive support
— RAID Level Migration
— Hot spares - global, dedicated, and pooled
— Automatic/manual rebuild of hot spares
— SES and SAF-TE enclosure management
— Congurable stripe size
— S.M.A.R.T. support
— Multiple arrays per disk drive
— Dynamic sector repair
— Staggered drive spin-up
— Bootable array support
— Support for Tape Devices, Autoloaders
— MSI-X support for all device drivers for all supported
Operating Systems
— Secure boot support for the uEFI host BIOS
— USB image available on start.adaptec.com to boot maxView
GUI from any USB device for enhanced GUI-based setup and
ofine maintenance
Management Utilities Adaptec maxView Storage Manager
— Web based GUI Management Utility
— OS Support: Windows, Linux, Solaris, VMware
— Remote conguration, monitoring & notication
— Remote rmware updates
— SMI-S Support
— SMTP
ARCCONF
— Command Line Interface
— SMI-S support for VMware
Adaptec BIOS Conguration Utility (CTRL+A)
— Legacy conguration utility
— Flashable BIOS support
Adaptec uEFI BIOS Conguration Utility
— HII based conguration utility
— Flashable BIOS support
Operating Systems Microsoft Windows, Red Hat Linux, SUSE Linux, Fedora, Debian Linux, Ubuntu Linux, Sun Solaris, FreeBSD, VMware ESXi.
The latest drivers are available at start.adaptec.com
Physical Dimensions 2.535”H x 6.6”L (64mm x 167mm)
Operating Temperature 0°C to 55°C* (with 200 LFM airow, without ash); 0°C to 50°C* (with 200 LFM airow, with ash) Note: This adapter contains a powerful RAID
processor which requires adequate airow to operate reliably. Please install this card only into server or PC chassis with at least 200 LFM airow.
*Temperature measured 1 inch from RAID adapter
Operating Current 1.0A @ 3.3 VDC; 1.1A @ 12.0 VDC 8805, 8885, 8885Q; 1.5A @ 3.3 VDC; 1.0A @ 12.0 VDC 81605ZQ
Regulatory Certication CE, FCC, UL, C-tick, VCCI, KCC, CNS
Environmental Compliance RoHS
MTBF In Test Now
Warranty 3 years
Adaptec 12Gb/s PCIe Gen3 Product Family
High Port Count SAS/SATA RAID Adapters
SPECIFICATIONS
Data Sheet | Series 8 RAID
SERIES 8Q SERIES 8
ADAPTEC RAID 81605ZQ 8885Q 8885 8805
Order Part Number 2281600-R (Single) 2277100-R (Single) 2277000-R (Single) 2277500-R (Single)
RAID Levels 0,1,1E,5,6,10, 50, 60 0,1,1E,5,6,10, 50, 60 0,1,1E,5,6,10, 50, 60 0,1,1E,5,6,10, 50, 60
Form Factor
MD2- Low Prole
2.535”H x 6.6”L
(64mm x 167mm)
MD2- Low Prole
2.535”H x 6.6”L
(64mm x 167mm)
MD2-Low Prole
2.535”H x 6.6”L
(64mm x 167mm)
MD2-Low Prole
2.535”H x 6.6”L
(64mm x 167mm)
Ports 16 Internal 8 Internal/8 External 8 Internal/8 External 8 Internal
Connectors 4 X SFF-8643 2 x SFF-8643
2 x SFF-8644
2 x SFF-8643
2 x SFF-8644 2 X SFF-8643
Bus Interface 8-Lane PCIe Gen3 8-Lane PCIe Gen3 8-Lane PCIe Gen3 8-Lane PCIe Gen3
Processor PMC PM8063 PMC PM8063 PMC PM8063 PMC PM8063
Cache 1024MB 1024MB 1024MB 1024MB
Cache Protection Flash backup (embedded)
Supercap (included) AFM-700 (included) AFM-700 (optional) AFM-700 (optional)

This manual suits for next models

3
