Adaptec PC/104 User manual

PCM-3420
PC/104 Fast SCSI-2 Module

Copyright Notice
This document is copyrighted, 1997. All rights are reserved. The
original manufacturer reserves the right to make improvements to the
products described in this manual at any time without notice.
No part of this manual may be reproduced , copied , translated or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable . However, the original
manufacturer assumes no responsibility for its use , nor for any
infringements upon the rights of third parties which may result from
its use.
Acknowledgements
Adaptec , Adaptec logo, AHA, and EZ-SCSI are trademarks of
Adaptec Inc.
PC/104 and the PC/104 logo are registered trademarks of the PC/104
Consortium
Floptical is a trademark of Insite Peripherals
Windows and Windows 95 are registered trademarks of Microsoft
Corporation
Windows NT is a trademark of Microsoft Corporation
IBM, AT, OS/2 and Micro Channel are registered trademarks of
International Business Machines Corporation
Microsoft, MS-DOS, and MS are registered trademarks of Microsoft
Corporation
Novell and Netware are registered trademarks of Novell, Inc.
SCO is a registered trademark of The Santa Cruz operation, Inc.
UNIX is a registered trademark; and USL is a trademark of UNIX
system Laboratories.
All other product names or trademarks are properties of their respec-
tive owners.
2007342000ManualPCM-3420Rev.A11stEd.
Printed in Taiwan March 1997

Packing Set
Before you begin installing PCM-3420 Module, please make sure that
the following materials have been shipped :
- 1 PCM-3420 Fast SCSI-2 Host Adapter Module
-SCSI-2 FlatCable(50 Pin)
-1 PCM-3420User's Manual
-1 EZ-SCSI LITEutility disk forWindows
- 1 Manager Set utility disk for OS/2, Windows NT, Windows 95, and
Netwarev3.1x,v4.xx
- 1 Manager Set utility disk for SCO and Unixware
- 1 Adaptec 6000 Family Manager Set User’s Guide (postscript print
files) disk
If any of these items are missing or damaged, contact your distributor

or sales representative immediately.
Contents
Chapter 1 General Information ............. 1
Product Highlights ................................................................ 2
Introduction ........................................................................... 2
Features................................................................................. 3
Peripheral Device Support .................................................. 3
Specifications ........................................................................ 4
TechnicalSpecifications ........................................................... 4
Physical and Environmental Specifications .............................. 4
Board layout ........................................................................... 5
Chapter 2 Hardware Installation ............ 7
Jumpers and connectors ..................................................... 8
Locating jumpers .................................................................. 9
Locating connectors ........................................................... 10
Setting jumpers ................................................................... 11
Safety precautions ............................................................... 12
Installing PCM-3420 Module ........................................... 12
Factory default settings ...........................................................12
Jumper configuration reference ..............................................13
SCSI hard disk drive connecting ...................................... 18
Chapter 3 EZ-SCSI Quick Reference...... 19
System requirements.......................................................... 20
Quick start instructions ..................................................... 20
Windows 95 or Windows NT ..................................................20
Windows/Windows for Workgroups 3.1x ................................21
DOS ........................................................................................21
Troubleshooting Tips ......................................................... 22

SCSI Device Troubleshooting ............................................... 22
Windows95/Windows NT Troubleshooting .......................... 22
Information for DOS/Windows 3.1x users ...................... 26
Appendix A Installing PC/104 Modules 31
Appendix B Pin Assignments ............... 35
PC/104 connectors ..................................................................36
SCSI Hard Drive Connector ...................................................37
Appendix C Glossary of Technical Terms39

Chapter 1 General Information 1
1
General
Information
This chapter gives background informa-
tion on the PCM-3420.
You can find out :
l Product Highlights
l Product Features
l Compatibility
l Product Specifications
l Card Layout
CHAPTER

2PCM-3420 User's Manual
Product Highlights
lPC/104Embedded-PCModule
lSCSI-2Compatibility
lOptimized performance for DOS and Windows; support for all major
operating systems
lCustomer configuration to match specific requirements
lEconomical connection of up to seven(7) SCSI devices
lProven Adaptec quality and reliability
Introduction
The PCM-3420 host adapter offers a wide range of flexible, economical
and expandable solutions that can satisfy diverse needs in SCSI
connectivity. Based on Adpatec’s proven AIC-6360 protocol chip, the
PCM-3420 supports all major operating systems - DOS, Windows,
Windows NT, Netware, UNIX, and OS/2 that permit precise matching
of products to specific requirements, and allows rapid system-level
configurations.
The PCM-3420 is particularly well suited to easy, inexpensive connec-
tion of CD-ROM drivers as well as ideal for connecting a stack of
seven different SCSI peripheral - from hard disks and CD-ROM drives
to tape, DAT and removable-media drives.
Supporting Fast SCSI, with transfer speeds of 10 Mbytes/sec, PCM-
3420 also provides advanced features such as synchronous and
asynchronous data transfer, support for multitasking and full DMA
support.
Whatever the particular configuration, each of the PCM-3420 host
adapter can be relied on for the high levels of quality, compatibility and
reliability.

Chapter 1 General Information 3
Features
lAdaptec’s proven AIC-6360 16-bit fast SCSI protocol chip.
lFully Adaptec AHA-1520A hardware compatible.
lFullyAdaptec AHA-1510A/1520A/1522Asoftware compatible.
lSCSI-2 and Fast SCSI-2 devices are supported.
lASW SCSI BIOS provided, which supports boot capability.
lSynchronous and Asynchronous data transfer modes are supported.
l128 Bytes FIFO to speed up the data transfer rate to 10MB/sec.
lComplete software drivers and utilities included.
lI/O configuration by jumpers.
lActive termination, easy to setting by JP2.
lLine busy status LED indicator.
lSinglepower supply:+5V.
Peripheral Device Support
lHardDisk Drivers: Conner, Fujitsu,Hewlett-Packard, Hitachi,IBM, Maxtor,
Micropolis, Quantum, Segate.
lQIC Tape Drivers: Archive, Cipher, Sankyo, Tallgrass, Tandberg, Teac,
Tecmar, Wangtek.
lDATDrivers: Archive,Exabyte, Gigatrend,Hewlett-Packard, JVC,Maynard,
R-Byte, Sony, Tecmar, WangDat, Wangtek.
lCD-ROMDrivers: Chinon, Denon,Hitachi, IBM, LMSI,NEC, Panasonic,
Pioneer, Sony, Texel,Toshiba, Goldstar.
lFlopticalDrivers: Insite, Iomega.
lWORMDrivers: ATG,Cherokee, ISI, Kodak, LMS I, Maxtor, Mitsubishi,
Panasonic, Pioneer, Richo, Sony, Toshiba.
lMagneto-Optical Drivers: Cannon, Hewlett-Packard, IBM, Matsushita,
Maxoptix, Mitsubishi, Most, Panasonic, Ricoh, Sharp, Sony.
lRemovableMedia Drivers: Iomega, Ricoh, SyQuest, SyDOS.
lJukeBoxes:Hewlett-Packard, Panasonic,LMSI.

4PCM-3420 User's Manual
lScanners: Cannon, Hewlett-Packard, Panasonic, Ricoh.
The PCM-3420 is designed to be compatible with devices that comply with
SCSI-2 standard, including those not on this list. Not all models from a given
manufacturer have been tested.
Specifications
Technical Specifications
ComputerBUS:PC/104 (ISA) Standard
InterfaceProtocol: PIO
DeviceProtocol:SCSI-2
Fast SCSI Transfer Rate: Up to 10.0 Mbytes/sec
Floppy Drive Support: None
Advanced SCSI Features:
AdvancedSCSI ProgrammingInterface(APSI) compliant
- Disconnect/reconnect
- Synchronous and Asynchronous data transfer
ElectricalTerminations : Single-ended,Active
BusWidth: 16-bit
Physical and Environmental Specifications
Length: 3.6 inches
Width: 3.8 inches
Connector: 50-pin , flat cable
OperatingTemperature: 32 to 140 F (0º to 60 ºC)
Humidity (operating): 5% to 95%, Non-Condensing
PowerRequirements: 5.25V to 4.75V toleranceon power supply

Chapter 1 General Information 5
Board layout
AIC-6360

6PCM-3420 User's Manual

Chapter 2 Hardware Installation 7
2
Hardware
Installation
This chapter tells how to set up the PCM-
3420 hardware , including instructions on
setting jumpers and connecting SCSI
devices.
Be sure to read all the safety precautions
before you begin the installation proce-
dure.
CHAPTER

8PCM-3420 User's Manual
Jumpers and Connectors
Connectors on the board link it to SCSI devices and other PC/104
modules. In addition, the board has a number of jumpers that allow
you to configure the SCSI application to suit your systems.
The table below lists the function of each board jumpers and connec-
tors:
Jumpers
Label Function
JP1 LED Indicator Location
JP2 Termination Select
JP3 Set DMA Channel Select
JP4 Set IRQ Channel Select
JP5 Set PCM-3420 SCSI ID, IRQ, DMA, Parity
Checking
JP6 Set PCM-3420 Operation Mode
JP7 Set Port Address
JP8 Set PCM-3420 BIOS Address
JP9 Set PCM-3420 BIOS Address
JP10 Set PCM-3420 BIOS Function
Connectors
Label Function
J1 PC/104 ISA-bus expansion
J2 PC/104 ISA-bus expansion

Chapter 2 Hardware Installation 9
CN1 SCSI-2 connector
JP8
BIOS
Addr.
JP9
BIOS
Addr.
JP10
BIOS
Func.
JP6
Operation
Mode JP1 LED
JP7
Port
Addr.
JP2
Termination
Select
JP4
IRQ
Channel
JP5
SCSIID,DMA
IRQ,Parity
JP3
DMA
Channel
SCSI-2CN1
PC/104 J1,J2
AIC-6360

10 PCM-3420 User's Manual

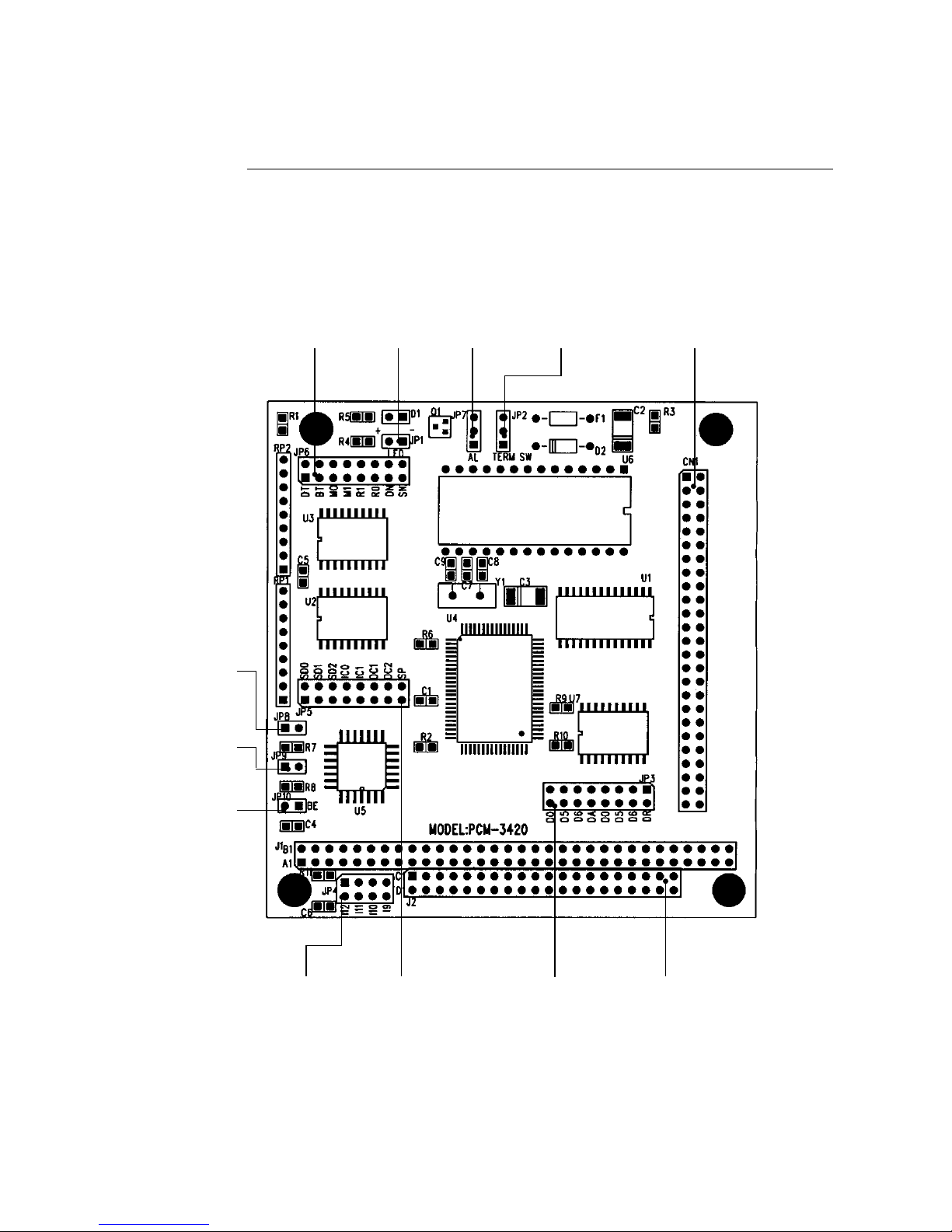

Locating Jumpers & Connectors
Setting Jumpers
You configure your PCM-3420 card to match the needs of your
application by setting jumpers. Jumpers are the simplest kind of
electric switch. They consist of two metal pins and a small metal clip
(often protected by a plastic cover) that slides over the pins to
connect them. To close” a jumper you connect the pins with the clip.
To open a jumper you remove the clip. Sometimes a jumper will have
three pins, labeled 1, 2, and 3. In this case you would connect either
pins 1 and 2 or 2 and 3.

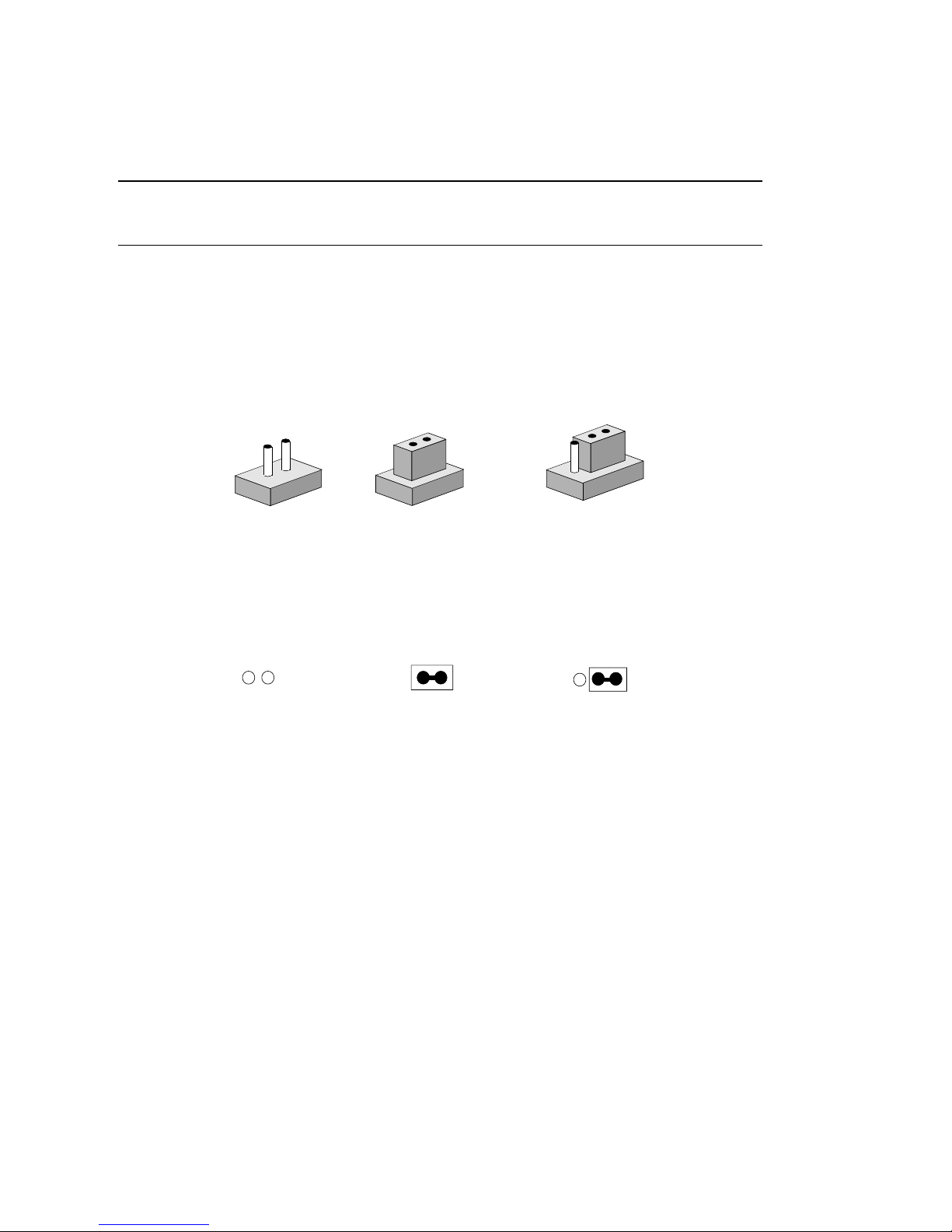

The jumper settings are schematically depicted as follows:
A pair of needle-nose pliers may be helpful when working with
jumpers.
If you have any doubts about the best hardware configuration for
your PCM-3420 application, contact your local distributor or sales
representative before you make any changes.
13
2
Open Closed Closed 2-3
Open Closed Closed 2-3
1 2 3

Chapter 2 Hardware Installation 11
Generally, you simply need a standard cable to make most connec-
tions.
Safety Precautions
Always completely disconnect the power cord from your
chassis whenever you are working on it. Do not make connec-
tions while the power is on because sensitive electronic
components can be damaged by the sudden rush of power .
Only experienced electronics personnel should open the PC
chassis.
Always ground yourself to remove any static charge before
touching the card. Modern electronic devices are very sensi-
tive to static electric charges. Use a grounding wrist strap at all
times. Place all electronic components on a static-dissipative
surface or in a static-shielded bag when they are not in the
chassis.
Installing PCM-3420 Module
Factory Default Settings
PCM-3420 16-bit fast SCSI-2 host adapter are factory configured to
operate in most PC/104 (ISA) computer systems. The factory default
settings are:
l SCSI Disconnection Enabled
l SCSIID 7
l SCSIParity Enabled
l Terminators Installed
l Synchronous Negotiation Enabled
l Interrupt Channel 11
l ISA Port Address 340h
l ISA BIOS Address DC000h,Enabled
Warning !
Caution !

12 PCM-3420 User's Manual
l Data Transfer Mode ProgrammedI/O
l SCSI Floppy/Floptical Disabled
l Fast SCSI Disabled
l > 1 Gbyte Translation Disabled
In most cases, you will not need to change these settings.
Jumper Configuration Reference
Nine jumper blocks on the PCM-3420 host adapter are used to config-
ure user-selectable options. The following description shows the
proper jumper settings for their respective applications.
Jumper Block JP2 :
This jumper is used to set the terminator installed or uninstalled.
JP2* 2-3 Close = Terminator Installed
JP2 1-2 Close = Terminator Uninstalled
(* means default setting)
The SCSI bus must be terminated correctly to ensure proper operation
of the PCM-3420 host adapter. Terminators must be installed in the first
and last devices on the SCSI bus and removed from all other SCSI
devices.
Jumper Block JP3 :
This jumper block is used only when DMA is enabled on jumper block
JP6 jumper DT (data transfer mode).
Set DMA Channel 0 = D0 & D0 Close (Others Open)
Set DMA Channel 5 = D5 & D5 Close (Others Open)
Set DMA Channel 6 = D6 & D6 Close (Others Open)
Set DMA Channel 7 = DR & DA Close (Others Open)
You must also select the same interrupt channel with the DC jumpers
on jumper block 5.

Chapter 2 Hardware Installation 13
Jumper Block JP4 :
This jumper block is used to set IRQ channel. You must also set the
corresponding IC jumper on jumper block 5.
SetIRQ12 =Jumper12 Close , Others Open
SetIRQ11 * = Jumper11 Close , Others Open
SetIRQ10 =Jumper10 Close , Others Open
SetIRQ9 = Jumper 9 Close , Others Open (Not
recommendedwith Windows 3.x)
(* means default setting)
Jumper Block JP5 :
This jumper block provides four functions eight jumper to set the
PCM-3420 host adapter configuration , including SCSI ID , IRQ
channel , DMA channel , and parity checking.
JP5 Set PCM-3420 host adapter SCSI ID :
ID SD0 SD1 SD2
0 Close Close Close
1 Open Close Close
2 Close Open Close
3 Open Open Close
4 Close Close Open
5 Open Close Open
6 Close Open Open
7 * Open Open Open
(* means default setting)
JP5 Set PCM-3420 host adapter IRQ Channel :
IRQ IC0 IC1
9 Close Close (JP4/IRQ 9 also set close)

14 PCM-3420 User's Manual
10 Open Close (JP4/IRQ10 also set close)
11* Close Open (JP4/IRQ11 also set close)
12 Open Open (JP4/IRQ12 also set close)
(* means default setting)
Jumper Block JP4 also needs to set to the same IRQ channel.
JP5 Set PCM-3420 DMA Channel :
This setting is valid only if DMA is enabled on JP6 (DT - data transfer
mode). (Jumper Block JP3 must also be the same DMA channel)
DMA DC1 DC2
0 * Close Close (JP3/DMA0 also set close)
5 Open Close (JP3/DMA5 also set close)
6 Close Open (JP3/DMA6 also set close)
7 Open Open (JP3/DMA7 also set close)
(* means default setting)
JP5 Enable/Disable PCM-3420 Parity Checking :
