SCSI Card 2930CU
Installation Guide

2
This Installation Guide describes how to install the Adaptec SCSI Card
2930CU. It also describes how to install and connect your internal and
external SCSI devices.
For instructions on how to install the SCSI card driver, refer to the SCSI
Card 2930CU User’s Guide on the SCSI Card 2930 CD.
Kit Contents
Your SCSI Card 2930 package includes:
■SCSI Card 2930CU adapter
■Standard 50-pin internal SCSI cable
■SCSI Card 2930 CD, containing drivers, online documentation, and
other useful tools and information
■Adaptec SCSI Card 2930CU Installation Guide
If you plan to connect more than two internal SCSI devices, or one or
more external SCSI devices, to your computer, you will need additional
cables not included in this package. Refer to the SCSI Card 2930CU User’s
Guide on the SCSI Card 2930 CD for information on obtaining cables.

3
Installing the SCSI Card 2930CU
To install the SCSI Card 2930CU
1Ground yourself by touching the chassis.
2Turn off the computer and disconnect the power cord.
3Open the computer cabinet, following the manufacturer’s
instructions.
4Find an unused PCI expansion slot (typically white or ivory) in the
computer. Unscrew the expansion slot cover screw and remove the
slot cover to provide an opening, as shown. Save the slot cover screw
for use in Step 7.
PCI expansion slots
Expansion slot
cover

4
5Remove the SCSI Card 2930CU from its antistatic packaging.
Note: Always handle the SCSI card by its edges or metal bracket.
Do not touch the gold connector or any components on the card.
6Place the SCSI Card 2930CU in the slot and press it down firmly until
the connector fingers are fully seated.
7Secure the card bracket with the screw you removed in Step 4.
Do not close the computer cabinet or reconnect the power cord yet.
Continue with the next section, Installing Internal SCSI Devices.
Card bracket

5
Installing Internal SCSI Devices
If you are connecting only external devices, skip to Connecting External
SCSI Devices on page 8.
To install internal SCSI devices
1Ensure that each internal SCSI device has a unique SCSI ID number
between 0 and 6. Refer to the SCSI device’s documentation for
instructions on setting the SCSI ID.
Note: Avoid touching the device connector pins.
2Mount each SCSI device in an available drive bay inside your
computer. Refer to the documentation for your computer and SCSI
devices for installation instructions.
Note: If space is limited inside your computer, you may have
difficulty connecting SCSI and power supply cables to your
SCSI devices once they’re installed. Consider completing these
connections (starting with Step 3) before installing the devices.

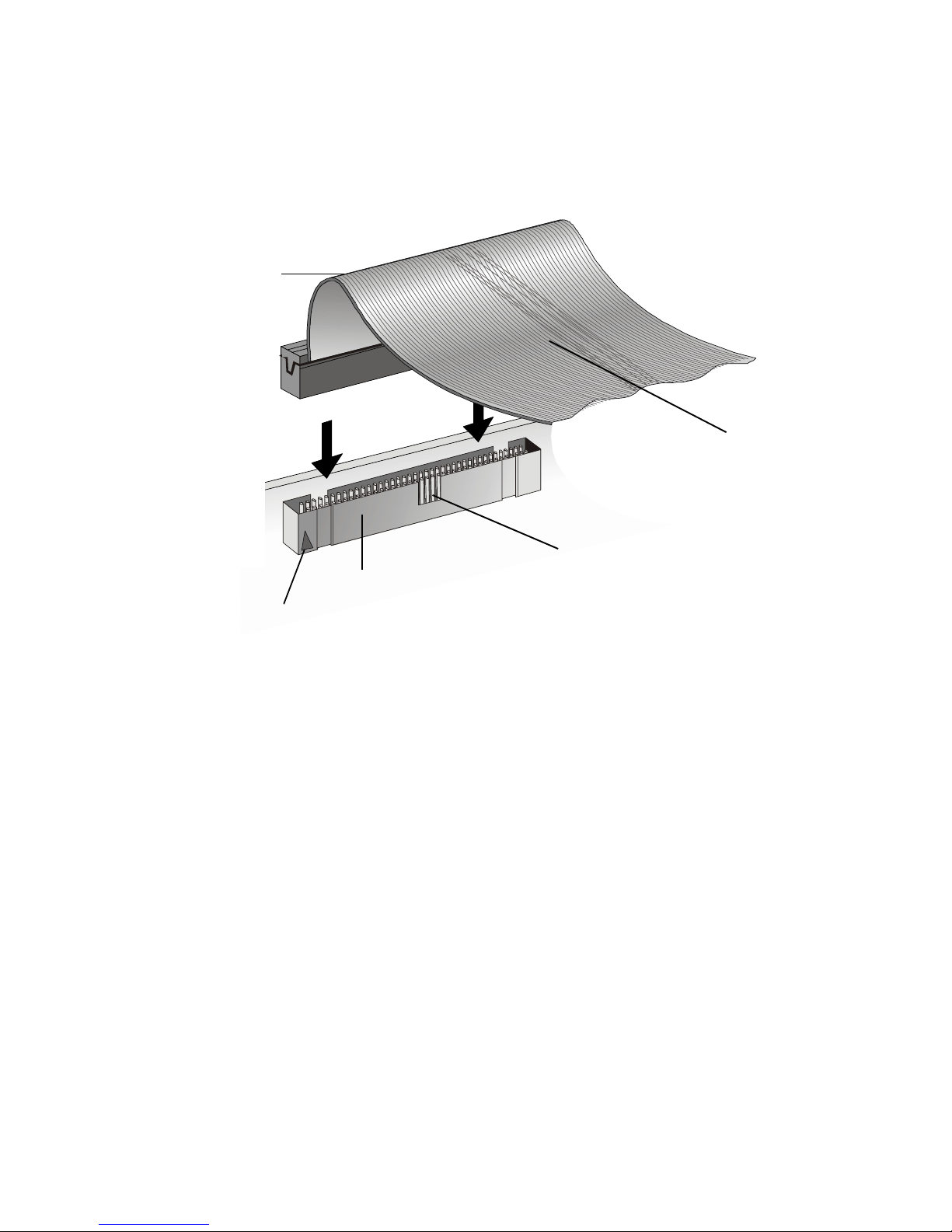

3Connect one end of the 50-pin internal SCSI cable to the SCSI
connector on the card, as shown in the next figure. Ensure that the
connector fits snugly.
Make sure Pin 1 on the cable aligns with Pin 1 on the internal SCSI
device connector. Pin 1 is usually designated by a “1” or small
triangle.

6
4Connect the other end of the cable to the internal SCSI device.
5If you are installing one internal SCSI device only, you must
terminate this device, then skip to Step 8 on page 7.
Refer to your SCSI device’s documentation for termination
instructions.
Blue or red stripe
denotes Pin 1
Pin 1 marking
Internal SCSI
connector
Key
Standard 50-pin
internal SCSI cable
(included in kit)

7

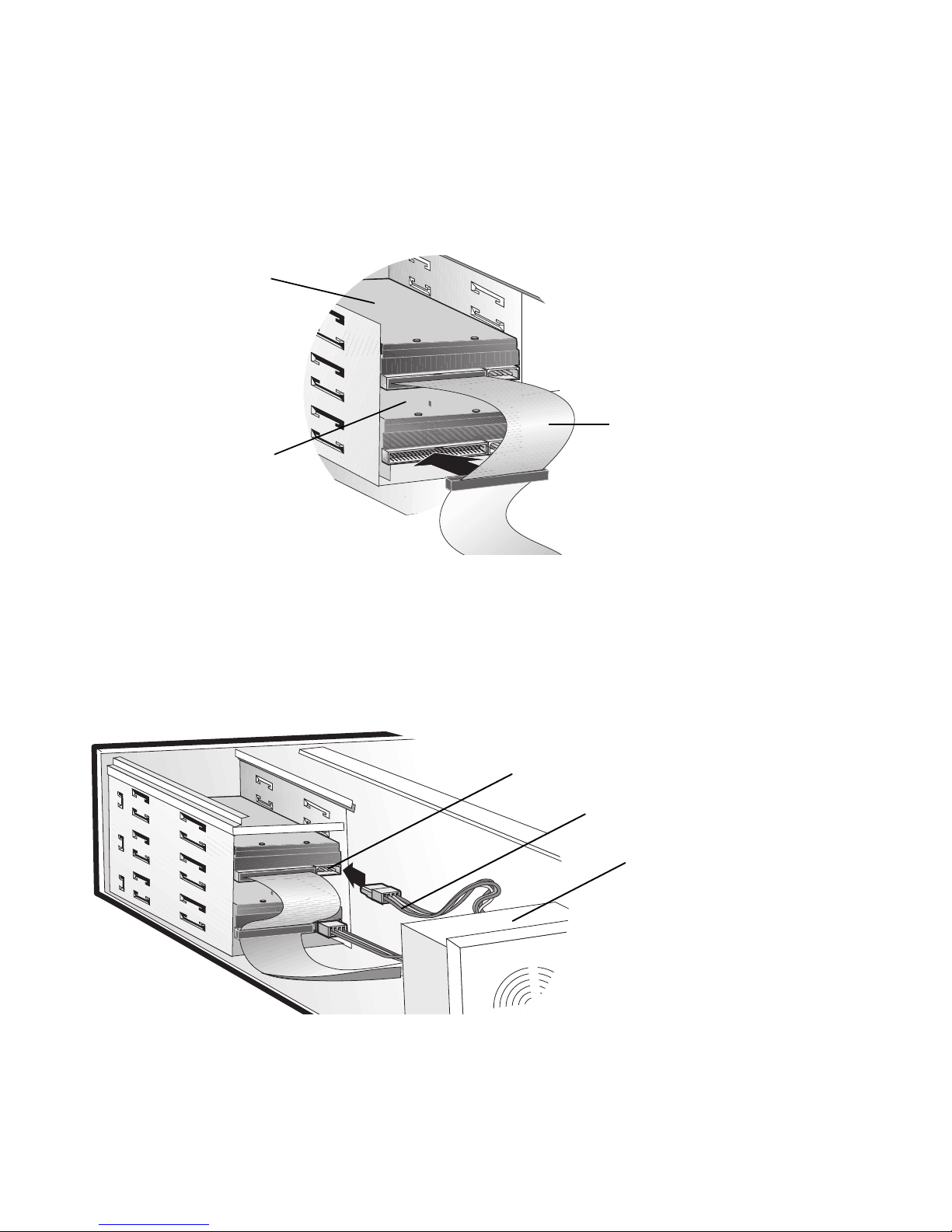

6Connect any other internal SCSI devices, as shown.
7Terminate the device that is connected to the end of the cable. Refer
to the SCSI device’s documentation for instructions.
8Connect a power cable from your computer’s power supply to the
power input connector on the SCSI device, as shown. Repeat this
step for each SCSI device.
Terminated internal
SCSI device
Unterminated internal
SCSI device
Internal SCSI cable
Power input connector
Power cable
Power supply

8
9Close the computer cabinet. Do not reconnect the power cord yet.
If you are also connecting external SCSI devices, skip to the next
section, Connecting External SCSI Devices.
If you are not connecting external SCSI devices, complete the
installation by continuing with Step 10.
10 Reconnect the power cord, then turn on the computer.
11 Install the software driver for your operating system. See Installing
Drivers on page 11 for more information.
Refer to the SCSI Card 2930CU User’s Guide on the SCSI Card 2930 CD for
useful information on SCSI, SCSI devices, and using SCSISelect.
Connecting External SCSI Devices
The SCSI Card 2930CU has one 50-pin high-density external connector.
You will need a high-quality 50-pin high-density external SCSI cable for
each external SCSI device you are connecting. External SCSI cables are
not included in the SCSI Card 2930CU kit. Refer to the SCSI Card 2930CU
User’s Guide on the SCSI Card 2930 CD for more information on cables.

9
To connect external SCSI devices
1 Ensure that each external SCSI device has a unique SCSI ID from 0 to 6.
For most external SCSI devices, the SCSI ID is set with a switch on the
back of the device, as shown. Refer to the SCSI device’s documentation
for instructions on setting the SCSI ID.
Note: Each device connected to your SCSI Card 2930CU (both
internal and external) must have a unique SCSI ID from 0 to 6. You
cannot use the same SCSI ID twice.
SCSI ID

10
2 Connect one end of an external SCSI cable to the SCSI Card 2930CU
external SCSI connector. Secure the cable by tightening the thumb
screws on the cable connector.
Note: Avoid touching the device connector pins.
3Connect the other end of the cable to a SCSI connector on the back of
the SCSI device.
4If you are installing only one external SCSI device, terminate the
device.
Refer to your SCSI device’s
documentation for termination
instructions.
5Connect other external SCSI devices by cabling each device to the
previous one, as shown. Only terminate the SCSI device at the end of
the chain.
Terminated
Unterminated devices
device

11
6Reconnect the power cord to the computer and connect power cables
to the external SCSI devices. Turn on the SCSI devices and allow
them to power up. Then turn on the computer.
7Continue with the next section, Installing Drivers.
Installing Drivers
This Guide provides basic driver installation instructions for Windows XP,
2000, Me, 98, and 95.
For Windows NT 4.0 driver installation instructions, refer to the
SCSI Card 2930CU User’s Guide on the SCSI Card 2930 CD.
Note: For more detailed driver installation instructions and for
instructions on verifying the driver installation, refer to the
SCSI Card 2930CU User’s Guide on the SCSI Card 2930 CD.
Install the SCSI Card 2930CU driver by following the instructions
appropriate to your computer’s operating system.
Windows 2000 and Windows XP
In Windows 2000 and Windows XP, driver installation is fully automatic,
including the identification of compatible drivers.

12
Windows Me
Windows Me has embedded driver support for a SCSI card as part of the
installation software. When the SCSI Card 2930CU is installed and you
have restarted your computer, the Add New Hardware Wizard window
appears to guide you through the final steps
.
1When the Add New Hardware Wizard appears, select the top radio
button to launch an automatic search for the most suitable driver,
and click Next.
Windows locates the appropriate driver for the newly-detected SCSI
card and automatically processes the installation.
The SCSI Card 2930CU is detected as PCI SCSI AHA-2930CU.
Note: If Windows is unable to find the driver, insert the
SCSI Card 2930 CD into the CD-ROM drive and direct
Windows to search the CD for the driver.
2Click Finish to complete the installation.
Windows 95/98
This section explains how to install the driver for Windows 95/98. The
driver is detected as PCI SCSI AHA-2930CU. The driver file on the SCSI
Card 2930 CD is aic78xx.mpd.
If you are performing a first-time Windows 95/98 installation, see
Installing the Driver When Installing Windows 95 or 98 on page 13.

13
If Windows 95/98 is already installed on your system, see Installing the
Driver When Windows 95 is Already Installed on page 14 or Installing the
Driver When Windows 98 is Already Installed on page 15.
Note: When Windows 95/98 starts, if a New Hardware Found
dialog box displays after your SCSI Card 2930CU has been
installed, select Driver from Disk Provided by Hardware
Manufacturer. Insert the SCSI Card 2930 CD into the CD-ROM
drive and type the drive letter for your CD-ROM drive. Then,
follow the on-screen instructions.
Installing the Driver When Installing Windows 95 or 98
The Ultra SCSI driver is embedded in the Windows 95/98 CD. During a
normal Windows 95/98 installation, the SCSI Card 2930CU is detected in
your system and the embedded driver is automatically installed.
Note: If Windows cannot detect the SCSI Card 2930CU installed in
your computer, you must install the driver manually after the
Windows installation is complete. Follow the procedures in either
Installing the Driver When Windows 95 is Already Installed on page 14
or Installing the Driver When Windows 98 is Already Installed on
page 15.

14
Installing the Driver When Windows 95 is Already Installed
1Start Windows 95.
2Click Start, point to Settings, then click Control Panel. Double-click
System. Click on the Device Manager tab.
3Click the plus sign (+) next to Other Devices, then double-click PCI
SCSI Bus Controller to open the PCI SCSI Bus Controller
Properties
window. Click the Driver tab, then click Update Driver.
4Insert the SCSI Card 2930 CD into your CD-ROM drive. Ensure that
Yes is selected, then click Next.
5Click Other Locations.
6Browse to the location of the driver on the CD. (The driver file is
aic78xx.mpd.) Then click OK.
7Click Finish.
This message appears:
Please insert the disk labeled ‘7800 Family Manager Set Installation
Disk’, and then click OK.
8Click OK to clear the message.
9Browse to the location of the driver on the CD. Then click OK.
10 Click Yes to restart your computer. (You must restart your computer
for the changes to take effect.)

15
Installing the Driver When Windows 98 is Already Installed
To update or install the driver if Windows 98 is already installed
1Start Windows 98.
2Click Start, point to Settings, then click Control Panel. Double-click
System. Click on the Device Manager tab.
3Click the plus sign (+) next to Other Devices, then double-click PCI
SCSI Bus Controller to open the PCI SCSI Bus Controller Properties
window. Click the
Driver tab, then click Update Driver.
4Click Next. Click Next again. Insert the SCSI Card 2930 CD into your
CD-ROM drive.
5Select CD-ROM drive and deselect Floppy disk drive by clicking in
the check boxes. Select Specify a location, then browse to the
location of the driver on the CD. (The driver file is aic78xx.mpd.)
Then click Next.
6Click Next.
7Click Finish to complete the installation. Click Yes to restart your
computer. (You must restart your computer for the changes to take
effect.)
Registering Your SCSI Card
To register your SCSI Card 2930CU, go to www.register.adaptec.com. If
you don’t have Internet access, complete and return the registration card
located on the SCSI Card 2930 CD.

R
Adaptec, Inc.
691 South Milpitas Boulevard
Milpitas, CA 95035 USA
© 2002 Adaptec, Inc.
All rights reserved. Adaptec and the Adaptec logo
are trademarks of Adaptec, Inc. which may be
registered in some jurisdictions.
Part Number: 513153-06, Ver.AALB02/02
