ADC ADG-530 User manual
Retain This Manual In A Safe Place For Future Reference
American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this
product is properly maintained, it will provide many years of safe, efficient, and trouble-free operation.
ONLY properly licensed technicians should service this equipment.
OBSERVEALLSAFETYPRECAUTIONSdisplayedontheequipmentorspecifiedintheinstallation/operator's
manual included with the dryer.
THEHSIMODULEIS NOTFIELDREPAIRABLE
and
THEHSIGASVALVEISNOTFIELDREPAIRABLE
We have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the
righttomake changes from time to time, withoutnoticeorobligation,inprices, specifications, colors, and material,
and to change or discontinue models.
WARNING: UNDER NO CIRCUMSTANCES should the door switch or the heat circuit devices
ever be disabled.
WARNING: The dryer must never be operated with any of the back guards, outer tops, or
service panels removed. PERSONAL INJURY or FIRE COULD RESULT.
NOTE: The wiring diagram for the dryer is located on the right wall, inside the Left Coin Panel area.
Replacement parts can be obtained from your distributor or the ADC factory. When ordering replacement parts
from the factory, you can FAX your order to ADC at (508) 678-9447 or telephone your orders directly to the
ADC Parts Department at (508) 678-9010. Please specify the dryer model number and serial number in
addition to the part number and part description, so that your order is processed accurately and promptly.
The illustrations on the following pages may not depict your particular dryer exactly. The illustrations are a
composite of the various dryer models. Be sure to check the descriptions of the parts thoroughly before ordering.
INSTRUCTIONS TO BE FOLLOWED IN THE EVENT THE USER
SMELLS GAS MUST BE POSTED IN A PROMINENT LOCATION. THE
INSTRUCTIONS TO BE POSTED SHALL BE OBTAINED FROM THE
LOCAL GAS SUPPLIER.
1
GAS “HOT SURFACE IGNITION” (HSI) SYSTEM
MODELTRITON2465 (ADCPart No. 128974)50/60HzTYPEONLY
PRODUCT INFORMATION and TROUBLESHOOTING GUIDE
NOTE: Failure to read and follow ALL instructions and information included in this
manual carefully before operating and/or servicing this system, COULD
CAUSE PERSONAL INJURYand/or PROPERTY DAMAGE.
IMPORTANT: We have tried to make this manual as complete as possible and
hope you will find it useful. However, since the time of this
printing, some information contained herein may have been up-
dated.
ADC RESERVES THE RIGHT TO MAKE CHANGES FROM TIME TO TIME,
WITHOUT NOTICE or OBLIGATION IN PRICES, SPECIFICATIONS, COLORS,
and MATERIALS, and TO CHANGE or DISCONTINUE MODELS or PARTS.
Table of Contents
A. INTRODUCTION ..........................................................................................................2
B. GENERALSYSTEMINFORMATION .......................................................................2
HSISystemComponents/Functions .........................................................................2
FailureToLight- LOCKOUT .....................................................................2
FlameFailureReignition ...............................................................................3
System(basic)ElectricalRatings/Specifications ........................................................5
C. HSI(HotSurfaceIgnition)SYSTEM OPERATION ....................................................5
HSISystemOperation.............................................................................................5
HSISystem Operation(Flow Chart) ........................................................................6
NormalOperation(summary) ..................................................................................7
D. TROUBLESHOOTING .................................................................................................7
TestEquipment ..................................................................................................................8
HSITroubleshootingTerms(definitions) ...................................................................8
Troubleshooting/SystemDiagnosis(detailed) ............................................................9
E. PARTSLIST(basic) ......................................................................................................14
2
A. INTRODUCTION
The Hot Surface Ignition (HSI) System operates at 24 VAC and is a discrete component based
gas ignition control (HSI module) system which utilizes a Hot Surface Ignitor as an ignition
source. Safe proof of flame is accomplished through flame rectification.
The HSI module has a diagnostic LED (light emitting diode) indicating light which simplifies
troubleshooting in the event of a fault.
Other Features...
•24 VAC microprocessor based HSI control
•System diagnostic L.E.D. (light emitting diode)
•Automatic reset one (1) hour after lockout
•Multiple tries
•Custom pre-purge and inter-purge timing
•Remote and local sensing
•Flame sense test pins
•Software conforms to “UL 1998” requirements
•Design certified to ANSI Z21.20 and CAN/CSA C22.2 No. 199-M89
B. GENERAL SYSTEM INFORMATION
1. HOT SURFACE IGNITION (HSI) SYSTEM COMPONENTS/FUNCTIONS:
a. The HSI MODULE is designed to be the “controller” of the HSI system. When activated
by the dryer’s controls, this module constantly monitors and controls the functions of the
1) Failure To Light - LOCKOUT
a) Should the main burner fail to light, or if a flame is not detected during the first
trial for ignition period, the gas valve is de-energized and the HSI module goes
through an inter-purge delay before another ignition attempt. The control will
attempt two (2) additional ignition trials before going into LOCKOUT and the gas
valve will be de-energized immediately.

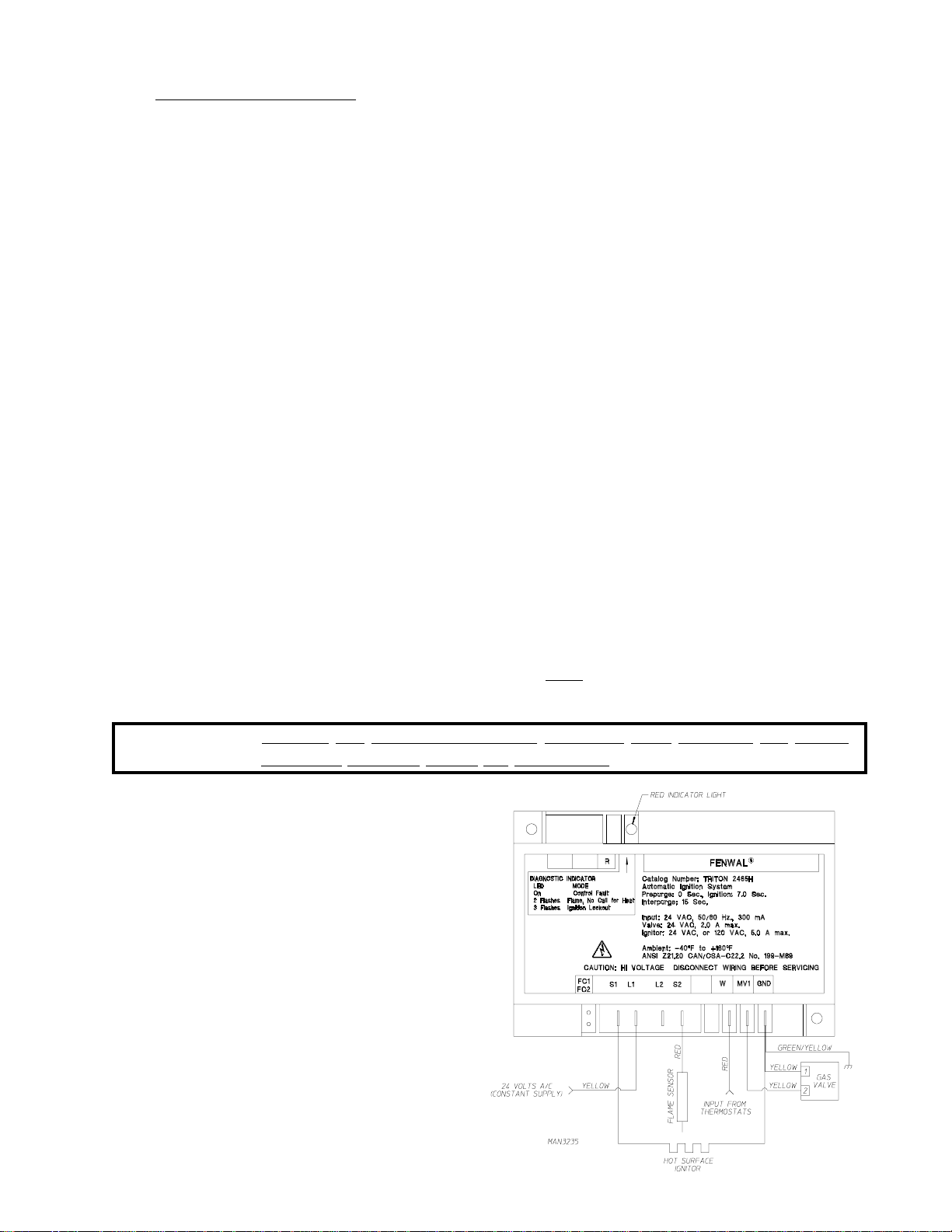

Hot Surface Ignition (HSI) Module
HSI system (i.e., ignitor activation, gas
valve on/off functions, flame verification,
etc.), can be operated at either 50 Hz or
60 Hz; and has self diagnostic capabilities.
The L.E.D. (indicator light) on the HSI
module simplifies the troubleshooting
procedure in the event of a fault within the
HSI system. If the LED on the HSI module
does not blink constantly, then the system
is functioning properly. A “red” L.E.D.
(LOCKOUT MODE) indicates that ignition
flame has not been confirmed. Refer to the
TROUBLESHOOTING SECTION of this
manual for specific diagnostic information.
3
24 VAC Transformer
(1) Recovery from LOCKOUT requires a manual reset by either resetting the
thermostat or removing the 24 VAC from the HSI module for a period of five
(5) seconds.
(2) If the microprocessor (computer) is still calling for heat after one (1) hour, the
HSI module will automatically reset and attempt to ignite the burner again.
2) FlameFailureReignition
a) If the established flame signal is lost while the burner is operating, the HSI module
will respond within 0.8 seconds. The gas valve is de-energized, the HSI module
resets and starts a new ignition sequence in an attempt to relight the burner. If the
burner does not light, the HSI module will de-energize the gas valve. The HSI
module will make two (2) more attempts to relight the burner. If the burner does
not relight, the HSI module will go into LOCKOUT. If flame is reestablished,
normal operation resumes.
IMPORTANT: The HSIMODULEis a precisioninstrument,andshould behandled
carefully. ROUGHHANDLINGorDISTORTINGCOMPONENTS
COULDCAUSE THEMODULETO MALFUNCTION.
WARNING: THE HSIMODULEIS NOT FIELDREPAIRABLE.
NOTE: Toreset the HSIMODULE ifit is inthe LOCKOUTMODE,open and closethe
maindoor thenrestart thedryer. If themodule repeatedlygoes intoLOCKOUT,
referto theTROUBLESHOOTING SECTION ofthis manual.
b) The 24 VAC TRANSFORMER is designed to step down the operating (primary)
voltage of the dryer from 120 VAC, 208 VAC, or 240 VAC to the 24 VAC
(secondary voltage) which is necessary to operate the HSI system and in some
cases the controls of the dryer.
The 24 VAC TRANSFORMER has multi-primary taps which allow for one (1) transformer to
be used for any voltage application including...120 volt, 208 volt, or 240 volt. Refer to the
SERVICE INFORMATION SECTION of this manual for specific transformer/wiring
terminationinformation.
4
36E Redundant Gas Valve
WARNING: THE HSI GAS VALVES ARE NOT FIELD REPAIRABLE.
IMPORTANT: THERE ARE NO PARTS AVAILABLE FOR FIELD REPAIR. Replace
gas valve only with exact model and/or type number as noted on gas
valve.
d. The HSI 24 VAC GAS VALVE(s) used are of the redundant type which means the
gas valve is actually two gas valves in one; one in series with the other. This is a
safety feature which provides protection against gas flow in the event of a failure of
one of the valves to seat properly. Other features are that the gas valves have a
manual shut off, a pressure tap outlet, and are designed for easy conversion to
regulated L.P. gas.
Upshot Burner Tube
with Hot Surface Ignitor (HSI)/Flame Sensor Assembly
c. The HOT SURFACE IGNITOR/FLAME SENSOR ASSEMBLY is located in the
burner flame area and is used to ignite the gas by the use of a HOT SURFACE
IGNITOR. To provide feedback information to the HSI module a FLAME SENSOR
is used to determine whether the burner flame is evident (on).
The HOT SURFACE IGNITOR is a silicon carbide ignitor that upon application of
24 VAC will glow bright orange for the inter-purge time period. The proper
location of the silicon carbide ignitor is very important to achieve optimum system
performance for both ignition and flame sensing.
After the inter-purge period the gas valve will open.
Upon ignition, the resistance in the flame sensor electrode changes and the in-
formation is sent to the HSI module via the sensor probe lead connection to the
module. Once the resistance is changed and sensed, the HSI module will sustain
the gas flow (provide 24 VAC power to the gas valve).
5
2. SYSTEM(basic) ELECTRICALRATINGS/SPECIFICATIONS
INPUTPOWER CONTROL: 18-30VAC 50/60Hz
INPUTCURRENTDRAIN 300mA@24VACwithGASVALVERELAYENERGIZED
(control only)
GASVALVERATING 2.0A@24VAC
OPERATINGTEMPERATURE 0 °F (fahreheit)to 160°F (fahreheit)
0 °C (Celsius) to 71 °C (Celsius)
FLAMESENSITIVITY .7Aminimum
FLAMEFAILURERESPONSETIME 0.8secondsmaximum
TYPEofGASES NATURAL, L.P. (liquid propane), or manufactured
SIZE(length x width x height) 4.23” x 3.23” x 1.63”(withcover)
10.75cmx8.21cmx3.97cm(withcover)
WEIGHT 5 ounces (nominal)
145grams(nominal)
ENCLOSURE GRAY (NorylN-190)FIRERETARDANTPLASTIC
TRIESFORIGNITION three (3)
TRIALFORIGNITIONPERIOD 4 seconds
INTER-PURGE 3.5 seconds
C. HSI (Hot Surface Ignition) SYSTEM OPERATION
1. HSISYSTEM OPERATION
a. The HSI Module’s “red” indicator light will light for up to approximately five (5) seconds
(self check routine).
If the HSI Module’s “red” indicator light
stays on or flashes continuously, then the
HSI module is wired incorrectly or has failed.
b. Start the drying cycle.
c. The Hot Surface Ignitor will turn on. After
approximately four (4) seconds the Hot
Surface Ignitor will shut off and the gas
valve will be energized. The flame should
now be established.
d. With the burner flame on, remove the flame sensor wire from the S2 terminal of the HSI
module. The burner flame must shut off immediately.
e. Stop the drying cycle, with the Flame Sensor removed, restart the drying cycle.
6
f. The Hot Surface Ignitor will turn on and after approximately four (4) seconds the Hot
Surface Ignitor will shut off. The Gas Valve will be energized and a burner flame should
be evident for approximately seven (7) seconds and then shut off.
g. The HSI Module will attempt two (2) additional ignition trials after which the HSI
Module will LOCKOUT and the “red” indicator light will flash 3 blinks, wait one (1)
second, and then keep flashing 3 blinks continuously until the HSI Module is reset
manually.
h. Functional check of the HSI (Hot Surface Ignition) Module is complete.
2. HSISYSTEM OPERATION(Flow Chart)
HSI Module Enters
Internal Routine Check
L.E.D. Indicator
Stays On Approx. 4 Seconds
Hot Surface Ignitor
Starts
To
Glow
If L.E.D. Indicator
Stays On Continuously
Replace HSI Module
If L.E.D. Continuously
BlinksTwice in Succession
There Is a Fault In The
Heat Sensing Circuit
Approx. 4 Seconds Later
Gas Valve Opens
Approx. 4 Seconds Later
Hot Surface Ignitor Shuts Off
Ignition Evident?
(FLAME VERIFIED)
--------------------
YES NO
Normal Heating Cycle Flame Out
FLAME NOT VERIFIED
HSI Module Will Wait 15-17 Seconds
And Then Go Into Retry Mode
HSI Module Will Attempt To Retry 3 Times
Flame Not
Established
After Retrys
HSI Module
LOCKOUT
--------------------------
------
Module L.E.D.Will Continuously
Blink 3 Times In Succession
Computer
Calls
For Heat
Open and Close Main Door
Restart Dryer
HSI Module Will Wait 15-17 Seconds
And Then Go Into Retry Mode
HSI Module Will Attempt To Retry Twice
7
3. NORMAL OPERATION (summary)
When a signal is received from the thermostat supplying 24 volts to the W terminal of the HSI
module, the control will reset, perform a self check routine, flash the diagnostic L.E.D. for up
to four (4) seconds and a pre-purge delay begins. Following the inter-purge period, the Hot
Surface Ignitor is activated and the Gas Valve is energized for the trial for ignition period.
When a flame is detected during the trial for ignition, the Hot Surface Ignitor is deactivated
and the Gas Valve remains energized. The thermostat and main burner flame are constantly
monitored to assure the system continues to operate properly. When the thermostat/micro
processor controller (computer) is satisfied and the demand for heat ends, the Gas Valve is
de-energized immediately.
Should the main burner fail to light, or a flame is not detected during the first trial for
ignition period, the Gas Valve is de-energized and the HSI Module (controller) goes through
an inter-purge delay before another ignition cycle is attempted. The HSI Module will
attempt two (2) additional ignition trials before going into LOCKOUT and the Gas Valve
relay will be de-energized immediately.
Recovery from LOCKOUT requires a manual reset by either resetting the thermostat or
removing the 24 volts for a period of five (5) seconds.
If the computer is still calling for heat after one (1) hour the HSI Module (controller) will
automatically reset and attempt to ignite the burner again.
D. TROUBLESHOOTING
The troubleshooting information provided in this manual is intended for use only by
QUALIFIED SERVICE TECHNICIANS. Observe ALL safety precautions displayed on the
equipment or specified in the Installation/Operator’s Manual included with the dryer.
IMPORTANT: UNDER NO CIRCUMSTANCES SHOULD ANY SAFETY OR HEAT
CIRCUIT DEVICE EVER BE DISABLED.
The following troubleshooting guide
provides systematic procedures for
isolating equipment problems, and again,
is intended for use by a QUALIFIED
SERVICE TECHNICIAN.
8
TEST EQUIPMENT
The following pieces of test equipment will be required to troubleshoot this system with
minimal time and effort.
1. HSI(HotSurfaceIgnition)TROUBLESHOOTINGTERMS (definitions)
a. INTERNALCONTROLFAILURE - HSI module “red” L.E.D. (light emitting diode) indicator light
stays on continuously. This indicates there is a system fault and most likely the fault is the HSI
Module itself.
b. HSI MODULE “RED” L.E.D INDICATOR LIGHT - this light is located on the top left side of the
HSI Module (refer to the illustration on page 2 or page 5 of this manual). This DIAGNOSTIC
INDICATOR simplifies the operational and troubleshooting procedures of the system.
c. FLAMEOUT - burner flame shut down by the HSI Module due to lack of flame verification. This
condition occurs only after ignition has been evident but is lost. The HSI system will immediately
attempt to relight the burner for a total of three (3) times before going into LOCKOUT. Once in the
LOCKOUT MODE the HSI Module must be reset manually.
d. TRIAL FOR IGNITION (T.F.I.) - the period after the Hot Surface Ignitor shuts off and before the
gas ignites.
e. LOCKOUT - when the flame is lost or the gas is not ignited after three (3) tries. The “red” L.E.D.
(light emitting diode) indicator light flashes 3 blinks (i.e., LOCKOUT) continuously until the HSI
Module is reset manually.
MANOMETER
Used to measure gas pressure in inches of water column (W.C.)
Available from ADC - Part No. 122804
MULTIMETER/VOLTMETER
For measuring voltage and/or amperage
9
There are two (2) types of devices used to
measure water column (W.C.) pressure.
They are the spring/mechanical type
gauge and the water column test gauge
(manometer). The use of the spring/
mechanical type of gauges is NOT
RECOMMENDED because they are very
easily damaged and they are not always
accurate. The preferred type of gauge is
the manometer because it is a simple
devise to use and is highly accurate. A
manometer is simply a glass or trans-
parent plastic tube with a scale graduated
in inches. When it is filled with water and
pressure is applied, the water in the tube
rises, showing the exact water column
(W.C.) pressure.
a. System Diagnosis
1) Gas Pressure
A gas pressure test should be taken at the gas valve pressure tap provided on every
gas valve to assure that the water column (W.C.) pressure is correct and consistent.
WARNING: Test all connections for leaks by brushing on a soapy water solution.
NEVER TEST FOR LEAKS WITH AFLAME!!!
a) Connect water column test gauge (manometer) to the gas valve tap (1/8” N.P.T.).
f. FLAME SENSOR FAULT - if there is a problem/fault within the flame sensing circuit or
the Flame Probe, the “red” L.E.D. (light emitting diode) indicator light flashes 2 blinks
(i.e., FLAME SENSOR FAULT) continuously until the problem/fault is corrected (fixed)
or until the HSI Module is reset manually.
2. TROUBLESHOOTING/SYSTEM DIAGNOSIS (detailed)
TROUBLESHOOTING (Service Checks)
SYMPTOM Cause
1. NOL.E.D. INDICATOR LIGHT A. MISWIRED
B. TRANSFORMER BAD
(24 volts)
C. FUSE/CIRCUIT BREAKER BAD
D. HSI MODULE BAD
2. GAS VALVE ON- NOHOT SURFACE IGNITOR A. DEFECTIVE HOT SURFACE IGNITOR
B. MISWIRED
C. HSI MODULE BAD
(check voltage at Hot Surface Ignitor)
3. HOT SURFACE IGNITOR ON- NOGAS VALVE A. GAS VALVE COIL OPEN
B. OPEN GAS VALVE WIRE (
MV1 or GND)
C. HSI MODULE BAD
(check for voltage between MV1 and GND)
4. FLAME OKAY FOR T.F.I. (TRIAL FOR IGNITION)A.DEFECTIVE HOT SURFACE IGNITOR
NOFLAME AFTER T.F.I. B. S2 WIRE BAD
C. POOR GROUND (GND) ATBURNER
D. POOR FLAME
(check flame current)
10
b) Start the dryer ... with the burner on, the correct water column (W.C.) reading in
inches should be:
When a gas dryer is first started (during initial time of installation/start-up), it has
a tendency not to ignite on the first ignition attempt. This is due to the fact that the
gas supply piping is filled with air, so it may take a few minutes for the air to be
purged from the supply lines. During this purge period, there may be insufficient
gas pressure for ignition, which might cause the HSI module to go into the LOCK-
OUT MODE (the L.E.D. will LIGHT “RED” CONTINUOUSLY).
NOTE: Duringthe purgeperiod, checkto besurethat ALLgas shutoffvalves areopen.
NOTE: Toreset theHSI MODULE ifit isin the LOCKOUTMODE,open and closethe
maindoor thenrestartthe dryer.
2) Flame Sensor
a) Flame Sensor Fault Code
The HSI Module is equipped with a diagnostic circuit that detects a fault in the
Flame Sensor Probe or any related circuits in the internal circuits in the HSI module.
When a fault is detected, the “red” L.E.D. (light emitting diode) indicator light will
flash 2 blinks. To clear this code either discontinue power to the dryer/HSI Module
or replace the FLAME PROBE or HSI MODULE.
N
atural Gas ........................................ 3.5 - 4 inches W.C.
L.P. (liquid propane) Gas .................. 10.5 - 11 inches W.C.
FLAME SENSOR CURRENT CHECK
b) Flame Sensor Current Check
Flame current is the current which
passes through the flame from the
Flame Sensor to ground (GND). The
minimum flame current necessary to
keep the HSI system from LOCK-
OUT is .7 microamps. To measure
flame current, connect an analog
D.C. (direct current) microammeter
to the FC1/FC2 terminals (refer to the
adjoining illustration).
The meter should read .7 microamps
or higher. If the meter reads below
“0” on the scale, then the meter
leads are reversed. Disconnect
power and reconnect the meter leads
for proper polarity.
11
c) Flame Failure “Reignition”
If the established flame signal is lost while the burner is operating, the HSI module
(controller) will respond within 0.8 seconds. The gas valve will be de-energized, the
HSI module resets and starts a new ignition sequence in an attempt to relight the
burner. If the burner does not light, the HSI module will de-energize the gas valve.
The HSI module will make two (2) more attempts to relight the burner. If the burner
does not relight the HSI module will go into the LOCKOUT MODE. If the flame is
reestablished, normal operation resumes.
d) Fault Conditions
The “red” L.E.D. (light emitting diode) will flash on for a 1/4 second, then off for a
1/4 second during a fault condition. The pause between the fault codes is three (3)
seconds.
NOTE: To reset the HSI MODULE if it is in the LOCKOUT MODE or the FLAME
SENSOR FAULT MODE, open and close the main door then restart the dryer.
3) HSI (Hot Surface Ignition) Module
The HSI module (controller) utilizes a microprocessor to continually and safely
monitor , analyze, and control the proper operation of the gas burner. Additional
features consist of L.E.D. diagnostics, automatic one (1) hour reset, multiple tries, and
flame current testing pins highlight the HSI module benefits.
The terminal designation that are listed below correspond to the designations on the
bottom portion of the HSI module (as shown from left to right).
TERMINAL DESIGNATIONS
FC1/FC2 ......... F
LAME
S
ENSOR
C
URRENT
C
HECK
P
OINTS
S1 .................... I
GNITOR
L1 .................... 24 V
OLT
I
NPUT
(HOT)
L2 .................... NOT USED (N
EUTRAL
- 120
V
I
NPUT
O
NLY
)
S2 .................... I
GNITOR
R
EMOTE
S
ENSOR
/F
LAME
S
ENSOR
W ..................... T
HERMOSTAT
I
NPUT
MV1 ................ M
AIN
V
ALVE
P
OWER
GND ............... System Ground
FAULT CONDITION INDICATIONS
E
RROR
M
ODE
L.E.D. I
NDICATION
I
NTERNAL
HSI M
ODULE
F
AILURE
S
TEADY
O
N
F
LAME
S
ENSOR
F
AULT
2 F
LASHES
I
GNITION
LOCKOUT 3 F
LASHES
12
4) HSI (Hot Surface Ignition) 24 VAC Transformer
The HSI transformer is designed to step down the operating voltage of the dryer to
24 VAC to operate the HSI module. This transformer, like all transformers, is two (2)
sided:
a) Primary Side
This is the incoming voltage side - 120 VAC, 208 VAC, 240 VAC - of transformer.
b) Secondary Side
This is the step down side - 24 VAC - of the transformer.
WARNING:208 VAC and 230/240 VAC ARE NOT THE SAME. ALL voltage
connections should be checked and confirmed according to the wiring
diagram provided with the individual dryer. Any damage done to dryer
components due to improper voltage connections will automatically
VOID THE WARRANTY.
IMPORTANT: The ADC Service Department must be contacted prior to any wiring
change and/or conversion because, depending on the change/
conversion required, some parts may have to be added, deleted, or
changed. When contacting the ADC Service Department they must be
given the correct model number and serial number of the dryer(s).
NOTE: Any wiring change(s) and/or conversion(s) should be by a QUALIFIED
ELECTRICAL TECHNICIAN.
(1) Transformer Wiring
There are six (6) color-coded wires coming from the 24 VAC Transformer. There
are four (4) wires coming from the primary (incoming) voltage side of the trans-
former. Their application and color-coding are as follows:
There are two (2) ORANGE wires coming from the secondary (step down) side
of the transformer;
(d) One (1) ORANGE wire is connected to the GND (ground) termination.
(e) One (1) ORANGE wire supplies the 24 VAC signal for the control and/or HSI system
circuit. (Refer to the specific wiring diagram with the dryer for connection point.)
(a) For 120 VAC application ONLY;
1 - The BLACK and WHITE wires are used.
2 - The Red and Blue wires are capped off
individually.
(b) For 208 VAC application ONLY;
1 - The BLACK and BLUE wires are used.
2 - The Red and White wires are capped off
individually.
(c) For 240 VAC application ONLY;
1 - The BLACK and RED wires are used.
2 - The White and Blue wires are capped off
individually.
13
(2) With a meter (either a multimeter or ohmmeter) set on the 200 ohm position,
place the meter leads across:
(a) Terminals 1 and 2...the reading should be approximately 96 ohms +/- 5 ohms.
(b) Terminals 2 and 3...the reading should be approximately 96 ohms +/- 5 ohms
also.
(3) If, after checking the resistance values on the gas valve it is determined that the
ohm readings do not approximate the ohm values listed above (96 ohms
[+/- 5 ohms] for both readings respectively), then, the gas valve must be
replaced.
36E Redundant Gas Valve
4) HSI (Hot Surface Ignition) 24 VAC Redundant Gas Valve
IMPORTANT: The HSI 24 VAC Redundant Gas Valve contain no serviceable parts.
REPLACEMENT COILS ARE NOT AVAILABLE.
IMPORTANT: THERE ARE NO PARTS AVAILABLE FOR FIELD REPAIR. Replace
gas valve only with exact model and/or type number as noted on gas
valve.
a) The redundant gas valve utilize 24 VAC, which is provided by the HSI module.
(1) To check the resistance value;
(a) Disconnect the terminations at the gas valve from the HSI module.
WARNING: When taking ohm readings, the terminations from the HSI module must be
disconnected/removed, otherwise, the readings obtained will be incorrect
and/or erroneous.
14
E. PARTS LIST (basic)
When ordering replacement parts from the factory, please specify model number and serial
number in addition to the part number and part description of the dryer so that your order can be
processed accurately and promptly. The information and illustrations listed here may not depict
your particular dryer/part exactly. This information and/or illustrations are a composite of the
HSI SYSTEM. Be sure to check the part description thoroughly before ordering any part.
ADC
P
ART
N
UMBER
D
ESCRIPTION
128918 F
LAME
S
ENSOR
A
SSEMBLY
128927 HSI 24 VAC R
EDUNDANT
G
AS
V
ALVE
(36E01-204)
128974 HSI M
ODULE
881479 H
OT
S
URFACE
I
GNITOR
881495 HSI 24 VAC T
RANSFORMER
15
HSI (Hot Surface Ignition) SYSTEM COMPONENTS
24 VAC Transformer
Hot Surface Ignition (HSI) Module
36E
24 VAC Redundant Gas Valve
Upshot Burner Tube
with
Hot Surface Ignitor (HSI)/Flame Sensor
Assembly
ADC Part No. 450401 3 - 12/15/08 - 0
Table of contents
Other ADC Laundry Accessories manuals
