ADDAC System ADDAC203 REV.02 User manual

June.2023
ADDAC203 Assembly Guide
ADDAC SYSTEM page 2

ADDAC SYSTEM page 3
ADDAC203 Assembly Guide
STEP 1:

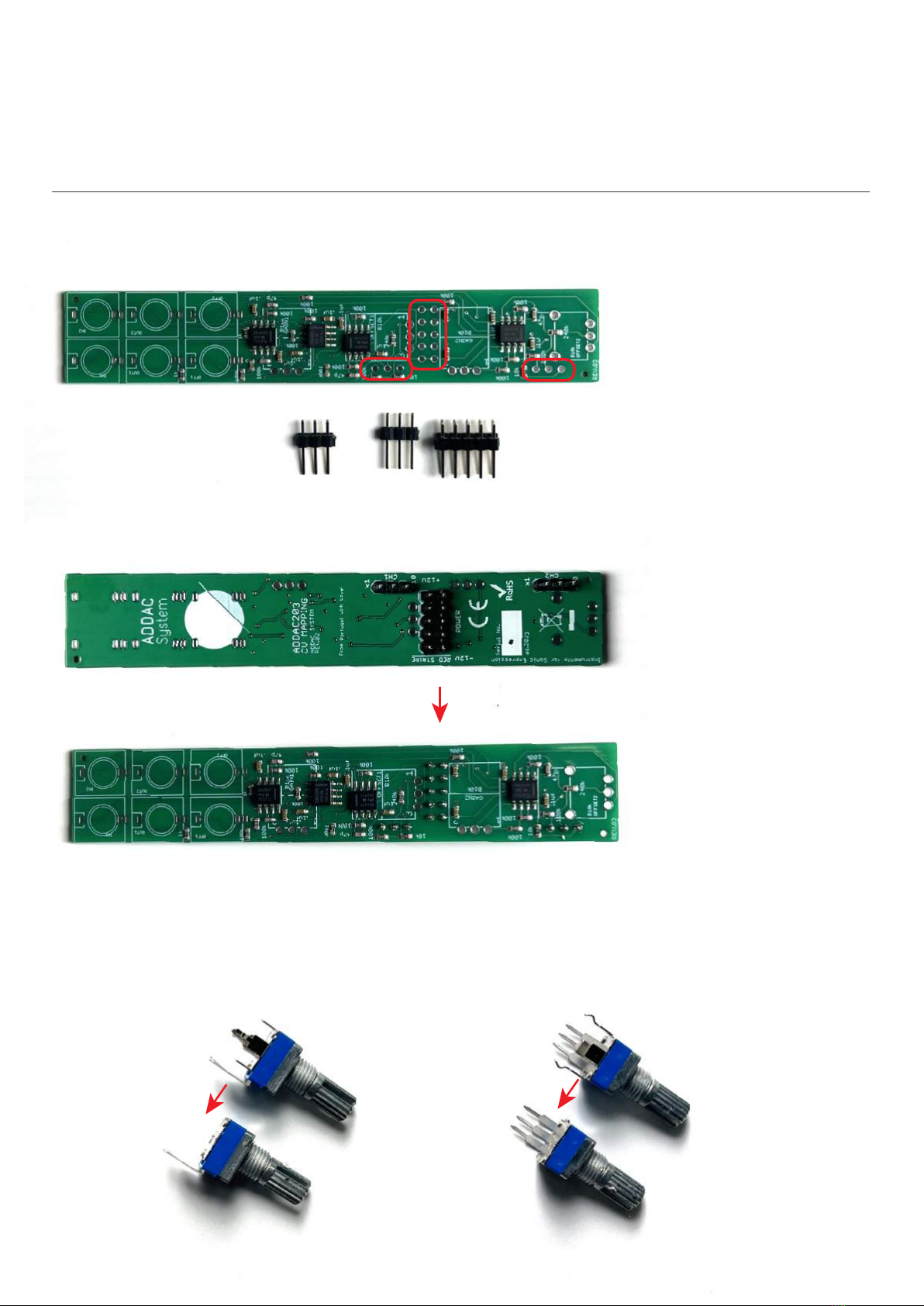

Grab the pcb, and locate the male pinheaders.
STEP 2:
Place the pinheaders on the bottom of the pcb and solder them all
STEP 3:
Next we’ll need to prepare the 4 pots before placing them to the front panel.
Locate all pots and trim all metal standoffs, beside their legs, with the help of some pliers, like shown
below.

STEP 4:
Place all jacks and pots on the pcb, do not solder them yet.
STEP 5:
Place the frontpanel and tighten all nuts
ADDAC SYSTEM page 4
ADDAC203 Assembly Guide
STEP 6:
Adjust the height of the pcb keeping it parallel to the front panel and proceed to solder all parts.
Keep lines parallel

ADDAC SYSTEM page 5
Finish it by placing the knobs and you’ve finished the
assembly process!
Happy Patching!
ADDAC203 Assembly Guide

For feedback, comments or problems please contact us at:
[email protected]
ADDAC203 REV.02 ASSEMBLY GUIDE
June.2023Revision.01
