ADDAC System ADDAC215 User manual

March.2020
ADDAC215 Assembly Guide
ADDAC SYSTEM page 2

ADDAC SYSTEM page 11
The Slew time can be adjusted to user preference.
We provide 2 options, Short and Long range:
. Short for 1v/oct signals (like a short portamento)
. Long for smoothing cv voltages
Each channel can be set diferently.
Other values can also be used.
ADDAC215 Assembly Guide
SLEW TIME OPTIONS
CHANNEL 2
CHANNEL 1

ADDAC SYSTEM page 3
ADDAC215 Assembly Guide
100uF SLEW TIME
4.7uF Long
OR
220nF Short
2.2uF
STEP 1:

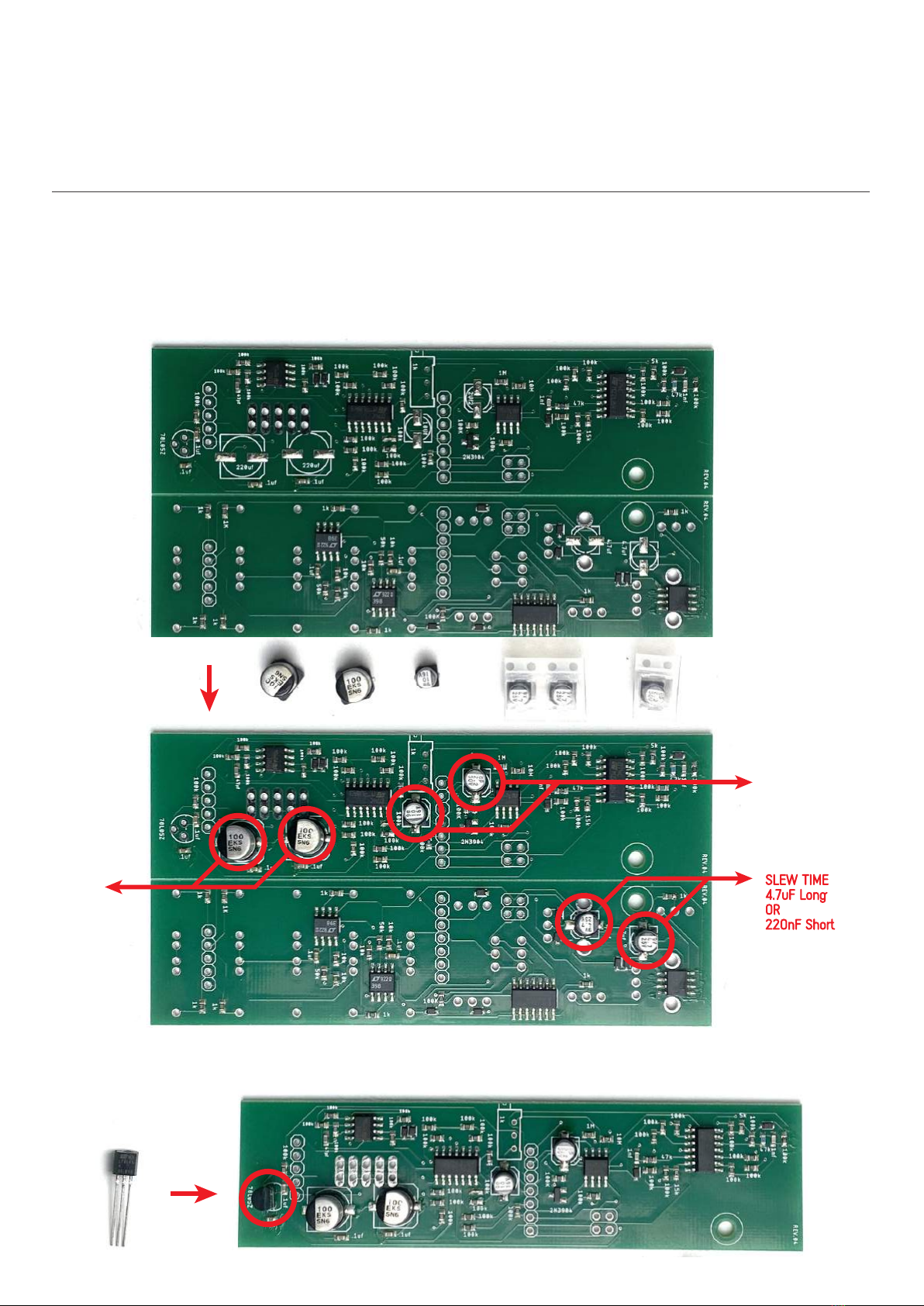

Start by locating all 6 capacitors, notice the different values and orientation marked on the pcb.
Tip: soldering these caps is easy, just place a dab of solder on the pad on your right (left pad if you’re
left handed) and then, with the help of a tweezer, put the capacitor in place and reflow the previously
tinned pad to reflow the solder while pushing the capacitor down. Then solder the other pad.
STEP 2:
Proceed by locating the 78L05 Regulator and solder it in place, notice the orientation printed on the pcb.

ADDAC SYSTEM page 4
STEP 3:
Next proceed to locate the male and female pinheaders and solder them like shown below.
ADDAC215 Assembly Guide

ADDAC SYSTEM
STEP 4:
Next carefully break the 2 pcbs apart, locate and solder the trimmer like shown below.
STEP 5:
Next locate and solder the 2x5 boxed pinheader like shown below.
page 5
ADDAC215 Assembly Guide

ADDAC SYSTEM
STEP 6:
Next attach the spacer like shown below and proceed to place all front panel parts.
page 6
ADDAC215 Assembly Guide

ADDAC SYSTEM page 7
STEP 7:
After all parts are in place, fit the frontpanel in and tighten all the nuts.
Proceed by soldering all pads in the back.
ADDAC215 Assembly Guide

ADDAC SYSTEM page 8
STEP 8:
Solder all the front parts pads.
ADDAC215 Assembly Guide

ADDAC SYSTEM page 9
STEP 9:
For the last step place the bottom screw
ADDAC215 Assembly Guide

ADDAC SYSTEM page 10
Place and tighten all remaining nuts and you’re done!
Happy Patching!
ADDAC215 Assembly Guide

ADDAC SYSTEM page 12
This process will calibrate the internal noise gain.
PROCESS:
1. Turn the module On and wait about 30 seconds for it to stabilize
2. Patch the “NOISE” Output to an oscilloscope
3. Adjust the trimmer until the level peaks at about ±5 volts.
The ±5 volt calibration is just a reference, the user can calibrate it
to any other range according to his wish.
ADDAC215 Assembly Guide
Calibration
INTERNAL NOISE LEVEL

For feedback, comments or problems please contact us at:
[email protected]
ADDAC215 ASSEMBLY GUIDE
March.2020Revision.01
