ADDAC710 Assembly Guide
ADDAC SYSTEM page 2
ADDAC SYSTEM page 3
ADDAC710 Assembly Guide
STEP 1:
Grab the pcb, gently brake it apart and trim the excess with a cutting plier.
STEP 2:
Place and solder the 2x5 boxed pinheader. Notice the indent orientation.
STEP 3:
Place and solder the 1X5 pinheader.
STEP 4:
Allign both pcbs and solder the pinheader to the top pcb
ADDAC SYSTEM page 4
ADDAC710 Assembly Guide
ADDAC SYSTEM page 5
STEP 5:
Place and solder the transformers, notice there’s one leg which is placed at an odd spacing which
defines the orientation of the part.
ADDAC710 Assembly Guide
ADDAC SYSTEM page 6

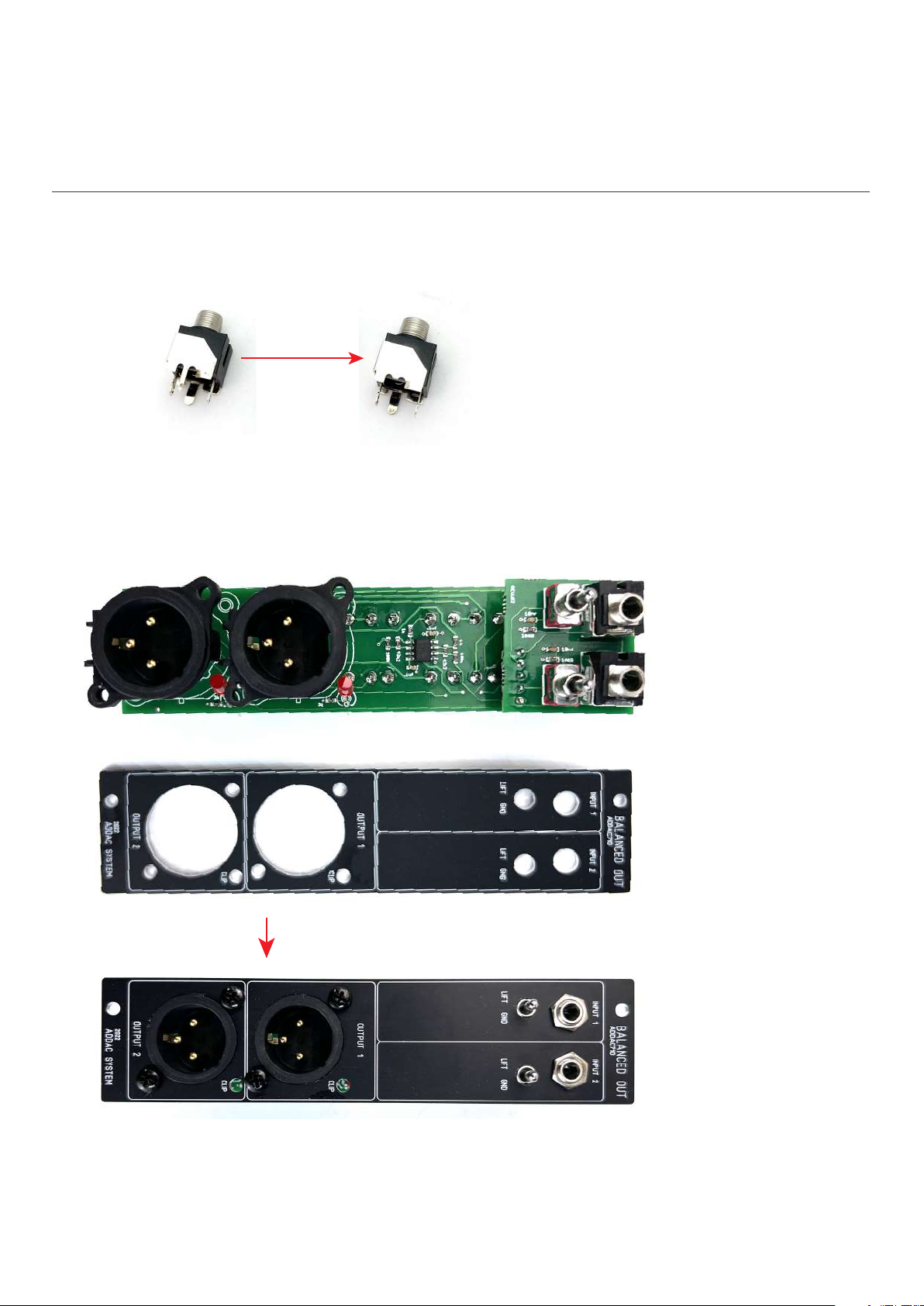

STEP 7:
Place the remaing parts on the pcbs, allign the front panel and tighten the jack nuts.
Proceed by soldering the front panel parts, then attach the bottom pcb.
STEP 6:
Locate the jacks and cut the thinest leg like shown below.
ADDAC710 Assembly Guide
ADDAC SYSTEM page 7
Finish it by fixing the XLR connectors with the screws and
soldering the connectors.
You’re all done!
Happy patching!
ADDAC710 Assembly Guide
For feedback, comments or problems please contact us at:
ADDAC710 ASSEMBLY GUIDE
February.2023Revision.01
