EVS Synapse 2GF100 User manual

Synapse
2GF100 - 2GF110
Dual Channel 3Gb/s, HD and SD Frame Synchronizer
with Optional Audio Shuffler
Version1.00|November2021
INSTALLATION AND OPERATION MANUAL

Disclaimer
This manual and the information contained herein are the sole property of EVS Broadcast Equipment SA
and/or its affiliates (EVS) and are provided “as is” without any expressed or implied warranties, including,
but not limited to, the implied warranties of merchantability and fitness for a particular purpose. In
particular, EVS makes no warranty regarding the use or the consequences of use of this manual and the
information contained herein. Furthermore, EVS may not be held liable for any direct or indirect,
incidental, punitive or consequential loss, damage, cost or expense of any kind whatsoever and
howsoever resulting from the normal or abnormal use of this manual and the information contained
herein, even if advised of the possibility of such loss, damage, cost or expense.
While every effort has been made to ensure that the information contained in this manual is accurate,
up-to-date and reliable, EVS cannot be held liable for inaccuracies or errors that may appear in this
publication. The information in this manual is furnished for informational purpose and use only and
subject to change without notice.
This manual cancels and replaces any previous versions thereof.
Copyright
Copyright © 2003-2021 EVS Broadcast Equipment SA. All rights reserved.
This manual may not be reproduced, transcribed, stored (in a database or a retrieval system), translated
into any language, computer language, transmitted in any form or by any means – electronically,
mechanically, printed, photocopied, optically, manually or otherwise – in whole or in part without the
prior written consent of EVS.
Trademarks
All product and brand names are registered trademarks and trademarks of EVS or of their respective
owners.
Improvement Requests
Your comments will help us improve the quality of the user documentation. Please send improvement
requests, or report any error or inaccuracy on this user manual by e-mail to [email protected].
Regional Contacts
You will find the full list of addresses and phone numbers on the following webpage:
https://evs.com/contact/offices.
User Manuals on EVS Website
The latest version of the user manual, if any, and other user manuals on EVS products can be found at
the EVS download center, on the following webpage: https://download-area.evs.com.
INSTALLATION AND OPERATION MANUAL
Synapse 2GF100 - 2GF110|Disclaimer| i

GeneralInformation
ALWAYS disconnect your entire system from the AC mains before cleaning any component. The product
frame (SFR18, SFR08 or SFR04) must be terminated with three-conductor AC mains power cord that
includes an earth ground connection. To prevent shock hazard, all three connections must always be
used.
NEVER use flammable or combustible chemicals for cleaning components.
NEVER operate this product if any cover is removed.
NEVER wet the inside of this product with any liquid.
NEVER pour or spill liquids directly onto this unit.
NEVER block airflow through ventilation slots.
NEVER bypass any fuse.
NEVER replace any fuse with a value or type other than those specified.
NEVER attempt to repair this product. If a problem occurs, contact your local EVS distributor.
NEVER expose this product to extremely high or low temperatures.
NEVER operate this product in an explosive atmosphere.
To reduce the risk of fire or electrical shock, do not expose this appliance to rain or moisture.
This product complies with the requirements of the product family standards for audio, video, audio-
visual entertainment lighting control apparatus for professional use as mentioned below.
EN60950 Safety
EN55103-1: 1996 Emission
EN55103-2: 1996 Immunity
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
1. This device may cause harmful interference, and
2. This device must accept any interference received,
including interference that may cause undesired operation.
Tested to comply with
FCC Standards
FOR HOME OR OFFICE
USE
ii| November 2021 | Issue 1.00.E

Contents
Disclaimer i
GeneralInformation ii
Contents iii
What'sNew? v
1. Introduction 1
2. UnpackingandPlacement 2
3. QuickStart 3
3.1. Changing Settings and Parameters 3
3.2. Using Cortex with Synapse 5
4. The2GF100-110Card 6
5. SettingsMenu 9
5.1. Introduction 9
5.2. System Settings 9
5.3. Inserter 13
5.4. Video-Proc 16
5.5. Audio Proc Amp 18
5.6. Embedder 19
5.7. GPI Mode 22
5.8. Network 23
6. StatusMenu 24
6.1. Introduction 24
6.2. System Status 24
6.3. Net Status 27
7. EventsMenu 28
INSTALLATION AND OPERATION MANUAL
Synapse 2GF100 - 2GF110|Contents| iii

8. LEDIndication 30
9. BlockSchematic 31
10.ConnectorPanels 32
Appendices 34
Appendix1:GPIsExplained 34
Appendix2:CardDipSwitchesforBHXandFiberConfigurations 38
GNUPublicLicense 40
ICONOGRAPHY
Note Tip Warning
iv| November 2021 | Issue 1.00.E

What'sNew?
In the Installation and Operation Manual the icon has been added on the left margin to highlight
information on updated features.
The changes linked to new features in version 1.00 of 2GF100 - 2GF110-110 are listed below.
SMPTEST352 Payload Identifier
•See section "Inserter" on page 13.
INSTALLATION AND OPERATION MANUAL
Synapse 2GF100 - 2GF110|What's New?| v

1. Introduction
Synapse is a modular system designed for the broadcast industry. High density, intuitive operation and
high-quality processing are key features of this system. Synapse offers a full range of converters and
processing modules. Please visit the EVS website at www.evs.com to obtain the latest information on
our new products and updates.
Local Control Panel
The local control panel gives access to all adjustable parameters and provides status information for any
of the cards in the Synapse frame, including the Synapse rack controller. The local control panel is also
used to back-up and restore card settings. Please refer to the RRC18, RRC10, RRC04, RRS18 and RRS04
manuals for a detailed description of the local control panel, the way to set up remote control over IP and
for frame-related settings and status information.
Remote Control Capabilities
The remote-control options are explained in the rack controller (RRC18 / RRC10 / RRC04 / RRS18 / RRS04
/ ERC108-118 / ERS108-118) manuals. The method for connecting to a computer using Ethernet is also
described in the ERC/ERS/RRC/RRS manuals.
Cortex software will increase system flexibility of one or more Synapse frames.
Although it is not required to use Cortex with a Synapse frame, you are strongly advised to use a remote
personal computer or laptop PC with Cortex installed, as this increases the ease of use and
understanding of the modules.
INSTALLATION AND OPERATION MANUAL
Synapse 2GF100 - 2GF110|1. Introduction| 1

2.UnpackingandPlacement
Unpacking
The EVS Synapse card must be unpacked in an anti-static environment. Care must be taken NOT to
touch components on the card – always handle the card carefully by the edges. The card must be stored
and shipped in anti-static packaging. Ensuring that these precautions are followed will prevent
premature failure of components mounted on the board.
Placing the Card
The Synapse card can be placed vertically in an SFR18 frame or horizontally in an SFR04 and SFR08
frame. Locate the two guide slots to be used, slide in the mounted circuit board, and push it firmly to
locate the connectors.
Correct insertion of the card is essential, as a card that is not located properly may show valid indicators,
but will not function correctly.
On power up, all LEDs will light up for a few seconds.This is the time it takes to initialize the
card.
Please refer to "Appendix 2: Card Dip Switches for BHX and Fiber Configurations" on page 38
before connecting any back panel.
2| November 2021 | Issue 1.00.E

3.QuickStart
Powering Up
On powering up the Synapse frame, the card set will use basic data and default initialization settings. All
LEDs will light up during this process. After initialization, several LEDs will remain lit – the exact number
and configuration is dependent upon the number of inputs connected and the status of the inputs.
3.1. ChangingSettingsandParameters
The front panel controls or Cortex can be used to change the settings. An overview of the settings can
be found in later chapters of this manual. Please refer to "Settings Menu" on page 9, "Status Menu" on
page 24 "Graphical User Interface" on page 1 and "Events Menu" on page 28.
Front Panel Control
Front Panel Display and Cursor
Settings are displayed and changed as follows:
Use the cursor ‘arrows’ on the front panel to select the menu and parameter to be displayed and/or
changed.
Move forward through the menu structure.
Go back through the menu structure.
Move up within a menu, or increase the value of a parameter.
Move down through a menu or decrease the value of a parameter.
When editing parameters, pressing ► twice will reset the value to its default setting.
INSTALLATION AND OPERATION MANUAL
Synapse 2GF100 - 2GF110|3. Quick Start| 3

How to Change Parameters Using the Front Panel Control
With the display as shown below:
Pressing selects the SFS10 in frame slot 01.
The display changes to indicate that the SFS10 has been selected. In this example the Settings menu
item is indicated.
Pressing the selects the menu item shown, in this example Settings.
(Pressing or will change to a different menu, e.g. Status, Events).
The display changes to indicate that the SFS10 Settings menu item SDI-Format has been selected and
shows that its current setting is Auto.
Pressing the selects the Settings item shown, in this example SDI-Format.
(Pressing or will change to a different setting, e.g. Mode, H-Delay).
The display changes to indicate that the SFS10 Edit Setting menu item SDI-Format has been selected.
To edit the setting of the menu item, press or .
All menu items can be monitored and/or changed in this way. Changing a setting has an immediate
effect.
4| November 2021 | Issue 1.00.E

Menu Structure Example
Slot Module Item Parameter Setting
S02 Identity
S01 SFS10 Settings Standard dig Auto
S00 RRC18 Status Mode 625
Events Ref-Input 525
H-Delay
3.2.UsingCortexwithSynapse
EVS Cortex Software
Cortex can be used to change the settings of Synapse modules from a PC, either locally or remotely. The
software enables communication based on TCP/IP between the Setup PC and Synapse
frames/modules.
Each Synapse frame is addressed through its rack controller’s unique IP address, giving access to each
module, its menus and adjustment items. Cortex has access to data contained within the Synapse
module and displays it on a GUI. The software has an intuitive structure following that of the module that
it is controlling.
For operation of Cortex, please refer to the Cortex help files.
Further information about Front Panel Control and Cortex can be obtained from the ERC, ERS,
RRC and RRS operational manuals and the Cortex help files.
INSTALLATION AND OPERATION MANUAL
Synapse 2GF100 - 2GF110|3. Quick Start| 5

4.The2GF100-110Card
Introduction
The 2GF100-110 is a dual channel frame synchronizer with backup inputs and 8 channel audio
transparency and color correcting capabilities. The powerful matrix multiplexer can feed audio from the
embedded domain into the Synapse bus to an ADD-ON card like the DIO48. This matrix multiplexer also
allows for audio to be inserted from the ADD-ON bus into the embedded domain of the 2GF100-110. The
2GF110 adds a full audio shuffler and audio proc-amp with gain and phase control.
The 2GF100/110 also allows you to swap timecode data from channel one to channel two or vice versa,
where the delay timing of the timecode is copied from the source channel.
The 2GF100/110 is compatible with 270Mb/s, 1.5Gb/s and 3Gb/s for full 1080p/50 or 1080p/59.94 use.
Features
•3 inputs: 2 SDI and 1 composite
•Handles complete asynchronous switching at the input
•Configurable output function
◦Straight (1=1, 2=2)
◦Crossed (2=1, 1=2)
◦A only
◦B only
•Compatible with the following input formats (auto selecting). Please bear in mind that the format and
frame rate must be the same on both inputs:
◦1080p/59.94 ◦1080i/59.94
◦1080p/50 ◦1080i/50
◦1080p/29.97 ◦720p/59.94
◦1080p25 ◦720p50
◦1080p24 ◦SD525
◦SD625
•Output standards (only one standard can be chosen for both outputs simultaneously):
◦1080p/59.94 ◦1080i/59.94
◦1080p/50 ◦1080i/50
◦1080p/29.97 ◦720p/59.94
◦1080p25 ◦720p50
◦1080p24 ◦SD525
◦SD625
6| November 2021 | Issue 1.00.E

•Two individual conversion paths. The inputs can be different standards SD, HD or 3Gb/s and
unlocked to the single output format.
•Frame sync with output phase control in Frames, Lines and pixels with respect to reference. Delay
setting are stored per output format for a constant latency operation.
◦30 Frames delay offset (per channel)
-1080p60 -1080i60
-1080p50 -1080i50
-1080p30
-1080p25
-1080p24
◦60 Frames delay offset (per channel)
-720p60
-720p50
◦125 Frames delay offset (per channel)
-SD525
-SD625
•5 GPI inputs assignable to different preset banks
◦Input selection
◦Output mode
◦Audio shuffling, gain and phase (110 only)
•ARC triggers by VI, WSS, WSSext and S2016 (AFD)
•Individual color corrector for video path A and B
•Transparent for 8 channels of embedded audio per channel
•Embedded domain cross input audio shuffling, gain and phase control (110 only)
•Embedding and de-embedding through Synapse bus
•Video proc-amp (Y and C control)
•Color corrector (RGB and total gain, RGB and total black)
•Hue control for NTSC inputs
•Locks to a Bi-Level or a Tri-level sync, or to an SDI input.
•Full control and status monitoring through the Ethernet port (ACP).
The frame synchronizer works best if the inputs are switched according the SMPTE guidelines
described in RP168.
This ensures that not only the picture but also the ancillary data remains correct. The frame
synchronizer however can handle complete asynchronous switching at the input.
To ensure correct operation, the F-delay of the card needs to be 1 or higher to allow enough
time to mask the error.
INSTALLATION AND OPERATION MANUAL
Synapse 2GF100 - 2GF110|4. The 2GF100-110 Card| 7

Applications
2GF100 / 2GF110:
•Transmission output frame synchronizer with backup input.
2GF110 only:
•Combining embedded audio channels of 2 inputs into 1 (see image below)

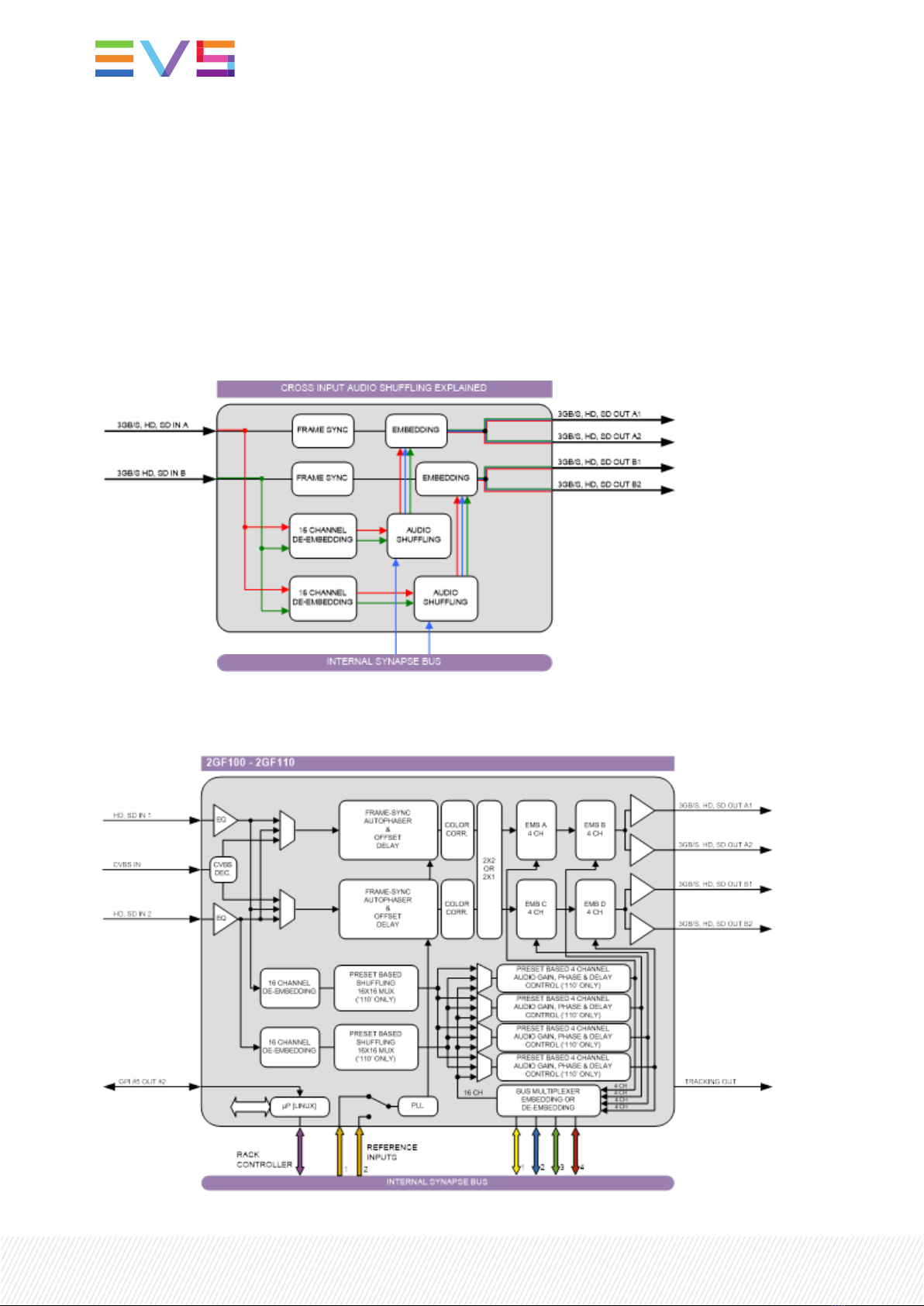

Block Schematic
8| November 2021 | Issue 1.00.E

5.SettingsMenu
5.1. Introduction
The Settings menu displays the current state of each 2GF100/110 setting and allows you to change or
adjust it.
Settings can be changed using the front panel of the Synapse frame (SFR18, SFR08 or SFR04) or with
Cortex. The SCP08 control can also be used. Please refer to "Quick Start" on page 3 for information on
the Synapse front panel control and Cortex.
All items preceded with a # sign are part of the presets.
5.2.SystemSettings
Setting Description
IO-Ctrl This card has separate presets for the input and output settings under
the ‘SYSTEM SETTINGS’ header. With this item you select how the IO
presets are controlled: manually (Manual) or via GPI-triggers (GPI, GPI-A,
GPI-B or GPI-C). By default it is set to Manual.
IO_Prst_Act With this item you can manually change the currently active IO settings.
Can be any preset between 1 and 16. By default it is set to 1. All menu
settings that are preceded by the # prefix under the ‘SYSTEM SETTINGS’
header are part of the preset.
IO_Prst_Edit Here you can select which of the 16 selectable IO settings presets you
want to edit. Changing this will not change the active preset, unless the
currently active preset is the one you are going to edit. All menu settings
that are preceded by the # prefix are part of the preset.
#Inp_SelA With this item you can select which input you want to use for ChannelA.
Can be SDI-1 (SDI input 1), SDI-2 (SDI input 2) or Analog (CVBS in). You
can also choose a Zoneplate or Colorbar as input. Can also be set to Off
to switch off ChannelA entirely. The default for this setting is SDI-1.
#Inp_SelB With this item you can select which input you want to use for Channel B.
Can be SDI-1 (SDI input 1), SDI-2 (SDI input 2) or Analog (CVBS in).
You can also choose a Zoneplate or Colorbar as input. Can also be set to
Off to switch off channel B entirely. The default for this setting is SDI-2.
INSTALLATION AND OPERATION MANUAL
Synapse 2GF100 - 2GF110|5. Settings Menu| 9

#CVBS-Frmt With this item you can set the format of the CVBS input. Possible formats
to select here are (default is Auto):
•PAL-M
•PAL-N
•NTSC-M
•NTSC-4.43
•NTSC-J
•SECAM
•PAL-60
•PAL-BGHID
•Auto (automatic detection and selection between NTSC-J and PAL-
BGHID)
#Out-Frmt With Out-Frmt you can set what the output should be of channel A as
well as channel B. Possible settings are:
•1080i60 (default) •1080i50
•1080p60 •1080p50 •1080p30
•1080p25 •1080p24 •1080p24sf
•720p60 •720p50
•SD525 •SD625
•AutoA / AutoB, sets the output format automatically according to
what has been detected).
#IO-Map With this setting you can select the 3Gb/s mapping in case the input
format is 1080p50 or 1080p60. Can be manually set to Level A (default)
or Level B. You can also choose to set it to auto, in which case the GDL
will automatically detect whether the input is Level A or Level B.
#Out-Mode With this setting you choose which input should be on which output.
There are 4 available modes:
•Straight (default): Channel A to outputs A1-A2, Channel B to outputs
B1-B2
•Crossed: Channel A to outputs B1-B2, Channel B to outputs A1-A2
•A Only: Channel A to all outputs
•B Only: Channel B to all outputs
When in ‘A only’ or ‘B only’ modes, you can process 16 channels of audio for the outputs.
When in mixed modes, you can process only 8 channels of audio per input.
Also when in ‘A only’ all the settings that involve video channel B are discarded and when in
‘B only’ all channel A settings are discarded.
10| November 2021 | Issue 1.00.E

#Switch-Back When this setting is set to on, the input selection will switch when the
active input is lost. Set to off will not switch the input on input loss. Set to
once, the switch will only be done once, and will not switch back when
the input fails again. Default is on.
#F_delay F-Delay sets the number of delayed Frames. The available range is from
0 to 250 fields (dependent on the I/O). Default is 0F. The preset master
for this is Out-Frmt, hence the # prefix.
#V_delay V-Delay setting allows adjustment of the vertical phase of the output
signal with respect to the selected reference input.
The V-Delay setting gives a delay in addition to the reference timing. For
example: if the V-Delay is set to 10 TV HD lines, the output signal will be
delayed by reference timing + 10 TV HD lines. The signal is delayed
(advanced) with respect to the phase of the reference signal. The
available range is from 0 to a maximum of 1125 lines (dependent on I/O
format). The default setting is 0ln. The preset master for this is Out-Frmt,
hence the # prefix.
#H_delay The H-Delay setting allows adjustment of the Horizontal phase of the
output signal with respect to the selected reference input.
The H-Delay setting gives a delay in addition to the reference timing. For
example: if the H-Delay is set to 10 pixels, the output signal will be
delayed by reference timing + 10 pixels. The signal is delayed (advanced)
with respect to the phase of the reference signal. The available range is
from 0 to a maximum of 5124 pixels (dependent on I/O format). The
default setting is 0px. The preset master for this is Out-Frmt, hence the #
prefix.
#Freeze_A Freeze enables the capture of one Video Field or Frame (depending on
the setting Freeze_Mode). The settings for Freeze are On or Off. The
default is Off.
#Freeze_B Freeze_B enables the capture of one Video Field or Frame (depending on
the setting Freeze_Mode) for outputs B. The settings for Freeze are On
or Off. The default is Off.
Delay-Status It is possible to display the processing time of the card in the Status
menu. This setting allows you to switch this function On or Off (default).
Lock-Mode Lock-Mode determines whether the card is locked to its input , to the
reference (Ref1 or Ref2) or freerun (not locked). Can also be set to
RefAuto. By default it is set to Ref1.
When set to RefAuto the card chooses ref1 as its source. Whenever ref1
fails, it will switch to ref 2 (only for SFR08 and SFR18 frames and only
when ref2 offers the same ref format as ref 1). When ref 1 is back up
again, it will only automatically switch back to ref 1 when ref 2 fails.
INSTALLATION AND OPERATION MANUAL
Synapse 2GF100 - 2GF110|5. Settings Menu| 11

Ref-Type Sets the type of incoming reference. Can be either Bi-Level (default) or
Tri- Level.
P60-P50_Sync With this setting you can choose to synchronize each one frame or each
two frames. Default is One Frame. The two-frame-synchronize mode
only works for 720p60, 720p50, 1080p50 and 1080p60 standards.
ANC_BlankA With this setting you can Blank the vertical ancillary data only (V-Only),
blank the horizontal ancillary data only (H-only) or blank both vertical and
horizontal ancillary data (H_And_V). You can also choose to not blank any
data (Off), which is also default.
ANC_BlankB With this setting you can Blank the vertical ancillary data only (V-Only),
blank the horizontal ancillary data only (H-only) or blank both vertical and
horizontal ancillary data (H_And_V). You can also choose to not blank any
data (Off), which is also default. This setting is for Channel B only.
Freeze_Mode Freeze_Mode allows you to choose between storing a complete Video
Frame or Field (double written) in case of a video freeze. The default
setting is Field.
PrstEditView With this setting set to Follow Active, the edit preset settings (e.g. UP_
Prst_editA and UP_Prst_editB) will follow the active preset when the
active preset is changed. This is to avoid confusion when changing the
active preset. Set to Independent, the edit preset will not automatically
follow active preset changes. By default set to Follow Active.
PatternSpeed Sets the speed of the test-pattern (see settings Inp_SelA and Inp_SelB)
animation between 0 (still) and 15 (fast). Default is 1.
Input_Loss_A Input_loss_A determines what the output of outputs A is in case of lost
input:
•Freeze: a capture of the last good field or frame.
•Colorbar: a color bar
•Zoneplate: a zone plate
•Black: a black output.
•Grey: a gray output.
•Green: a green output.
•Freeze 1 sec: a freeze of the last field or frame for 1 second. After 1
second the output framework is disabled.
•Freeze 5 sec: Same as Freeze 1 sec, only holding the freeze
frame/field for 5 seconds.
The default setting is Freeze.
Input_Loss_B Input_loss_B determines what the output of output B is in case of lost
input. Same values as Input_Loss_A are possible.
12| November 2021 | Issue 1.00.E
