ADDER AdderLink DV120 User manual

Your AdderLink DV120 package
The AdderLink DV120 allows you to extend DVI-D digital video over a maximum of 50 meters of
twisted pair cable with the minimum of infrastructure and fuss. It is simply powered via USB from
the local end, so that no additional power supply is required at the remote, simultaneously saving
time and space as well as making installation very straightforward.
In addition to this brief guide, your package should contain the following:
Supplied items
AdderLink DV120
User Guide
Warranty
Adder Technology Ltd warrants that this product shall be free from defects in workmanship and
materials for a period of two years from the date of original purchase. If the product should fail to
operate correctly in normal use during the warranty period, Adder will replace or repair it free of
charge. No liability can be accepted for damage due to misuse or circumstances outside Adder’s
control. Also, Adder will not be responsible for any loss, damage or injury arising directly or indi-
rectly from the use of this product. Adder’s total liability under the terms of this warranty shall in
all circumstances be limited to the replacement value of this product.
Regulatory information
EMC directive 2004/108/IEC
This equipment has been tested and found to comply with the limits for a class A computing
device in accordance with the specifications in the European standard EN55022. These limits are
designed to provide reasonable protection against harmful interference. This equipment gener-
ates, uses and can radiate radio frequency energy and if not installed and used in accordance
with the instructions may cause harmful interference to radio or television reception. However,
there is no guarantee that harmful interference will not occur in a particular installation. If this
equipment does cause interference to radio or television reception, which can be determined by
turning the equipment on and off, the user is encouraged to correct the interference with one
or more of the following measures: (a) Reorient or relocate the receiving antenna. (b) Increase
the separation between the equipment and the receiver. (c) Connect the equipment to an outlet
on a circuit different from that to which the receiver is connected. (d) Consult the supplier or an
experienced radio/TV technician for help.
FCC compliance statement (United States)
This equipment generates, uses and can radiate radio frequency energy and if not installed
and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause
interference to radio communications. It has been tested and found to comply with the limits for
a Class A computing device in accordance with the specifications in Subpart J of part 15 of FCC
rules, which are designed to provide reasonable protection against such interference when the
equipment is operated in a commercial environment. Operation of this equipment in a residential
area may cause interference, in which case the user at his own expense will be required to take
whatever measures may be necessary to correct the interference. Changes or modifications not
expressly approved by the manufacturer could void the user’s authority to operate the equipment.
What you may additionally need
PSU-LPV-KIT
External power
adapter and USB
adapter cable.
This power kit is only required if the host
computer or other device with a USB
port cannot provide sufficient power.
Safety information
• Foruseindry,oilfreeindoorenvironments.
• Ensurethatthetwistedpairinterconnect
cable is installed in compliance with all ap-
plicable wiring regulations.
• Donotconnecttheinterconnectcableto
any other equipment, particularly network
or telecommunications equipment.
• Donotattempttoservicetheunitsyourself.
Local unit
Remote unit
ALDV120P package includes: 1 local unit and 1 remote unit
©2013AdderTechnologyLimited•Alltrademarksareacknowledged.
PartNo.MAN-QS-ALDV120-ADDER•Release1.0d
Web: www.adder.com
Contact: www.adder.com/contact-details
Support: forum.adder.com

Green LED: Flashes to show unit is operating.
Yellow LED: Flashes when the remote unit is
being checked. On when the remote unit has
been verified and power applied to it.

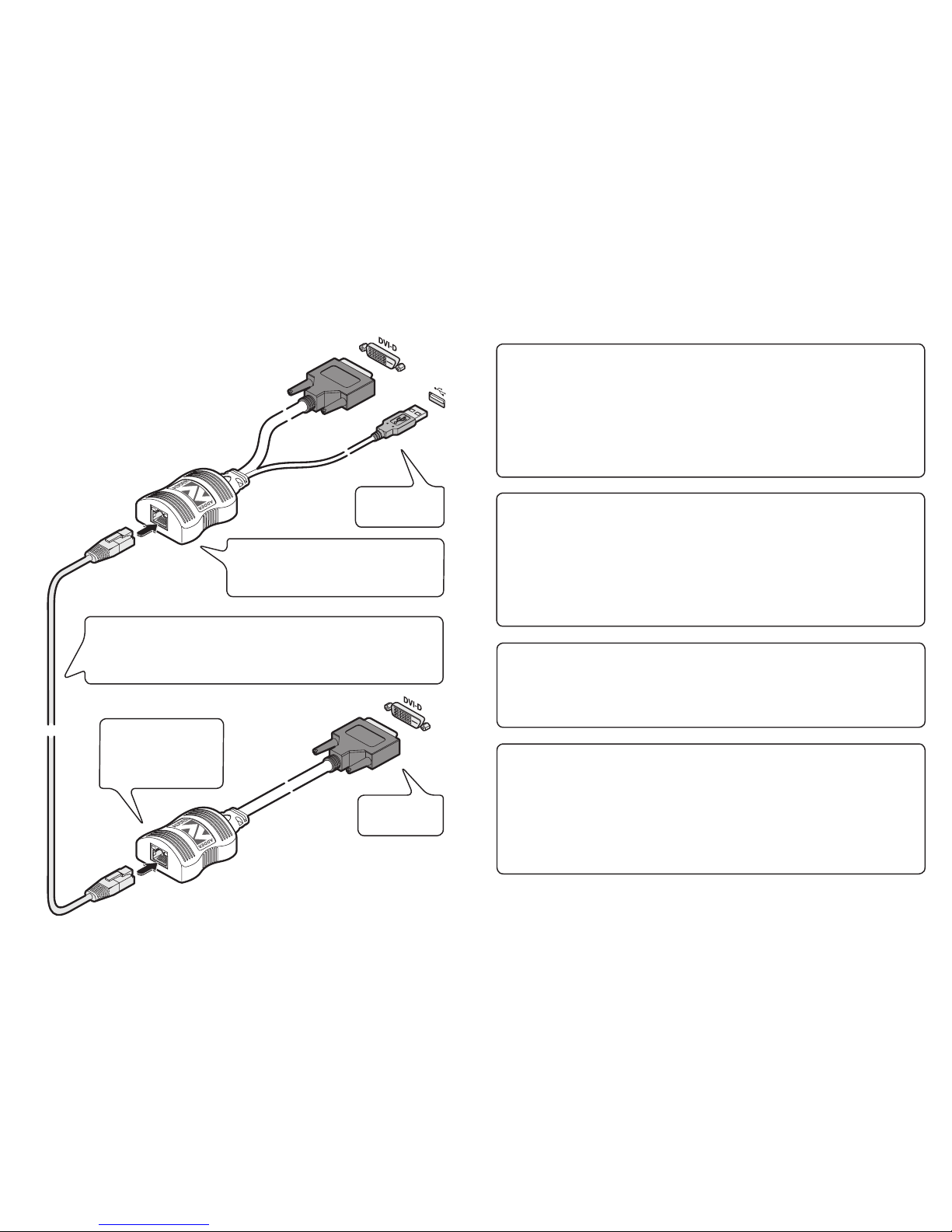

Connecting your AdderLink DV120
Local unit
1 Connect the plugs to the DVI-D video
output socket and a vacant USB port on
the computer. Note: The USB connection
provides only power for the units.
2 Attach one end of the link cable to the
socket at the end of the local unit.
Remote unit
1 Connect the video plug to the DVI-D
socket on the display screen.
2 Attach the other end of the link
cable to the socket at the end of the
remote unit.
IMPORTANT:
• Useonlyscreened(FTP)cable(CAT6orbetter)toconnectthetwounits.
• Donotconnectthelocalunit,viatheCATxcable,toanythingotherthanthe
remote unit.
Video and USB
connections to the
host computer.
Video connection
to the display
screen.
Power control
IMPORTANT: Do not connect the local unit, via the CATx cable, to anything other than the
remote unit.
Low voltage power for the remote unit is fed via the same link cable as is used for the video.
The local unit always performs a check before applying power along the link cable.
The local unit will disable the power if:
• Thecableisdisconnected,or
• Linepowerisoverloaded.
Green LED: Flashes to
show the unit is operating.
Yellow LED: Flashes if
HDCP encoded content is
present in the video feed.
Cable considerations
Toensurecorrectoperation,Category6(orbetter)shieldedtwistedpaircablemustbeusedto
connect the local and remote units. The use of shielded cables is important to maintain com-
pliance with radio frequency energy emission regulations and ensure a suitably high level of
immunity to electromagnetic disturbances.
For best results, Adder recommends S/FTP CAT7 cable such as Adder part number VSCAT7-50.
Patch panels or cable couplers should only be used close to the local unit, connected by CAT7
patch cables of no more than 2m in length. The overall cable run must be reduced by 5m if a
coupling is used.
DVI operation
TheAdderLinkDV120cansupportDVIvideouptoamaximum165MHzclockrate(1920x
1200or1600x1200at60Hz,24-bitcolor).
High-bandwidth Digital Content Protection (HDCP) is supported if HDMI or DisplayPort
converters are used with this product.
Video display (EDID) information
Extended Display Identification Data (or EDID) is an industry standard scheme which allows
video displays to declare their capabilities to the computer’s video adapter circuitry, allowing
thelattertooptimizetheiroutputsaccordingly.Sincethewidespreadadoptionofthescheme,
video adapters have become increasingly dependent on receiving relevant EDID information
during start-up, before they will output anything more than a rudimentary video signal.
Each time that the AdderLink DV120 units are powered on, the remote unit attempts to read
the EDID information from the connected video display. The information is then transferred to
the local unit and made available to the computer’s video adapter when required.
