ADDER CCP2U User manual

Your CCP2U converter package
In addition to this brief guide, your package should contain the converter cable:
Adder Technology Limited,
Technology House,
Trafalgar Way,
Cambridge, CB3 8SQ,
United Kingdom
Tel: [phone]
Fax: [phone]

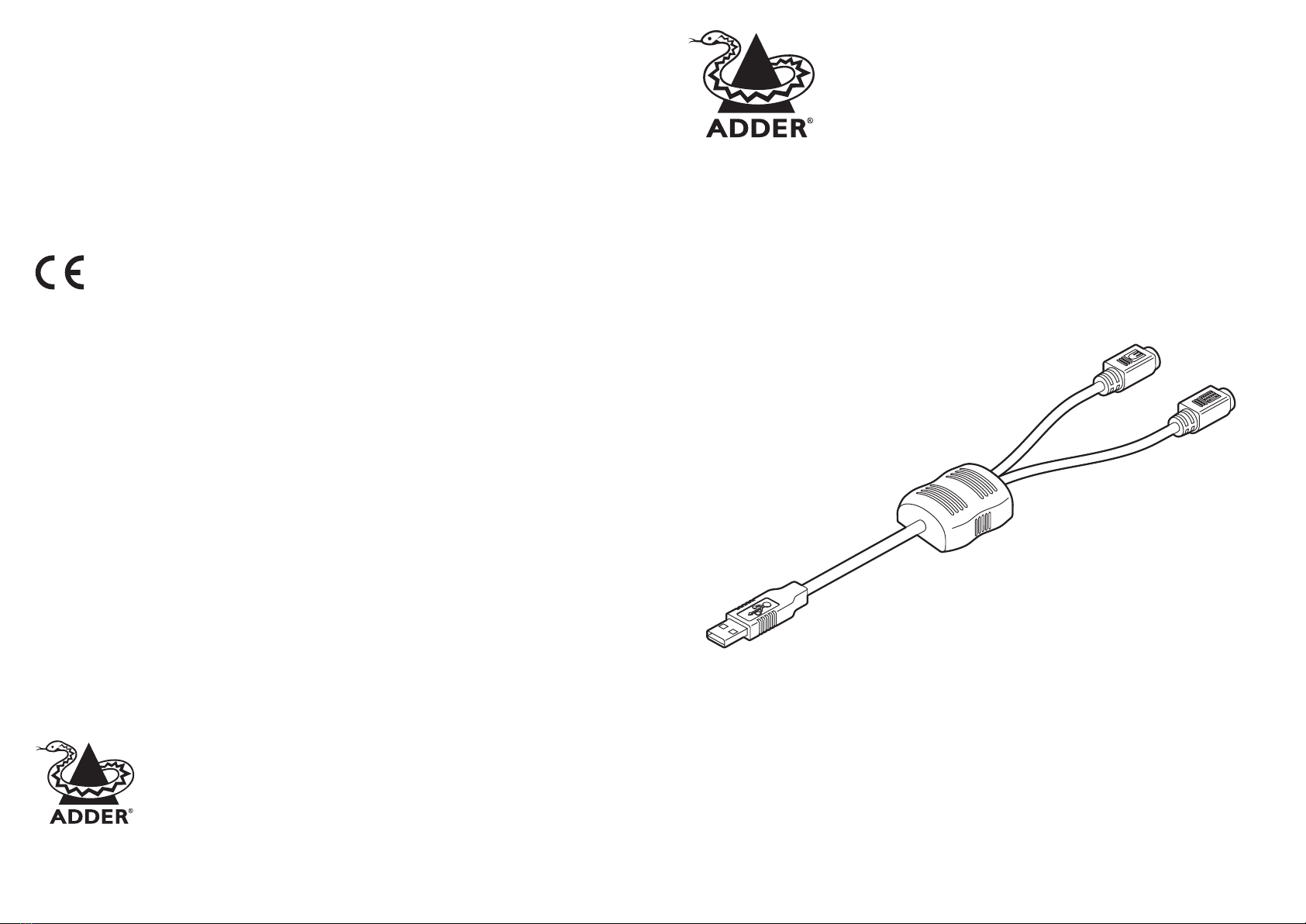

CCP2U Converter
User Guide
Email: [e-mail]
Web: www.adder.com
© 2006 Adder Technology Limited • Release 1.0a • Part No. ADD0063
All trademarks are acknowledged.
Adder Corporation,
29 Water Street,
Newburyport,
MA 01950,
United States of America
Tel: [phone]
Fax: [phone]
USB connector
Mouse connector
Circuitry shell
This moulding contains
all of the signal conver-
sion circuitry
Your warranty
Adder Technology Ltd warrants that this product shall be free from defects in workmanship and
materials for a period of two years from the date of original purchase. If the product should fail to
operate correctly in normal use during the warranty period, Adder will replace or repair it free of
charge. No liability can be accepted for damage due to misuse or circumstances outside Adder’s
control. Also, Adder will not be responsible for any loss, damage or injury arising directly or indi-
rectly from the use of this product. Adder’s total liability under the terms of this warranty shall in
all circumstances be limited to the replacement value of this product.
Regulatory information
European EMC directive 89/336/EEC
This equipment has been tested and found to comply with the limits for a class B com-
puting device in accordance with the specications in the European standard EN55022.
These limits are designed to provide reasonable protection against harmful interference.
This equipment generates, uses and can radiate radio frequency energy and if not installed and
used in accordance with the instructions may cause harmful interference to radio or television
reception. However, there is no guarantee that harmful interference will not occur in a particu-
lar installation. If this equipment does cause interference to radio or television reception, which
can be determined by turning the equipment on and off, the user is encouraged to correct the
interference with one or more of the following measures: (a) Reorient or relocate the receiving
antenna. (b) Increase the separation between the equipment and the receiver. (c) Connect the
equipment to an outlet on a circuit different from that to which the receiver is connected. (d)
Consult the supplier or an experienced radio/TV technician for help.
FCC statement
This equipment generates, uses and can radiate radio frequency energy and if not installed
and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause
interference to radio communications. It has been tested and found to comply with the limits for
a Class A computing device in accordance with the specications in Subpart J of part 15 of FCC
rules, which are designed to provide reasonable protection such interference when the equipment
is operated in a commercial environment. Operation of this equipment in a residential area may
cause interference, in which case the user at his own expense will be required to take whatever
measures may be necessary to correct the interference. Changes or modications not expressly
approved by the manufacturer could void the user’s authority to operate the equipment.
Keyboard connector

Connecting your CCP2U converter
Your CCP2U converter adapts traditional PS/2-style keyboard and mouse connections for use with
a USB port.
Connector/port icons & colours
Keyboard Purple
Mouse or Mid green
USB Black
Important information
• For use in dry, oil free indoor environments only.
• Your CCP2U converter contains no user-serviceable parts.
• For connection only to the following standard computer system and KVM switch connectors: PS/2-
style keyboard, PS/2-style mouse and USB ports.
Software upgrades and keyboard emulations
The software within your CCP2U converter can emulate keyboards for various computers without
modication. When used in conjunction with Adder MP-type KVM switches it can support PC,
Apple and Sun systems as standard. When used in conjunction with other Adder or non-Adder
switches, your CCP2U converter supports PC and Apple systems as standard and Sun systems by
means of downloading a Sun driver into the cable.
The Sun driver as well as other specialist keyboard emulators and general software upgrades are
available within the Support section of the Adder Technology website - www.adder.com. Full
instructions for performing an upgrade/keyboard emulation are included with the les from the
website.
Keypress equivalents
The tables below provide equivalent keypresses on a standard PC (PS/2-style) keyboard that emu-
late special keys found on Apple®, Microsoft® or Sun® keyboards.
3 At the other end of the CCP2U
converter, attach the USB connec-
tor to a vacant USB socket on your
computer.
4 Switch on your computer(s) and
KVM switch (if used), and operate
in the usual manner.
Your CCP2U converter emulates
the presence of a keyboard and
mouse (via the USB connector)
to the computer at all times. This
means that when used with a KVM
switch, there will be no delay in
response when switching to this
channel.
Mouse connector
USB-equipped
computer
USB
connector

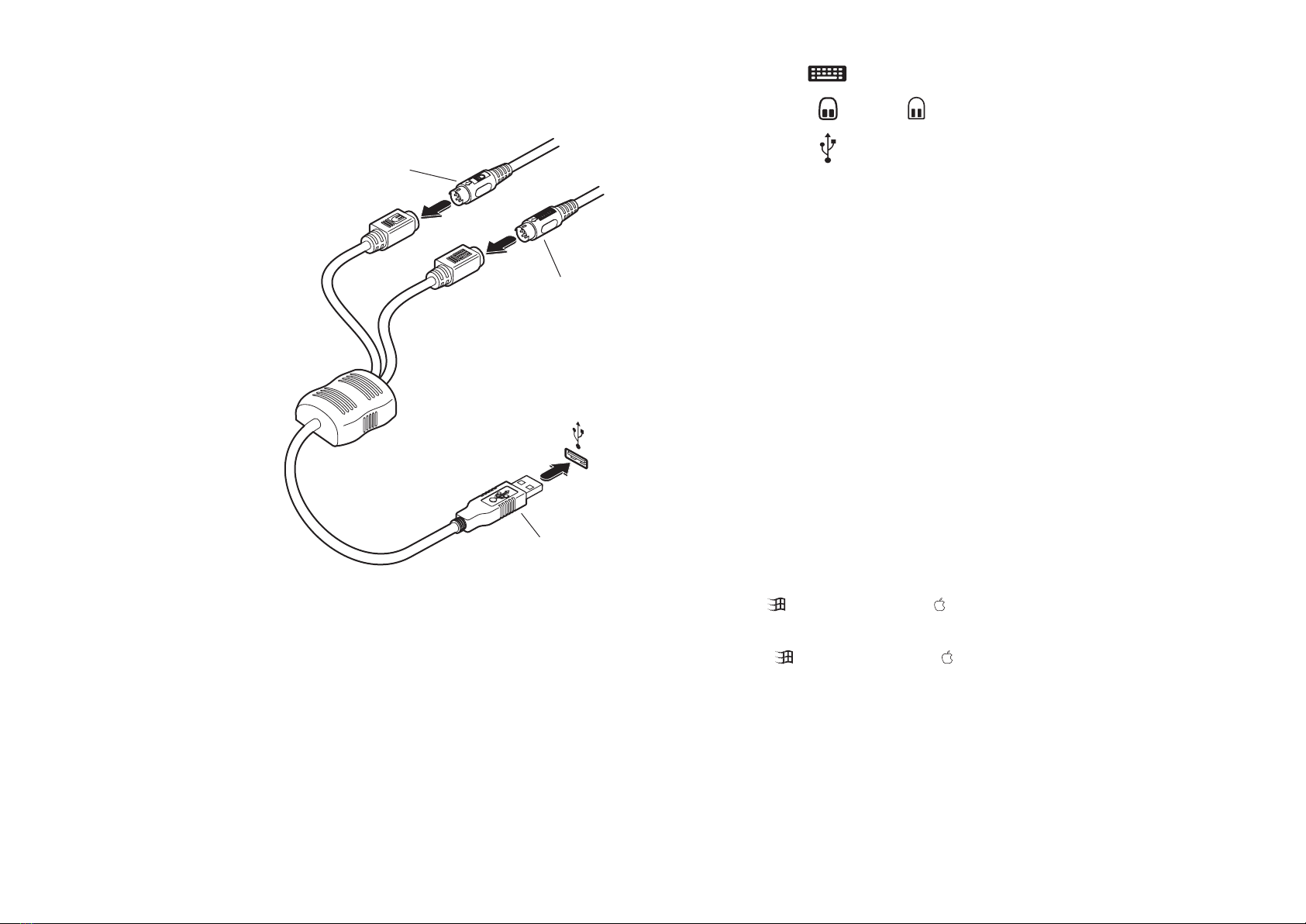

To connect your CCP2U converter
1 If possible, switch off your
computer and/or KVM switch.
2 Attach the keyboard and mouse
connectors to the two sockets of
the CCP2U converter. The sockets
are colour coded and also show
the keyboard and mouse icons.
* Certain PS/2 keyboards have a power key which will be
mapped to perform the same function for a Sun system.
PS/2 keyboard Apple keyboard
Left Ctrl Left Control
Left Win Start ( ) Left Command ( )
Left Alt Left Option (alt)
Right Alt or Alt Graph Right Option (alt)
Right Win Start ( ) Right Command ( )
Right Ctrl Right Control
Windows Application key No equivalent
No equivalent On / off key
PS/2 keyboard Sun keyboard
Right-[Ctrl] [F1] Stop
Right-[Ctrl] [F2] Again
Right-[Ctrl] [F3] Props
Right-[Ctrl] [F4] Undo
Right-[Ctrl] [F5] Front
Right-[Ctrl] [F6] Copy
Right-[Ctrl] [F7] Open
Right-[Ctrl] [F8] Paste
Right-[Ctrl] [F9] Find
Right-[Ctrl] [F10] Cut
Right-[Ctrl] [1] Mute
Right-[Ctrl] [2] Volume -
Right-[Ctrl] [3] Volume +
Right-[Ctrl] [4] Power*
Right-[Ctrl] [H] Help
When used with Sun® workstations, your CCP2U
converter needs to report a keyboard country
code to the host computer. Further details about
this feature are provided in the upgrade notes
available from www.adder.com.
Keyboard connector
