Intelligent Home DT-TPC User manual

DT-TPC
User Manual
telephone converter
Please read this manual carefully before using the product you purchase, and
keep it well for future use.We reserve the right to modify the specification in
this manual at any time without notice.

The TPC unit is a telephone converter designed for DT 2 wire system to divert calls from
outdoor station to telephone or mobile phone.With TPC unit,you can communicate with
outdoor person by your telephone or mobile phone which just like a remote control,you
can do the operation of talking,unlock and so on.
• Maximum 3 telephone number can be set
on monitor.
• Must be with TPC function for monitor
• Divert Calls from monitor to telephone
via TPC ,the TPC is like a telephone,when
setting the diversion function,door station
calls TPC rst,then divert to the telephone
number you set.
• Application:villa and apartment
150mm
140 mm
60 mm
About TPC Unit
1. Terminal Introduction
1
ON DIP
2 3 4 5 6
DIPON
1 2 3 4
P201
LED1 LED2 LED3
SW501 JW501
K1 K2
SW401 J101
J102
J103J104
LED1 LED2 LED3
1
Discription:
Features:

Item Discription
P201 • Main connection port
LED1 • Power indicator(normally bright)
• Signal indicator(ash)
LED2 • Normal bright when activating divert function
• Flash when the telephone number isn't preset
LED3
• Normal bright when working in Debug mode
(Debug mode:dialing sound can be heard from outdoor
station)
• Flash when working in Test mode
(Test mode:TPC calls a fixed number when divert
function is activated,and the telephone numbers set on
monitor are invalid)
K1
• LED3 will light up when press down the button, and
the Debug mode is activated.
• LED3 will turn off when press down the button
again,and return to Normal mode.
K2
• LED3 will ash when press down the button, and the
Test mode is activated.
• LED3 will turn off when press down the button
again,and return to Normal mode.
SW501 • Refer to 3.2
JW501 • 485 connection port,used to update the software for
TPC
J101 • Connect to the telephone network
J102 • Connect to the telephone
J103 • The same as J101, just terminal is different
J104 • The same as J102, just terminal is defferent
SW401 • Set the conguration,refer to 3.1
2

2. Mounting
3.DIP Switches Settings for TPC
109mm
124mm
Direct Wall Mounting DIN Rail Mounting
3.1 SW401 switches settings:
DIP Setting Discription
Bit1
(adjust the volume of the
telephone line)
the volume is twice louder than normal
the volume is normal
Bit2
(adjust the volume of outdoor
station)
the volume is twice louder than normal
the volume is normal
Bit3
(adjust the conguration of audio)
match the telephone network to DT system
not match
Bit4
(adjust the conguration of audio)
match PBX system to DT system
not match
12 3 4
ON
12 3 4
ON
123 4
ON
123 4
ON
1 2 34
ON
1 2 34
ON
1234
ON
1234
ON
Note:1.Bit1 and bit2 can not be "on" state at the same time.
2. Bit3 and bit4 can not be "on" state at the same time.
3

3.2 SW501 switches settings:
Villa application:
Apartment application:
Total 6 bits for SW501 switches. Bit-6 must be set to OFF in villa system.
Total 6 bits for SW501 switches. Bit-6 must be set to ON in apartment system.
To villa application,just Bit-1 is useful,Bit2 to Bit5 are invalid.
Bit state Discription
Application for villa
Bit state Discription
Application for apartment
Bit state Discription
TPC just is a monitor that its user code is 15,besides,the
monitors with its user code from 00 to 14 can be read and
written,but you should know that the divert mode will be
adopted from the monitor with its user code 00
TPC just is a monitor that its user code is 31,besides,the
monitors with its user code from 16 to 30 can be read and
written,but you should know that the divert mode will be
adopted from the monitor with its user code 16
1 2 3 4 5 6
ON
12 3 4 5 6
ON
12 3 4 5 6
ON
1 2 3 4 5 6
ON
ON(1)
=
OFF(0)
=
ON
ON
ON(1)
=
OFF(0)
=
ON
ON
4

Bit-1 to Bit-5 are used to set user code. The value is from 0 to 31, which have 32 different
codes .
When multi monitors are installed in one user, these monitors have to use the same User
Code setting, and the Master/Slave mode should be set on the Monitor.
Note: 1.The user code number for TPC must set the same as the corresponding
monitor.
5
Bit state User
Code
Bit state User
Code
Bit state User
Code
1 2 3 4 5 6
ON
Code=1
1 2 3 4 5 6
ON
Code=12
1 2 3 4 5 6
ON
Code=23
1 2 3 4 5 6
ON
Code=2
1 2 3 4 5 6
ON
Code=13
1 2 3 4 5 6
ON
Code=24
1 2 3 4 5 6
ON
Code=3
1 2 3 4 5 6
ON
Code=14
1 2 3 4 5 6
ON
Code=25
1 2 3 4 5 6
ON
Code=4
1 2 3 4 5 6
ON
Code=15
1 2 3 4 5 6
ON
Code=26
1 2 3 4 5 6
ON
Code=5
1 2 3 4 5 6
ON
Code=16
1 2 3 4 5 6
ON
Code=27
1 2 3 4 5 6
ON
Code=6
1 2 3 4 5 6
ON
Code=17
1 2 3 4 5 6
ON
Code=28
1 2 3 4 5 6
ON
Code=7
1 2 3 4 5 6
ON
Code=18
1 2 3 4 5 6
ON
Code=29
1 2 3 4 5 6
ON
Code=8
1 2 3 4 5 6
ON
Code=19
1 2 3 4 5 6
ON
Code=30
1 2 3 4 5 6
ON
Code=9
1 2 3 4 5 6
ON
Code=20
1 2 3 4 5 6
ON
Code=31
1 2 3 4 5 6
ON
Code=10
1 2 3 4 5 6
ON
Code=21
1 2 3 4 5 6
ON
Code=32
1 2 3 4 5 6
ON
Code=11
1 2 3 4 5 6
ON
Code=22
2. For apartment application,one TPC responds one user code of monitor,If slave monitors
are connected in one user,the Master/Slave mode should be set correctly on the Monitor.
and the TPC unit occupies the adress of the third slave monitor.

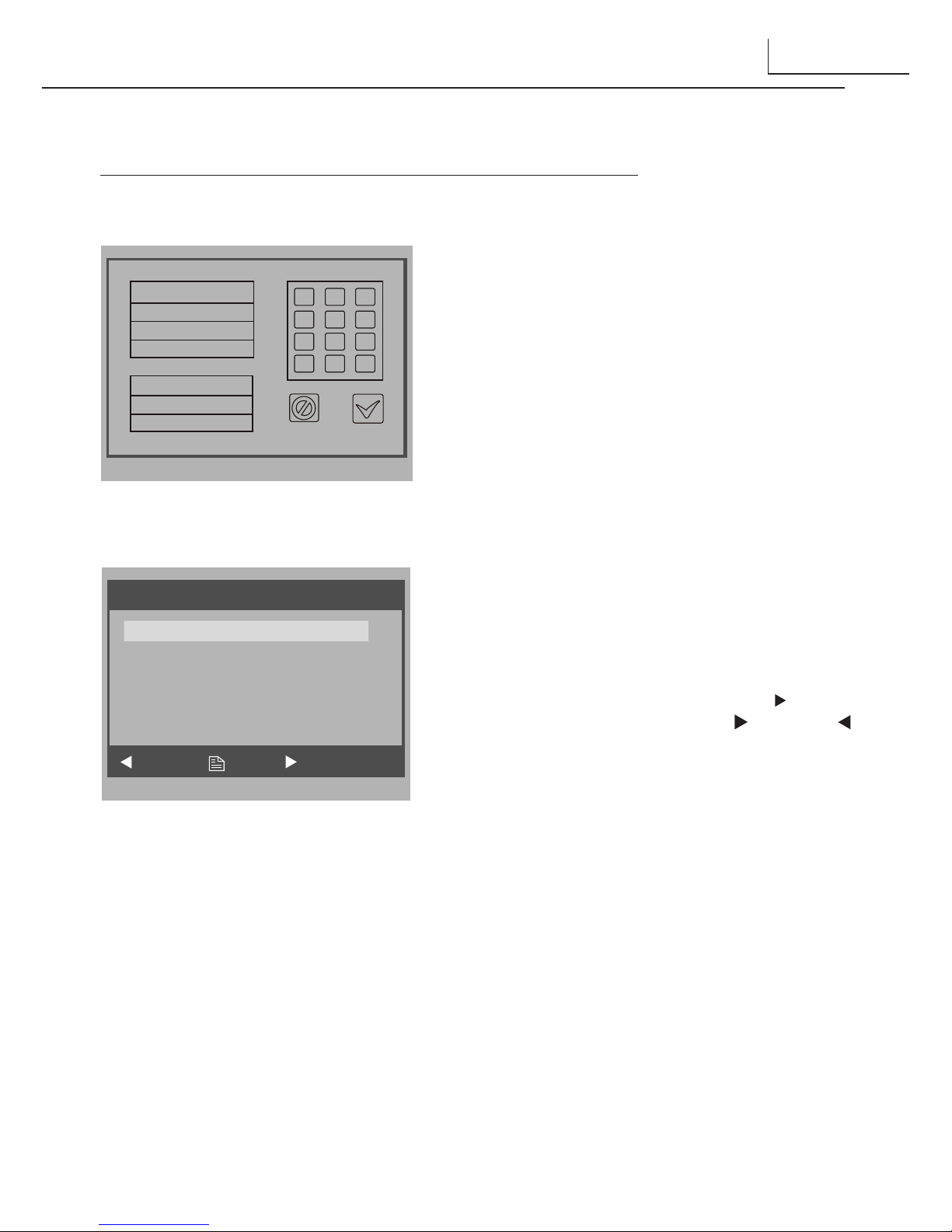

Touch screen monitors:
Button operation monitors:
Note:
4.Telephone Number Setting on Monitor
• There are 3 types of divert modes:
• 1:Don't divert calls----calls from outdoor station will not be diverted.
• 2:Divert if not answered----outdoor station calls indoor monitor firstly,if nobody
answer the call within 25 seconds,the call will be diverted to the telephone number
you set. At this mode,the monitor will shut off immediatelly when TPC deverts
sucessfully,while it won't affect the communication between TPC and outdoor station.
Otherwise, the monitor can do the operation of monitoring,talking,and unlocking.
• 3:Divert simutaneously----calls from outdoor station will be diverted to your telephone
immediately.At this mode,the monitor won't shut off when TPC deverts sucessfully,but
if the monitor answers the call at this time,TPC will quit absolutely.
Exit&Save
Exit&Unsave
-Telephone Number-
1> _
2> _
3> _
Don’t divert calls
Divert if not answered
Divert simultaneously
1 2 3
4 5 6
987
*0 #
TPC configure
1) 0
2)
3)
4)Divert mode select: 2
0:Not 1:Not Answer 2:Simulateously
Cancel Edit Save&Exit
• Maximum 3 telephone numbers can
be set,touch the telephone number
frame,then input the the number by
touching the digital keypad.
• Maximum 3 telephone numbers can
be set,Use ▲ /▼ Button to move
upward / downward to select the
item,then press the MENU button to
edit.Use ▲ / ▼ Button to increase /
decrease the value,and use button
to input next digital,use button to
button to cancel the input. press the
MENU button again to finish the edit
operation.
6

Item Discription
Unlocking
• Input 1# on your telephone or mobile phone to
release the rst lock
• Input 2# on you telephone or mobile phone to release
the second lock
Hanging up
• Input 9# on your telephone or mobile phone to hang
off absolutely
• Total divert calling time is more than 5 minutes
Calling next telephone
number
• 1:At least 2 telephone numbers must be set on
monitor
• 2:During communication between telephone and
outdoor station,"#" button has not been input on
telephone and the calling time of each group number
is less than 80 seconds.
Calling slave telephone
• Add a letter "P" between master telephone and slave
telephone.The TPC will call the slave telephone
directly.
Priority calling • The J102 terminal will be shut off before the TPC
calling,then activate calling.
5.Operation Instructions
Note: Divert function is activated in the following instructions
7

6.Wiring
Basic in-out mode(for villa)
AC~
DPS PS4
to telephone
network
to telephone
TPC
Code=0, DIP-6=off
123 4 5 6
ON
Code=13, DIP-6=off
123 4 5 6
ON
Code=14, DIP-6=off
123 4 5 6
ON
Bit1=off, DIP-6=off
132 4 5 6
ON
ID=00
1 2
ON
IN OUT
CALL
UNLOCK
TALK/MON
IN-USE
CALL
UNLOCK
TALK/MON
IN-USE
CALL
UNLOCK
TALK/MON
IN-USE
Note:The TPC unit occupies a user code of 15
8

Star wiring mode(for villa)
CALL
UNLOCK
TALK/MON
IN-USE
CALL
UNLOCK
TALK/MON
IN-USE
CALL
UNLOCK
TALK/MON
IN-USE
CALL
UNLOCK
TALK/MON
IN-USE
Code=0, DIP-6=on
1 2 3 4 5 6
ON
Bit1=off, DIP-6=off
132 4 5 6
ON
IN OUT
HI
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
HI
Code=14, DIP-6=on
Code=12, DIP-6=on
Code=13, DIP-6=on
Code=11, DIP-6=on
CALL
UNLOCK
TALK/MON
IN-USE
CALL
UNLOCK
TALK/MON
IN-USE
CALL
UNLOCK
TALK/MON
IN-USE
CALL
UNLOCK
TALK/MON
IN-USE
DBC-4
A B C D
IN
OUT
1 2 3 4 5 6
ON
Code=1, DIP-6=on
1 2 3 4 5 6
ON
Code=2, DIP-6=on
1 2 3 4 5 6
ON
Code=3, DIP-6=on
DBC-4
A B C D
IN
OUT
85~260AC
DPS PS5
ID=00
1 2
ON
TPC
Note:The TPC unit occupies a user code of 15
9

Code=1, DIP-6=off
Code=31, DIP-6=off
Code=31, DIP-6=on
Code=32, DIP-6=on Code=32, DIP-6=on
Code=1, DIP-6=on
ID=00
to telephone network
1 2 3 4 5 6
ON
to telephone network
to telephone network
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
85~260AC
DPS PS5
CALL
UNLOCK
TALK/MON
IN-USE
CALL
UNLOCK
TALK/MON
IN-USE
CALL
UNLOCK
TALK/MON
IN-USE
TPC
IN IN
OUT OUT
TPCTPC
IN
OUT

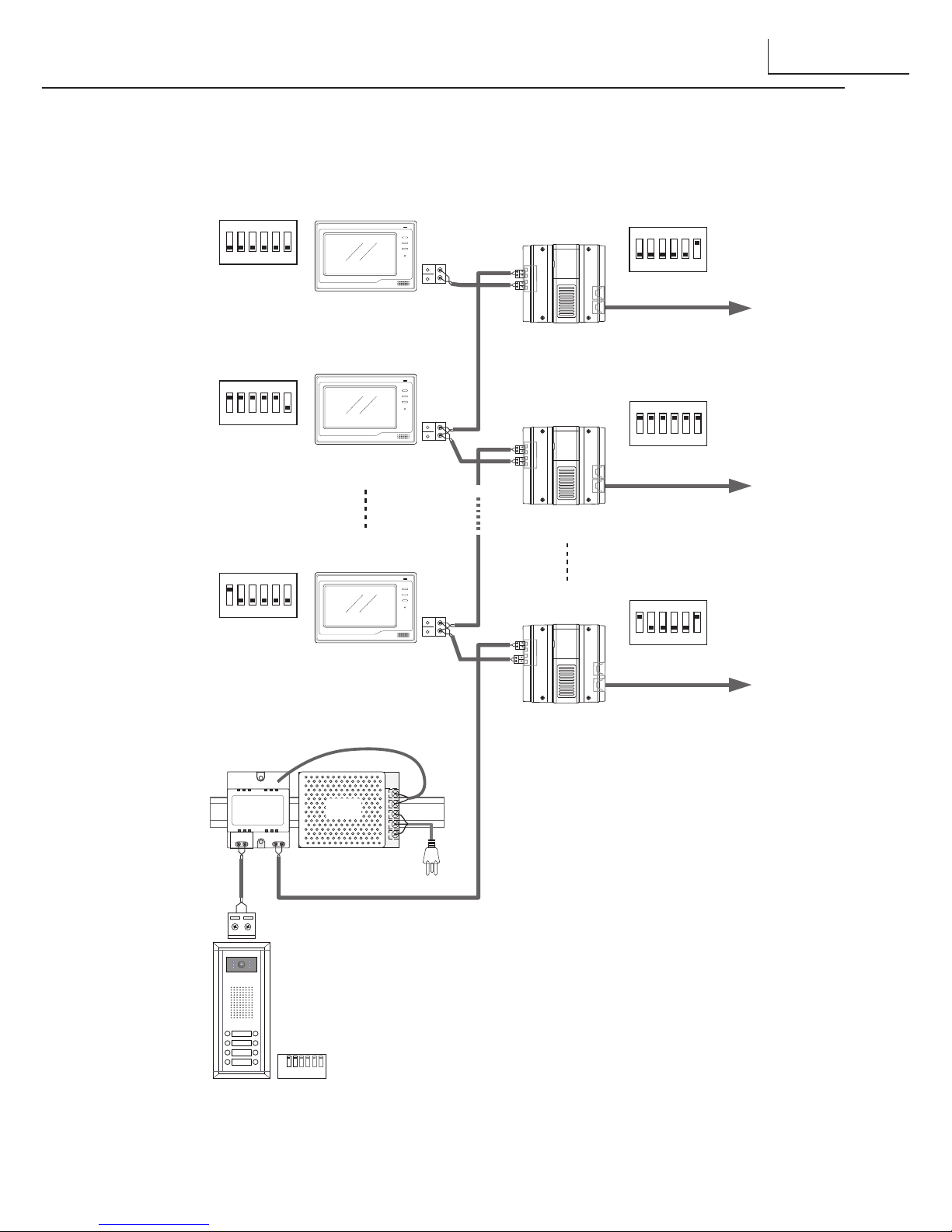

Basic in-out mode(for apartment)
Note:If slave monitors are connected in one user,the TPC unit occupies the adress of
the third slave monitor.
10

Basic star wiring mode(for apartment)
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
HI
Code=2, DIP-6=on
123 4 5 6
ON
Code=2, DIP-6=on
Code=1, DIP-6=on
123 4 5 6
ON
Code=1, DIP-6=on
123 4 5 6
ON
Code=3, DIP-6=on
123 4 5 6
ON
Code=4, DIP-6=on
1 2 3 4 5 6
ON
Code=4, DIP-6=on
CALL
UNLOCK
TALK/MON
IN-USE
CALL
UNLOCK
TALK/MON
IN-USE
1 2 3 4 5 6
ON
Code=3, DIP-6=on
CALL
UNLOCK
TALK/MON
IN-USE
CALL
UNLOCK
TALK/MON
IN-USE
CALL
UNLOCK
TALK/MON
IN-USE
CALL
UNLOCK
TALK/MON
IN-USE
CALL
UNLOCK
TALK/MON
IN-USE
CALL
UNLOCK
TALK/MON
IN-USE
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
Code=30, DIP-6=on
1 2 3 4 5 6
ON
Code=30, DIP-6=on
Code=29, DIP-6=on
1 2 3 4 5 6
ON
Code=29, DIP-6=on
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
Code=32, DIP-6=on
1 2 3 4 5 6
ON
Code=32, DIP-6=on
Code=31, DIP-6=on
123 4 5 6
ON
Code=31, DIP-6=on
DBC-4
A B C D
IN
OUT
85~260AC
DPS PS5
ID=00
1 2 3 4 5 6
ON
TPC
IN
OUT
TPC
IN
OUT
TPC
IN
OUT
TPC
IN
OUT
TPC
IN
OUT
TPC
IN
OUT
TPC
IN
OUT
TPC
IN
OUT
HI
DBC-4
A B C D
IN
OUT
6.Specication
Power input: DC 20~28Vdc (supplied by PS5)
Power Consumption: 0.5W in standby, 3 W in working
Working temperature: -10ºC +40ºC
Wiring: 2 wire,non-polarity
Dimension: 140(L)X150(D)X60(H)mm
11
Note:If slave monitors are connected in one user,the TPC unit occupies the adress of
the third slave monitor.
