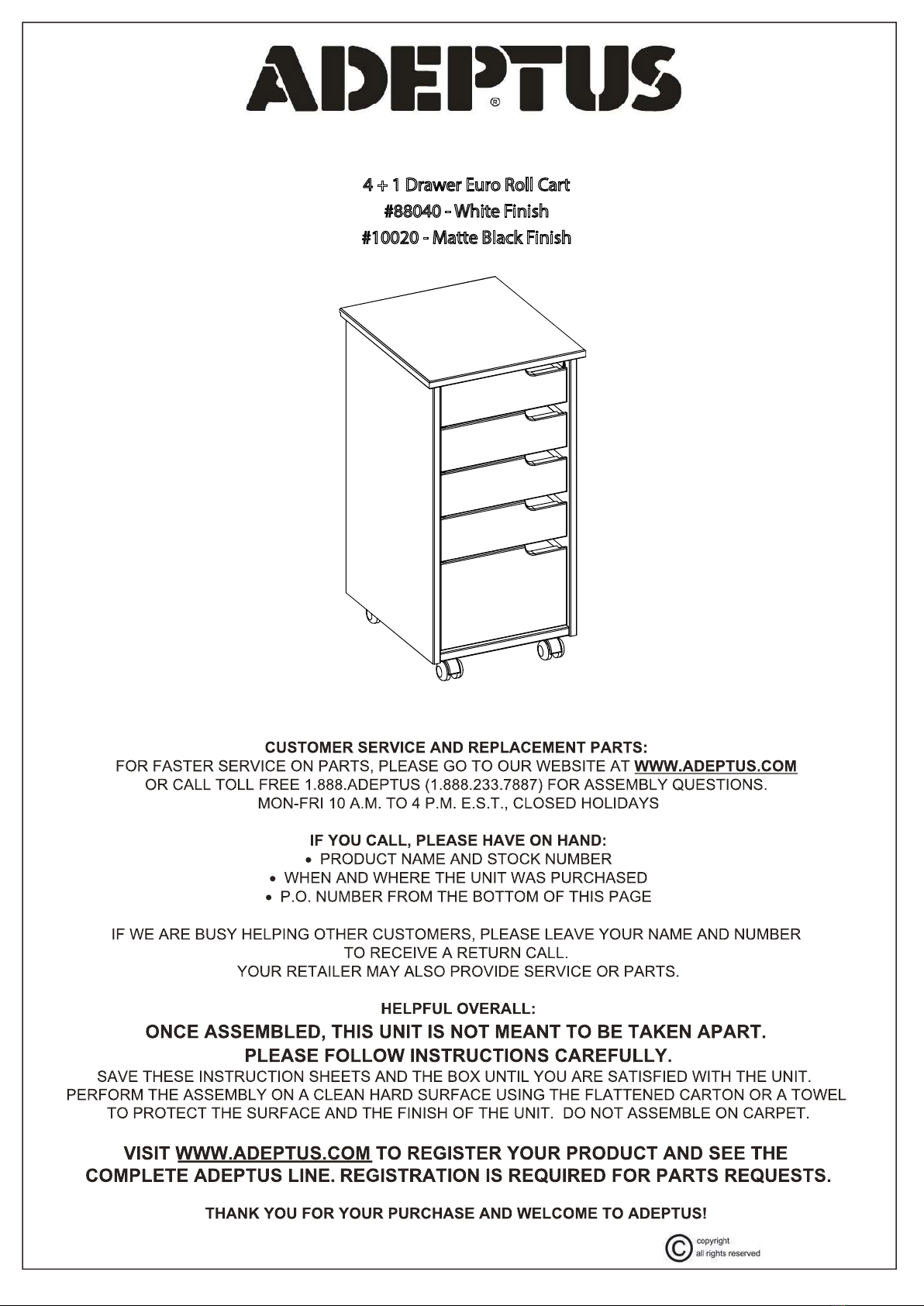

ASSEMBLY INSTRUCTIONS
4 + 1 Drawer Euro Roll Cart
#88040 - White Finish
#10020 - Matte Black Finish
PO EB2L7QD
NOTICE: THE WRITTEN INSTRUCTIONS CONTAINED HEREIN COPYRIGHTED.

2-10
NOTICE: THE WRITTEN INSTRUCTIONS CONTAINED HEREIN COPYRIGHTED.

45 min
F
A
B
C
D
E
12
10
10
40
04
NOTICE: THE WRITTEN INSTRUCTIONS CONTAINED HEREIN COPYRIGHTED.
3-10
Drawer
Runner
Screw
3.5 x 30mm
Screw
3.0 x 25mm
(Ea) Caster and
(Eb) Caster Insert
Pair
22
Nail
Dowel
8.0 x 30mm
4x
09
07
11
07 13
12
01
04
06
03
02
08 13
08
10
BACK CASTER SUPPORT
LARGE DRAWER FRONT
LARGE DRAWER BACK
TIP: DOWELS (PART A) VARY EVER SO SLIGHTLY.
IF A DOWEL (PART A) IS LOOSE
WE PREFER YOU CALL OUR TOLL FREE NUMBER
FOR ADDITIONAL DOWELS -
VS GLUING THE DOWEL.
IF YOU CHOOSE TO GLUE THE PARTS,
COMPLETELY TEST THE ASSEMBLY FIRST.
WE DO NOT SUPPLY GLUE.
05

A
1st
3rd
2nd
Bbounce
making assembly difficult and could
lead to damage of the parts.
1
NOTICE: THE WRITTEN INSTRUCTIONS CONTAINED HEREIN COPYRIGHTED.
4-10
03
02
PREPARE PARTS FOR ASSEMBLY
NEXT PREPARE CASTER SUPPORTS:
• USE A HAMMER OR RUBBER MALLET TO INSERT
CASTER INSERT (PART Eb) INTO THE BOTTOM OF
THE FRONT CASTER SUPPORT (PART 5) AND
BACK CASTER SUPPORT (PART 6).
• TAP ABOVE THE BACK OF THE CASTER (ABOVE
THE STEM) TO ASSEMBLE CASTERS (PART Ea)
INTO THE CASTER INSERT (PART Eb).
THIS STEP REQUIRES A FLAT, HARD SURFACE,
NOT A BED!
PUSH THE DOWELS (PART A) INTO THE EDGES
OF THE FOLLOWING PARTS, AS SHOWN:
(PART 2) RIGHT SIDE
(PART 3) LEFT SIDE
(PART 5) FRONT CASTER SUPPORT
(PART 6) BACK CASTER SUPPORT
• ATTACHING DRAWER RUNNERS:
THE DRAWER RUNNERS (PART B) WILL STRETCH
SLIGHTLY AS YOU HAMMER THEM INTO PLACE.
• LINE UP THE PIPS IN DRAWER RUNNERS (PART B)
TO THE PRE-DRILLED HOLES IN THE RIGHT SIDE
PANEL (PART 2).
• EASE THE PIPS INTO THE HOLES BY TAPPING EACH
PIP DOWN HALF WAY. START ON ONE END, THEN
THE MIDDLE, THEN THE OTHER END.
• WHEN ALL 3 PIPS ARE HALF WAY DOWN AND THE
DRAWER RUNNER (PART B) IS STRETCHED,
HAMMER THE RUNNER ALL THE WAY DOWN UNTIL
IT IS FLUSH WITH THE RIGHT SIDE
PANEL (PART 2).
• REPEAT THESE STEPS TO ATTACH THE
DRAWER RUNNERS (PART B) TO THE
LEFT SIDE (PART 3).
TIP: Using a regular
hammer to attach the
runners provides a
clearer line of sight than
a rubber mallet.
A
A
A
A
A
A
A
Ea
Ea
Ea
Ea
Ea
Eb
Eb
Eb
Eb
Eb
A
A
A
A
BBBBB
BBBBB
Caster and Insert
Ea=04 Eb=04
Dowel
8.0 x 30mm
A=12
Drawer
Runner
B=10
A
06
05

C
C
NOTICE: THE WRITTEN INSTRUCTIONS CONTAINED HEREIN COPYRIGHTED.
2
3
5-10
01
03
02

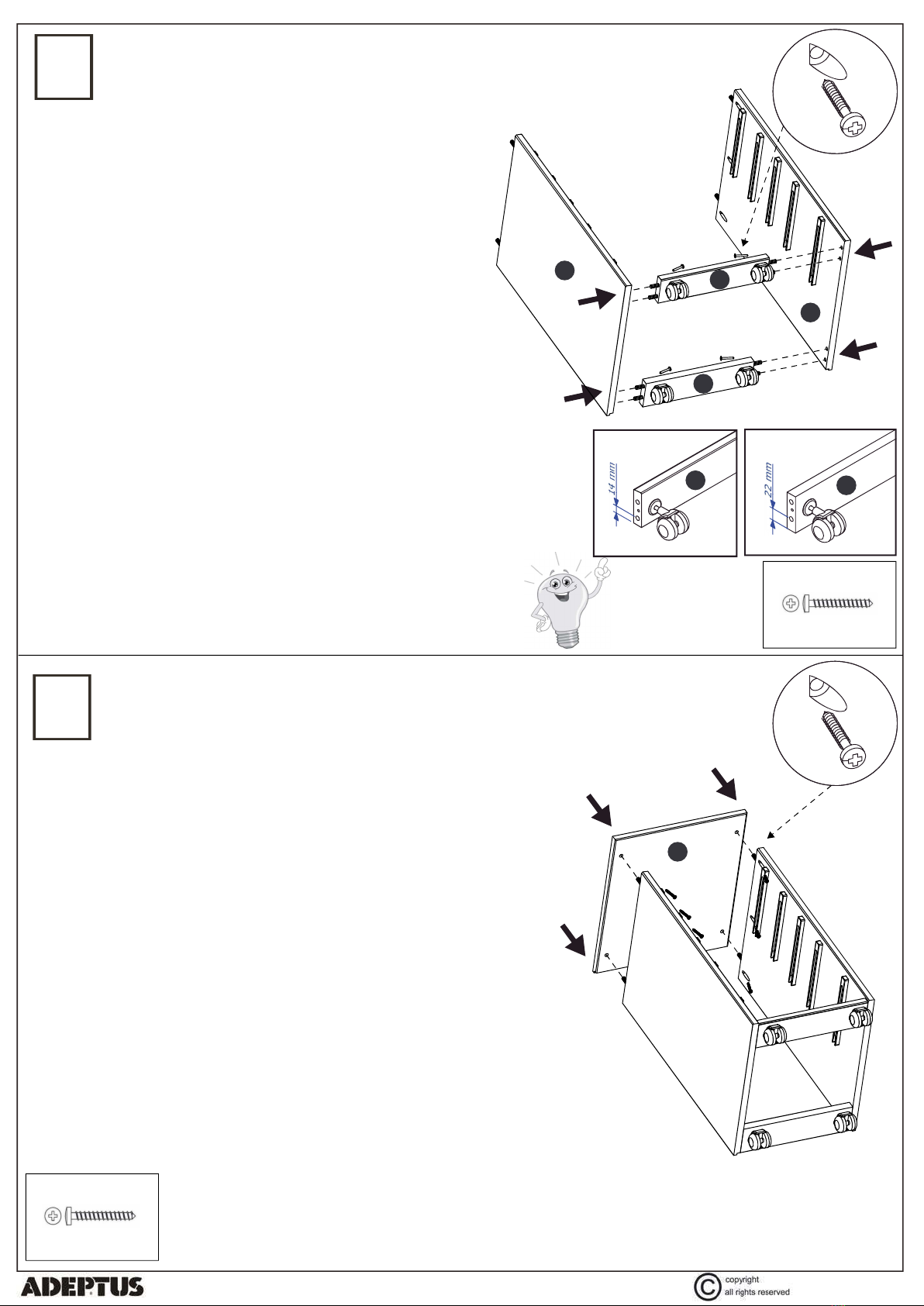

ATTACH THE SIDES TO THE CROSSBARS
ATTACH ONE SIDE FIRST AND THEN THE OTHER.
• DO NOT STAND LEFT SIDE (PART 3) UP
ON THE EDGE YET. TO EASE ASSEMBLY,
LAY SIDE FLAT ON THE FLOOR, RUNNER
SIDE VISIBLE.
• MATCH UP BACK CASTER SUPPORT (PART 6)
AND FRONT CASTER SUPPORT (PART 5) AT DOWEL
HOLES LOCATED AT THE BOTTOM OF SIDE.
• PLEASE CHECK THAT THE DISTANCES
MATCH TO THE SQUARE DIAGRAM. EACH CASTER SUPPORT
SHOULD BE FLUSH WITH FRONT AND BACK EDGES OF SIDES.
• SECURE BACK CASTER SUPPORT (PART 6) TO THE LEFT
SIDE (PART 3) USING SCREW (PART C).
SEE THE ROUND DIAGRAM, A BLOW UP IMAGE OF THE SCREW
POSITIONING THOUGH THE ANGLED POCKET HOLES.
• SECURE FRONT CASTER SUPPORT (PART 5) WITH SCREWS
(PART C) TO THE LEFT SIDE (PART 3) IN THE SAME MANNER.
• CAREFULLY TURN LEFT SIDE (PART 3) TO ITS BACK EDGE,
AS SHOWN IN THE DIAGRAM.
• POSITION RIGHT SIDE (PART 2) TO LINE UP THE CROSSBARS
(PART 5 AND 6) AT THE DOWEL HOLES AT BASE OF THE RIGHT
SIDE (PART 2).
• SECURE CASTER SUPPORTS (PART 5 AND 6) TO RIGHT SIDE
(PART 2) USING SCREW (PART C) AND SHOWN IN THE DIAGRAM.
TIP: HAND TIGHTEN FOR THE BEST FIT.
ATTACH THE TOP
• LINE UP THE DOWEL HOLES IN TOP (PART 1)
WITH DOWELS THE IN UNIT’S SIDES.
SEE ROUND DIAGRAM:
SLIDE (PART C) SCREWS THROUGH ANGLED
POCKET HOLES.
AND HAND TIGHTEN FOR BEST FIT.
TIP: This step is
easier with
two people.
Screw
3.5 x 30mm
C=04
Screw
3.5 x 30mm
C=06
CC
CC
06
05
06
05
C
C
C
C
C
C

NOTICE: THE WRITTEN INSTRUCTIONS CONTAINED HEREIN COPYRIGHTED.
6-10
4

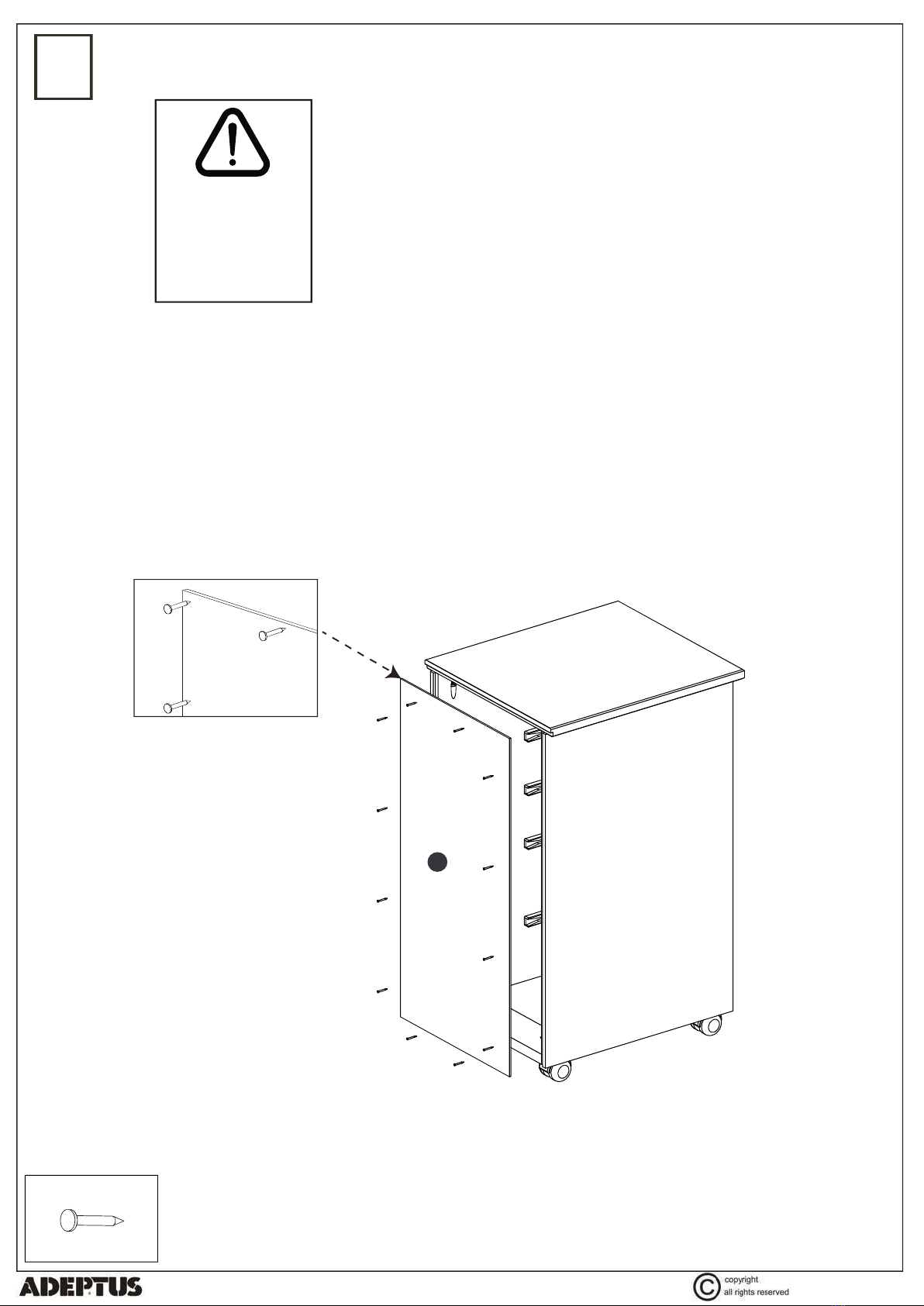

ATTACH THE BACK PANEL
• HOLD THE (PART 4) BACK PANEL IN THE
GROOVES INSIDE THE UNIT’S SIDES.
• ALSO MAKE SURE THE BACK PANEL FITS
IN THE GROOVE AT THE BACK OF THE TOP.
• CHECK THAT THE UNIT IS SQUARE.
• SECURE THE (PART 4) BACK PANEL USING
THE (PART F) NAILS. YOU MAY WANT TO FLIP
UNIT OVER SO FRONT EDGES FACE THE FLOOR.
Nail
F=12
04
F
F
F
Use all back
panels nails.
Evenly spaced,
they help make
the unit strong.
F
F
F
F
F
F
F
F
F
F
F
F

TIP: The top and bottom edges of your drawer back may not match the edges of your drawer
sides exactly. Don't worry - the drawer parts are perfectly aligned when the drawer bottom is
fully inserted into the drawer sides and drawer front.
NOTICE: THE WRITTEN INSTRUCTIONS CONTAINED HEREIN COPYRIGHTED.
5
7-10

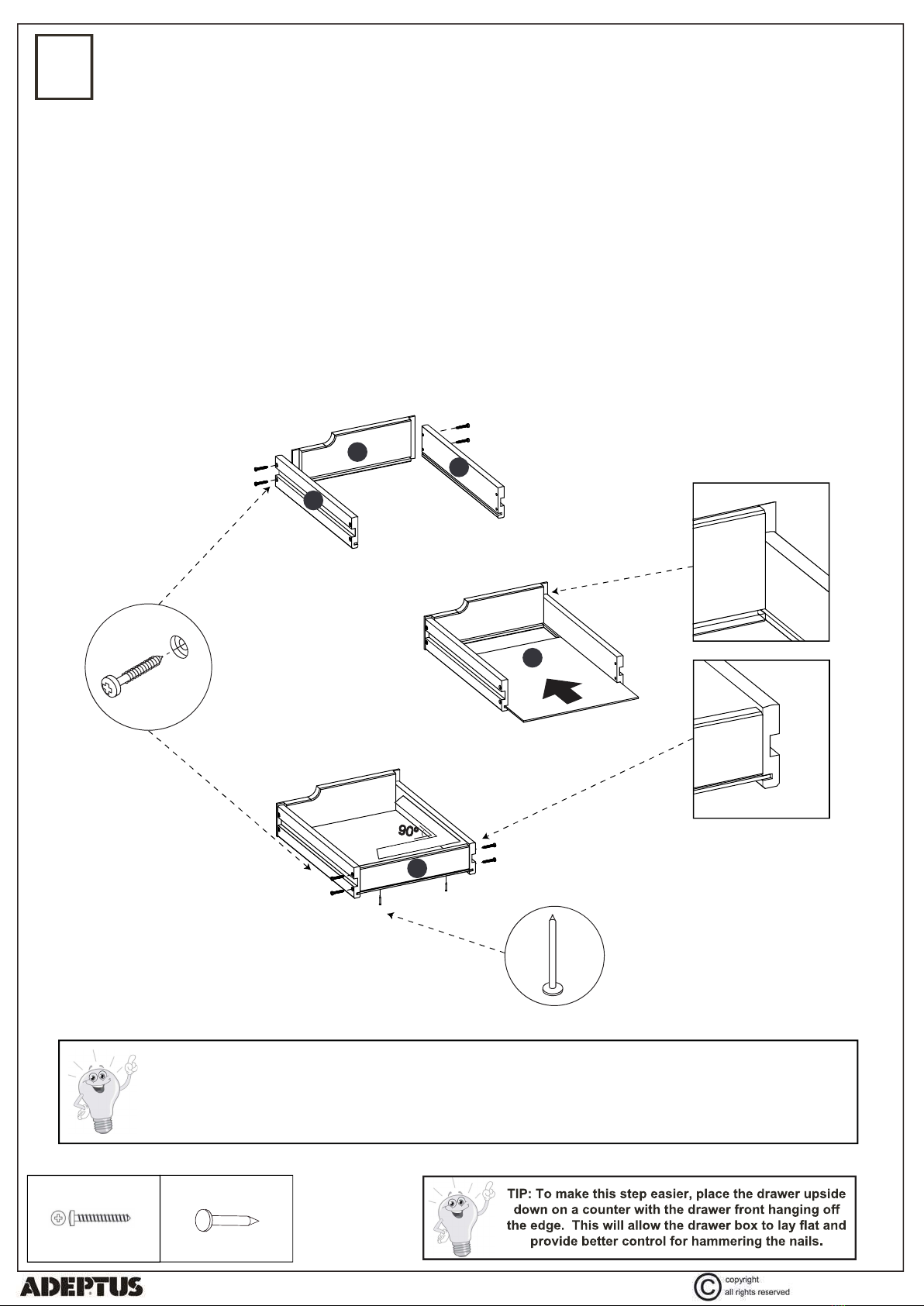

ASSEMBLE THE SMALL DRAWERS
• LINE UP THE BOTTOM EDGE OF THE DRAWER
SIDE (PART 7) WITH THE BOTTOM EDGE OF THE
DRAWER FRONT (PART 9).
• JOIN THE PARTS USING TWO SCREWS (PART D)
AS SHOWN IN THE DIAGRAM.
NOTE: THE SCREWS SHARP TIPS ARE SELF TAPPING,
SO THE DRAWER FRONT DOES NOT NEED A PILOT HOLE.
THE SHARP TIP STARTS THE HOLE, AND THE SCREW
THREADS WILL SECURE THE PART IN PLACE FOR A
TIGH FIT.
• REPEAT ON THE OTHER SIDE OF THE DRAWER.
• SLIDE IN DRAWER BOTTOM (PART 13) TROUGH GROOVES
IN THE DRAWER SIDES (PART 7). THIS WILL START SQUARING
UP THE DRAWER.
• LINE UP DRAWER BACK (PART 11) WITH BOTH DRAWER
SIDES (PART 7). CHECK THAT IT IS SQUARE.
• SCREW THE DRAWER BACK (PART 11) TO THE DRAWER
SIDES (PART 7).
• TURN THE DRAWER OVER. CONFIRM THE DRAWER BOTTOM
(PART 13) COVERS THE DRAWER BACK (PART 11). NAIL THE
DRAWER BOTTOM (PART 13) THROUGH TO THE DRAWER
BACK (PART 11) USING (2) NAILS (PART F).
Nail
F=08
Screw
3.0 x 25mm
D=32
D
FF
F
4x
09
07
11
07
13
D
D
D
D
D
D
D
D

NOTICE: THE WRITTEN INSTRUCTIONS CONTAINED HEREIN COPYRIGHTED.
6
8-10

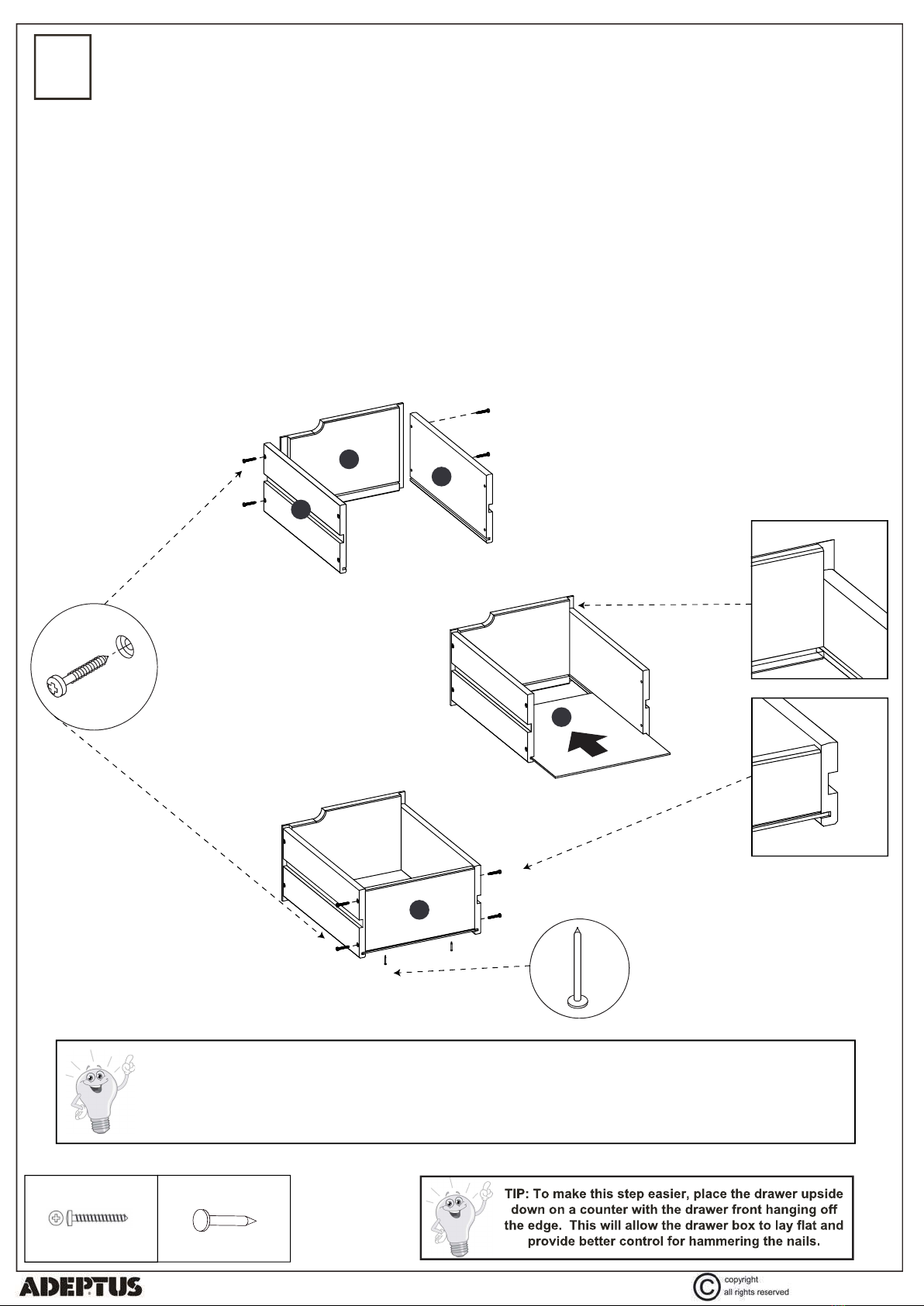

ASSEMBLE THE LARGE DRAWER
• LINE UP THE BOTTOM EDGE OF THE DRAWER
SIDE (PART 8) WITH THE BOTTOM EDGE OF THE
DRAWER FRONT (PART 10).
• JOIN THE PARTS USING TWO SCREWS (PART D)
AS SHOWN IN THE DIAGRAM.
NOTE: THE SCREWS SHARP TIPS ARE SELF TAPPING,
SO THE DRAWER FRONT DOES NOT NEED A PILOT HOLE.
THE SHARP TIP STARTS THE HOLE, AND THE SCREW
THREADS WILL SECURE THE PART IN PLACE FOR A
TIGH FIT.
• REPEAT ON THE OTHER SIDE OF THE DRAWER.
• SLIDE IN DRAWER BOTTOM (PART 13) TROUGH GROOVES
IN THE DRAWER SIDES (PART 8). THIS WILL START SQUARING
UP THE DRAWER.
• LINE UP DRAWER BACK (PART 12) WITH BOTH DRAWER
SIDES (PART 8). CHECK THAT IT IS SQUARE.
• SCREW THE DRAWER BACK (PART 12) TO THE DRAWER
SIDES (PART 8).
• TURN THE DRAWER OVER. CONFIRM THE DRAWER BOTTOM
(PART 13) COVERS THE DRAWER BACK (PART 12). NAIL THE
DRAWER BOTTOM (PART 13) THROUGH TO THE DRAWER
BACK (PART 12) USING (2) NAILS (PART F).
TIP: The top and bottom edges of your drawer back may not match the edges of your drawer
sides exactly. Don't worry - the drawer parts are perfectly aligned when the drawer bottom is
fully inserted into the drawer sides and drawer front.
Nail
F=02
Screw
3.0 x 25mm
D=08
D
D
D
D
DD
D
D
D
FF
F
10
08
08
13
12

NOTICE: THE WRITTEN INSTRUCTIONS CONTAINED HEREIN COPYRIGHTED.
9-10
• THE DRAWER SIDES HAVE A CHANNEL THROUGH THE
MIDDLE OF THE PART. THIS CHANNEL SLIDES OVER
THE DRAWER RUNNERS (PART B).
• SLIDE ALL DRAWERS IN.
CHECK THE DRAWERS RUN SMOOTH.
ONE DRAWER FRONT SHOULD NOT OVERLAP
ANOTHER DRAWER FRONT EDGE.
IF THERE IS A PROBLEM, IT IS LIKELY THE DRAWER FRONT IS NOT
ASSEMBLED LEVEL. SIMPLY BACK OUT ONE SET OF THE SCREWS
ON A DRAWER SIDE AND ADJUST UNTIL IT IS TO YOUR
SATISFACTION.
REMEMBER TO LINE UP THE BOTTOM EDGES OF THE DRAWER
SIDE AND DRAWER FRONT.
• STEP BACK TO LOOK AT UNIT. YOU MAY PREFER TO MOVE
ONE DRAWER TO ANOTHER’S POSITION.
7
INSERT DRAWERS AND COMPLETE ASSEMBLY

NOTICE: THE WRITTEN INSTRUCTIONS CONTAINED HEREIN COPYRIGHTED.
10-10
• NORMAL USE: WIPE WITH A CLEAN CLOTH.
• WHEN NEEDED TO CLEAN SCUFFS: WIPE CLEAN WITH A SLIGHTLY DAMP CLOTH AND MILD
CLEANER. THEN WIPE DRY WITH A CLEAN CLOTH.
• IF YOU OIL OR WAX THIS FURNITURE, IT WILL MORE QUICKLY DEVELOP A PATINA AND DARKEN.
COMPLETED ASSEMBLY:
THANK YOU FOR YOUR PURCHASE, AND WELCOME TO ADEPTUS!
USE AND CARE INSTRUCTIONS:
CARE INSTRUCTIONS:
MULTI-PURPOSE MOBILE STORAGE UNIT FOR HOME, OFFICE, CRAFT ROOM, KITCHEN, OR GARAGE.
USE:
