User Manual
BACnet Master /
KNX
Document code: MN67801_ENG Revision 1.100 agina 1 di 31
User Manual
Revision 1.100
English
BACnet Master / KNX - Converter
(Order Code: HD67801-KNX-BI -B2, HD67801-KNX-BMST -B2)
for Website information:
www.adfweb.com? roduct=HD67801
for rice information:
www.adfweb.com? rice=HD67801-KNX-BI -B2
www.adfweb.com? rice=HD67801-KNX-BMST -B2
Benefits and Main Features:
Very easy to configure
Electrical isolation
Temperature range: -40°C/85°C (-40°F/185°F)
For others KNX products, see also the following links:
Converter KNX to
www.adfweb.com? roduct=HD67628 (S7comm)
www.adfweb.com? roduct=HD67746 (IEC 1850 Server)
www.adfweb.com? roduct=HD67773 (IEC 1850 Client)
www.adfweb.com? roduct=HD67802 (BACnet Slave)
www.adfweb.com? roduct=HD67803 (CAN)
www.adfweb.com? roduct=HD67804 (CANopen)
www.adfweb.com? roduct=HD67806 (EtherNet/IP Master)
www.adfweb.com? roduct=HD67807 (EtherNet/IP)
www.adfweb.com? roduct=HD67808 (DeviceNet Master)
www.adfweb.com? roduct=HD67809 (DeviceNet Slave)
www.adfweb.com? roduct=HD67810 (J1939)
www.adfweb.com? roduct=HD67811 (M-Bus Master)
www.adfweb.com? roduct=HD67812 (Modbus Master)
www.adfweb.com? roduct=HD67813 (Modbus Slave)
www.adfweb.com? roduct=HD67814 (Modbus TCP Master)
www.adfweb.com? roduct=HD67815 (Modbus TCP Slave)
www.adfweb.com? roduct=HD67818 (PROFINET)
www.adfweb.com? roduct=HD67820 (SNMP)
www.adfweb.com? roduct=HD67821 (DMX)
www.adfweb.com? roduct=HD67825 (Ethernet)
www.adfweb.com? roduct=HD67830 (NMEA 2000)
www.adfweb.com? roduct=HD67947 (MQTT)
www.adfweb.com? roduct=HD67B18 (OPC UA Client)
www.adfweb.com? roduct=HD67B41 (OPC UA Server)
www.adfweb.com? roduct=HD67B79 (PROFINET Master)
www.adfweb.com? roduct=HD67C67 (EnOcean)
www.adfweb.com? roduct=HD67D27 (LoRaWAN)
www.adfweb.com? roduct=HD67F27 (LoRaWAN Gateway)
Do you have an your customer protocol?
www.adfweb.com? roduct=HD67003
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Master /
KNX
Document code: MN67801_ENG Revision 1.100 agina 2 di 31
INDEX:
age
INDEX 2
U DATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAM LE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 7
CONFIGURATION 7
OWER SU LY 8
FUNCTION MODES 9
LEDS 10
RS485 11
KNX 12
ETHERNET 13

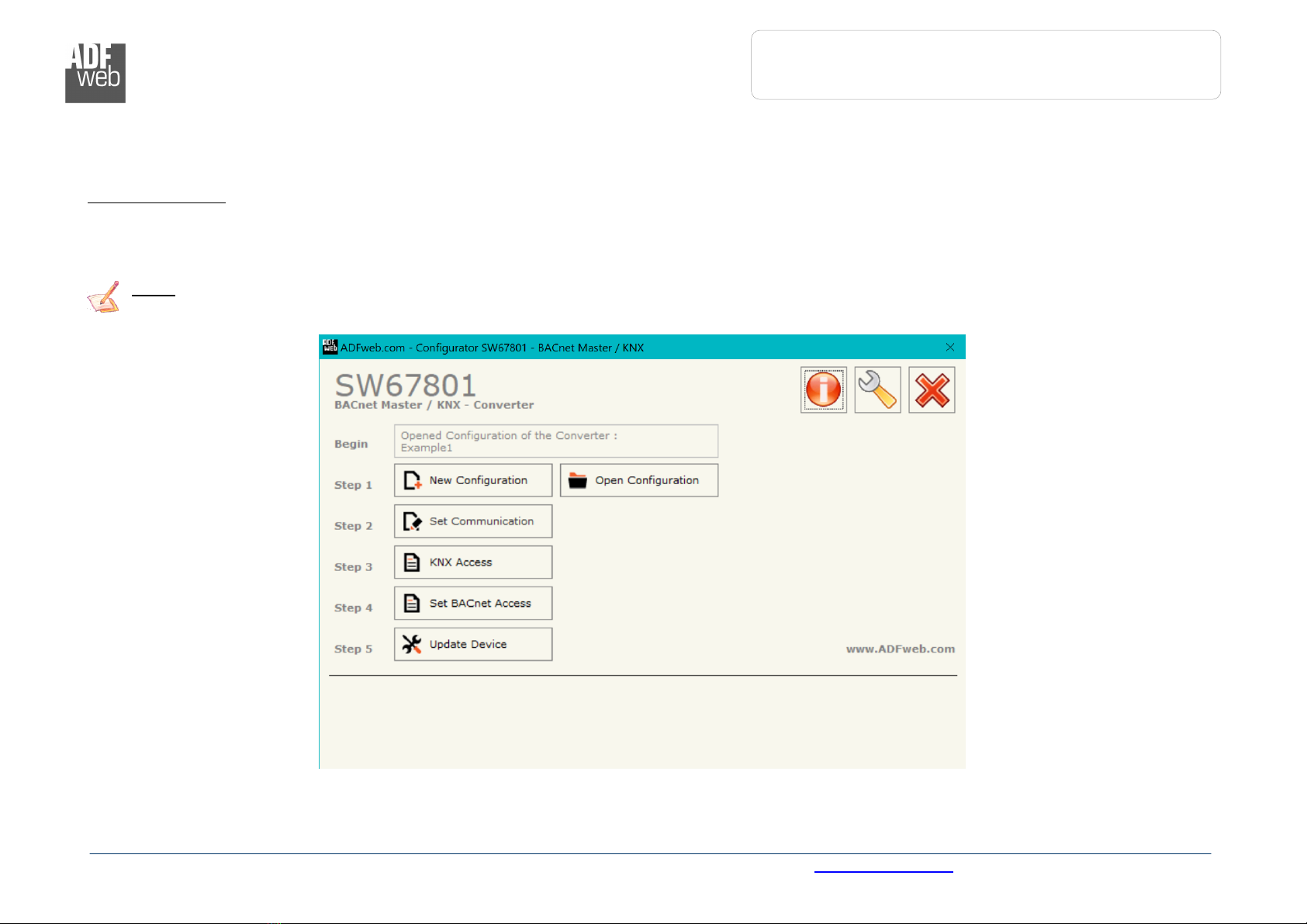

USE OF COM OSITOR SW67801 14
NEW ROJECT / O EN ROJECT 15
SOFTWARE O TIONS 16
SET COMMUNICATION 18
KNX ACCESS 20
SET BACNET ACCESS 22
U DATE DEVICE 26
MECHANICAL DIMENSIONS 28
ORDERING INFORMATIONS 29
ACCESSORIES 29
DISCLAIMER 30
OTHER REGULATIONS AND STANDARDS 30
WARRANTIES AND TECHNICAL SU ORT 31
RETURN OLICY 31
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.
Revision Date Author Chapter Description
1.000 20/04/2015 Ff All First Release
1.001 08/09/2015 Ff All Revision
1.002 26/02/2016 Nt All Revision
1.100 18/05/2023 Ln All New version of hardware

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Master /
KNX
Document code: MN67801_ENG Revision 1.100 agina 3 di 31
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Master /
KNX
Document code: MN67801_ENG Revision 1.100 agina 4 di 31
EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Master /
KNX
Document code: MN67801_ENG Revision 1.100 agina 5 di 31
CONNECTION SCHEME:
Figure 1a: Connection scheme for HD67801-KNX-BI -B2

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Master /
KNX
Document code: MN67801_ENG Revision 1.100 agina 6 di 31
Figure 1b: Connection scheme for HD67801-KNX-BMST -B2

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Master /
KNX
Document code: MN67801_ENG Revision 1.100 agina 7 di 31
CHARACTERISTICS:
The HD67801 is a BACnet Master / KNX Converter.
It has the following characteristics:
Up to 1440 bytes in reading and 1440 bytes in writing;
Triple isolation between KNX - ower Supply, KNX – BACnet, ower Supply - BACnet.
Two-directional information between KNX bus and BACnet bus;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION:
You need Compositor SW67801 software on your C in order to perform the following:
Define the parameter of KNX line;
Define the parameter of BACnet line;
Define the BACnet data that the converter reads;
Define the BACnet data that the converter writes;
Update the device.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Master /
KNX
Document code: MN67801_ENG Revision 1.100 agina 8 di 31
POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67801-KNX-BI -B2 3.5
HD67801-KNX-BMST -B2 3.5
HD67801-KNX-BI -B2
HD67801-KNX-BMST -B2
Caution: Not reverse the polarity power

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Master /
KNX
Document code: MN67801_ENG Revision 1.100 agina 9 di 31
FUNCTION MODES:
The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the roject and/or Firmware.
For the operations to follow for the updating, see ‘U DATE DEVICE’ section.
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Master /
KNX
Document code: MN67801_ENG Revision 1.100 agina 10 di 31
LEDS:
The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) ON: Device powered
OFF: Device not powered
2: KNX communication
(yellow) Blinks when KNX frame is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: BACnet communication
(yellow)
Blinks when BACnet frame (RS232/RS485/Ethernet) is
received
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Error state (yellow)
ON: At least one BACnet request hasn’t a correct
response
OFF: No errors are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Ethernet Link (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
6: KNX rogrammation (red) ON: KNX rogrammation activated
OFF: KNX rogrammation not activated
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Master /
KNX
Document code: MN67801_ENG Revision 1.100 agina 11 di 31

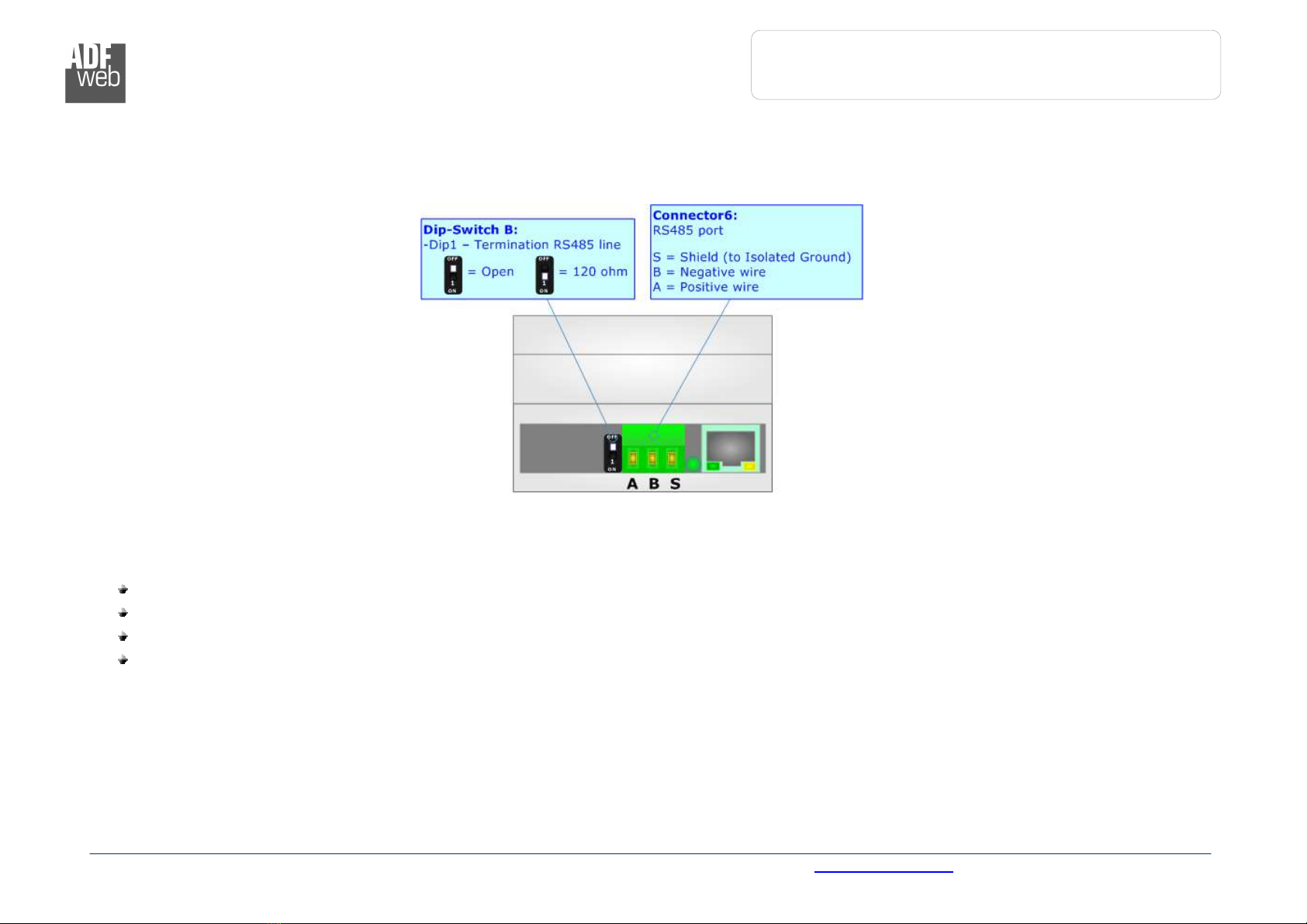

RS485:
For terminate the RS485 line with a 220Ω resistor it is necessary to put ON dip 1, like in figure.
The maximum length of the cable should be 1200m (4000 feet).
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Master /
KNX
Document code: MN67801_ENG Revision 1.100 agina 12 di 31
KNX:
KNX is the standard that allows the automated and decentralized management of the technologic plans of a
big typology of structures: commercial buildings, factories, houses, public locals, schools and so on.
KNX can be used in all the applications and functions for the building automations: from lighting to control
dampers, to the security, to the heating monitoring, to the conditioning, to the hydric control and alarms, to
energy management and so on.
Characteristics Description TP1-25
Medium Shielded Twisted air
Topology Linear, Star, Tree or mixed
Baudrate 9600 bps
Device supplying Normal: bus powered devices
Optional: remote powered devices
Device power consumption 3 mA- 12 mA
ower Supply Unit ( SU) DC 30 V
Number of SU’s per physical
Segment Max. 2
Number of connectable devices
per physical Segment Max. 256
Number of addressable devices
per physical Segment Max. 255
Total cable length per physical
Segment Max. 1000 m
Distance between two devices Max. 700 m
(*) Taken from KNX specifications

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Master /
KNX
Document code: MN67801_ENG Revision 1.100 agina 13 di 31

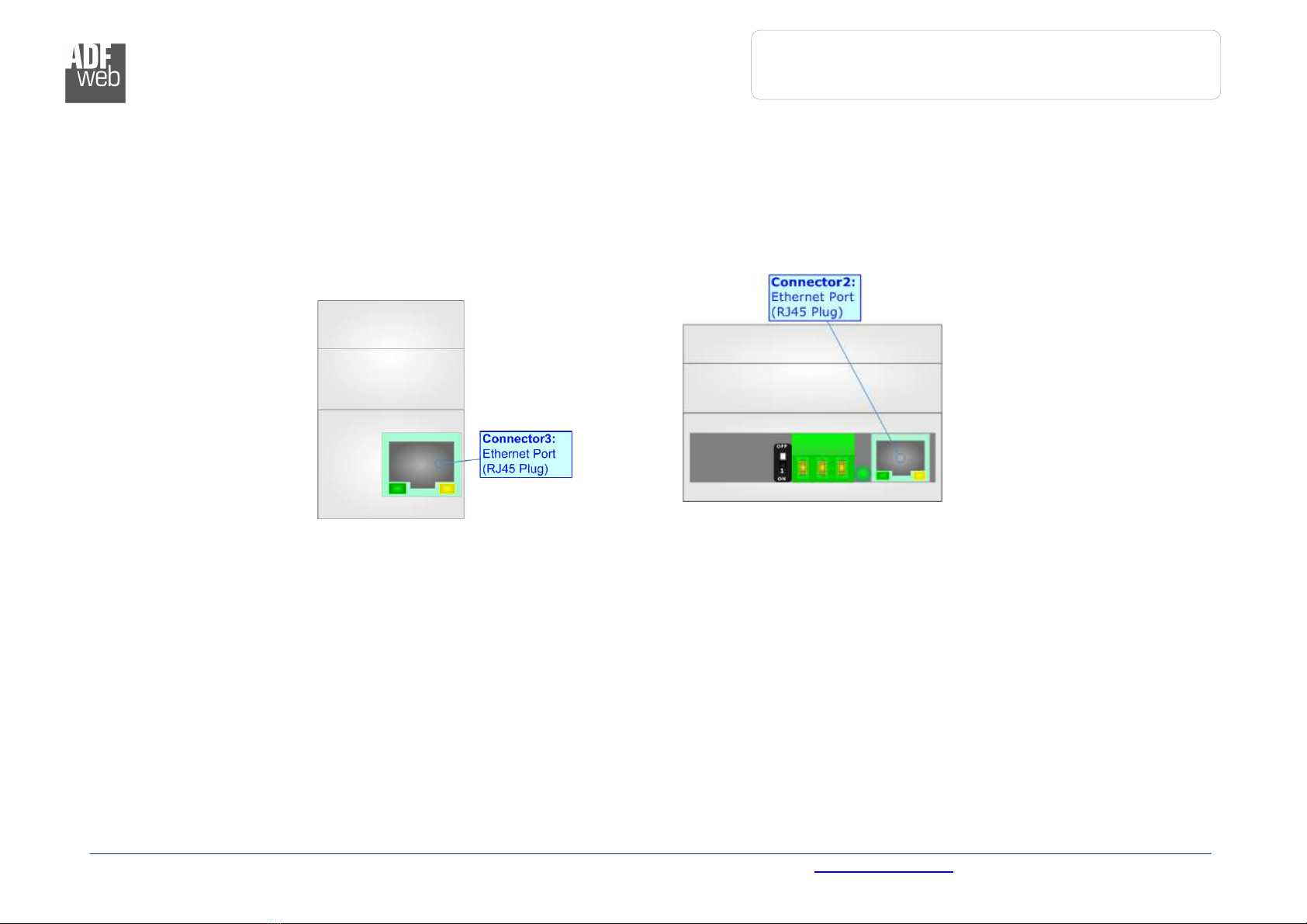

ETHERNET:
The Ethernet port is used for the BACnet/I communication (HD67801-KNX-BI -B2) and for programming the device.
The Ethernet connection must be made using Connector2/3 of HD67801-KNX-xxx-B2 with at least a Category 5E cable. The maximum
length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To
connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a C is recommended the use of a
cross cable.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Master /
KNX
Document code: MN67801_ENG Revision 1.100 agina 14 di 31
USE OF COMPOSITOR SW 7801:
To configure the Converter, use the available software that runs with Windows called SW67801. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (X , Vista, Seven, 8, 10 or 11; 32/64bit).
When launching the SW67801, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW67801

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Master /
KNX
Document code: MN67801_ENG Revision 1.100 agina 15 di 31
NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a rogrammable “BACnet Master / KNX -
Converter” in order to configure another device in the same manner, it is
necessary to maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is
sufficient to duplicate the project folder with another name and open the new
folder with the button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Master /
KNX
Document code: MN67801_ENG Revision 1.100 agina 16 di 31
SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67801 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Master /
KNX
Document code: MN67801_ENG Revision 1.100 agina 17 di 31
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Master /
KNX
Document code: MN67801_ENG Revision 1.100 agina 18 di 31
SET COMMUNICATION:
This section define the fundamental communication parameters of two buses, KNX and BACnet.
By ressing the “Set Communication” button from the main window for SW67801 (Fig. 2) the window
“Set Communication” appears (Fig. 3).
The window is divided in two sections, one for the KNX and one for the BACnet.
In the section “BACnet Type” is possible to select the type of BACnet to use from:
BACnet/I (it uses ethernet);
BACnet MS/T (it uses RS485).
If selected “BACnet/I ” the means of the fields for “BACnet” are:
In the fields “IP ADDRESS” insert the I address that you want to give to the Converter;
In the fields “SUBNET Mask” insert the SubNet Mask;
In the fields “GATEWAY” insert the default gateway that you want to use. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of the net;
In the field “Port” the port used for BACnet communication is defined. The default port used for
BACnet communication is 47808, but is possible to insert any value (except 10000 and 10001);
In the field "BACnet Device Name" is possible to assign a name to the BACnet node;
In the field “Device Istance” is possible to assign a number to the BACnet node (Used for the
Device Istance).
In the field “TimeOut (ms)” the timeout for the BACnet requests is defined.
The means of the fields for “KNX” are:
In the field “Type” the type of KNX is defined (fixed to ‘KNX T ’);
In the field “ID Device” the ID of the KNX side of the converter is defined. Figure 3a: “Set Communication”
window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Master /
KNX
Document code: MN67801_ENG Revision 1.100 agina 19 di 31
If selected “BACnet MS/T ” the means of the fields for “BACnet” are:
In the field “Baudrate” it is possible to select the baudrate of the BACnet line (1200, 2400,
4800, 9600, 19200, 38400, 57600, 115200);
In the field “Parity” it is possible to select the parity of the line (None, Odd, Even);
In the field “BACnet Device Name” is possible to insert the name to give to the BACnet node
(maximum 17 characters);
In the field “MAC Address” is possible to define the MAC of BACnet node (from 0 to 254);
The field “Max Masters” specifies the highest allowable address for master nodes. The value
shall be less than or equal to 127;
The field “Max Info Frames” specifies the maximum number of information frames the node
may send before it must pass the token;
In the field “Device Istance” is possible to assign a number to the BACnet node (Used for the
Device Istance).
The means of the fields for the “Ethernet Update” section are:
In the fields “IP ADDRESS” insert the I address that you want to give to the Converter;
In the fields “SUBNET Mask” insert the SubNet Mask;
In the fields “GATEWAY” insert the default gateway that you want to use. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of the net.
These information are used for programming the Converter.
The means of the fields for “KNX” are:
In the field “Type” the type of KNX is defined (fixed to ‘KNX T ’);
In the field “ID Device” the ID of the KNX side of the converter is defined.
Figure 3b: “Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Master /
KNX
Document code: MN67801_ENG Revision 1.100 agina 20 di 31
KNX ACCESS:
By pressing the “KNX Access” button from the main window for SW67801 (Fig. 2) the “KNX Access” window appears (Fig. 4).
The means of the fields are:
If the field “Enable” is checked, the KNX message is enabled;
In the field “Source Address” the Source Address to assign to the KNX message is defined;
In the field “Dest/Group the Group address (2 level structure, 3 level structure or free address structure) or the device address is
defined. In case of Group address, the levels must be separated by ‘/’, in case of Device address, the parts of the address must be
separated by ‘.’;
In the field “APCI” the A CI of the KNX message is defined. You can choose between the following:
oRead: it is used to send a reading request to a KNX device;
oWrite: it is used to send a writing request to a KNX device;
oSpecific value (edited manually).
Figure
4
:
“KNX Set Access” window
