The AdirOfce Double Tier Locker is designed to provide storage and security for your home or ofce.
The lockers are conveniently designed so that they can be installed with multiple units if desired.
BEFORE YOU BEGIN
ƔYou will need a large space to assemble your locker.
ƔTake precaution to protect your loor by placing a carpet or pad
underneath your work area.
ƔPanel edges can be sharp, so gloves are recommended.
ƔAssembly and installation can be completed by one person.
ƔMount the locker(s) to a wall for optimal safety.
Single Unit Multiple Units
Use a single, standalone unit. Mount multiple lockers together.

2

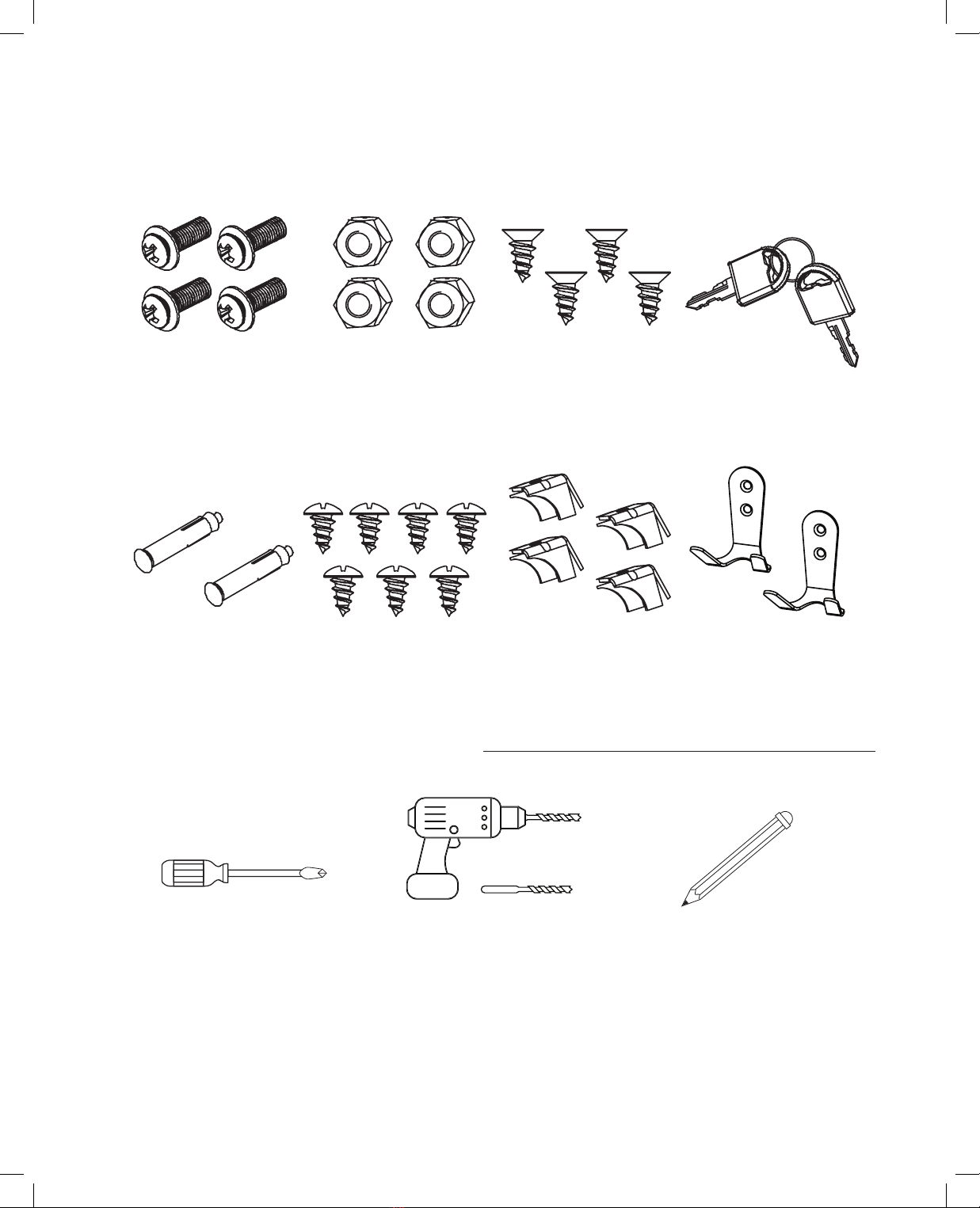

Bolts + Washers Nuts Keys
x4 x4 1 set of 2 keys
INCLUDED HARDWARE:
Coat Hooks
Flat Head Screws
Round Head Screw
x2
x4
x7
5
REQUIRED TOOLS:
Phillips Screwdriver Drill + Drill Bit Pencil
Not included
cs@adiroice.com
[phone] 
Shelf Brackets
x8
Wall Anchors
x2
Parts Included
Required Tools (Not Included)
1. Bolts (x4)
6. Wall Anchors (2)
2. Washers (x4)
Philips Screwdriver
3. Nuts (x4)
7. Round Head
Screws (x7)
4. Flat Head Screws (x4)
8. Shelf Brackets (x8)
5. Keys (x2)
9. Double Hooks (x2)
Drill & Drill Bit Pencil

3
PARTS
6
Double Locker
Door Panel
Right Panel
Back Panel
Left Panel
Top Panel
Bottom Panel
Shelf
Shelf
Coat Hook
Coat Hook
Middle
Panel
Parts Included
D
E
B
A
F
F
H
G
C
A. Door Panel
B. Left Panel
C. Top Panel
D. Back Panel
E. Right Panel
F. Shelves
G. Bottom Panel
H. Middle Panel

1.
ƔPlace the left panel onto the left side of the back panel.
ƔLine up the “C” shape of the left panel so that it hooks under
the “L” shape of the back panel.
ƔAdjust as needed so that the screw holes line up. Using a
Phillips screwdriver and the included round head screws,
secure the two panels together at the points shown.
7
ASSEMBLY INSTRUCTIONS
Double Locker

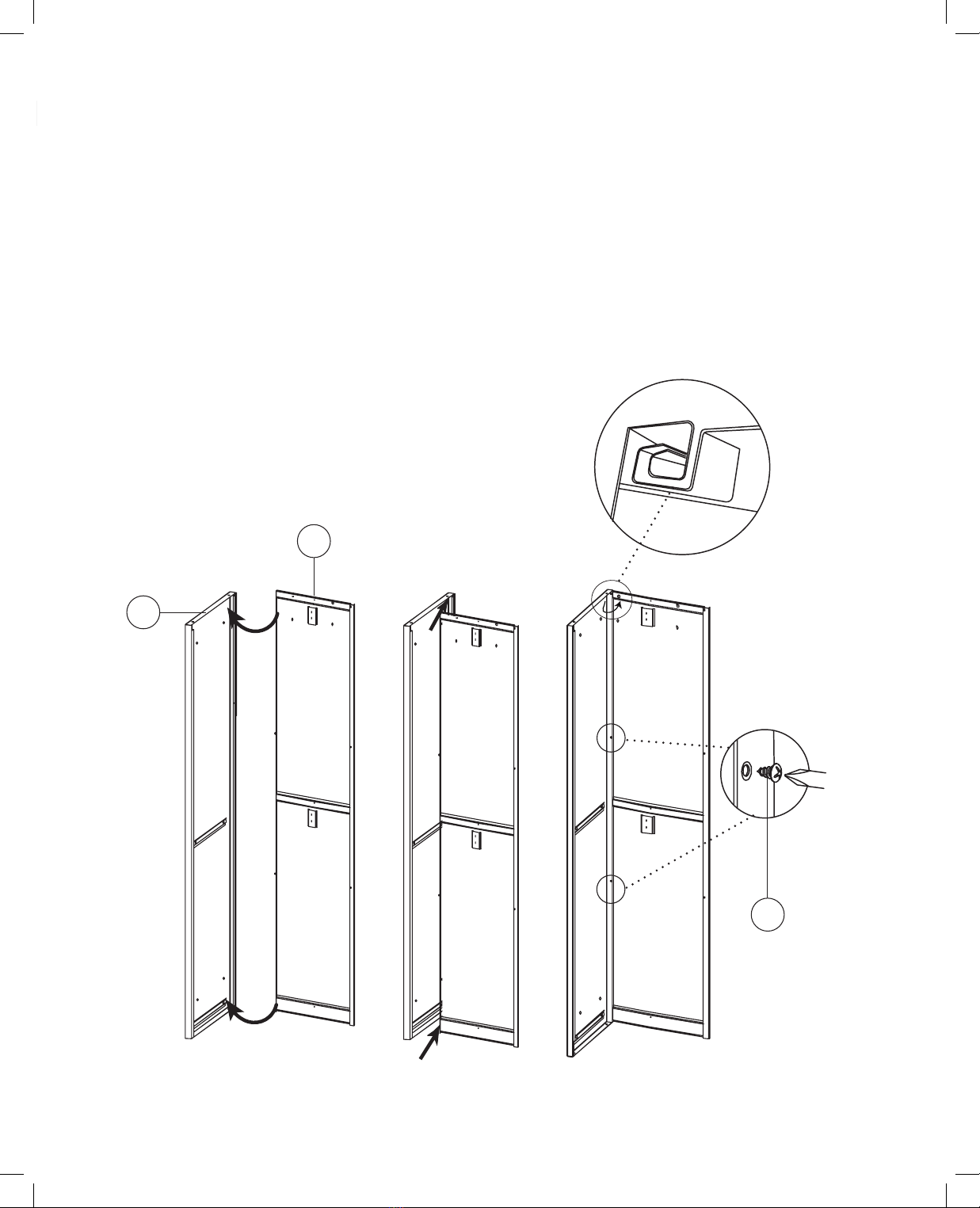

Attach left panel to back panel
4
B
7
Assembly Instructions
STEP 1:
A. Place the Left Panel (B) onto the left side of the Back Panel (D).
B. Line up the “C” shape of the Left Panel (B) so that it hooks under the “L” shape of the Back Panel (D).
C. Adjust as needed so that the screw holes line up. Using a Phillips screwdriver and the included
Round Head Screws (7), secure the two panels together at the points shown.
D

5
Left Panel
Back Panel
Right Panel
ASSEMBLY INSTRUCTIONS
8
Double Locker
Attach right panel to back panel
2.
ƔPlace the right panel onto the right side of the back panel.
ƔLine it up so that the “C” shape of the right panel hooks under the “L” shape of the back panel,
as described in Step 1.
ƔAdjust as needed so that the screw holes line up. Using a Phillips screwdriver and the included
round head screws, secure the two panels together at the points shown.
Assembly Instructions
STEP 2:
A. Place the Right Panel (E) onto the right side of the Back Panel (D).
B. Line it up so that the “C” shape of the Right Panel (E) hooks under the “L” shape of the Back
Panel (D), as described in Step 1.
C. Adjust as needed so that the screw holes line up. Using a Phillips screwdriver and the included
Round Head Screws (7), secure the two panels together at the points shown.
E
7
D

6
ASSEMBLY INSTRUCTIONS
9
Double Locker

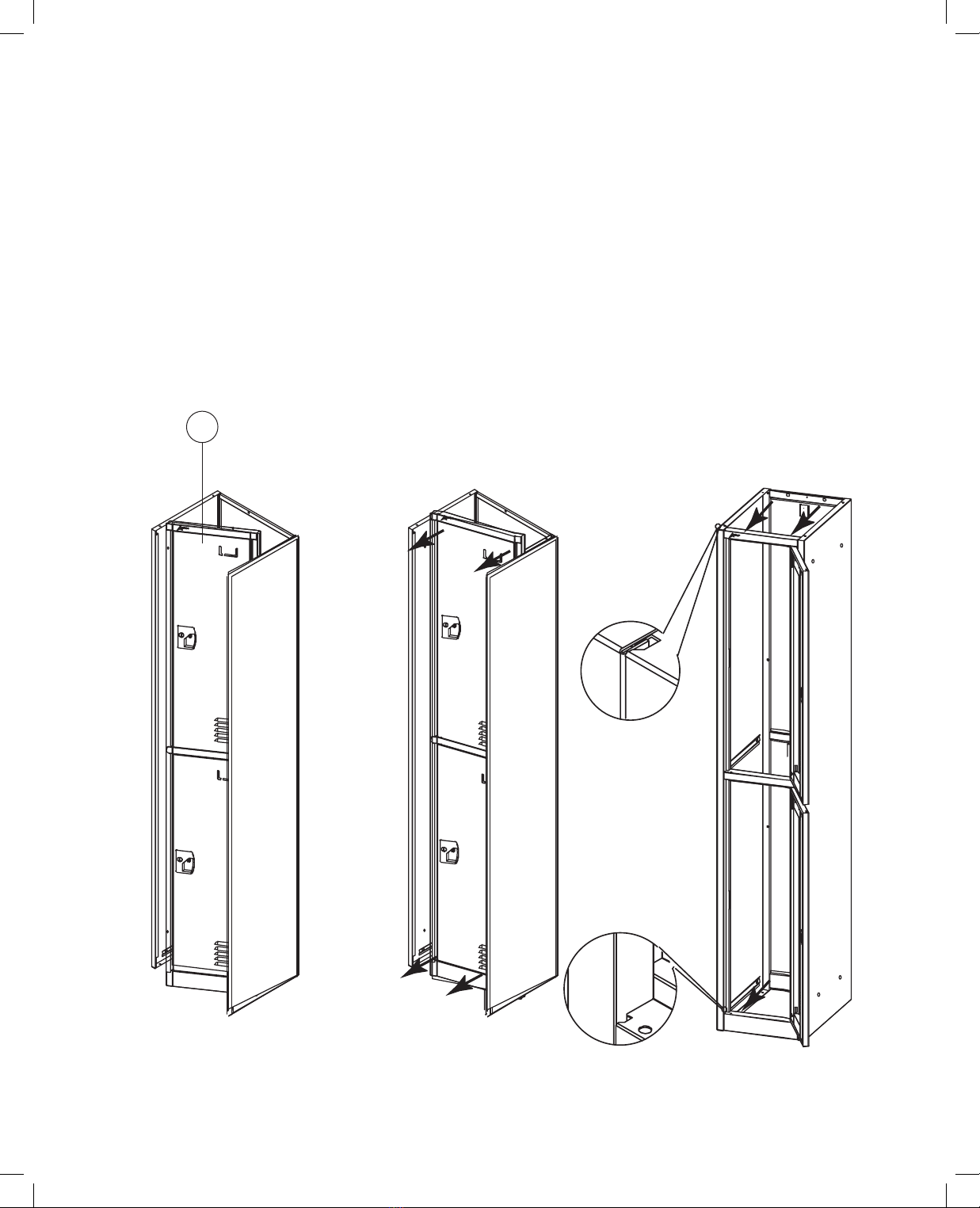

Attach door panel
3
ƔStand the 3 assembled sides of the locker up.
ƔTo attach the door panel piece, move the door panel into the locker at an angle so that it is
completely inside of the enclosure.
ƔThere is a “pocket” located at the top and bottom of each side panel into which the door panel
should insert.
ƔPull the door panel forward, ensuring that the panel inserts into the “pocket” on each panel,
as illustrated. Ensure the panel is pressed as far forward as possible, so that the front of the
locker is lush.
Assembly Instructions
STEP 3:
A. Stand the 3 assembled sides of the locker up.
B. To attach the Door Panel (A) piece, move the Door Panel (A) into the locker at an angle so that it is
completely inside of the enclosure.
C. There is a “pocket” located at the top and bottom of each side panel into which the Door Panel (A)
should insert.
D. Pull the Door Panel (A) forward, ensuring that the panel inserts into the “pocket” on each panel, as
illustrated. Ensure the panel is pressed as far forward as possible so that the locker’s front is ush.
A

7
AS
5.
Double L
Ɣ
A
scr
ASSEMBLY INSTRUCTIONS
10
Double Locker

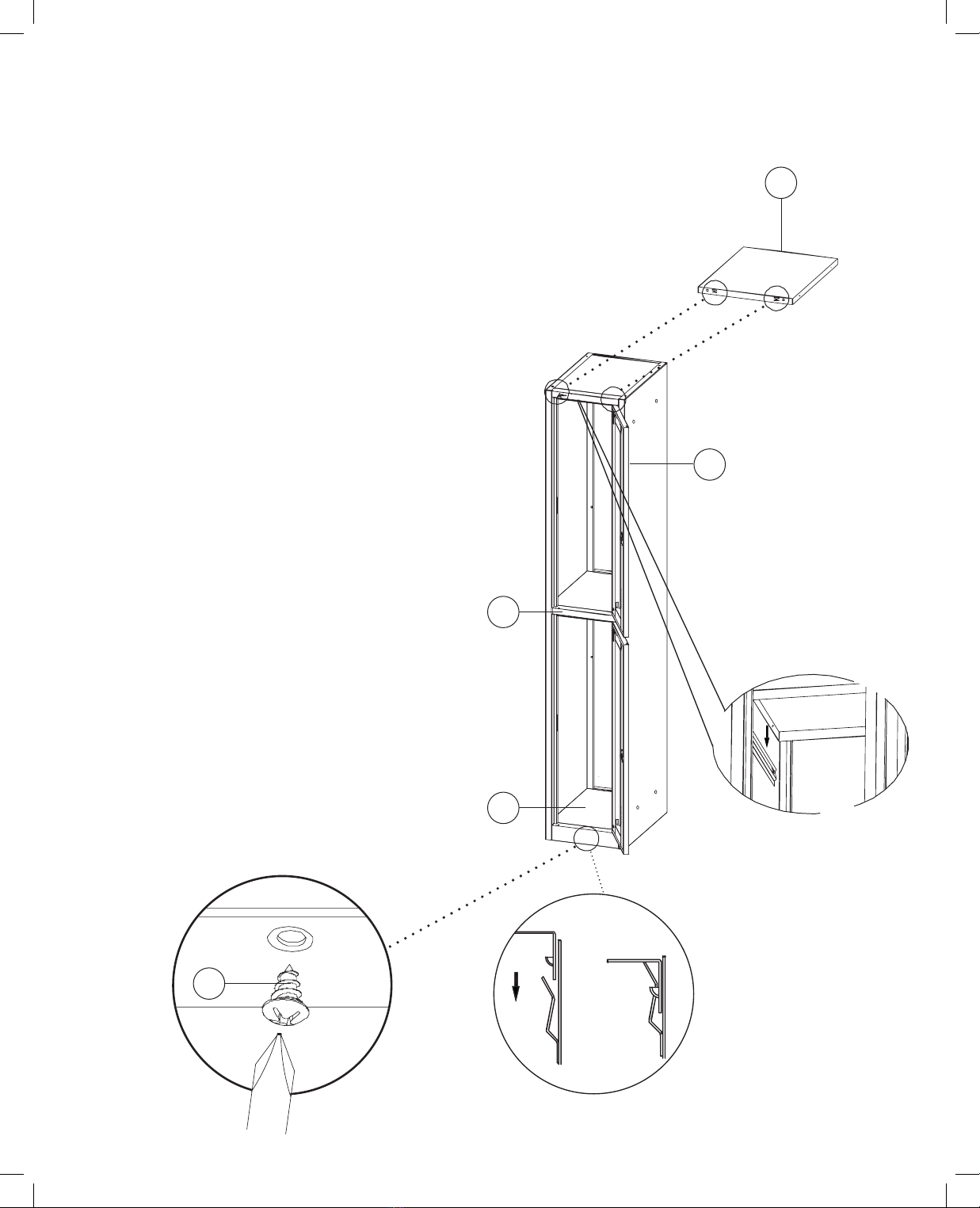

Attach the top, middle & bottom panel
4.
ƔOnce the door panel is attached, it is time to
secure the door panel by attaching the top ,
middle and bottom panels.
ƔSet the top panel on top of the locker as
shown.
ƔOpen the door and secure it with a Phillips
screw at each corner, where shown.
ƔFor the middle panel, press it down at the
center height of the locker unit, just like you
did the top unit.
ƔWork the bottom panel into the bottom of
the locker. The panel should push into a
narrow crevice on the bottom of the inside
of each of the right and left panels.
ƔWith the locker standing up, secure the front
of the bottom panel with a Phillips screw at
the front location, as shown.
ƔSecure the bottom panel with a Phillips
screw on the underside, as shown.
Top Panel
Middle Panel
Bottom Panel
Assembly Instructions
STEP 4:
A. Once the Door Panel (A) is attached, it is time to
secure the Door Panel (A) by attaching the Top
Panel (C) and Bottom Panel (G).
B. Set the Top Panel (C) on top of the locker as
shown.
C. Open the Door Panel (A) and secure it using
the screwdriver and Round Head Screws (7) at
each corner, where shown.
D. For the Middle Panel (H), press it down at the
center height of the locker unit, just like you did
the top unit.
E. Work the Bottom Panel (G) into the bottom of
the locker. The panel should push into a narrow
crevice on the bottom of the inside of the Left
Panel (B) and Right Panel (E).
F. With the locker standing up, secure the
front of the Bottom Panel (G) using the
screwdriver and a Round Head Screw (7)
at the front location, as shown.
G. Secure the Bottom Panel (G)
using the screwdriver and a
Round Head Screw (7) on the
underside, as shown.
C
H
G
7
A

8
ASSEMBLY INSTRUCTIONS
11
Attach coat hooks
5.
Double Locker
ƔAttach the coat hooks to the back panel using a Phillips
screwdriver and the included screws.
Bottom
Top
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Assembly Instructions
STEP 5:
A. Attach the Double Hooks (9) to the Back Panel (D) using a Phillips screwdriver and the
included Flat Head Screws (4).
4
D
9

9
ASSEMBLY INSTRUCTIONS
12
Double Locker
Install shelves
Ɣ
Place the 4 shelf brackets at the desired height for your shelf.
Ensure the brackets are at the same height on each of the rails.
Ɣ
Set shelf down over the brackets to secure. Repeat for the
second shelf.
6
Assembly Instructions
STEP 6:
A. Place the 4 Shelf Brackets (8) at the desired height for your Shelves (F). Ensure the brackets are at
the same height on each of the rails.
B. Set the shelf down over the Shelf Brackets (8) to secure it. Repeat for the second shelf.
F
F
8
8

10
13

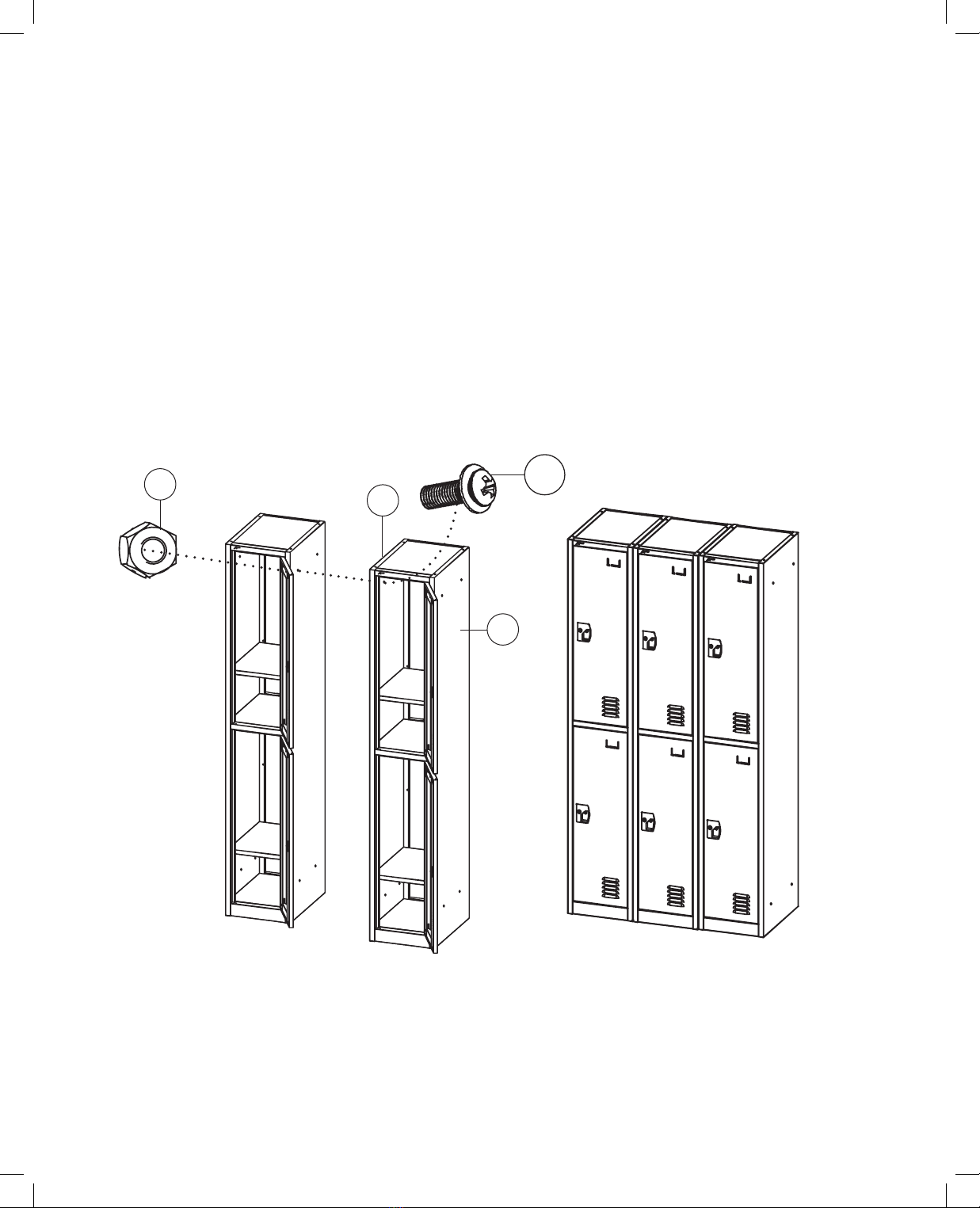

Multiple locker units
If you are using multiple locker units, secure them to each other for safety and security.
ƔSet the lockers next to each other. Ensure the mounting holes towards the top of the right panel
of the left locker line up with the corresponding mounting holes on the left panel of the right
locker.
ƔInsert the included bolt through the mounting holes on both lockers as shown. Secure the bolt
with the included nut and washer on the other side.
ƔMake sure you bolt the lockers together through both the front and back mounting holes.
Repeat for each locker unit.
Double Locker
Before you begin
Mount the locker(s) to a wall for optimal safety.
Installation Instructions
Multiple Locker Units
A. If you are using multiple locker units, secure them to each other for safety and security.
B. Set the lockers next to each other. Ensure the mounting holes towards the top of the Right
Panel (E) of the left locker line up with the corresponding mounting holes on the Left Panel (B)
of the right locker.
C. Insert the included Bolt (1) through the mounting holes on both lockers as shown. Secure the
Bolt (1) with the included Nut (3) and Washer (2) on the other side.
D. Make sure you Bolt (1) the lockers together through both the front and back mounting holes.
Repeat for each locker unit.
E
B
1&2
3

11
INSTALLATION INSTRUCTIONS
14

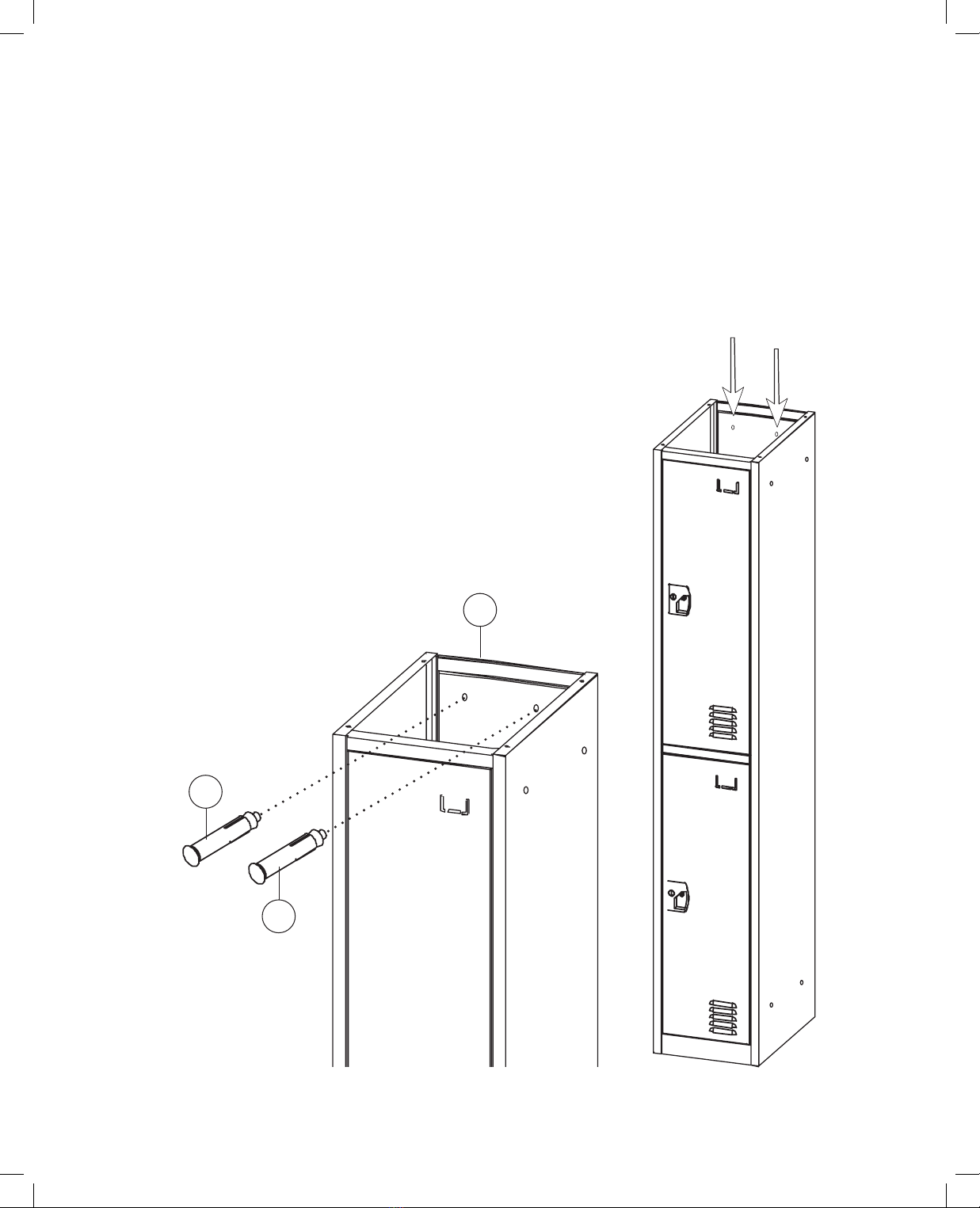

Mounting the locker unit(s) to the wall
Double Locker
ƔThere are two holes near the top of the back panel of your
locker.
ƔPlace your locker where you want to install it. Using a pencil,
mark the location of each of these holes on the wall.
ƔRemove the locker(s) from the wall. In the marked locations,
drill a hole large enough for the anchor screw (make sure you
don’t drill it too large!)
ƔUsing a Phillips screwdriver, twist each mounting screw
through the back of the locker and into the holes in the wall.
Hand tightening is recommended; using a drill could damage
the hole.
Installation Instructions
Mounting Locker Units
A. There are two holes near the top of the Back Panel (D) of your locker.
B. Place your locker where you want to install it. Using a pencil, mark the
location of each of these holes on the wall.
C. Remove the locker(s) from the wall. In the marked locations, drill a
hole large enough for the Wall Anchors (6) (Make sure you don’t
drill it too large!)
D. Using a Phillips screwdriver, twist each of the Wall Anchors (6)
through the back of the locker and into the holes in the wall. Hand
tightening is recommended; using a drill could damage the hole.
D
6
6

12
Notes

13
Notes

14
Notes

15
Limited Warranty
1. AdirCorp (the company) warrants to the purchaser that the product will be free from
defects in workmanship and materials for a period of one (1) year from the date of
purchase.
2. These warranties are not assignable or transferable to any other person.
3. Any damage to the product as a result of misuse, tampering, abuse, neglect, accident,
improper installation, modification, unauthorized service, destruction, or the alteration of
the serial number, or use violate of the instructions furnished by the Company will void this
warranty.
4. The sole responsibility of the Company shall be limited to the repair or replacement (in its
sole discretion) of any component of the product which fails to conform to this warranty at
no cost to the purchaser for the period of the warranty.
5. Contact the Company directly to obtain service under this warranty. If it becomes
applicable to send a defective product to the Company, a Return Authorization Number
must first be obtained from the company. In order to obtain service under this warranty,
purchaser must provide the Company with the following items (a) proof of purchase, (b)
police or fire department report, (c) photographs of damaged sad, and (d) written
testimonial.
6. Products shipped without prior Return Authorization and Return Authorization Number may
not be accepted, and the Company will not be responsible for their disposition and/or cost
of return to the owner.
7. The Company will not assume any responsibility for any loss or damage incurred in ship-
ping. All return authorized products should include a copy of the original invoice in order
that this warranty may be Honored.
8. This warranty is not an insurance policy. The Company is not responsible for any manner of
damage to or theft of the Purchaser’s product or its contents.
9. We recommend that the product being returned is accompanied by the sales receipt with
all relevant information regarding the purchase of the item and is returned to the Company
within ten (10) days of the claim date of purchase to validate this warranty.
10. Any implied warranties that the purchaser may have are limited to the duration of the
warranties described above. There are no further warranties that extend or apply beyond
the face hereof, and the company expressly disclaims and excludes any and all warranties
of merchantability or fitness for a particular purpose. Some states do not allow limitations
on how long an implied warranty lasts, so the above limitation may not apply to you.
11. Repair or replacement shall be the sole remedy for the purchaser under this warranty. The
company shall not be liable for any direct, indirect, incidental or consequential damages,
losses or expense arising from the use or misuse of the product. Some states do not allow
the exclusion or limitations of incidental or consequential damages, so the limitation may
not apply to you.
12. This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state.

16
Disclaimer
By purchasing products from AdirCorp, user agrees as follows:
TO THE MAXIMUM EXTENT PERMITTED BY LAW, THE PRODUCTS AND INFORMATION
ON THIS SITE IS PROVIDED “AS IS” AND WITH ALL FAULTS AND ADIRCORP. MAKES NO
PROMISES, REPRESENTATIONS, OR WARRANTIES, EITHER EXPRESS, IMPLIED, STATUTORY,
OR OTHERWISE, WITH RESPECT TO THE PRODUCTS AND INFORMATION, INCLUDING
ITS CONDITION, ITS CONFORMITY TO ANY REPRESENTATION OR DESCRIPTION, OR
THE EXISTENCE OF ANY LATENT OR PATENT DEFECTS, AND ADIRCORP. SPECIFICALLY
DISCLAIMS ALL IMPLIED (IF ANY) WARRANTIES OF TITLE, MERCHANTABILITY, NON
INFRINGEMENT, FITNESS FOR A PARTICULAR PURPOSE, ACCURACY OR COMPLETENESS,
QUIET ENJOYMENT, AND QUIET POSSESSION. THE ENTIRE RISK ARISING OUT OF USE OR
PERFORMANCE OF THE PRODUCTS AND INFORMATION LIES WITH USER.
TO THE MAXIMUM EXTENT PERMITTED BY LAW, IN NO EVENT SHALL ADIRCORP PRODUCTS
OR ITS SUPPLIERS BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL, SPECIAL, INDIRECT, OR
EXEMPLARY DAMAGES WHATSOEVER ARISING OUT OF OR IN ANY WAY RELATING TO THIS
AGREEMENT OR USER’S USE OF OR INABILITY TO USE THE PRODUCTS AND INFORMATION,
OR THE PROVISION OR FAILURE TO PROVIDE SUPPORT SERVICES, INCLUDING, BUT
NOT LIMITED TO, LOST PROFITS, LOSS OF CONFIDENTIAL OR OTHER INFORMATION,
BUSINESS INTERRUPTION, PERSONAL INJURY, LOSS OF PRIVACY, FAILURE TO MEET
ANY DUTY (INCLUDING OF GOOD FAITH OR REASONABLE CARE), NEGLIGENCE, COSTS
OF PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES, OR ANY OTHER CLAIM FOR
PECUNIARY OR OTHER LOSS WHATSOEVER, OR FOR ANY CLAIM OR DEMAND AGAINST
USER BY ANY OTHER PARTY, EVEN IF ADIRCORP HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. THESE LIMITATIONS SHALL APPLY NOTWITHSTANDING ANY FAILURE OF
ESSENTIAL PURPOSE OF ANY LIMITED REMEDY.
NOTWITHSTANDING ANY DAMAGES USER MAY INCUR FOR ANY REASON WHATSOEVER
(INCLUDING, WITHOUT LIMITATION, ALL DAMAGES REFERENCED ABOVE AND ALL DIRECT
OR GENERAL DAMAGES), THE ENTIRE LIABILITY OF ADIRCORP AND ANY OF ITS SUPPLIERS
UNDER ANY PROVISION OF THIS AGREEMENT AND YOUR EXCLUSIVE REMEDY FOR ALL
OF THE FOREGOING SHALL BE LIMITED TO THE GREATER OF THE AMOUNT ACTUALLY
PAID FOR THE PRODUCTS AND INFORMATION OR U.S. $1. THE FOREGOING LIMITATIONS,
EXCLUSIONS, AND DISCLAIMERS SHALL APPLY TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, EVEN IF ANY REMEDY FAILS ITS ESSENTIAL PURPOSE.
If any provision of this Agreement is declared invalid or unenforceable, the remaining provisions
of this Agreement will
remain in effect. AdirCorp has the right to modify these terms and conditions at any time.

17
ADI629-202
27 Selvage Street • Irvington, NJ • 07111 • © 2021 AdirCorp
adircorp.com
