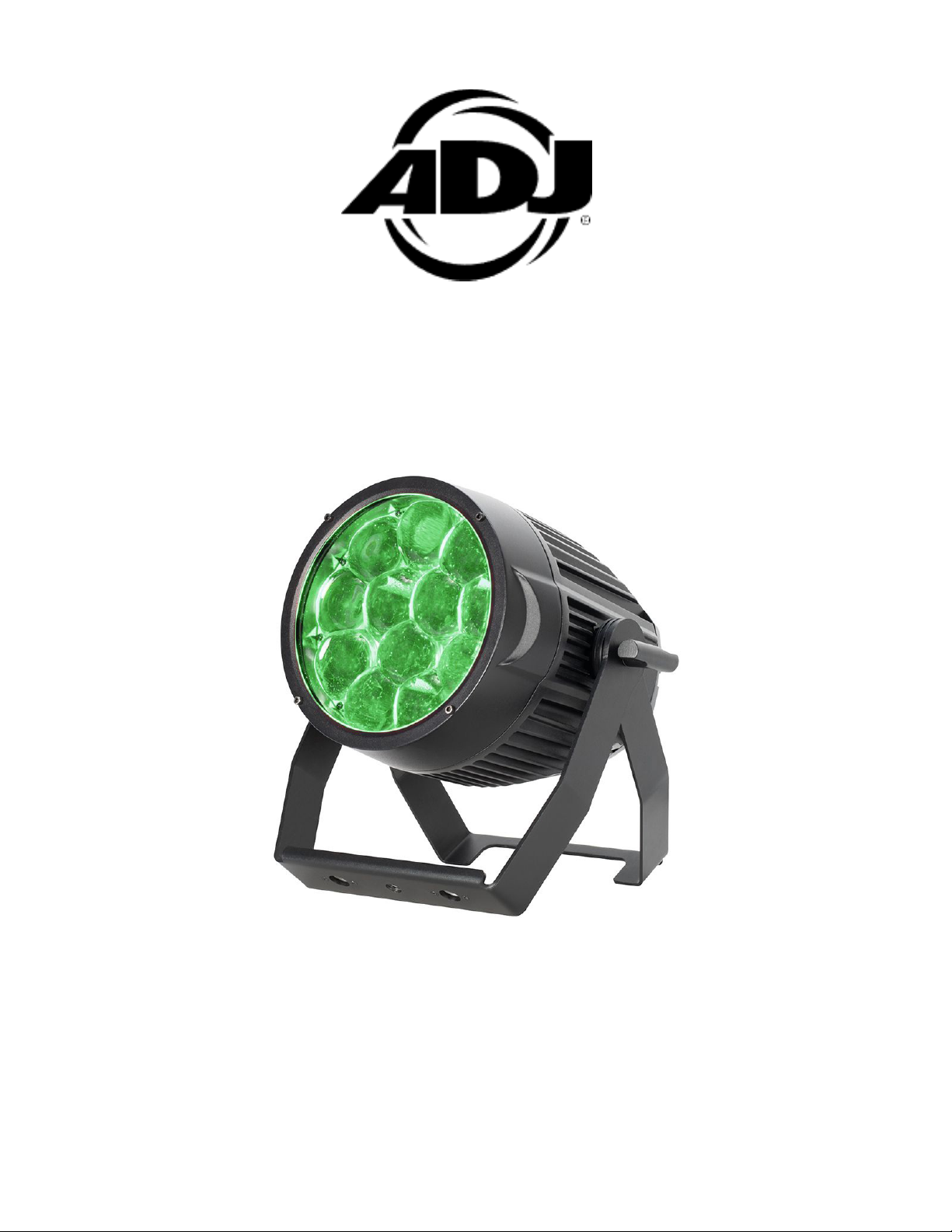

ADJ ENCORE LP12Z IP User manual

User Manual
ENCORE LP12Z IP

2
©2023 ADJ Products, LLC all rights reserved. Information, specications, diagrams, images, and
instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying prod-
uct names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed
includes all forms and matters of copyrightable materials and information now allowed by statutory or
judicial law or hereinafter granted. Product names used in this document may be trademarks or regis-
tered trademarks of their respective companies and are hereby acknowledged. All non-ADJ Products,
LLC brands and product names are trademarks or registered trademarks of their respective compa-
nies.
ADJ Products, LLC and all afliated companies hereby disclaim any and all liabilities for property,
equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/or as
a result of the improper, unsafe, insufcient and negligent assembly, installation, rigging, and opera-
tion of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment. Please turn off all electrical products when
they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power
when not in use. Thank you!
Date Document
Version
Software
Version DMX Channels Notes
07/06/2023 1.0 1.01 6/9/10/12/15/18 Ch Initial Release
DOCUMENT VERSION
Due to additional product features and/or enhancements, an updated version of
this document may be available online.
Please check www.adj.com for the latest revision/update of this manual
before beginning installation and/or programming.

3
TABLE OF CONTENTS
Introduction 4
Limited Warranty (USA Only) 5
Warranty Registration | Features 6
IP65 Rated 7
Safety Precautions 8
Overview 9
Installation 10
Accessory Installation 15
Wireless Setup 17
Remote Device Management (RDM) 18
Control Panel 19
System Menu 20
Operational Modes 23
DMX Set Up 25
DMX Traits 27
Color Macros Chart 30
Dim Speeds 32
Dim Modes 33
Primary-Secondary Set Up | Multi Unit Power Linking 34
Maintenance Guidelines 35
Torque Settings for Screws 36
Dimensional Drawings 38
Specifications 41
Optional Accessories | Error Codes 42

4
Unpacking: Thank you for purchasing the Encore LP12Z IP by ADJ Products, LLC. Every device has
been thoroughly tested and has been shipped in perfect operating condition. Carefully check the ship-
ping carton for damage that may have occurred during shipping. If the carton appears to have been
damaged, carefully inspect your xture for any damage and be sure all accessories necessary to oper-
ate the unit have arrived intact. In the event that damage has been found or parts are missing, please
contact our toll free customer support number for further instructions. Do not return this unit to your
dealer without rst contacting customer support.
Introduction: The ADJ Encore LP12Z IP is an IP65-rated wash xture with motorized zoom, wireless
DMX and a variety of useful professional control tools for staging and event application. Its twelve 20W
Quad RGBL (Red, Green, Blue and Lime) LEDs allow for a wide array of colors to be produced, tunable
white color control from 2700K to 6500K and an attractive CRI output. This product is intended to be
used by professionally trained personnel only and is not suitable for private use.
Customer Support: Contact ADJ Service for any product related service and support needs. Also visit
forums.adj.com with questions, comments or suggestions.
Parts: To purchase parts online visit:
http://parts.adj.com (US)
http://www.adjparts.eu (EU)
ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
Voice: 800-322-6337 | Fax: [phone] | [email protected]
ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
Voice: [phone] | Fax: [phone] | [email protected]
ADJ PRODUCTS LLC USA
6122 S. Eastern Ave. Los Angeles, CA. 90040
323-582-2650 | Fax [phone] | www.adj.com | [e-mail]
ADJ SUPPLY Europe B.V
Junostraat 2 6468 EW Kerkrade, The Netherlands
[phone] | Fax [phone]
www.americandj.eu | [email protected]
ADJ PRODUCTS GROUP Mexico
AV Santa Ana 30 Parque Industrial Lerma, Lerma, Mexico 52000
[phone]
CAUTION! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,
as doing so will void your manufacturer’s warranty. In the unlikely event your unit may require service,
please contact ADJ Products, LLC.
Do not discard the shipping cartoon in the trash. Please recycle when ever possible.
INTRODUCTION

5
LIMITED WARRANTY (USA ONLY)
A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of
manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see
specic warranty period on reverse). This warranty shall be valid only if the product is purchased within the
United States of America, including possessions and territories. It is the owner’s responsibility to establish
the date and place of purchase by acceptable evidence, at the time service is sought.
B. For warranty service, you must obtain a Return Authorization number (RA#) before sending the product
back—please contact ADJ Products, LLC Service Department at 800-322-6337. Send the product only to
the ADJ Products, LLC factory. All shipping charges must be prepaid. If the requested repairs or service
(including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return ship-
ping charges only to a designated point within the United States. If the entire instrument is sent, it must be
shipped in its original package and packaging material. No accessories should be shipped with the product.
If any accessories are shipped with the product, ADJ Products, LLC shall incur no liability whatsoever for
loss of or damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the product serial number and/or labels are altered or removed; if the product is
modied in any manner which ADJ Products, LLC concludes, after inspection, affects the reliability of the
product; if the product has been repaired or serviced by anyone other than the ADJ Products, LLC factory
unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is dam-
aged because it was not properly maintained as set forth in the product instructions, guidelines and/or user
manual.
D. This is not a service contract, and this warranty does not include maintenance, cleaning, or periodic check-
up. During the period specied above, ADJ Products, LLC will replace defective parts at its expense with
new or refurbished parts, and will absorb all expenses for warranty service and repair labor by reason of
defects in material or workmanship. The sole responsibility of ADJ Products, LLC under this warranty shall
be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ
Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear
identifying marks to that effect.
E. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon its products
without any obligation to include these changes in any products theretofore manufactured.
F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with
products described above. Except to the extent prohibited by applicable law, all implied warranties made by
ADJ Products, LLC in connection with this product, including warranties of merchantability or tness, are
limited in duration to the warranty period set forth above. And all warranties, whether expressed or implied,
including warranties of merchantability or tness, are limited in duration to the warranty period set forth
above. The consumer’s and/or dealer’s sole remedy shall be such repair or replacement as is expressly
provided above; and under no circumstances shall ADJ Product, LLC be liable for any loss and/or damage,
direct and/or consequential arising out of the use of, and/or inability to use this product.
G. This warranty is the only written warranty applicable to ADJ Products, LLC products, and supersedes all
prior warranties and written descriptions of warranty terms and conditions heretofore published.
MANUFACTURER’S LIMITED WARRANTY PERIODS:
• Non-LED Lighting Products = 1-Year (365 Days) (Including Special Effect Lighting, Intelligent Lighting,
UV lighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls, Par Cans, Trussing, Lighting Stands,
Power/Data Distribution, etc. excluding LED and lamps)
• Laser Products = 1-Year (365 Days) (excluding laser diodes which have a 6-Month Limited Warranty)
• LED Products = 2-Year (730 Days) (excluding batteries which have a 180 Day Limited Warranty)
• NOTE: 2-Year (730 Days) Limited Warranty ONLY applies to product purchased within the United States.
StarTec Series = 1-Year (365 Days) (excluding batteries which have a 180 Day Limited Warranty)
• ADJ DMX Controllers = 2 Year (730 Days)
• American Audio Products = 1 Year (365 Days)

6
FEATURES
• IP65 Rating for Temporary Outdoor and Indoor Events
• 12 x 20W Quad RGBL (Red, Blue, Green, Lime) LEDs
• 64 Built-In Color Macros
• Tunable White Control with Five (5) Preset Color Temperatures
• Motorized Zoom Feature
• Wireless DMX Onboard
• RDM Compatible
• 6 Selectable Dimming Modes
• 4 Selectable Dim Curves
• Adjustable Refresh Rates and Flicker-Free Operation
INCLUDED ITEMS
• Power Cable (x1)
WARRANTY REGISTRATION
Please fill out the enclosed warranty card to validate your purchase. All returned service items,
whether under warranty or not, must be freight pre-paid and accompanied by a return authorization
(R.A.) number. The R.A. number must be clearly written on the outside of the return package. A brief
description of the problem as well as the R.A. number must also be written down on a piece of paper
included in the shipping carton. If the unit is under warranty, you must provide a copy of your proof of
purchase invoice. You may obtain an R.A. number by contacting our customer support team. All pack-
ages returned to the service department not displaying an R.A. number on the outside of the package
will be returned to the shipper.

7
IP65 RATED
The International Protection (IP) rating system is commonly expressed as “IP” (Ingress Protection) followed
by two numbers (i.e. IP65), where the numbers dene the degree of protection. The rst digit (Foreign Bodies
Protection) indicates the extent of protection against particles entering the xture, and the second digit (Water
Protection) indicates the extent of protection against water entering the xture. An IP65 rated lighting xture is
designed and tested to protect against the ingress of dust (6), and low-pressure water jets from any direction (5).
NOTE: THIS FIXTURE IS INTENDED FOR TEMPORARY OUTDOOR USE ONLY!
Maritime/Coastal Environment Installations: A coastal environment is seaside adjacent, and caustic to
electronics through exposure to atomized salt-water and humidity, whereas maritime is anywhere within 5-miles
of a coastal environment.
NOT suitable for maritime/coastal environment installations. Installing this xture in a
maritime/coastal environment may cause corrosion and/or excessive wear to the interior
and/or exterior components of the xture. Damages and/or performance issues resulting
from installation in a maritime/coastal environment will void the manufactures warranty, and
will NOT be subject to any warranty claims and/or repairs.
Maritime installations require additional preparation, and additional service intervals may be needed given the
maritime use. In general, IP ratings presuppose freshwater conditions VS maritime conditions, which are typically
more “caustic” to IP xtures (both internally and externally). A duty-cycle may also be needed when units are not
in use. During times of high humidity and colder temperatures, condensation may occur internally so the xture
may require a duty-cycle to bring it up to running temperature, allowing any accumulation of moisture to be
expelled via the vent valve. Recommendations can change based on installation environmental circumstances.
A waterproof dome or similar device is recommended for use in permanent outdoor installations. When using a
dome, refer to manufacturer recommendations for duty-cycle.
NOTE: NOT ALL FEATURES LISTED ARE AVAILABLE ON ALL FIXTURES; THE FOLLOWING
INSTRUCTIONS MAY NOT APPLY. CONTACT SUPPORT FOR ADDITIONAL DETAILS.
Exterior Maintenance: Inspect the exterior every 30-days. The unit must be powered off/disconnected. Inspect
optics to determine if the lens is obstructed, then clean optics and chassis accordingly. Based on initial nding,
schedule maintenance accordingly, keeping in mind that exterior maintenance will be required. Even if the
luminaires are NOT in use, maintenance will still be needed given its location (exterior use). The use of a durable
type of wax on the chassis is recommended since it will help prevent contaminant build up. Inspect both power
and data lines for any signs of contaminants or corrosion. Periodically reapplying di-electric grease, especially
in coastal environments. If any signs of corrosion/contaminants are present, clean thoroughly, and/or replace
connectors, then reapply di-electric grease. Typically, this should be done annually, or any time an opportunity
presents itself. As a preventive measure, annual replacement of both vent valves is recommended. The vent
valve membrane can become contaminated and/or clogged causing improper venting of humidity within the
luminaire. Inspect all mounting hardware as a precaution.
Interior Maintenance: Inspect the interior every 30-days. The unit must be powered off/disconnected.
• Inspect zoom/focus mechanism, clean optics, lubricate linear bearings (Krytox oil) as needed, inspect belts
for wear
• Inspect all rotating effect wheels, manually rotate them, note any resistance
• Inspect all remaining rotating belts for any wear
• Inspect all fans, clean as needed, check rotation, check connections
• Inspect CMY module, manually move ags and check for signs of resistance, and if needed, clean guide rods
rst, then reapply a thin layer of grease (moly lube)
• Clean interior with low-volume compressed air, then clean optics prior to reassembly of head covers
Although the base has limited moving parts, the pan belt should also be inspected for wear. Remember to always
perform an IP test anytime a cover is removed.
There is no specic time frame regarding the routine replacement of parts such as belts/stepper motors, PCBs,
or LEDs. These items should only be replaced on an as needed bases, except for cooling fans, which should
be replaced once the luminaries reach 10,000-hours. This is a prophylactic measure intended to keep the unit
running as cool as possible, insuring proper function of all internal components. A complete service breakdown
is available, please contact [email protected] for any needed parts or manuals.

8
SAFETY PRECAUTIONS
• Maximum ambient operating temperature is 113° F (45° C)!
• DO NOT TOUCH the fixture housing during operation. Disconnect the power and allow approxi-
mately 15 minutes for the fixture to cool down before servicing.
• DO NOT shake the fixture, and avoid brute force when installing and/or operating the fixture.
• DO NOT operate the fixture if the power cord has become frayed, crimped and/or damaged. If the
power cord is damaged, replace immediately with a new one of the same power rating.
• DO NOT attempt to remove or break off the ground prong from the electrical cord. This prong is
used to reduce the risk of electrical shock and fire in case of an internal short.
• DO NOT attempt to operate this unit if it has been damaged in any way.
• Disconnect from main power before making any type of connection.
• DO NOT block any air ventilation slots. All fan and air inlets must remain clean and never blocked.
Allow approx. 6” (15cm) between fixture and other devices or a wall for proper cooling.
• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6”
(15cm) between this device and a wall.
• DO NOT remove the cover for any reason.
• When installing fixture in a suspended enviroment, always use mounting hardware that is no less
than M10 x 25mm, and always install fixture with an appropriately rated safety cable.
• Never plug this unit in to a dimmer pack.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular attention to the point where they exit from the
unit.
• Cleaning - The fixture should be cleaned only as recommended by the manufacturer.
• Heat - The appliance should be situated away from heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug have been damaged.
B. Objects have fallen onto the fixture.
C. The fixture does not appear to operate normally or exhibits a marked change in performance.
D. The fixture has fallen and/or has been subjected to extreme handling.
PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED.
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT
ANY REPAIRS YOURSELF, AS DOING SO WILL VOID YOUR MANUFACTURER’S
WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE
AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS
MANUAL VOID THE MANUFACTURER’S WARRANTY AND ARE NOT SUBJECT TO
ANY WARRANTY CLAIMS AND/OR REPAIRS.
NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!
RETINA INJURY RISK - MAY INDUCE BLINDNESS!
SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!

9
OVERVIEW
Safety
Cable
Loop
Mounting
Yoke
Mounting
Yoke
Knob
Enter
Button
Up
Button
Mode
Button
Down
Button
Display
Screen
Air
Valve
Power
In
Power
Out
DMX
Out
DMX
In

10
INSTALLATION
DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!
Fixture MUST be installed following all local, national, and country commercial electrical and construc-
tion codes and regulations.
When installing the unit, the trussing or area of installation must be able to hold 10 times the weight of
the unit and any attached accessories without any deformation. The unit must be secured with a sec-
ondary safety attachment, e.g. an appropriately-rated safety cable.
Before rigging/mounting a single fixture to any metal truss/structure or placing the fixture(s) on any
surface, a professional equipment installer MUST be consulted to determine if the metal truss/structure
or surface is properly certified to safely hold the combined weight of the fixture(s), clamps, cables, and
accessories.
Maximum ambient operating temperature is 113°F (45°C).
Fixture(s) should be installed away from walking paths, seating areas, or areas where unauthorized
personnel might reach the fixture by hand.
NEVER stand directly below the fixture(s) when rigging, removing, or servicing.
Overhead fixture installation must always be secured with a secondary safety attachment, such as an
appropriately rated safety cable that can hold 10 times the weight of the fixture.
Overhead mounting requires extensive experience, including calculating working load limits, knowl-
edge of installation material being used, and perodic safety inspection of all installation material as
well as the unit itself. If you lack these qualifications, do not attempt the installation yourself.
The installaiton should be checked by a skilled person once a year.

11
INSTALLATION

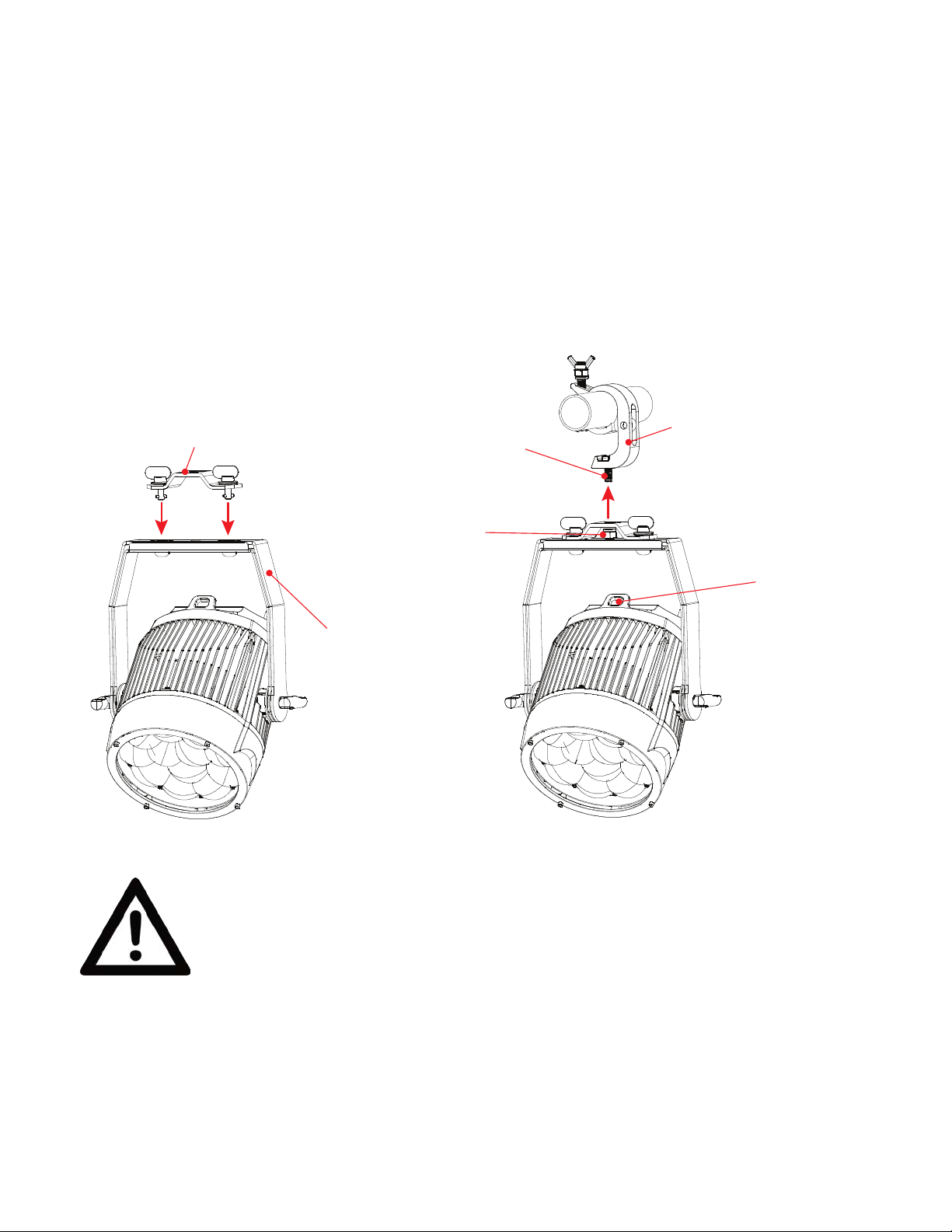

CLAMP MOUNTING
This fixture features two mounting holes for the attachment of an Omega bracket, which are located
on the adjustable mounting yoke. Insert the Omega bracket’s twist lock fasteners into these two
mounting holes, then twist to secure in place. When mounting the fixture to a truss or any other sus-
pended structure, be sure to secure an appropriate rated clamp (not included) to the Omega bracket.
Insert a bolt of appropriate size through the bottom of the mounting clamp and the central hole on the
Omega bracket, and secure them together with a matching nut. Additionally, the unit also features a
safety cable loop on the rear panel (see the illustration below). Attach a separate SAFETY CABLE of
the appropriate weight rating to the provided safety cable loop, then secure the other end to a suitable
mounting point.
SAFETY CABLE:
ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS FIX-
TURE IN A SUSPENDED ENVIRONMENT TO ENSURE THAT THE FIXTURE
WILL NOT FALL IF THE CLAMP FAILS.
OMEGA
CLAMP
MOUNTING
YOKE
MOUNTING
CLAMP
CLAMP
BOLT
CLAMP
NUT
SAFETY
CABLE
LOOP

12
INSTALLATION
STAND MOUNTING
This unit can also be installed atop a tripod stand. Simply secure the Omega bracket to the bottom
face of the device, then insert the threaded bolt on the top of the tripod stand through the hole in the
Omega bracket. Tighten the nut onto the threaded bolt to secure the mounted device in place.
CAUTION!
MAKE SURE THAT THE TRIPOD LEGS AND ALL
TELESCOPING ELEMENTS OF THE TRIPOD STAND
ARE LOCKED IN PLACE BEFORE INSTALLING THE
DEVICE ATOP THE STAND!
POSITION THE TRIPOD STAND AND MOUNTED
DEVICE ONLY ON FLAT, STABLE SURFACES!
DEPLOY TRIPOD LEGS FULLY IN ORDER TO
MAXIMIZE STABILITY!

13
INSTALLATION
POTENTIAL INTERNAL FIXTURE DAMAGE FROM EXTERNAL SOURCES OF LIGHT BEAMS
External sources of light beams from direct sunlight, lighting and moving head fixtures, and lasers,
which are focused directly towards the exterior housing and/or penetrate the front lens opening of ADJ
lighting fixtures, can cause severe internal damage including burning of optics, dichroic color filters,
glass and metal gobos, prisms, animation wheels, frost filters, iris, shutters, motors, belts, wiring, dis-
charge lamps, and LEDs.
This issue is not specific only to ADJ lighting fixtures, but rather it is a common issue with lighting fix-
tures from all manufacturers. Although there is no true way to fully prevent this issue from happening,
the guidelines below can reduce the risk of potential damage. Contact ADJ Service for more details.
DO NOT EXPOSE THE FIXTURE AND/OR FRONT LENS OPENING TO LIGHT BEAMS FROM
DIRECT SUNLIGHT, OTHER LIGHTING OR MOVING HEAD FIXTURES, AND LASERS DURING
UNPACKING, INSTALLATION, USE, AND EXTENDED IDLE TIMES OUTDOORS. DO NOT FOCUS
A LIGHT BEAM FROM ONE LIGHTING FIXTURE DIRECTLY TOWARDS ANOTHER.

14
INSTALLATION
NOTICE: The maximum ambient operational temperature for this lighting fixture is 113˚ F (45˚ C).
Do not place this lighting fixture in an enviroment where the temperatures exceed this value. This will
allow the fixture to run at its best and help prolong the fixture life.
NOTE: When this fixture is fitted with the optional barndoors and installed in a suspended
setting, the fixture should be oriented with the gel frame holder latch upward, in order to
minimize the risk of the barndoor falling in the event that the latch fails. See the Accessory
Installation section for details.

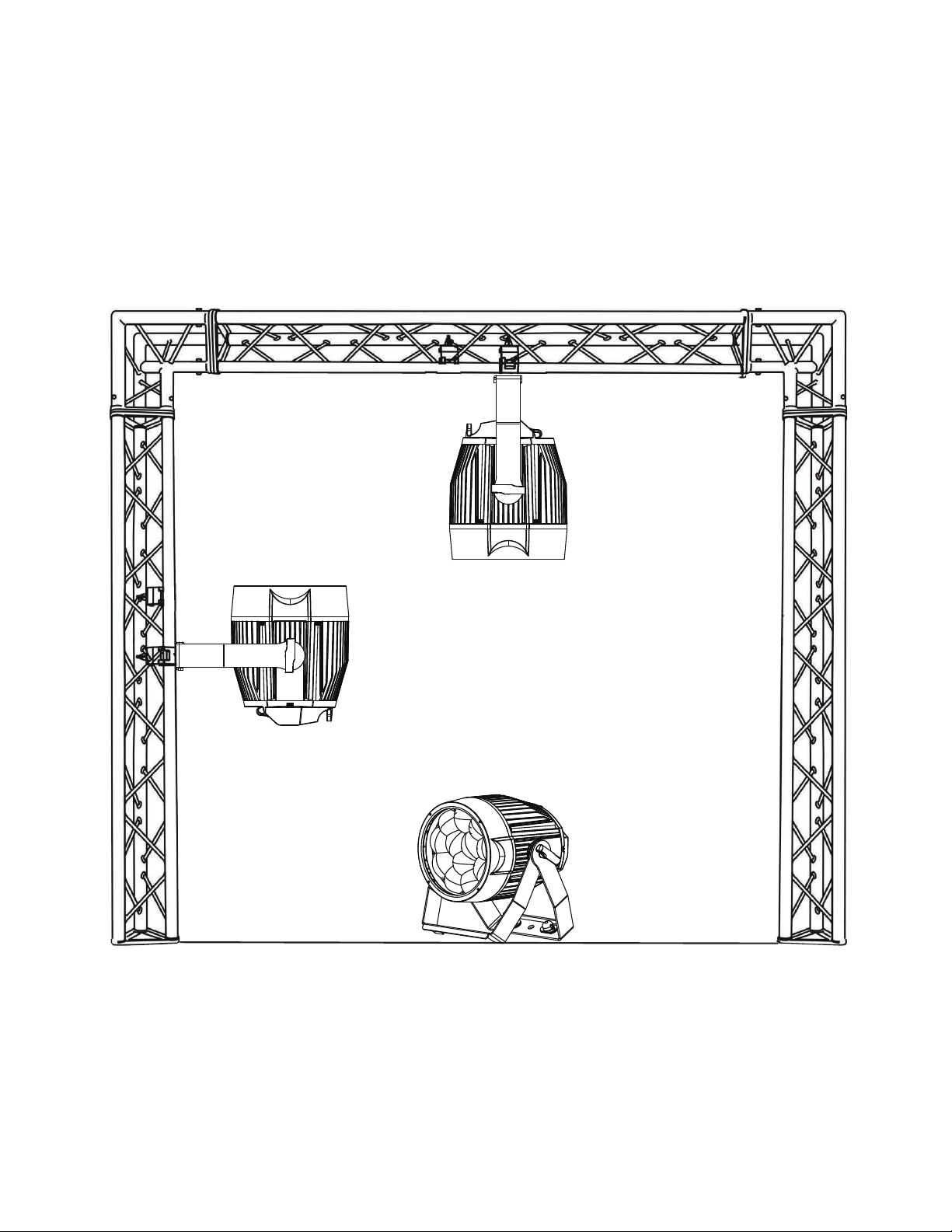

The unit is fully operational in three different mounting positions: hanging upside-down from the ceil-
ing or trussing, sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least
12m (40ft) away from any flammable materials (decorations, etc). Always use and install a safety
cable (not included) as a safety measure to prevent accidental damage and/or injury in the event the
clamp fails. Never use the carrying handles for secondary attachment.

15
ACCESSORY INSTALLATION

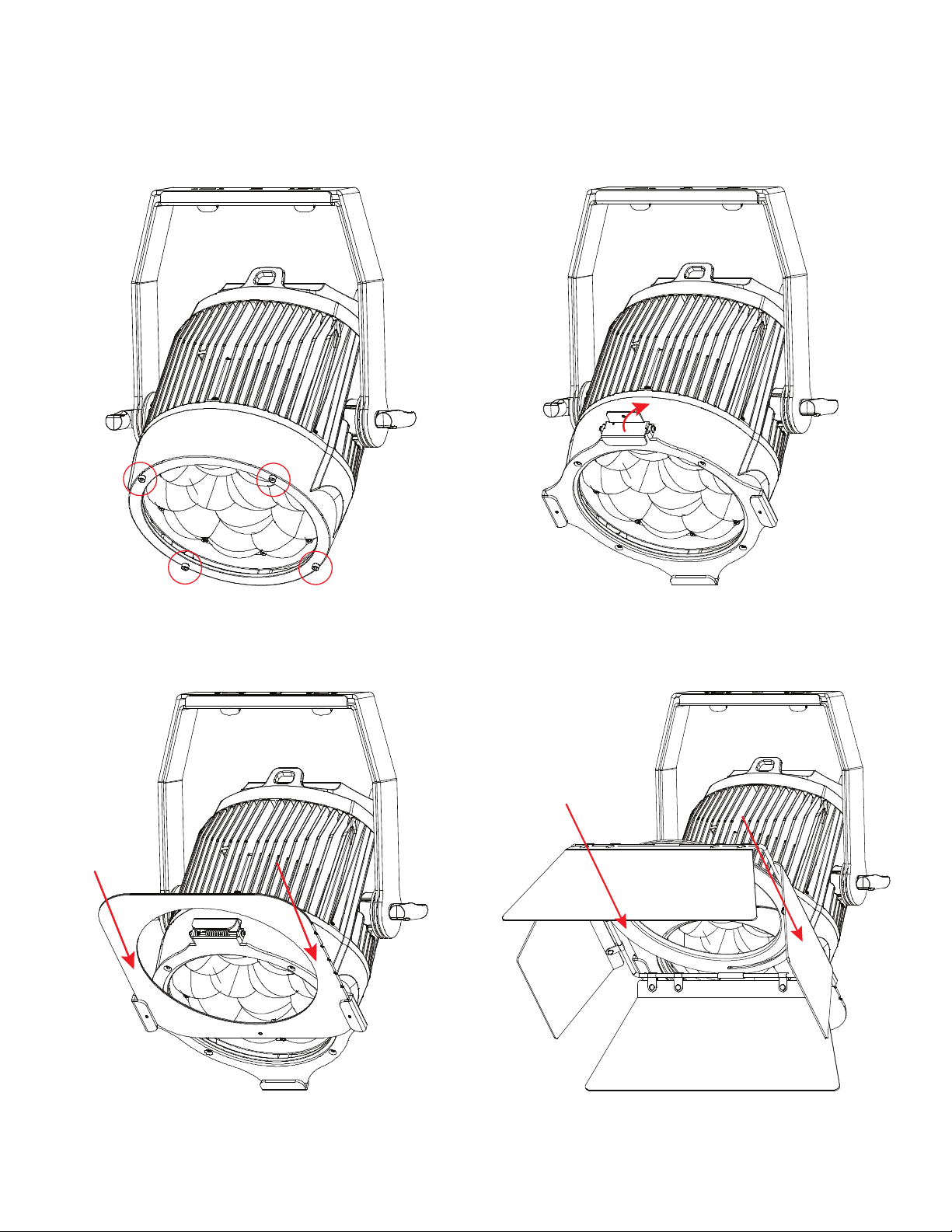

GEL FRAME AND BARN DOORS
Available accessories include a gel frame and a set of barndoors, both of which can easily be
installed using the fixture’s detachable accessory mounting slot. Follow the instructions below:
1. Remove the four (4) screws around the frame
of the xture’s lens.
2. Align the gel frame holder on the frame, then
re-install the four (4) screws to secure in
place. Flip the latch open.
3. Slide the gel frame into gel frame holder’s
slot.
4. If desired, removed the barn door’s included
thumb screws, then slide the barn door into
the slot in front of the gel frame.

16
ACCESSORY INSTALLATION
GEL FRAME AND BARN DOORS
6. Flip the latch closed to secure the gel
frame and barndoors in place.
5. Align the semi-circular slots on the front of the
barndoors with the two screw holes located on
the tabs of the gel frame holder, and loosely
re-install the included thumb screws. Twist the
barndoors to adjust their position, then tighten
the thumb screws to secure in place.
NOTE: WHEN FITTED
WITH THE BARN-
DOORS AND IN-
STALLED IN A SUS-
PENDED SETTING,
THE FIXTURE MUST
BE ORIENTED WITH
THE GEL FRAME
HOLDER LATCH
UPWARD. THIS
MINIMIZES THE RISK
OF THE BARNDOOR
FALLING IN THE
EVENT THAT THE
LATCH FAILS.

17
WIRELESS SETUP
To set up wireless control, follow the steps below:

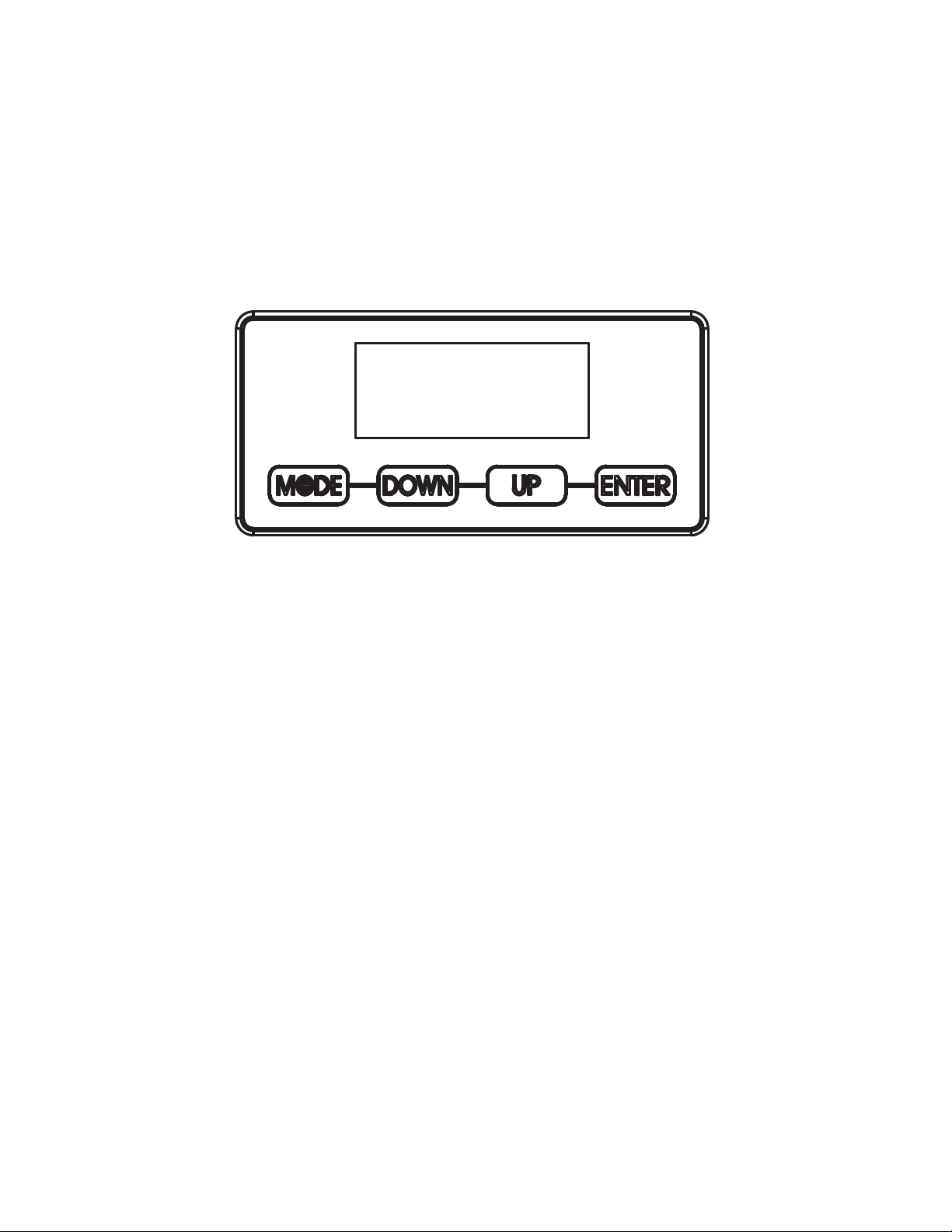

1. Navigate to Personality > Wireless Settings in the system menu. Press ENTER to select this
menu.
2. Use UP and DOWN to scroll to “Wireless Settings” and press ENTER. Use UP and DOWN to
scroll to the “On” option, then press ENTER to confirm. A green LED and signal strength indicator
should illuminate to show that wireless is enabled and connected.
3. Return to the “Wireless Settings” sub-menu and scroll to “Set Wireless Channel.” Press ENTER,
then use the UP and DOWN buttons to select the wireless channel that you would like this unit to
operate on. Selectable values are from 00 to 14. Press ENTER to confirm.
There are many factors that can affect and/or interrupt a wireless signal, including walls, glass, metal,
objects, and people. Therefore, the following guidelines are recommended in order to maximize the
chances of having a clear path for the wireless signal to reach the device:
• Install the device a minimum of 9.8 ft (3m) above audiences and/or ground level.
• Arrange the wireless antenna in an upright, vertical position.
• Position devices in direct line of sight of the transmitting controller.
Careful planning and testing of the selected installation location is critical to ensure optimum and reli-
able wireless operation.

18
REMOTE DEVICE MANAGEMENT (RDM)
NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout
the entire system, including DMX data splitters and wireless systems.
Remote Device Management (RDM) is a protocol that sits on top of the DMX512 data standard for
lighting, allowing the DMX systems of the xtures to be modied and monitored remotely. This proto-
col is ideal for instances in which a unit is installed in a location that is not easily accessible.
With RDM, the DMX512 system becomes bi-directional, allowing a compatible RDM enabled con-
troller to send out a signal to devices on the wire, as well as allowing the xture to respond (known as
a GET command). The controller can then use its SET command to modify settings that would typi-
cally have to be changed or viewed directly via the unit’s display screen, including the DMX Address,
DMX Channel Mode, and Temperature Sensors.
FIXTURE RDM INFORMATION:
RDM Code Device ID Device Model ID Personality ID
0x1900 003C 60 6Ch (1); 9Ch (2); 10Ch (3); 12Ch (4); 15Ch (5);
18Ch (6)
Please be aware that not all RDM devices support all RDM features, and therefore it is important
to check beforehand to ensure that the equipment that you are considering includes all of the fea-
tures that you require.
[0x1031] Preset Playback [0x0400] Device Hours
[0x0122] Default Slot Value [0x0015] Comms Status
[0x00C2] Boot Software Version Label [0x0031] Status ID Description
[0x00C1] Boot Software Version ID [0x0032] Clear Status ID
[0x0070] Product Detail ID List [0x0401] Lamp Hours
[0x0030] Status Messages [0x0402] Lamp Strikes
[0x0011] Proxied Device Count [0x0403] Lamp State
[0x0200] Sensor Denition [0x0404] Lamp Mode
[0x0201] Sensor Value [0x0405] Device Power Cycles
[0x0080] Device Model Description [0x0500] Display Invert
[0x0081] Manufacturer Label [0x0501] Display Level
[0x0082] Device Label [0x0603] Realtime Clock
[0x00E0] DMX Personality [0x1010] Power State
[0x00E1] DMX Personality Description [0x0020] Queued Message

19
CONTROL PANEL
This unit features a display screen with a 4-button control pad, which can be used to easily adjust any
device settings.
Pressing the MODE button will cycle through the various Main Menu options. When the desired Main
Menu option is displayed on the screen, press the ENTER button to enter the sub-menu, then use
the UP and DOWN buttons to scroll through sub-menu options. In some cases, there will be a second
sub-menu that can be navigated in the same way.
SCREEN LOCK
The control panel screen will lock after a period of inactivity which can be set by navigating to Person-
ality > Display > Lock. Default time is 30 seconds. To unlock the screen, press and hold the MODE
button for 10 seconds.

20
SYSTEM MENU
DMX SET
Address 001 - 512 Set DMX ad-
dress
Ch Mode
6Ch
Select DMX
channel mode
9Ch
10Ch
12Ch
15Ch
18Ch
No DMX
Hold
Unit holds last
DMX values
received when
signal is lost
Blackout
Unit takes all
channels to
DMX value of 0
when signal is
lost
Manual
Unit defaults
to last manual
mode settings
when signal is
lost
Int Prog
Unit default to
selected internal
program when
signal is lost
PERSONALITY
Prim / Sec Mode Primary / Secondary
Set unit to pri-
mary or second-
ary mode
Select Signal
DMX or Wireless
DMX has prior-
ity; green LED
when wireless
connected, red
LED when wire-
less not con-
nected
Wireless and DMX Out
DMX XLR out-
put shall send
DMX signal out
Wireless Set-
tings
Wireless Enable On / Off Enable or dis-
able wireless
Set Wireless Channel 00 - 14 Select wireless
channel
CONTINUED ON NEXT PAGE
