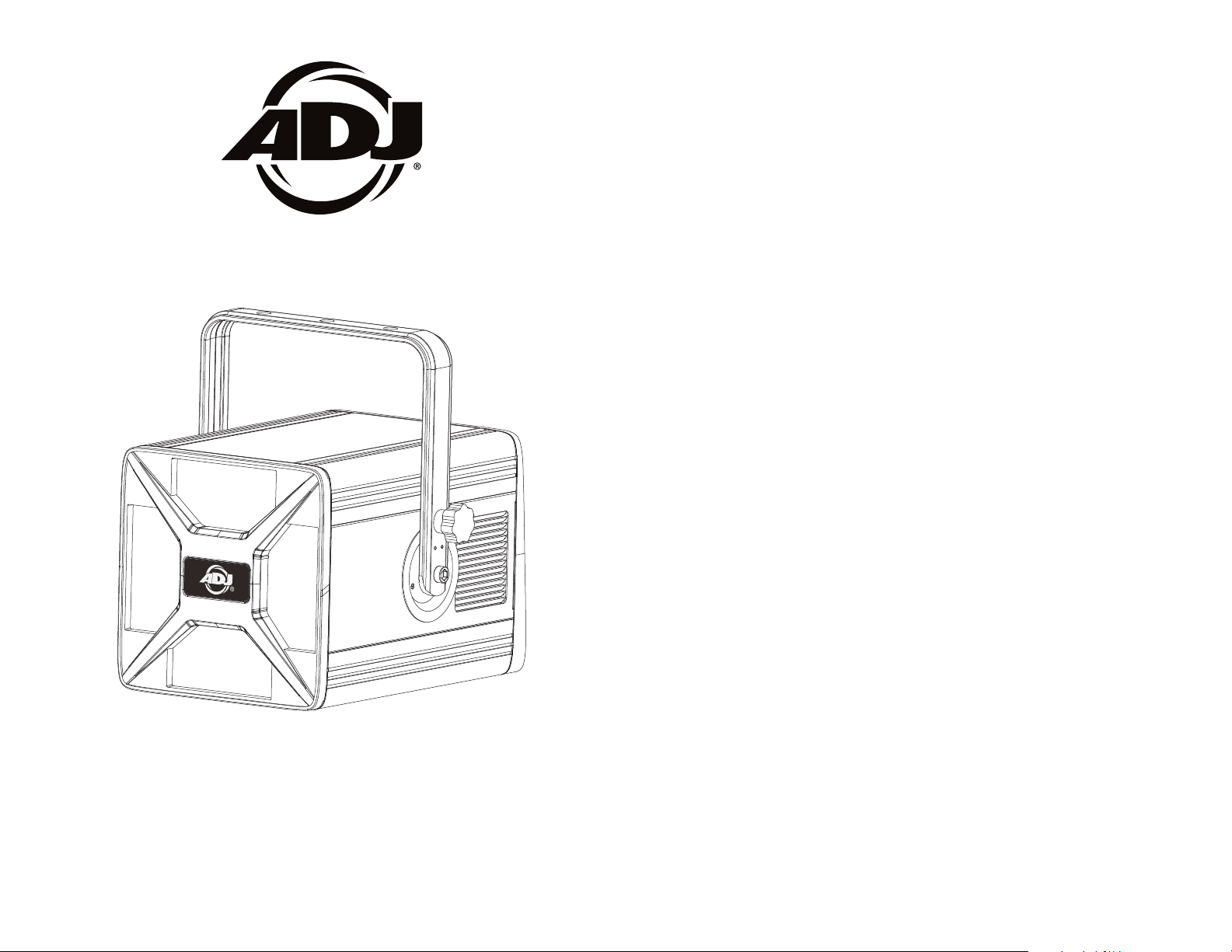

ADJ NINJA 5RX User manual

©2016 ADJ Products all rights reserved. Information, speci-
cations, diagrams, images, and instructions herein are subject
to change without notice. ADJ Products logo and identifying
product names and numbers herein are trademarks of ADJ
Products. Copyright protection claimed includes all forms and
matters of copyrightable materials and information now allowed
by statutory or judicial law or hereinafter granted. Product
names used in this document may be trademarks or registered
trademarks of their respective companies and are hereby ac-
knowledged. All non-ADJ Products brands and product names
are trademarks or registered trademarks of their respective
companies.
ADJ Products and all aliated companies hereby disclaim any
and all liabilities for property, equipment, building, and electrical
damages, injuries to any persons, and direct or indirect eco-
nomic loss associated with the use or reliance of any informa-
tion contained within this document, and/or as a result of the
improper, unsafe, unsucient and negligent assembly, installa-
tion, rigging, and operation of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment.
Please turn o all electrical products when they are not in use. To
avoid power consumption in idle mode, disconnect all electrical
equipment from power when not in use. Thank you!
1/16
User Instructions
NINJA 5RX

ADJ Products - www.adj.com - Ninja 5RX Instruction Manual Page 3
• DMX-512 Protocol Compatible (3 DMX Channel Modes)
• Multi Colors
• 3 Operating Modes - Show Mode, Sound Active, & DMX Control
• Stand Alone or Master/Slave Configuration
• Internal Microphone
• Digital Display for Address and Function Setting
• UC IR Compatible (Not Included) & Airstream IR Compatible
• 12 Show Modes
Ninja 5RX Features
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures
warranty. In the unlikely event your unit may require service please
contact ADJ.
ADJ will not accept any liability for any resulting damages caused by
the non-observance of this manual or any unauthorized modication
to this unit.
Ninja 5RX Handling Precautions
Ninja 5RX Warranty Registration
The Ninja 5RX carries a 2 year (730 days) limited warranty. Please fill
out the enclosed warranty card to validate your purchase and war-
ranty. You may also register your product online at www.adj.com.
All returned service items whether under warranty or not, must be
freight pre-paid and accompany a return authorization (R.A.) number.
If the unit is under warranty you must provide a copy of your proof of
purchase invoice. Please contact ADJ customer support for a R.A.
number.
To optimize the performance of this product, please read these
operating instructions carefully to familiarize yourself with the basic
operations of this unit. These instructions contain important safety
information regarding the use and maintenance of this unit. Please
keep this manual with the unit, for future reference.
Ninja 5RX General Instructions
ADJ Products - www.adj.com - Ninja 5RX Instruction Manual Page 2
Ninja 5RX General Information
Unpacking: Thank you for purchasing the Ninja 5RX by ADJ Products.
Every Ninja 5RX has been thoroughly tested and has been shipped in
perfect operating condition. Carefully check the shipping carton for
damage that may have occurred during shipping. If the carton appears
to be damaged, carefully inspect your xture for any damage and be
sure all equipment necessary to operate the unit has arrived intact. In
the event damage has been found or parts are missing, please contact
our toll free customer support number for further instructions. Please
do not return this unit to your dealer without contacting customer sup-
port rst.
Introduction: The Ninja 5RX can DMX intelligent LED fixture. The
fixture has three different operating modes; sound-active, show mode,
DMX controlled. The Ninja 5RX has twelve shows to choose from. The
unit can be used as a stand alone unit or in a master/slave configura-
tion. For best results use fog or special effects smoke to enhance the
beams projections.
Customer Support: ADJ Products provides a toll free customer
support line, to provide help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.adj.com for any comments or sugges-
tions. Service Hours are Monday through Friday 8:00 a.m. to 4:30 p.m.
Pacic Standard Time.
Voice: [phone]
Fax: [phone]
E-mail: [email protected]
To purchase parts online visit http://parts.americandj.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Warning! This may cause severe eye damage. Avoid looking directly
into the light source at all times!

For Your Own Personal Safety, Please Read and Understand This
Manual Completely Before You Attempt To Install Or Operate
This Unit!
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Do not attempt to operate this unit if the power cord has been
frayed or broken.
• Do not attempt to remove or break o the ground prong from
the electrical cord. This prong is used to reduce the risk of electrical
shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out-
doors voids all warranties.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to cords at plugs, convenience recep-
tacles, and the point where they exit from the appliance.
• Cleaning -The fixture should be cleaned only as recommended by
the manufacturer. See page 17 for cleaning details.
• Heat -This fixture should be situated away from heat sources such
as radiators, heat registers, stoves, or other appliances (including
amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. Objects have fallen, or liquid has been spilled into the appliance.
B. The appliance has been exposed to rain or water.
C. The appliance does not appear to operate normally or exhibits a
marked change in performance.
Ninja 5RX Safety Precautions
ADJ Products - www.adj.com - Ninja 5RX Instruction Manual Page 4 ADJ Products - www.adj.com - Ninja 5RX Instruction Manual Page 5
Power Supply: The ADJ Ninja 5RX contains a automatic voltage
switch, which will auto sense the voltage when it is plugged into the
power source. With this switch there is no need to worry about the cor-
rect power voltage, this unit can be plugged in anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal pro-
tocol used by most lighting and controller manufactures as a form of
communication between intelligent fixtures and controllers. A DMX
controller sends DMX data instructions from the controller to the fix-
ture. DMX data is sent as serial data that travels from fixture to fixture
via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX
fixtures (most controllers only have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models
of dierent manufactures to be linked together and operate from a
single controller, as long as all xtures and the controller are DMX
compliant. To ensure proper DMX data transmission, when using
several DMX fixtures try to use the shortest cable path possible. The
order in which fixtures are connected in a DMX line does not influence
the DMX addressing. For example; a fixture assigned a DMX address
of 1 may be placed anywhere in a DMX line, at the beginning, at the
end, or anywhere in the middle. Therefore, the first fixture controlled
by the controller could be the last fixture in the chain. When a fixture
is assigned a DMX address of 1, the DMX controller knows to send
DATA assigned to address 1 to that unit, no matter where it is located
in the DMX chain.

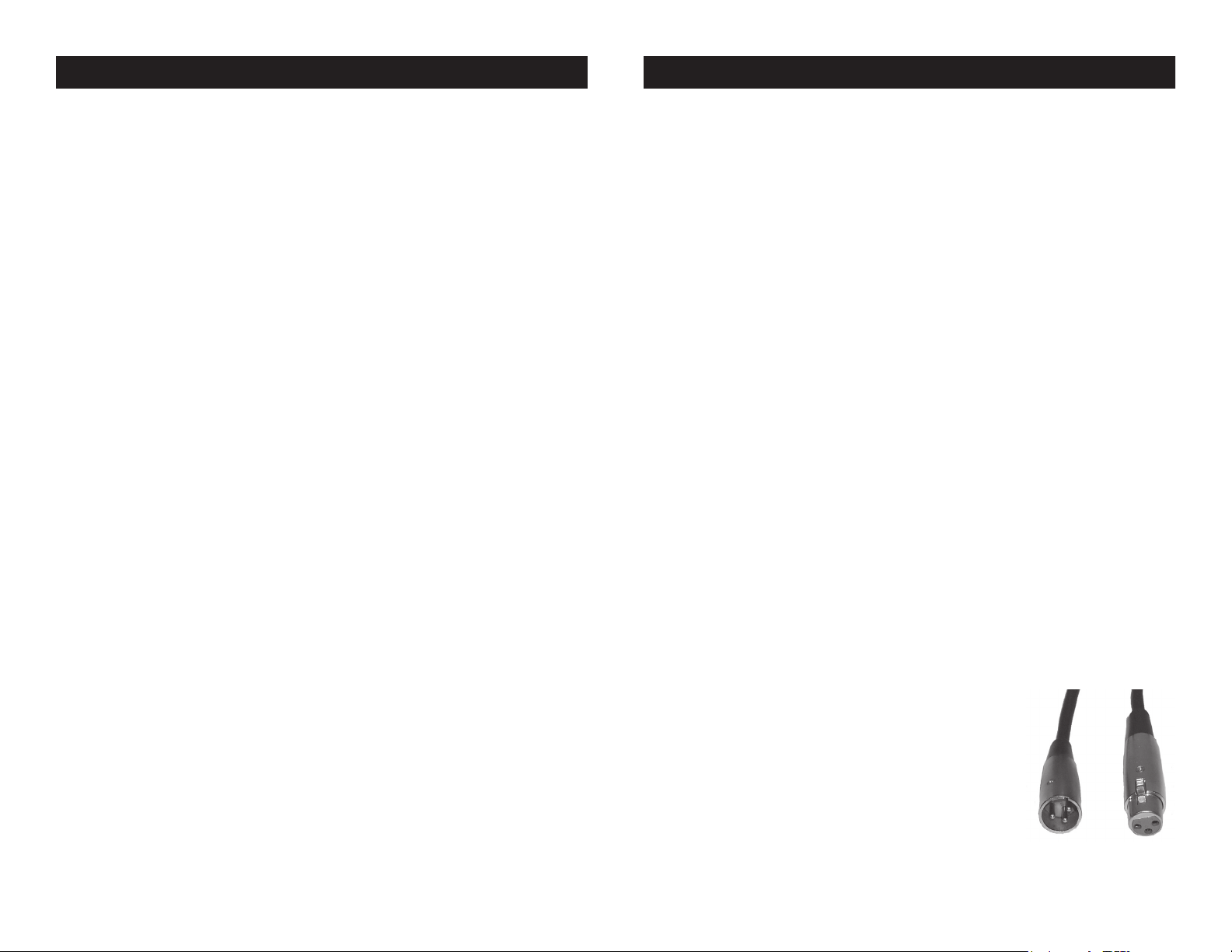

Data Cable (DMX Cable) Requirements (For DMX and Master/Slave
Operation): The Ninja 5RX can be controlled via DMX-512 proto-
col. The Ninja 5RX can be a four or 256 channel DMX unit. The DMX
address is set electronically using the controls on
the rear panel of the unit. Your unit and your DMX
controller require a approved DMX-512 110 Ohm
Data cable for data input and data output (Figure
1). We recommend Accu-Cable DMX cables. If you
are making your own cables, be sure to use stan-
dard 110-120 Ohm shielded cable (This cable may
be purchased at almost all professional sound and
lighting stores). Your cables should be made with
a male and female XLR connector on either end of the cable. Also
Ninja 5RX DMX Set Up
Figure 1

ADJ Products - www.adj.com - Ninja 5RX Instruction Manual Page 7
5-Pin XLR DMX Connectors. Some manufactures use 5-pin XLR
connectors for DATA transmission in place of 3-pin. 5-pin XLR xtures
may be implemented in a 3-pin XLR DMX line. When inserting stan-
dard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be
used, these adaptors are readily available at most electric stores. The
chart below details a proper cable conversion.
Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)
Pin 1
Pin 5 - Do Not Use
Pin 4 - Do Not Use
Pin 3
Pin 2
Pin 1
Pin 3
Pin 2
Not Used
Not Used
Data True (+ signal)
Data Compliment (- signal)
Ground/Shield
3-Pin XLR to 5-Pin XLR Conversion
Ninja 5RX DMX Set Up
ADJ Products - www.adj.com - Ninja 5RX Instruction Manual Page 6
remember that DMX cable must be daisy chained and cannot be split.
Ninja 5RX DMX Set Up
Notice: Be sure to follow gures two and three when making your own
cables. Do not use the ground lug on the XLR connector. Do not con-
nect the cable’s shield conductor to the ground lug or allow the shield
conductor to come in contact with the XLR’s outer casing. Grounding
the shield could cause a short circuit and erratic behavior.
DMX512 IN
3-PIN XLR
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
DMX512
DMX+,DMX-,COMMON
1
2
3
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OT
3-PIN XLR
Figure 2
Figure 3
1 Ground 1 Ground
XLR Male Socket XLR Pin Conguration
3 Hot
2 Cold 2 Cold
3 Hot
XLR Female Socket
Pin 3 = Data True (positive)
Pin 2 = Data Compliment (negative)
Pin 1 = Ground
Special Note: Line Termination. When longer runs of cable are
used, you may need to use a terminator on the last unit to avoid erratic
behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is con-
nected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This unit is inserted in the female XLR connector of the last
unit in your daisy chain to terminate the line. Using a cable terminator
(ADJ part number Z-DMX/T) will decrease the possibilities of erratic
behavior.
DMX512 IN
3-PIN XLR
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
DMX512
DMX+,DMX-,COMMON
1
2
3
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OT
3-PIN XLR
Figure 4
Ninja 5RX Dimensions

ADJ Products - www.adj.com - Ninja 5RX Instruction Manual Page 9
ADJ Products - www.adj.com - Ninja 5RX Instruction Manual Page 8
Ninja 5RX System MenuNinja 5RX Rear Layout and Functions
1. Button:
MENU  Toselecttheprogrammingfunctions
 DOWN  Togobackwardintheselectedfunctions
 UP  Togoforwardintheselectedfunctions
ENTER  Toconrmtheselectedfunctions
2. LED:
DMX On DMXinputpresent
MASTER On MasterMode
SLAVE ON SlaveMode
SOUND Flashing Soundactivation
3. FunctionDisplay:Usedtoshowthevariousmenusandtheselectedfunctions;
4. MIC:Toreceivemusicforsound active;
5. Fuse(T6.3Amp):Usedtoprotecttheunitfromthedamageofover‐current;
6. PowerIn/Out:      connectorsPowerinput/output 
7. PowerSwitch:Turnon/othepowersupply;
8. DMXIn/Out:  3‐pinXLRconnectorsforDMX512operation.

