Product Features
■Real-time measurement of
throughput, bandwidth
utilization, bursting,
congestion, and network
delay on each PVC
■Bandwidth utilization by
protocol and top talkers
■End-to-end network round
trip delay measurements
for network optimization
■N-Form™provides a web-
based, cost-effective,
easy-to-use management
platform
■True non-intrusive in-band
transmission of statistics
■Embedded SNMP and
Telnet through SLIP/PPP
port or optional Ethernet
interface
■Optional Dial Backup to
avoid service interruption
■Standard V.35 DTE
Interface
■Easy configuration from
Front Panel, SNMP, Telnet
or VT100
■Standard five-year
warranty
ADTRAN’s industry-leading and award-
winning DSU/CSU family continues to
provide more flexibility with the TSU IQ.
The TSU IQ provides the visibility and control
you need for both the physical and logical
connections made in Frame Relay networks.
This intelligent solution for managed Frame
Relay access allows you to enjoy the monetary
savings of Frame Relay without giving up
management visibility and control.
Real-time measurements of Frame Relay
metrics are stored in the TSU IQ. These
metrics include statistics on throughput and
utilization per port and PVC, availability,
utilization by protocol, top talkers lost frames
and PVC state, excess bursting above CIR,
network congestion (FECN, BECN, and DE),
and end-to-end delay on any or all PVCs.
This data is crucial for pinpointing specific
traffic demands and problem sources in the
network, for analyzing traffic patterns, and for
general maintenance and troubleshooting of
the Frame Relay circuit.
The statistics are stored in the TSU IQ
in a standard ASN.1 format making the statis-
tics available to any SNMP management
platform or trend analysis package. ADTRAN
offers N-Form, a powerful proactive network
management software suite. Modular in
design, N-Form combines the features of a
complete SNMP management platform, with
a network trend analysis tool, in an easy-to-
use, web-based, low cost package.
The TSU IQ supports multiple ways to
access the collected performance data. This
management flexibility accommodates both
the service provider and the end user in any
type of network configuration. Options
include simple VT100 connection, front panel,
management access through inband dedi-
cated or shared PVCs, SLIP/PPP or ethernet,
and combination management. Combination
management allows for simultaneous and
independent management by the service
provider and the end user.
The IQ family provides automatic dial
backup upon interruption of Frame Relay
services. The TSU IQ monitors both the phys-
ical link and the Frame Relay signal to
determine if an interruption has occurred.
Once detected, the unit automatically initi-
ates a dial-up call around the Frame Relay
network. A host IQ unit initiates and accepts
calls to and from IQ units at remote sites.
Once connected, the host unit merges backup
traffic with the primary traffic still being
received from unaffected remote sites.
The router or Frame Relay device connected
to the TSU IQ still receives all data as Frame
Relay traffic over the primary connection,
allowing a virtually transparent transition.
Once the failed condition has been cleared
and the Frame Relay interruption is over, the
IQ unit automatically restores traffic to the
primary link.
Additional features such as an easy-to-use
front panel interface and modular option
cards combined with the quality, service and
support that ADTRAN is known for makes the
TSU IQ the obvious choice for Frame Relay
monitoring. The IQ series also includes the
IQ Probe, DSU IQ™, TSU IQ+™, and the
NxIQ module for the TSU multiplexer family.
TSU IQ
Frame Relay T1-FT1 DSU/CSU

Specifications subject to change without notice. ADTRAN is a trademark of ADTRAN, Inc.
All registered trademarks and trademarks mentioned in this publication are the property of
their respective owners.
Product Specifications
Operating Modes
■ 100 DLCIs supported
■ T1/FT1 Frame Relay
■ Auto LMI/Annex D detection
Frame Relay Statistics
Access Line Statistics
■ T1 BPVs, CRCs, ES, SES, UAS, %AS,
%EFSEC, Alarm, Errors
■ Telco loop test in progress
PVC Statistics
■ PVC state
■ Bytes Tx/Rx; frame Tx/Rx
■ Frames with BECN/FECN/DE
■ Max/Min/Avg frame size
■ Throughput/bandwidth utilization per PVC
■ Lost frames/Sequence check
■ Continuous PVC delay measurement
■ Max/Min/Avg end-to-end PVC delay
■ Burst rate
■ Congested seconds
Port Statistics
■ Byte Tx/Rx; frame Tx/Rx
■ Throughput/utilization
■ Frame size violations (invalid frames)
■ CRC errors/abort frames
■ Non-octet aligned frames
LMI Statistics
■ LMI state/state changes
■ Polls in; Responses in
■ Timeouts/link integrity frames
■ Polls with protocol error
Layer 3 Statistics
■ Monitor protocols on port and pvc
■ Protocols supported: IP/IPX, ARP, SNA, other
■ Top Talkers
Diagnostics
Frame Relay
■ PVC loopback w/ test pattern/sequence check
■ PVC round trip delay
Network/User
■ CSU loopbacks
Line Interface
■ RJ48S, 4 wire
■ Timing derived from the Frame Relay Network
■ Framing: SF/ESF with auto detection
■ ESF format: AT&T 54016, ANSI T1.403
■ Line coding: AMI/B8ZS
■ Input signal: 0 to –36dB
■ DS0 Assignment: contiguous or alternate
TSU IQ
Frame Relay T1-FT1 DSU/CSU
ADTRAN, Inc.
Attn: Enterprise Networks
901 Explorer Boulevard
Huntsville, AL 35806
P.O. Box 140000
Huntsville, AL 35814-4000
256 963-8000 voice
256 963-8699 fax
256 963-8200 fax back
General Information
800 9ADTRAN
[email protected]
www.adtran.com
Pre-Sales
Technical Support
800 615-1176 toll-free
[email protected]
www.adtran.com/support
Where to Buy
877 280-8416 toll-free
[email protected]
www.adtran.com/where2buy
Post-Sales
Technical Support
888 423-8726
[email protected]
www.adtran.com/support
ACES Installation &
Maintenance Service
888 874-ACES
[email protected]
www.adtran.com/support
International Inquiries
256 963 8000 voice
256 963-6300 fax
[email protected]
www.adtran.com/international
For the regional office
nearest you, visit:
www.adtran.com/where2buy
DTE Interface
■ V.35 Winchester M block female
■ 56 to 1.536, Nx56 or Nx64 kbps (N=1 to 24)
Configuration
■ Front Panel
■ Local and Remote VT 100 terminal via the Control port
■ Remote configuration via frame relay
network connection
■ Telnet and SNMP
SNMP/Telnet
■ Embedded SNMP and Telnet inband access through
shared or dedicated PVC
■ Integrated SLIP/PPP (async) port
■ Optional 10BaseT interface
■ RFC 1213 MIB II, RFC 1315 compliant
■ ADTRAN Enterprise MIB for frame monitoring
and TSU control
Agency Approvals
■ FCC Part 68, Part 15 Class A
■ Industry Canada CS03
■ UL1950 and CUL
Environment
■ Operating Temperature: 0° to 50° C, (32° to 122° F)
■ Storage Temperature: –20° to 70° C, (–4 to 158° F)
■ Relative Humidity: Up to 95%, non-condensing
Physical
■ Dimensions: 10.4" D, 8.0" W, 2.4" H
■ Weight: 4.5 lbs
■ Power: 115 vAC, 60 Hz, 7W
Product Includes
■ Two 8-pin to 8-pin modular cables, modular to female
DB-25 adapter and user manual

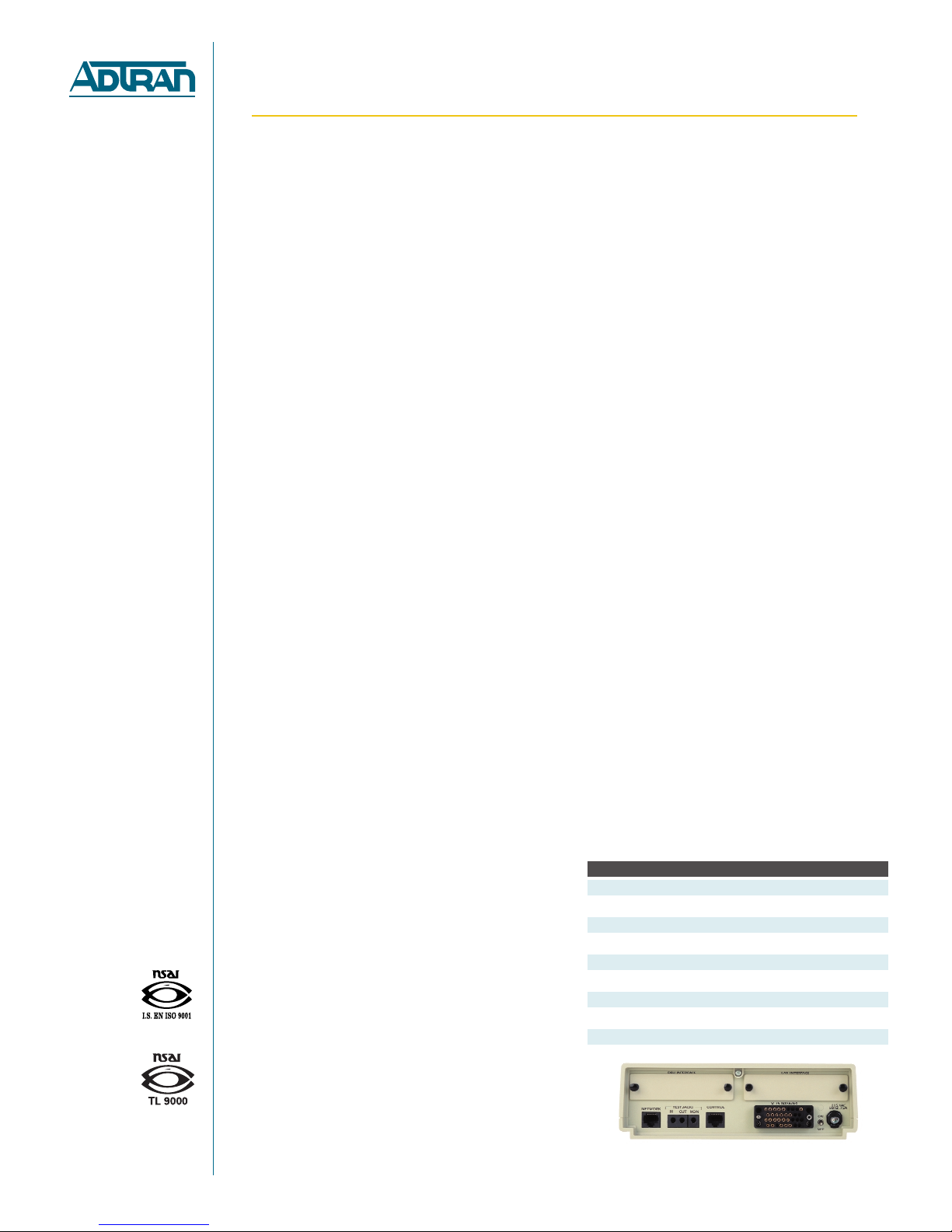

Ordering Information
Equipment Part #
TSU IQ™1200215L1
V.34 DBU card 1204002L2
SW56 DBU card 1204001L1
ISDN BRI DBU card 1204004L1
ISDN PRI DBU Card 1204008L1
External DBU card 1204006L1
Ethernet card 1204005L1
TSU IQ RM 1200277L1
TSU IQ RM w/PRI DBU 4200277L1
