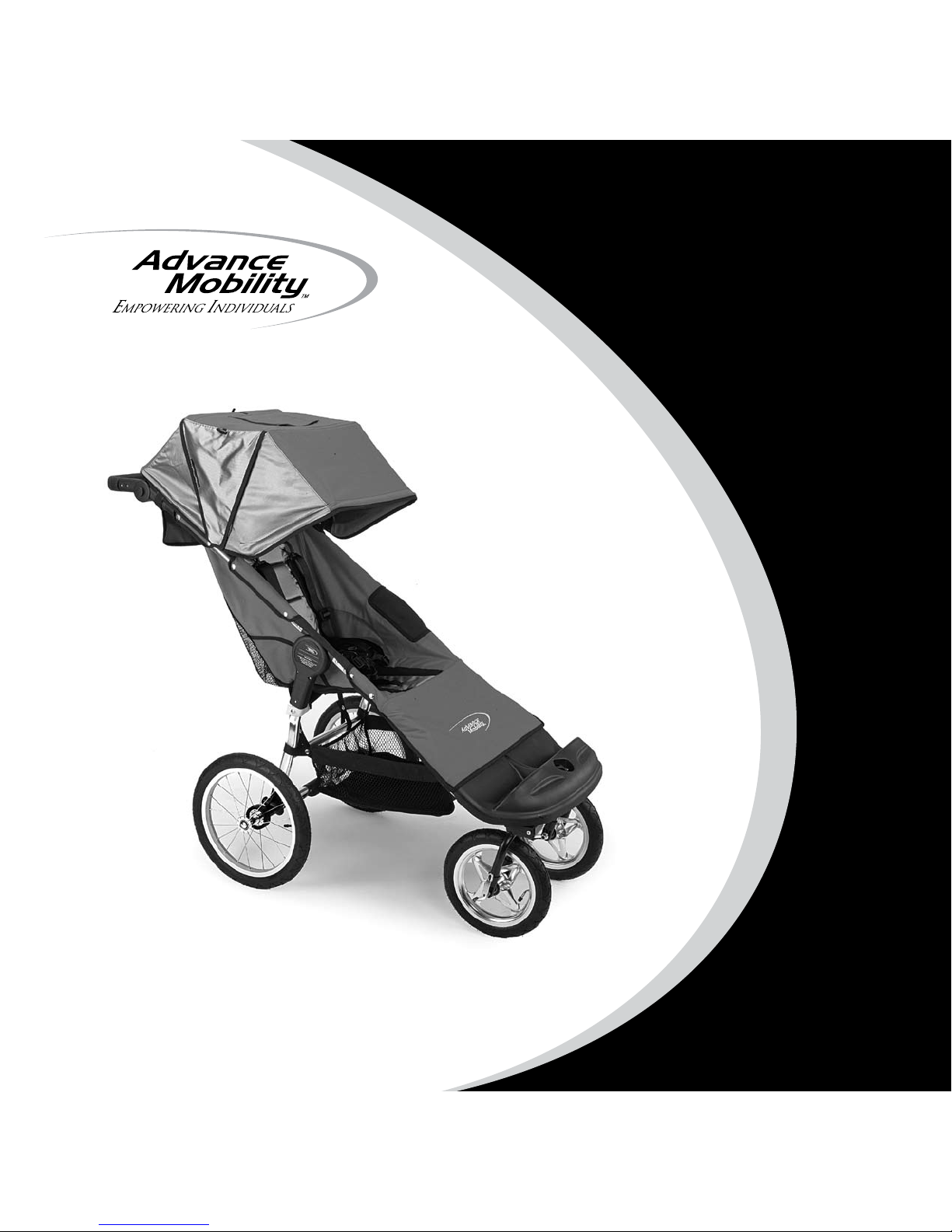

Advance mobility Liberty push chair User manual

A
Assembly
Instructions
Liberty Push Chair
Read these
instructions carefully
before use and
keep them for
future reference.
Your passenger’s safety may
be affected if you do not
follow these instructions.
This product is CE approved
A Division of The Baby Jogger Company

B
• WARNING: Prevent serious injury to your passenger by always using the
safety harness.
• WARNING: Any load attached to the handle affects the stability
of the Push Chair.
• WARNING: It may be dangerous to leave your passenger unattended.
• WARNING: Recommended weight for seat pocket is 2 pounds and basket
is 10 pounds. Excessive weight may cause a hazardous unstable
condition to exist.
• Accessories which are not approved by the manufacturer or distributor
should not be used.
• Always use your wrist strap – this Push Chair can really roll, and the
wrist strap gives you control if you should slip or fall down.
• The passenger should remain seated (no standing in Push Chair).
• Watch out for cars – never assume that a driver can see you.
• Intended for large children or small adults.
• Total weight load recommended for this Push Chair is 100 lbs. (45 kg.)
(combined passenger and baggage weight.)
• This Push Chair seats one passenger.
• It may be unsafe to use replacement parts other than those supplied or
approved by the manufacturer.
EC-REP: European Device Solutions • Contact: [email protected]
For the sake of your precious cargo, please read
these warnings before using your brand new
Liberty Push Chair.

1
1. Unpack Push Chair from box
and set wheels aside.
2. Pull up on handle and push axle of Push Chair forward to assemble frame.
Push Chair frame will click into place. Snap yellow safety straps to frame before use.
Frame

2
Front Wheels
Wheel
Lever
1. To install front wheels, lay stroller
back so the handle is resting on
the floor. Lock front wheels to
prevent the forks from swiveling.
2. Insert the front wheels into the fork tips by
aligning the axle flats with the fork tip flats.
3. Tighten by turning the wheel lever
clockwise while holding the opposite side.
4. Close the wheel lever making sure that
it is flush with the tubing.
Be sure not to overtighten.

3
Rear Wheels
• To install, gently slide the
wheel’s axle into the hole
in the axle end until you
hear it click into place.
• To remove, simply push in
the spring lock button while
pulling out the wheel.

4
WARNING: Always use the crotch strap in combination
with the waist belt.
TO AVOID SERIOUS INJURY FROM FALLING OR SLIDING OUT,
ALWAYS USE THE SAFETY HARNESS.
1. Unclip top of shoulder strap from the
seat and re-clip on the pair of seat
loops closest to child’s shoulder height.
3. To unbuckle the harness:
Press one side of the
center button and pull the
corresponding side buckle
away from the center buckle.
Repeat to unbuckle other side.
To buckle: Simply push side
buckle into center buckle
until it locks in place.
2. To adjust the strap length: Move the
plastic guide up or down to lengthen
or shorten.
Safety Harness

5
WARNING: Engage parking device before loading and
unloading passenger.
4. To adjust side straps: Press side buckle latch
and slide strap to lengthen or shorten.
5. To adjust the center strap: Move its plastic
guide up or down.
• Simply push
brake pedal down
to engage rear
parking brakes and
lift up to release.
Rear Wheel Brake

6
1. Push in side buttons and adjust handle to desired position.
Adjustable Handle

7
Seat
3. Thread folding strap
through openings in seat.
4. Attach folding strap to
folding trigger and secure
the triangle shaped fastener.
2. Fasten the two bottom Velcro straps
to each other.
1. Snap seat to frame.
ALWAYS BE SURE
THE YELLOW SAFETY
STRAP IS SECURELY
SNAPPED ONTO
THE FRAME BEFORE
USING PUSH CHAIR!

8
Be sure to remove the board from the
back of the seat before washing.
1. To recline: Pinch
clamp and slide it
down to desired
recline and push
down on seat.
2. To return to the
upright position:
Hold the D-ring on
the end of the recline
strap in one hand and
use the other to pinch
the clamp and slide it
up the strap.
Reclining Seat

9
3. Wrap canopy strap around frame,
fasten Velcro to itself.
4. Unwrap canopy strap to tilt forward
when you wish to block direct sunlight.
2. To attach canopy to bracket: Insert canopy
frame into bracket and attach screws using
a phillips head screwdriver.
1. To attach bracket to frame: Unsnap seat
from frame to reveal mounting location.
Use a phillips head screwdriver to attach
bracket screws to frame.
Canopy

10
Basket
To install the basket onto the Liberty frame, it is best
to remove bottom seat section as shown on the seat page
1 Place the basket under the Push Chair,
narrow end forward and secure
front basket snap straps around frame.
2 Secure rear snap straps around the
frame above center support bar.

11
1. Retract canopy and unsnap
Fold Strap from both uprights.
2. Grasp Fold Strap and pull upwards.
(You might have to give it a tiny yank.)
Folding
ALWAYS BE SURE
THE YELLOW SAFETY
STRAP IS SECURELY
SNAPPED ONTO
THE FRAME BEFORE
USING PUSH CHAIR!

12
Steering
• Steering your Push Chair is simple.
It’s balanced to turn with just a
light touch on the handlebar.
Wrist Strap
• Make sure wrist strap is around your wrist
when in use. The Liberty is ready to roll with or
without you – and the wrist strap helps you stay
in control of you Push Chair.
In the Dark
• Since we are concerned about safety, we recommend
that you not use your Push Chair at night. However,
if you choose to, please attach reflective strips
to the wheel spokes and the seat. Bicycle lights
can also be mounted on the handlebar.
In Motion

13
Washing
• You can machine wash the Liberty’s seat in cold water with a mild detergent.
To minimize shrinkage, simply reattach the seat to the frame to dry.
(Please do not put the seat in the dryer!)
• Be sure to remove the board from the back of the seat
before washing.
• You may clean the frame using a soft, dry cloth, and
an occasional spray of household wax will maintain
its healthy glow.
Wheel Care
• Moisture – especially from the beach – can rust the wheel bearing case.
Spraying regularly with a silicone lubricant will keep your wheels looking healthy.
• Also, if you use your Push Chair regularly, your Push Chair will benefit from a yearly
visit to the bike shop for wheel alignment. Refer to the number on the tire wall
for the optimum pressure for your tires.
Storing
• Sunshine can fade seat fabric and dry out tires, so storing your
Push Chair indoors will prolong its good looks. However, if you do
store it outside, using a tarp will protect against weather wear.
Push Chair Care

We wish you many happy journeys with your new
Push Chair! The Liberty is a great product, and
we are proud to manufacture it. If you have any
questions or comments, please give us a call at:
AM LIBERTY 11/02/07
1.800.241.1848
Advance Mobility is a Division of Baby Jogger
8575 Magellan Parkway, Suite 1000 • Richmond, VA 23227
T: 800.241.1848 • F: 804.262.6277
www.advancemobility.org
Thank You!
