Graco ISPC090BB User manual

© 2007 Graco ISPC090BB 2/07 US
Infant
Restraint/
Carrier
Owner’s Manual
READ THIS ANUAL
KEEP INSTRUCTIONS
FOR FUTURE USE.
Do not install or use
this infant restraint until you
read and understand the
instructions in this manual.
FAILURE TO PROPERLY
USE THIS INFANT
RESTRAINT INCREASES
THE RISK OF SERIOUS
INJURY OR DEATH
IN A SUDDEN STOP
OR CRASH.

2
1.0 Warning to Parents and Other Users . . . . . . . . . . . . . . . . . .4-5
2.0 Registration Information . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7
2.1 Register Your Infant Restraint . . . . . . . . . . . . . . . . . . . . . . .6
2.2 RecallInformation ................................6
2.3 IfYouNeedHelp .................................7
3.0 Features and Components . . . . . . . . . . . . . . . . . . . . . . . . .8-14
3.1 Removing and Attaching Base . . . . . . . . . . . . . . . . . . . . . .10
3.2 AdjustingHandle ................................10
3.3 AttachingCanopy................................11
3.4 Head Support (on certain models) . . . . . . . . . . . . . . . . . . .12
3.5 Seat Pad Assembly (certains models) . . . . . . . . . . . . . . . .13
3.6 Cold Weather Boot (certain models) . . . . . . . . . . . . . . . . .14
3.7 Harness Covers (certain models) . . . . . . . . . . . . . . . . . . .14
4.0 Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-19
4.1 Warnings for Use as Infant Restraint . . . . . . . . . . . . . . . . .15
4.2 Warning for Use With a Stroller . . . . . . . . . . . . . . . . . . . . .17
4.3 Additional Warnings for Use as Carrier . . . . . . . . . . . . . . .18
4.4 Height and Weight imits . . . . . . . . . . . . . . . . . . . . . . . . . .19

3
5.0 Infant Restraint Location . . . . . . . . . . . . . . . . . . . . . . . . . .20-25
5.1 Vehicle Seat Requirements . . . . . . . . . . . . . . . . . . . . . . . .20
5.2 Vehicle Seat Belt Requirements . . . . . . . . . . . . . . . . . . . .21
5.2.1 UNSAFE Vehicle Belt Systems . . . . . . . . . . . . . . . . .22
5.2.2 SAFE Vehicle Belt Systems . . . . . . . . . . . . . . . . . . .23
5.3 LATCH ocations................................25
6.0 UsingInfantRestraint .................................26-36
6.1 Positioning Harness Straps . . . . . . . . . . . . . . . . . . . . . . . .26
6.2 Securing Child in Infant Restraint . . . . . . . . . . . . . . . . . . .28
6.3 Installing the Infant Restraint/Base Using Vehicle Belt . . .30
6.4 Using LATCH toInstallBase.......................33
6.5 Reclining Infant Restraint/Base . . . . . . . . . . . . . . . . . . . . .34
7.0 Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . .37-38
7.1 AirplaneUse ...................................37
7.2 Storing LATCH ..................................37
7.3 Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . .38
ReplacementParts .....................................40

4
No infant restraint can guarantee protection from injury in every
situation. However, proper use of this infant restraint reduces the
risk of serious injury or death to your child.
Failure to properly use this infant restraint increases the risk of
serious injury or death in a sharp turn, sudden stop or crash.
Your child’s safety depends on you installing and using this
infant restraint correctly.
Even if using this infant restraint seems easy to figure out on your
own, it is very important to READ THE OWNER’S MANUA .
The manual is located in the back pocket of the infant restraint.
You must also read your vehicle owner’s manual.
Your child’s safety depends on:
1. Choosing a suitable location in your vehicle. Some seating
positions, such as those equipped with air bags, may not be
safe locations for this infant restraint.
2. Inserting the harness straps in the proper slots for your child.
3. Properly securing your child in the infant restraint.
1.0 Warnings to Parents and
Other Users

5
4. Placing infant restraint/base in a rear-facing position.
5. Properly routing the vehicle seat belt or LATCH.
6. Properly reclining the infant restraint.
7. Properly securing the infant restraint in the vehicle using a
seat belt designed to restrain an infant restraint or by using
ATCH. Many seat belts are NOT safe to use with infant
restraints, even though they can easily be threaded through
the infant restraint!

6
odel Number:
anufactured in:
Purchase Date:
2.1 Register Your Infant Restraint
Please fill in the above information. The model number and the
manufactured in (date) can be found on a label underneath your
infant restraint. Fill out the prepaid registration postcard attached to
the seat cover and mail it today.
Child restraints could be recalled for safety reasons. You must
register this restraint to be reached in a recall. Send your name,
address and model/serial numbers to:
Graco Children’s Products Inc.
150 Oaklands Blvd.
Exton, PA 19341
or call 1-800-345-4109
or www.gracobaby.com
• Call the U.S. Government’s Vehicle Safety Hotline
at 1-888-327-4236 (TTY: 1-800-424-9153) or go to
http://www.NHTSA.gov
• Graco: 1-800-345-4109 or www.gracobaby.com
2.2 Recall Information
2.0 Registration Information

7
2.3 If You Need Help
In the U.S.A. or Canada, please contact our Customer Service
Department with any questions you may have concerning parts, use,
or maintenance. When you contact us, please have your product’s
model and serial numbers ready so that we may help you
efficiently. These numbers can be found on a sticker on the
underside of your infant restraint.
USA: 1-800-345-4109 or www.gracobaby.com
Canada: 1-800-667-8184 ontreal: 514-344-3533

3.0 Features and Components
FRONT VIEW
Handle
Harness
slots
Vehicle
belt
hook
Handle
adjustment
button
Harness
clip
Harness
buckle
Harness
buckle tongues
Vehicle belt/ ATCH path
Base
Adjustable Foot
ATCH Connector
Adjustment Belt ATCH
Storage
Bars
8

9
REAR VIEW
Canopy
Harness slot
Release handle
Attachment
latch
evel
indicator*
Owner’s manual
pocket
Harness
tightener
ocking clip**
The level indicator is attached to the side of
the infant restraint, and indicates whether or
not the infant restraint is properly reclined.
The locking clip is stored on the bottom of
the infant restraint. You will need to use it
with certain types of vehicle seat belts.
**Locking
Clip
*Level
Indicator

10
3.1 Removing and Attaching Base
3.2 Adjusting Handle
To remove infant restraint, squeeze handle at
back of seat and lift infant restraint from base
as shown .
To put infant restraint in base, push infant
restraint down until it clicks into base. Pull up
on infant restraint to be sure it is latched
firmly into base.

1. Press handle adjustment buttons on
both sides of handle .
2. Rotate handle until it clicks into any
of the 5 positions:
Position A: UST be used
when carrying by handle,
Position B,C,D: are convenience
positions,
Position E: is the sitting position,
NEVER use positions Bor C
in the vehicle.
BOTH handle adjustment
buttons must pop out to lock
handle in place .
3. Push and pull on the handle
to be sure it is locked firmly
in position.


Carrying
Sitting
AB
C
D
E

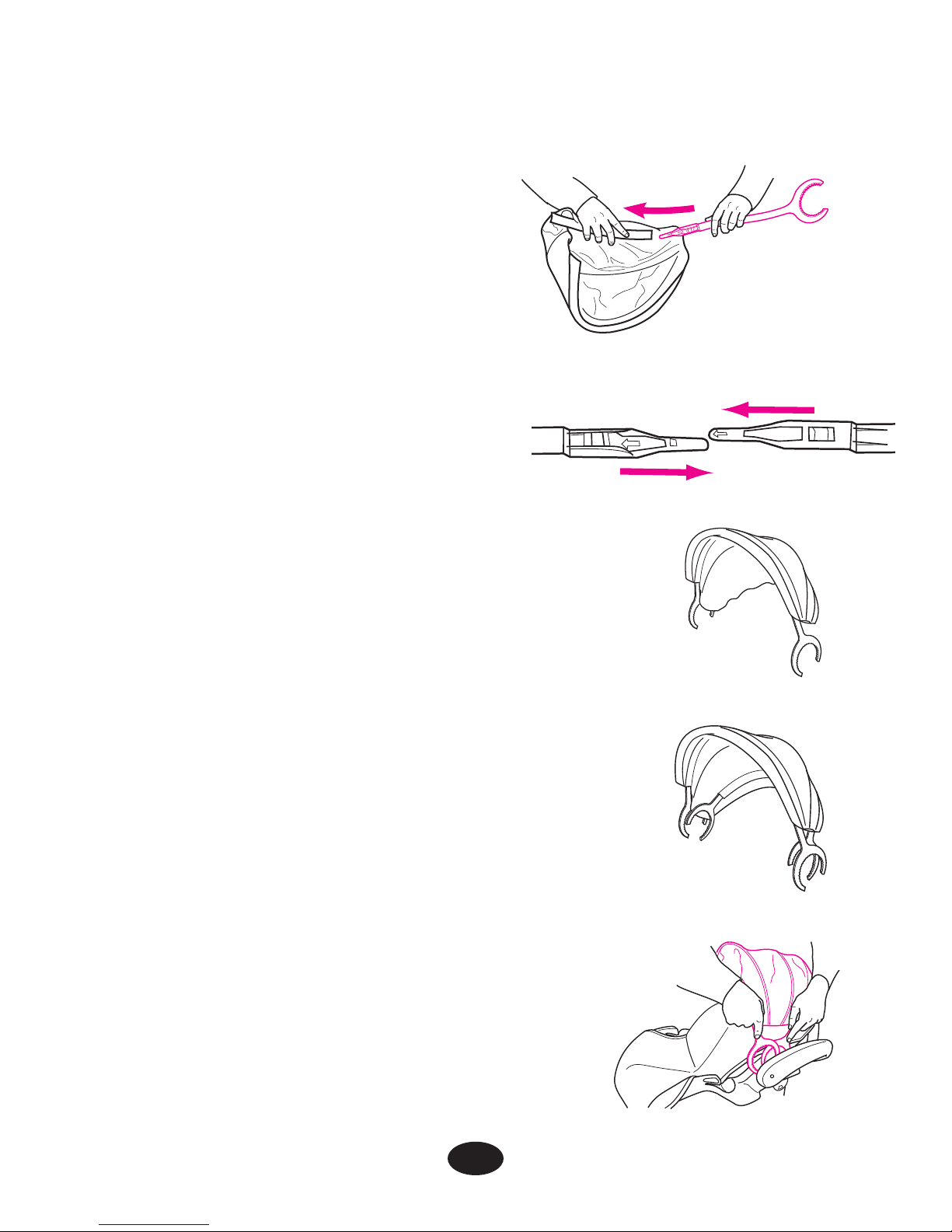

1. Infant restraint comes with four
(two on certain models) identical
canopy support parts.
Thread one canopy support
completely through one sewn
tunnel .
2. Slide straight end of a second
support into the straight end of
the first support .
3. On models with four canopy supports,
repeat steps one and two for the other
canopy tunnel. The canopy should appear
as shown .
4. Attach canopy in the areas between the
infant restraint and the handle base .
To remove the canopy, reverse the steps.
11
3.3 Attaching Canopy




OR

12

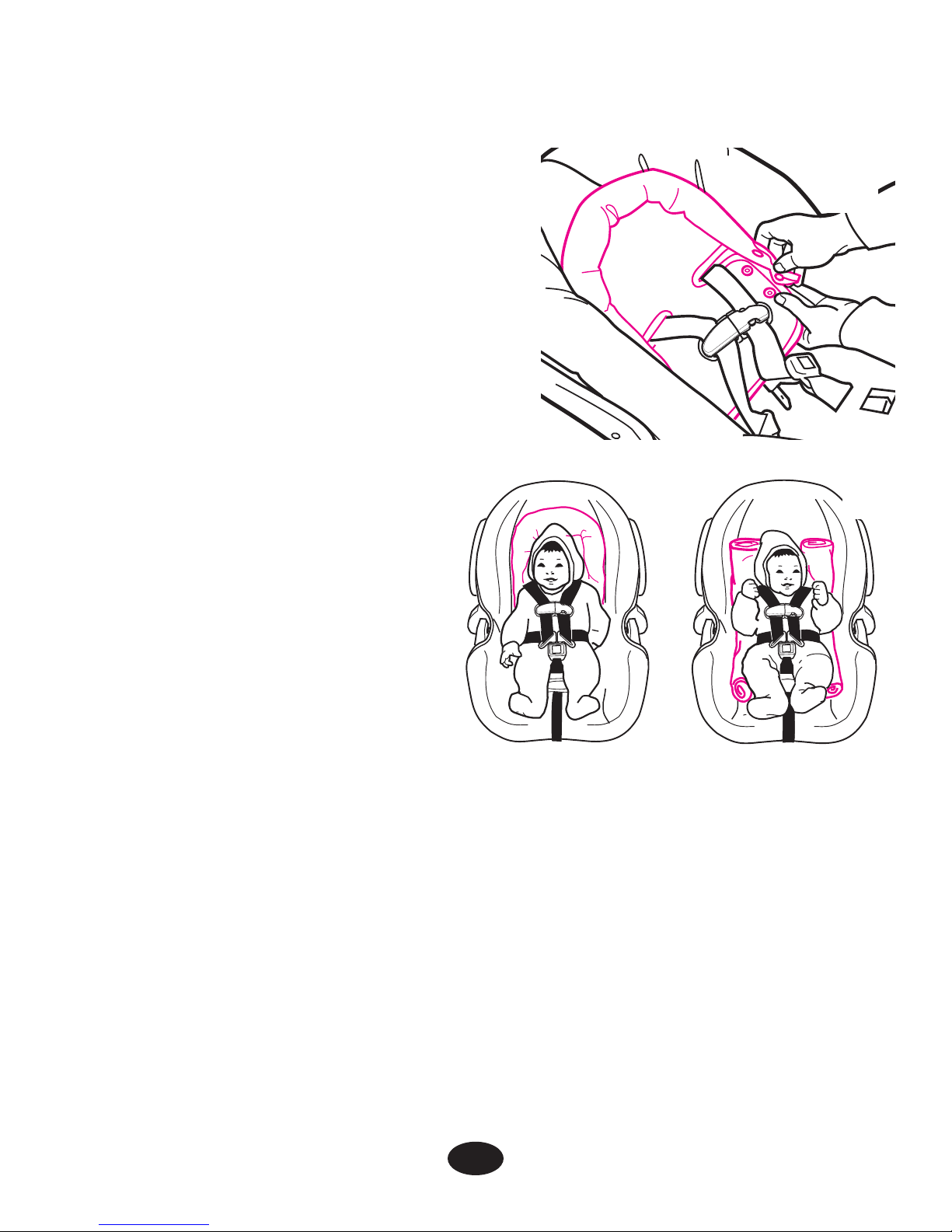

3.4 Head upport (on certain models)
Some infants may need extra support
to keep their head and body in a
comfortable position. Unsnap the sides
and resnap them with the harness
straps threaded through the slots in
the cushion .
If your model does not include
a head support, you may want
to use a rolled towel or a
blanket for support .
AKE SURE THAT NOTHING
INTERFERES WITH THE
HARNESS OR THE BLANKET.
It must still be flat and snug
against your child’s shoulders.



13

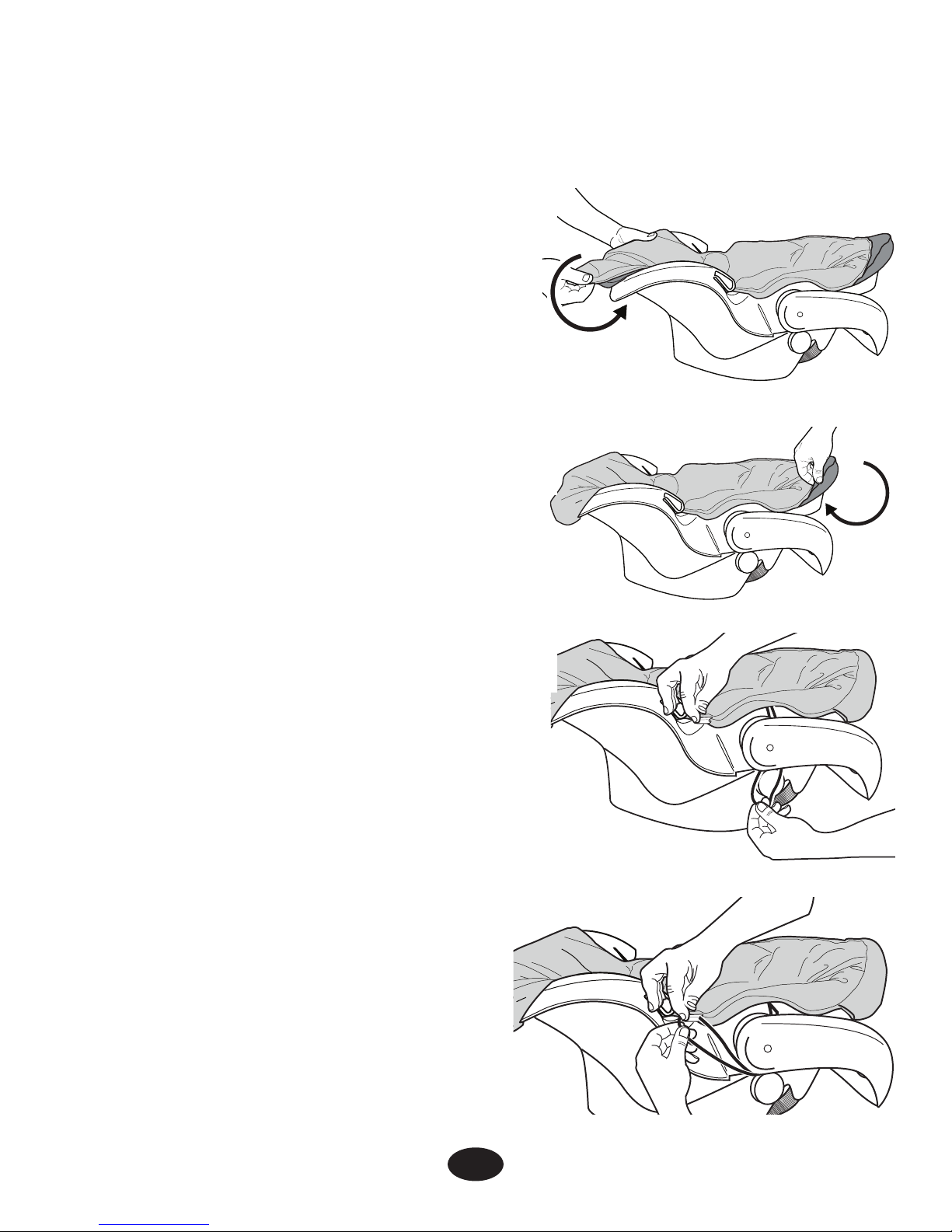

3.5 eat Pad Assembly
(on certain models)




tep 1.
Wrap bottom edge of seat pad
around the foot end of seat as
shown.
tep 2.
Wrap the top edge of the seat pad
around the head end of the seat
as shown.
tep 3.
On side of seat, wrap elastic strap
around the handle as shown.
Skip Steps 3 and 4 if your model
does not include straps.
tep 4.
Fasten strap to hook that is
attached to the seat pad. Repeat
steps for the elastic strap and
hook on the other side of the seat
pad.

14

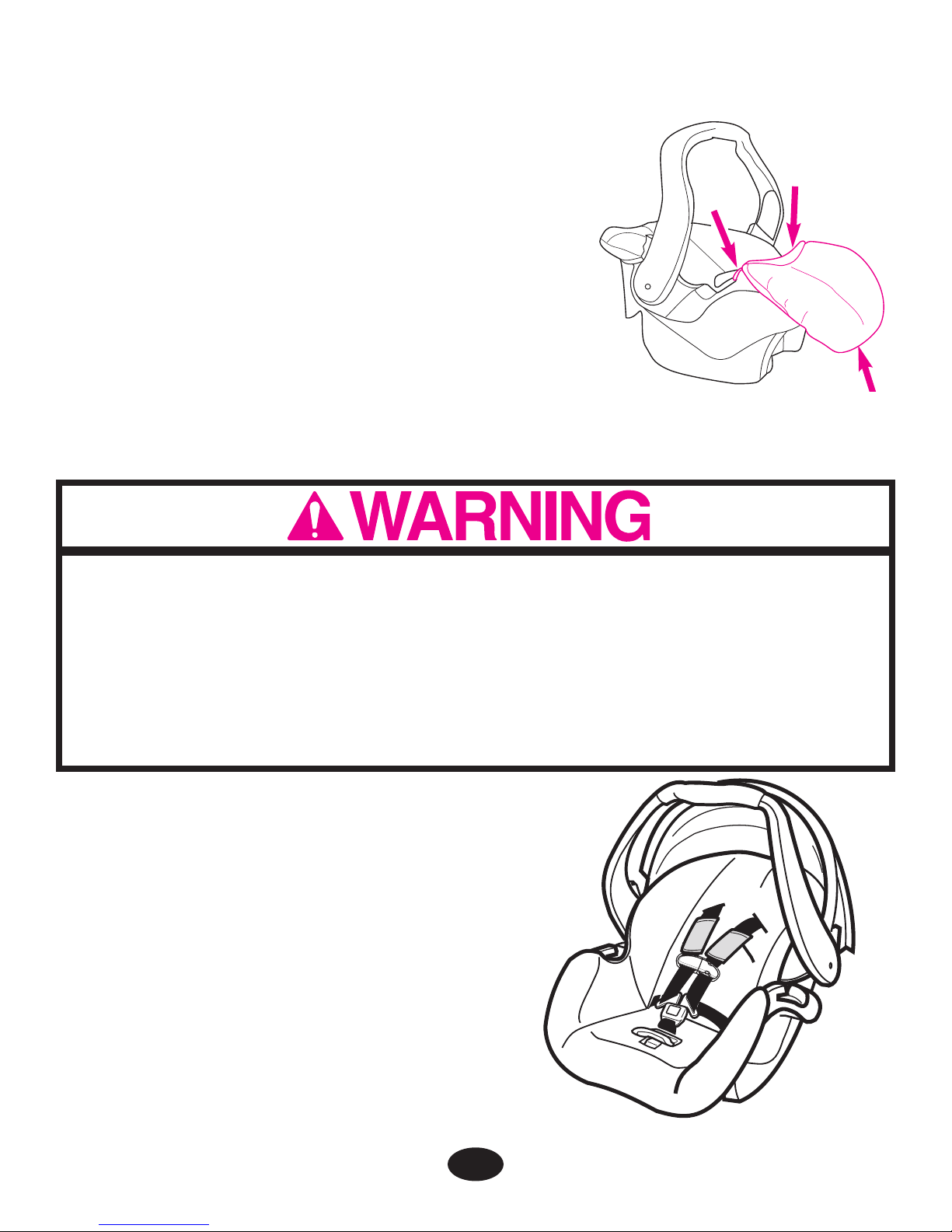

3.6 Cold Weather Boot
(on certain models)
Some models come with a cold weather
boot. To use, wrap elastic around bottom
of seat and place both elastic loops around
vehicle belt hooks as shown .

3.7 Harness Covers (on certain models)
To prevent ejection in sudden stop or crash:
• Always make sure shoulder straps are threaded through slots and
properly positioned on shoulders.
• Make sure that harness covers do not interfere with placement of
the chest clip at armpit level.

15

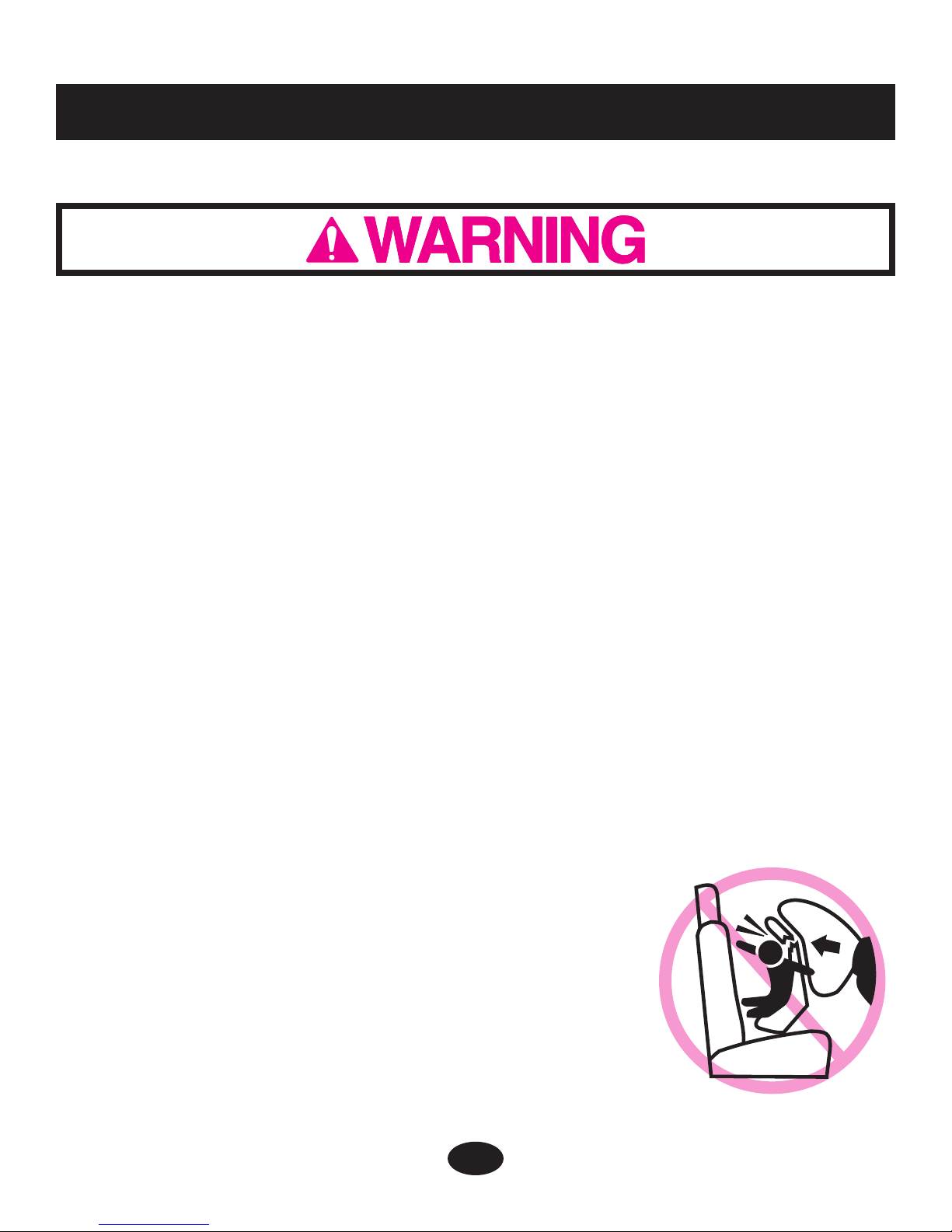

4.0 Important Information
4.1 Warnings for Use as Infant Restraint
•DO NOT INSTALL OR USE THIS INFANT RESTRAINT
AND BASE UNTIL YOU READ AND UNDERSTAND THE
INSTRUCTIONS IN THIS ANUAL AND IN YOUR VEHICLE
OWNER’S ANUAL. DO NOT let others install or use the
infant restraint unless they understand how to use it.
•FAILURE TO PROPERLY USE THIS INFANT RESTRAINT
AND BASE INCREASES THE RISK OF SERIOUS INJURY
OR DEATH IN A SUDDEN STOP OR CRASH. Your child can
be injured in a vehicle even if you are not in a crash. Sudden
braking and sharp turns can injure your child if the infant
restraint is not properly installed or if your child is not properly
secured in the infant restraint.
•PLACE THIS INFANT RESTRAINT IN A REAR-FACING
POSITION when using it in the vehicle.
•DO NOT PLACE THIS INFANT RESTRAINT IN A VEHICLE
SEATING LOCATION THAT HAS A FRONT
AIR BAG. If the air bag inflates, it can hit the
infant restraint with great force and cause
serious injury or death to your child. Check
vehicle owner’s manual for information about
side air bags and infant restraint installation.

16
•SO E SPECIAL NEEDS CHILDREN, such as pre-term babies
or those who have tested positive for positional apnea, may be
at increased risk of suffering breathing or other difficulties in an
infant restraint. If your child has special needs, we recommend
that you have your physician or hospital staff evaluate your child
and recommend the proper infant restraint or car bed before
using this product.
• According to accident statistics, CHILDREN ARE SAFER WHEN
PROPERLY RESTRAINED IN REAR VEHICLE SEATING
POSITIONS, RATHER THAN FRONT SEATING POSITIONS.
For a vehicle with a front passenger air bag, refer to your vehicle
owner’s manual as well as these instructions for infant restraint
installation.
•NEVER LEAVE YOUR CHILD UNATTENDED.
•NEVER LEAVE AN INFANT RESTRAINT AND BASE
UNSECURED IN YOUR VEHICLE. An unsecured infant
restraint or base can be thrown around and may injure occupants
in a sharp turn, sudden stop or crash. Remove it or make sure
that it is securely belted in the vehicle. If not using LATCH, make
sure unsecured LATCH connectors are properly stored on base.
•REPLACE THE INFANT RESTRAINT AND BASE AFTER AN
ACCIDENT OF ANY KIND. An accident can cause damage to
the infant restraint that you cannot see.
•STOP USING INFANT RESTRAINT AND BASE AND THROW IT
AWAY after the date molded into the back of the infant restraint.
•DO NOT ODIFY YOUR INFANT RESTRAINT AND BASE or
use any accessories or parts supplied by other manufacturers.

17
•NEVER USE INFANT RESTRAINT AND BASE IF IT HAS
DA AGED OR ISSING PARTS. DO NOT use a cut, frayed
or damaged infant restraint harness or vehicle seat belt or
LATCH belt.
•THE INFANT RESTRAINT CAN BECO E VERY HOT IF LEFT IN
THE SUN. Always touch the surface of any metal or plastic parts
before putting your child in the infant restraint.
•THIS INFANT RESTRAINT CONFOR S to all applicable
Federal Motor Vehicle Safety Standards and is certified for
use in motor vehicles and aircraft.
•NEVER GIVE THIS INFANT RESTRAINT AND BASE to
someone else without also giving them this manual.
•NEVER USE A SECOND-HAND INFANT RESTRAINT AND BASE
or an infant restraint whose history you do not know.
•USE ONLY WITH STROLLERS THAT ARE PART OF THE
GRACO TRAVEL SYSTE . Refer to stroller instruction sheet
for details about how to attach the infant restraint to your stroller.
If you do not have an instruction sheet, please call toll-free,
1-800-345-4109 to obtain one, or visit our website,
www.gracobaby.com.
• Improper use of Graco’s infant car seat with other manufacturer’s
strollers may result in serious injury or death.
4.2 Warning for Use With a troller

18
• FALL HAZARD: Child’s movements can slide carrier.
NEVER place carrier near edges of countertops, tables or other
high surfaces. Always stay within arms reach whenever carrier is
not on floor/ground.
BE SURE handle locks into position before lifting carrier.
NEVER place carrier in the top of a shopping cart.
• SUFFOCATION HAZARD: Infant carrier can roll over on soft
surfaces and suffocate child. Never place carrier on beds, sofas
or other soft surfaces.
• STRANGULATION HAZARD: Child can strangle in loose restraint
straps. Always use harness, never leave child in carrier when
straps are loose or undone.
KEEP STRINGS AND CORDS AWAY FRO CHILD. Strings and
cords can cause strangulation.
DO NOT place carrier near a window where cords from blinds or
drapes can strangle a child.
DO NOT hang strings on or over the carrier.
DO NOT place items with a string around a child’s neck, such
as hood strings, pacifier cords, etc.
DO NOT attach strings to toys.
4.3 Additional Warnings
for Use as Carrier

19
4.4 Height and Weight Limits
Your child MUST meet all requirements:
• WEIGHT: 5-22 lbs. (2.3-10 kg)
• HEIGHT: 29 inches (73 cm) or less
FAILURE TO USE INFANT RESTRAINT IN A ANNER
APPROPRIATE FOR YOUR CHILD’S SIZE AY INCREASE
THE RISK OF SERIOUS INJURY OR DEATH.

5.0 Infant Restraint Location
5.1 Vehicle eat Requirements
I PROPER PLACE ENT OF THE INFANT RESTRAINT
INCREASES THE RISK OF SERIOUS INJURY OR DEATH.
Some seating positions in your vehicle may not be safe for this infant
restraint. Some vehicles do not have any seating positions that can
be used safely with the infant restraint. If you are not sure where to
place the infant restraint in your vehicle, consult your vehicle owner’s
manual or call Graco at 1-800-345-4109.
•Whenever possible, secure the infant
restraint in the center position of the
seat directly behind the front seats .
An adult should ride in the rear seat to
watch the child. If the driver is the only
adult present, a child may need to ride in the front seat. BUT
ONLY if there is no passenger-side air bag and all of the other
vehicle seat and seat belt requirements listed are met.
•NEVER place this infant restraint in a
vehicle seating location that has a
front air bag . See “4.1 Warnings for
Use as Infant Restraint”, p.15.


20
