AVERY CAPSULE - USE + CARE GUIDE
2
Suitable for 0 to 13 kg
(Subject to other fitting criteria as stated in this manual.)
Certified to European ECE R44/04 in Group 0+ as
approved by Waka Kotahi NZTA.
IMPORTANT
• Keep these instructions for future reference.
• Always follow the manufacturer’s instructions.
• Read all instructions carefully before assembly and use of
this child restraint.
• The correct use and maintenance of this product is essential.

AVERY CAPSULE - USE + CARE GUIDE
3
Welcome
Thank you for choosing Edwards & Co;
your family is now part of ours.
Firstly, thanks for choosing Edwards & Co - it truly means a
lot to us that you have chosen one of our child restraints to
keep your family safe.
A lot of time and money is spent ensuring that your child
restraint is the safest it can be. But to get the maximum
protection from your child restraint it is very important that
you read this instruction manual carefully. In particular, pay
attention to the warnings included as well as the correct
installation methods provided. Subtle differences can make
a huge difference when it comes to safety.
We believe in long lasting
relationships with our
customers, and we’d love
you to keep in touch.
You can sign up to
our newsletter via our
website or follow us on
Facebook and Instagram.
And remember that if
you need anything we’re
a simple phone call or
email away.
We’re so glad you came along for the ride.
From the team at Edwards & Co.
EDWARDSANDCOBABY.COM

AVERY CAPSULE - USE + CARE GUIDE
4
Contents
Warnings 5
What’s in the box 8
Avery Capsule components 9
Using the Avery Capsule 10
Adjusting the capsule handle 11
Using the harness buckle 13
Loosening the harness 15
Tightening the harness 16
The pinch test 17
Adjusting the harness height 18
Adjusting the harness length 20
Using the newborn support 22
Correctly placing your baby in the capsule 25
Using the canopy 27
Removing fabric cover and harness 30
Using the capsule with your Edwards & Co stroller 32
Installing the Avery Capsule into your vehicle 34
Where to install the capsule 35
Using the level indicator 36
Installing the capsule with the vehicle belt 38
Correct installation 41
Safety checklist 42
How to care for and maintain your capsule 43
Determining the capsule’s expiry date 46
WARRANTY 47

AVERY CAPSULE - USE + CARE GUIDE
5
Warnings
TO AVOID INJURY OR DEATH
To reduce the risk of SERIOUS INJURY or DEATH, read this owner’s
manual and your vehicle owner’s manual before installing and using this
child restraint. By properly using this child restraint and following these
instructions, you will greatly reduce the risk of serious injury or death to
your child from a collision.
Maximum limits
Weight Limit: 13kg
Head Height: At least 2.5cm below top of child restraint shell.
Shoulder Height: Less than 1cm above highest harness slot in child
restraint shell.
Whichever limit is reached first determines when your child has
outgrown this child restraint.
Never leave your child unattended
Never leave your child unattended in this child restraint.
Position in vehicle
Never use this child restraint in a vehicle passenger seat fitted with
airbags.
Only fit on a forward-facing vehicle passenger seat.
Never fit into a rear-facing or side-facing vehicle seat.
The rear vehicle seat is safest.

AVERY CAPSULE - USE + CARE GUIDE
6
Vehicle compatibility
This is a “Universal” child restraint. It is approved to Regulation No.
44/04 series of amendments for general use in vehicles and it will fit
most, but not all, vehicle seats.
A correct fit is likely if the vehicle manufacturer has declared in the
vehicle handbook that the vehicle is capable of accepting a “Universal”
child restraint for this age group.
This child restraint has been classified as “Universal” under more
stringent conditions than those which applied to earlier designs which do
not carry this notice.
This child restraint is ONLY SUITABLE for use in vehicles fitted with
a 3-point static or retractable seat belt that is approved to UN/ECE
regulation No. 16 or other equivalent standards.
If in doubt, contact the child restraint manufacturer or the retailer.
Base Unit compatibility
This child restraint is only compatible with Edwards & Co base models
PA0100 and PA0101.
Correct use of the child restraint
NEVER use this child restraint without installing it securely into your
vehicle.
NEVER alter or modify the child restraint in any way. This can affect its
performance in the event of a collision.
The cover and fabrics of the child restraint are integral to its
performance in the event of a collision. NEVER remove or replace the
fabrics of the child restraint unless this has been approved by Edwards &
Co.
DISCARD this child restraint if it is involved in a serious collision EVEN if
no damage is visible.

AVERY CAPSULE - USE + CARE GUIDE
7
Using the harness safely
The harness buckle SHOULD ALWAYS be easily accessible. It is
important that your child can be released quickly in the event of an
emergency.
Fit the harness firmly to the child. A loose restraint or harness is
DANGEROUS.
Using the handle correctly
The carry handle MUST be set in the correct position when used.
Do not use this child restraint as a substitute baby cot or
bed
This child restraint is not intended to be a substitute baby cot or bed.
It is only designed to enable safe transportation of infants in motor
vehicles. NEVER leave a baby in the child restraint for long periods of
time.
Child restraint expiry
Do not use this child restraint if it is older than 7 years from the
manufacture date. The shell and harness can weaken over time and the
protection it provides in an accident may be reduced. See “Determining
the capsule’s expiry date”.
This child restraint should not be purchased or sold as a second hand
item unless you are sure about its history.
Stroller compatibility
This child restraint is only designed to connect to selected Edwards & Co
strollers.

AVERY CAPSULE - USE + CARE GUIDE
8

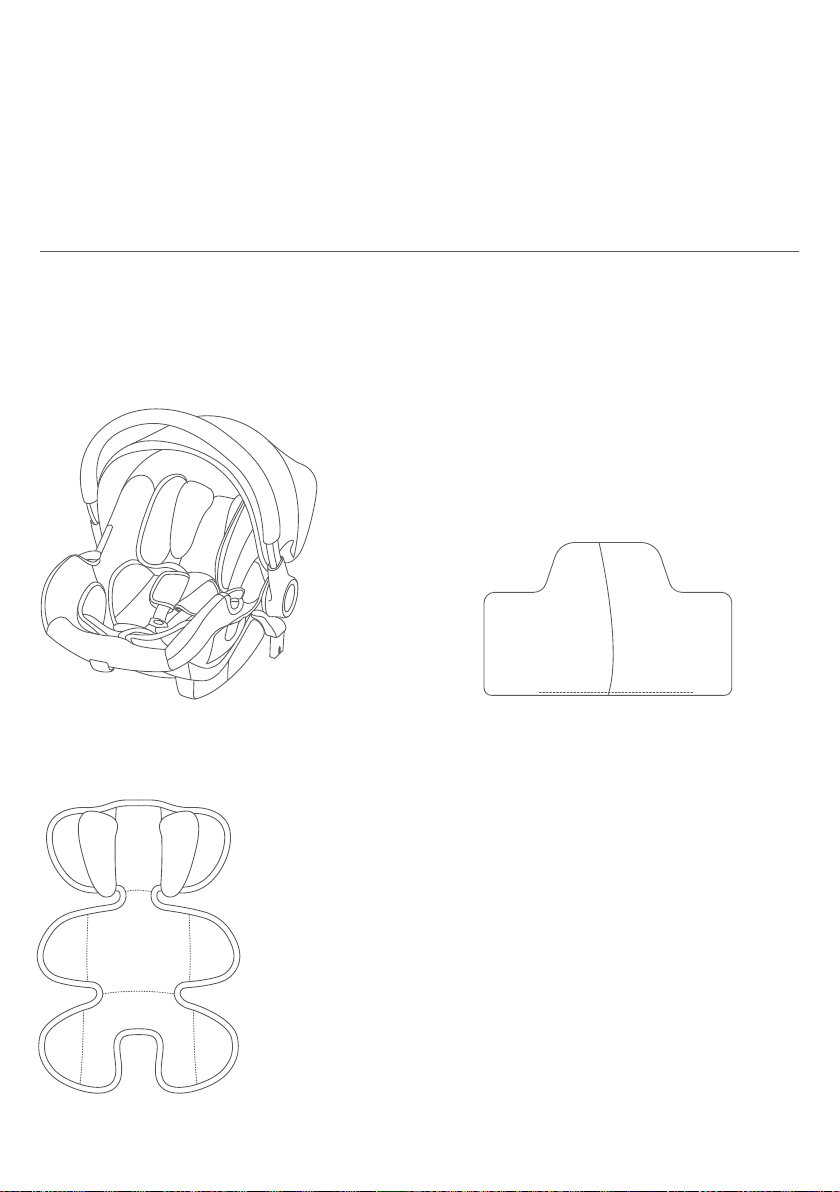

What’s in the box
Use + Care Guide
(this instruction
manual)
1 x Capsule 1 x Lumbar Wedge
(assembled in capsule)
1 x Newborn Support Liner with
Head Wings (assembled in capsule)

AVERY CAPSULE - USE + CARE GUIDE
9
Avery Capsule components
Handle
Bar
Head
Wings
Handle
Release
Button
Harness
Shoulder
Pads
Harness
Buckle
Lap Belt
Guide
Harness
Release
Button*
Harness
Adjustment
Strap
Level
Indicator
Stroller
Connection Point
Newborn
Support
Liner
Canopy
*Note: The Harness Release
Button is located beneath the
capsule fabric.

AVERY CAPSULE - USE + CARE GUIDE
10
Using
the
Avery
Capsule

AVERY CAPSULE - USE + CARE GUIDE
11
Adjusting the capsule handle

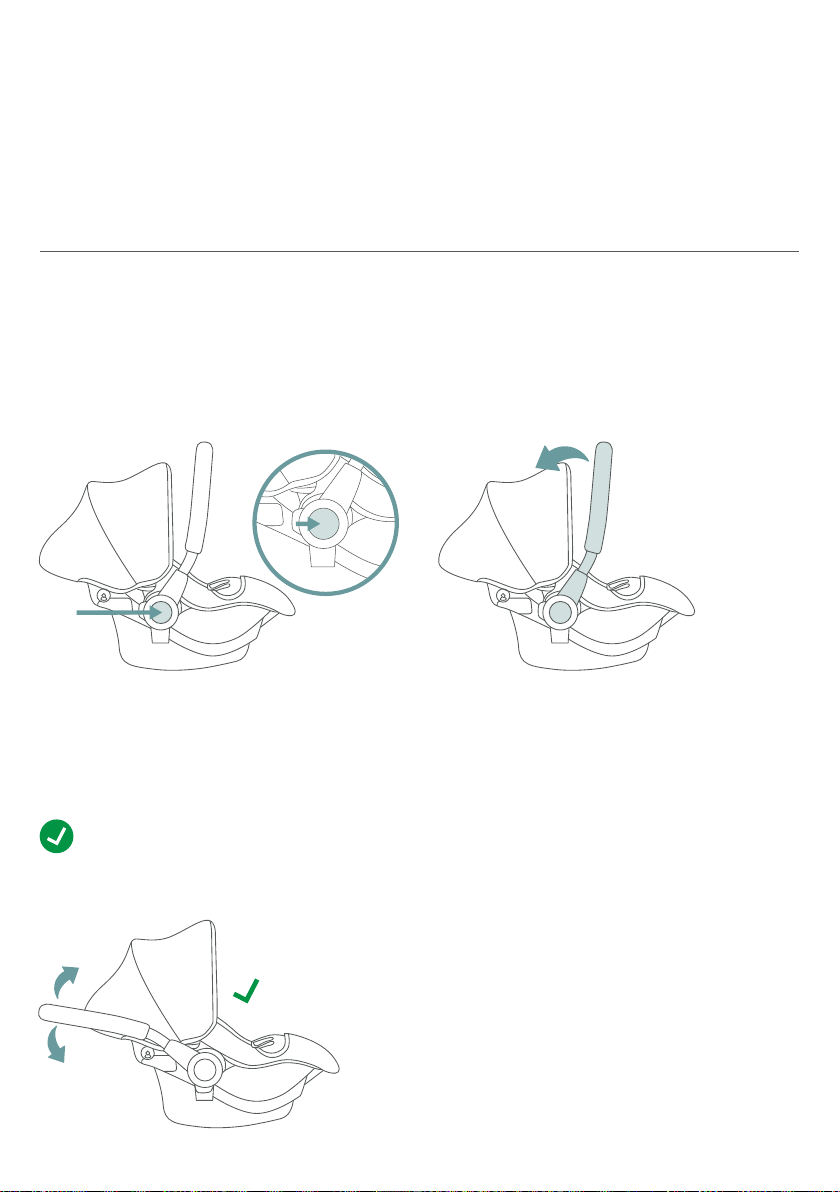

3. Release the buttons and move
the handle slightly to allow it
to lock into place.
You will hear a click when
the handle locks into position
correctly.
1. Locate the circular handle
release buttons in the centre
of the handle hinge on each
side of the capsule.
2. Press and hold both buttons
while simultaneously rotating
the handle into the desired
position.

AVERY CAPSULE - USE + CARE GUIDE
12

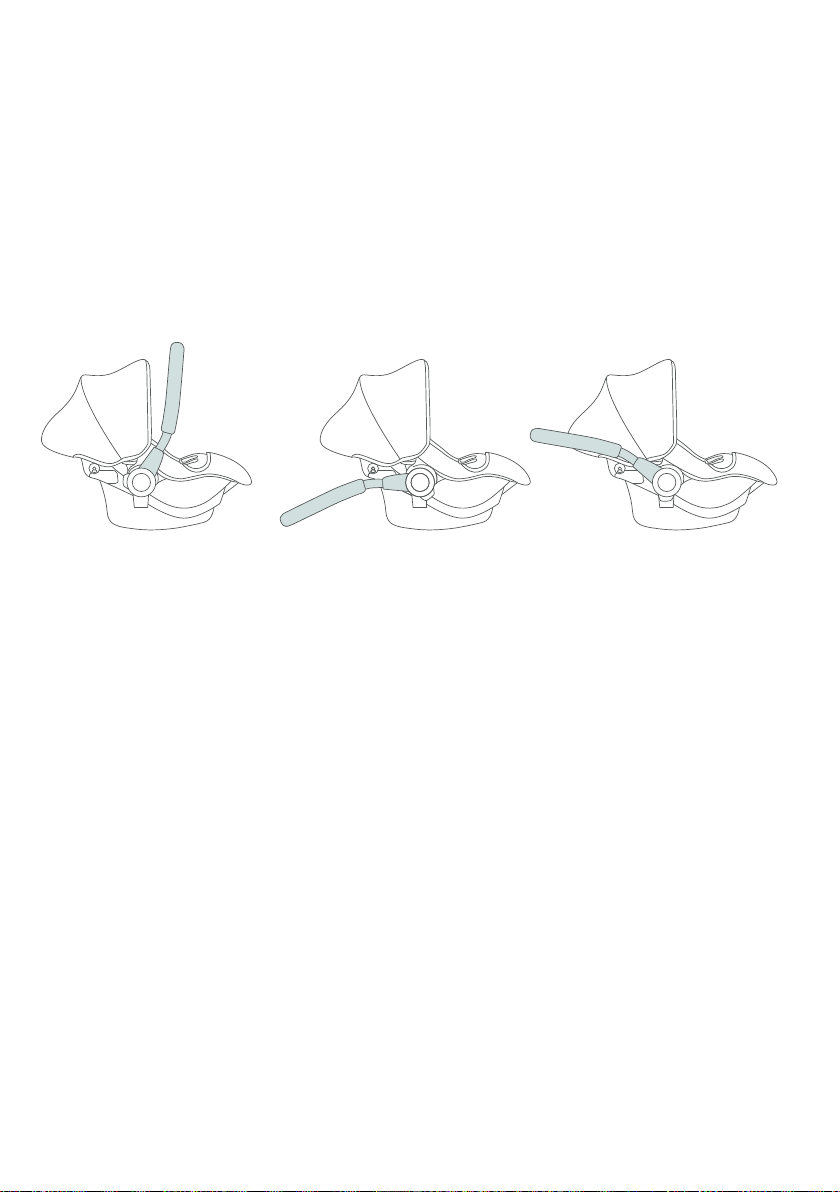

Note: The handle can be set to three positions:
Handle up
For carrying your child
or when the capsule
is installed in your
vehicle directly onto
the vehicle seat or into
the Avery Base Unit.
Note: This is an
update on earlier
instructions and
applies to all Edwards
& Co S2 capsules
(FA0053) and Avery
Capsules (FA0062)
currently within their
lifespans.
Handle forwardGround position
Provides stability
when putting your
child into or taking
them out of the
capsule.

AVERY CAPSULE - USE + CARE GUIDE
13
Using the harness buckle
1. Position the larger buckle
tongue over the smaller
buckle tongue.
Securing the buckle
2. Clasp both tongues together.
Note: The two buckle
tongues must be clasped
together before clipping into
the buckle.
3. Insert the two tongues into
the harness buckle.
You will hear a click when the
buckle is connected correctly.
4. Pull on the harness
immediately above
the buckle tongues to
ensure it is secure.

AVERY CAPSULE - USE + CARE GUIDE
14
1. Press the red harness
release button.
Undoing the buckle
2. Remove the tongues
from the buckle.

AVERY CAPSULE - USE + CARE GUIDE
15

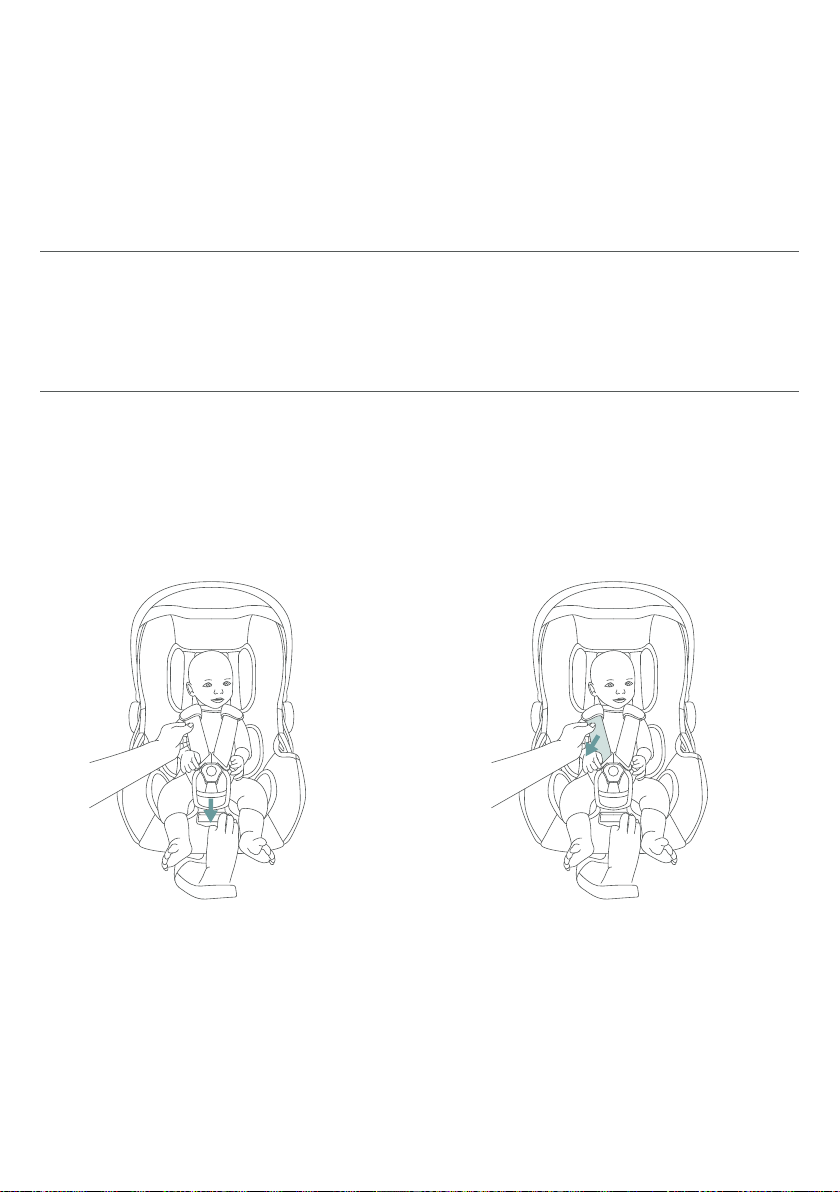

Loosening the harness

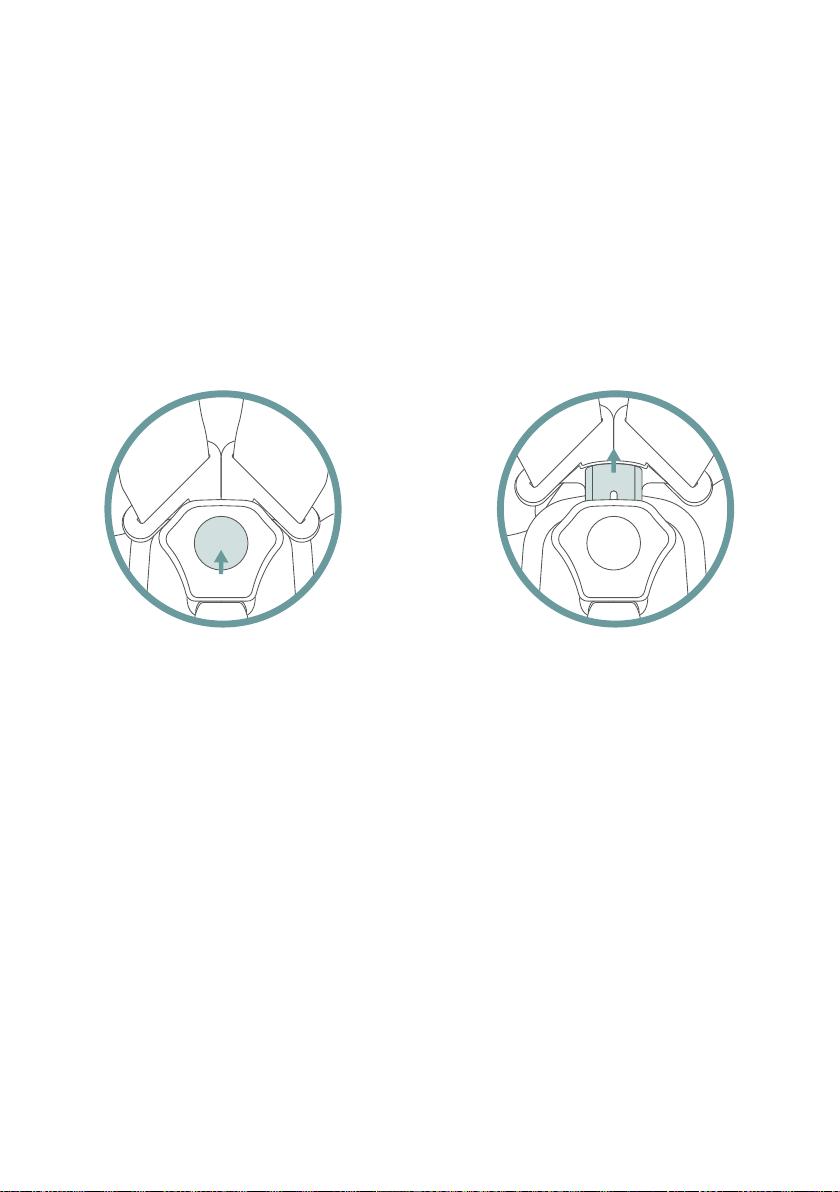

1. Locate and push the
harness release button.
This is found under the
capsule fabric, between
your baby’s feet.
Note: Ensure you tighten or loosen the harness each time your
baby is put into or taken out of the capsule. This will ensure the
harness is always adjusted and secured appropriately for your baby.
2. While pushing the harness
release button, pull the
harness towards you from
the shoulder.

AVERY CAPSULE - USE + CARE GUIDE
16
Tightening the harness

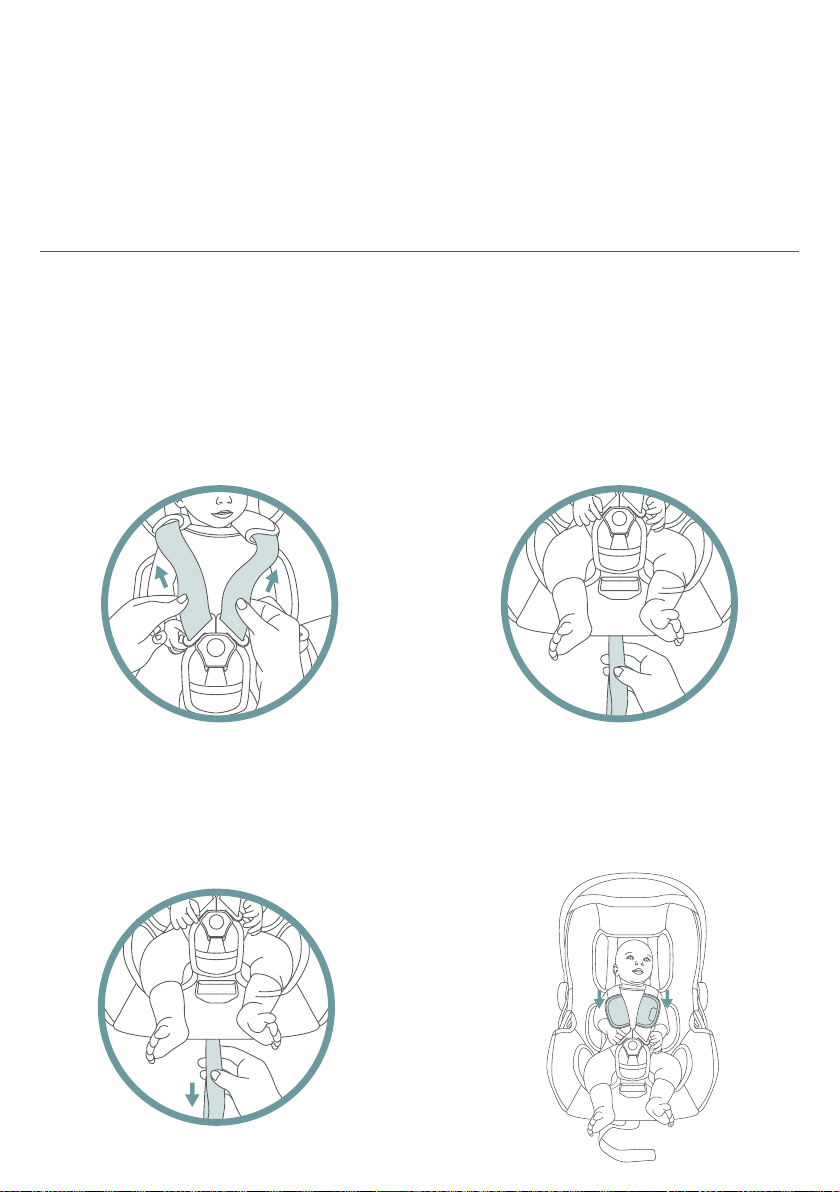

1. With the harness buckle done
up, take the slack out of the
hip portion of the harness
by taking hold of both sides
of the webbing immediately
above the harness buckle and
pulling upwards.
2. Locate the harness
tensioning strap between
your child’s feet.
3. Pull the harness tensioning
strap. This will tighten the
harness at the shoulder and
remove the slack from the torso.
4. Move the shoulder pads down
the harness and check the
harness is secure by performing
the pinch test. See “The pinch
test”.
Replicate the previous illustration an
redraw the harness

AVERY CAPSULE - USE + CARE GUIDE
17
Replicate the previous illustration an
redraw the harness
5. When the harness is tightened
correctly, reposition the
shoulder pads on top of your
baby’s shoulders.
The pinch test
1. Attempt to squeeze the
harness webbing between
your fingers just in front
of and below your baby’s
shoulder. Pinch up and
down on the harness, not
side to side.
2. The harness is secure if
you are unable to pinch
any harness between your
fingers. Reposition the
shoulder pads on top of
your baby’s shoulders.
Note: After you have pulled the slack out of the hip and torso
portions of the harness, perform the pinch test to check if the
harness is secure.
Replicate the previous illustration an
redraw the harness

AVERY CAPSULE - USE + CARE GUIDE
18

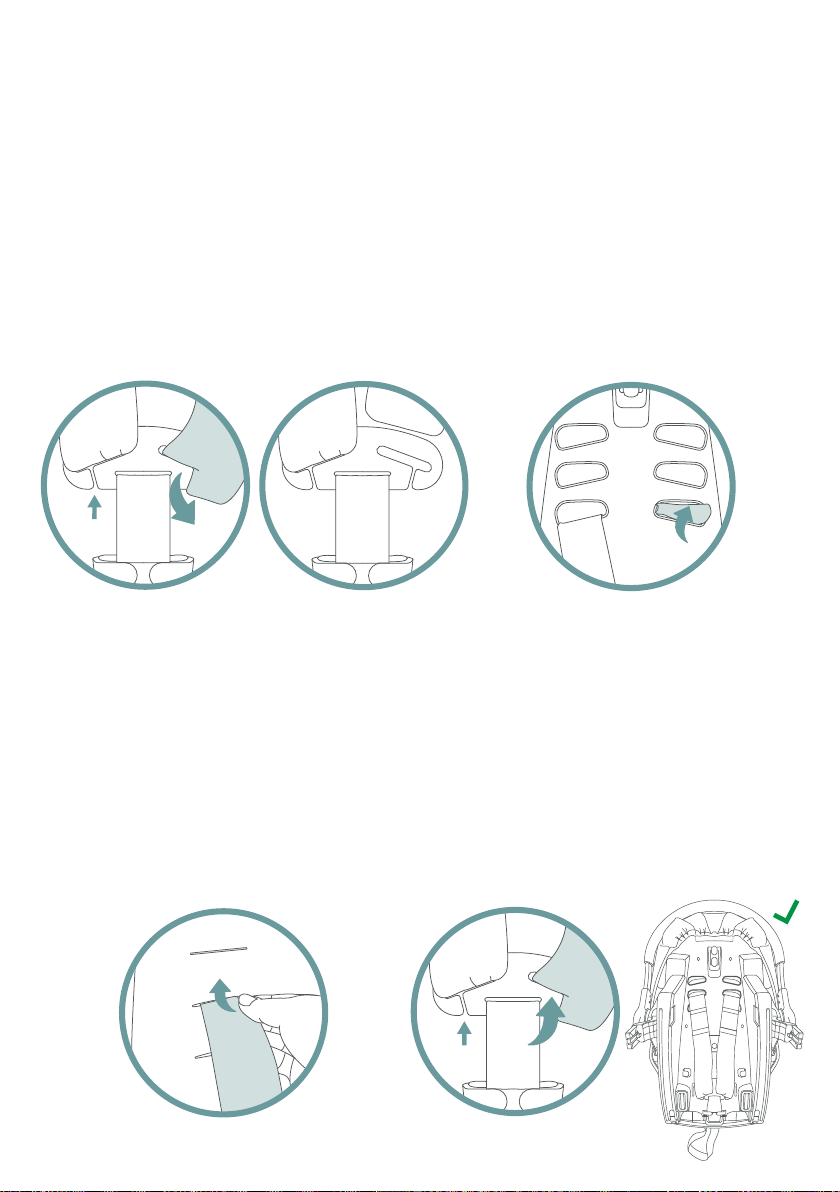

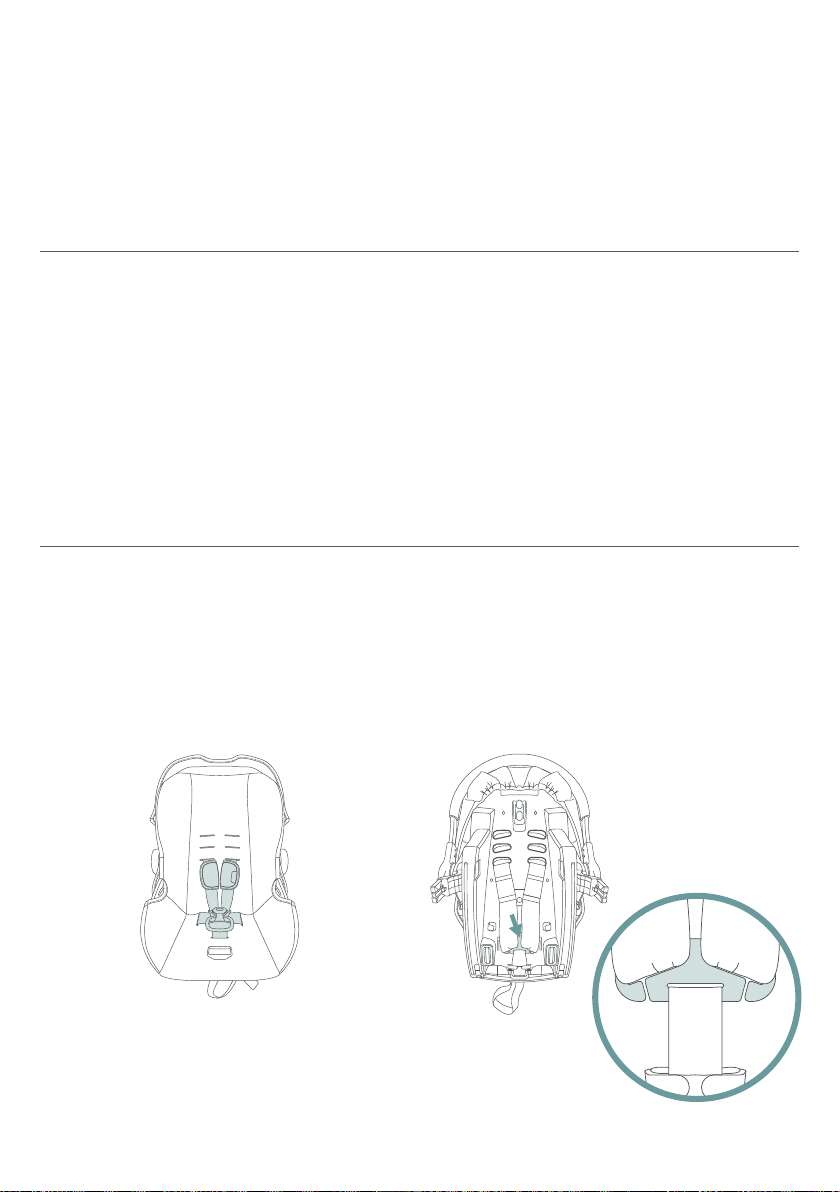

Adjusting the harness height
1. Do the harness up. 2. Turn the capsule over and
locate the metal splitter plate
that the ends of the harness
webbing are connected to.
WARNING: Do not allow the harness to become twisted.
The harness should be snug against your child’s body.
Note: There are three height positions for the harness. As your child
grows, it is necessary to move the harness according to your child’s
shoulder height. The harness should be inserted through the slots in the
capsule shell that are positioned at about level with or just below your
child’s shoulders. Do not move the harness up to the next slot until
your child’s shoulders have reached the slot that you are moving the
harness into.
Illustrate the left side then duplicate
and reflect to create the right. Make
sure buttons, labels etc are present
where they are shown in photo
Illustrate the left side then duplicate
and reflect to create the right. Make
sure buttons, labels etc are present
where they are shown in photo

AVERY CAPSULE - USE + CARE GUIDE
19
Illustrate the left side then duplicate
and reflect to create the right. Make
sure buttons, labels etc are present
where they are shown in photo
5. Ensure there are no twists in
the harness webbing and re-
insert it through the desired
slot in the capsule shell.
6. To re-attach the harness,
guide the loop at the end of
the harness webbing through
the split in the metal splitter
plate. Ensure no part of the
webbing is still within the split
and that the harness is not
twisted in any way.
3. Locate the small split in the
metal plate. Slide the harness
off through this split.
4. Pull the harness webbing
through the shell from the
front of the capsule.

AVERY CAPSULE - USE + CARE GUIDE
20
Illustrate the left side then duplicate
and reflect to create the right. Make
sure buttons, labels etc are present
where they are shown in photo
Adjusting the harness length
Note: The harness can be set at two different lengths:
Newborn length (Loop 1)
The harness is set at this length
for first use.
Extended length (Loop 2)
Adjust once the newborn length is
too short for your baby.
1. Turn the capsule
over and locate
the metal splitter
plate that the
harness webbing
is connected to.
Note: This
diagram shows
the harness
connected part
way up the
webbing, on
Loop 1.
2. Locate the small split in the
metal plate. Slide the harness
off through this split.
Replicate the previous illustration but
make sure the harness set up is as
shown in image. See red outline.
Replicate the previous illustration but
make sure the harness set up is as
shown in image. See red outline.
