Advanced Bionics Naida CI Q90 User manual

029-M496-85 Rev B
Manufactured by:
Advanced Bionics LLC
California, U.S.A.
[phone]
AdvancedBionics.com
©2015 Advanced Bionics AG. All Rights Reserved. 
Advanced Bionics AG
Laubisrütistrasse 28
8712 Stäfa, Switzerland
[phone]
Naída CI Q90
Sound Processor
CI-5280
instructions for use
English, Français, Español, Deutsch, Nederlands, Português

2015
te

1
Labeling symbols and their meanings:
European Community Mark of
Conformity. Authorized to affix the CE Mark in
2015
Model
number Date of manufacture
Serial Number Manufacturer
Type of
Protection: B Store at temperatures between -20˚C (-4˚F)
and +55˚C (131˚F)
Fragile Do not get wet
Lot Number See Instructions for Use
Refurbished* Suitable for exposure
to relative humidity
between 0-95%
Suitable for atmospheric range between
70kPa and106kPa, which is equivalent to
3000m above sea level to 380m below
sea level.
Dispose of in accordance with applicable
national and local regulations
The Naída CI carries a rating of IP57. This rating
indicates that the Naída CI is protected against
the following conditions:
•Protection against dust
•Failure due to one time immersion for 30
minutes to a depth up to 1m and after drying
overnight in a dry and store unit
*Only applicable if ‘refurbished’ is noted on the shipping label
R
0
95
IP57

2
Warnings and Cautions
Warnings
• CHOKING HAZARD: contains small parts that pose a
hazard of inhalation or choking.
• Do not use a ComPilot if recipient has a pacemaker, as
there is potential for interference. Contact a healthcare
professional for more information.
• Do not use or store the AB myPilot in shirt pockets if
the recipient has a pacemaker, as there is potential for
interference. Contact a healthcare professional for more
information.
• Ensure appropriate supervision when child is wearing
the Naída CI sound processor and accessories.
• Keep batteries and accessories out of children’s reach
as they may pose a choking hazard.
• If any parts are swallowed consult a physician or
hospital immediately.
• Do not allow children to play with or leave them
unattended with batteries.
• Do not place batteries in your mouth.
• Do not chew or swallow batteries. If this occurs, seek
immediate medical attention.
• Do not allow children to play with or operate the drying
system unattended.
• Using your sound processor and accessories
contradictory to their intended use (e.g. mouthing,
chewing) may cause bodily harm
• Do not recharge disposable batteries.
• Do not allow leaking battery fluid to come into
contact with skin, mouth, or eyes.

3
• Do not expose batteries to heat (e.g., do not store in
direct sunlight or in a hot car).
• Do not dispose of batteries in fire.
• Do not allow children to charge batteries unattended.
• Do not use any other power supply with the sound
processor, AB myPilot remote control or ComPilot
unless it is supplied by Advanced Bionics or Phonak.
If needed call Advanced Bionics for a power supply
replacement.
• Do not use the AB myPilot or the ComPilot when they
are plugged in to power sources such as wall outlets
or other power sources that are USB compatible such
as laptops.
• The ComPilot comes with a neck loop antenna; do not
touch the neck loop connectors at the same time.
• Unplug the neck loop from the ComPilot before
pairing your ComPilot to a Bluetooth device to avoid
unexpected sounds.
• Do not attempt to pair your ComPilot while driving or
operating heavy machinery.
• Do not stream music to your ComPilot while driving or
operating heavy machinery.
• Use your ComPilot for hands-free phone use only where
permitted by law and only when you will not be dis-
tracted from the safe operation of your motor vehicle.
• Power supplies and battery chargers should be
operated in an open area to ensure adequate airflow.
While no injury cases have resulted, components may
become hot during normal use or a fault condition. If
the device’s temperature results in discomfort or pain
when touched, disconnect the power source and
contact your local Advanced Bionics representative.

4
• Remove your sound processor and headpiece before
entering a room where an MRI scanner is located.
Cautions
• Remove external equipment to stop stimulation if
uncomfortable sounds are heard.
• It is important to have the correct magnet strength so
the recipient does not experience discomfort or
retention issues. If an insufficient number of magnets
is used in the headpiece, it may fall off more than
is acceptable. If too many magnets are used in the
headpiece, you may experience irritation or discomfort.
Consult a clinician if there are any concerns regarding
magnet strength. If deemed appropriate, an
audiologist may insert additional magnets or remove
magnets from the headpiece. Do not place additional
magnets in the headpiece unless under the direction of
a cochlear implant professional. If the recipient
experiences any redness, irritation, or discomfort,
discontinue use of the headpiece immediately and
contact a cochlear implant center. See the headpiece
“Instructions for Use” for additional information
regarding adjustment of headpiece magnet strength.
• If the sound processor or accessories become unusu-
ally hot, or warm, discontinue use immediately and
contact Advanced Bionics or a clinician.
• Store additional headpieces away from items with
magnetic strips (e.g. credit cards, hotel room key
cards), as this may de-magnetize cards.
• Portable and mobile RF communications equipment,
including radios and cellular phones, may affect sound
quality of the Naída CI sound processor and
accessories; however, there is no safety hazard
associated with such equipment.

5
• The Naída CI sound processor and accessories should
be used in accordance with the electromagnetic
compatibility (EMC) information provided in the
‘Guidance and Manufacturer’s Declaration’ section of
this Instructions for Use.
• Only use the charger provided for charging AB PowerCel™
batteries. DO NOT use it to charge other batteries. Do not
try to charge PowerCels* using a charger other than the
one provided by Advanced Bionics.
• Remove batteries from your sound processor when they
are drained to prevent damage from possible leaking.
• Do not expose any part of the Naída CI sound
processor or accessories to extreme heat, such as an
oven, microwave or hair dryer.
• Do not use your AB myPilot or ComPilot accessories
when instructed not to use wireless electronic devices,
such as on airplanes.
• The AB myPilot should not come within 1 cm (1/2”) of
the Naída CI processor while stimulating the implant.
Doing so could cause the implant and sound processor
to lose lock. If this happens, power down the processor
and re-power on (done by disengaging the battery and
reattaching).
• The digitally-coded, inductive transmission
technology used in this device is extremely reliable
and experiences virtually no interference from other
devices. It should be noted, however, that when
operating the device near a computer terminal or
other strong electromagnetic fields, it may be neces-
sary to be at least 60 cm (24”) away to ensure proper
operation. If the Naída CI does not respond to the
implant device because of an unusual field distur-
bance, move away from the disturbing field.
* PowerCels refer to both PowerCels and PowerCel Minis unless otherwise noted

6
• If the AB myPilot stops being able to transmit
commands to the sound processor, it may be
necessary to re-pair the AB myPilot with your sound
processor. Consult the previous section of this user
manual for instructions on re-pairing the AB myPilot.
• If volume commands from your AB myPilot to your
sound processor seem erratic, re-pair the AB myPilot
and the Naída CI.
• StereoZoom, auto UltraZoom and UltraZoom will
dampen sounds that are not in front of the recipient.
• Do not use StereoZoom, auto UltraZoom or
UltraZoom in an off-the-ear wearing configuration.
• Use of WindBlock, EchoBlock and/or SoundRelax may
affect the quality of sound.
NOTE: StereoZoom, auto UltraZoom, SoundRelax,
WindBlock, and EchoBlock are not approved for pediatric
use (below 18 years of age) in the United States. These
features are intended for adult use (18 years of age or
older) in the United States.
• The digitally-coded, inductive transmission
technology used in this device is extremely reliable
and experiences virtually no interference from other
devices. It should be noted, however, that when op-
erating the device near a computer terminal or other
strong electromagnetic fields (e.g., RFID system), it
may be necessary to be at least 24” (60 cm) away
to ensure proper operation. If the Naída CI does not
respond to the implant device because of an unusual
field disturbance, move away from the disturbing
field.

7
Intended Use
The Naída CI is a behind-the-ear (BTE) sound processor
that converts sound picked up by the microphone into
electrical signals that are used by the cochlear implant
to enable hearing.

8
Using the Naída CI Q90 Sound Processor
Powering the Naída CI Q90
The processor is turned ‘on’ when a charged battery
is attached to the processor. In order to power ‘off’ the
processor, the battery cartridge must be removed. When
the battery is engaged, the orange LED located in the
middle of the rocker switch will flash to indicate battery
charge.
The Naída CI Q90 will always power on in Program 1
with the volume and sensitivity at the default settings.
To power down the Naída CI, simply remove the battery
cartridge.
Note: The T-Mic 2™ Cover should be replaced at regular
intervals to maintain sound quality.

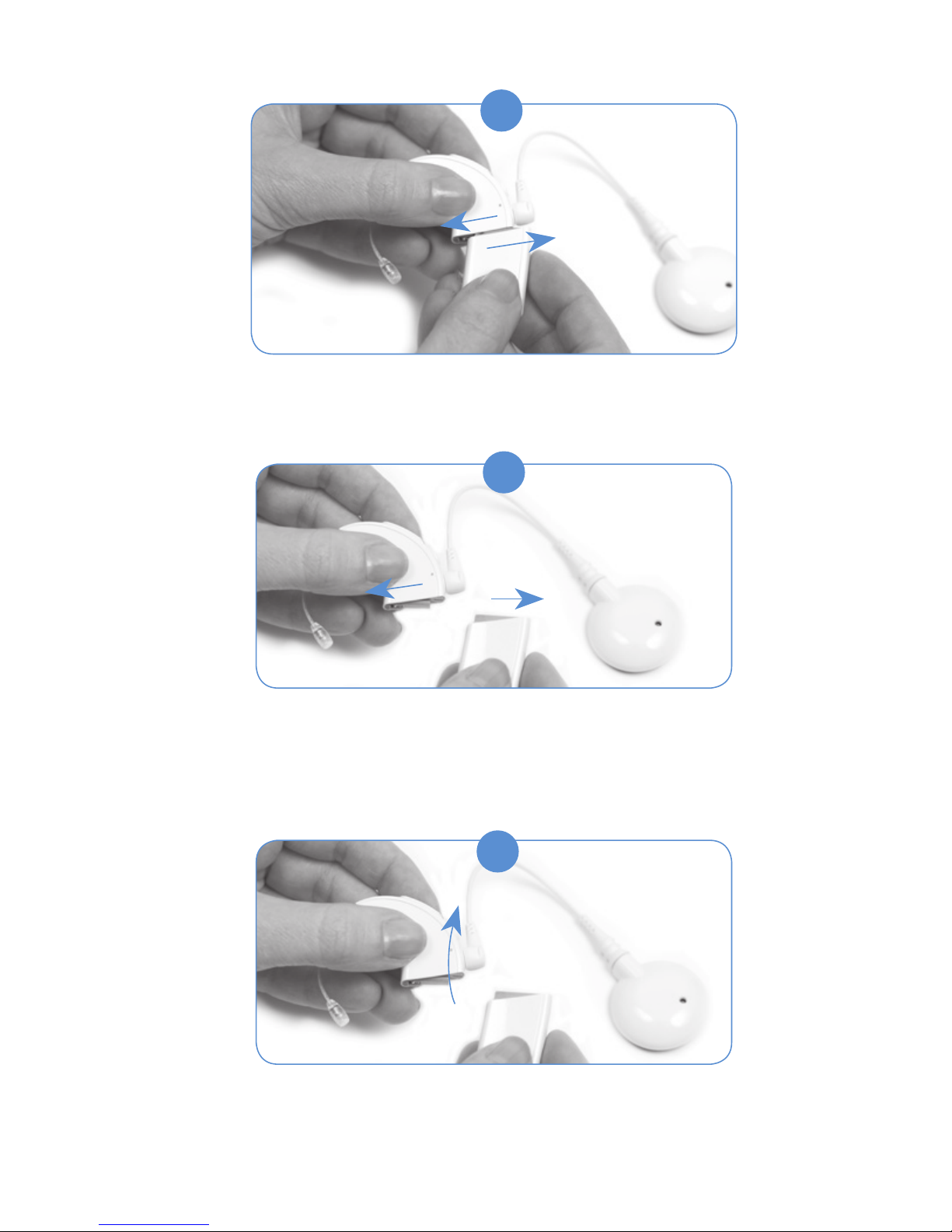

Removing the Battery
1
Hold the Naída CI in one hand.
In the other hand hold the battery cartridge.
Rotate RF cable upward in order to avoid
bumping it upon battery removal.

9
2
Firmly slide the battery cartridge away
from the earhook or T-Mic 2.
3
Continue sliding the battery cartridge until
it separates from the processor.
Replacing the Battery
1
Hold the Naída CI in one hand. Rotate RF cable
upward in order to avoid bumping it upon battery
placement

10
2
Align the battery cartridge connector with the
processor housing side of the connector.
3
Slide the battery onto the processor until it
clicks into place.
NOTE: Do not force the battery cartridge onto the
processor. The battery cartridges are designed to be
inserted in only one direction; applying force may
damage the equipment.

11
Understanding Naída CI LEDs
The LED is a programmable feature providing visual
information about Naída CI status, battery life, program
position, and sound processor error conditions.
Color Behavior Programmable Indication
Orange Blinks at
start-up Battery indicator is
only
available with
use of the
rechargeable
PowerCels
and the Naída
CI Power
Adapter.
Battery life
indicators are
not available
with Zn-Air
cells.
• 4 quick blinks indi-
cate that the battery
is fully charged
• 2 - 3 quick blinks
indicate that the
battery is sufficiently
charged to power
the Naída CI
• 1 quick blink indi-
cates that the battery
is nearly depleted
• No blinking indicates
depleted battery. Re-
place with charged
or new battery
Solid Yes The battery is almost
depleted
Blinks
twice
every
three
seconds
Yes The battery is depleted
and cannot support
stimulation (Sleep
Mode)
Fades
out No Naída CI entering Standby Mode

12
Color Behavior Programmable Indication
Red Blinks
once per
second
Yes Loss of lock with the
implant
Blinks
rapidly
(more
than once
per
second)
No IntelliLink™ safety
feature: Wrong implant
connected
Solid No Sound processor error
condition. Fully remove
and re-insert battery to
reset processor
Blinks 5
times No - if using AB myPilot,
this pattern is
the default
Response to AB
myPilot’s request to
‘Find Paired Devices’.
The right paired device
will identify itself with
this LED pattern

13
Color Behavior Programmable Indication
Green Flickers in
response
to loud
inputs
Yes The sound processor
and microphone are
responding to sound
Blinks at
start-up
after
battery
status
and upon
program
change
No • 1 blink indicates
program one
• 2 blinks indicate
program two
• 3 blinks indicate
program three
• 4 blinks indicate
program four
• 5 blinks indicate
program five
Solid No A processor that is
not yet programmed.
Blinks
4 times No - if using AB myPilot,
this pattern is
the default
Response to AB
myPilot’s request to
‘Find Paired Devices’.
The left paired device
will identify itself with
this LED pattern
Note: Use of some Naída CI accessories may obscure
the processor LED.
If the user would like to know the battery status of the
Zn-Air cells they are currently using and have an AB
myPilot paired to their device, they can conduct a
Battery Check readout of the Naída CI.

14
The Battery Check readout must be performed 15
minutes after the Zn-Air cartridge has been attached
to the Naída CI. After this short window of time the AB
myPilot will be able to give an accurate reading of the
Zn-Air cells in use by the Naída CI.
Please see the ‘Battery Check’ section of the AB myPilot
User Guide for instructions on how to conduct battery
status check using AB myPilot.
Approved Naída CI Power Supplies
Power Supply Rated
Voltage Type Rated Energy/
Power
PowerCel 3.7V Li-ion
(Rechargeable) 0.4 Wh- 0.9 Wh
Zn-Air 2.8V Zn-Air
(Disposable) 1,240mWh
Programming
Interface 5.0V DC 1,250mW

15
Understanding Naída CI Internal Alarms
Behavior Programmable Indication
Beeps
upon
program
change
Yes • 1 beep indicates
program one
• 2 beeps indicate
program two
• 3 beeps indicate
program three
• 4 beeps indicate
program four
• 5 beeps indicate
program five
Short
Beep
upon
increase/
decrease
in volume
Yes Beeps once per press of
the rocker switch either
up or down (a double
beep will be heard
when the following set-
tings are reached: top
of the volume range;
baseline volume set-
ting; and bottom of the
volume range)
Long
Beep
(once
every 15
minutes)
Yes Low battery

16
Recommended Operating and Storage
Temperature Ranges
Condition Minimum Maximum
Operating Temperature 0°C (32°F) 45°C (115°F)
Storage Temperature -20°C (-4°F) 55°C (131°F)
Naída CI External Equipment and Accessories
The products listed below are compatible
Description Model Number
Naída CI
Q90 Sound
Processor*
CI-5280-120, CI-5280-130, CI-5280-140 ,
CI-5280-150, CI-5280-160, CI-5280-170,
CI-5280-190, CI-5280-110, CI-5280-220,
CI-5280-230, CI-5280-240
Universal
Headpiece
(UHP)*
CI-5305
Concave
UHP*CI-5307
PowerCel
Charger CI-5605
Charger
Power
Supply with
adapters
CI-5615
PowerCel
110*CI-5511-110, CI-5511-120, CI-5511-130, CI-5511-140, CI-5511-150, CI-5511-160,
CI-5511-170, CI-5511-190, CI-5511-220

17
PowerCel
170*CI-5517-110, CI-5517-120, CI-5517-130, CI-5517-140, CI-5517-150, CI-5517-160,
CI-5517-170, CI-5517-190, CI-5517-220
PowerCel
230*CI-5523-110, CI-5523-120, CI-5523-130, CI-5523-140, CI-5523-150, CI-5523-160,
CI-5523-170, CI-5523-190, CI-5523-220
PowerCel
110 Mini*CI-5521-120, CI-5521-130, CI-5521-140, CI-5521-150, CI-5521-160, CI-5521-170,
CI-5521-190, CI-5521-110, CI-5521-220,
CI-5521-230, CI-5521-240
PowerCel
170 Mini*CI-5527-120, CI-5527-130, CI-5527-140, CI-5527-150, CI-5527-160, CI-5527-170,
CI-5527-190, CI-5527-110, CI-5527-220,
CI-5527-230, CI-5527-240
Zn-Air
Battery Pak*CI-5500-110, CI-5500-120, CI-5500-130, CI-5500-140, CI-5500-150, CI-5500-160,
CI-5500-170, CI-5500-190, CI-5500-220,
CI-5500-240, CI-5500-230
Zn-Air
Battery 6pk 070-0328
Zn-Air
Battery 6pk,
mercury free
070-0329
RF Cable*CI-5415-301, CI-5415-302, CI-5415-303,
CI-5415-304, CI-5415-305, CI-5415-201,
CI-5415-202, CI-5415-203, CI-5415-204,
CI-5415-205, CI-5415-401, CI-5415-402,
CI-5415-403, CI-5415-404, CI-5415-405,
CI-5415-501, CI-5415-502, CI-5415-503,
CI-5415-504, CI-5415-505

18
AquaCase™
Container CI-7431
T-Mic 2
Microphone*CI-5835-100, CI-5835-200, CI-5835-300
Earhook*CI-5710-100, CI-5710-200
*Applied part per IEC 60601-1
NOTE: model number extensions denote variants related
to product color, size, and/or length.
HiBAN Wireless Link
Technical information
The sound processor uses a proprietary wireless technology,
HiBAN, to enable communication between left and right
processors (DuoPhone, QuickSync, and ZoomControl
features) or a processor and AB myPilot or ComPilot
accessories.
The HiBAN link operates in a 10.6 MHz band using
a frequency shift keying (FSK) mechanism on a single
channel.
The following table summarizes the technical
details of the HiBAN technology implemented in the
Naída CI sound processor platform:

19
BTE ComPilot AB
myPilot
Antenna type Integrated ferrite
antenna
External
neck loop
antenna
Integrated
ferrite
antenna
Integrated
ferrite
antenna
Modulation FSK FSK FSK
Output
power (EIRP) 0.98nW 5.9nW 33nW 33nW
Range ≤18 cm to other
BTE ≤30 cm ≤30 cm
≤60 cm to
BTE,
≤30cm
readout
from BTE
Center
frequency 10.6 MHz 10.6 MHz 10.6 MHz
Bandwidth
(99%) 596 KHz 588 KHz 570 KHz 512 KHz
Data rate 300
kBits/s 300 kBits/s 300 kBits/s
