ADVANCED EV A-Series User manual

We meet the GB/T 21268-2014
Standard after the quality inspection.
Read and Understand the manual before operating the car
CE certified
LvTongUSA LLC
731 Silverado Trails
Rosenberg, TX 77471
281-342-1040
WWW.ADVANCEDEVUSA.COM
A-Series User's Manual

Ⅰ
Dear Users,
Great thanks for purchasing our company 's electric
cars. While adopting advanced technology of Europe and
the US and main imported compenents, the cars are also
with the innovative design, luxury professional painting and
high strength steel welding material, all of which make our
cars look fashionable, reliable, beautiful and excellent in
performance. With light weight ,strong climbing ability, free
pollution, low noise, convenient charging, good braking
performance and reasonable price, our cars are the most
advanced in the electric car field at present.
In order to help users operate and maintain the car
correctly, perform the best and prolong its working life, we
make this operation manual. Please read it carefully.
The product is always in improving. If the manual doesn’t
match with the real product,the read product is the
standard.
Note: This bus is mainly designed for
relaxation、 sightseeing、tourism, thus suitable for used in
special area like tourism scenic area、community、pedestrian
mall etc.
Preface
NOTE：
NOTE：
WARNING
WARNING
IMPORTANT MANUAL INFORMATION
Particularly important information
is di stingu i shed by usi n g the
following symbols and notes :
THE SAFETY ALERT SYMBOL
ATTENTION ! BE ALERT ! YOUR
SAFETY IS INVOLVED!
Fa i lu re to fo ll o w WA R NI NG
in s t r u c ti o n s co u ld res u l t in
severe injury or death to the golf
car passengers , bystanders, or
the person driving the golf car .
This message describes special
precausions that must be taken so as
to avoid damage to the car .
L v t o n g c o n t i n u a l l y s e e k s
improvement in product quality.
Even though this manual contains
the latest product information
available at the time of printing ,
there may be minor discrepancies
between your golf car and this
manual . If you have any question
concerning this manual , please
contact your Lvtong dealer and we
will work it out .
This manual should be considered
as a permanent part of your golf car
and should stay with the car when
the car is resold .
T h i s m e s s a g e p r o v i d e s
additional main information .
Read and understand the
manual completely before
operating your golf car .

1
2-4
5-11
12-13
14-16
17-26
27
28-29
30
Content
Important Labels
Operational Safety
Whole Vehicle Structure and Parameter
Operation and control
Preparation before Operating
Maintenance
Storage
After-sale Service
1266、1268 Trouble Shooting Chart

2

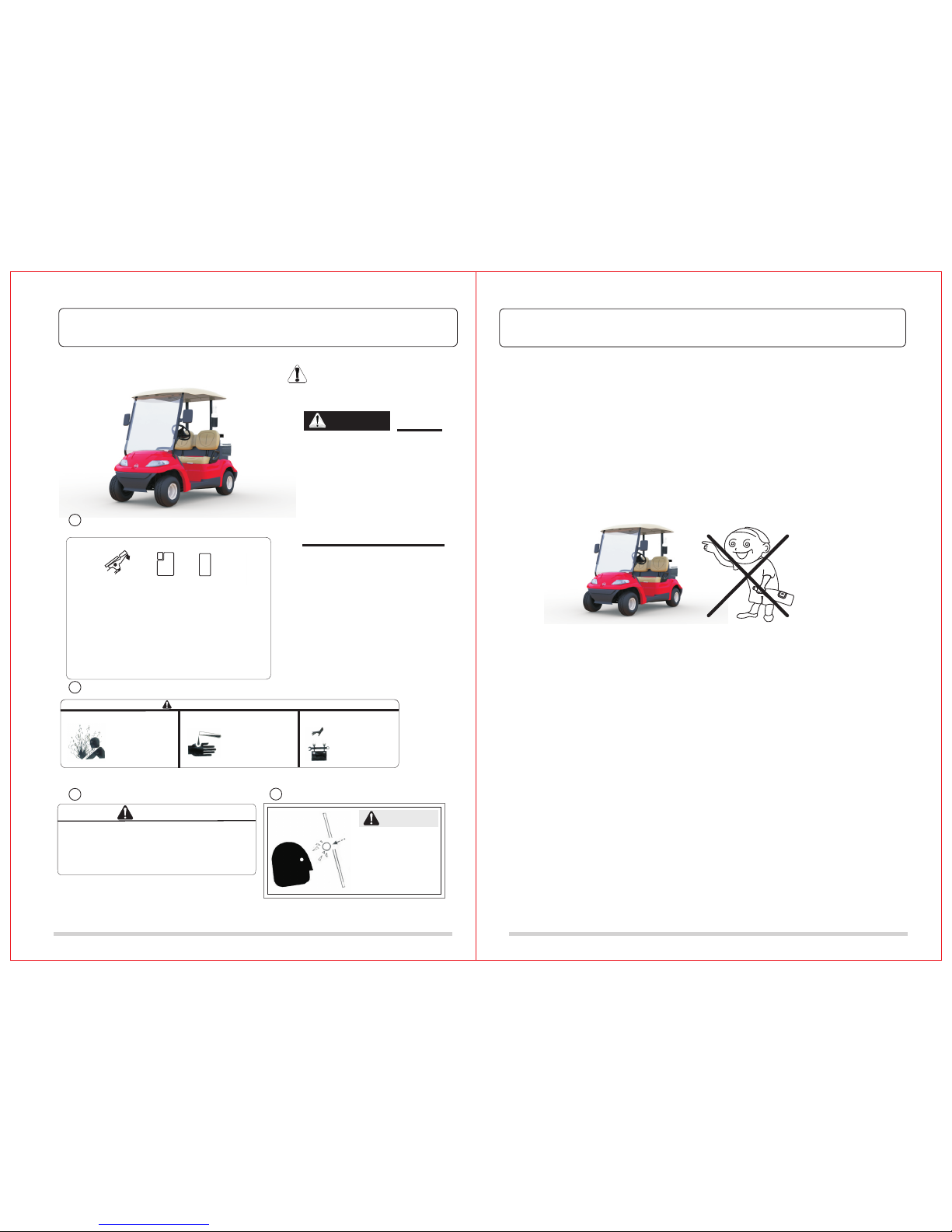

SAFETY OPERATION
Before operating：
When operating:
Do not overload or make any modification towards spare parts without
prohibition.
1、read this manual and all the other operations or labels marked on the car
body before operating
2、only authorized people should drive the car only in the designated area
3、do not OVERLOAD
4、do not drive the car if drinking any alcohol or have any drugs which could
distract the driver's vision and judgment
1.Keep your body in the car and keep well-seated when the car starts moving
2.do not start the car until all passengers are seated
3.Keep your hands on the steering wheel and your eyes on the path ahead
4.Be especially careful when backing the car incrowded places.Pls keep
watching back and roll back slowly
5.Avoid sudden start and brake
6.Please accelerate or decelerate the car according to the ground condition
7.Do not turn the steering wheel too sharply at high speed
8.Keep driving slowly straight up or straight down,not at one same angle when
on slopes
WARNI NG
EXP LOSIV E GASES SUL FURIC
ACI D
in ba tteri es will
bur n skin, e yes,
and c lothi ng. Do
not t ip batt eries .
Kee p vent ca ps
tig ht and le vel.
In ev ent of in jury,
flu sh with p hysic ian
imm edia tel y.
WA R NIN G/AV ERT I SSM ENT
ELE CTRIC AL
SHO RTS
can r esult
in bu rns.
Do no t make
con nect ion
bet ween
pos itive a nd
neg ativ e
bat tery
terminals.
W A R N I N G
Wi n ds h ie l ds d o not
pr o vi d e pr o te cti on
fr o m ot h er f l yi ng
ob j ec t s.
WARNI N G

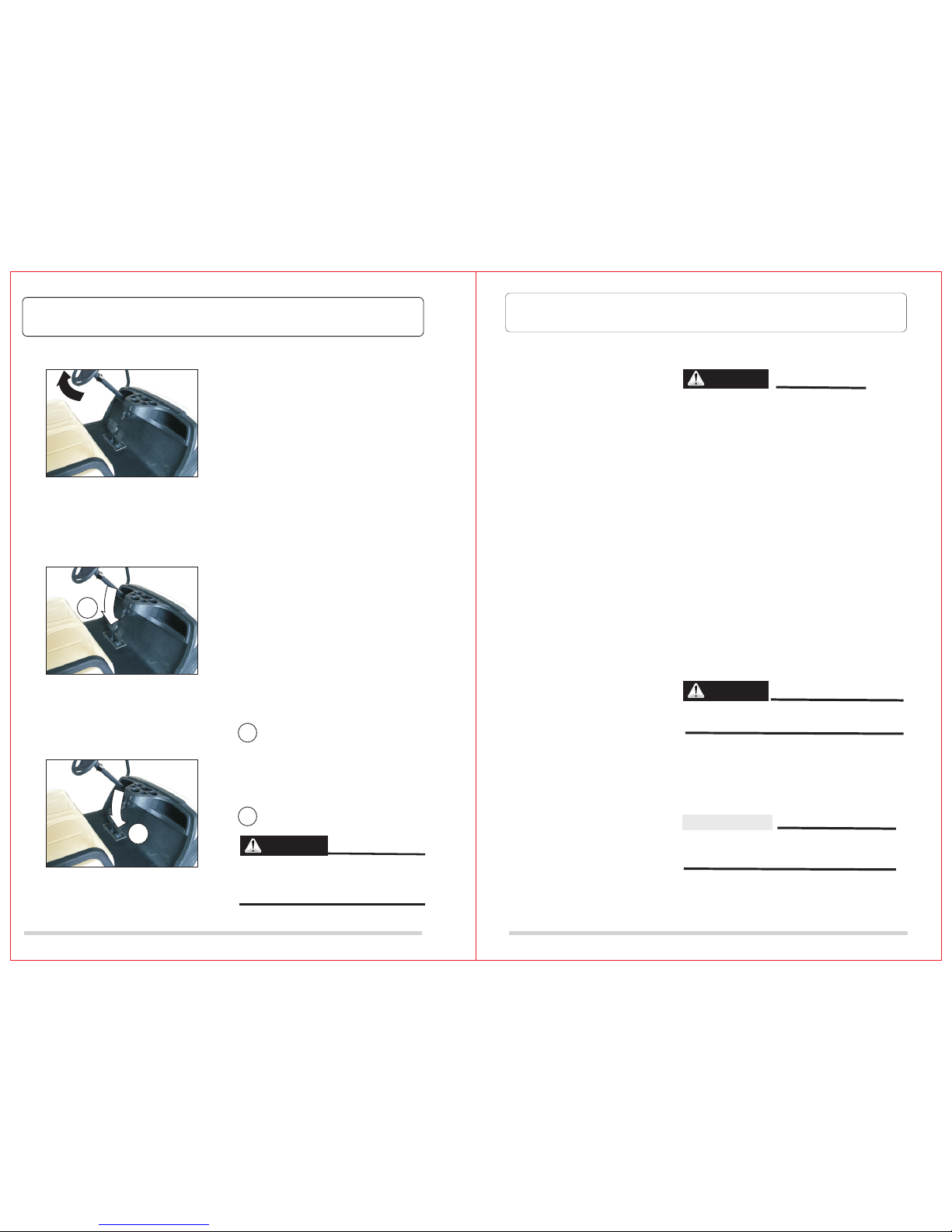

OPERATION INSTRUCTION
1
2
34
IMPORTANT LABELS
S A F E T Y A N D
I N S T R U C T I O N
LABELS
Please read the attached
label s care fully before
driving the golf car , and
p r o m p t l y re p l a c e an y
label that is damaged or
removed .
●Read the manuel and safety instruction labels on the golf car
before driving :
●Be sure that passengers are seated stably .
●Select “ forward “ or “ reverse “ key .
●Tread the accelerator to start moving ; and tread the parking
pedal to stop .
●Please drive safely according to the terrain ,visibility and
driving experience ; please drive carefully in the crowded and
slippery places .
●When parking , please tread the parking pedal and draw up the
handle of hand brake . When starting the car , please release the
handle .
a r e r e l e a s e d
w h e n b a t t e r i e s
a r e c h a r g e d o r
d is ch a rg ed . K e ep
w e ll v e n ti l a t e d.
K e e p s p a r k s ,
f l a m e s a n d
c i ga r e tt e s a w a y.
S h i e l d e y e s
w h e n w o r k i n g
nea r batte ries
● Please re ad the safety a nd i nstruct io n labels on t he s teering w he el before o pe rating ;
● No extra pa ssengers ca n be a llowed ;
●Start the c ar untill all p as sengers a re s eated wel l ;
●Drive slo w wh en turnin g ;
● Tre ad the park in g pedal bef or e leaving t he c ar ;
● Pull the ma in switch and t ur n the key off when not usi ng the car ;
●The passe ngers shoul d be s eated sta bl y and hold th e ar mrest tig ht ;
● Keep hand s and feet insi de t he car .
1
GO
PARK
STOP
parking pedal Accelerator pedal
Brake pedal

4
5

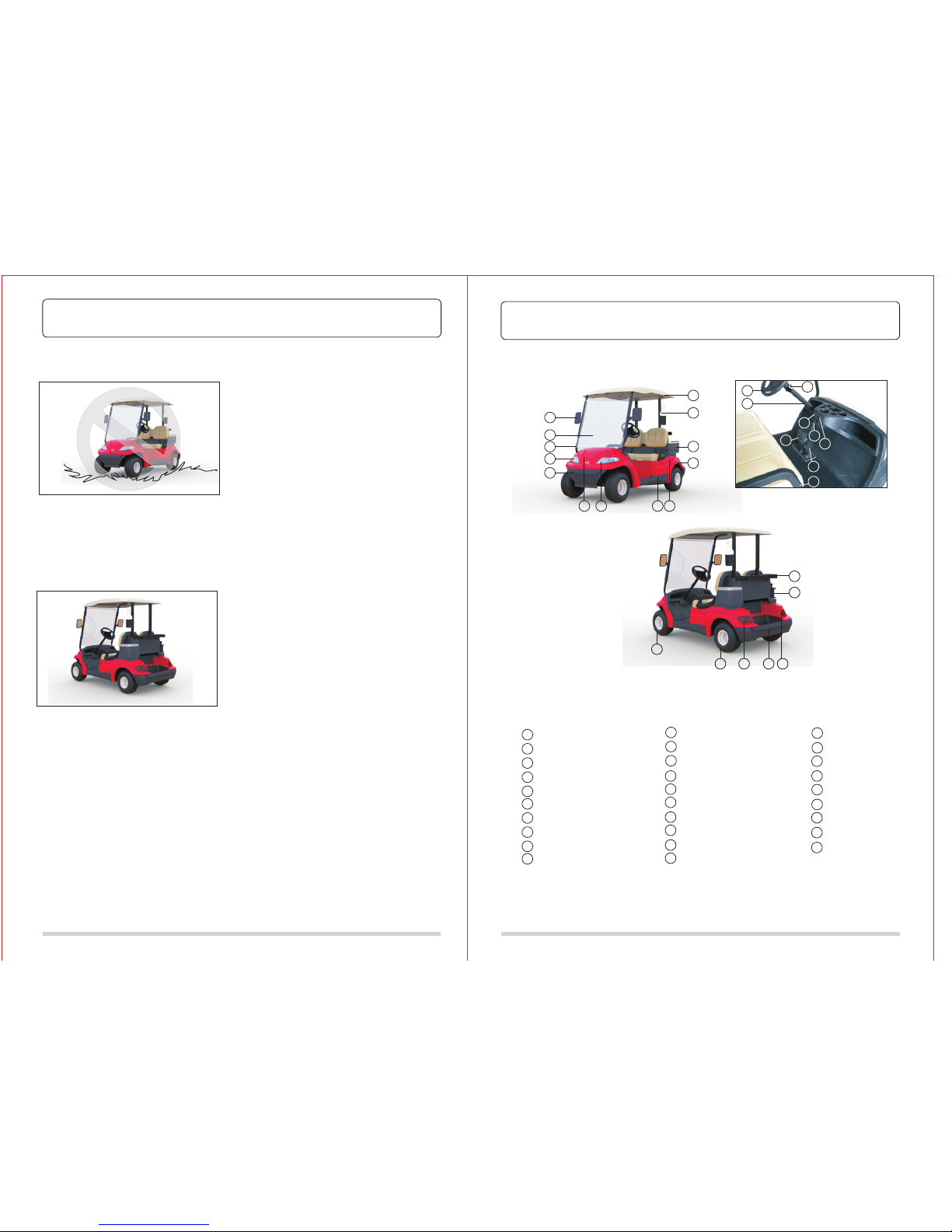

Whole structure：
STRUCTURE AND SPECIFICATIONS
top roof
1
2
3
4
5
6
7
8
9
10
1 1
1 2
1 3
14
15
16
17
18
19
20
21
22
23
24
OPERATION SAFETY
1. keep your hands on the steering
wheel and your eyes on the path
ahead.
2.b e e spe c ia l ly ca r ef u l whe n
b a c k i n g t h e c a r i n c r o w d e d
places.Pls keep watching back and
roll back slowly.
3. avoid sudden and strong shock
of the car and change to the proper
speed according to the ground
condition.
4. do not turn the steering wheel
too sharply when at high speed.
5.keep driving slowly straight up or
straight down,not at one same
angle.
6.do not make any modification or
addition about the operation safty and
loading capacity,and this whole
manual.
sand box
cool box
rear tire cover
side mirror
windshield
windshield frame
head light/R
front cover
head light base/L
side cover sheet
rear body cover
steering wheel
combination switch
power indicator
brake padel
steering column
key switch
switch F/R
accelerator padel
armrest
front tire
rear tire
front bumper
!
1
2
3
4
5
6
7
8
9
10 11 12 13
14
15
16
18
21
17
19
20
22
23
24 2625 27
28
29
25
26
27
28
tail light/L
rear bumper
tail light/R
29
Bag Strap Holder
ball washer

6
STRUCTURE AND SPECIFICATIONS
(LT-A627·2)Whole car specifications (standard) :
detailed specification refers to actual contract
Electronic system
controller Curtis controller 1266A-5201/275A (USA Brand)
battery Lead acid battery 8V x 6pcs 140AH 5Hr Rate
Motor High efficient Sepex ADC 3.7 KW motor
charger Intelligent charger48V,20A
Accelerator
Electrical accelerator 48V input, Hall output 0-5V
Bo d y c o n f i g u r at i o n
Wind shield Organic glass Top roof
ABS plastic vacuum forming
Seat Leather Floor
Rubber sliding proof mat
Side mirror L & R side mirrors
Steering
system
Two way gear steering system,automatically backlash
compensation
Light&signal
48V/12-300W Front light, turning light, rear combo lights, horn, reverse buzz
Body PP plastic injection chassis High tensile steel welding structure, electrophoresis
treatment for anti-rust
Dash board PP plastic injection, power indicator, head light switch, turning light switch, key switch, F/R switch
Brake rear drum + combo brake pedal parking
Front Suspension
Spring+hydraulic shock absorber, independent suspension
Rear suspension
Wheel & tire
Loading staff
1.1dimension:L*W*H
1.2 wheelbase
1.3weight(including batter)
1.4load capacity
1.5max speed
1.6mileage
1.7min turning radius
1.8max climbing ability
1.9min clearance
1.10brake distance
1.11tread
2.battery specification
2.1battery type
2.2volume
2.3 voltage
3.motor specification
3.1motor type
3.2rated power
3.3rated rotating speed
3.4 rated voltage
3.5rated currency
3.6ration
1. specification
2400*1200*1800mm
1650mm
470kg
150kg
22-24km/h
80-100km/h(level road)
2.9m
25%
100mm
front900mm/rear 1000mm
＜6m
lead acid battery
140Ah
48V
DC series motor
3.7kw
2500r/min
48V
105A
15min
Excellent transaxle, gear ratio 12.31:1, half independent suspension + hydraulic shock absorber
Steel wheel 18*8.50-8+tire (452mm)
2 persons ( including driver)
7
STRUCTURE AND SPECIFICATIONS

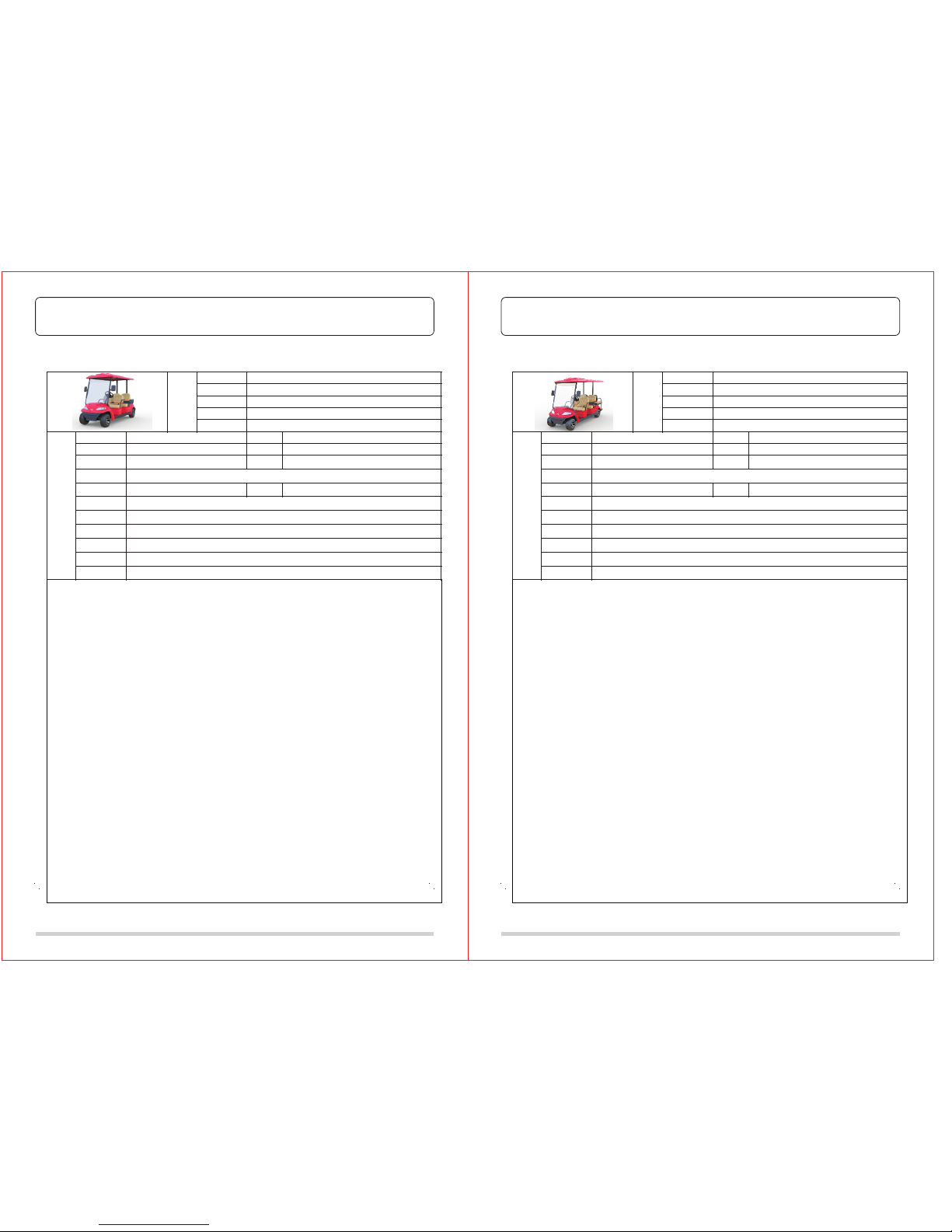

(LT-A627·2+2)Whole car specifications (standard) :
detailed specification refers to actual contract
Electronic system
controller Curtis controller 1266A-5201/275A (USA Brand)
battery Lead acid battery 8V x 6pcs 140AH 5Hr Rate
Motor High efficient Sepex ADC 3.7 KW motor
charger Intelligent charger48V,20A
Accelerator
Electrical accelerator 48V input, Hall output 0-5V
Bo d y co n f i g u r at i on
Wind shield Organic glass Top roof
ABS plastic vacuum forming
Seat Leather Floor
Rubber sliding proof mat
Side mirror L & R side mirrors
Steering
system
Two way gear steering system,automatically backlash
compensation
Light&signal
48V/12-300W Front light, turning light, rear combo lights, horn, reverse buzz
Body PP plastic injection chassis High tensile steel welding structure, electrophoresis
treatment for anti-rust
Dash board PP plastic injection, power indicator, head light switch, turning light switch, key switch, F/R switch
Brake rear drum + combo brake pedal parking
Front Suspension
Spring+hydraulic shock absorber, independent suspension
Rear suspension
Wheel & tire
Loading staff
1.1dimension:L*W*H
1.2 wheelbase
1.3weight(including batter)
1.4load capacity
1.5max speed
1.6mileage
1.7min turning radius
1.8max climbing ability
1.9min clearance
1.10brake distance
1.11tread
2.battery specification
2.1battery type
2.2volume
2.3 voltage
3.motor specification
3.1motor type
3.2rated power
3.3rated rotating speed
3.4 rated voltage
3.5rated currency
3.6ration
1. specification
2760*1200*1800mm
1650mm
550kg
300kg
22-24km/h
80-90km/h(level road)
2.9m
25%
100mm
front900mm/rear 1000mm
＜6m
lead acid battery
140Ah
48V
DC series motor
3.7kw
2500r/min
48V
105A
15min
Excellent transaxle, gear ratio 12.31:1, half independent suspension + hydraulic shock absorber
Steel wheel 18*8.50-8+tire (452mm)
4 persons ( including driver)

8
STRUCTURE AND SPECIFICATIONS
(LT-A627·4)Whole car specifications (standard) :
detailed specification refers to actual contract
Electronic system
controller Curtis controller 1266A-5201/275A (USA Brand)
battery Lead acid battery 8V x 6pcs 140AH 5Hr Rate
Motor High efficient Sepex ADC 3.7 KW motor
charger Intelligent charger48V,20A
Accelerator
Electrical accelerator 48V input, Hall output 0-5V
Bo d y c o n f i g u r at i o n
Wind shield Organic glass Top roof
ABS plastic vacuum forming
Seat Leather Floor
Rubber sliding proof mat
Side mirror L & R side mirrors
Steering
system
Two way gear steering system,automatically backlash
compensation
Light&signal
48V/12-300W Front light, turning light, rear combo lights, horn, reverse buzz
Body PP plastic injection chassis High tensile steel welding structure, electrophoresis
treatment for anti-rust
Dash board PP plastic injection, power indicator, head light switch, turning light switch, key switch, F/R switch
Brake rear drum + combo brake pedal parking
Front Suspension
Spring+hydraulic shock absorber, independent suspension
Rear suspension
Wheel & tire
Loading staff
1.1dimension:L*W*H
1.2 wheelbase
1.3weight(including batter)
1.4load capacity
1.5max speed
1.6mileage
1.7min turning radius
1.8max climbing ability
1.9min clearance
1.10brake distance
1.11tread
2.battery specification
2.1battery type
2.2volume
2.3 voltage
3.motor specification
3.1motor type
3.2rated power
3.3rated rotating speed
3.4 rated voltage
3.5rated currency
3.6ration
1. specification
3160*1200*1800mm
2410mm
510kg
300kg
22-24km/h
70-90km/h(level road)
4m
25%
100mm
＜6m
front900mm/rear 1000mm
lead acid battery
140Ah
48V
DC series motor
3.7kw
2500r/min
48V
105A
15min
Excellent transaxle, gear ratio 12.31:1, half independent suspension + hydraulic shock absorber
Steel wheel 18*8.50-8+tire (452mm)
4 persons ( including driver)
9
STRUCTURE AND SPECIFICATIONS
(LT-A627·4+2)Whole car specifications (standard) :
detailed specification refers to actual contract
Electronic system
controller Curtis controller 1266A-5201/275A (USA Brand)
battery Lead acid battery 8V x 6pcs 140AH 5Hr Rate
Motor High efficient Sepex ADC 3.7 KW motor
charger Intelligent charger48V,20A
Accelerator
Electrical accelerator 48V input, Hall output 0-5V
Bo d y co n f i g u r at i on
Wind shield Organic glass Top roof
ABS plastic vacuum forming
Seat Leather Floor
Rubber sliding proof mat
Side mirror L & R side mirrors
Steering
system
Two way gear steering system,automatically backlash
compensation
Light&signal
48V/12-300W Front light, turning light, rear combo lights, horn, reverse buzz
Body PP plastic injection chassis High tensile steel welding structure, electrophoresis
treatment for anti-rust
Dash board PP plastic injection, power indicator, head light switch, turning light switch, key switch, F/R switch
Brake rear drum + combo brake pedal parking
Front Suspension
Spring+hydraulic shock absorber, independent suspension
Rear suspension
Wheel & tire
Loading staff
1.1dimension:L*W*H
1.2 wheelbase
1.3weight(including batter)
1.4load capacity
1.5max speed
1.6mileage
1.7min turning radius
1.8max climbing ability
1.9min clearance
1.10brake distance
1.11tread
2.battery specification
2.1battery type
2.2volume
2.3 voltage
3.motor specification
3.1motor type
3.2rated power
3.3rated rotating speed
3.4 rated voltage
3.5rated currency
3.6ration
1. specification
3520*1200*1800mm
2410mm
590kg
450kg
22-24km/h
70-80km/h(level road)
4m
20%
100mm
＜6m
front900mm/rear 1000mm
lead acid battery
140Ah
48V
DC series motor
3.7kw
2500r/min
48V
105A
15min
Excellent transaxle, gear ratio 12.31:1, half independent suspension + hydraulic shock absorber
Steel wheel 18*8.50-8+tire (452mm)
6 persons ( including driver)

10
STRUCTURE AND SPECIFICATIONS
(LT-A627·6)Whole car specifications (standard) :
detailed specification refers to actual contract
Electronic system
controller Curtis controller 1266A-5201/275A (USA Brand)
battery Lead acid battery 8V x 6pcs 140AH 5Hr Rate
Motor High efficient Sepex ADC 3.7 KW motor
charger Intelligent charger48V,20A
Accelerator
Electrical accelerator 48V input, Hall output 0-5V
Bo d y c o n f i g u r at i o n
Wind shield Organic glass Top roof
ABS plastic vacuum forming
Seat Leather Floor
Rubber sliding proof mat
Side mirror L & R side mirrors
Steering
system
Two way gear steering system,automatically backlash
compensation
Light&signal
48V/12-300W Front light, turning light, rear combo lights, horn, reverse buzz
Body PP plastic injection chassis High tensile steel welding structure, electrophoresis
treatment for anti-rust
Dash board PP plastic injection, power indicator, head light switch, turning light switch, key switch, F/R switch
Brake rear drum + combo brake pedal parking
Front Suspension
Spring+hydraulic shock absorber, independent suspension
Rear suspension
Wheel & tire
Loading staff
1.1dimension:L*W*H
1.2 wheelbase
1.3weight(including batter)
1.4load capacity
1.5max speed
1.6mileage
1.7min turning radius
1.8max climbing ability
1.9min clearance
1.10brake distance
1.11tread
2.battery specification
2.1battery type
2.2volume
2.3 voltage
3.motor specification
3.1motor type
3.2rated power
3.3rated rotating speed
3.4 rated voltage
3.5rated currency
3.6ration
1. specification
3920*1200*1800mm
3170mm
550kg
450kg
22-24km/h
70-80km/h(level road)
5.1m
20%
100mm
＜6m
front900mm/rear 1000mm
lead acid battery
140Ah
48V
DC series motor
3.7kw
2500r/min
48V
105A
15min
Excellent transaxle, gear ratio 12.31:1, half independent suspension + hydraulic shock absorber
Steel wheel 18*8.5 0 -8+tire (452mm)
6 persons ( including driver)
11
STRUCTURE AND SPECIFICATIONS
(LT-A627·6+2)Whole car specifications (standard) :
detailed specification refers to actual contract
Electronic system
controller Curtis controller 1268-5403/400A (USA Brand)
battery Lead acid battery 8V x 6pcs 140AH 5Hr Rate
Motor High efficient Sepex ADC 3.7 KW motor
charger Intelligent charger48V,20A
Accelerator
Electrical accelerator 48V input, Hall output 0-5V
Bo d y co n f i g u r at i on
Wind shield Organic glass Top roof
ABS plastic vacuum forming
Seat Leather Floor
Rubber sliding proof mat
Side mirror L & R side mirrors
Steering
system
Two way gear steering system,automatically backlash
compensation
Light&signal
48V/12-300W Front light, turning light, rear combo lights, horn, reverse buzz
Body PP plastic injection chassis High tensile steel welding structure, electrophoresis
treatment for anti-rust
Dash board PP plastic injection, power indicator, head light switch, turning light switch, key switch, F/R switch
Brake rear drum + combo brake pedal parking
Front Suspension
Spring+hydraulic shock absorber, independent suspension
Rear suspension
Wheel & tire
Loading staff
1.1dimension:L*W*H
1.2 wheelbase
1.3weight(including batter)
1.4load capacity
1.5max speed
1.6mileage
1.7min turning radius
1.8max climbing ability
1.9min clearance
1.10brake distance
1.11tread
2.battery specification
2.1battery type
2.2volume
2.3 voltage
3.motor specification
3.1motor type
3.2rated power
3.3rated rotating speed
3.4 rated voltage
3.5rated currency
3.6ration
1. specification
4280*1200*1800mm
3170mm
630kg
600kg
22-24km/h
70-80km/h(level road)
5.1m
20%
100mm
＜6m
front900mm/rear 1000mm
lead acid battery
140Ah
48V
DC series motor
3.7kw
2500r/min
48V
105A
15min
Excellent transaxle, gear ratio 12.31:1, half independent suspension + hydraulic shock absorber
Steel wheel 18*8.5 0 -8+tire (452mm)
8 persons ( including driver)

12
OPERATION AND CONTROL
WARNING

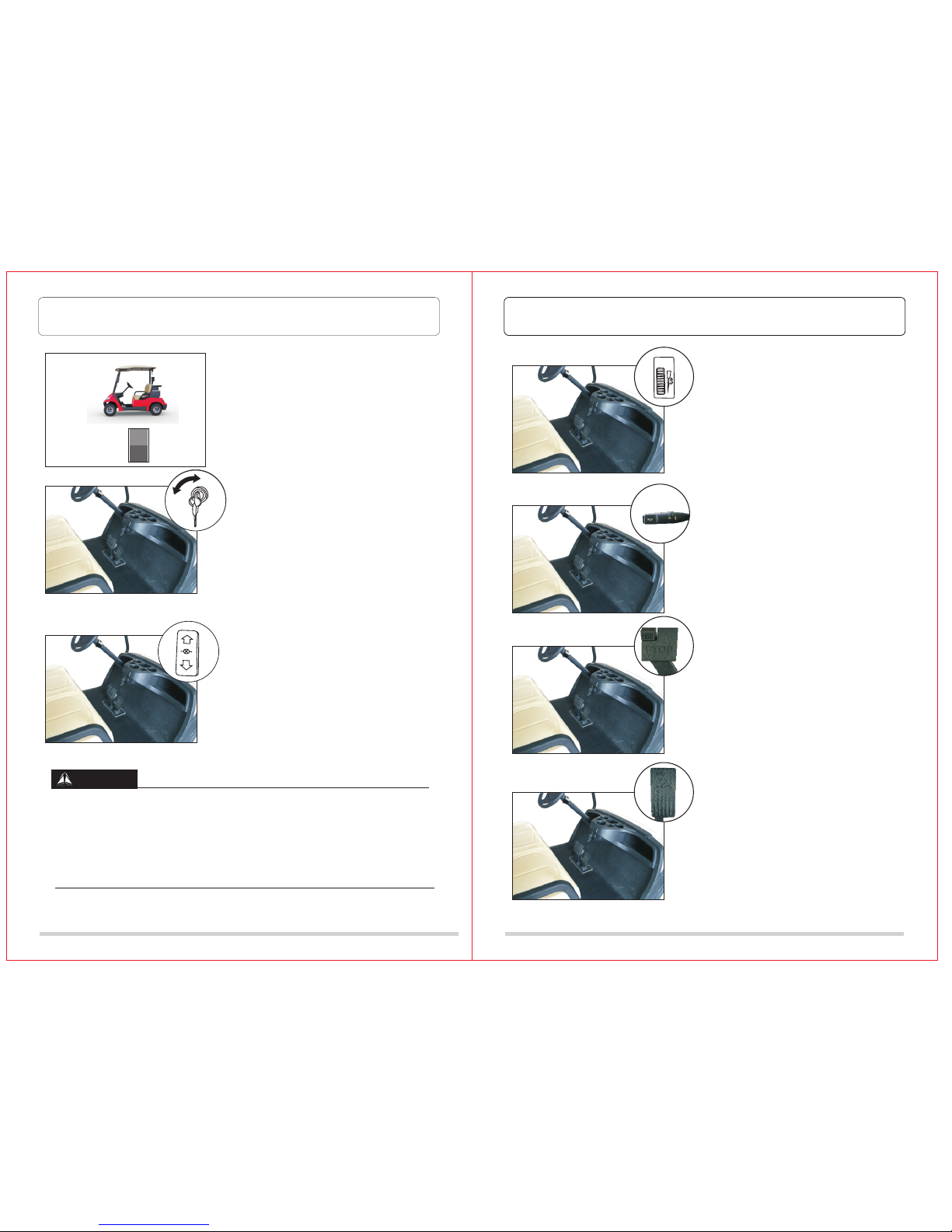

Turning On Main Switch
1,Shifting the switch to RUN position
then can turn on the power supply of
car.
2,Shifting the switch to OFF position
then can turn off the power supply of
car.
Key Switch
1、Plugging in the key and turn right
t h e n c a n t u r n o n t h e k e y
switch(Note:Shifting the F/R switch
to the middle position before turning
on Main switch).
2、Turning left and then can turn off
the switch.Switch can be removed
only at this state.
Forward/Reverse Switch
The Forward/Reverse Switch is used
to shift the car to forward,reverse or
stop.Forward for upward,Reverse for
dow nward,Park for middle.When
choosing reverse switch,the reverse
buzzer sounds.
C o m p l e t e l y s t o p p i n g c a r b e f o r e s h i f t i n g F / R
switch.When shifting F/R switch,please turn switch to
middle positon for 2s at first,then choosing Forward
switch or Reverse switch.Don’t shifting F/R switch in a
hurry in case that the sensor will be burnt or switch will
be out of use.
行驶
R U N
关闭
OFF
关闭
打开
13
Voltage Indicator
Voltage Indicator is to show the
electricity and remains custom to
charge on time.The voltage will
shows fulled charged when charing
enough time.
1、Electricity display reduce with the
consumption of electricity during
working;
2、When electricity is close to little
electricity warning,it was showed by
moving between f i r st space and
second space;
3、When electricity enters into
un d er- e l e ct r i c it y wa r ni ng , it w as
displayed by flashing of first space in
left.
Head light switch
Turning light switch
Turn on the key switch, choose
forward or backward, release
brake, put your right foot on the
accelerator pedal, soft step down
the pedal to start the car.
Attention: don’t step down the
pedal to the end in rush.
Accelerator pedal
OPERATION AND CONTROL
48V
1
0

PRE OPERATION
14
WARNING
Pre-operation checks should be made
each time you use your golf car. Get in the
habit of performing the following checks
in the same way so that they become
second nature.
Be sure that the main switch key
is removed before performing the
pre-operating checks to prevent
accidental starting, and apply the
parking brake to keep the car
from moving.
PRE-OPERATION CHECKLIST
Before each use, please check the
following
√Batteries
√Tire condition
√Steering system
√Back-up buzzer
√Pedal operation
√Body and chassis
SEAT
O p e n i n g t h e s e a t f o r
checking and servicing

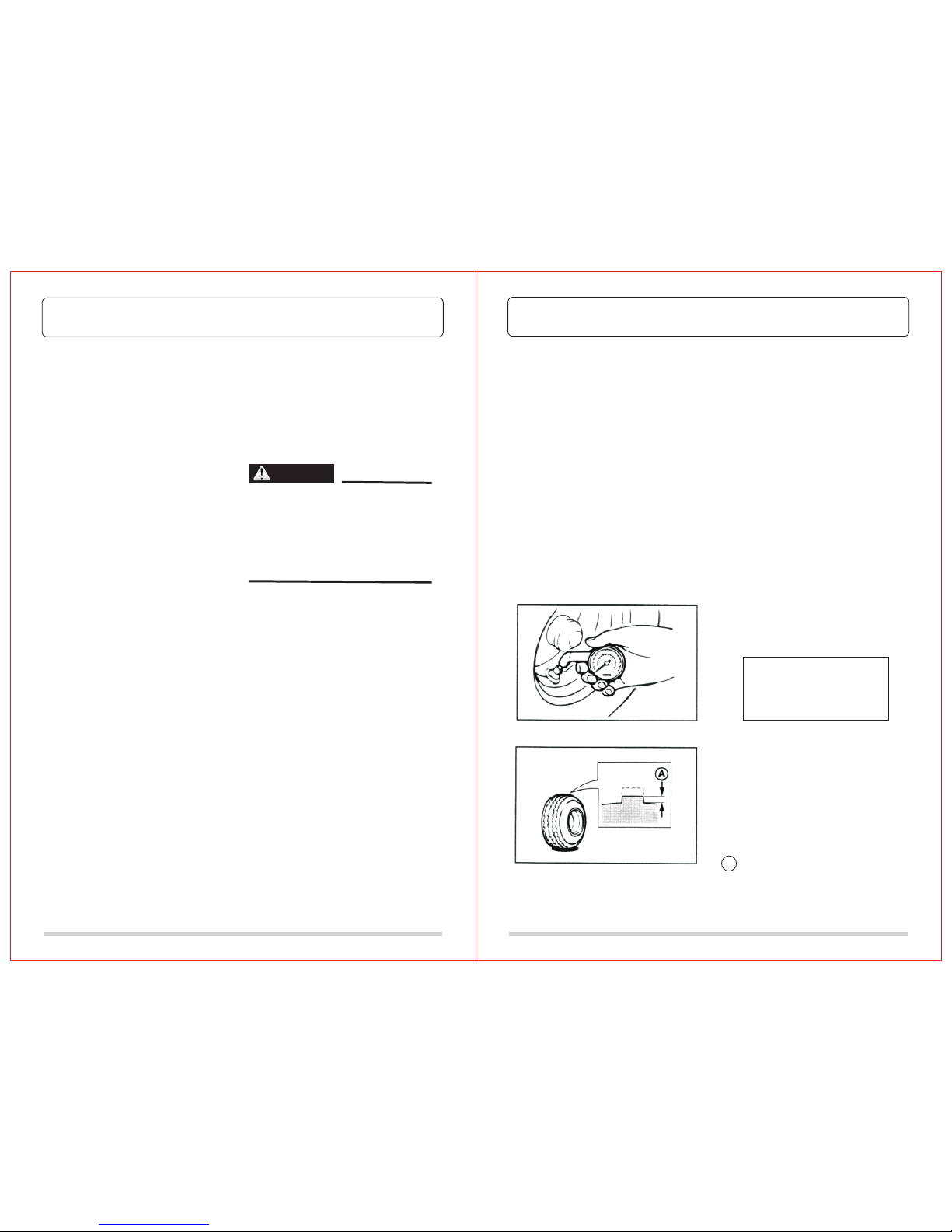

Tire pressure
25PSI grass/dirt
36 PSI road
PRE OPERATION
BATTERY
15
Ch arg e b at te ri es b ef o r e e ve ry
use.See charging steps in chapter 6.
Check that the batteries are held
securely in place to prevent the
batteries from vibration or jarring.Also
check that no prevent battery acid
from spilling from the battery.Check
the battery terminals for corrosion.
TIRE CONDITION
Check the tire air pressure before the
operation of car.
Tire wear limit
C h e c k t h e t i r e s u r f a c e f o r
d a m a g e , c r a c k s o r e m b e d d e d
objects.When tire tread wears down
to 0.04(1mm),replace the tire.
AWear limit

W A R N I N G

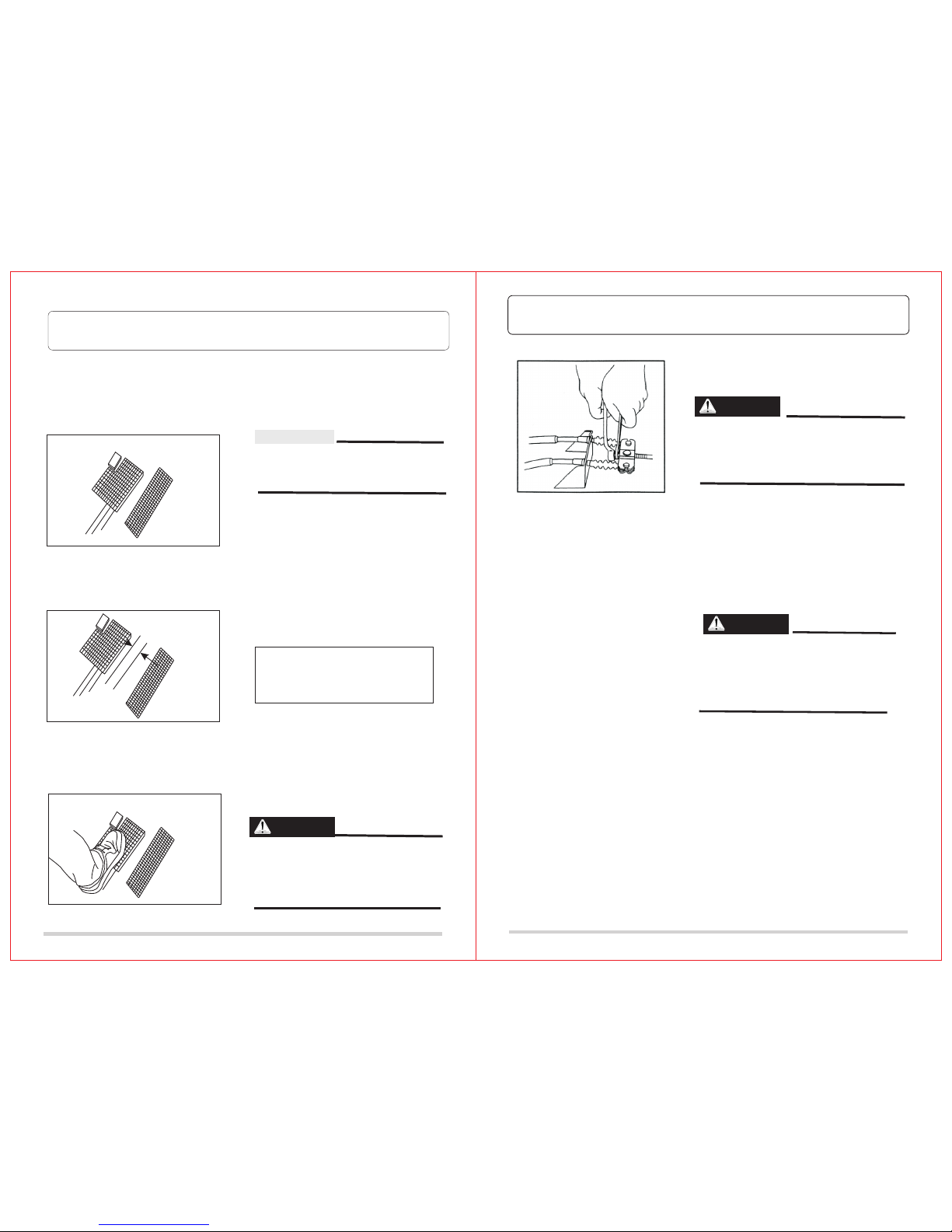

ABrake pedal
16
BAccelerator pedal
17
Steering system
Check the steering system whether
there is too much empty steering
a.Put the steering wheel up and down,
front and back
b.Turning the steering wheel left or
right
If you find too much empty steering or
hear noise, it means some parts wrong
and please contact dealer immediately.
Reverse alarm
Turn the F/R switch to “ R ” for
checking reverse alarm
Pedal operation
Check the pedals operation, if it’s
abnormal, contact dealer immediately.
Brake pedal
When step down the pedal, you feels
well, release it to be original position.
PRE OPERATION
Accelerator pedal
Check the flexibility and reliability
of pedal, it re t u rns to origi n al
position after step down.
Before checking the accelerator
pedal, make sure to turn off the
main switch
Battery Care
WARNI NG
WARNI NG
Keep out reach of children.
CAUTION
MAINTENANCE
Do not allow cleaning material to
enter battery cells.
battery electrolyte is poisonous and
dangerous, causing severe burns, etc. It
contains sulfuric acid. Avoid contacting
with skin, eyes and clothes.
Antidote:
EXTERNAL: Flush with water
INTERNAL: Drink large quantities of
water or milk. Follow with milk of
magnesia, beaten egg, or vegetable oil.
Call physician immediately.
EYES: Flush with water for 15 minutes
and get prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flames and cigarettes away.
Make sure it is ventilated when charging
or using in enclosed space.Always shield
eyes when working near batteries.
Batteries provide power for your electric car and must be
properly maintained and recharged for maximum
performance and service life.The ways to maintain
your batteries.
1. Clean the top of the batteries with soda water if necessary
to remove corrosion.
2. Check the fluid level before and after charging.
A
B

18
19

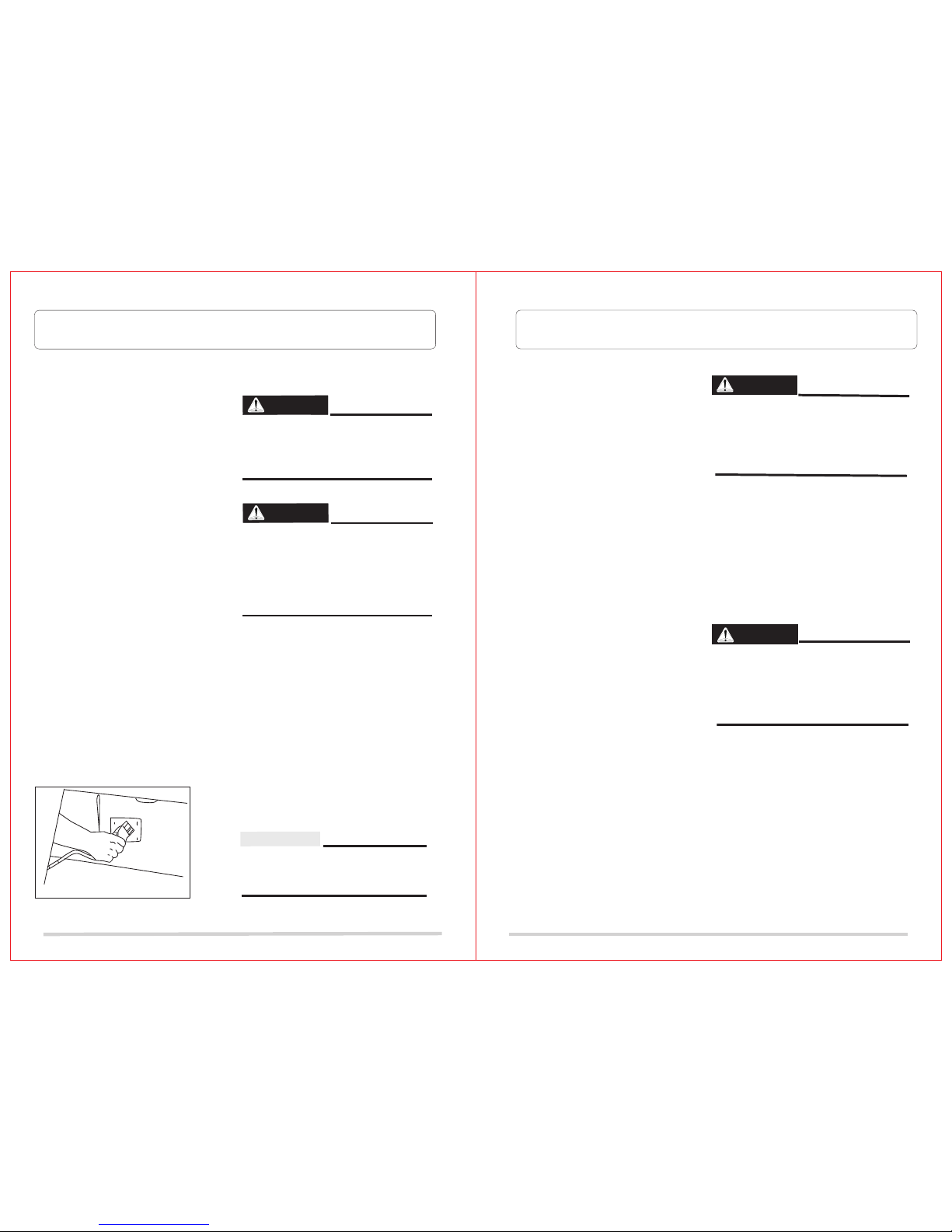

BATTERY CHARGING
WARNING
CAUTIO N
WARNING
MAINTENANCE
R e a d a n d u n d e r s t a n d t h e
manual provided with your car ’s
battery charger before charging
batteries.
Explosive hydrogen gas is produced
while batteries are being charged.
Only ch a rg e ba tt e ri es in well
ventilated areas(A minimum of 5 air
changes per hour is recommended)
Follow the instructions contained in
your battery charger’s owner’s manual
to charge the batteries in your car.
The following is a summary of the
charging steps. Do not attempt to
recharge your car’s batteries without
thoroughly reading and understanding
the manual.
Connect the charger properly with the
plug case(see charger’s owner’s
manual).Do not insert the AC output
plug into the car directly.
Use battery chargers that are only used
for this car. Thoroughly read and
understand the manual.
WARNI NG
BATTERY INSTALLATION
WARNI NG
MAINTENANCE
Do not disconnect the DC output
cord from the battery receptacle
when the charger is on because
that may cause an explosion.
3.the charger will turn off automatically
when the batteries reach full charge.
4.after the charger has turned off disconnect
the DC output plug from the golf car
receptacle by grasping the plug body and
pulling the pulg straight out of the
receptacle.
When installing the batteries,do
not put the wrenches or other
metal objects across the battery
terminala.An arc occure causing
explosion of the batteries.

21
A 2
20
MAINTENANCE
Before charging:
Only add distilled water.If fluid is
below the top of the plates, add just
enough to cover plates.
After charging:
check that the fluid level is appropriately
1/4 to 1/2 inch above the plates and 1/4 to
3/8 inch below the level is low. Add
distilled water carefully.Adding distilled
water after charging helps prevent boiling
over
A Battery cap
B Plates
C Maximum fluid level
D Minimum fluid level
Normal tap water contains minerals
w h i c h a r e h a r m f u l t o a
battery;therefore,refill only with distilled
water.

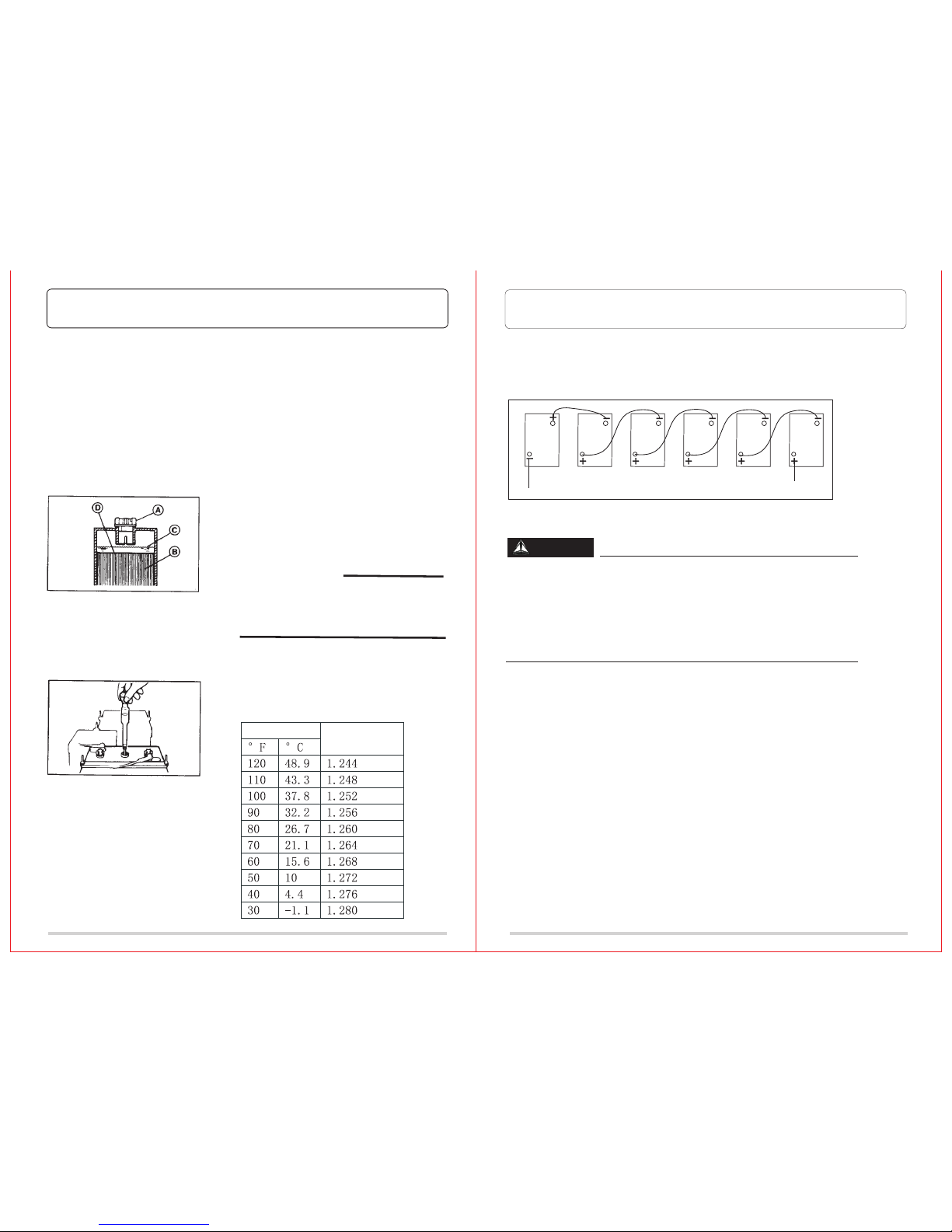

3.Using a hydrometer,check the specific
gravity of the battery fluid in each cell
against the readings on the chart
below.Consult a lvtong dealer if any low
readings are found.
Temperature S a t i s f a c t o r y
Hydrometer Reading
WARNI NG
2.link the cables as the picture
MAINTENANCE
When installing the batteries:
1.Ple a se ca r efull y place the cables and mak e the m
down,making sure the cables not crossover the vent caps
2.always remove the negative(-)cable from the motor
controller first,and install it at last.
3.Do not overtighten the battery nuts,because too much force would
damage the battery case.

18 1 9
gearbox oil
check the oil level in the gearbox
1.place the car on a horizontal level
2.lift the cushion
3.remove the oil plug
4.pour in the gearoil slowly until
it reachs the opening
recommended oil：
SAE 90 gearoil
Gearcase capacity：
MAINTENANCE
5.it’s fine for oil overflowing。
Make it stop when it flows
o u t , A l i e n m a t e r i a l s a r e
forbidden from getting into the
gearbox.
CAUTION

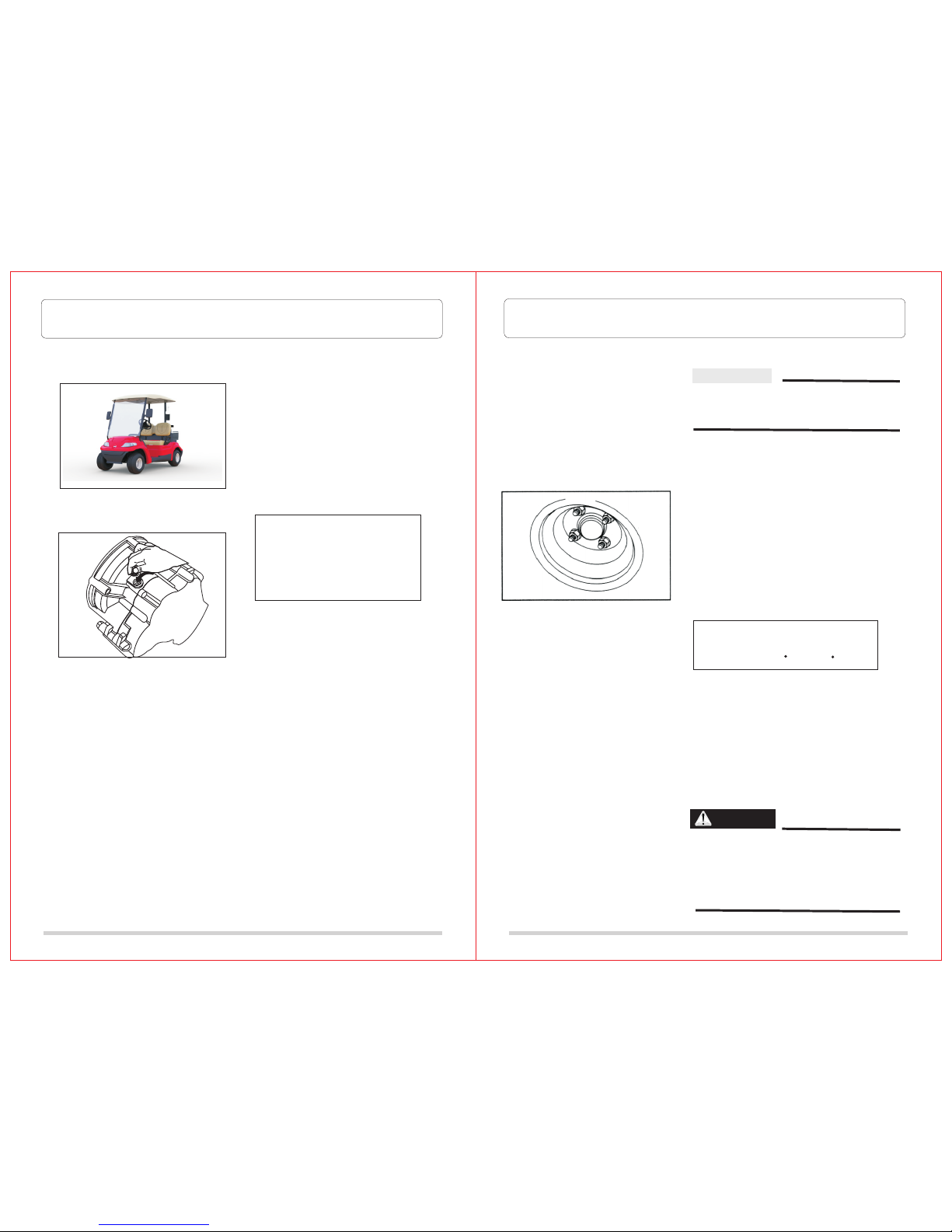

About removing or installing a tire:
Tire Replacement
WARNI NG
wheel nut tightening torque:
105 N M- 12 0N M
Braking Adjustment
MAINTENANCE
Be sure the main switch be in the
“off” position, before you check the
wheelor braking system.
1. take out the wheel nuts, after the car is
toally still. Anything will be fine to
prevent it moving.
2. elevate the car with a jack and take out the
tire and the screw bolt.
3. use the steps above conversely, when
installing the tire
The brake of this car can be adjueted
by yourself.
Please use your foot to press the
braking pedal,making sure it has been
founctioning properly
Consult your Lvtong dealer before
using the car,if you have anything
problem with the brake.Because
serious accident would be caused in
case of brake failure.

P
24
85-95MM
25
Periodic Maintenance Chart
W A R N I N G
P
P
WARNING
Brake system:
free adjustment
To adjust the brake distance :
Brake pedal forwarding distance :
85-95mm ( 3.35-3.74 inch)
CA U TION
WARNING
MAINTENANCE
Before adjusting the brake , tread
the brake pedal several times to
adjust the brakes .
1. Remove the cover of the dash board
2. Check the brake pedal by pressing
with two fingers with proper force and
measuring the forwarding distance of
the pedal untill resistance is felt .
Do not loosen the brake cables
because of air leakage , which
w i l l a l s o a f f e c t t h e b r a k e
adjustment and result in the
braking function .
MAINTENANCE
Do not fix brake cable too tight as
this will make the brake adjust can’t
work perfectly,and therefore lower
down the brake performance.
I t i t n e c e s s a r y t o c h e c k
p e r i o d i c a l l y f o r b e s t
performance and safe operation.
Before maintenance,make sure that
main swtich is off and hand brake
on.Your local dealer or qualified
technician are responsible for it.

27
26
C=Check CA= Check Adjust R=Replace S=Service
CL= Clean and Lubricate L=Lubricate
MAINTENANCE
Remarks
Pre-
Operation
20 rounds
20 hours
20 hours
160kms(
Every
Month)
125
rounds
125 hours
600 miles
1000kms (
Every 6
250 rounds
250 hours
1200 miles
1000kms(
Every
Years)
500 rounds
500 hours
2500 miles
4000kms(
Every 2
Years)
1000
rounds
1000 hours
5000 miles
8000kms
(Every 4
Page
Charge
Clean Bat t e ry t ops,for
tightness of hold-down screws
and terminals
Check brake pedal freeplay and
adjust if necessary
Check steering operation
Check tire pressure tread
depth tire surface for damage
Check bod e and chassis ,f or damage
Check tight ne ss of all bo lts,nuts and
screw
Check reverse buzzer
Pre-Operation Every month
Check electrolyte level
C h e c k f o r l o o s e o r b r o k e n
connect ionsw
C l e a n L u b e P e d a l
control area
Check all wire insulation for crack
and/or worn spots
Check shock absorbers for oil
leaks and damaged springs
Perform a discharge test
protectant
Check shoe lining thickness
and rear axle beating play
C h e c k s t e e r i n g k n uc k l e
bushing freeplay/Adjust wheel
alighment
Ch eck wh eel not ti ght ness
front wheel bearing play
Check gear box oil level and
leakage
C h e c k f o r g r e a s e
lea kage ;adj ust gear box if
Replace gear box oil
Check operatio n and adjus t pedal
stop if nec essary
Every 6 month Every year Every 4 month
Items without a page number referene should be serviced by approved
agent or qualified technician.
This manual doesn't contain these procedures.They are containerd in the
Service Manual
STORAGE
BATTERY PREPARATION
NOTE:
CHASSIS PREPARATION
C A U T I O N
Perform the following prepararions when
leaving your golf car unused for a long
time:
Turn the main switch key to the “OFF”
position , remove the key , and put it in a
safe place .
1. Verify the air pressure of the tire is
25psi ( 3 kgf/cm3);
2. Clean the outside of the car with anti-
rust oil;
3. Cover the car and store it in a dry and
well-ventilated place.
1.R e cha rge the b a tte r ies a n d
check the fluid levels at least once
a month .
2.Disconnecting cables in case of
long storage
Cleaning products are forbidden to
put into battery cells
3. Clean the top of the batteries with
baking soda and water so as to avoid
errosion.

29
28
WARRANTY AND AFTER-SALE SERVICE
Please read the following carefully for your interest and good after sales
service from us.
What is under warranty and valid date
Please read this instruction book carefully after you buy car from us. We
promise to change or repair for material quality or designing problem.
After the car is delivered from our factory
1. We repair/replace items that are covered by warranty.
2. Please contact us for universal parts, like tires, cushions etc, which are out of
warranty.
Below conditions are not under warranty
1 When the car is used or maintained without following warranty conditions or the
User's Manual.
2 When repairs are made by unauthorized dealers or repair shops.
3 When the warranty has expired.
4 When spare parts are used from other manufacturers
5 When the car has been assembled or modified without our permission
6 When vehicle use exceeds its maximum capabilities
7 When damage is caused by natural disasters like typhoon,
flood, earthquake, etc
WARRANTY AND AFTER-SALE SERVICE
Valid Warranty
Buyers need to fill warranty card,stamp and send back to us. The warranty comes
into effect upon we receive and confirm.
Kind Statement
Any damage caused by improper action, which does not match instruction book,
we will not accept as warranty.

序号 编程器显示
1.1HW FA I LSAF E
1.2THR O TTLE F A ULT1
1.3SPE E D SENS O R FAUL T
1.4HPD
1.5MOT O R STAL L
2.1LOW B A TTER Y V OLTA G E
2.2OVE R V OLTA G E
2.3THE M AL CUT B ACK
2.4MAI N D RIVE R O N
2.5AUX C O IL FAU L T
3.1MAI N D RIVE R O FF
3.2MAI N W ELDE D
3.3PRE C HARG E F AULT
3.4FIL E D MISS I NG
3.5AUX D R IVER O F F
4.1CUR R ENT SE N SOR FA U LT
4.2DRI V ER OVE R C URRE N T
4.3— SHO R TTED
4.4AUX R E LAY DN C
4.5WEL D ED AUX R E LAY
5.1KEY S W ITCH S R O
5.2MAI N C OIL OP E N
5.3AUX D R IVER O N
5.4CIR C UIT BR K R OPEN
5.5MAI N D ROPO U T
30
1266/1268 TROUBLE SHOOTING CHART
