ADVANCED EV ADVENT User manual


We meet the GB/T 21268-2021 standard
after the quality inspection.
Read and understand the manual before operating the car

INTRODUCTION
Dear Valued Customers,
We extend our sincere gratitude for choosing our company's electric vehicles.
Our cars incorporate cutting-edge technology from Europe and the United
States, featuring imported components that contribute to their innovative
design, luxurious professional paintwork, and high-strength steel welding
materials. These elements collectively enhance the visual appeal, reliability,
beauty, and overall performance of our cars.
Our vehicles stand out in the electric car industry, offering a combination of
lightweight construction, robust climbing capability, environmental
friendliness, low noise emissions, convenient charging, excellent braking
performance, and competitive pricing. We take pride in being at the forefront
of advancements in the electric car field.
To assist users in operating and maintaining their cars correctly, ensuring
optimal performance and extended lifespan, we have prepared an operation
manual. We strongly encourage you to carefully review its contents.
Please note that our product is continually evolving. If there are any
discrepancies between the manual and the actual product, the latter should
be considered the standard.
Thank you for choosing our electric cars, and we look forward to providing you
with a superior driving experience.
Sincerely,
Advanced EV

NOTE:
Failure to follow WARNING
instructions could result in
severe injury or death to the golf car
passengers, bystanders, or the
person driving the golf car.
THE SAFETY ALERT SYMBOL
MEANS ATTENTION! BE ALERT!
YOUR SAFETY IS INVOLVED!
Particularly important information is
distinguished by using the following
symbols and notes:
This message describes special
precautions that must be taken so as
to avoid damage to the car.
This message provides additional
main information.
AdvancedEV continually seeks
improvement in product quality.
Even though this manual contains
the latest product information
available at the time of printing,
there may be minor discrepancies
between your golf car and this
manual. If you have any question
concerning this manual, please
contact your AdvancedEV dealer
and we will work it out.
This manual should be considered
as a permanent part of your golf car
and should stay with the car when
the car is sold.
WARNING
CAUTION
NOTE:
Read and understand the manual
completely before operating your
golf car.
WARNING
IMPORTANT MANUAL INFORMATION

Important Labels 1
Operational Safety 4
 6
 13
Pre Operation 16
Maintenance 19
Storage 32
 34
Wiring Diagram 36
Controller Trouble Shooting Process 39
CONTENT

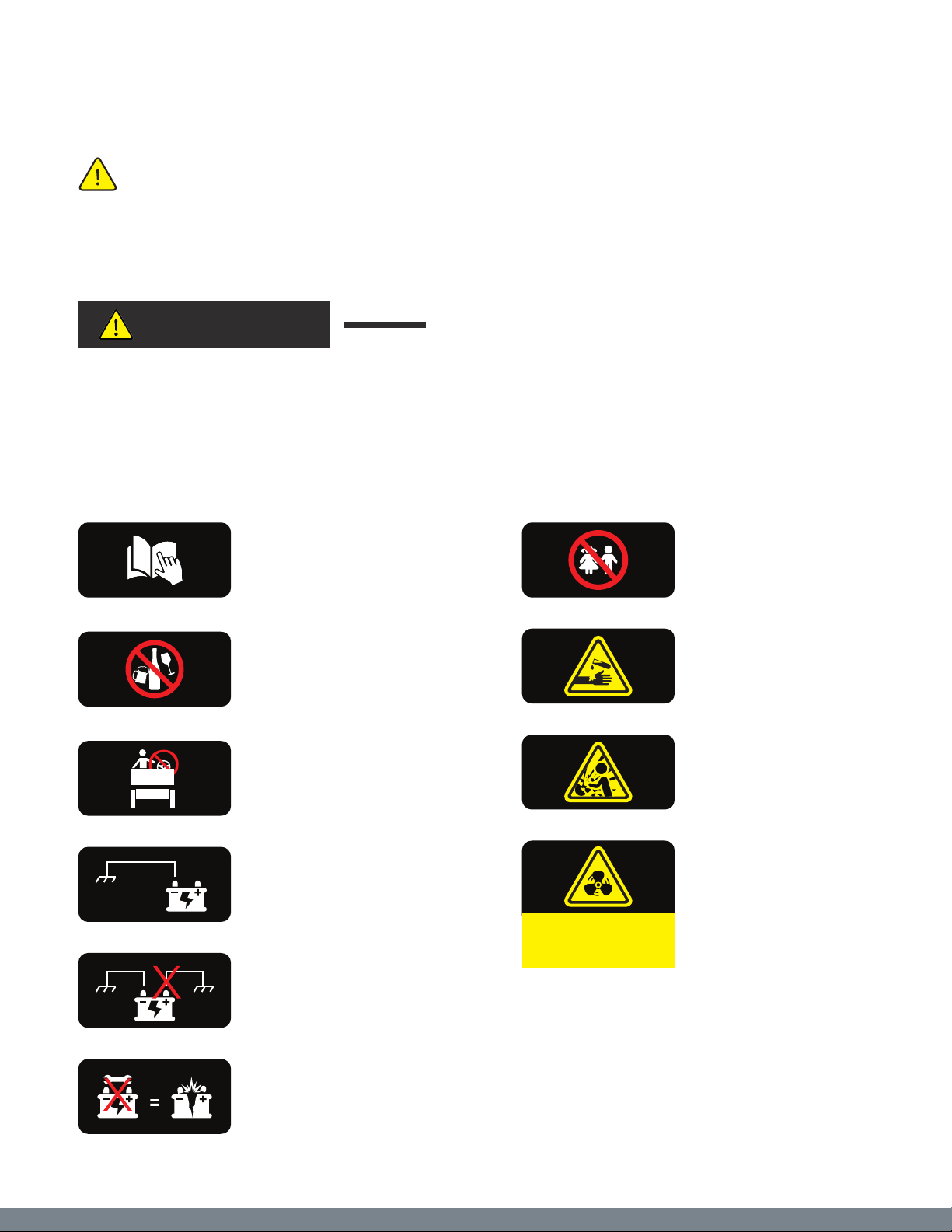

IMPORTANT LABELS
SAFETY AND
INSTRUCTION LABELS
Please read the attached labels
carefully before driving the gold car,
and promptly replace any label that
is damaged or removed.
WARNING
WARNING USE
WITH ADEQUATE
VENTILATION
WARNING
Use only with

KEEP OUT
OF REACH
OF CHILDREN
WARNING
CORROSIVE
WARNING
EXPLOSIVE
READ MANUAL
INSTRUCTIONS
WARNING DO NOT
OPERATE UNDER THE
INFLUENCE OF
DRUGS OR ALCOHOL
OPERATE FROM
DRIVERS SIDE ONLY
NEGATIVE
GROUND BATTERY
DO NOT CONNECT
POSITIVE BATTERY
TERMINAL TO GROUND
SHORTING BATTERY
TERMINALS MAY
CAUSE EXPLOSION
11

IMPORTANT LABELS
WARNING
CALIFORNIA PROPOSITION 65
Motor vehicles may contain fuels, oils,
fluids, battery posts, terminals, and
related accessories which contain
lead and lead compounds and other
chemicals identified by the state of
California to potentially cause cancer,
birth defects, and other reproductive
harm. These chemicals are found in
vehicles, vehicle parts accessories,
both new and replacements. During
maintenance these vehicles generate
used oil, waste fluids, grease, fumes
and particulates, all identified by the
state of California to potentially cause
cancer and birth defects or other
reproductive harm.
Posted in accordance with
proposition 65 and California Health
and Safety Code Section 25249.5,
et seq

instruction labels on the golf car

• Be sure that passengers are
seated stably.
• Select “forward” or “reverse” key.
• Tread the accelerator to start
moving; and tread the parking
pedal to stop.
• Please drive safely according to
the terrain, visibility and driving
experience; please drive
carefully in the crowded and
slippery places.
• When parking, please tread the
parking pedal and draw up the
handle of hand brake. When
starting the car, please release
the handle.
• Forward or back off the car
when it is ready.
OPERATION ESSENTIALS
BRAKE
PEDAL
ACCELERATOR
PEDAL
BATTERIES ARE
HEAVY. USE CARE
WHEN LIFTING
USE
INSULATED
TOOLS
WEAR EYE
PROTECTION
2

IMPORTANT LABELS
WARNING

before operating:
• No extra passengers allowed;
• Start the car until all passengers are seated well;
• Drive slow when turning;
• Tread the parking pedal before leaving the car;
• Pull the main switch and turn the key off when not using the car;
• The passengers should be seated stably and hold the armrest tight;
• Keep hands and feet inside the car.
WARNING/AVERTISSEMENT
are released when
batteries are
charged or
discharged. Keep
sparks, flames and
cigarettes away.
Shield eyes when
working near
batteries.
in batteries will
burn skin, eyes, and
clothing. Do not tip
batteries. Keep vent
caps tight and level.
In event of injury,
flush with physician
immediately.
can result in burns.
Do not make
connection
between positive
and negative
battery terminals.
SULFURIC
ACID
EXPLOSIVE
GASES
ELECTRICAL
SHORTS
3

OPERATIONAL SAFETY
Before operating:
1. Read this manual and all the other
operations or labels marked on the
car body before operating.
2. Only authorized people should drive
the car only in the designated area.
3. Do not OVERLOAD.
4. Do not drive the car if drinking any
alcohol or having any drugs which
could distract the driver's vision
and judgment.
WARNING
DO NOT OPERATE UNDER
THE INFLUENCE OF
DRUGS OR ALCOHOL

Any person who does not have a valid driver’s
license is not permitted to operate the vehicle.
Any person who is below the height of 59 inches
(150 cm) is not permitted to operate the vehicle.
Leaving the keys in the ignition allows
unauthorized operation of the vehicle by an
unlicensed driver or someone who does not meet
the height requirement. Always remove the
ignition key when the vehicle is not in operation.
When operating:
1. Keep your body in the car and
keep well-seated when the car
starts moving.
2. Do not start the car until all
passengers are seated.
3. Keep your hands on the steering
wheel and your eyes on the
path ahead.
4. Be especially careful when backing
the car in crowded places. Please
keep watching back and roll
back slowly.
5. Avoid sudden start and brake.
6. Please accelerate or decelerate
the car according to the
ground condition.
7. Do not turn the steering wheel too
sharply at high speed.
8. Keep driving slowly straight up or
straight down, not at one same
angle when on slopes.
9. Buckle seat belts during operation.
4

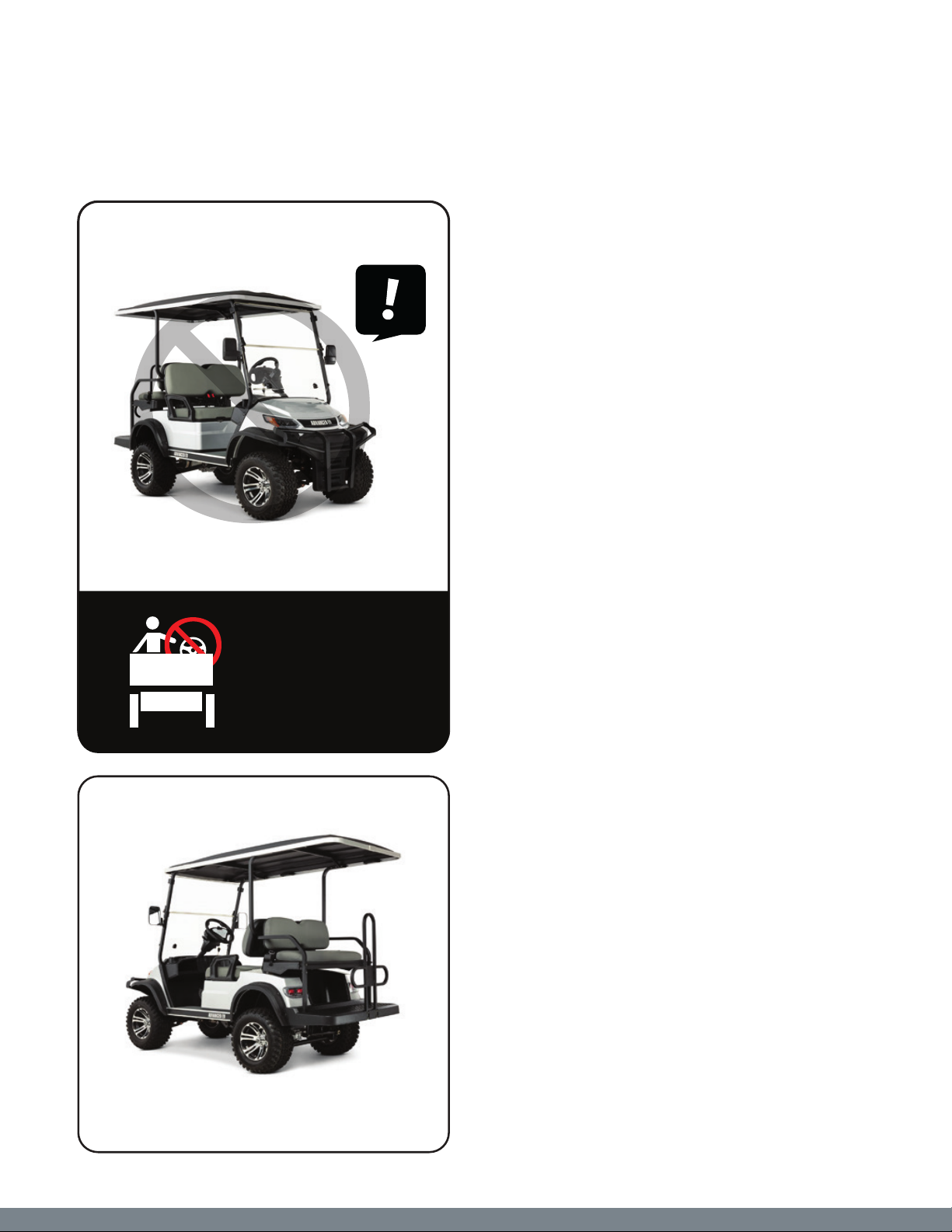

OPERATIONAL SAFETY
OPERATE
FROM DRIVERS
SIDE ONLY
1. Keep your hands on the steering
wheel and your eyes on the
path ahead.
2. Be especially careful when backing
in the car in crowded places. Please
keep watching back and roll
back slowly.
3. Avoid sudden and strong shock
of the car and change to the
proper speed according to the
ground condition.
4. Do not turn the steering wheel too
sharply when at high speed.
5. Keep driving slowly straight up
or straight down, not at one
same angle.
6. Do not make any modification or
addition about the operation safety
and loading capacity, and this
whole manual.
Do not overload or make any
modification towards spare parts
without permission.
5

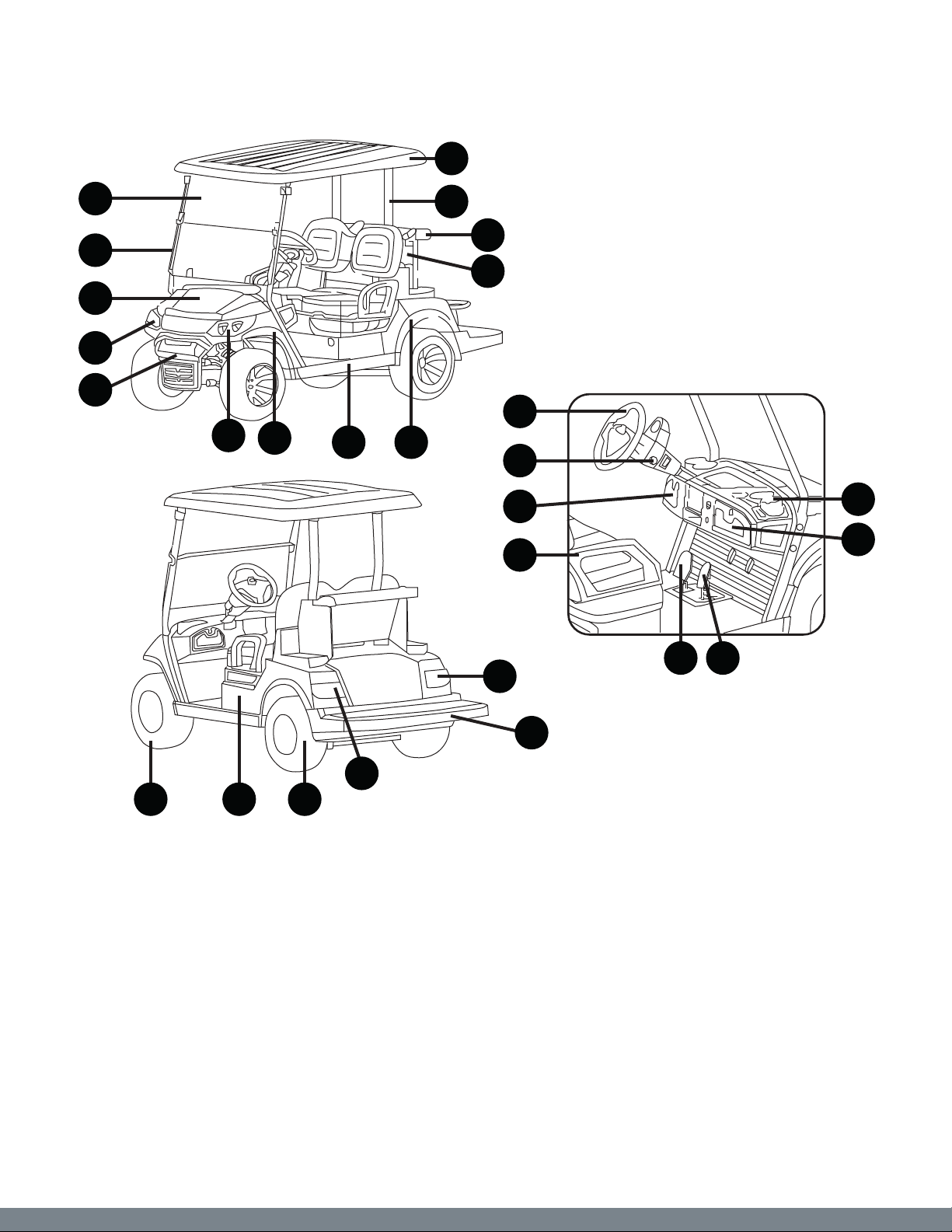

STRUCTURE AND SPECIFICATIONS


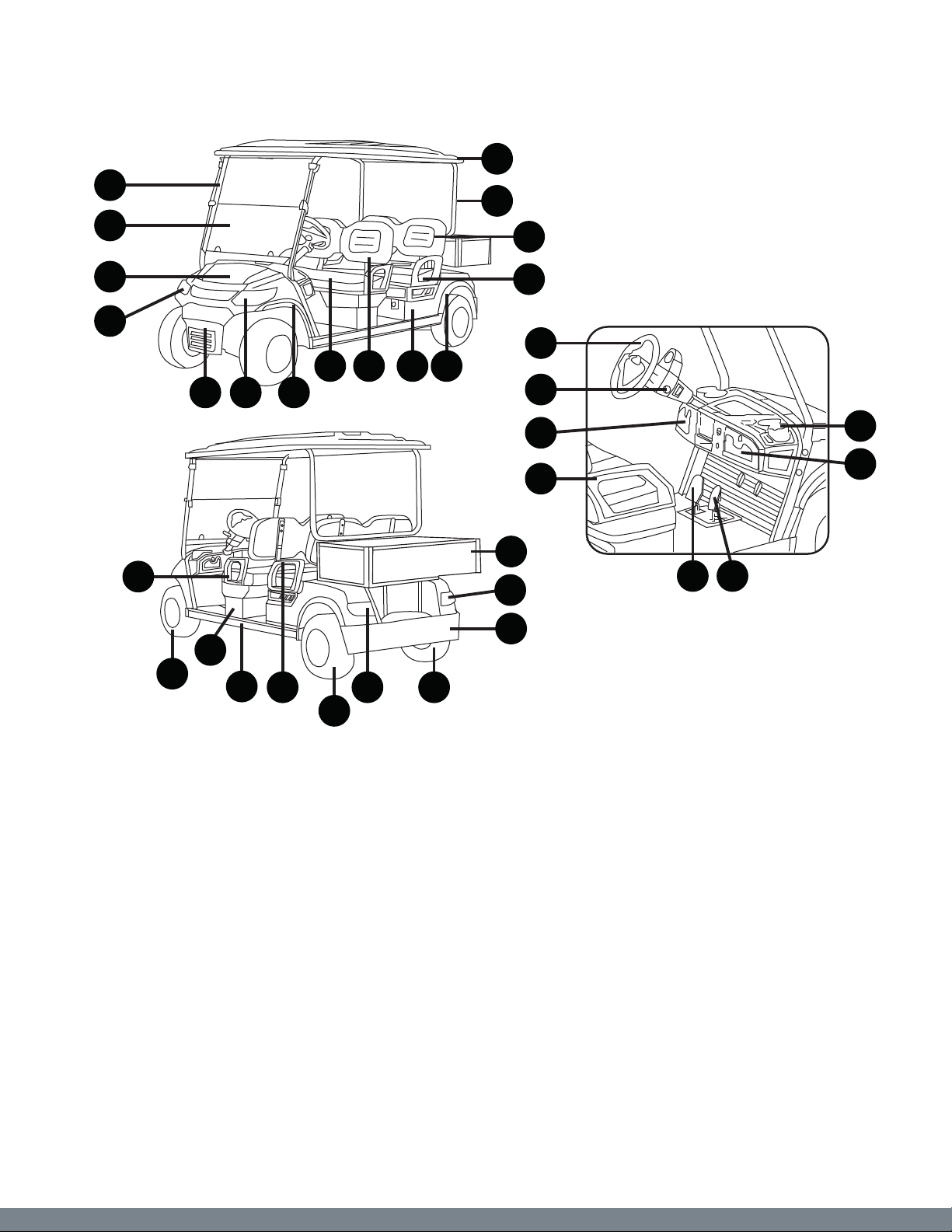

Top roof
Top roof rear support
Golf bag support
Golf bag box
Front windshield
Windshield frame
Front cover
Front headlight /R
Front bumper
Front headlight /L
Front wheel trims
Side sill
Rear wheel trims
Steering wheel
Combination switch
Glove box cover /L
Armrest
Brake pedal
Accelerator pedal
Glove box cover /R
Cup base
Tail light /R
Caddie pedal
Tail light /L
Rear wheel
Rear cover
Front wheel
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
21.
22.
23.
24.
25.
26.
27.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
14
15
16
17
18 19
21
20
5
6
8
9
10 11 12 13
1
2
3
4
27 26 25
24
23
22
7
6

STRUCTURE AND SPECIFICATIONS

Top roof
Top roof rear support
Rear seat armrest
Caddie plate
Rear wheel trims
Rear cover
Front wheel trims
Front headlight /L
Front bumper
Front headlight /R
Front cover
Windshield
Windshield frame
Steering wheel
Combination switch
Glove box cover /L
Armrest
Brake pedal
Accelerator pedal
Glove box cover /R
Cup base
Rear seat backrest
Rear wheel /R
Rear seat cushion
Rear wheel /L
Armrest for
driver's seat
Side sill
Front wheel /L
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
21.
22.
23.
24.
25.
26.
27.
28.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
11
13
12
8765
1
2
3
4
14
15
16
17
18 19
21
20
9
10
22
23
24
25262728
7

STRUCTURE AND SPECIFICATIONS

Top roof
Top roof rear support
Second row backrest
Second row
seat cushion
Rear wheel trims
Rear cover
Front backrest
Front seat cushion
Front wheel trims
Front headlight /L
Front bumper
Front headlight /R
Front cover
Windshield
Windshield frame
Steering wheel
Combination switch
Glove box cover /L
Armrest /R
Brake pedal
Accelerator pedal
Glove box cover /R
Cup base
Cargo box
Tail light /R
Rear bumper
Rear wheel /R
Tail light /L
Rear wheel /L
Armrest /L
Side sill
Front seat box
Front wheel /L
Armrest
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
26.
27.
28.
29.
30.
31.
32.
33.
34.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
2
3
4
5678
91011
12
13
14
15
1
16
17
18
19
20 21
23
22
24
25
26
2728
29
30
31
32
33
34
8

STRUCTURE AND SPECIFICATIONS
Whole car standard configuration and Parameter table
(Specific configuration will be subject to contract)
Front body, seat barrel and rear body are PP injection molded;
Aluminum profile roof support with matte black painting (A827.4 with aluminum alloy box)
Electronic system
Controller
Battery
Motor
Charger

AC 48M350B—350 AMP Controller
Advanced EV Flooded Lead Acid
48V / 4KW AC Motor
Smart battery charger 48V / 25A, Charging time < 8 hours (with discharge rate of 80%)
High power non-isolated DC-DC 48V / 12V-300W



Top roof
Floor



warning signals
Dash
Steering system
Braking system
Front suspension
system

Rear suspension
system
Acrylic glass; Optional with toughened glass + wiper
Aluminum alloy profile frame + PP injection molded
Aluminum profile non-slip floor, high strength structure, corrosion resistance, aging resistance
Front body, seat barrel and rear body are PP injection molded; Aluminum profile roof support
with matte black painting (ADVENT 4 with aluminum alloy box)
One adjustable and foldable external side mirror on each side
LED headlights (low beams, high beams, turn signals, daytime running lights and position lights)
LED taillights (brake lights, position lights, turn signals), Snail horn, reversing buzzer
Plastic forming instrument dash, LED speedometer, key switch, single-arm combination switch,
gear switch, cup base; double USB power supply, 12V power supply. Optional with multi-media
audio and video system (backup camera, video player)
Double-ended Rack and Pinion, self-adjusting
Four wheel hydraulic disc brake + Electromagnetic brake parking
Double swing arm independent front suspension + coil spring + hydraulic shock absorbers
205/65-10 10 Inch Aluminum Rim DOT Rated
Integral type transaxle, gear ratio 12.31:1, coil spring + hydraulic
shock absorbers + rear stabilizing bar
Integral type transaxle,
gear ratio 16:1, coil spring +
hydraulic shock absorbers +
rear stabilizing bar

 ADVENT 2 ADVENT 4 ADVENT 4F
AC 450 AMP CONTROLLER
9

STRUCTURE AND SPECIFICATIONS
Whole car standard configuration and Parameter table
(Specific configuration will be subject to contract)
Front body, seat barrel and rear body are PP injection molded;
Aluminum profile roof support with matte black painting (A827.4 with aluminum alloy box)

 ADVENT 2 ADVENT 4 ADVENT 4F
Technical parameter


clearance
Brake stability
22-25 mph
120 mm
1.6 m


Curb weight
Seating capacity
Container size

Mileage(Km)
Max climbing
ability

performance
Wheel base
Minimum

Wheel track
Energy consumption
(per 100Km)
< 6 m
2740*1210*1820 mm 2785*1210*1910 mm 3360*1210*1900 mm
1235 lbs (with battery) 1290 lbs (with battery) 1301 lbs (with battery)
2-person 4-person
NO 1170*610*265 mm
NO 50 kg
80-100 km (Flat road) 80-100 km (Flat road) 75-90 km (Flat road)
30% 25% 18%
30% 25% 25%
1670 mm 2485 mm
3.2 m 4.45 m
Front 905 mm / Rear 1000 mm
8 kwh 9 kwh
10

STRUCTURE AND SPECIFICATIONS
Whole car standard configuration and Parameter table
(Specific configuration will be subject to contract)
AC 350 AMP Controller
Advanced EV Flooded Lead Acid
48V / 5KW AC Motor
Smart battery charger 48V / 25A, Charging time < 8 hours (with discharge rate of 80%)
High power non-isolated DC-DC 48V / 12V-300W
Acrylic glass; Optional with toughened glass + wiper
Aluminum alloy profile frame + PP injection molded
Aluminum profile non-slip floor, high strength structure, corrosion resistance, aging resistance
Front body, seat barrel and body are PP injection molded; Aluminum profile roof support
with matte black painting (H8 seat bucket and box are made of high strength aluminum profile)
One adjustable and foldable external side mirror on each side
LED headlights (low beams, high beams, turn signals, daytime running lights and position lights)
LED taillights (brake lights, position lights, turn signals), Snail horn, reversing buzzer
Plastic forming instrument dash, LED speedometer, key switch, single-arm combination switch,
gear switch, cup base; double USB power supply, 12V power supply. Optional with multi-media
audio and video system (backup camera, video player)
Double-ended rack and pinion, self-adjusting
Four wheel hydraulic disc brake + Electromagnetic brake parking
Double swing arm independent front suspension + coil spring + hydraulic shock absorbers
205/65-10 10 Inch Aluminum Rim DOT Rated
Integral type transaxle , gear ratio 16:1,
coil spring + hydraulic shock absorbers +
rear stabilizing bar
Integral type transaxle, gear ratio 16:1,
coil spring + hydraulic shock absorbers +
rear stabilizing bar
22-25 mph
120 mm 150 mm
1.6 m
< 6 m
3615*1210*1905 mm 4150*1210*1900 mm 4405*1210*1915 mm 3630*1210*1840 mm
1490 lbs (with battery) 1506 lbs (with battery) 1560 lbs (with battery) 1500 lbs (with battery)
ADVENT 6 ADVENT 8
Electronic system
Controller
Battery
Motor
Charger




Top roof
Floor



warning signals
Dash
Steering system
Braking system
Front suspension
system

Rear suspension
system




clearance
Brake stability


Curb weight
Technical parameter
AC 450 AMP Controller
ADVENT 6L
11

STRUCTURE AND SPECIFICATIONS
Whole car standard configuration and Parameter table
(Specific configuration will be subject to contract)
ADVENT 6 ADVENT 8
6-person 8-person 2-person
NO NO 1800*1150*265 mm1170*610*265 mm
NO NO 500 kg50 kg
75-90 km (Flat road) 70-80 km (Flat road) 70-85 km (Flat road)
18% 10% 10%10%
20% 15% 20% 20%
2485 mm 3260 mm 3260 mm 2425 mm
4.45 m 5.8 m 5.8 m 4.5 m
Front 905 mm / Rear 1000 mm Front 895 mm / Rear 1000 mm Front 905 mm / Rear 1000 mm
8.5 kwh 9 kwh 9.5 kwh
70-85 km (Flat road)
ADVENT 6 ADVENT 8


Technical parameter
Seating capacity
Container size

Mileage(Km)
Max climbing
ability

performance
Wheel base
Minimum

Wheel track
Energy consumption
(per 100Km)
12

OFF ON

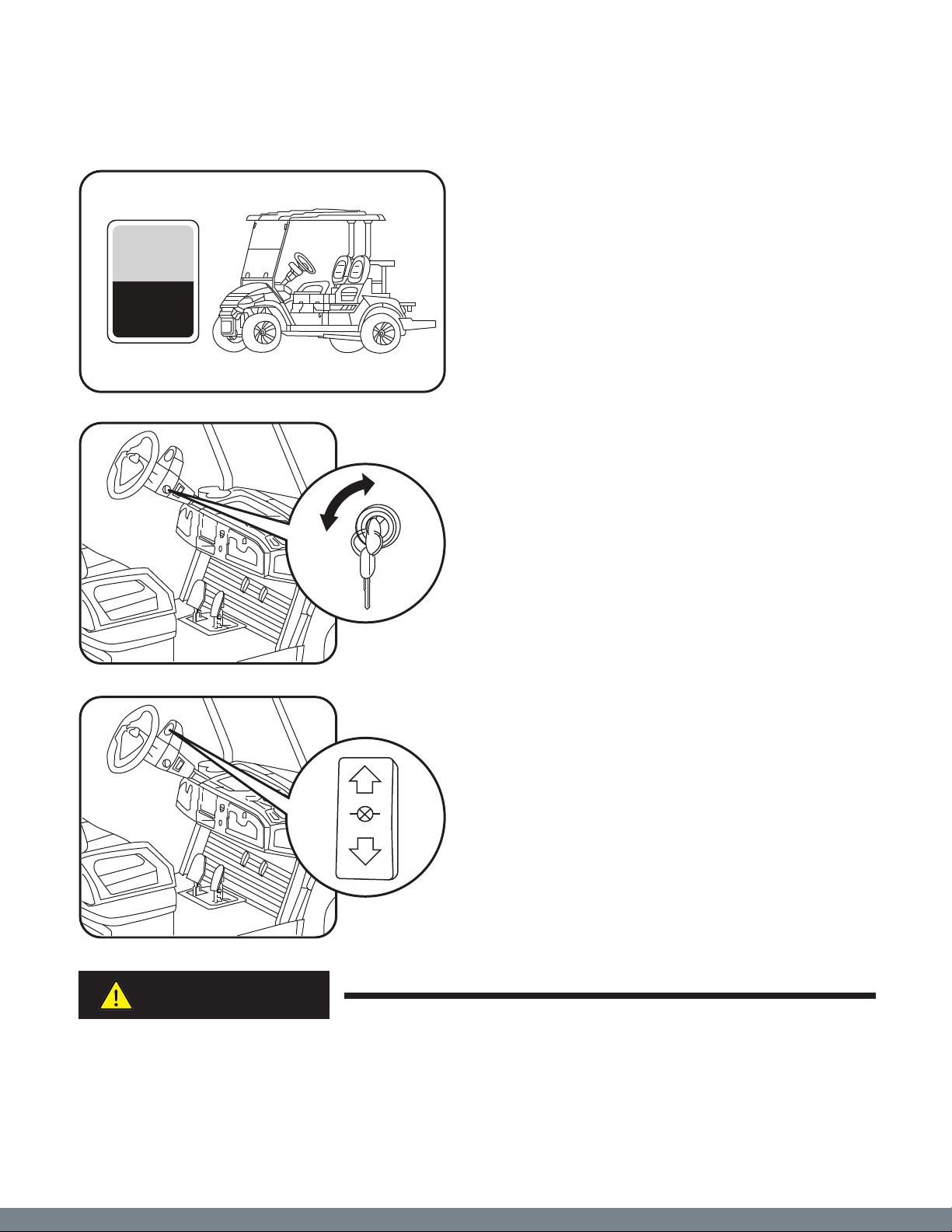

OPERATION AND CONTROL
Turning on Main Switch
1. Shifting the switch to RUN position
then can turn on the power supply
of car.
2. Shifting the switch to OFF position
then can turn off the power supply
of car.
RUN
OFF
Key Switch
1. Insert Key and turn to the right to
turn the cart on. Note Ensure the
F/R toggle is in the middle position
2. Turning the key left will turn the cart
off. The key can also be removed
from this position.

The Forward/Reverse Switch is used to
shift the car to forward, neutral or
stop. Push the switch upward for
forward, downward for reverse and
lastly push the switch to a center
position for neutral. When the switch is
in the downward position a reverse
buzzer notice will sound.
WARNING
Completely stopping car before shifting F/R switch. When shifting F/R switch,
please turn switch to middle position for 2s at first, then choosing Forward
switch or Reverse switch. Don't shift F/R switch in a hurry in case that the
sensor will be burnt or switch will be out of use.
13

OPERATION AND CONTROL

There is one glove box on each side of instrument
panel, which can be used for storage. When the
glove box cover is not locked, press the lock head
to open the cover.
Unlock: Insert the key into the lock, rotate in the
clockwise direction to unlock, and then remove
the key.
Locking: Close the box cover, insert the key and
rotate in the counterclockwise direction to lock,
and then remove the key.

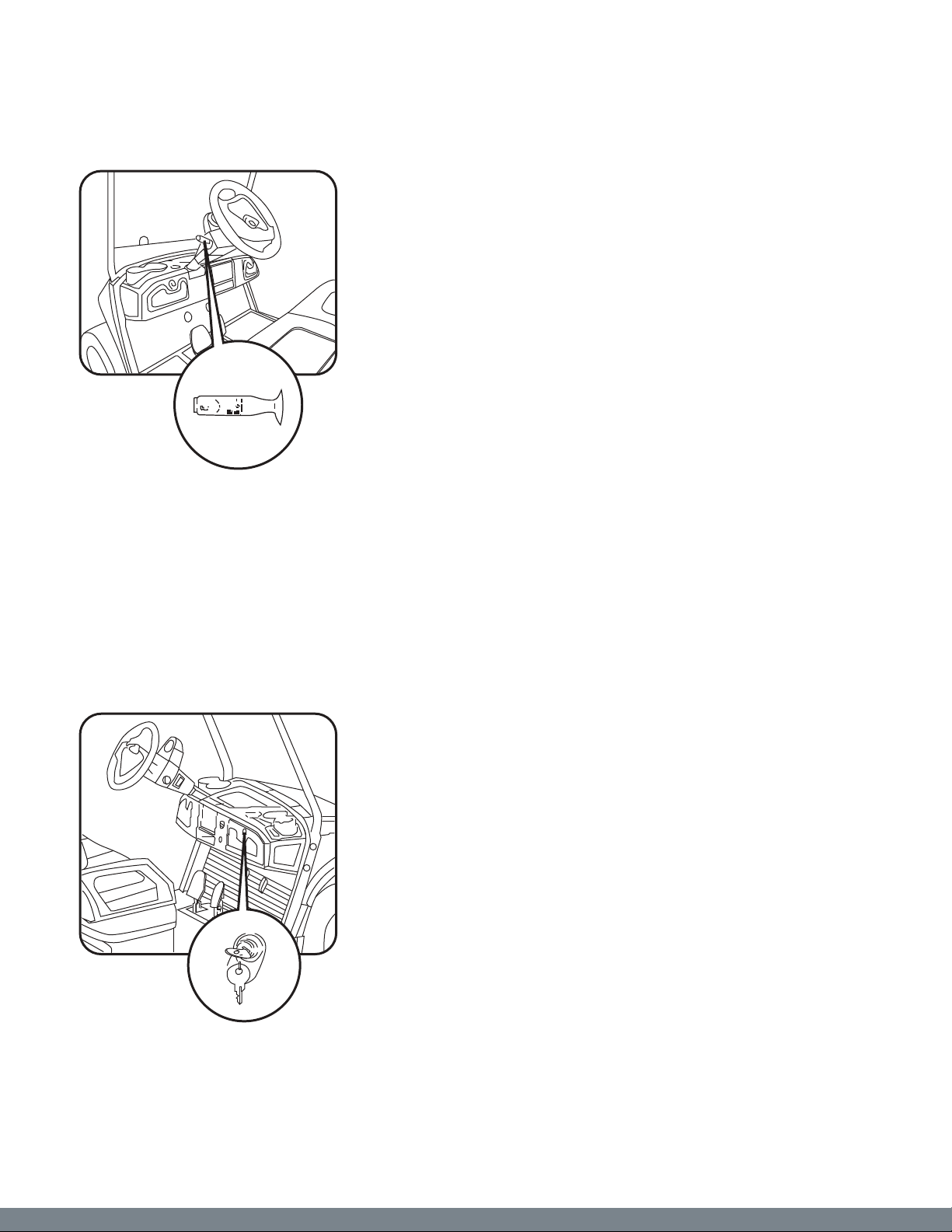

Combination Switch
1. Turn signal: Move the turn signal lever forward,
left turn signal flashes. At the same time, you'll
be able to see a flashing arrow directed to the
left on your instrument cluster. Move the turn
signal lever backward, the arrow directed to
the right on.
2. Low beam: Front part of the lever can be
pushed and pulled. After the vehicle is started,
push the lever forward to turn on low bean and
backward to turn off.
3. High beam: move the lever upwards (steering
wheel surface) to turn on high beam.
Releasing the lever, it will automatically return
to original position, and the high beam can be
permanently on.
4. Horn: Press lightly on the end of lever, where
horn button is located.
14

RPM TRIP
0
1
2
345
6
1
0
OPERATION AND CONTROL


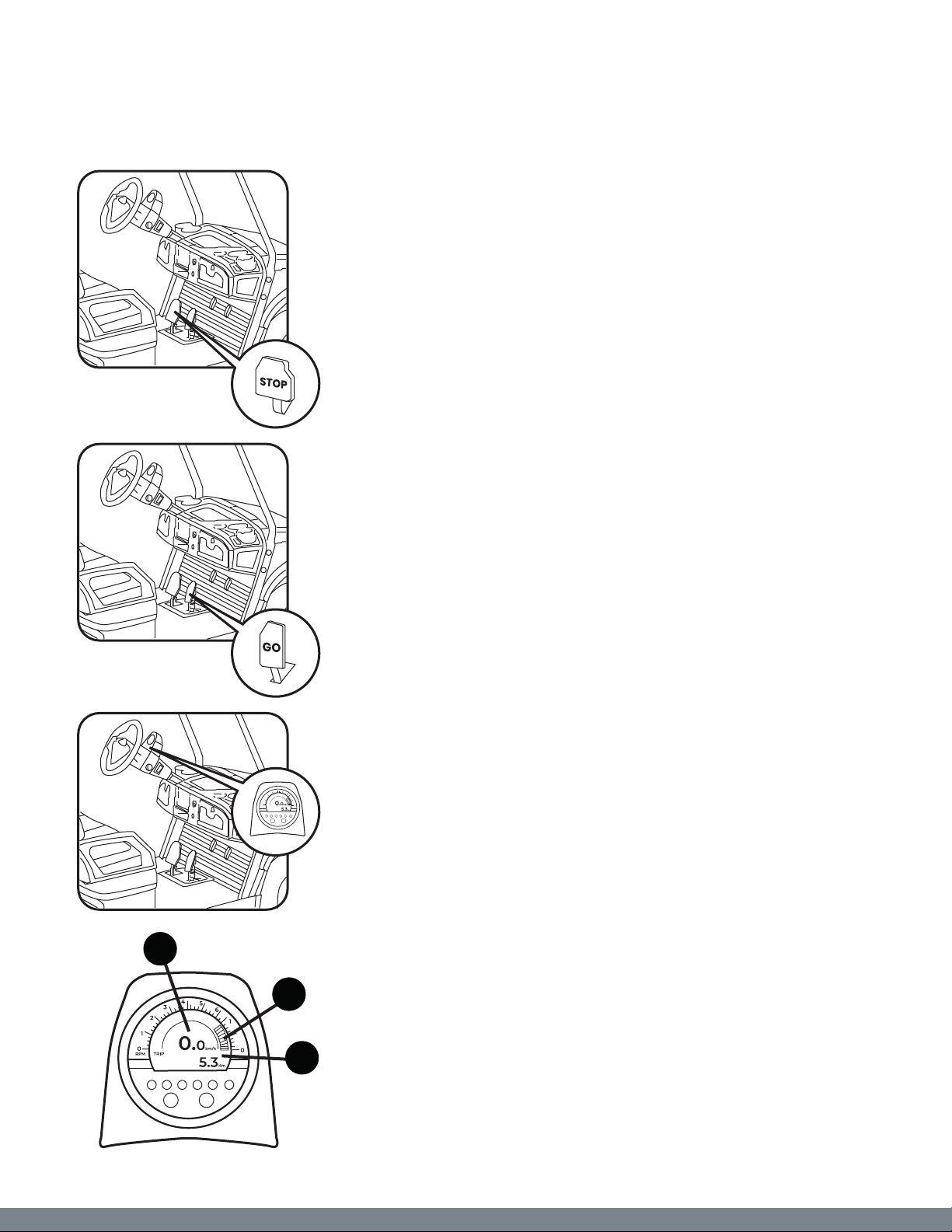

When decreasing speed while the car is in motion,
place your right foot on the brake pedal and apply
pressure to gradually reduce speed until the car
comes to a stop.
Note: Refrain from abrupt braking.
Attention: Avoid breaking abruptly or slamming
on brakes.

Turn on the key switch, choose forward and
backward, release brake, put your right foot on
the accelerator pedal, step down the pedal to
start the car.
Instrument cluster
Display the current vehicle status, rotate speed,
speed per hour, battery power, mileage, light signal
etc. During the driving, you can check whether it is
normal according to the status of the indicator light
in the instrument cluster.
1
2
3

1. Speed per hour
2. Battery power
3. Mileage
15

PRE OPERATION
Pre operation checks should be made
each time you use your golf car. Get in
the habit of performing the following
checks in the same way so that they
become second nature.
WARNING
Be sure that the main switch key is
removed before performing the
pre-operating checks to prevent
accidental starting, and apply the
parking brake to keep the car
from moving.

Batteries
Tire condition
Steering system
Back-up buzzer
Pedal operation
Body and chassis
SEAT
Opening the seat for checking
and servicing
BODY AND CHASSIS
Before each use, carefully inspect the
car body and chassis for damage
and/or missing parts.
16
