Atomic COUPE & TRUCK User manual

COUPE & TRUCK
ATOMIC ELECTRIC VEHICLES
REV 04 2019

1
Statement
This vehicle is not intended to be driven on public roads, it is
intended for off road use only.
Check your local County and State Regulations as these vary from
State to State.
Atomic Electric Vehicles LLC.

2
CONTENT
Before Driving
1-1.Key
Key……………………….……14
1-2. Door operation and storage
Door…………………………...15
Trunk …………….……………15
Rear cargo bed ………………..16
1-3. Adjustable components
Front row seat…………….……17
Back row seat ..…......................17
Head rest…….…………………18
Seat safety belt…………………18
Rear-view mirror…………….…19
Side-view mirrors…………...…19
1-4.Opening and closing the window
Power windows………………..20
Charging
Opening charging port cover.….20-21
Safety information
Proper driving techniques………21
DRIVING
Driving procedures
Driving the vehicle ….….…….22-23
Ignition switch……….….…….24
Gearshift …………….….…….25
Turning signal lever….….……26
Parking brake……….….……..27
Instrument Panel
Instruments.……. …. ….……28
Indicator……………………...29-31
Control light and screen wiper
Headlights switch...…………...30
Dome light switch……....……..31
Windshield wiper……….…….31-32
Emergency Warning Lights
Emergency warning lights….…32
CONTENT
Driving information
Preparations for driving…...…..33
Driving procedures……………33
Vehicle inspection …………….34
Personal belongings…………...34
Storing the vehicle ……………35
Caution.. ...........………………35
INTERIOR DEVICES
Air Conditioner
Air Conditioning System…..36-37
Vehicle Audio System
Audio System……………...38
FM and MP3……………....39-40
AUX Jack………………….40
Storage
Storage areas………………41
12 Volt Outlet
12v outlet………………....41
Service Section ……………….42

3

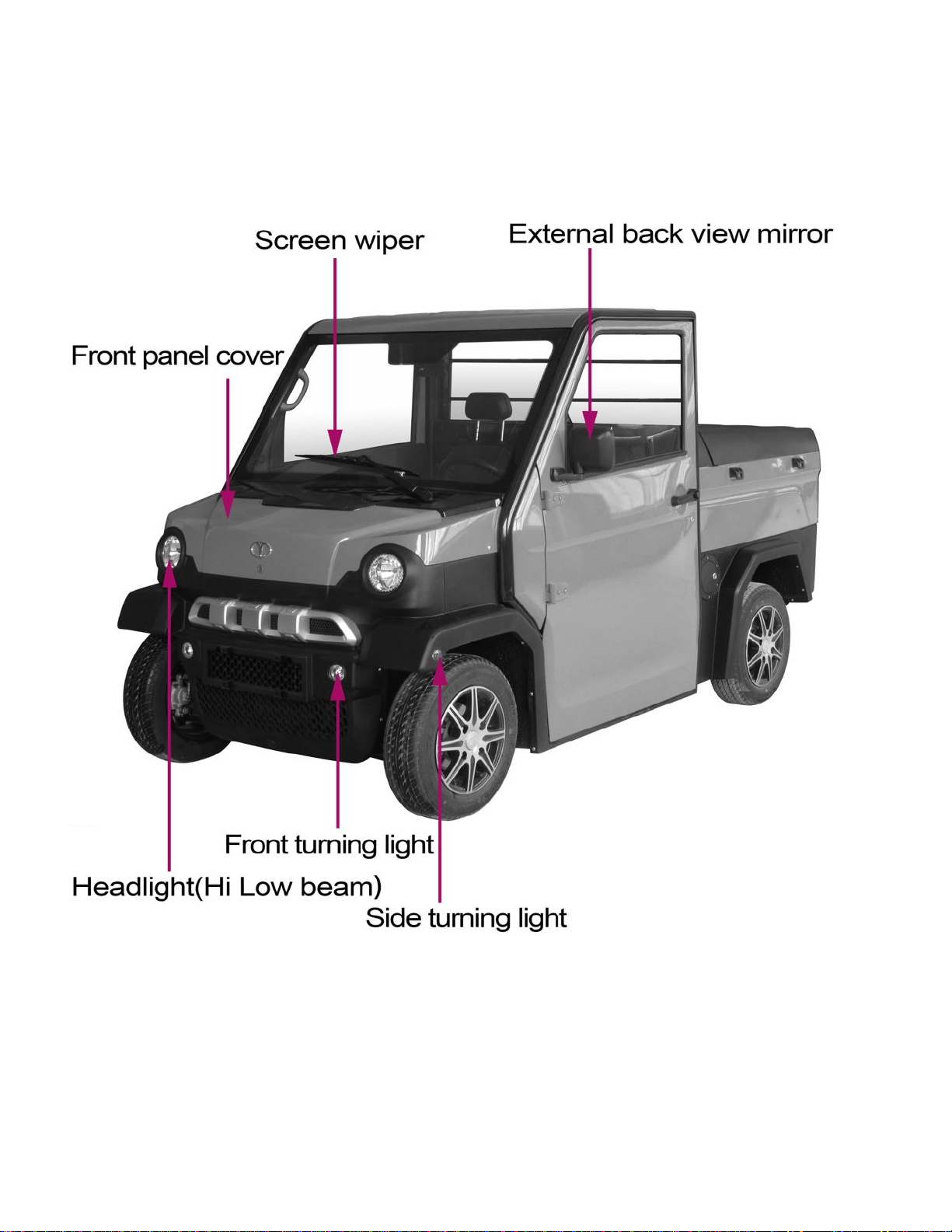

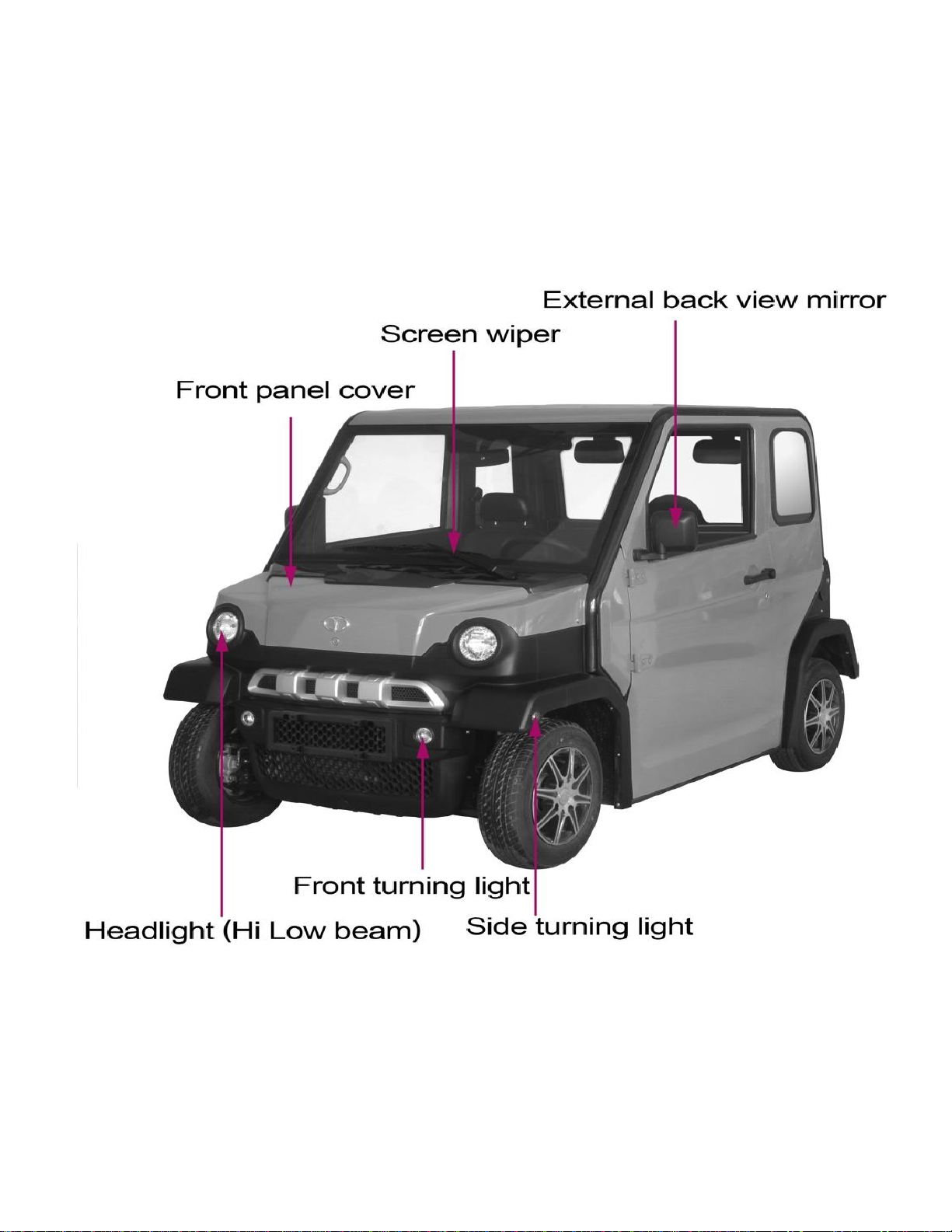

EXTERIOR

4

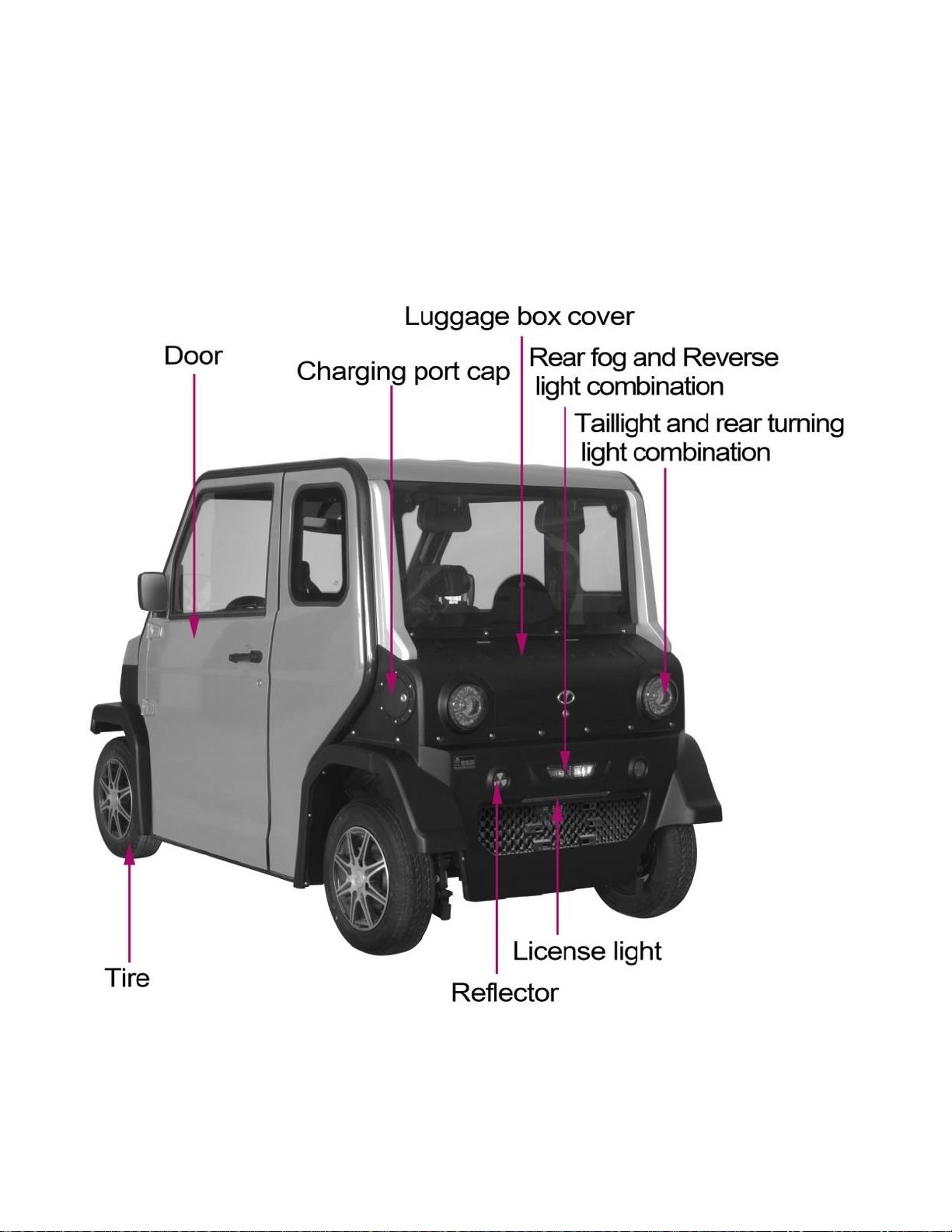

EXTERIOR

5
EXTERIOR

6

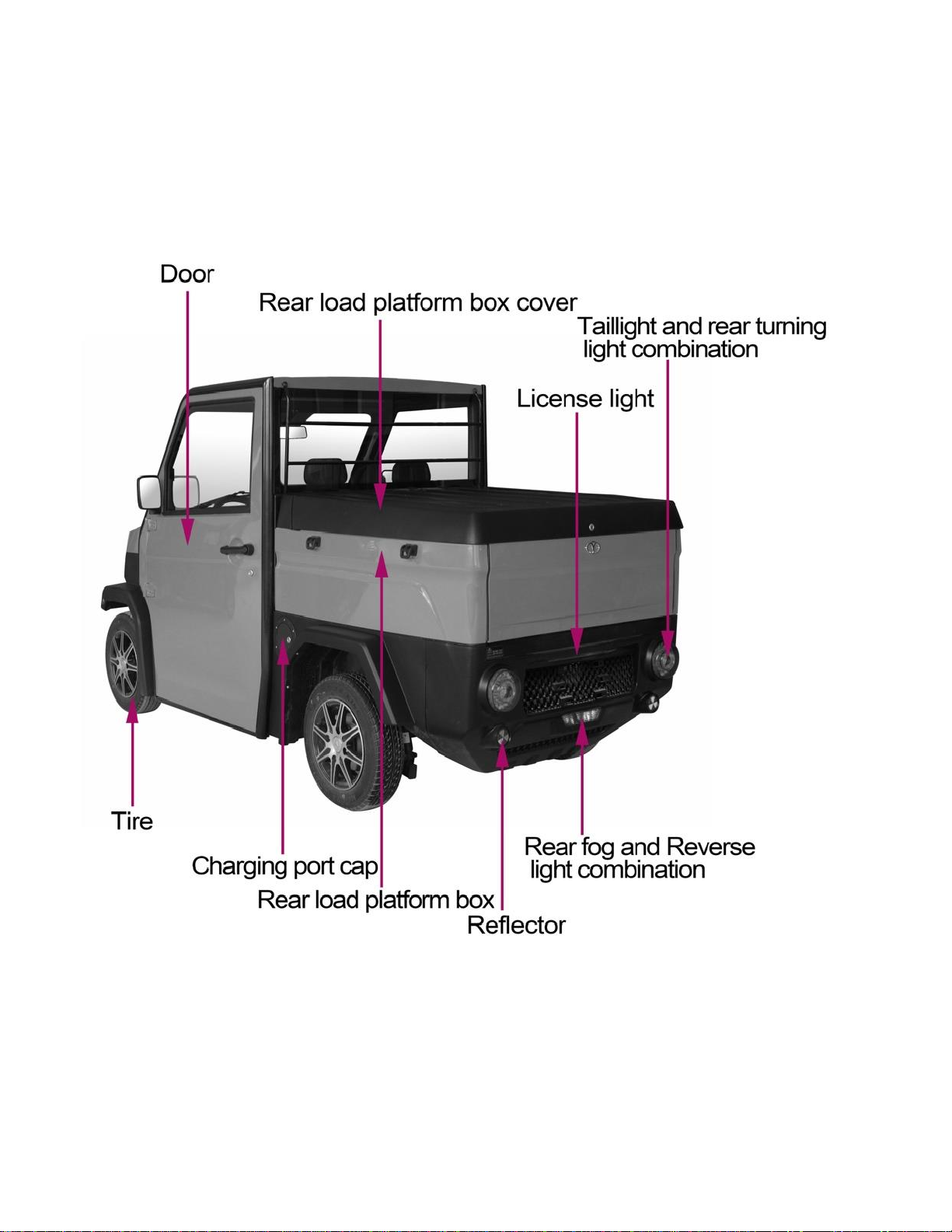

EXTERIOR

7

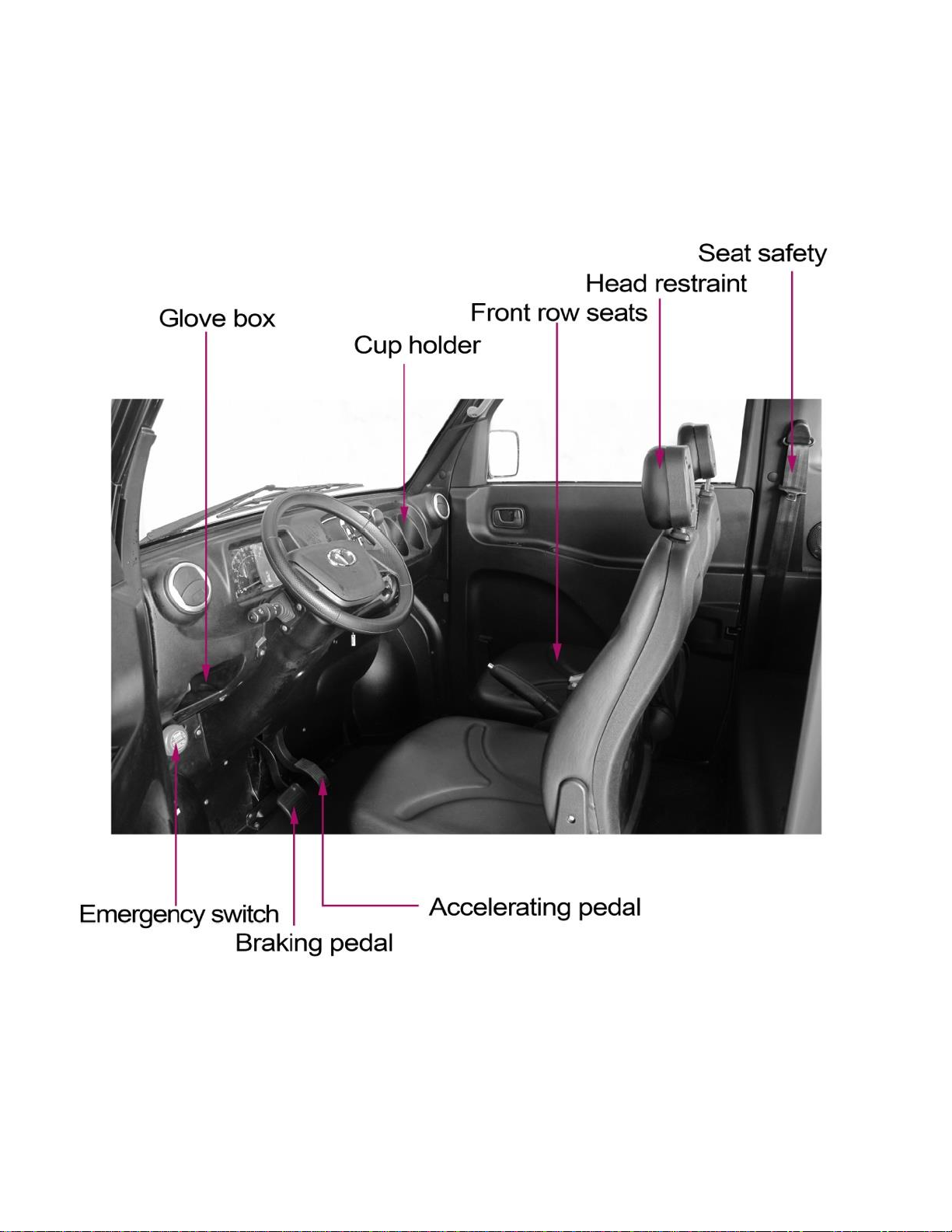

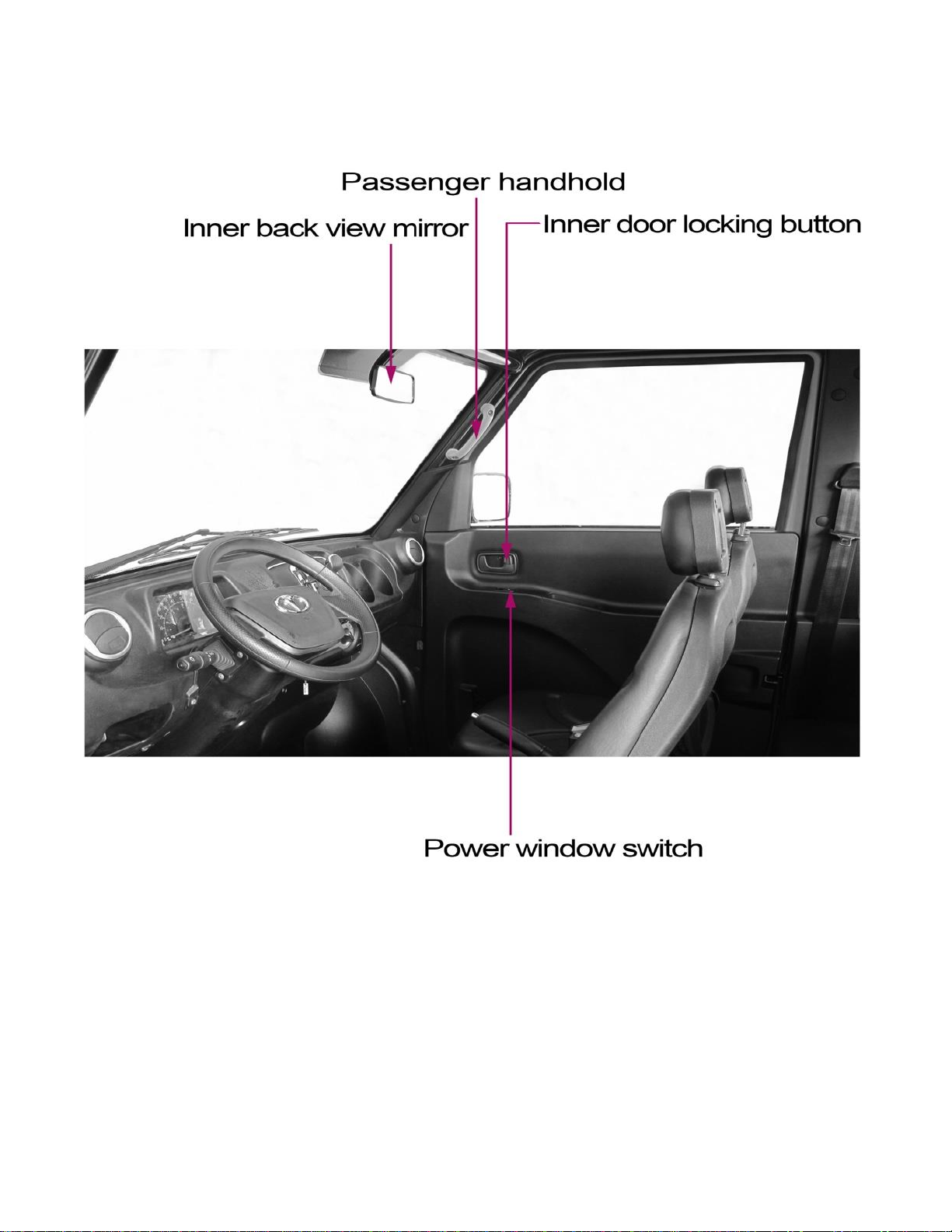

INTERIOR

8

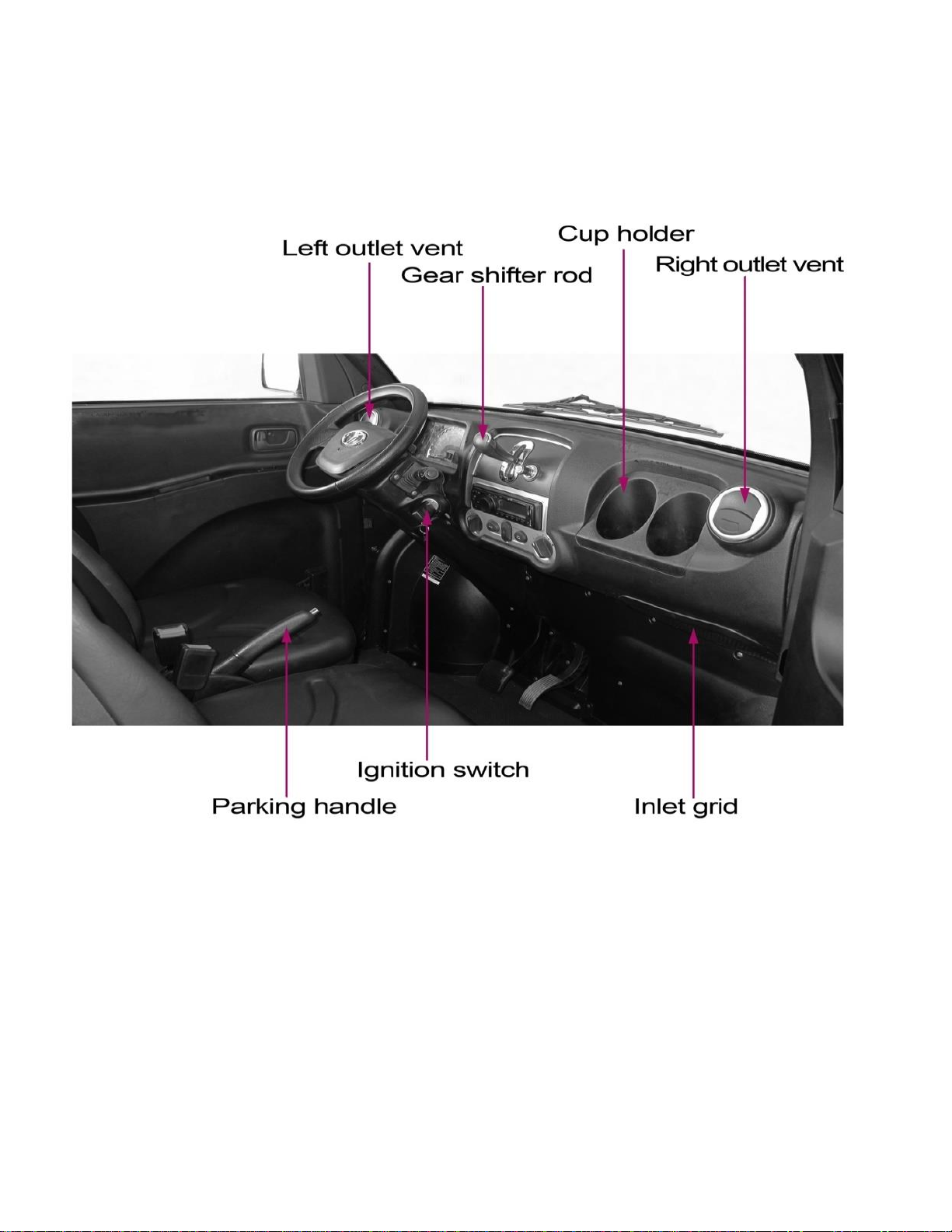

INTERIOR

9
INTERIOR

10

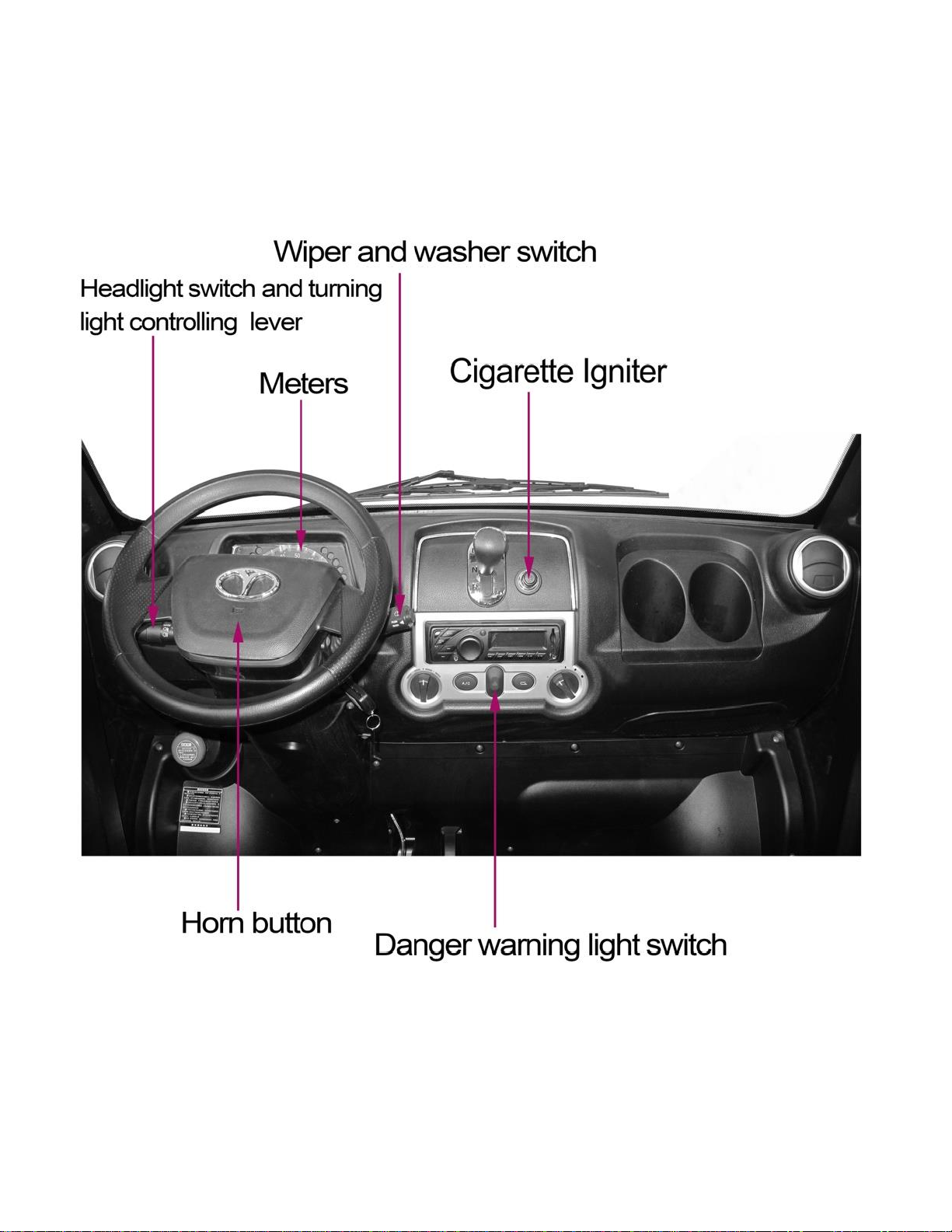

INTERIOR

11

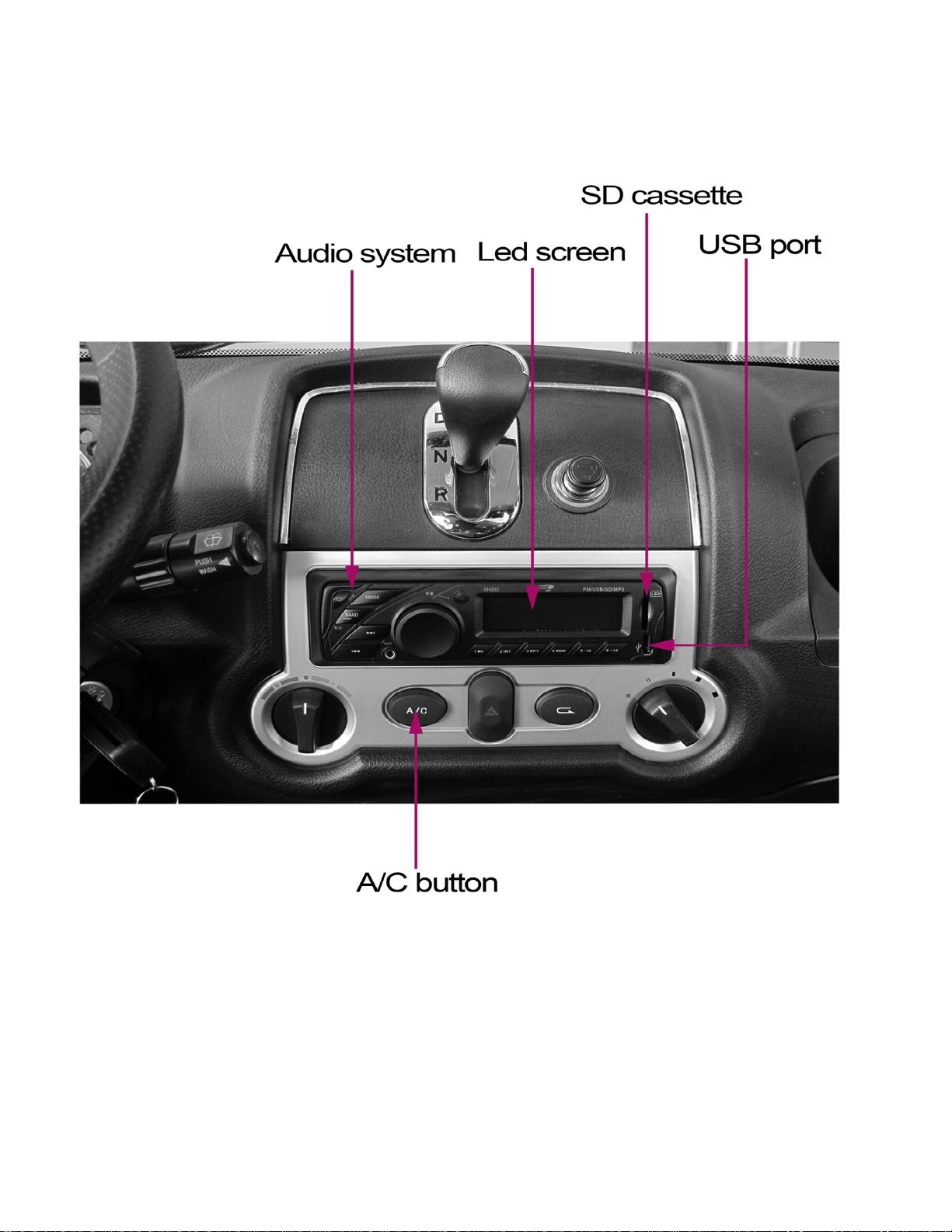

INTERIOR

12
Reference information
User’s manual
Please, read this manual throughly and competely before operating the vehicle. This manual contains important
information and tips to help you have the best possible driving experience. The manual will offer you with driving safety
tips, traffic safety information, and how to keep the vehicle in the best possible condition.
The manual must be transferred with the vehicle if the vehicle has a change of ownership.
This manual includes all models and options for the vehicle. Some options may not be installed on your vehicle.
Vehicle configuration is continuously changing to improve and ensure our products are at the highest possible safety
standards and of superior quality. Manual may be changed without notice to better improve the manual. The manufacture
and distributors are not responsible for any gramatical errors in this manul.
.
NOTE: Golf Car laws vary from state to state.
Do not modify or in anyway change the vehicle without using an authorized dealer. Any modifications done to the vehicle
by anyone except an authorized dealership will automatically VOID the warranty. We recommend using ATOMIC
ELECTRIC VEHICLES genuine parts when making any repairs or maintence. Non-genuine parts can damage the vehicle
or cause major safety hazzards. Use of non-genuine parts will automatically VOID the warranty.
Vehicle accessories and modification

13
Symbol used in the manual
Warning
This symbol stands for what is prohibited from being done to the vehicle to
reduce the possibility of accidents or injuries.
Caution
This symbol stands for what should not be done to avoid damaging the
vehicle.
This round symbol with the middle cross bar indicates what should not be done to the vehicle.
Arrow symbol indicates operations.
This arrow indicates pushing or a turning action to operate switches
and devices.
This arrow shows the result of the operation.
Important Notes
Safety label

14
Key
This vehicle is equipped with a foldable key.
■Opening key
Press button to open foldable key.
■Folding key
Press button and fold the key back after using.
Door
Doors can be opened, closed or locked with the key.
■Unlocking and locking the door
Insert the key into key hole,
□
1 To open the door, turn the key clockwise to unlock and pull the handle with button
pressed down.
□
2 To lock the door turn the key counter clockwise.

15
■Interior door lock button
□
1 Door locked
□
2 Door unlocked
■Unlocking and locking trunk
□
1 Unlocking trunk lid
□
2 Locking trunk lid

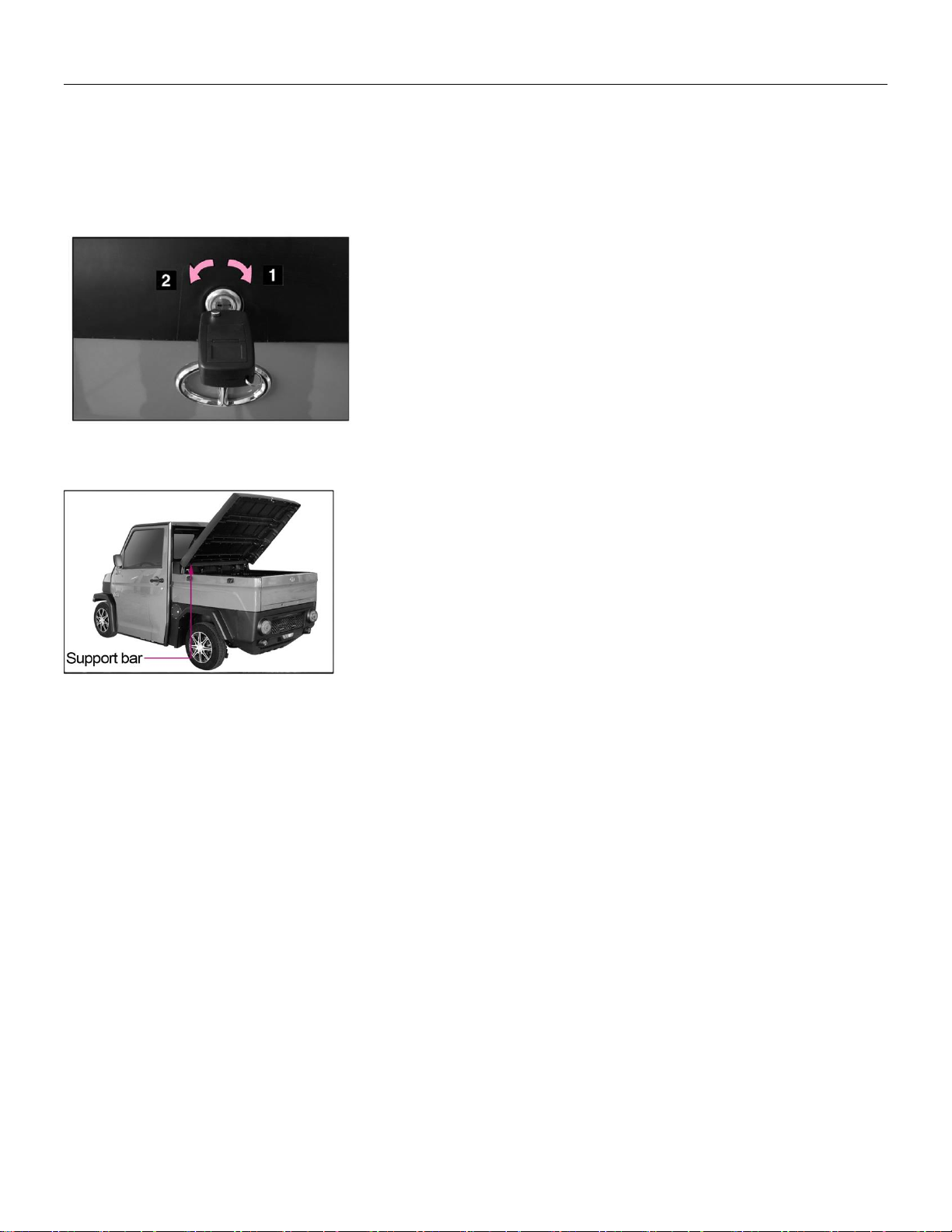

■When opening the trunk
Use support bar to hold the trunk lid.
■When closing the trunk
1. Remove support bar and place on hook.
2. Close trunk and lock it.

16
Cargo box
Cargo box cover can be unlocked or locked with the key.
■Unlocking and locking cargo box cover
□
1 Unlock cargo box cover
□
2 Lock cargo box cover
■Closing cargo box cover
Lower cargo box cover. Press down to close cargo box.
NOTE: On 2017 and beyond model, the key lock was relocated to the the tailgate. The key lock also pushes in to release the
cargo box cover

17

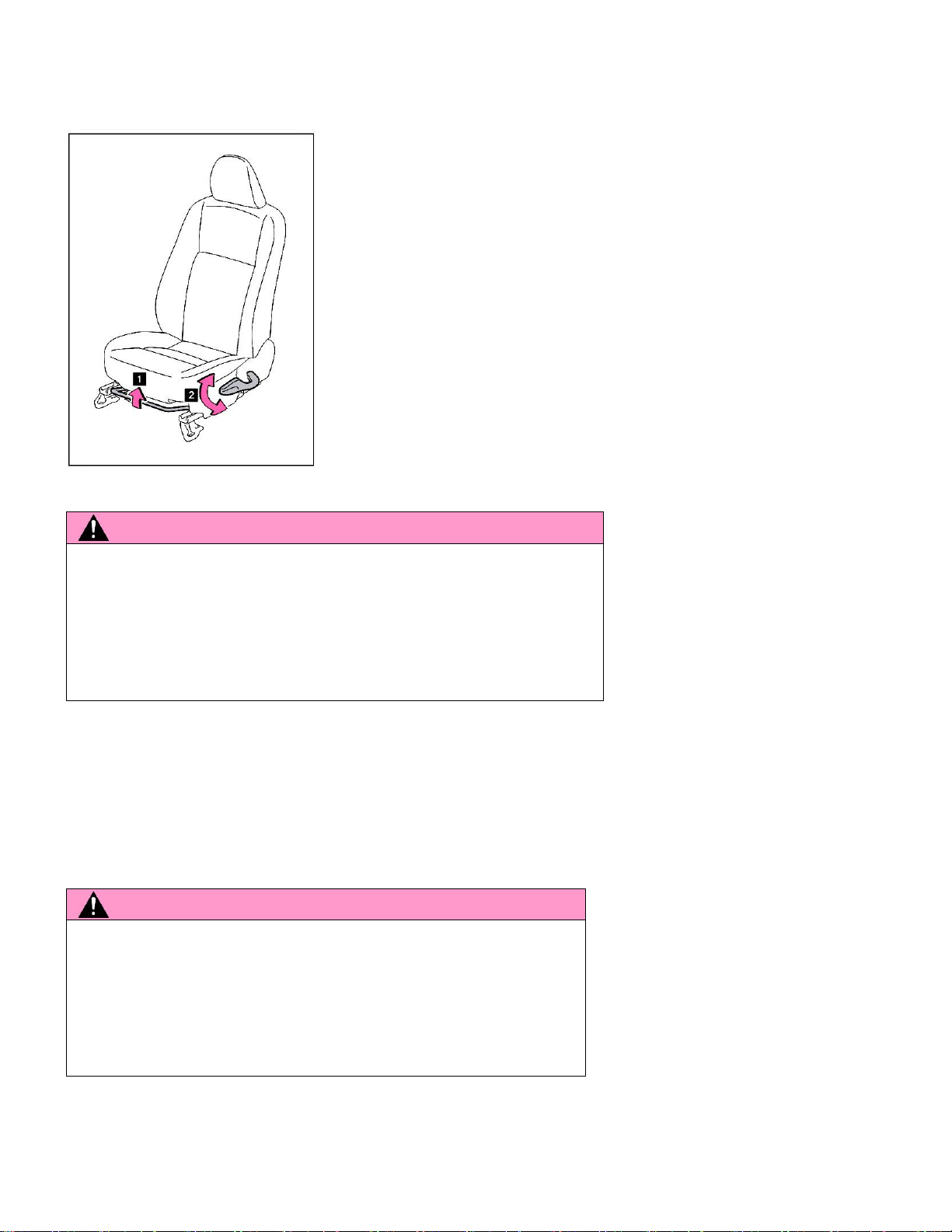

Front row seat
□
1 Seat position lever
□
2 Backrest angle lever
Rear row seats
■Foldable rear row seats
Pull up back seat locking hook and then fold the back rest down.

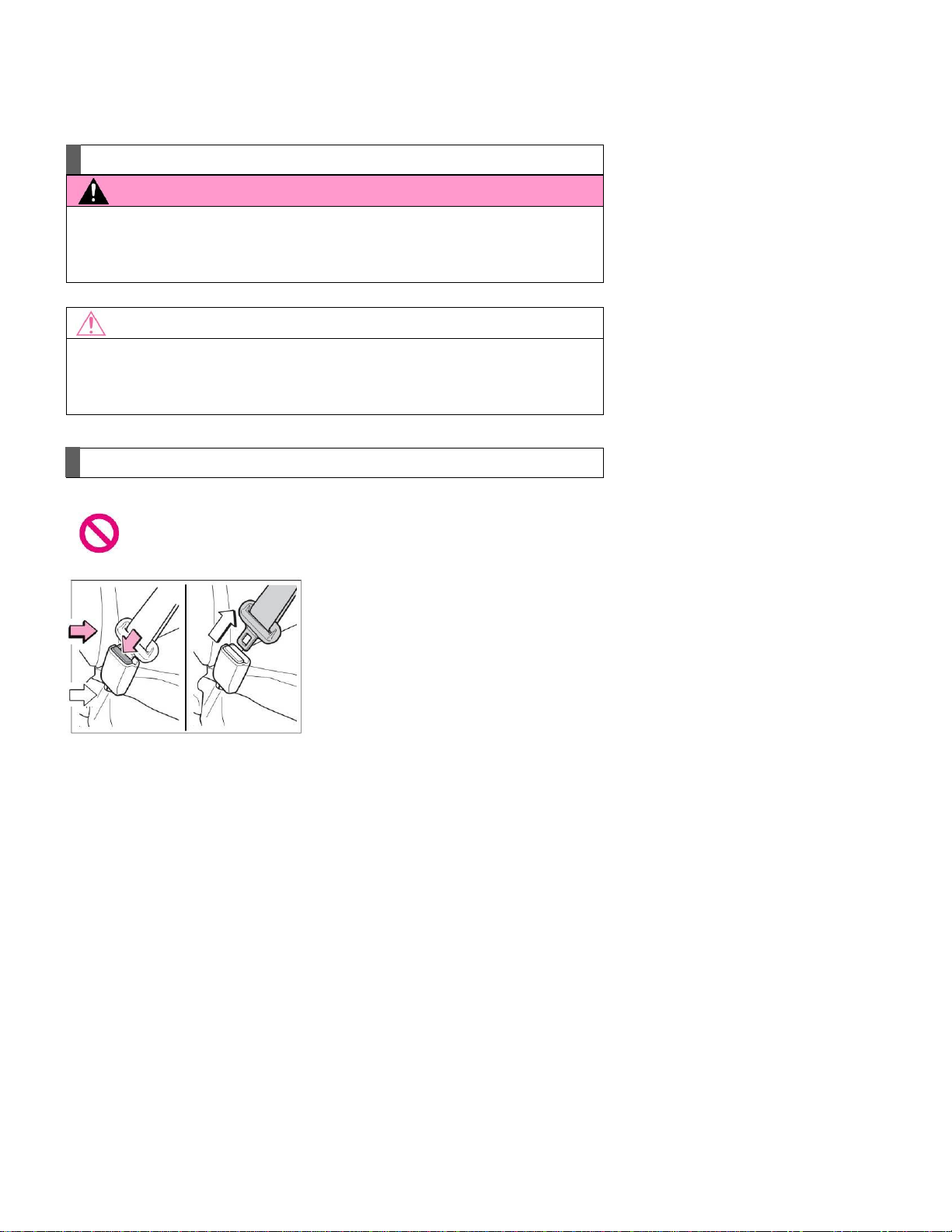

Warning
■Drive with backseat upright
Please observe the following or otherwise severe injury may occur.
●Check that the backseat is locked in the upright position before sitting in
the back.
Warning
■Adjusting Seat
●Do not adjust seat while driving.
●Ensure seat is locked in place after adjusting seat.

18

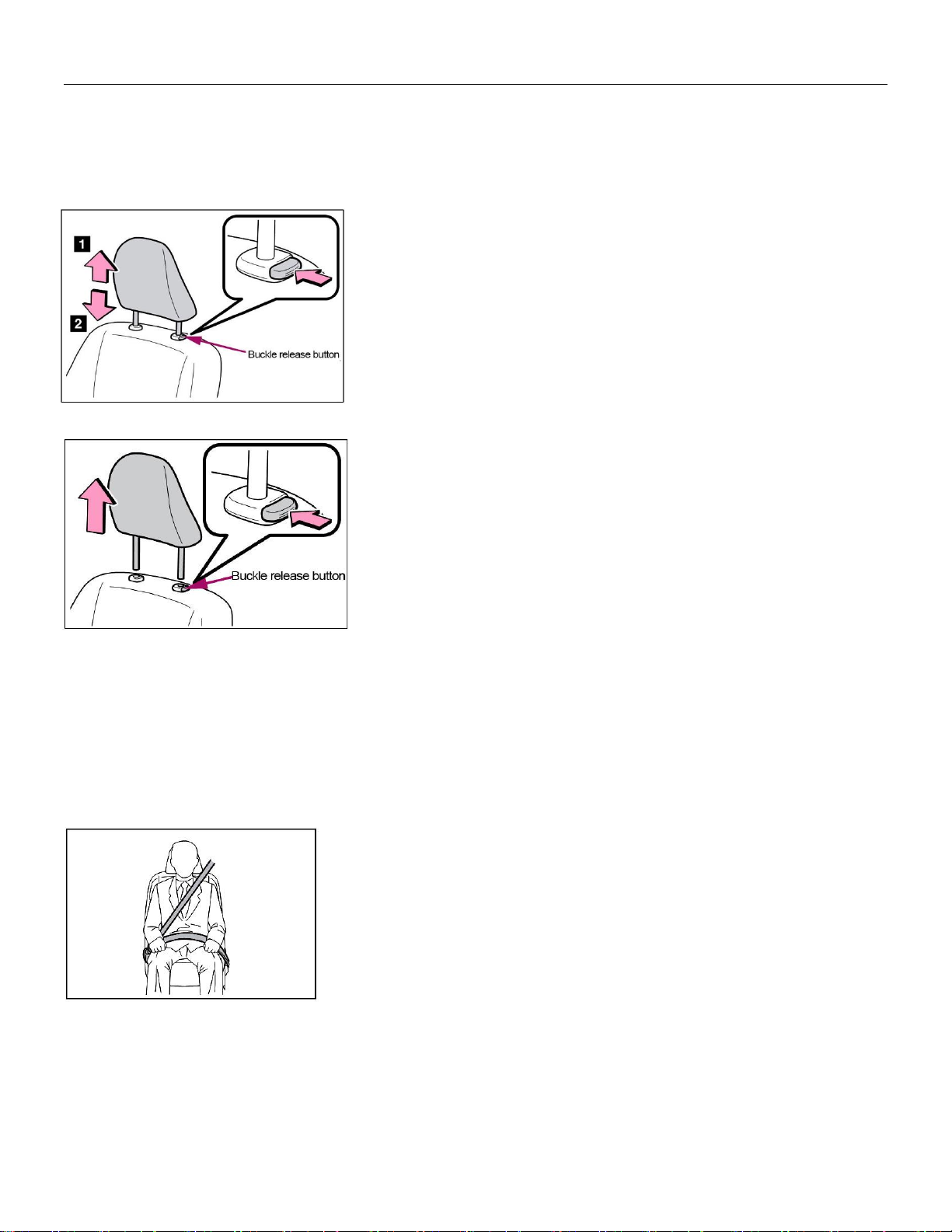

Headrest
■ Adjusting headrest
Vertical adjustment
□
1 Up
□
2 Down
Press and hold buckle release button and pull or push the headrest at same time.
■Removing headrest
Pull out the headrest while pressing buckle release button.
Seat safety belt
Ensure that all occupants are wearing their seat safety belts before driving
the vehicle.
■Correct use of the seat safety belt
●Extend the shoulder belt so that it comes fully over the shoulder, but does not come
into contact with the neck or slide off the shoulder.
●Position the lap belt as low as possible over your hips.
●Adjust the position of the seatback. Sit up straight in the seat.
●Do not twist the seat belt.

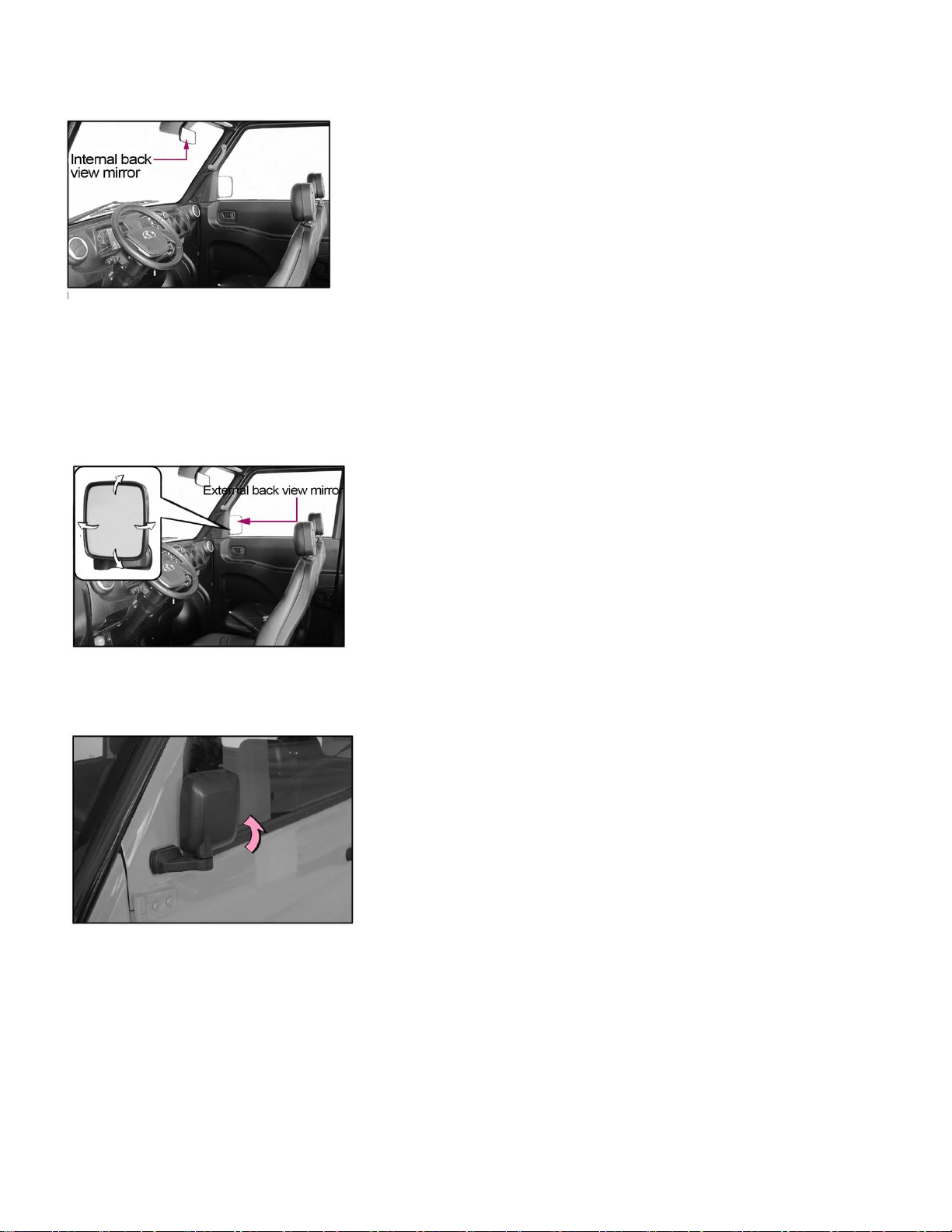

Rear view mirror

19
Adjust the angle of rear view mirror with your hand.
Side-view mirror
■Adjusting side-view mirror
Before driving adjust the two side view mirrors manually to proper position.
Adjust the mirror up, down, in,
or out by pushing the mirror
surface
■ Folding the mirror
Fold the mirror backwards toward the window when parked.
Push to fold the mirror.
