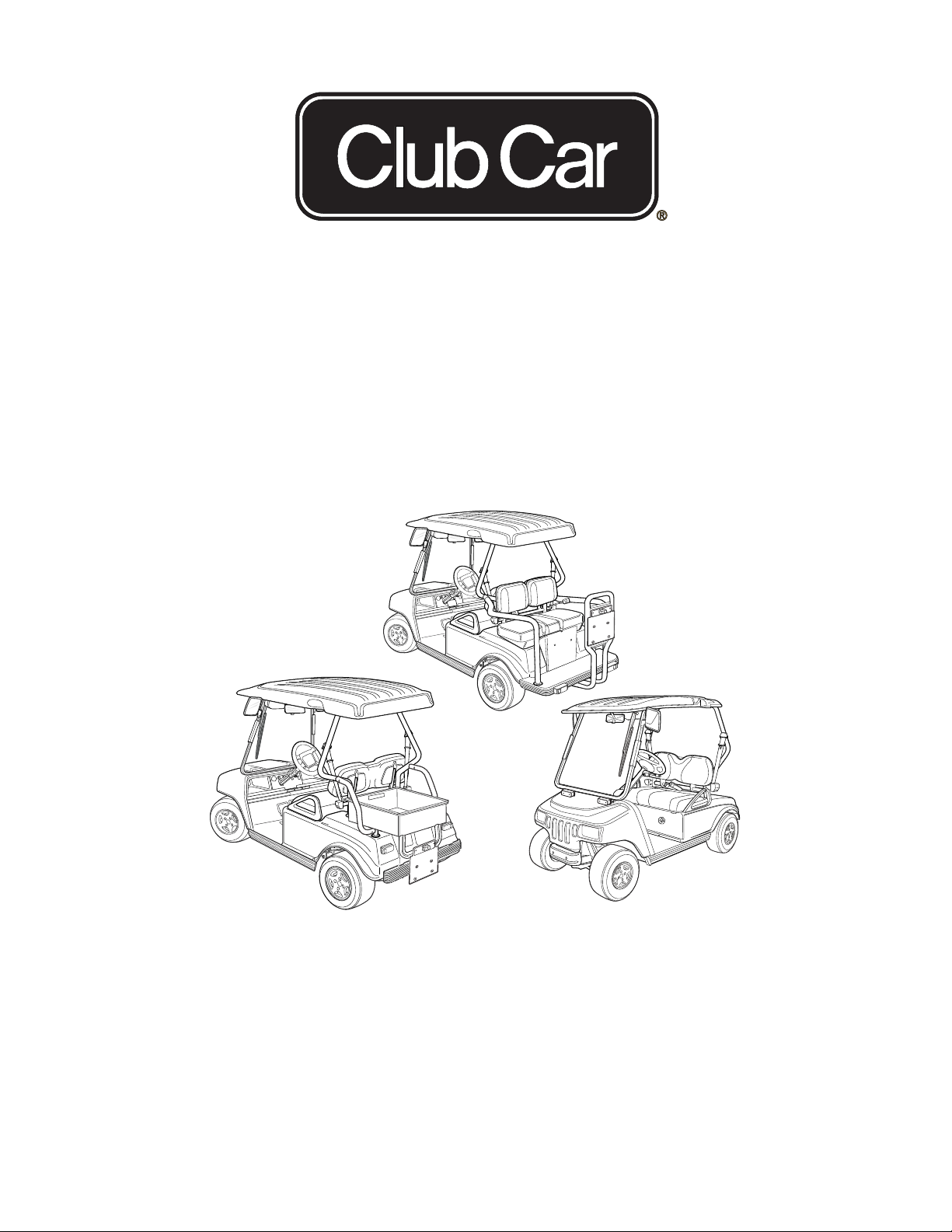

Club Car Villager Homologated LSV User manual

Manual Number 103814624
Edition Code 0711D0112C
Electric Low-Speed Vehicles
2011
Villager Homologated LSV

P. O. Box 204658
Augusta, Georgia 30917-4658 USA
Telephone [phone]
Service Parts Fax [phone]
www.clubcar.com
USING THE ILLUSTRATED PARTS LIST
ý WARNING
• This manual is to be used only for identification and ordering of service parts. Be sure to read and use
the maintenance and service manual before attempting any vehicle repairs.
This manual covers all Villager Homologated LSV vehicles built during the 2011 model year.
The manual is divided into sections. Note that there are two or three flags on the outside edge of each page. The
first flag contains the section number of which that page is a part. The other flag (or flags) contains the letter G or E,
signifying that the page pertains to the electric or gasoline vehicles only.
Use the Table of Contents to find the sections and pages that contain the parts and assemblies you seek. The Table
of Contents lists section numbers, and under them, the individual page titles and numbers to be found in that
section. The index can be used to find specific parts and assemblies. The index is divided into numerical and
alphabetical listings with the page numbers in italic text.
There is a two-page spread for each individual page title in the Table of Contents. On the left-hand page is an
illustration showing the parts in their relative positions; the parts are each tagged with an item number in a balloon.
The right-hand page is the parts list page, and gives the page title at the top, then the item numbers (corresponding
to the numbers on the illustration), part descriptions, and quantity of parts used.
Note that a part description may be indented. This indention corresponds to a parts assembly level indicated by the
numbers 1, 2, 3, and 4 at the top left corner of the parts description area of the parts list page. A part that is indented
to level 2 is a component of the level 1 part (assembly) that it is listed under. A level 3 part is a component of the level
2part that it is listed under, and a level 4 part is a component of the level 3 part preceding it. In each case, the part
quantity given for a level 2, 3, or 4 part is the quantity used per next higher level assembly of which it is a component. A
part that is not indented is a level 1 part. This means that the quantity given is the quantity used per the portion of
the vehicle illustrated on that particular spread.
HOW TO ORDER PARTS
Replacement parts and accessories can be obtained from our network of authorized dealers and distributors. You
can obtain the name and phone number of your closest authorized Club Car dealer or distributor by visiting our
web site at www.clubcar.com and clicking on the “Distributor Search” link or by calling our toll-free Service Parts and
Technical Assistance hotline at [phone] or [phone], extension 3887.

2011 Villager Homologated LSV
NOTE: This illustrated parts list represents the most current information at the time of publication. Club Car, LLC. is
continually working to further improve its vehicles and other products. These improvements may affect the
parts used to service the vehicle. Any modification and/or significant change in specifications will be for-
warded to all Club Car and Carryall distributors/dealers and will, when applicable, appear in future editions of
this illustrated parts list.
Club Car, LLC. reserves the right to change specifications and designs at any time without notice and without
the obligation of making changes to units previously sold.
Copyright © 2011 Club Car, LLC.
Club Car and ArmorFlex
are registered trademarks of Club Car, LLC.
This manual effective December 1, 2010.

2011 Villager Homologated LSV Page 1
CONTENTS
SECTION 1 – BODY AND TRIM
Front Seat Bottom and Armrests .............................................................................................................................................. 1-3
Rear-Facing Seat Bottom – Villager 2+2 ................................................................................................................................ 1-5

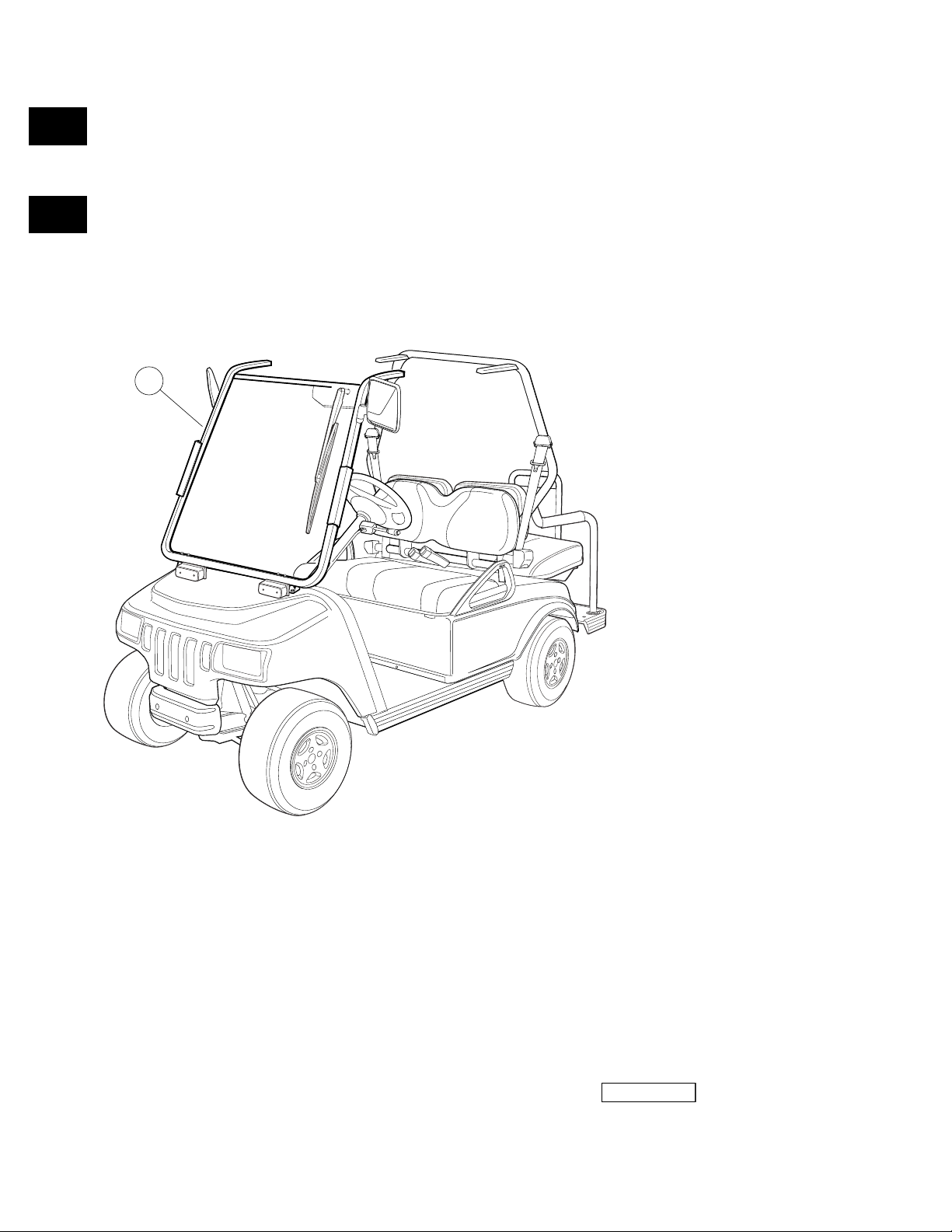

Mirrors, Windshield, Wiper – To Be Determined ................................................................................................................. 1-7

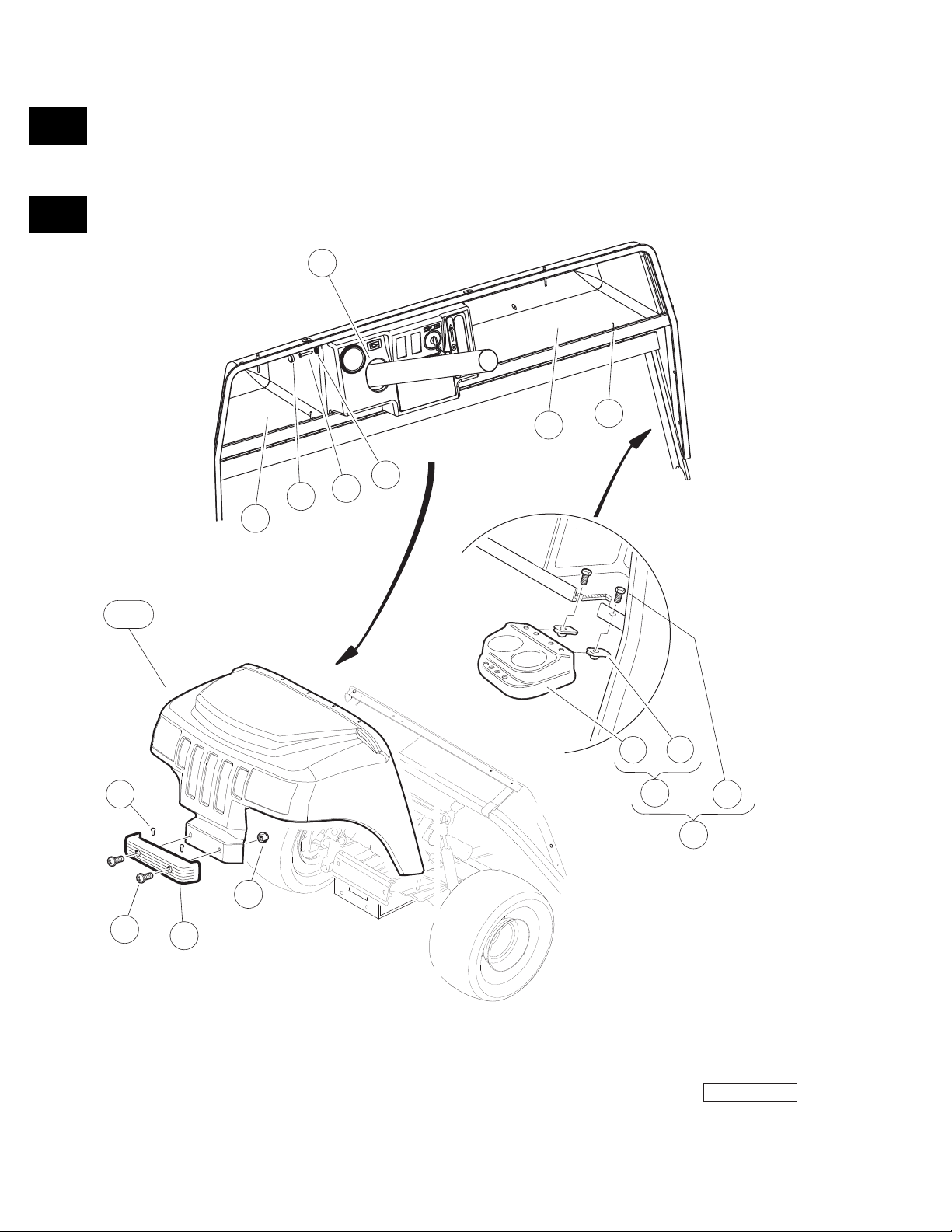

Front Body ........................................................................................................................................................................................ 1-9

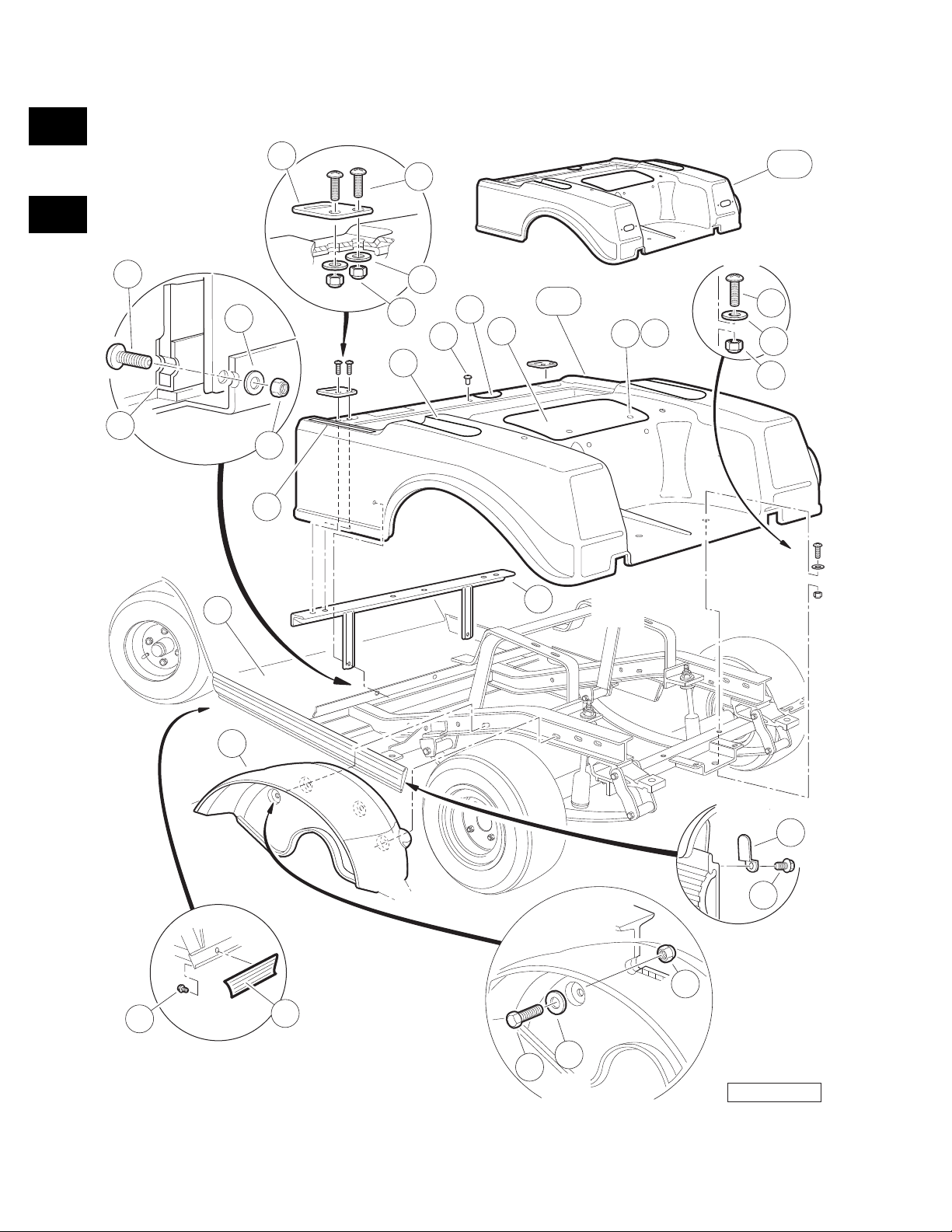

Rear Body and Fenders ................................................................................................................................................................ 1-11
Dash Canopy Brace and Cowl Trim .......................................................................................................................................... 1-13
TOPS – Villager 2 with Bed Box ................................................................................................................................................. 1-15
TOPS – Villager 2 ............................................................................................................................................................................. 1-17

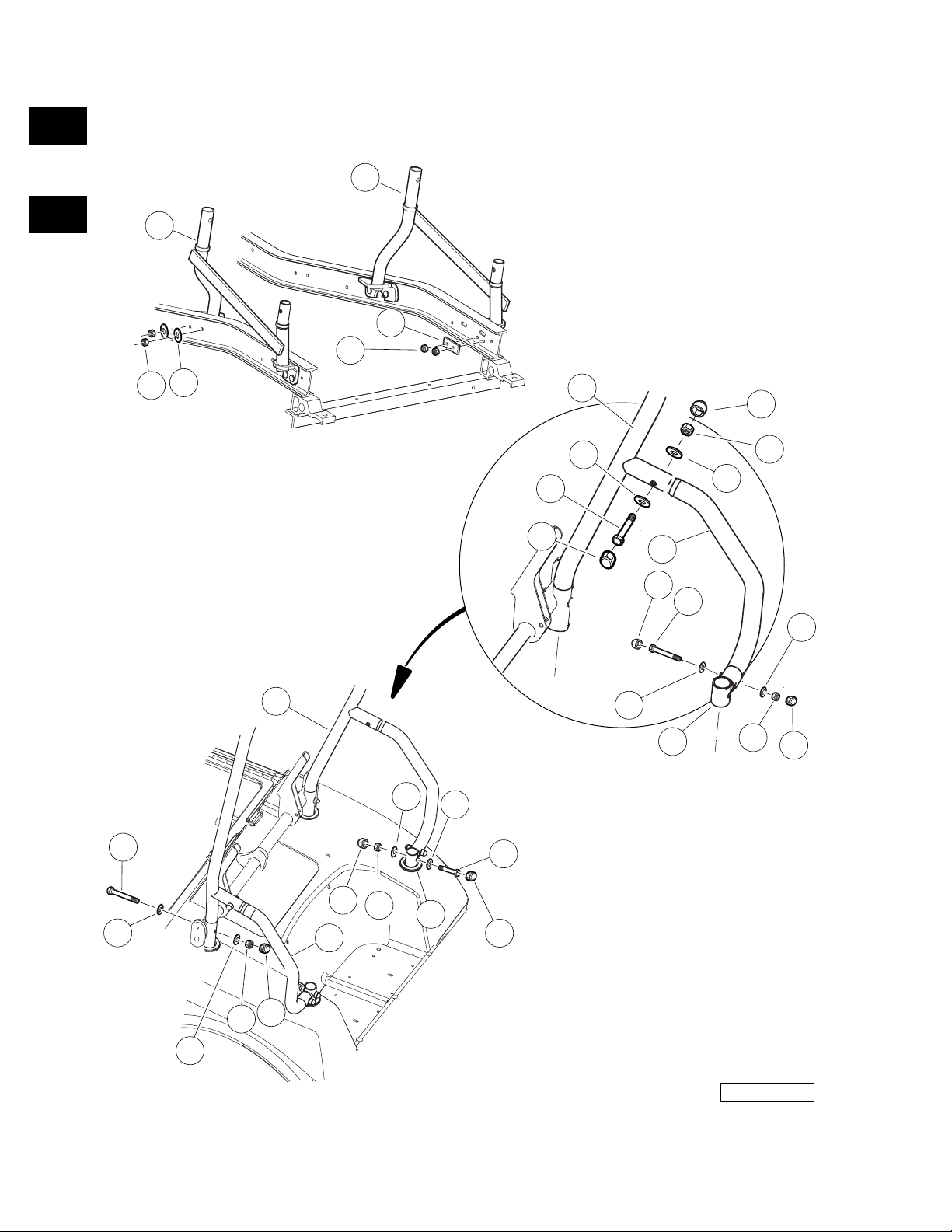

Rear Footrest and Handrails – Villager 2+2 ........................................................................................................................... 1-19
TOPS – Villager 2 + 2 ..................................................................................................................................................................... 1-21
Seat Backs ......................................................................................................................................................................................... 1-23
Seat Belts ........................................................................................................................................................................................... 1-25
Bed Box .............................................................................................................................................................................................. 1-27
Canopy ............................................................................................................................................................................................... 1-29
SECTION 2 – WHEELS AND TIRES
Wheels and Tires ............................................................................................................................................................................. 2-3
SECTION 3 – DECALS
Safety Decals .................................................................................................................................................................................... 3-3
Safety Decals – Continued .......................................................................................................................................................... 3-5
Logo Decals ...................................................................................................................................................................................... 3-7
SECTION 4 – BRAKES, PEDAL, AND CABLES
Rear Brake Assembly, Manually-Adjusted – Vehicles with 4-Wheel Brakes .............................................................. 4-3
Front Brake Assembly – Vehicles with Four-Wheel Brakes ............................................................................................. 4-5
Accelerator Pedal Assembly – Electric Vehicles with MCOR ........................................................................................... 4-7
Hand Brake ....................................................................................................................................................................................... 4-9
Brake Pedal ....................................................................................................................................................................................... 4-11
Brake Cables and Equalizer ......................................................................................................................................................... 4-13
Accelerator Pedal Assembly (Style B) ...................................................................................................................................... 4-15
SECTION 5 – STEERING, FRONT AND REAR SUSPENSION
Steering Column ............................................................................................................................................................................. 5-3
Steering Gear Assembly ............................................................................................................................................................... 5-5
Rear Suspension Components .................................................................................................................................................. 5-7
Front Suspension, Lower ............................................................................................................................................................. 5-9

Page 2 2011 Villager Homologated LSV
CONTENTS
Front Suspension, Upper ............................................................................................................................................................. 5-11
Front Spindles and Hubs .............................................................................................................................................................. 5-13
Steering Wheel ................................................................................................................................................................................ 5-15
SECTION 6 – ELECTRICAL SYSTEM
Motor Controller Output Regulator (MCOR) ......................................................................................................................... 6-3
Lighting Harness ............................................................................................................................................................................. 6-7
Speedometer .................................................................................................................................................................................... 6-9
Electrical Components, Front Body .......................................................................................................................................... 6-11
Wiring .................................................................................................................................................................................................. 6-15
Headlights ......................................................................................................................................................................................... 6-17
Turn Signals ....................................................................................................................................................................................... 6-19
Taillights and License Plate Light .............................................................................................................................................. 6-21
Electrical Components, Center Body ....................................................................................................................................... 6-23
Electrical Component Mounting Plate .................................................................................................................................... 6-25
Instrument Panel with Electrical Components .................................................................................................................... 6-27
Batteries .............................................................................................................................................................................................. 6-29
SECTION 7 – ELECTRIC MOTOR
Electric Motor (Model EJ9-4002) ................................................................................................................................................ 7-3
SECTION 8 – TRANSAXLE
Transaxle ............................................................................................................................................................................................ 8-3
SECTION 9 – BATTERY CHARGER
PowerDrive Battery Charger (Model 20310), European .................................................................................................... 9-3
Onboard PowerDrive Battery Charger (Model 17790), Export ....................................................................................... 9-5
Onboard Battery Charger and Reel Mounting ..................................................................................................................... 9-7
SECTION 10 – MAINTENANCE AND SERVICE TOOLS
Maintenance and Service Tools ................................................................................................................................................. 10-3
Maintenance and Service Tools, Continued ......................................................................................................................... 10-5
Maintenance and Service Tools, Continued ......................................................................................................................... 10-7
Maintenance and Service Tools, Continued ......................................................................................................................... 10-9
Maintenance and Service Tools, Continued ......................................................................................................................... 10-11
SECTION i – INDEX

G
E
1
D
BODY AND TRIM

Page 1-2 2011 Villager Homologated LSV
G
E
1
D
1
2
4
8
25
27
3
26
5
7
6
9
000364-003

E
G
1
2011 Villager Homologated LSV Page 1-3
ITEM PART NO. DESCRIPTION
1 2 3 4
QTY
D

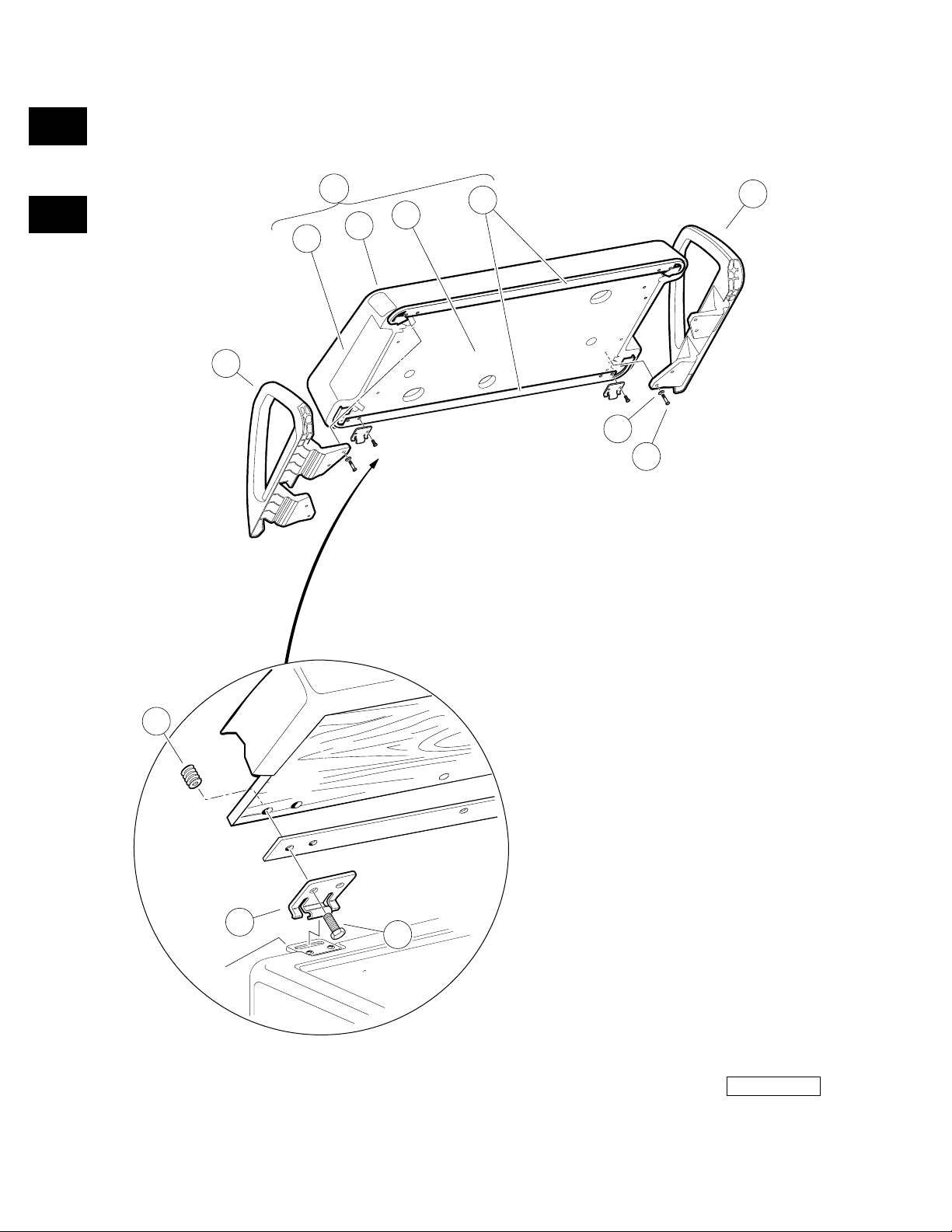

FRONT SEAT BOTTOM AND ARMRESTS
1 1010543 Insert - Wood ............................................................................................................................................... 4
2 1011652 Hinge Plate ................................................................................................................................................... 2
3 1016916 Screw, 1/4-20 X 1.50 Hex-Head Cap .................................................................................................... 8
4 101954301 Screw, 1/4-20 X 0.75 Hex-Head Cap .................................................................................................... 4
5 102174201 Seat Bottom Assembly, Buff (includes items 6 through 9) .......................................................... 1
6 N/A Plywood Assy ......................................................................................................................................... 1
7 101998211 Vinyl Cover Seat Btm - Buffsvc ......................................................................................................... 1
8 N/A Foam, Seat ............................................................................................................................................... 1
9 101998501 Gasket, Seat ............................................................................................................................................ 2
10 102174202 Seat Bottom Assembly, White (includes items 11 through 14) ................................................. 1
11 N/A Plywood Assy ......................................................................................................................................... 1
12 101998212 Vinyl Cover, Seat Bottom, White ...................................................................................................... 1
13 N/A Foam, Seat ............................................................................................................................................... 1
14 101998501 Gasket, Seat ............................................................................................................................................ 2
15 102174204 Seat Bottom Assembly, Black (includes items 16 through 19) .................................................. 1
16 N/A Plywood Assy ......................................................................................................................................... 1
17 101998214 Vinyl Cover, Seat Bottom, Black ....................................................................................................... 1
18 N/A Foam, Seat ............................................................................................................................................... 1
19 101998501 Gasket, Seat ............................................................................................................................................ 2
20 102174205 Seat Bottom Assembly, Gray (includes items 21 through 24) ................................................... 1
21 N/A Plywood Assy ......................................................................................................................................... 1
22 101998215 Vinyl Cover, Seat Bottom, Gray ........................................................................................................ 1
23 N/A Foam, Seat ............................................................................................................................................... 1
24 101998501 Gasket, Seat ............................................................................................................................................ 2
25 103246701 Hip Restraint, Drvr Side ............................................................................................................................ 1
26 103246801 Hip Restraint, Pass Side ............................................................................................................................ 1
27 332 Washer, 1/4 Type A Narrow Flat ............................................................................................................ 8
Note: Sub-components contained in items 10, 15, and 20 are the same as
those shown for item 5, except for the vinyl seat covers.

Page 1-4 2011 Villager Homologated LSV
G
E
1
D
33
16 14 15
32
3
11
32
10 6 10 97 85
4
33
12
32
34
30
31
13
2
1
000387-002

E
G
1
2011 Villager Homologated LSV Page 1-5
ITEM PART NO. DESCRIPTION
1 2 3 4
QTY
D

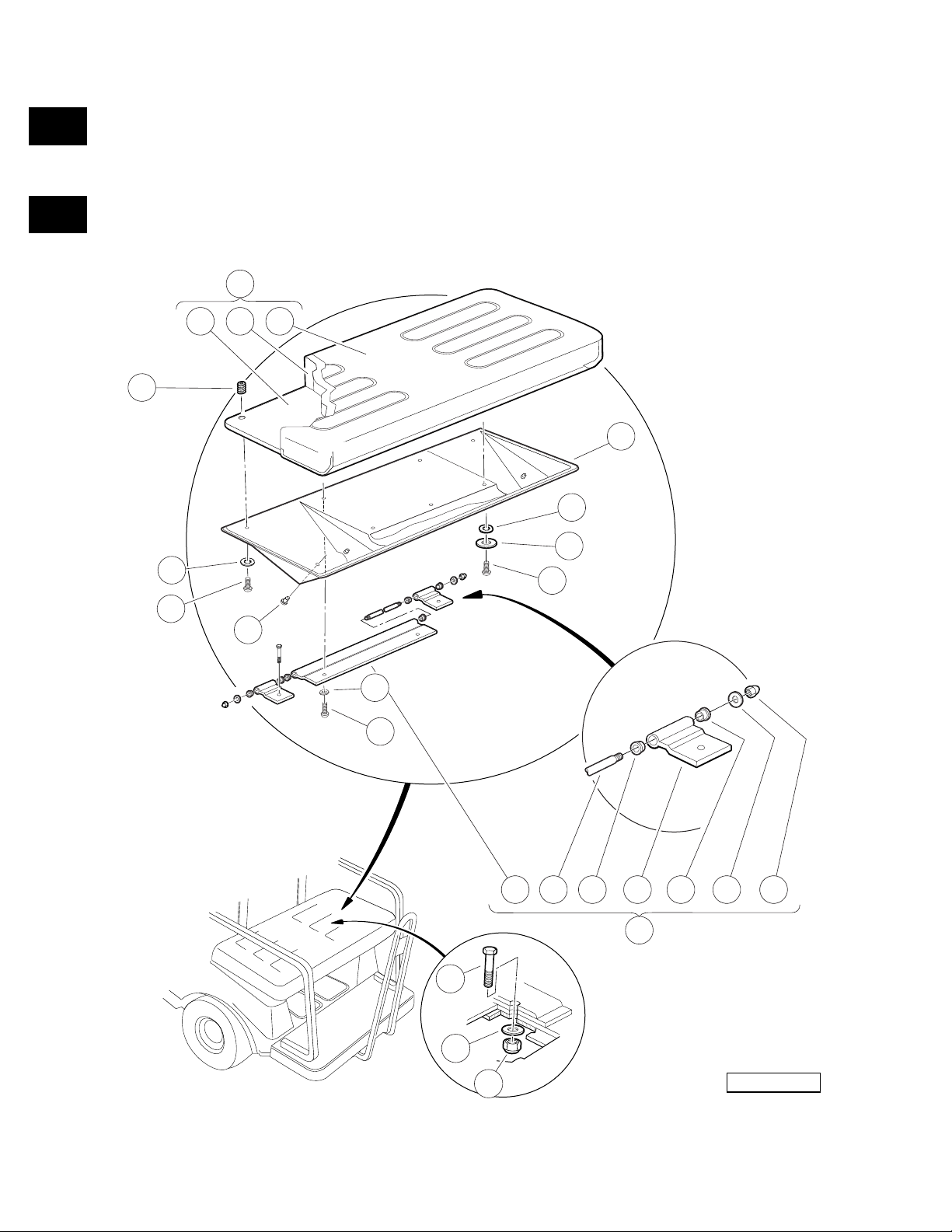

REAR-FACING SEAT BOTTOM – VILLAGER 2+2
1 1010436 Bumper, Rubber ......................................................................................................................................... 1
2 1010543 Insert - Wood ............................................................................................................................................... 7
3 1011210 Seat Support 4-Passenger ...................................................................................................................... 1
4 1011219 Hinge Assembly 4 Passenger (includes items 5 through 10) ..................................................... 1
5 1011220 Hinge Long 4 Passenger .................................................................................................................... 1
6 1011221 Hinge Short 4 Passenger ................................................................................................................... 2
7 1011222 Pin, Hinge, Long, 4-Pass ..................................................................................................................... 1
8 1015091 Nut, 1/4-20 Stainless-Steel Center-Lock Cap .............................................................................. 2
9 332 Washer, 1/4 Type A Narrow Flat ...................................................................................................... 2
10 8028 Rotor Stop, FNR ..................................................................................................................................... 6
11 1011578 Washer, 5/16 Type B Flat .......................................................................................................................... 3
12 1014007 Washer, 1/4 Flat .......................................................................................................................................... 2
13 101564804 Seat Bottom Assembly, Buff (includes items 14 through 16) ..................................................... 1
14 N/A Foam, Seat ............................................................................................................................................... 1
15 101562711 Vinyl Cover, Seat Bottom, Buff ......................................................................................................... 1
16 N/A Plywood Assy ......................................................................................................................................... 1
17 101564805 Seat Bottom Assembly, White (includes items 18 through 20) ................................................. 1
18 N/A Foam, Seat ............................................................................................................................................... 1
19 101562712 Vinyl Cover, Seat Bottom, White ...................................................................................................... 1
20 N/A Plywood Assy ......................................................................................................................................... 1
21 101564807 Seat Bottom Assembly, Gray (includes items 22 through 24) ................................................... 1
22 N/A Foam, Seat ............................................................................................................................................... 1
23 101562715 Vinyl Cover, Seat Bottom, Gray ........................................................................................................ 1
24 N/A Plywood Assy ......................................................................................................................................... 1
25 101564808 Seat Bottom Assembly, Black (includes items 26 through 28) .................................................. 1
26 N/A Foam, Seat ............................................................................................................................................... 1
27 101562714 Vinyl Cover, Seat Bottom, Black ....................................................................................................... 1
28 N/A Plywood Assy ......................................................................................................................................... 1
29 1016916 Screw, 1/4-20 X 1.50 Hex-Head Cap .................................................................................................... 2
30 1241 Washer, 5/16 Type A Flat ......................................................................................................................... 2
31 7473 Locknut, 5/16-18 Nylon Insert ............................................................................................................... 2
32 8251 Screw, 1/4-20 X 1.0 Truss-Head Machine ........................................................................................... 5
33 8304 Lockwasher, 1/4 Type A Int.tth .............................................................................................................. 5
34 8963 Screw, 5/16-18 X 1.75 Hex-Head Cap .................................................................................................. 2
Note: Sub-components contained in items 17, 21, and 25 are the same as
those shown for item 13, except for the vinyl seat covers.

Page 1-6 2011 Villager Homologated LSV
G
E
1
D
1
000922-002

E
G
1
2011 Villager Homologated LSV Page 1-7
ITEM PART NO. DESCRIPTION
1 2 3 4
QTY
D
MIRRORS, WINDSHIELD, WIPER – TO BE DETERMINED
1 N/A Kit, Wndshld/wiper/mirror, Hom .......................................................................................................... 1

Page 1-8 2011 Villager Homologated LSV
G
E
1
D
19
22
18
23
24
11-16
20
21
98
10
6
7
42
5
3
000920-003

E
G
1
2011 Villager Homologated LSV Page 1-9
ITEM PART NO. DESCRIPTION
1 2 3 4
QTY
D
FRONT BODY
1 1017080 Kit, Front Bumper (includes items 2 through 5) .............................................................................. 1
2 1016868 Front Bumper ......................................................................................................................................... 1
3 1016967 Blind Rivet, Push Type ......................................................................................................................... 2
4 7251 Screw, 5/16-18 x 1.0 Truss-Head ..................................................................................................... 2
5 7473 Locknut, 5/16-18 Nylon Insert ......................................................................................................... 2
6 101708301 Drink Holder Kit (includes items 7 through 10) .............................................................................. 2
7 1016811 Holder, Dual Cup (includes items 8 and 9) .................................................................................. 1
8 1016952 U-Nut, 1/4-20 ................................................................................................................................... 2
9 N/A Cup Holder, Dual ............................................................................................................................ 1
10 7847 Screw, 1/4-20 X 0.75 Hex-Head Cap ............................................................................................... 2
11 103746801 Cowl ................................................................................................................................................................ 1
12 103746802 Cowl, White, Vill Lsv ................................................................................................................................... 1
13 103746806 Cowl, Red, Vill Lsv ....................................................................................................................................... 1
14 103746809 Cowl, Dk Green, Vill Lsv ............................................................................................................................ 1
15 103746810 Cowl, Black, Vill Lsv .................................................................................................................................... 1
16 103746811 Cowl, Cl Blue, Vill Lsv ................................................................................................................................. 1
17 N/A Instl, Dash, Vill Lsv, Homol (includes items 18 through 24) ........................................................ 1
18 1011382 Washer, #10 Pan-Head Screw ........................................................................................................... 2
19 1013343 Dash Component, Passenger-Side, Black .................................................................................... 1
20 1013344 Dash Component, Driver-Side ......................................................................................................... 1
21 1013494 Cover, Screw Head ............................................................................................................................... 2
22 1015528 Screw, #10 x 1-1/4 Phillips Head ..................................................................................................... 2
23 102278001 Boot, Steering Column Round ......................................................................................................... 1
24 7973 Rivet, 3/16 X .400 Blind ....................................................................................................................... 5

Page 1-10 2011 Villager Homologated LSV
G
E
1
D
14
13
15
5
6
10
12
13
15
34
2
7
34
13
15 34
15
13
64
32
1933
29
17-22
8
30
23-28
16
000921-003

E
G
1
2011 Villager Homologated LSV Page 1-11
ITEM PART NO. DESCRIPTION
1 2 3 4
QTY
D
REAR BODY AND FENDERS
1 1010434 Barrel - Plastic .............................................................................................................................................. 1
2 1010993 Body Kick Plate ........................................................................................................................................... 1
3 N/A Instl, Side Trim - Std (includes items 4 through 6) ......................................................................... 1
4 1013983 Bumper, Side Trim ................................................................................................................................ 2
5 1017748 Body Keeper Clip .................................................................................................................................. 2
6 102310701 Screw, #8-18 x 0.375, Hex-Head Washer ...................................................................................... 8
7 1012412 Body, Hinge Plate ....................................................................................................................................... 2
8 1013032 Molded Access Door Black ..................................................................................................................... 1
9 1015525 Nut, 1/4-20 Blind ........................................................................................................................................ 2
10 1017141 Body Support Weldment ........................................................................................................................ 1
11 N/A Inner Fender Instl Gas (includes items 12 through 15) ................................................................ 1
12 1017936 Fender, Inner .......................................................................................................................................... 2
13 332 Washer, 1/4 Type A Narrow Flat ...................................................................................................... 4
14 7847 Screw, 1/4-20 X 0.75 Hex-Head Cap ............................................................................................... 4
15 8233 Locknut, 1/4-20 Nylon Insert ............................................................................................................ 4
16 102221201 Wear Pad ....................................................................................................................................................... 2
17 103810001 B ....................................................................................................................................................................... 1
18 103810002 Body, Rr, White, 2+2, Homol ................................................................................................................... 1
19 103810004 Body, Rr, Red, 2+2, Homol ....................................................................................................................... 1
20 103810005 Body, Rr, Dk Grn, 2+2, Homol ................................................................................................................ 1
21 103810006 Body, Rr, Black, 2+2, Homol .................................................................................................................... 1
22 103810007 Body, Rr, Cl Blue, 2+2, Homol ................................................................................................................. 1
23 103810501 Body, Rr, Beige, Vil2, Homol .................................................................................................................... 1
24 103810502 Body, Rr, White, Vil2, Homol ................................................................................................................... 1
25 103810504 Body, Rr, Red, Vil2, Homol ....................................................................................................................... 1
26 103810505 Body, Rr, Dk Grn, Vil2, Homol ................................................................................................................. 1
27 103810506 Body, Rr, Black, Vil2, Homol .................................................................................................................... 1
28 103810507 Body, Rr, Cl Blue, Vil2, Homol ................................................................................................................. 1
29 103825001 Trim, Body, Outer, Homol Vill ................................................................................................................. 2
30 103825002 Trim, Body, Center, Homol Vill ............................................................................................................... 1
31 N/A Instl, Floormat, Hndbrk, Badgd (includes item 32) ........................................................................ 1
32 101503204 Floormat - Badged Parkbrake .......................................................................................................... 1
33 8248 Screw, 1/4-20 X 0.75 Truss-Head Machine ........................................................................................ 2
34 8251 Screw, 1/4-20 X 1.0 Truss-Head Machine ........................................................................................... 4

Page 1-12 2011 Villager Homologated LSV
G
E
1
D
000823-002
5
6
7
4
2
12
11
15
13 15
9
8
10
14
16
17
14
16
17
8
23

E
G
1
2011 Villager Homologated LSV Page 1-13
ITEM PART NO. DESCRIPTION
1 2 3 4
QTY
D
DASH CANOPY BRACE AND COWL TRIM
1 N/A Instl, Closeout, Dash (includes items 2 through 17) ...................................................................... 1
2 1011017 Screw, #8-32 X 0.375 ............................................................................................................................ 4
3 1011659 #8-32 Unc-2b Slub Base Teenut ...................................................................................................... 4
4 101954301 Screw, 1/4-20 X 0.75 Hex-Head Cap ............................................................................................... 2
5 102025801 Screw, 1/4-20 X .75 Torx Pn Hd ........................................................................................................ 5
6 102045001 Cap, 1/4" Plastic Screw Head ............................................................................................................ 5
7 102048401 Washer, 1/4 Id Scalloped Plast ......................................................................................................... 5
8 102242101 Screw, 5/16-18 X 3/4 Hex-Head with Patch ................................................................................. 2
9 102778601 Support, Upper Cowl .......................................................................................................................... 1
10 103313301 Asm, Brace, Canopy, Tube, Xrt ......................................................................................................... 1
11 103364101 Panel, Closeout, Dash .......................................................................................................................... 1
12 103364201 Strip, Trim, Dash, Black ........................................................................................................................ 1
13 103395101 Plate, Retention, Closeout ................................................................................................................. 1
14 1241 Washer, 5/16 Type A Flat .................................................................................................................... 2
15 1606 Rivet, 3/16 X .500 Alum Pop ............................................................................................................. 2
16 332 Washer, 1/4 Type A Narrow Flat ...................................................................................................... 2
17 8233 Locknut, 1/4-20 Nylon Insert ............................................................................................................ 2

Page 1-14 2011 Villager Homologated LSV
G
E
1
D
000930-003
15
3
16
3
11
4
1
16
11
2
3
11
3
13
16
11
3
11
12
14
1
16
3
11
11
3
8
10
9
10
6
7
4
13
