TREADMILL OWNER’S MANUAL
MANUEL DU PROPRIÉTAIRE DU TAPIS ROULANT
MANUAL DEL PROPIETARIO DE LA CAMINADORA
Read the TREADMILL GUIDE before using this OWNER’S MANUAL.
Lire le GUIDE D’UTILISATION DU TAPIS ROULANT avant de se référer au présent MANUEL DU PROPRIÉTAIRE.
Lea la GUÍA DE LA CAMINADORA antes de utilizar este MANUAL DEL PROPIETARIO.

3 ENGLISH
32 FRANÇAIS
62 ESPAÑOL

3
IMPORTANT PRECAUTIONS
SAVE THESE INSTRUCTIONS
When using an electrical product, basic precautions should always be followed, including the following: Read all instructions before
using this treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings
and precautions. If you have any questions after reading this guide, contact Customer Tech Support at the number listed on the back
panel of the OWNER’S MANUAL.
This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional setting. Failure
to comply will void the warranty.

4
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
• Never use the treadmill before securing the safety tether clip to your clothing.
• If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness of breath, stop exercising
immediately and consult your physician before continuing.
• When exercising, always maintain a comfortable pace.
• Do not wear clothes that might catch on any part of the treadmill.
• Always wear athletic shoes while using this equipment.
• Do not jump on the treadmill.
• At no time should more than one person be on treadmill while in operation.
• This treadmill should not be used by persons weighing more than specified in the OWNER’S MANUAL WARRANTY SECTION. Failure to
comply will void the warranty.
• When lowering the treadmill deck, wait until rear feet are firmly on the floor before stepping on the deck.
• Disconnect all power before servicing or moving the equipment. To clean, wipe surfaces down with soap and slightly damp cloth only;
never use solvents. (See MAINTENANCE)
• The treadmill should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or taking off
parts.
• Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
• Connect this exercise product to a properly grounded outlet only.
WARNING
TO REDUCE THE RISK OF ELECTRICAL SHOCK:
Always unplug the treadmill from the electrical outlet immediately after using, before cleaning, performing maintenance and putting on or
taking off parts.
DANGER

5
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
• At NO time should pets or children under the age of 13 be closer to the treadmill than 10 feet.
• At NO time should children under the age of 13 use the treadmill.
• Children over the age of 13 or disabled persons should not use the treadmill without adult supervision.
• Use the treadmill only for its intended use as described in the treadmill guide and owner’s manual.
• Do not use other attachments that are not recommended by the manufacturer. Attachments may cause injury.
• Never operate the treadmill if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged,
or immersed in water. Return the treadmill to a service center for examination and repair.
• Keep power cord away from heated surfaces. Do not carry this unit by its supply cord or use the cord as a handle.
• Never operate the treadmill with the air opening blocked. Keep the air opening clean, free of lint, hair, and the like.
• To prevent electrical shock, never drop or insert any object into any opening.
• Do not operate where aerosol (spray) products are being used or when oxygen is being administered.
• To disconnect, turn all controls to the off position, then remove plug from outlet.
• Do not use treadmill in any location that is not temperature controlled, such as but not limited to garages, porches, pool rooms,
bathrooms, car ports or outdoors. Failure to comply will void the warranty.
• This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional setting. Failure
to comply will void the warranty.
• Do not remove the console covers unless instructed by Customer Tech Support. Service should only be done by an authorized service a
technician.
It is essential that your treadmill is used only indoors, in a climate controlled room. If your treadmill has been exposed to colder
temperatures or high moisture climates, it is strongly recommended that the treadmill is warmed up to room temperature before first
time use. Failure to do so may cause premature electronic failure.
WARNING
This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
WARNING

6
GROUNDING INSTRUCTIONS
This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path of least resistance for electrical
current to reduce the risk of electrical shock. This product is equipped with a cord having an equipment-grounding conductor and a
grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with local codes
and ordinances.
Connect this exercise product to a properly grounded outlet only.
Never operate product with a damaged cord or plug even if it is working properly.
Never operate any product if it appears damaged, or has been immersed in water.
Contact Customer Tech Support for replacement or repair.
3-POLE
GROUNDED
OUTLET
GROUNDING PIN
WARNING
DANGER
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or
service provider if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product.
If it will not fit the outlet, have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 110-120 Volt circuit and has a grounding plug that looks like the plug in the illustration. Make sure that
the product is connected to an outlet having the same configuration as the plug. No adapter should be used with this product.
This product must be used on a dedicated circuit. To determine if you are on a dedicated circuit, shut off the power to that circuit and
observe if any other devices lose power. If so, move devices to a different circuit. Note: There are usually multiple outlets on one circuit.
This treadmill should be used with a minimum 20-amp circuit.

7
ASSEMBLY
There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly
instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the treadmill
could have parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage to the treadmill, the
assembly instructions must be reviewed and corrective actions should be taken.
Before proceeding, find your treadmill’s serial number located on a white barcode sticker near
the on/off power switch and power cord and enter it in the space provided below.
ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:
» Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
SERIAL NUMBER:
TM
WARNING
SERIAL NUMBER LOCATION
MODEL NAME: AFG PRO 7.2AT TREADMILL

8
SPEAKERS
CONSOLE FAN
WATER BOTTLE HOLDER
GRIP PULSE HANDLERAILS
ON/OFF SWITCH
POWER CORD
MAST BOOT
RUNNING BELT/RUNNING DECK
TRANSPORT WHEEL
FOOT LOCK LATCH DECAL
(UNDERNEATH FOOT LATCH)
TABLET/READING RACK
CONTROL PANEL AND DISPLAY WINDOWS
CONSOLE
SAFETY KEY PLACEMENT
CROSS BAR
CONSOLE MAST
FOOT LATCH (UNDERNEATH DECK)
MOTOR COVER
SIDE RAIL
ROLLER END CAP
REAR ROLLER
TENSION/ALIGNMENT BOLTS
CONSOLE JOINT COVER
CONSOLE JOINT COVER

9
TOOLS INCLUDED:
F6 mm T-Wrench
F5 mm L-Wrench
PARTS INCLUDED:
F1 Console Assembly
F2 Console Masts
F2 Console Mast Boots
F1 Hardware Kit
F1 Safety Key
F1 Audio Adapter Cable
F1 Bottle of Silicone Lubricant
(for 2 applications)
F1 Crossbar
F1 Power Cord
F2 Console Joint Covers
If you have questions or if there
are any missing parts, contact
Customer Tech Support. Contact
information is located on the
back panel of this manual.
DO NOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift treadmill from
packaging until specified to do so in the assembly instructions. You may remove the
plastic wrap from console masts.
WARNING
UNPACKING
Place the treadmill carton on a level flat surface. It is recommended that you place a
protective covering on your floor. Take CAUTION when handling and transporting this unit.
Never open box when it is on its side. Once the banding straps have been removed, do not
lift or transport this unit unless it is fully assembled and in the upright folded position, with
the lock latch secure. Unpack and assemble the unit where it will be used. The enclosed
treadmill is equipped with high-pressure shocks and may spring open if mishandled. Never
grab hold of any portion of the incline frame and attempt to lift or move the treadmill.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!
WARNING
NEED HELP?
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and partially
threaded in before completely tightening any ONE bolt.
NOTE: A light application of grease may aid in the installation of hardware. Any grease, such
as lithium bike grease is recommended.
PRE ASSEMBLY

10

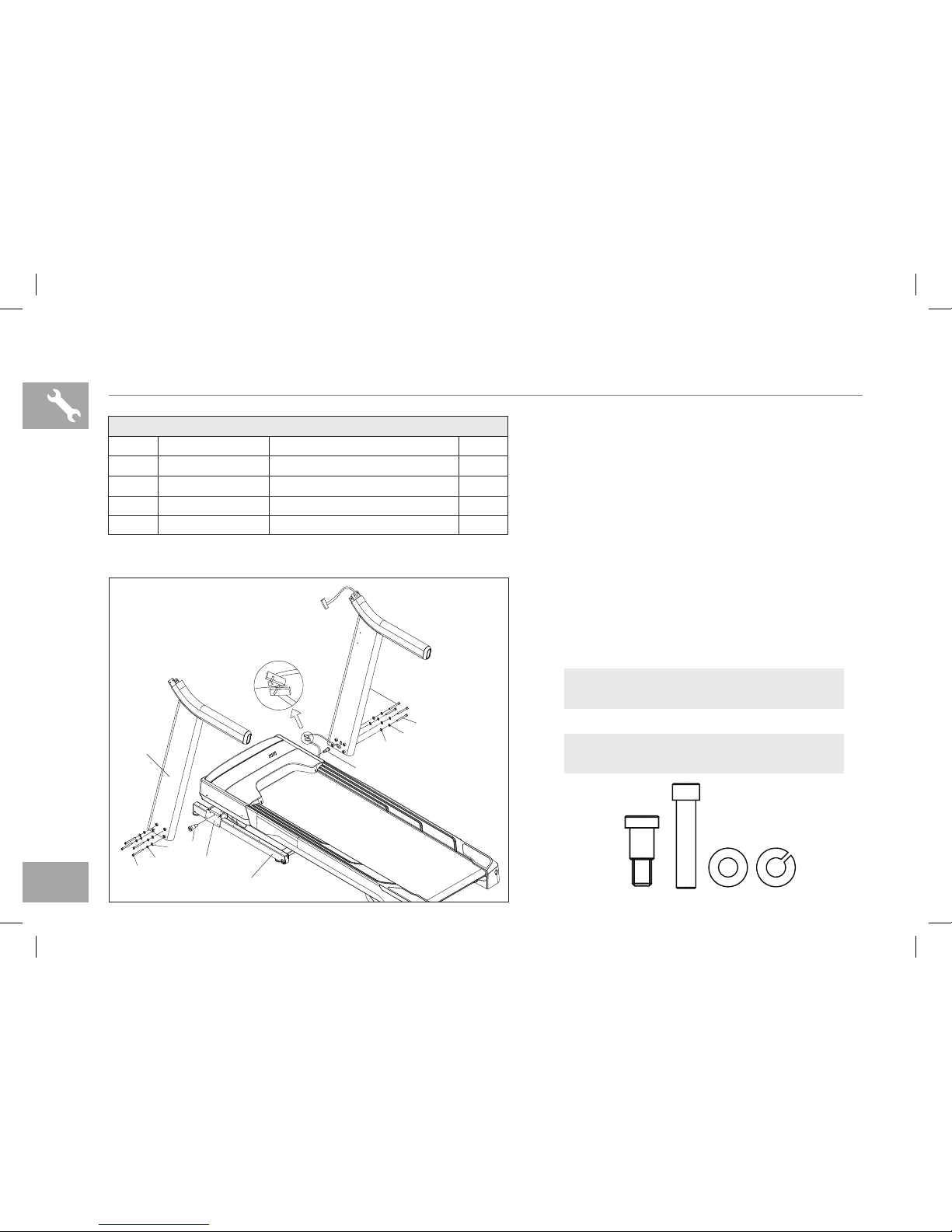

ASSEMBLY STEP 1
A Cut the yellow banding straps and lift the running
deck upward from the rear to remove all contents from
underneath the running deck.
B Open HARDWARE FOR STEP 1.
C Insert 2 BOLTS (A) into MAIN FRAME BRACKETS (15).
D Pull the CONSOLE CABLE (2) away from the treadmill
base frame. Connect the CONSOLE CABLE (2) from the
MAIN FRAME (1) to the CONSOLE CABLE (2) in the
bottom of the RIGHT CONSOLE MAST (4). The other
end of the CONSOLE CABLE should be located at the
top of the mast.
E Attach RIGHT CONSOLE MAST (3) to MAIN FRAME
(1) using 4 BOLTS (A), 4 FLAT WASHERS (C) AND 4
SPRING WASHERS (D)
NOTE: Be careful not to pinch the console
cable while attaching the right console mast.
M8X1.25PX11L-D10X13.2L 2A HEX SOCKET BOLT
A
NOTE: Do not fully tighten bolts until STEP 6.
A
A
2
1
4
15
B
C
D
B
C
D
BC D
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
M8X1.25PX80L-20L 8B BOLT
8.2X15.4X2.0T 8C SPRING WASHER
8.4X15.5X1.6T 8
DFLAT WASHER
F Repeat STEP E on the RIGHT SIDE.
4

11
ASSEMBLY STEP 2
A Open HARDWARE FOR STEP 2.
B Attach LEFT SIDE of the CROSSBAR (10) to the
UPRIGHT MAST (4) loosely using 2 BOLTS (N).
C Repeat STEP B on the RIGHT SIDE.
NOTE: Do not fully tighten bolts until STEP 6.
4
N
N
N
N
N
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
M6X1.0PX15L 4N HEX SOCKET BOLT

12
A Open HARDWARE FOR STEP 3.
B Gently place the CONSOLE (5) on top of the CONSOLE
MASTS (3&4). Attach the LEFT SIDE first using 3 BOLTS
(E), 3 SPRING WASHERS (F), 2 FLAT WASHERS (G)
and 1 ARC WASHER (H) on the bottom.
C The CONSOLE CABLE (6) is tucked into the CONSOLE
MAST (3). Using the lead wire carefully pull the CONSOLE
CABLE (6) out of the CONSOLE MAST (3). Detach and
and discard the LEAD WIRE. Connect the CONSOLE
CABLES (6) and carefully tuck wires in masts to avoid
damage.
D Attach the RIGHT SIDE of the CONSOLE (5) using
3 BOLTS (E), 3 SPRING WASHERS (F), 3 FLAT
WASHERS (G) and 1 ARC WASHER (H) on the bottom.
NOTE: Do not tighten bolts completely until
after the console is assembled.
NOTE: Be careful not to pinch any wires while
assembling the console.
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
M8X1.25PX15L 6E BOLT
8.2X15.4X2.0T 6F SPRING WASHER
8.4X15.5X1.6T 4
GFLAT WASHER
ASSEMBLY STEP 3
8.2X18X1.5T 2ARC WASHERH
EFG H
E
F
G
H
E
H
G
F
5
4
3
6

13
A Open HARDWARE FOR STEP 4.
B Attach the RIGHT AND LEFT SIDE CONSOLE
JOINT COVERS (7) using 2 SCREWS (I).
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
4X15L 4I SCREW
ASSEMBLY STEP 4
I
I
I
7
7
7
7

14
A Open HARDWARE FOR STEP 5.
B Attach LEFT SIDE PULSE RATE GRIP (8) to
the underside of the CONSOLE (5) using
4 BOLTS (J), 4 SPRING WASHERS (K) and
4 FLAT WASHERS (M).
C Connect the LEFT CONSOLE CABLES (6L) and
carefully tuck wires to avoid damage.
D Attach RIGHT SIDE PULSE RATE GRIP (9) to the
underside of the CONSOLE (5) using 4 BOLTS (J),
4 SPRING WASHERS (K) and 4 FLAT WASHERS (M).
E Connect the RIGHT CONSOLE CABLES (6R) and
carefully tuck wires to avoid damage.
HARDWARE FOR STEP 5
PART TYPE DESCRIPTION QTY
M8X1.25PX15L 8J BOLT
8.2X15.4X2.0T 8K SPRING WASHER
8.2X15X1.2T 8M FLAT WASHER
ASSEMBLY STEP 5
J M K
J
M
K
9
8
5
6R
6L

15
O
ASSEMBLY STEP 6
HARDWARE FOR STEP 6
PART TYPE DESCRIPTION QTY
M4X12L 6O SCREW
M4X25L 2P SCREW
P
O
P
O
P
11
4
3
14
13
O
O
O
O
ASSEMBLY COMPLETE!
Before the first use, lubricate the treadmill deck by
following the instructions in the MAINTENANCE
section in the TREADMILL GUIDE.

16

17
TREADMILL OPERATION
This section explains how to use your treadmill’s console and programming.
The BASIC OPERATION section in the TREADMILL GUIDE has instructions for the following:
• LOCATION OF THE TREADMILL
• USING THE SAFETY KEY
• FOLDING THE TREADMILL
• MOVING THE TREADMILL
• LEVELING THE TREADMILL
• TENSIONING THE RUNNING BELT
• CENTERING THE RUNNING BELT
• USING THE HEART RATE FUNCTION

18
L
R
K J HG I H

19
CONSOLE OPERATION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
A) LCD DISPLAY WINDOWS: Watts, Pace, Calories/Hour, Heart Rate, Laps
B) LED DISPLAY: Time, Speed, Distance, Incline, Pace, Heart Rate, and Calories
C) WORKOUT LED INDICATORS: indicate what workout is set for the current program.
D) SELECT TARGET/WORKOUT KNOB: rotate/press to select your desired workout/target
E) START: press to begin exercising, start your workout, or resume exercising after pause.
F) STOP: press to pause/end your workout. Hold for 3 seconds to reset the console.
G) INCLINE +/- KEYS: used to adjust incline in small increments (0.5% increments).
H) SPEED +/- KEYS: used to adjust speed in small increments (0.1 mph increments).
I) INCLINE QUICK KEYS: used to reach desired incline more quickly.
J) SPEED QUICK KEYS: used to reach desired speed more quickly.
K) FAN KEY: press to turn fan on and off.
L) FAN:personal workout fan.
M) SPEAKERS: music plays through speakers when your CD / MP3 player is connected to the console.
N) AUDIO IN JACK: plug your CD / MP3 player into the console using the included audio adaptor cable.
O) AUDIO OUT / HEADPHONE JACK: plug your headphones into this jack to listen to your music through the
headphones. Note: when headphones are plugged into the headphone jack the sound will no longer come out through
the speakers.
P) USB INPUT: 1A/5V USB output power.
Q) WATER BOTTLE POCKETS: holds personal workout equipment.
R) TABLET/READING RACK: holds tablet or reading material.

20
DISPLAY WINDOWS
• TIME: Shown as minutes : seconds. View the time remaining or the time elapsed in your workout.
• DISTANCE: Shown as miles. Indicates distance traveled during your workout.
• SPEED: Shown as MPH. Indicates how fast your walking or running surface is moving.
• INCLINE: Shown as percent. Indicates the incline of your walking or running surface.
• CALORIES: Total calories burned during your workout.
• HEART RATE: Shown as BPM (beats per minute). Used to monitor your heart rate (displayed when contact is
made with both pulse grips).
• PACE: Indicates how many minutes it takes to complete a mile while running or walking at your current speed.
• WATTS: Indicates the power output at your current speed and incline.
• CALORIES/ HOUR: Indicates the number of calories you will burn in an hour at your current speed and incline
• TRACK: Follows progress around a simulated track. Segments light up with every 50 meters completed.
• LAPS: Shows how many 400 meter (¼ mile) laps have been completed.
