Horizon Fitness 7.4 AT User manual

4
Read the TREADMILL GUIDE before using this OWNER’S MANUAL.
OWNER’S MANUAL

2
3 ENGLISH

3
IMPORTANT PRECAUTIONS
SAVE THESE INSTRUCTIONS
When using an electrical product, basic precautions should always be followed, including the following: Read all instructions before using
this treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and
precautions. If you have any questions after reading this guide, contact Customer Tech Support at the number listed on the back panel
of the OWNER’S MANUAL.
This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional setting.
Failureto comply will void the warranty.
ENGLISH

4
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
• Never use the treadmill before securing the safety tether clip to your clothing.
• If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness of breath, stop exercising
immediately and consult your physician before continuing.
• When exercising, always maintain a comfortable pace.
• Do not wear clothes that might catch on any part of the treadmill.
• Always wear athletic shoes while using this equipment.
• Do not jump on the treadmill.
• At no time should more than one person be on treadmill while in operation.
• This treadmill should not be used by persons weighing more than specified in the OWNER’S MANUAL WARRANTY SECTION. Failure
tocomply will void the warranty.
• When lowering the treadmill deck, wait until rear feet are firmly on the floor before stepping on the deck.
• Disconnect all power before servicing or moving the equipment. To clean, wipe surfaces down with soap and slightly damp cloth only; never
use solvents. (See MAINTENANCE)
• The treadmill should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or taking
offparts.
• Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
• Connect this exercise product to a properly grounded outlet only.
WARNING
TO REDUCE THE RISK OF ELECTRICAL SHOCK:
Always unplug the treadmill from the electrical outlet immediately after using, before cleaning, performing maintenance and putting on or
taking off parts.
DANGER
ENGLISH

5
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
• At NO time should pets or children under the age of 13 be closer to the treadmill than 10 feet.
• At NO time should children under the age of 13 use the treadmill.
• Children over the age of 13 or disabled persons should not use the treadmill without adult supervision.
• Use the treadmill only for its intended use as described in the treadmill guide and owner’s manual.
• Do not use other attachments that are not recommended by the manufacturer. Attachments may cause injury.
• Never operate the treadmill if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged,
orimmersed in water. Return the treadmill to a service center for examination and repair.
• Keep power cord away from heated surfaces. Do not carry this unit by its supply cord or use the cord as a handle.
• Never operate the treadmill with the air opening blocked. Keep the air opening clean, free of lint, hair, and the like.
• To prevent electrical shock, never drop or insert any object into any opening.
• Do not operate where aerosol (spray) products are being used or when oxygen is being administered.
• To disconnect, turn all controls to the off position, then remove plug from outlet.
• Do not use treadmill in any location that is not temperature controlled, such as but not limited to garages, porches, pool rooms,
bathrooms, car ports or outdoors. Failure to comply will void the warranty.
• This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional setting.
Failureto comply will void the warranty.
• Do not remove the console covers unless instructed by Customer Tech Support. Service should only be done by an authorized service
technician.
It is essential that your treadmill is used only indoors, in a climate controlled room. If your treadmill has been exposed to colder
temperatures or high moisture climates, it is strongly recommended that the treadmill is warmed up to room temperature before first
time use. Failure to do so may cause premature electronic failure.
WARNING
ENGLISH

6
GROUNDING INSTRUCTIONS
This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path of least resistance for electrical
current to reduce the risk of electrical shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding
plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with local codes and
ordinances.
Connect this exercise product to a properly grounded outlet only.
Never operate product with a damaged cord or plug even if it is working properly.
Never operate any product if it appears damaged, or has been immersed in water.
Contact Customer Tech Support for replacement or repair.
WARNING
DANGER
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or
service provider if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product.
If it will not fit the outlet, have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 110-120 Volt circuit and has a grounding plug that looks like the plug in the illustration. Make sure
thatthe product is connected to an outlet having the same configuration as the plug. No adapter should be used with this product.
This product must be used on a dedicated circuit. To determine if you are on a dedicated circuit, shut off the power to that circuit and
observe if any other devices lose power. If so, move devices to a different circuit. Note: There are usually multiple outlets on one circuit.
Thistreadmill should be used with a minimum 15-amp circuit.
ENGLISH

7
Place the treadmill on a level and stable surface. There should be one foot of clearance in front of the
treadmill for the power cord. Please leave a clear zone behind the treadmill that is at least the width of the
treadmill and at least 79” (2 meters) long. This zone must be clear of any obstruction and provide the user
a clear exit path from the machine. In case of an emergency, place both hands on the side arm rests to hold
yourself up and place your feet onto the side rails.
For ease of access, there should be an accessible space preferentially on both sides of the treadmill equal
to 2 ft (0.6 meters) to allow a user access to the treadmill from either side. Do not place the treadmill in any
area that will block any vent or air openings. The treadmill should not be located in a garage, covered patio,
near water or outdoors.
0,6 m
(2 ft)
0,6 m
(2 ft)
2 m(79")
0,3 m(1 ft)
TRAINING
AREA
FREE
AREA
ENGLISH

8
ENGLISH

9
ASSEMBLY
There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly
instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the treadmill
could have parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage to the treadmill, the
assembly instructions must be reviewed and corrective actions should be taken.
Before proceeding, find your treadmill’s serial number located on a white barcode sticker near
the on/off power switch and power cord and enter it in the space provided below.
ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:
» Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
SERIAL NUMBER:
TM
WARNING

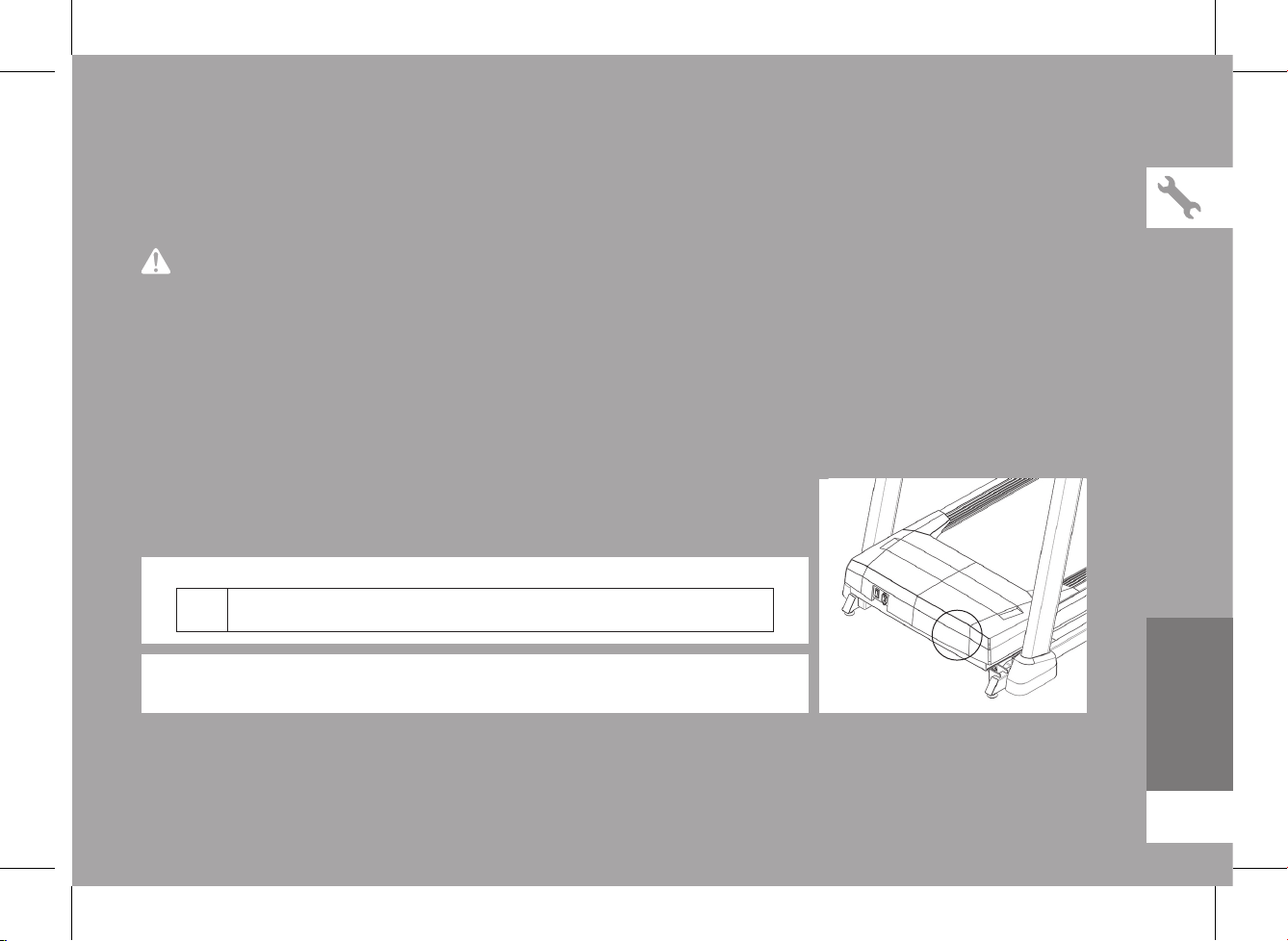

SERIAL NUMBER LOCATION
MODEL NAME: HORIZON 7.4AT TREADMILL
ENGLISH

10

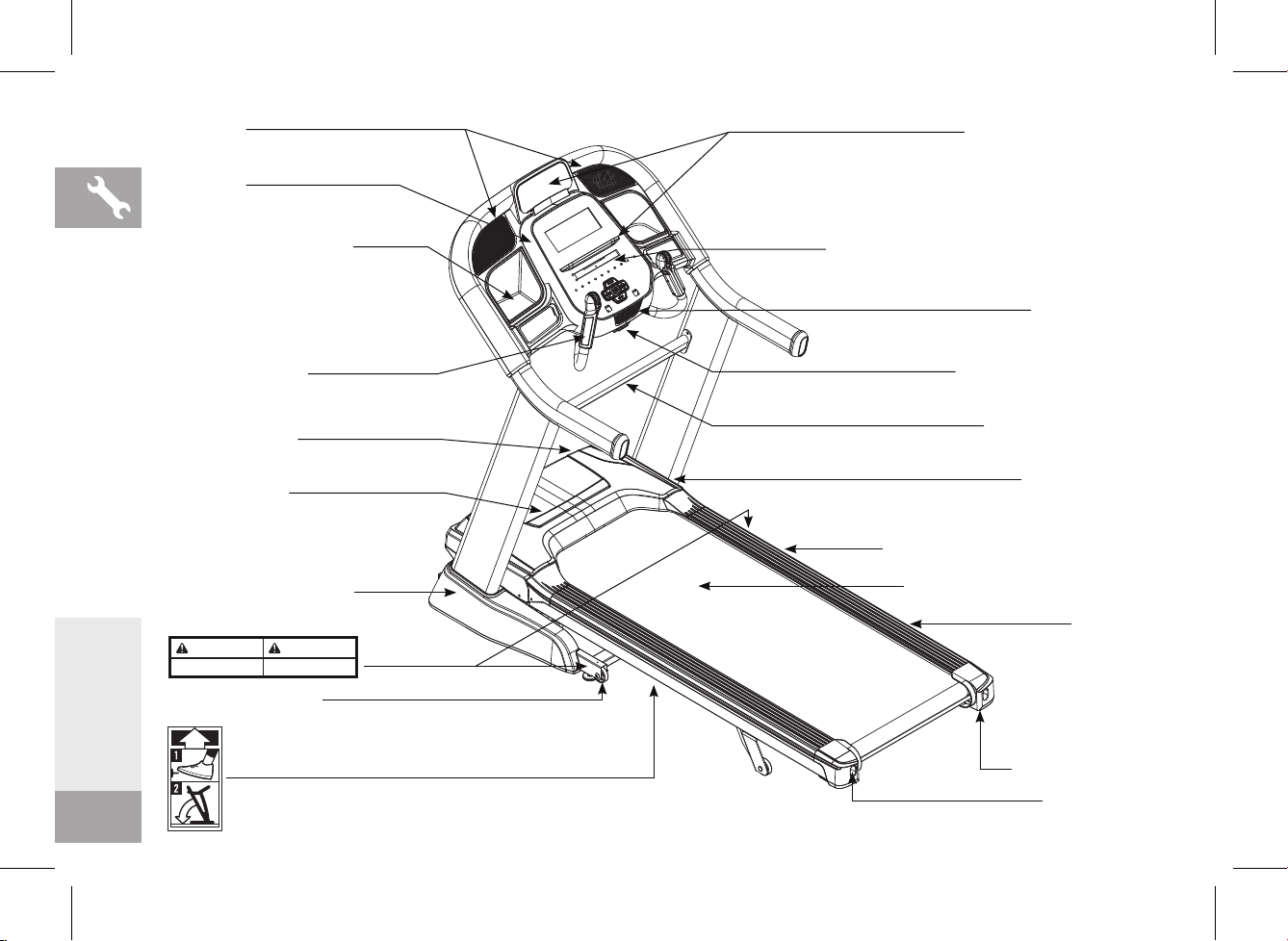

SPEAKERS
CONSOLE FAN
WATER BOTTLE HOLDER
PULSE RATE GRIPS
ON/OFF SWITCH
POWER CORD
RUNNING BELT/RUNNING DECK
TRANSPORT WHEEL
FOOT LOCK LATCH DECAL
(UNDERNEATH FOOT LATCH)
TABLET/READING RACK
CONTROL PANEL AND DISPLAY WINDOWS
CONSOLE
SAFETY KEY PLACEMENT
CROSS SUPPORT BAR
CONSOLE MAST
FOOT LATCH (UNDERNEATH DECK)
MOTOR COVER
CONSOLE MAST COVER
SIDE RAIL
ROLLER END CAP
REAR ROLLER
TENSION/ALIGNMENT BOLTS
CAUTION WARNUNG
KEEP HANDS AND FEET AWAY
FROM THE MOVING PARTS.
HALTEN SIE HÄNDE UND FÜSSE
VON BEWEGLICHEN TEILEN FERN.
ENGLISH

11
TOOLS INCLUDED:
F8 mm T-Wrench
F6 mm L-Wrench
F5 mm L-Wrench
PARTS INCLUDED:
F1 Main Frame
F1 Console Assembly
F2 Console Masts
F2 Console Mast Covers
F1 Cross Support Bar
F1 Hardware Kit
F1 Safety Key
F1 Audio Adapter Cable
F1 Bottle of Silicone Lubricant
(for 2 applications)
F1 Power Cord
F2 Pulse Rate Grips
If you have questions or if there
are any missing parts, contact
Customer Tech Support. Contact
information is located on the
back panel of this manual.
DO NOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift treadmill from
packaging until specified to do so in the assembly instructions. You may remove the
plastic wrap from console masts.
WARNING
UNPACKING
Place the treadmill carton on a level flat surface. It is recommended that you place a protective
covering on your floor. Take CAUTION when handling and transporting this unit. Never
open box when it is on its side. Once the banding straps have been removed, do not lift or
transport this unit unless it is fully assembled and in the upright folded position, with the lock
latch secure. Unpack and assemble the unit where it will be used. The enclosed treadmill is
equipped with high-pressure shocks and may spring open if mishandled. Never grab hold of
any portion of the incline frame and attempt to lift or move the treadmill.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!
WARNING
NEED HELP?
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and partially
threaded in before completely tightening any ONE bolt.
NOTE: A light application of grease may aid in the installation of hardware. Any grease, such
as lithium bike grease is recommended.
PRE ASSEMBLY
ENGLISH

12
ASSEMBLY STEP 1
A Cut the BANDING STRAPS (10) and lift the running
deck upward from the rear to remove all contents from
underneath the running deck.
B Open HARDWARE FOR STEP 1.
C Insert UPRIGHT GUIDE BOLT (A) into MAIN FRAME
BRACKET (1) and fully tighten.
D Attach LEAD WIRE to bottom end of CONSOLE
CABLE (2). Pull LEAD WIRE through RIGHT CONSOLE
MAST (4). After pulling the wire through the mast, the
top of the CONSOLE CABLE (2) should be located at
the ATTACHMENT BRACKET (7).
E Attach RIGHT CONSOLE MAST (4) to MAIN FRAME(3)
using 4 BOLTS (B), 4 FLAT WASHERS (C) AND
4SPRING WASHERS (D). Feed the extra console cable
back into the upright mast.
F Repeat STEP E on the LEFT SIDE.
M8X1.25PX11L 2A UPRIGHT GUIDE BOLT
A
NOTE: Do not fully tighten the following bolts until the
end of STEP 4.
A
A
310
4
7
B
C
D
B
D
B
C
D
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
M8X1.25PX80L 8B MAST BOLT
8.2X15.4X2.0T
8C
SPRING WASHER
8.4X15.5X1.6T
8
D
FL AT WASHER
C
10
2
4
1
NOTE: Be careful not to pinch the console cable
while attaching the right console mast.
ENGLISH

13

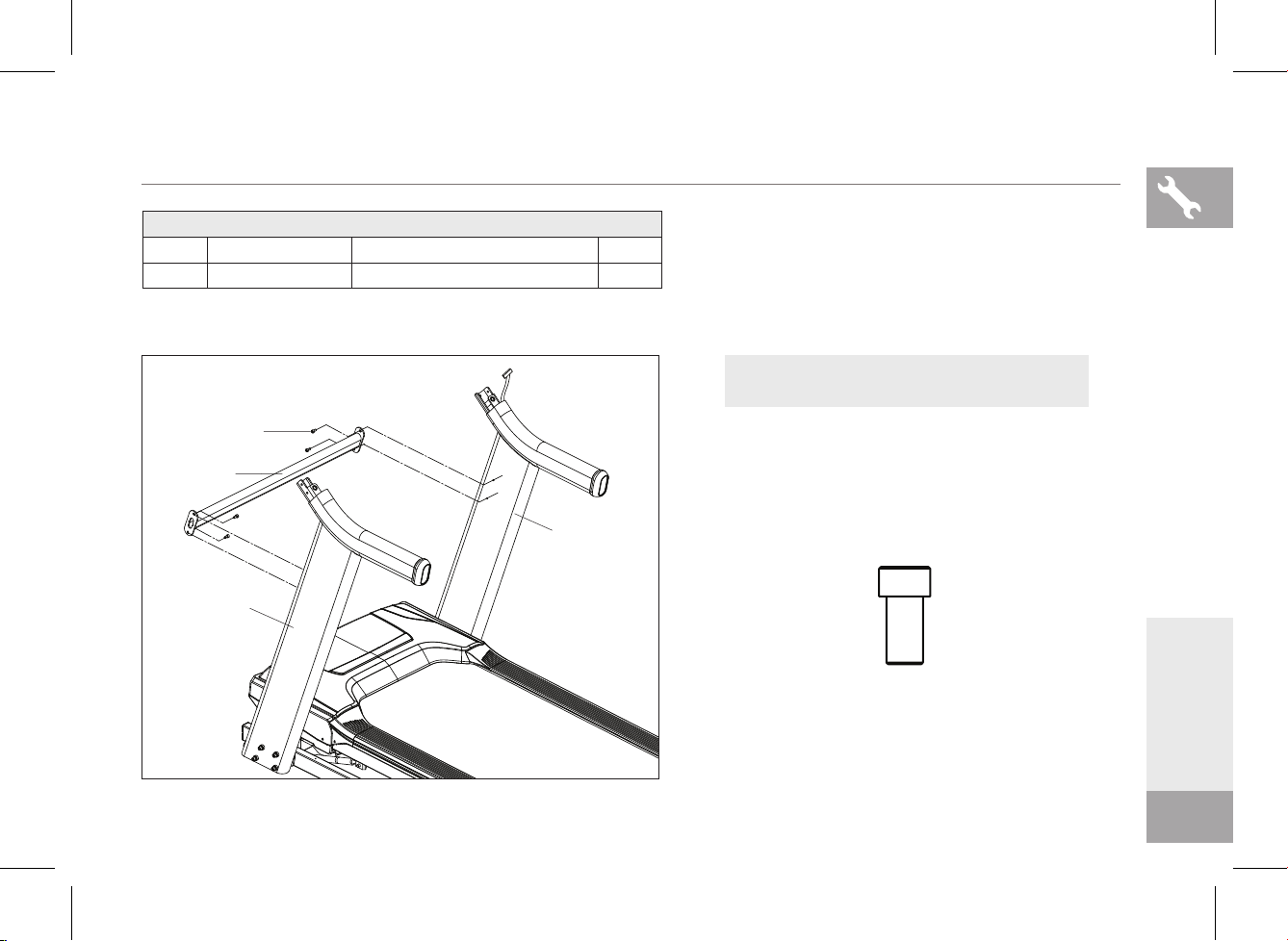

ASSEMBLY STEP 2
NOTE: Do not fully tighten bolts until STEP
3.
E
5
M6X1.0PX15L 4E BOLT
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
E
A Open HARDWARE FOR STEP 2.
B Attach CROSS SUPPORT BAR (5) using holes on
UPRIGHT MASTS (4) with 4 BOLTS (E).
4
4
ENGLISH

14

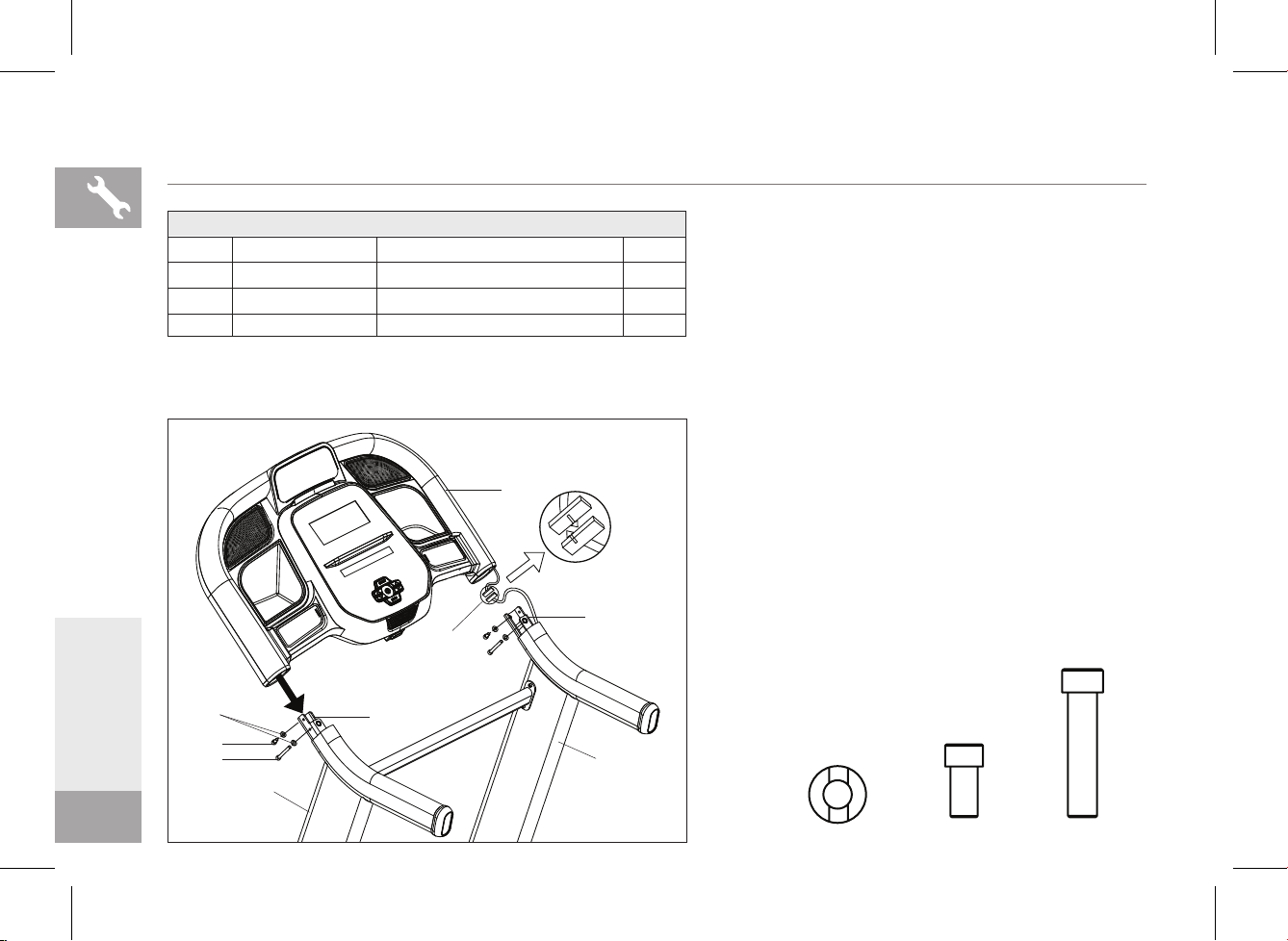

A Open HARDWARE FOR STEP 3.
B Have someone help hold the console while attaching
the CONSOLE CABLE (2). Use the lead wire to
carefully pull the CONSOLE CABLE (2) out of the
RIGHT CONSOLE MAST (4). Attach the CONSOLE
CABLE (2) from the CONSOLE (6) to the CONSOLE
CABLE (2) from the top of the RIGHT UPRIGHT MAST
(4). Detach and discard the lead wire.
C Carefully slide the CONSOLE (6) onto the
ATTACHMENT BRACKETS (7) being careful not to
pinch the CONSOLE CABLE (2). Align the holes on the
bottom side of the CONSOLE (6) with the holes on the
ATTACHMENT BRACKETS (7).
D Attach the CONSOLE (6) to the ATTACHMENT
BRACKETS (7) by first placing ARC WASHERS (F) onto
BOLTS (G) AND (H) as illustrated. Insert SHORT BOLTS
(G) into the top hole of the ATTACHMENT BRACKET
(7) and LONG BOLTS (H) into the bottom hole.
E Repeat STEP D for the opposite side.
ASSEMBLY STEP 3
F G H
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
8.4X15.5X1.6T
M8x1.25Px15L
M8x1.25Px70L
4
2
2
F
G
H
ARC WASHER
LONG BOLT
SHORT BOLT
H
6
7
7
2
G
F
4
4
ENGLISH

15

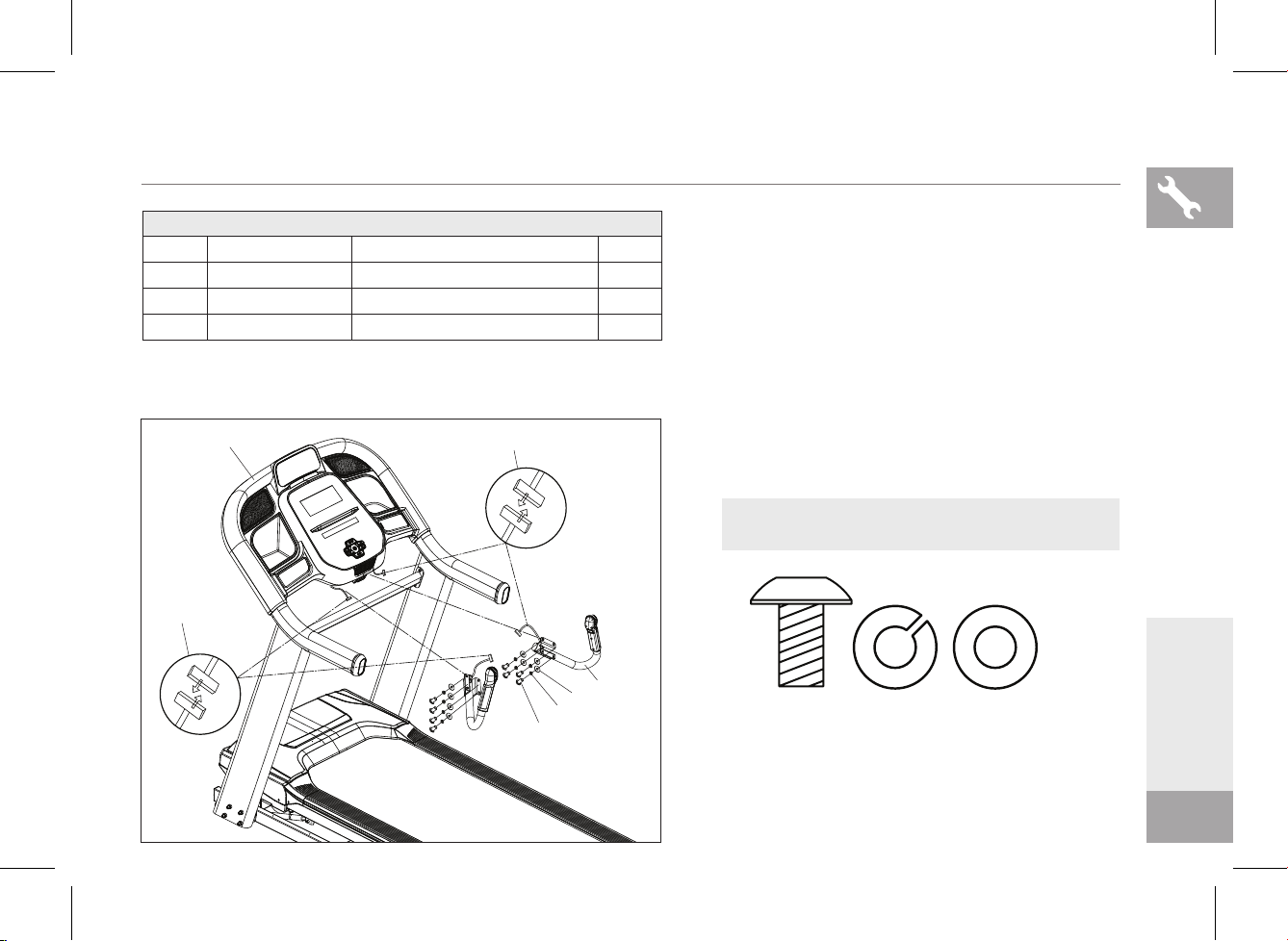

ASSEMBLY STEP 4
A Open HARDWARE FOR STEP 4.
B Attach RIGHT SIDE PULSE RATE GRIP (8)
tothe underside of the CONSOLE (6) using
4 BOLTS (I), 4 SPRING WASHERS (J) and
4 FLAT WASHERS (K).
C Connect the RIGHT CONSOLE CABLES (9R)
andcarefully tuck in wires to avoid damage.
D Repeat STEP B on the LEFT SIDE.
E Connect the LEFT CONSOLE CABLES (9L)
andcarefully tuck wires to avoid damage.
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
M8
x
15L 8I BOLT
8.2X15.4X2.0T 8J SPRING WASHER
8.4X15.5X1.6T 8K FL AT WASHER
I J K
K
J
I
8
6
9L
9R
NOTE: Fully tighten all bolts from PREVIOUS STEPS
ENGLISH

16
ASSEMBLY COMPLETE!
Before the first use, lubricate the treadmill deck by
following the instructions in the MAINTENANCE
section in the TREADMILL GUIDE.
L
4
4
10
3
10
L

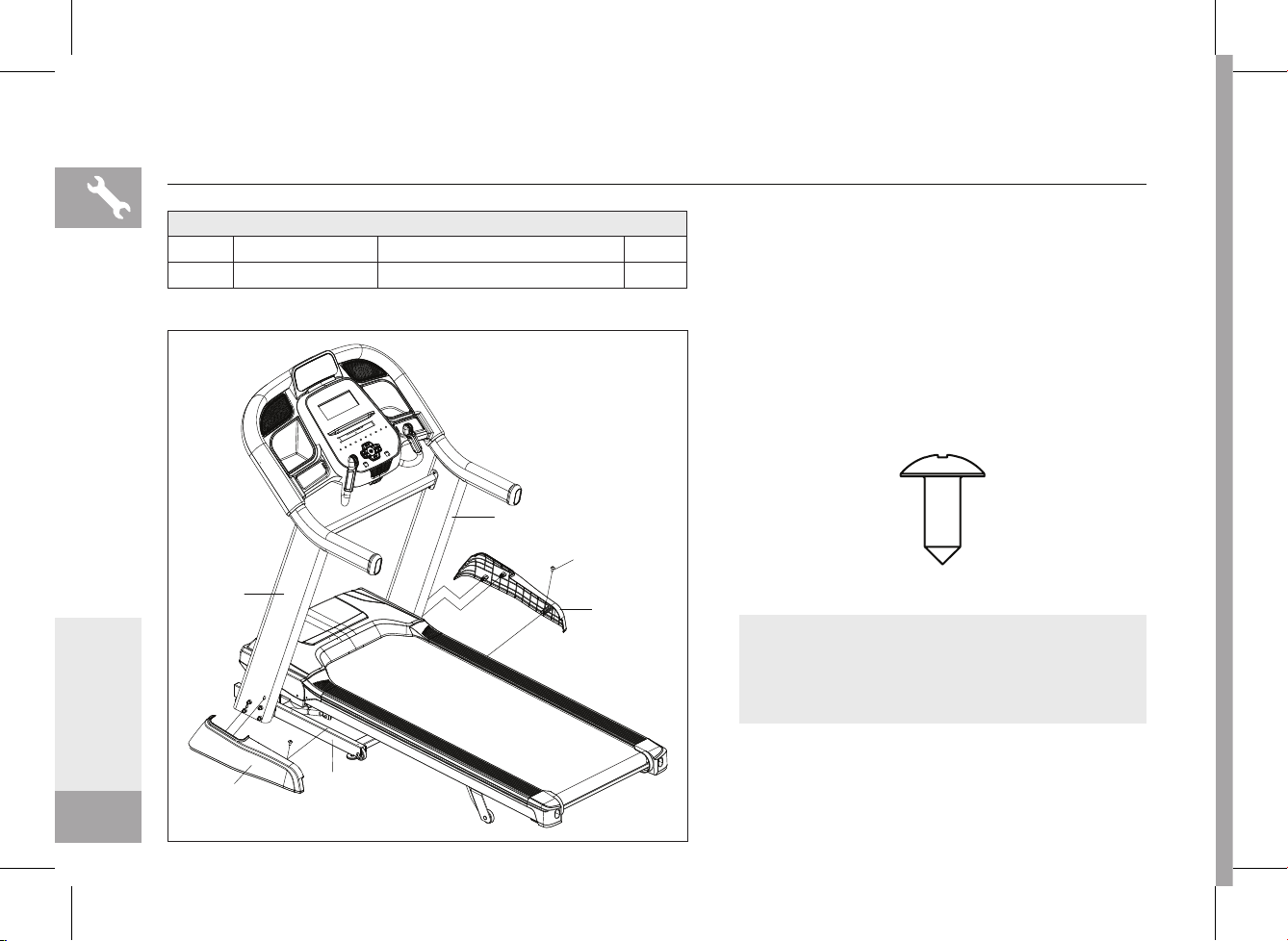

ASSEMBLY STEP 5
M4X1.0PX15L 2L SCREW
HARDWARE FOR STEP 5
PART TYPE DESCRIPTION QTY
A Open HARDWARE FOR STEP 5.
B Slide RIGHT SIDE MAST COVER (10)
onto the RIGHT SIDE MAST (4) by aliging tabs on
RIGHT SIDE MAST COVER (10) with slots on RIGHT
SIDE MAST (4).
C Attach RIGHT SIDE MAST COVER (10) to the MAIN
FRAME (3) using 1 SCREW (L).
D Repeat STEPS B & C on the LEFT SIDE.
7.4AT
User Weight Capacity: 159 Kg / 350 Lbs.
Dimensions (L×W×H) : 193 X 93 X 161 cm / 76” X 37” X 63”
L
ENGLISH

17
TREADMILL OPERATION
This section explains how to use your treadmill’s console and programming.
The BASIC OPERATION section in the TREADMILL GUIDE has instructions for the following:
• LOCATION OF THE TREADMILL
• USING THE SAFETY KEY
• FOLDING THE TREADMILL
• MOVING THE TREADMILL
• LEVELING THE TREADMILL
• TENSIONING THE RUNNING BELT
• CENTERING THE RUNNING BELT
• USING THE HEART RATE FUNCTION
ENGLISH

18
COUNT DOWN
COUNT DOWN
INCLINE
STEIGUNG
PACE
TEMPO
SPEED
GESCHWINDIGKEIT
DISTANCE
ENTFERNUNG
TIME
ZEIT
PROGRAMS
PROGRAMME
SPEED
GESCHWINDIGKEIT
INCLINE
STEIGUNG
HEA R T RAT E
HERZFREQUENZ
CALORIES
KALORIEN
CALORIES
KALORIEN
HE AR T RAT E
HERZFREQUENZ
WATT
WATT
COUNT DOWN
COUNT DOWN
PACE
TEMPO
INCLINE
STEIGUNG
LAPS
COUNT
RUNDEN
K
H
II
G
J
R
MM
LT T
JS
ENGLISH

19
CONSOLE OPERATION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
A) LCD DISPLAY WINDOWS: Watts, Pace, Calories/Hour, Heart Rate, Laps.
B) LED DISPLAY: Time, Speed, Distance, Incline, Pace, Heart Rate, and Calories.
C) WORKOUT LED INDICATORS: indicates what workout is set for the current program.
D) SELECT TARGET/WORKOUT KNOB: rotate/press to select your desired workout/target
E) START: press to begin exercising, start your workout, or resume exercising after pause.
F) STOP: press to pause/end your workout. Hold for 3 seconds to reset the console.
G) INCLINE SCROLL WHEEL: used to adjust incline in small increments (.5%).
H) SPEED SCROLL WHEEL: used to adjust speed in small increments (.1 KM/H).
I) INCLINE QUICK KEYS: used to reach desired incline more quickly.
J) SPEED QUICK KEYS: used to reach desired speed more quickly.
K) FAN KEY: press to turn fan on and off.
L) FAN:personal workout fan.
M) SPEAKERS: music plays through speakers when your CD / MP3 player is connected to the console.
N) AUDIO IN JACK: plug your CD / MP3 player into the console using the included audio adaptor cable.
O) AUDIO OUT / HEADPHONE JACK:plug your headphones into this jack to listen to your music through the headphones.
Note: when headphones are plugged into the headphone jack the sound will no longer come out throughthe speakers.
P) USB INPUT: 1A/5V USB output power.
Q) WATER BOTTLE POCKETS: holds personal workout equipment.
R) TABLET/READING RACK: holds tablet or reading material.
S) BLUETOOTH INDICATOR LIGHT: displays when machine is paired with a Bluetooth compatible device.
T) INTERVAL KEYS: these are programmable keys. When an user is selected, they can be programmed to a desired
speed and incline setting.
ENGLISH

20

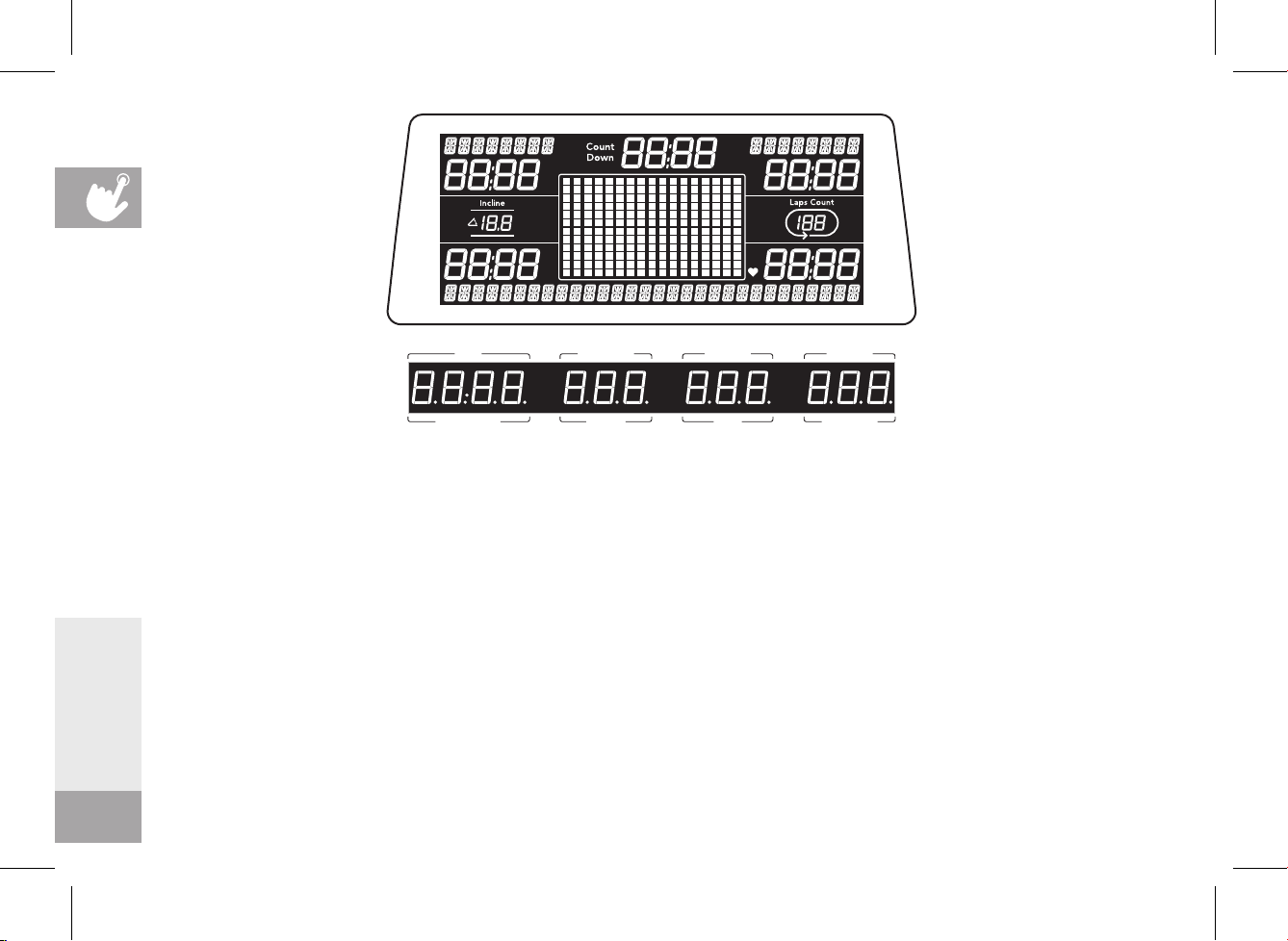

DISPLAY WINDOWS
• TIME: Shown as minutes : seconds. View the time remaining or the time elapsed in your workout.
• DISTANCE: Shown as miles. Indicates distance traveled during your workout.
• SPEED: Shown as KM/H. Indicates how fast your walking or running surface is moving.
• INCLINE: Shown as percent. Indicates the incline of your walking or running surface.
• CALORIES: Total calories burned during your workout.
• HEART RATE: Shown as BPM (beats per minute). Used to monitor your heart rate (displayed when contact is made
with both pulse grips).
• PACE: Indicates how many minutes it takes to complete a mile while running or walking at your current speed.
• WATTS: Indicates the power output at your current speed and incline.
• CALORIES/ HOUR: Indicates the number of calories you will burn in an hour at your current speed and incline
• BRICKYARD: Each vertical segment represents a speed or incline unit, each horizontal segment represents time.
• LAPS: Shows how many 400 meter (¼ mile) laps have been completed.
• COUNT (SPRINT 8): Shows how many Sprint 8 program sprints you have completed
COUNT DOWN
COUNT DOWN
INCLINE
STEIGUNG
PACE
TEMPO
SPEED
GESCHWINDIGKEIT
DISTANCE
ENTFERNUNG
TIME
ZEIT
H EA R T R ATE
HERZFREQUENZ
CALORIES
KALORIEN
CALORIES
KALORIEN
HE A R T R ATE
HERZFREQUENZ
WAT T
WAT T
COUNT DOWN
COUNT DOWN
PACE
TEMPO
INCLINE
STEIGUNG
LAPS
COUNT
RUNDEN
ENGLISH
