ADVANCED UV LIGHT Future Sun HP User manual

1
Futuresun HP V2
Sunlamp Model HP 24/22: HELIX™
US: "Future Sun HP"
Owner’s Manual
Vers. V.02 /February 2007

2
Futuresun HP V2
Control Panel
1Display Shows accrued session time, information on operational conditions/status of
the unit and error codes
2Button “START” Starts the tanning session
3Button “STOP” Stops the tanning session
4Button “+”
In combination with pre-selected function, this button
 increases the intensity of the facials
 increases the speed of the body cooling fans
 increases the (music) volume
 (re)activates the facials or the AC unit
5Button “–”
In combination with pre-selected function, this button
 reduces the intensity of the facials
 reduces the speed of the body cooling fans
 reduces the (music) volume
 turns off the facials or the AC unit
6Button “Shoulder
Tanner”
Pre-selects the function for the control of the active shoulder tanner
(ON/OFF)
(only for units with this optional feature)
7Button “Facials” Pre-selects function for control of the facials
8Button “Cooling Top” Pre-selects function for control of air vent cooling at the head-end
9Button “Cooling Bench” Pre-selects function for control of air vent cooling at the bench, head- and
foot-end.
10 Button “Add. Fan
Shoulder Tanner”
Pre-selects function for control of the additional cooling fan at the active
shoulder tanner
(only for units with this optional feature)
11 Button “AC-unit” Pre-selects function for control of AC-unit (ON/OFF)
12 Button “SunFresh” Activates SunFresh-Watermist
(only for units with active shoulder tanner)
13 Button “Music” Pre-selects function for control of music volume
14 Button “SunHaze-
Aroma”
Activates SunHaze-Aroma-System
(only for units with active shoulder tanner)

3
Futuresun HP V2
Unit without active shoulder tanner (standard
version)
1Bench acrylic 8Air vents at head-end of the bench
2Hinge profile at bench acrylic 9Control panel
3Air vents at foot-end of the bench 10 Facials
4Endcaps bench (left and right) 11 Air vents at head-end of the top
5Body cooling Fan (air intake) 12 Top profile and handle
6Front cover plate 13 Backlighting at top canopy
7LED backlighting at front cover plate

4
Futuresun HP V2
Unit with active shoulder tanner (optional)
1Bench acrylic 8Active shoulder tanner
2Hinge profile at bench acrylic 9Control panel
3Air vents at foot-end of the bench 10 Facials
4Endcaps bench ( left and right) 11 Air vents at head-end of the top
5Body cooling fan (air intake) 12 Top profile and handle
6Front cover plate 13 Backlighting at top
7LED backlighting at front cover plate

5
Futuresun HP V2
Rear view of the unit
1Exhaust air stack
2Fan for body cooling at the facials
3Entry stud for supply cables of external timer and loudspeakers
4Entry stud for power supply
5Type labels
1
2
3
4
5

6
Futuresun HP V2
Inside view of bench with components
1SunHaze aroma system (optional)
2Aroma cartridge for SunHaze system (optional)
3SunFresh-container (optional)
4Condensation water (AC) container (optional)
5AC unit (optional)
6Ballasts inserts
7Ballast tray
8Power supply for purification system inside SunFresh container

7
Futuresun HP V2
Preface
The purpose of this manual is to assist you in the
safe and proper installation and operation of the high
performance tanning unit Sunlamp Model HP 24/22:
HELIX™, herein referred to as “Futuresun HP” or
“sunbed”
This manual is addressed to:
 service personnel,
 authorized and skilled electrical personnel,
 qualified tanning salon personnel and
 end-users
Every person who
 transports,
 assembles,
 starts,
 operates,
 set the controls,
 maintains,
 cleans,
 disassembles,
 stores or
 disposes of
this sunbed has to make sure that this manual has
been carefully read and that its contents is fully
understood. Keep this manual in a place close to the
sunbed for further reference.
Format
Various elements in this manual show a standardized
format to make it easier to distinguish between
standard text elements,
 detailed lists or
 steps of action
These notes contain hints and
information on the economic use of the
sunbed.
References to chapters are set in italics.

8
Futuresun HP V2
Description
The Futuresun HP is a high-performance tanning bed
exclusively designed for use in commercial tanning
salons.
The technical layout was designed for power,
performance and reliability.
The unit is equipped with 22 low-pressure lamps, 20
high-intensity body, 2 high-intensity shoulder(optional)
and 4 high-intensity facials.
The filters and reflectors used for the facials and body
have received several layers of a proprietory coating,
which focuses and filters the tanning efficient UV-light.
The infra-red emission (heat) is conveyed back into
the unit. This technology and the integrated design
of filters, reflectors and lamps allow for an increased
tanning intensity at lower wattages and reduced
energy consumption.
The equipment ventilation was designed for fault-free
operation under heavy duty use with back-to-back
sessions. The intensity of the body cooling can be
individually adjusted as well as the direction of the
airflow. As an additional option an air conditioning unit
provides a well-tempered tanning ambience.
With the electronic control panel the user can choose
individual set-ups for AC-unit, body cooling, intensity
of facials, music volume etc. during a tanning session.
The display also shows accrued session time. On the
operator level a special code gives access to various
set-up selections and maintenance options.
The Futuresun HP can be equipped with additional
features. Optional features are the active shoulder
tanner with two HID fields which emit additional
tanning power for the shoulder region. A strong
turbo fan provides extra cooling for the face and
upper body area. In combination with the active
shoulder tanner the SunHaze aroma function and the
SunFresh watermist option are also available. The
turbo fan conveys the selected aroma into the tanning
tunnel and maskss the typical tanning odor. With the
SunFresh option there is a special nozzle located
at the Turbo fan which sprays a finely vaporised
watermist onto the upper body region. Both functions
are available to the customer on an “on demand”
basis.
Further options are loudspeakers, air conditioning unit
incl. condensation water container and pump, heat
recycling system and accessories for connecting the
unit to the on-site exhaust system.

9
Futuresun HP V2
Safety Instructions
In this chapter you will find information on the proper
and improper use of the sunbed, obligations of the
operator, residual risks and general and specific
dangers.
Read this chapter carefully prior to first operating the
sunbed.
The operator is obliged to make sure that all safety
instructions are known, understood, and strictly
observed.
If you sell or in any other way dispose of the sunbed,
include this Owner’s Manual with the shipment.
Please send the name, address,
phone or fax number of the new owner
immediately to Advanced UV Light or its
authorized local/national distributor in
order to provide up-dates about important
or unexpected safety actions to the new
owner.
Safety instructions – further
details
In this manual you find the following categories of
safety instructions and notices:
DANGER!
Notices containing the
word DANGER refer to a
dangerous situation which
can result in fatal or serious
injuries.
WARNING!
Notices containing the
word WARNING refer to a
dangerous situation which
can eventually result in
fatal or severe injuries or
damages to goods and
property.
CAUTION!
Notices containing the
word CAUTION refer to a
situation which can result
in minor injuries or damages
to goods and property.
Obligations of the Operator
Advanced UV Light GmbH is not responsible for any
damages caused by improper use of the sunbed or
disregard of the instructions provided in this manual.
 The operator of the Futuresun HP must ensure that
only skilled and authorized personnel assembles
this sunbed ready for use and operates, maintains,
and cleans it.
 The operator must make the following documents
available to all staff performing transport and
assembly work, and/or performing operation,
maintenance and cleaning jobs:
– this manual,
– all applicable standards and regulations for the
prevention of accidents at the work place and
provisions for a safe workplace-environment,
– all additional national standards which are
applicable.
 Operator must also ensure that all safety
instructions are strictly observed.
 Operator guarantees that only skilled personnel
with the necessary expertise assembles this
sunbed ready for use and only specifically trained
staff operates, maintains and cleans this sunbed.
 Before and during any use of the sunbed, the
operator or a person authorized by the operator
must ensure that:
– the proper use of the sunbed is guaranteed and
– all safety standards are observed.

10
Futuresun HP V2
Proper Use of the Sunbed
Only adults whose skin is suitable for cosmetic
tanning are allowed to use this sunbed.
The following persons are not allowed to use a
sunbed:
 children and young adolescents under age,
 persons with increased sensitivity to UV-light,
 persons with allergic reactions caused by UV-light
exposure,
 persons with skin diseases who should not tan,
 persons with coronary and circulatory diseases,
 persons with a history of skin cancer or an
hereditary inclination of developing skin cancer
 persons with symptoms of disease,
 persons with other unidentified health problems,
or persons with pacemakers
 under medication or using medication which may
have adverse effects in combination with UV-light
exposure.
Proper use of the sunbed include observation of the
following directives:
 observe recommended exposure times according
to individual skin type at all times!
 always wear protective eye-wear!
 Operate this sunbed only in commercial tanning
salons, fitness studios or beauty salons subject to
the supervision and control of specifically trained
staff.
Proper use of this sunbed also includes diligent
consideration of all the information provided in this
manual and especially to follow all safety instructions.
Every other use of the sunbed is regarded as
improper and may result in damages to goods or
property and eventually cause serious personal harm.
Advanced UV Light GmbH is not responsible for
damages or injuries caused by improper use.
Improper Use of the Sunbed
The use of this sunbed by
 children or young adolescents under age,
 persons suffering from diseases,
 persons with pacemakers,
 persons disregarding the recommended exposure
times
 persons not wearing protective eye-wear
are improper uses of this sunbed and may cause
serious personal harm.
Advanced UV Light GmbH is not responsible for
personal damages caused by improper use.
Notice of Residual Risks
This sunbed is designed according to state-of-the-
art standards and in compliance with current safety
regulations, as well as relevant technical standards.
The construction is designed to prevent potential
dangers or to make provisions for eventual risks.
In spite of these provisions, there still remain residual
risks when using this sunbed.
Eventual risks for persons, as well as goods and
property, can be caused by:
 operation of the sunbed in an improper way,
 use of the sunbed in an improper way
 transportation of the sunbed in an improper way,
 the start up/turn off of the sunbed in an improper
way,
 maintenance or cleaning in an improper way.

11
Futuresun HP V2
Basic Safety Instructions
 Observe all Safety Instructions attached to the
sunbed and provided in this manual.
 Only authorized and skilled staff is allowed to
transport, assemble, start-up and disassemble the
sunbed.
 Service personnel of Advanced UV Light GmbH
and its authorized distributors’ are considered as
trained staff with the necessary expertise. This also
includes skilled electrical personnel who, due to
their training and expert knowledge, can provide
appropriate handling and service and who are
aware of all potential dangers.
 Avoid any use or handling which may result in
safety risks.
 Transportation, disassembly, assembly,
maintenance and cleaning jobs (i.e. of low-
pressure lamps) must only be performed after the
unit has completely cooled down.
Electrical connection
 Operation of the sunbed is only allowed if the
unit is connected and secured on the site, in
compliance with the technical requirements as
stated on the type label and in accordance with
local electrical standards.
 Operation of the sunbed is only allowed, if the mains
disconnection switch, is installed at the site.
 Ensure that liquids ( i. e. cleaning solution) do not
get into the sunbed. Ensure that liquids inside the
sunbed (SunFresh container and condensation
water container) do not get spilled. In case any
liquids have entered into the sunbed, stop mains
supply immediately with the mains disconnection
switch and secure with it lock and key. Take care
that the unit is checked by authorized service
personnel prior to operating the unit again.
 Prior to performing any jobs on the sunbed,
i.e. transportation, assembly, disassembly,
maintenance and cleaning, the mains supply
must be switched off. In addition, the mains
disconnection switch must be secured with lock
and key against unauthorized or accidental turn on.
Safety Provisions
 Use this sunbed only when in fault-free technical
condition. All protection and safety devices must be
assembled and in working condition.
 Use the sunbed only with installed front cover plate.
 All DANGER-labels and notices must be replaced
immediately when damaged.
 Do not use the sunbed with defective filter(s) and/or timer.
Site of Installation
 Do not install the sunbed in damp rooms or in
rooms where there is a risk of explosion.
 Do not keep or store any containers with explosive
materials, i.e. spray cans, close to the sunbed.
 Smoking and open flames are prohibited within
proximity of the sunbed.
 Do not expose materials that may fade or suffer
damage from UV-light exposure to the UV-rays
emitted from this sunbed.
Safety instructions for Operation
 Before you start to operate the sunbed, check the
unit for correct set-up and make sure that all safety
devices are provided and in working condition:
– bench acrylic
– top acrylic
– facial filters glasses
– exhaust air disposal
 Do not cover or block ventilation (i.e. air entries) or
cooling devices to avoid potential thermal damage.
 Before and after each use, check the sunbed for
obvious outer damages or defects and replace or
repair immediately.
 Defects which may affect the safe operation of
the sunbed must be communicated immediately
to the operator/owner or the responsible person
in charge. Discontinue the use of this sunbed until
these defects have been removed.
Safety Instructions for Transportation
 All devices used for transportation must be
adequate to the weight of the sunbed.
 All applicable standards and regulations to prevent
accidents at the workplace must be observed.
 All paths of transportation must be blocked to traffic
and clearly marked to prevent injuries caused by
transportation vehicles or the load.

12
Futuresun HP V2
Safety Instructions for Cleaning
 Clean and disinfect the sunbed prior to each use.
Remove other substances.
 Never clean the sunbed with abrasive or corrosive
materials. Do not use any tools with sharp edges.
Safety Instructions for Maintenance
 All maintenance instructions and intervals must be
observed.
 Use only original spare parts as provided by
Advanced UV Light GmbH or its authorized
distributors. Using other spare parts may void
warranty or render provided listings invalid.
Safety instructions for Users
Inform users of the sunbed about the following safety
instructions or make them available in printed form:
UV-light can cause severe damage to your skin and
your eyes!
 Children and young adolescents under age are not
allowed to use a sunbed.
 Persons with very light skin, many freckles, fair
to reddish hair and light eyes and nipples are not
allowed to use a sunbed.
 Always wear protective eye-wear during a tanning
session and close your eyes.
 Remove contact lenses prior to a tanning session.
 Remove make-up or any cosmetics well in
advance of a tanning session. Cosmetics may
have unwelcome side effects and can cause
adverse skin reactions.
 Take only one (1) tanning session per day.
 For the first two sessions observe an interval of 48
hours.
 For the following sessions, observe an interval of
minimum 24 hours between sessions.
 After a tanning session, do not tan in the natural
sun on the same day.
 Stop exposure immediately when you notice
physical symptoms or adverse skin reactions. If
the symptoms do not disappear after a short time,
consult a dermatologist.
 Do not use drugs which promise to tan the skin
without UV-light exposure in combination with a
tanning session. This combination may increase
the risk of a sunburn.
 Do not use any self-tanning creams or lotions.
These products may contain ingredients which
can increase the effects of UV-light exposure in an
unforeseen and unwelcome way.
 Do not use any creams or lotions with a suncreen
designed for outdoor tanning. These products may
contain substances which can influence the effects
of artificial UV light exposure in an unwelcome way.
Use only products designed specifically for indoor
tanning.
 Immoderate tanning results in overexposure.
If skin shows signs of blisters or sores or
shows symptoms of irritation, consult physician
immediately.
 Overexposure to UV-light emitted by either the sun
or indoor tanning equipment can cause premature
aging of the skin and increase the risk of skin
cancer.
 The unprotected eye can catch conjunctivitis and in
some cases overexposure can seriously damage
the retina. Repeated exposures increase the risk of
cataracts.
Safety Devices

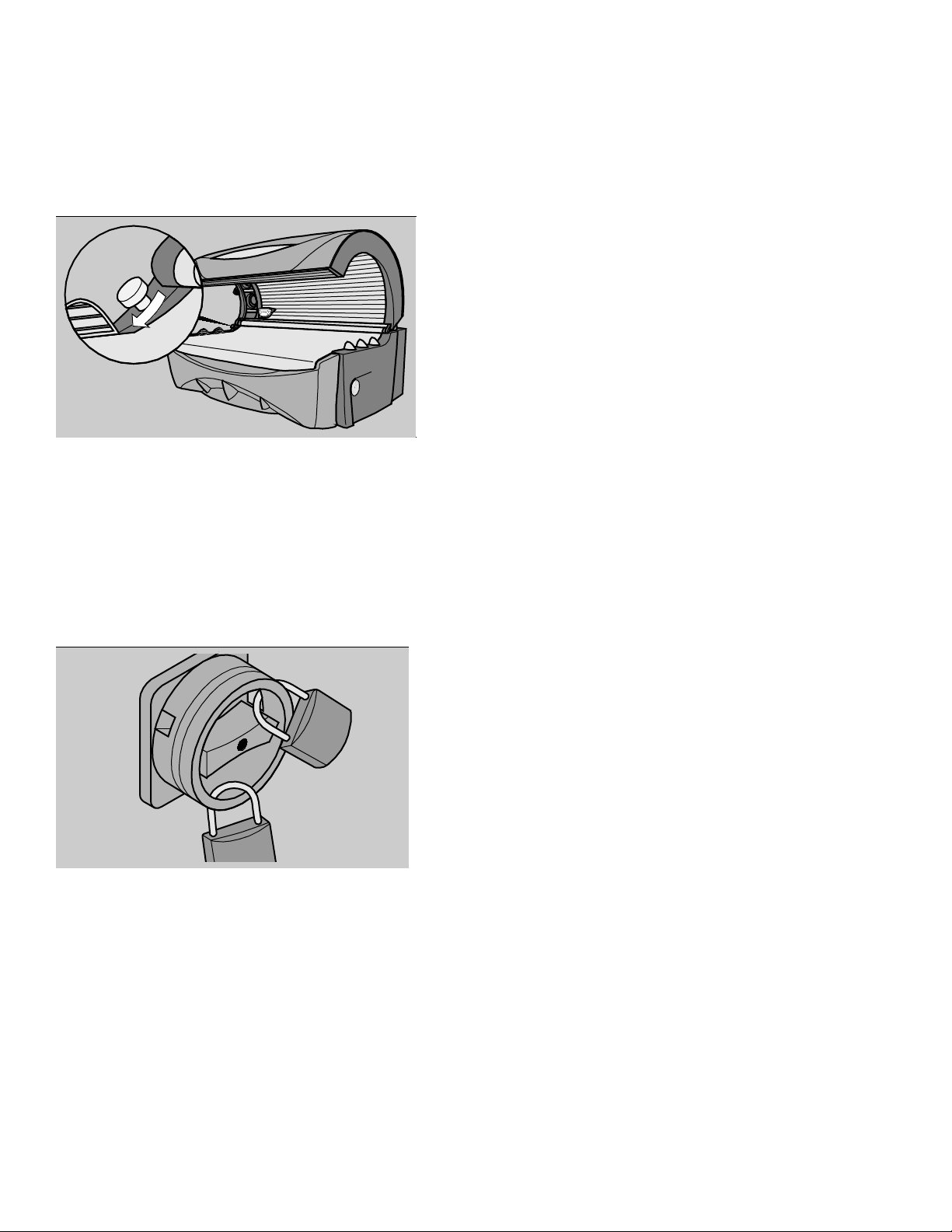

Emergency Stop Button
In case of danger all low- and high-pressure (HID)
facial lamps of the sunbed can be switched off
immediately by pushing the Emergency Stop Button.
The equipment ventilation continues to operate until
after cooling time has expired.
 Press the Emergency Stop Button.
UV-lamp radiation stops immediately.

13
Futuresun HP V2
 Turn the mains disconnection switch into position
“I”.
Additional Safety Devices
The unit is equipped with the following microswitches
to provide additional safety provisions:
 24 x at the canopy filter glasses
 1 x at the front cover plate
 1 x at the bench acrylic
 1 x at fan control flag switch
 2 x at the HID fields of the active shoulder tanner
If a filter glass is defective or broken, the microswitch
at the active shoulder tanner or the facial is activated.
If the microswitch at the active shoulder tanner is
activated, the defective HID field is automatically shut
off.
If the microswitches at the facial filter glasses are
activated, the unit is automatically shut off.
In each case the error message is shown on the
display of the control panel. For information on the
error codes, see the chapter “Error Codes” in this
manual.
The error message needs to be confirmed.
 Push the “+” button for about 3 seconds in order to
confirm the error message.
It is not necessary to confirm the error
message for the HID fields of the active
shoulder tanner.
Automatic Shut-Off Device
The unit is equipped with a built-in shut-off device,
which automatically stops the unit after 30 minutes of
operation.
 Open the top and leave the sunbed.
 Inform operator.
In order to start the unit again, the Emergency Stop
Button needs to be unlocked.
 Turn the red button-head of the Emergency Stop
Button clockwise by 90° degrees.
Mains Disconnection Switch
The mains disconnection switch must be installed at
the site.
During breaks of operation and after hours the
mains supply must be disconnected with the mains
disconnection switch. The switch must be secured
with lock and key against unauthorized reconnection.
 If you want to disconnect the mains supply, turn the
mains disconnection switch into position “0”.
The mains supply is disconnected completely.
 Put the lock into the opening of the switch.
 Close the lock.
 If you want to reconnect the mains supply, remove
the lock.

14
Futuresun HP V2
On Delivery
 On delivery, check the unit and the contents of the
boxes for obvious or hidden transport damages.
 In case of transport damage, notify forwarder
immediately.
 Check immediately if shipment is complete.
 Dispose of packing material according to
applicable environmental regulations.
The shipment consists of the following items:
 (1)piece on wooden pallet
– top canopy
– sunbed bench with ballast tray
– top canopy acrylic
– sunbed bench acrylic
 ballast tray (inside the sunbed)
 exhaust air stack, wrapped in styrofoam, between
top canopy and sunbed bench
 additional box on top of the piece on wooden pal.
– front cover plate
– AC acrylic
– box with protective eye-wear, head-rest and
a copy of this manual; optional also adapter
cable for MP3 or CD player
 additional box on top of the piece/wooden pal. with
the shoulder tanner (optional)
 pallet with ballast inserts
Inside the sunbed bench, there is an additonal box
with acessories:
1ramps for ballast tray
26 adjusting screws
36 screws for assembly of exhaust air stack
43 bolts for assembly of air vents top canopy
53 air vents for top canopy
The following components are optional:
 Active shoulder tanner
 SunFresh system
 SunHaze aroma system
 AC unit with water pump and sensor for
condensation water and container.

15
Futuresun HP V2
Technical Data
Dimensions Length without active shoulder tanner 96.25”
Length with active shoulder tanner 99”
Depth 72”
Height, top closed 56”
Height, top open 67”
Entry level 24”
Weight Cpl. Unit without AC & optional features 1045 lbs.
Sunbed bench 330 lbs.
Sunbed top 380 lbs.
Ballast tray 330 lbs.
AC unit (optional) 66 lbs.
Lamp configuration
(standard version) Top canopy 20 x high-pressure lamps
“Original Dr. Müller” (650W Plug-in)
Sunbed bench 22 x 180 cm low-pressure lamps
(160 W reflectors)
Facials
4 x high-pressure lamps
“Original Dr. Müller”
(1000 W single contact, adjustable)
Active shoulder tanner (optional) 2 x 150 W high-pressure lamps
“Original Dr. Müller”single contact
Ventilation at site
of installation
and exhaust air
Required opening for fresh air intake – on
the site 9” x 9”
Exhaust air volume 2600 cfm
Main exhaust air hose (flex.) 2 x diameter 12”, length max. 12’
Electrical
connection
(only for EU-
standard versions)
Operating voltage 230-240 V / 50 Hz / 3 ph NPE
Power intake, without AC unit ca. 18000 W
Power intake, with AC unit ca. 20400 W
Power intake, with AC unit and active
shoulder tanner ca. 20750 W
Breaker on-site 80 amp 3 phase
On-site supply wire gauge for flexible cord #4 gauge wire - 3 hot + 1 ground

16
Futuresun HP V2
Requirements at Place of Installation
Minimum room size for operation & maintenance min. 9‘ x 9‘
Floor, level, load capacity min. 1,8 kN/m2
Ambient temperature 50°F bis 86 °F
Relative humidity max. 65%
Transport
DANGER!
Only authorized and skilled
personnel is allowed to
transport the sunbed.
For use of transport
vehicles: comply with
operational directives and
safety instructions provided
by manufacturer.
DANGER
FALLING LOAD!
Falling load may cause
serious or fatal personal
injuries.
Use only appropriate lifting
devices.
On delivery, the unit is pre-assembled and fixed to a
wooden pallet. Additional components are delivered in
separate boxes.
DANGER
BY MOVING LOAD!
Risk of injuries by moving
load or transport vehicles.
Block all paths of transport
to traffic to prevent
personal injuries caused by
transport vehicles or the
load.
WARNING
FALLING LOAD!
Due to their heavy weight,
equipment parts can cause
serious bruises when falling
down.
Wear safety shoes during
transport of equipment
Transport by fork-lift or lift truck
 If the sunbed is fixed to a pallet, move the forks
carefully into the openings of the pallet.
 For single boxes, two persons lift them individually
onto the forks.
WARNING
TOPPLING LOAD!
The heavy load can cause
personal injury or damage
when toppling from the fork-
lift during transport. Tilt the
lift-arm slightly backwards
to prevent the load from
toppling.
 Lift with load with the fork-lift or the lift truck for only
a few centimeters.
 Drive the load carefully to the place of installation.

17
Futuresun HP V2
Transport by dolly
 4 persons lift one box onto the dolly.
 Move the box to the place of installation.
 4 persons lift the the box off the dolly.
 Use the same procedure to move all boxes to the
place of installation.
Installation of equipment
and electrical connection
DANGER CAUSED
BY INCORRECT
ASSEMBLY!
Improperly performed
installation and connection
jobs may result in severe
damages and fatal injuries.
Assembly and electrical
connection must be
performed by authorized
service technicians and
certified electricians only.
CAUTION – DAMAGE
TO COMPONENTS!
Do not kick against
components. Do not scratch
or damage the surfaces, i.e.
with assembly tools.
The equipment is delivered fixed to a wooden pallet.
In order to lift the sunbed from the pallet, it must be
disassembled and moved to the place of installation.
For disassembly, transportation of single components
to the site of installation and the assembly minimum
four adult persons are required to perform these jobs.
For disassembly and assembly of the sunbed, you will
need the following tools:
 Allan key , 6 mm
 Philips screwdriver (small, medium and large
sizes)
 Flathead screwdriver (small, medium and large
sizes)
Preparations at site of
installation
WARNING
HEAVY LOAD!
Carrying the heavy sunbed
components can result in
overstrain and health risks.
Always carry the big
components of the sunbed
with 4 persons.
 Move the sunbed on the pallet to the site of
installation. Observe directions regarding transport,
starting with page 15.
For the time being, position sunbed in
such a way that there is still sufficient
space for assembly jobs at the rear site.
 Remove the ribbon band.
 Take off the two upper boxes put on top of the big
box on the wooden pallet.
 Remove the staples from the packing.
 Remove the packing.
 Remove padding material.
 Open the top canopy and take out the exhaust air
stack.
 Store air stack at a safe place .
 Take out the box with accessories inside the
sunbed.
 Store box with accessories at a safe place.

18
Futuresun HP V2
 For the time being move the remaining boxes to a
safe place for storage.
 Take the manual out of one of top boxes (box is
marked).
 Remove all remaining packing materials and foils.
 For the time being the protective foils for the high-
gloss parts may remain on the unit to prevent
scratches.
 To remove the wooden boards, take off the upper
cardboard lid of the box and the side cardboards
panels first.
 Remove the styrofoam between top canopy and
sunbed.
 For the time being, let the sunbed still sit on the
wooden pallet.
Disassembly
Disassembly of top canopy acrylic
 Open the top canopy .
 Turn off the mains disconnection switch and secure
against activation with lock and key.
 Put a srewdriver into the slot at the top profile and
push in the spring.
 Turn the profile inwards.
 To protect the sunbed and the top canopy acrylic
put a piece of styrofoam or some other soft
padding material between the sunbed and the top
canopy acrylic.
 Lower the top canopy acrylic carefully and let it rest
on the sunbed.
 Disconnect the control panel plug at the rear side
of the top canopy acrylic.
 Put your index finger into the opening at the rear
side of the top canopy acrylic and pull the plug
upwards(1.).
 Then pull the plug at the cable end out of the
smaller opening (2.).

19
Futuresun HP V2
 To unscrew the control panel from the top canopy
acrylic, loosen the three (3) screws of the control
panel at the rear side of the top canopy acrylic.
 Two persons lift the top canopy acrylic off the
sunbed.
Removal of filter glasses (top
canopy)
WARNING – Glass
Breakage!
Defective filter glasses can
cause serious cuts by glass
splinters when touched with
bare hands. Wear protective
gloves.
 Support the filter glass with one hand to prevent it
from falling down when you release metal latch
 Use a flat-head screwdriver to release the metal
latch.
 Take out the filter glass following the direction as
indicated by the arrow below.
Note The contact pins of the HID quartz lamp
are of different sizes. When re-assembling the
lamp, do observe correct position and fit of
contact pins.

20
Futuresun HP V2
Removal of sunbed acrylic
The sunbed acrylic is positioned on the sunbed. The
acrylic is connected to a profile at both ends of which
there are hinge joints. With these hinge joints the
acrylic is fixed to the hinge bolt.
To remove the sunbed acrylic from the sunbed,
proceed as follows:
 Get a soft, even support for the acrylic ready.
 Two persons lift the sunbed acrylic for approx. 30
cm.
 Take out the sunbed acrylic pulling carefully
forward.
 Store the sunbed acrylic on a soft, even support.
Removal of lamp coverings out of
the sunbed
To cover the lamps at the head- and footend side of
the sunbed, there are lamp coverings. These must
be removed in order to disassemble the air vents.
Proceed as follows:
 Lift the lamp covering at the headend side.
To remove the plug for the backlighting of the front
cover plate, proceed as follows:
 To loosen the plug connection, push the button
between the plug and the plug connection down (1)
and pull the plug out of the connection (2).
 Take out the lamp covering at the footend side.
