KBL megaSun 5600 User manual

megaSun 5600
BA5600EN_G (0707)

3
Operation and Service megaSun 5600
Inhalt
1. General Safety Instructions................................................................................4
2. Service Plan .........................................................................................................5
3. Optional Equipment.............................................................................................6
4. Operation during the tanning session ..............................................................7
4.1 Operating panel ....................................................................................................................7
4.2 Functions...............................................................................................................................8
4.3 Tips for the studio operator. .................................................................................................14
5. Maintenance of the sun bed ............................................................................15
5.1 Cleaning and care . ..............................................................................................................15
5.2 Dismantling the acrylic panes. .............................................................................................16
5.3 Filter panes . ........................................................................................................................18
5.4 Tubes, facial and shoulder tanners . ...................................................................................19
5.5 Replacing the burner of the shoulder tanner . ......................................................................20
5.6 Replacing the burners of the facial tanner. ..........................................................................22
5.7 Unit lighting . ........................................................................................................................23
5.8 Filter mats. ...........................................................................................................................25
5.9 Canopy drive . ......................................................................................................................26
5.10 Cooling system and exhaust air . .........................................................................................27
5.11 Air-conditioning unit. ............................................................................................................29
5.12 Condensate pump . .............................................................................................................30
5.13 Changing aroma box / aquaCool canister*. .........................................................................30
5.14 Music system with MP3-player*. ..........................................................................................31
5.15 Replacing the aquaCool nozzles. ........................................................................................32
6. Technical data ...................................................................................................33
6.1 Data which all apparatuses have in common. .....................................................................33
6.2 Views. ..................................................................................................................................34
6.3 megaSun 5600 Super / Super CPI. .....................................................................................34
6.4 megaSun 5600 Super Power / Super Power CPI. ..............................................................35
6.5 megaSun 5600 Ultra Power / Ultra Power CPI. ...................................................................35
7. Wiring diagram ..................................................................................................36
7.1 Mains voltage . .....................................................................................................................36
7.2 megaVoice without music option . ........................................................................................37
7.3 Internal music signal MP3-player . .......................................................................................37
7.4 External music signal without channel selection . ...............................................................38
7.5 External music signal (100V) without channel selection .....................................................38
7.6 External music signal with channel selection . ....................................................................39
7.7 External Channel Selection ..........................................................................................40
7.8 External Timer ..............................................................................................................41
8. Service................................................................................................................42
8.1 General information and structures . ...................................................................................42
8.2 Service level I . .....................................................................................................................43
8.3 Service level II . ....................................................................................................................50
8.4 Refilling / Changing Aroma and aquaCool* . ........................................................................54
8.5 Colour codes for the pipes. ..................................................................................................55
8.6 Error message . ...................................................................................................................56
9. Tanning instructions ........................................................................................57
9.1 General tanning instructions. ...............................................................................................57
9.2 Super, UV-Type 3, inductive . ...............................................................................................58
9.3 Super, UV-Type 3, CPI . .......................................................................................................59
9.4 Super, UV-Type 4, inductive . ...............................................................................................59
9.5 Super, UV-Type 4, CPI . .......................................................................................................60
9.6 Super Power, UV-Type 3, inductive. ....................................................................................60
9.7 Super Power, UV-Type 3, CPI . ............................................................................................61
9.8 Super Power, UV-Type 4, inductive. ....................................................................................61
9.9 Super Power, UV-Type 4, CPI . ............................................................................................62
9.10 Ultra Power, UV-Type 3, inductive. ......................................................................................62
9.11 Ultra Power, UV-Type 3, CPI . ..............................................................................................63
9.12 Ultra Power, UV-Type 4, inductive. ......................................................................................63
9.13 Ultra Power, UV-Type 4, CPI . ..............................................................................................64

4
Operation and Service megaSun 5600
1. General Safety Instructions
Please observe the following safety instructions:
Tanning times Please keep to the recommended tanning times.
See Section 9.1
Timer The apparatuses may only be operated with safety timers which
comply with the corresponding standards.
KBL-Solarien AG recommends the following timer:
megaTimer KBL-Article No. 9100025000.
Disconnecting Before opening the apparatus, switch off the fuses to disconnect
the system from the voltage supply!
Facial tanner
Shoulder tanner
Attention!
Do not operate the sunbed if a filter pane is defective.
Section 5.3
Do not operate the shoulder tanner without lamp unit
Attention! High light intensity, do not look into the radiators!
Technical
Parameters
Mains voltage
The data indicated in the tanning schemes are based on the
assumption that both tubes and burners are replaced at regular
intervals. Section 5.4
When replacing tubes, remember to reset the CPI-control
system (Section: 8.2) and the counter of the tube service hours
(Section: 8.3).
An FI protective switch is required in any case.
Mechanics The canopy drive has to be serviced regularly with each tube
replacement.
This also includes the replacement of the drive rope after 3,000
hours of operation.
Section 5.8
Please also keep to the service cycles given in the service plan
(Section 2).
Cleaning Do not use any cleaning agents other than the ones approved
by KBL Solarien AG. Section 5.1

5
Service hours What has to be done? see
Every day Check the filling level of the condensate tank and empty it if
necessary.
100 Change or clean filter mats 5.7
500 - 600 Change burners
For inductive apparatuses:
• Change tubes
• Change starters
• Reset counter of service hours
5.4
For CPI-apparatuses (with burners) in Power-mode:
• Change tubes
• Reset counters (8.2.2)
• Reset counter of service hours
Check and grease ropes of the canopy drive 5.8
Check all inner tubes and – if necessary – change them.
Climatic apparatus:
• Clean heat exchanger
• Check the functioning of the condensate pump
5.10
600 Replace lamps of the shoulder tanner. 5.5
800 For CPI-apparatuses (with burners) in Eco-mode or for CPI-
apparatuses (without burners) in Power-mode:
• Change tubes
• Reset counters (8.2.2)
• Reset counter of service hours
1000 For CPI-apparatuses (without burners) in Eco-mode with
megaSun CPI-tubes in Power-mode:
• Change tubes
• Reset counters (8.2.2)
• Reset counter of service hours
5.4
Replace aquaCool nozzles. 5.15
1200 For CPI-apparatuses with megaSun CPI-tubes in Eco-mode
• Change tubes
• Reset counters (8.2.2)
• Reset counter of working hours
3000 Replace all the ropes 5.8
Operation and Service megaSun 5600
2. Service Plan
Service intervals For a safe operation of the sunbeds, regular service works are
essential and have to be documented. Cleaning works have to
be done when necessary and do not have to be documented.

6
Feature
aroma and
cabinBreeze
Fragrances in the sunbed and in the cabin
activeColor Colour stimulation in red, green or blue
aquaCool Misty water for refreshment
airCon Air conditioning
CPI Electronic ballasts
megaVoice* Acoustic user guidance
MP3 sound box* With a 256MB-memory for music
Music system Audio amplifier and audio switch
Channel select next track of the external music source
Waste air tube Ø 300 mm, 3 m
Central exhaust air
element
Warm air recirculation
legTanner
x-traTan Shoulder tanner
Operation and Service megaSun 5600
3. Optional Equipment
* the music system should be present

7
Operation and Service megaSun 5600
4. Operation during the tanning session
General
information
When switching on the apparatus, the following information is
displayed for 2 seconds before the running text appears:
Firmware version of the display
Version of the control software
Sunbed type
Tube type
Running text
The start of the tanning program depends on the studio control
system. If a simple coin-operated system has been installed, the
tanning program is started by inserting coins or tokens. When
the warm-up time has elapsed the tanning lamps are turned on
automatically.
If the touch key “Start” is pressed during this warm-up time, the
lamps turn on immediately.
The facial tanners are always turned on only after a certain
delay.
Some of the basic features are set in service level I, such as
colour-stimulation, aroma therapy, time control etc. Studio staff
will set these options according to the customers’ wishes.

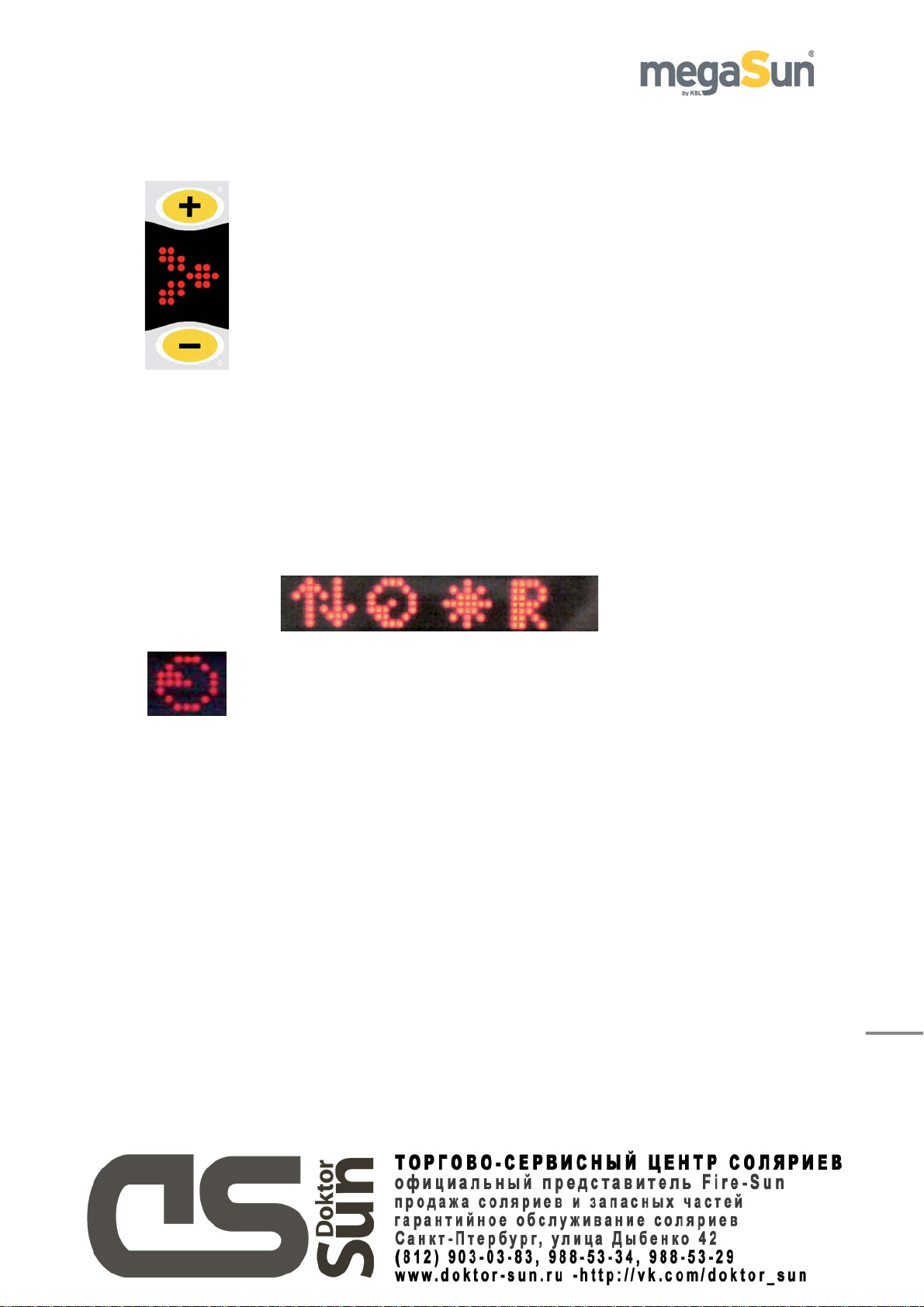

Illustr. 4-1 The main display with key numbers (aquaCool is configurated)
Main display The running text is displayed as long as the sunbed is in the
„waiting position“. When the coin-controlled signal appears, the
functions are displayed and the sunbed can be operated by
touching the corresponding keys. Any input will be confirmed by
a beep tone.
4.1 Operating panel

8
Operation and Service megaSun 5600
A function is switched on by pressing the plus sensor, which is
also used to increase the output stepwise. To set the maximum
value (e.g. fan speed) the sensor field has to be pressed again
and again until the maximum value has been reached.
A function is switched off by pressing the minus sensor, which
is also used to decrease the output step by step. To set the
minimum value (e.g. volume) the sensor field has to be pressed
again and again until the desired value has been reached.
4.2 Functions
Start You can use this touch key to switch on the apparatus during
the warm-up time.
If the tanning session has been interrupted by means of the
„Stop“ key, it can be continued after touching the „Start“ key
once again, provided the coin-operated counter has not run
down yet.
The numerical display shows the tanning time.
When the tanning time is over, the running text will appear
again.
Stop By pressing this touch field for at least 2 seconds you can
terminate the tanning session prematurely.
Running time During the tanning program the running time is displayed in this
field.
When adjusting the volume, the value set between 0 ... 99 % will
be displayed in this field for a short time.
When adjusting the fan speed, the value set between 20 ... 99
% will be displayed in this field for a short time.

9
Operation and Service megaSun 5600
As soon as the tanning time is over a program to shut down the
sunbed will be started:
• a soft voice reminds you of the end of the tanning session
and says good-bye,
• burners, tubes and the ventilation system will be reduced
step by step,
• the LEDs (in apparatuses with activeColor) will shine in
the colour adjusted for another 20 seconds.
End of the tanning
session

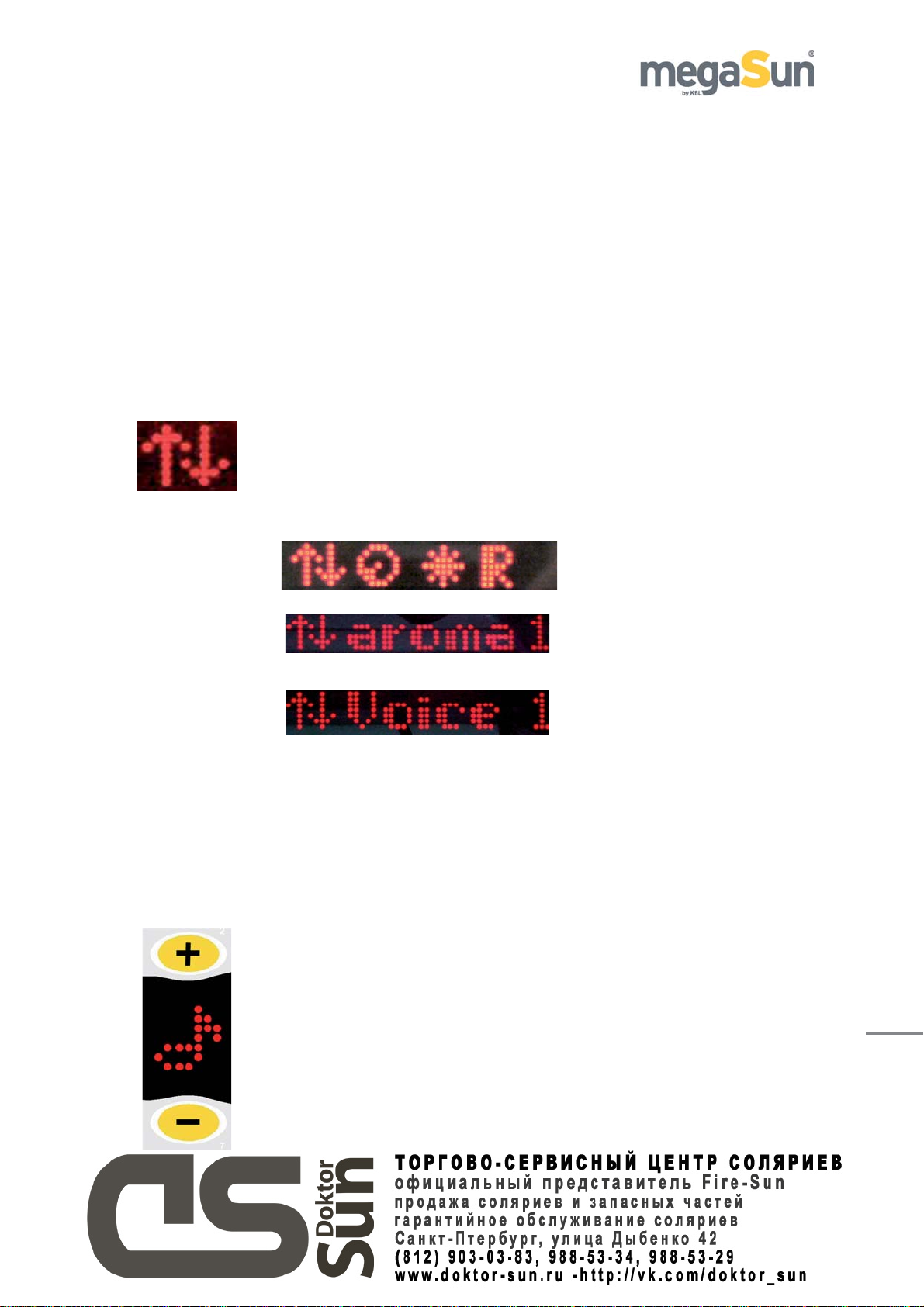

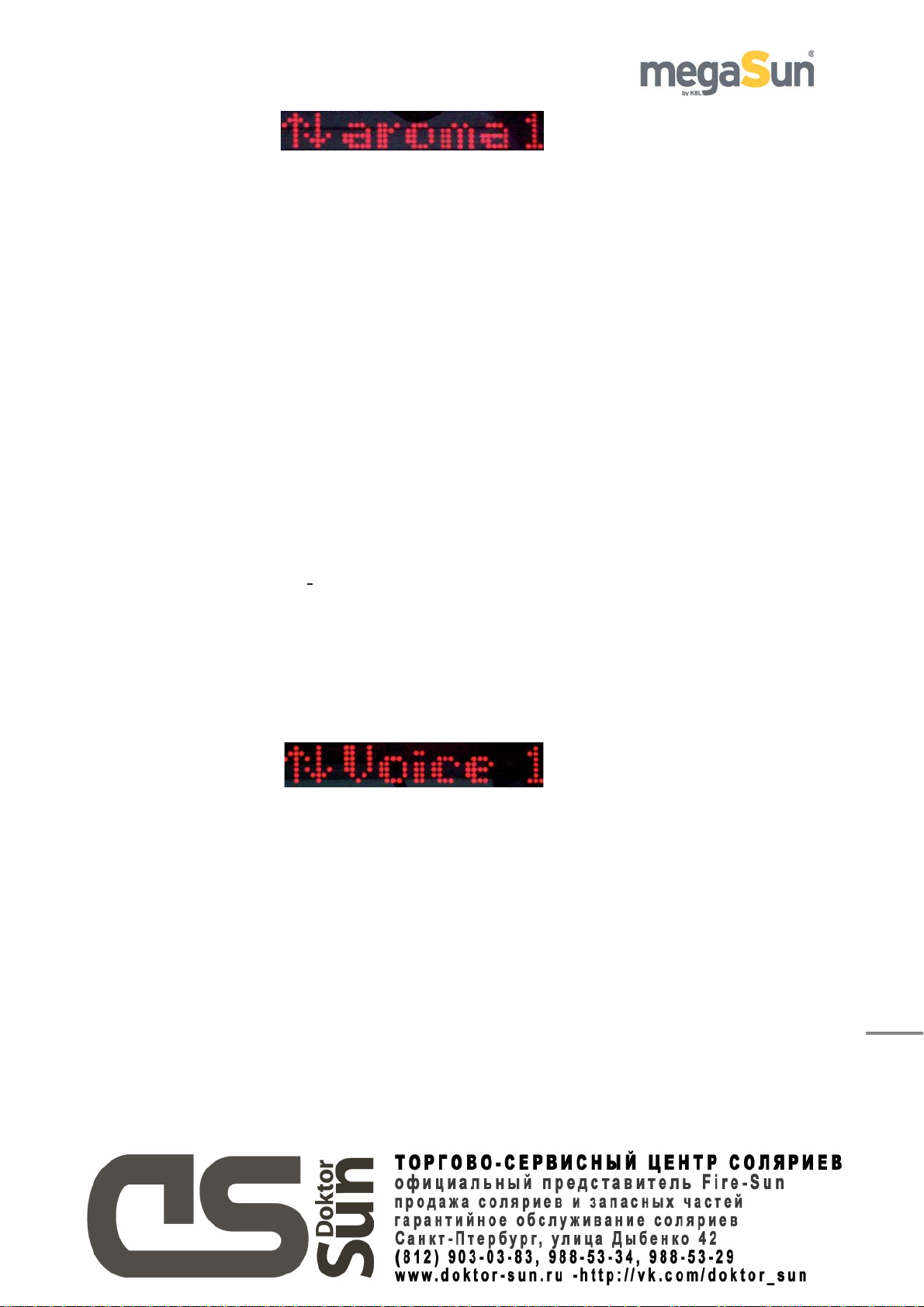

These double arrows point to some more menus which can be
activated by pressing the „+“ or „-„ keys above the double arrow
symbol.

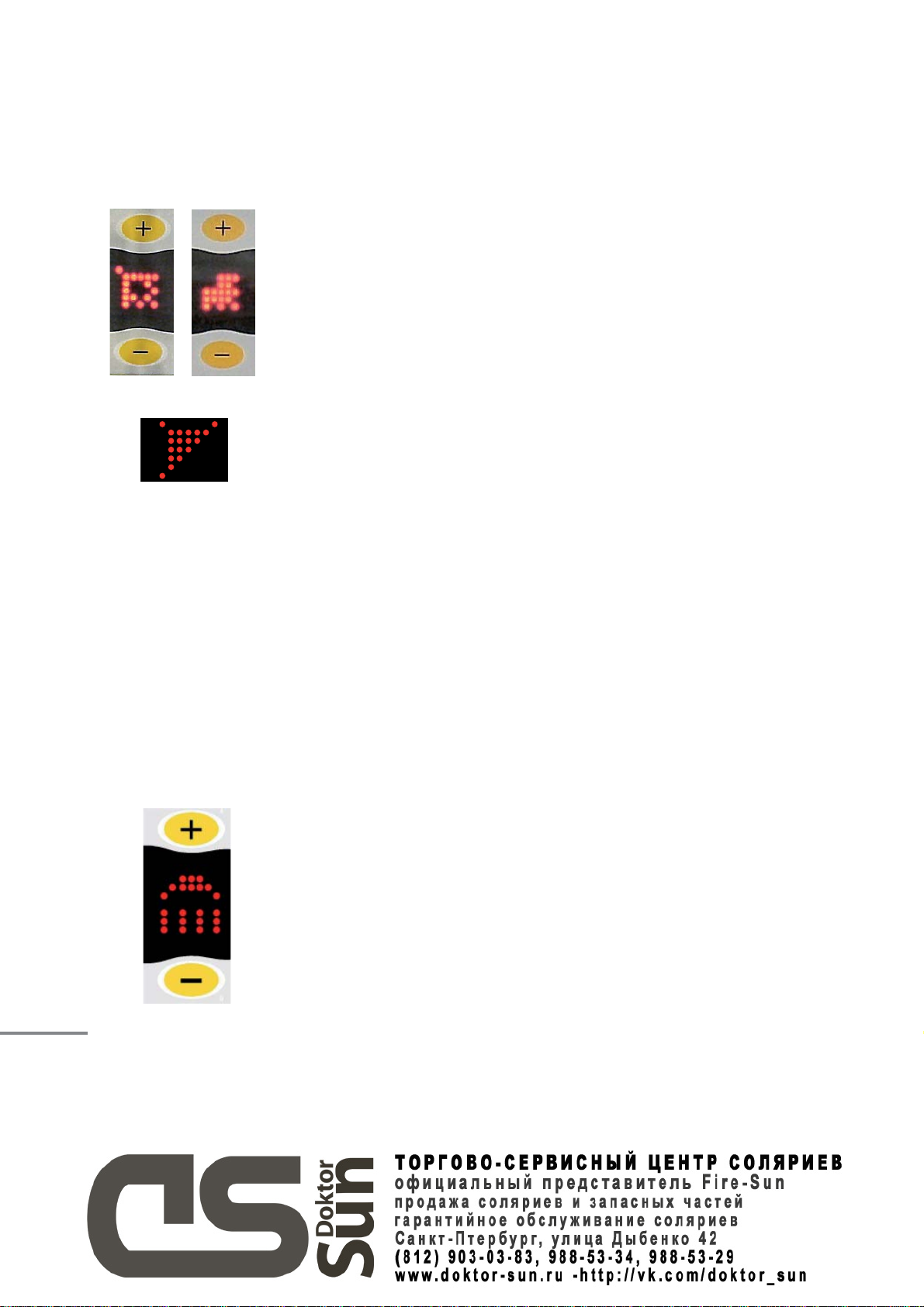

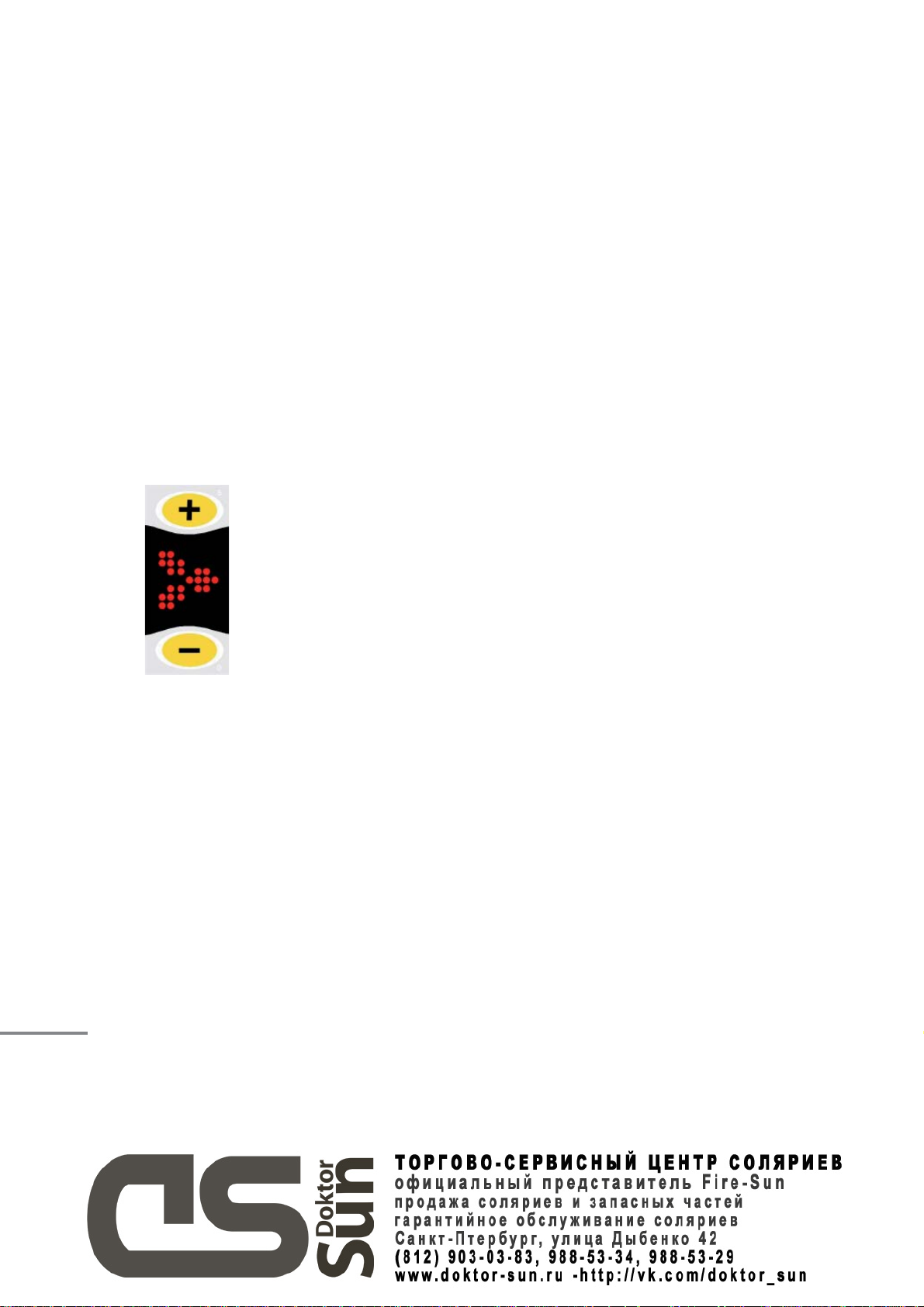

The following menus are available which will be explained in
more detail below:
Music channel* -
Air Condition* -
Colour
stimulation*
Aroma *
Acoustic user
guidance*
By calling up these additional menu functions you can see which
functions are activated after switching on the apparatus.
Special customer requests can be pre-selected in the service
menu (see Section 8.2 ff.)
Extended menu
You can adjust the volume of the music by touching the „+“ and
„-„ keys. The volume will be displayed in the numerical field as a
value between 0 – 99 %.
Press the corresponding sensor key again and again until you
have reached the desired volume.
Volume*
* this is only preset if the feature is ordered

10
Operation and Service megaSun 5600
aquaCool*
Off ON
Facial tanner/
Shoulder tanner
(optional feature)
The control of the shoulder tanner is coupled to the face tanner.
The shoulder tanner is switched on whenever the facer tanner is
activated but its power cannot be turned down. As soon as the face
tanner is switched off, the shoulder tanner is turned off as well.
Important: Do not operate the shoulder tanner without lamp
unit.
Level II Once the tanning program has been started, the facial
tanners are automatically switched on at maximum
setting.
Level I To reduce the output to level I, use the field “–”.
This step is not available with megaSun 5600 Super,
Super Power and Ultra Power UV type 3.
Level 0 To switch off the facial tanners completely, touch the “–”
field again for at least 3 seconds.
By touching the “+” field you can switch the facial tanners on
again or you can increase their output.
When the system has been switched off, there will be a time lag
before you can switch it on again due to the necessary cooling
of the burners.
Here you can activate the aquaCool water-atomisation func-
tion (plus button, symbol flashes) or deactivate it (minus button,
symbol does not flash). Default setting at start: as defined on
service level I in the AAC/Aqua menu.
If the aquaCool supply is running low, the message Aqua low
is shown on the display between the tanning sessions. When
the message appears for the first time, the aquaCool supply
will last approx. another 2.5 hours of operation with aquaCool.
If the aquaCool supply is empty, the message Aqua 0% ap-
pears and the symbol is crossed out. If the system is to be
used without aquaCool, you can switch off the messages
and the symbol. For this purpose, set the submenu Aqua
to “OFF”. To reach this menu, proceed to the AAC menu on
service level II.
•
•
Water tank is
empty * this is only preset if the feature is ordered

11
Operation and Service megaSun 5600
Body fan The power of the body fan can be increased or reduced by
steps of 10 % by touching the fields „+“ or „–”.
After being switched on, the fan starts running at the power-level
value that has been entered for ACS/A.START on level II of the
service menu.
When changing the value, the current setting is displayed as a
two-digit number between “20%” (minimum) and “99%” (maxi-
mum) in the numerical field for a short time.
In order to switch off the body fan completely, press the “−" field
several times until the value of 20% appears. Then press the "–”
field once again and keep the key pressed for 0.5 seconds. After
a short time lag the body fan is then switched off.
The body fan can be switched on again at any time simply by
touching the “+” field.
Channel selection*
With the help of this system you can choose the audio source,
e.g. change the CD or go to the next piece of music (MP3).
The MP3-player is equipped with a 256MB-chip, which can take
the volume of the 3 music CDs.
The studio operator himself can choose the music and with the
computer he can load it to the chip. The MP3-player is designed
in such a way that you only have to change the chip for the mu-
sic. KBL delivers all the apparatuses with MP3-players with the
music of the CD „megaSun & friends“.
As an optional feature, the music of the MP3-player can be
turned on during the tanning breaks.
Tip: The music of the MP3-unit can only be controlled by one
audio source, i.e. either by the chip of the MP3-player or by an
external music source.

12
Operation and Service megaSun 5600
Colour
stimulation*
The colour of the colour stimulation can be selected by means
of the „+“ key or by the „ - “ key: Red- Green - Blue.
You can only switch on one colour, but you can switch them all
off (see Service level).
48 high-performance diodes for each colour (Red - Green -
Blue) produce the mood desired: relaxing blue, stimulating blue
and calming green.
Air-conditioning*
By pressing the „+“ or „–” keys you can switch the air-
conditioning on or off during the tanning session. Once the air-
conditioning has been switched off, it can only be switched on
again after an interval of 3 minutes. A small star is displayed to
confirm this.
If the request to switch on the system is made earlier, it will be
registered (big star) and when the interval of 3 minutes is over it
will be executed automatically.
Exception
In case that the system has been switched off by means of the
coin-controlled system, it can be switched on again immediately.
This airCon func-
tion is only in
this level if the
aquaCool is ac-
tivated.
Otherwise you will
find airCon one
level higher as
the picture shows
on the right hand
side. Main display with air condition (aquaCool is not congurated)
* this is only preset if the feature is ordered

13
Operation and Service megaSun 5600
Aroma*
The „aroma“ function can be switched on by means of the „+“
key above “1” and switched off by the „ - “ key below „0“.
The display flashes a signal when the function is not activated.
KBL can offer 2 aroma fragrances: „Sunrise“ and „Daydream“.
The apparatus only has one fragrance which can changed very
easily, however.
The fragrance is combined with a gel. Please note that the gel
is not completely used up but a small rest will remain. This sta-
tus is shown on the display so that the operator knows when to
change the gel.
The fragrance comes out at the foot of the bed. The air stream
leads the fragrance over the body to the face so that it can be
perceived intensively.
aroma and aquaCool are activated one after the other
(aroma – aquaCool – aroma) and start again and again in an in-
terval of 1 minute.
Tip: pureAir and aroma exclude each other. As long as aroma is
given off pureAir will be switched off.
megaVoice*
The „Voice“ function can be switched on by means of the „+“ key
above “0” and switched off by the „ - “ key below „1“.
The display flashes a signal when the function is not activated.
megaVoice informs the customer in a simple and short way
about the operating functions of the sunbed. If requested,
megaVoice can be switched off by the customer during the tan-
ning session.
* this is only preset if the
feature is ordered

14
Operation and Service megaSun 5600
4.3 Tips for the studio operator
Daily checks and
basic settings
Please make sure
• that the tank for the condensed water is checked and
emptied every day (5.11)
• that materials which have been used up are refilled (8.4)
and
• that the settings which can be executed in the service
levels (8.2, 8.3) of operation, e.g. colour-stimulation,
aroma, time controls etc., are made.
Illumination after
use
The illumination (decorative) may be switched on or off if the
timer signal is not active by pressing the key sequence
„+“....„–”....“+“ of the body fan.
You have to press the individual buttons within a period of 1 sec.
Please also bear in mind the possibility of defining two different
illumination cycles for each day of the week (see 8.2.2).
Error message
„Abluft “ (exhaust
air)
This error message is shown in the display and can be
acknowledged by pressing the „Stop“ key.
But before doing so, service people should repair the defect.
Possible reasons of this message can be:
• the temperature in the apparatus is too high or
• the exhaust vent system is defective
For more information see 8.6

15
Operation and Service megaSun 5600
5. Maintenance of the sun bed
Preparatory works Before you open the apparatus, switch off the fuses to discon-
nect it from the mains supply!
Do not operate the tanning unit without the front panels, without
acrylic panes or with the base section opened, because other-
wise the tanner areas will become overheated. This will destroy
the filter panes!
As far as CPI-equipped units are concerned, the electronic
switchboxes located under the bed are also exposed to the dan-
ger of overheating.
5.1 Cleaning and care
Plastic parts
Chromed parts
The bigger plastic parts are made of solid, high-quality ABS
material.
The surfaces and the acrylic glass must not be cleaned with
concentrated disinfectants or solvents or other liquids that
contain alcohol! The manufacturer cannot be held liable for
any damages caused by chemically active agents such as
inappropriate cleaning agents. To clean the varnished and plastic
surfaces use a damp soapy cloth.
It must be avoided at any rate that cleaning fluid runs into the
apparatus.
Clean only with a damp (not wet) washleather and a plexiglass
cleaner (antistatic). The cleaning agent must be applied onto the
cleaning cloth and not directly onto the chromed parts.
Acrylic panes For a harmless cleaning of the acrylic panes use the special
cleaning and disinfectant fluid „megaClean “ (to be obtained
from KBL) which has to be diluted in water at a ratio of 1:13.
Fixing the canopy The canopy can be fixed in the upper position, to perform
service and maintenance works.
To do so, turn the lever of the left hand side of the tanning
system to the left. Lift the canopy to the upper position and it
will remain in this position. To release the canopy again, turn the
lever to the right.
After removing the screws on the left and on the right, the bed
pane can be fastened to the canopy.

16
Step Procedure Reference
1 Fix the canopy. 10
2 Remove the screws and tilt down the canopy and/or
lateral pane(s).
Illustr. 5-2
Illustr. 5-3
3 When the pane is in the lower position, you can lift it out of
the swivel hinge support, if necessary.
4 Mount the pane in reverse order. Make sure that the frame
is correctly positioned in the hinge.
5 When closing the pane, all air nozzles must be matching
their counterparts. If not, carefully push the nozzles
concerned into their proper position.
6 Release the canopy.
Operation and Service megaSun 5600
5.2 Dismantling the acrylic panes
Dismantling the
pane in canopy
and lateral part
The following tables explain how to dismantle the acrylic panes.

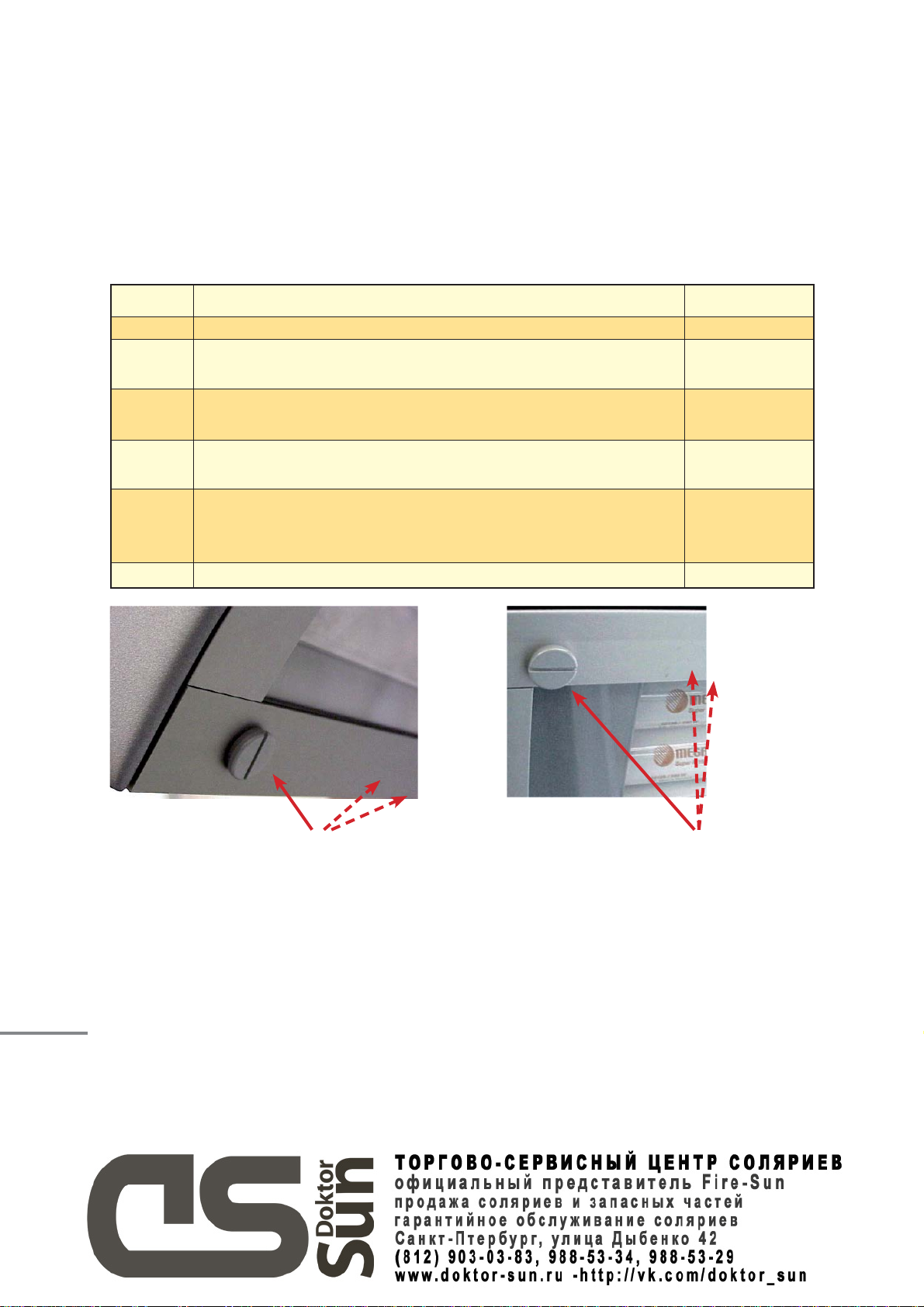

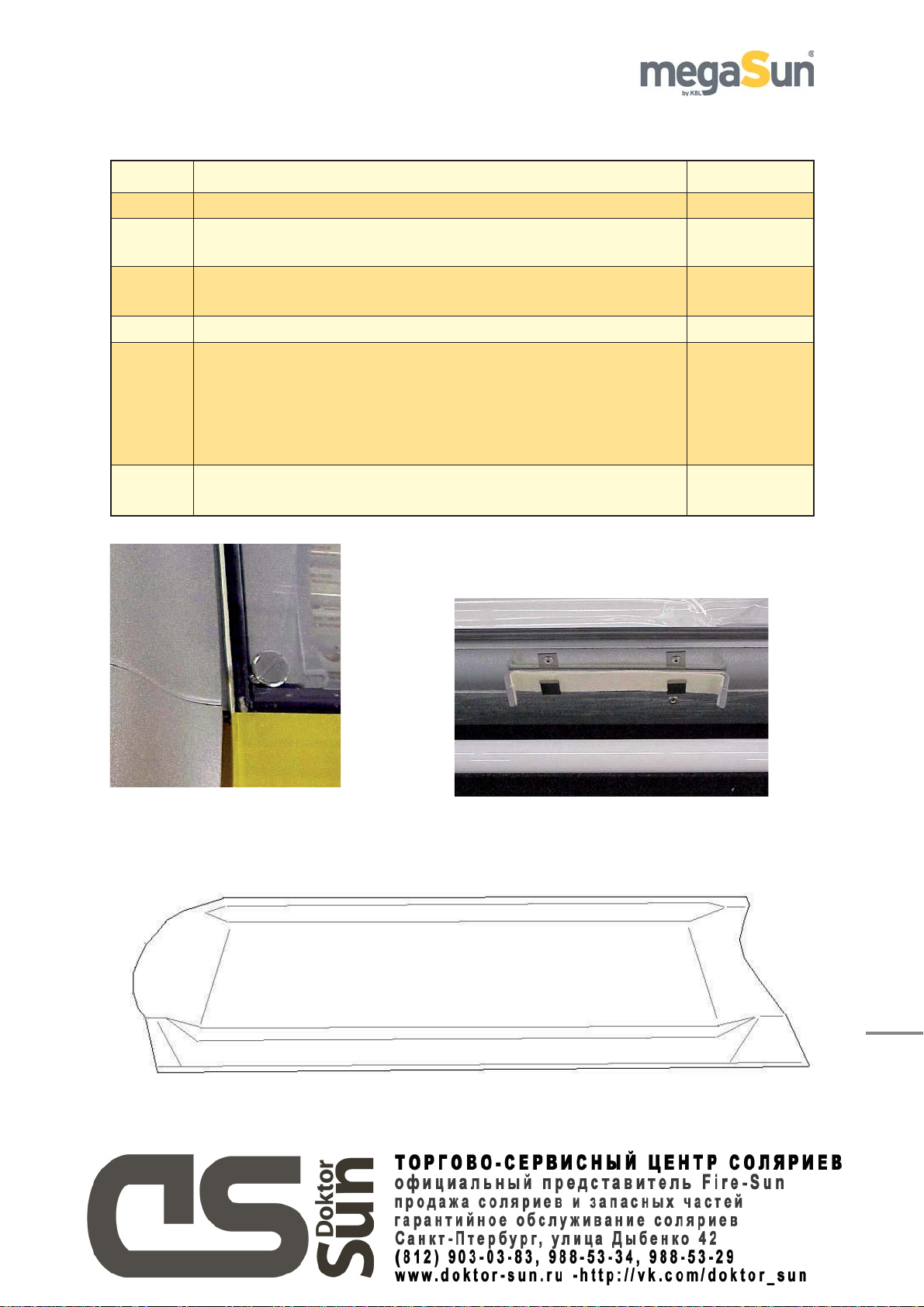

Illustr. 5-2 Release the four screws
of the canopy pane
Illustr. 5-3 Release the four screws
of the lateral pane
Base and duct
pane
The following table shows how to clean the base and duct pane.
The electronic parts installed underneath the bed must not get in
contact with any moisture.
Therefore, in order to clean the underside of the base pane and
the inner base section, use a slightly damp micro fibre cloth
only. You can also use it to clean the shoulder tanner. You can
use megaClean as a detergent (spray the cloth with it).

17
Step Procedure Reference
1 Fix the canopy.
2 Undo the two pan-head screws on the right and on the
left-hand side of the base pane.
Illustr. 5-4
3 Lift the base pane and fix it to the canopy by means of the
enclosed hooks.
Illustr. 5-5
4 Clean the lower part of the base pane.
5 If there is a duct pane in the bed, you can take it out for
cleaning purposes.
Carefully put the duct pane back into its correct position
for the proper cooling of the base pane!
Proceed in the same way with the shoulder tanner.
Illustr. 5-6
6 Clean the upper surface of the base pane and fasten it
with the two screws.
Operation and Service megaSun 5600
Illustr. 5-4 Pan-head screw Illustr. 5-5 Suspension of the base pane
Illustr. 5-6 Duct pane

18
Step Procedure Reference
1 Dismantle the acrylic pane of the canopy or of the lateral
part.
see 5.2
2 Undo the screws of the filter pane cover (1), swing it out (2)
and pull it out (3).
Illustr. 5-7
3 Carefully and with both hands, press the filter pane down (4)
until the upper springs release the pane (5). Take the pane
out from above (6).
Illustr. 5-8
4 After cleaning the pane, mount it again in reverse order.
2
2
Operation and Service megaSun 5600
5.3 Filter panes
Safety function The facial tanners are equipped with an additional safety
function. Behind each of the filter panes there is a safety switch
that switches off the burner in the case of a missing or broken
pane.
Do not operate the tanning system with a defective filter pane.
Carry out regular visual inspections!
Filter panes have to be replaced only by those of the same type!
The filter panes may be dismantled and replaced by trained
expert staff only.
Filter panes in the
canopy or lateral
part
After dismantling the filter panes (see below), clean them with a
standard cleaning agent for glass and a soft cloth or chamois.
Illustr. 5-7 Remove filter pane cover Illustr. 5-8 Remove pane from the
clamping springs
Mark The filters are marked with
„KBL 3020 0191“
1
3
1
35 6

19
Step Procedure Reference
1 Dismantle the canopy pane, base pane and lateral pane. Section 5.2
2 Remove the tube covers in the facial area. Section 3.3.
3
For apparatuses equipped with burners: You will have to
dismantle the filter panes as well, if you want to replace
the burner.
Section 5.3,
5.5
4Remove the covers of the shoulder tanners. Section 5.6
All
tanning
units
All units with
burners
Inductive units CPI units
Shoulder
tanner
Burner Tubes
and
Starters
with facial
tanner mode
without facial
tanner mode
Eco Power Eco Power
500 hrs. 500-600 hrs. 500-600 hrs. 800 hrs. 500 hrs. 1000 hrs. 800 hrs.
Carry out a reset!
Operation and Service megaSun 5600
5.4 Tubes, facial and shoulder tanners
Dismantling Carry out the following procedure to clean or replace tubes or
face and shoulder tanners:
Cleaning intervals
Unit lighting
To make sure that the tanning effect is maintained, we
recommend you to clean the tubes and UV radiators with warm
water and a chamois after approx. every 200 hours of use. Do
not use any aggressive or alcoholic cleaning agents.
The coloured filter (Sec. 5.7 Unit lighting) has to be replaced at
the latest when replacing the tanning tubes.
Replacement
intervals Only replace tubes, face tanners, shoulder tanners and starters with those of the same type!
When installing the tubes, make sure that the inscription is
visible, i.e. the reflector must be at the back.
For units equipped with CPI technology, it is essential to carry
out a reset after each tube replacement! (see Section 8.2.2)
For units equipped with inductive technology also install new
starters when replacing the tubes!
After each change of tubes, do not forget to reset the counter of
the service hours of the tubes. (see Section 8.3.)

20
5.5 Replacing the burner of the shoulder tanner
Every 600 hours of operation, the lamps of the shoulder tanner
have to be replaced. Let the tanning system cool down before you
replace the burner. Disassembly and assembly of the burners must
only be carried out by trained expert staff. The base pane must
remain tilted downwards during dismantling and re-assembly.
Important: Do not operate the shoulder tanner without lamp unit.
RRReeeppplllaaaccceeemmmeeennnttt ooofff
bbbuuurrrnnneeerrr
Step Procedure Reference
1Undo the screw that holds the outer covering. Lift the ou-
ter covering off in upward direction and towards the front.
Illustr. 5-5-1
2 Undo the screws of the chrome covering and pull it off
towards the front.
Illustr. 5-5-2
3
Disconnect the reflector from the electrical system by
pulling the plug out of the ignition unit at the position
marked in the figure. Remove the reflector by pressing
it downwards vertically and then turning it to the left
while keeping it pressed down. Pay attention that you
do not twist the socket.
Illustr. 5-5-3
Illustr. 5-5-4
4
To spread the clamp, press one side downwards. Then
take hold of the socket of the burner on the opposite
side and pull it out in an inclined upward movement.
Burner and socket represent one single component.
Illustr. 5-5-5
5
When installing the new burner, be careful not to
touch the glass with your bare hands. This would
cause stains that burn in during operation. If you
happen to touch the glass, use alcohol to clean it
carefully. Press one side of the clamp downwards,
then take the new burner and place it into its exact
position by paying attention to the recess in the
socket. After that, press the socket downwards on the
opposite side until it locks into place.
Connect the plug to the ignition unit.
Illustr. 5-5-6
6
When installing the reflector, the wider part of the high-
grade steel ring must be directed towards the centreline
of the shoulder tanner. Place the reflector in position
as shown in figure 5-6-7, then press it downwards and
turn to the right while keeping it pressed down. Pay
attention that you do not twist the socket.
Illustr. 5-5-7
7
Insert the chrome cover into the slots of the shoulder-
tanner casing, press it down to ensure a snug fit and
screw it on. Position the reflector correctly under the
chrome covering. To do so, press the reflector slightly
to align it.
Illustr. 5-5-8
8Attach the outer covering vertically and tighten the screw.
Operation and Service megaSun 5600

21
Illustr. 5-5-1: Undo the screw holding
the outer covering
Illustr. 5-5-2: Undo the screws hol-
ding the chrome covering
Illustr. 5-5-4: Unscrew the reflector
Illustr. 5-5-3:Disconnect the reflec-
tors at the respective ignition unit
from the electrical system
Illustr. 5-5-5: Spread the clamp and
take off the burner including socket
Illustr. 5-5-6: Insert the new burner
and ensure a snug fit
Illustr. 5-5-7: Insert the reflector Illustr. 5-5-8: Reflector correctly posi-
tioned under the chrome cover
Flat projection
Operation and Service megaSun 5600
