ADVANCED UV LIGHT Future Sun HP User manual

Sunlamp Model HP 24/21: HELIX™
US: "Future Sun HP"
Owner's Manual
Vers. 1/April 2005

Preface
This Owner's Manual will help you to operate and
use the high-performance sunbed model HELIX™
(US Tradename: "Future Sun HP") - in the
following referred to as HP 24 or "the sunbed" - in
a safe and proper way.
This manual is addressed to:
• service personnel,
• authorized and skilled electrical personnel,
• qualified tanning salon personnel
• end users
Every person who
• transports,
• instals,
• connects,
• operates,
• sets the controls,
• maintains,
• cleans,
• disassembles,
• stores or
• disposes of
the HP 24 must know and understand this manual.
Keep this manual in a place close to the sunbed
and easily available for further use.
Features
Diverse elements in this manual show a
standardized format. This way it is easier to
distinguish between
standard text elements
• listings or
 steps of action
Description
The high-performance sunlamp HP 24 is a product
of the new generation of high-tech tanning
equipment combining peak performance with a
clear, modern design.
The new filter and reflector technology with
specially designed coatings allows for an even more
intense tanning performance at a reduced level of
power consumption.
The wide tanning tunnel offers a comfortable
tanning ambience. An intelligent layout of lamps
takes advantage of overlapping radiation effects
and ensures that comfortableness does not
compromise on performance.
Equipped with 21 low-pressure reflector lamps in
the bench and 24 high pressure lamps in the top the
HP 24 delivers maximum tanning performance.
The generous tanning space guarantees a
comfortable tanning session.
The body cooling at the head and foot-end in
combination with the AC cooled air flowing through
the bench create a pleasant and well-balanced
tanning climate.
The chrome-coloured air vents at the head-end can
be adjusted for best individual use.
The user friendly control panel allows for simple and
easy use of controls during a tanning session.
Intensity of body cooling, intensity of facial lamps
etc. can be adjusted at any time.
The electronic control board also offers customized
set-ups and maintenance features which can be
accessed by a special code.

Error! Style not defined.
3
Table of Contents
Safety Instructions.......................................4
Safety Instructions – Further Details.....................4
Obligations of the Operator/Owner.........................4
Proper Use of the Sunbed .....................................5
Improper Use .......................................................5
Notice of Residual Risks.......................................5
Basic Safety Instructions .....................................6-7
Safety Instructions for Users.................................7
Safety Devices......................................................7
Delivery.........................................................8
Components .........................................................8
Technical Data..............................................9
Room Requirements.............................................10
The Control Panel.................................................10
Transport....................................................11
Assembly and Electrical Connection.......12
Preparatory Work at Site of Installation.................12
Disassembly.....................................................12-15
Assembly.......................................................15-21
First Start-IUp........................................................21
Set up of Electronic Controls .........................21-24
Operation....................................................25
Operation...............................................................25
The Emergency Stop Button...............................25
Control Set Ups - Options.....................................26
The Definition of Skin Type ..................................27
Maintenance...............................................28
Maintenance Chart .............................................28
Replacement of Low-pressure Lamps & Starters 29
Replacement of Top Plexi...................................30
Replacement of HID Lamps ............................30-31
Replacement of Filter Glasses…………………….32
Replacement of Dust Filter Mats -Top..................32
Replacement of Dust Filter Mats -Sunbed ..........32
Replacement of Design Backlights ................32-33
Cleaning......................................................34
Disassembly...............................................34
Storage........................................................35
Re-Use......................................................... 35
Trouble Shooting .......................................35
Error Codes ..........................................................36
Malfunctions during Operation..............................36
Disposal......................................................36
Contact to Manufacturer ...........................37
Declaration of Conformity.........................37
Standards ...................................................37
Warrranty.....................................................38

Error! Style not defined.
4
Safety Instructions
In this chapter you will find information on the
proper and improper use of the sunbed, obligations
of the operator, residual risks and general and
specific dangers.
Read this chapter carefully prior to first operating
the sunbed.
Always follow these safety instructions.
The operator is obliged to make sure that all safety
instructions are known, understood, and strictly
observed.
If you sell or in any other way dispose of this
sunbed, include this Owner's Manual with the
shipment.
L
Please send the name, address, phone or fax
number of the new owner immediately to
Advanced UV Light or its authorized
local/national distributor so that we can
provide up-dates about important or
unexpected safety actions to the new owner.
Safety Instructions – further details
In this manual you find the following categories of
safety instructions and notices.
DANGER!
Notices containing the word
"DANGER" refer to a dangerous
situation which can result in fatal or
dangerous injuries.
CAUTION!
Notices containing the word
CAUTION refer to a dangerous
situation which can result in light
injuries or damage to goods and
property.
ATTENTION!
Notices containing the word
ATTENTION refer to a situation
which can result in damage to
goods or damage to the
environment.
L
These hints contain information on the use of
the sunbed.
Obligations of the Operator
Advanced UV Light is not responsible for damages
caused by improper use of the sunbed or disregard
of the instructions provided in this manual.
• The operator of this sunbed must ensure that
only skilled and authorized personnel assembles
this sunbed ready for use and operates,
maintains, and cleans this sunbed.
• The operator must make this manual available to
the staff performing transport and assembly
work, and/or performing operation, maintenance
and cleaning jobs. Operator must also provide
information on all applicable standards and
regulations for the prevention of accidents at the
workplace and provisions for a safe working
environment. Operator must ensure that all
safety instructions are strictly observed.
• Prior to any use of the sunbed, the operator, or a
person authorized by the operator, must ensure
that
- the proper use and operation of the sunbed is
guaranteed and
- all safety standards are observed.

Error! Style not defined.
5
Proper Use of the Sunbed
Only adult human beings whose skin is suitable for
cosmetic tanning are allowed to use this sunbed.
The following persons suffering from one or more of
the symptoms described below are not allowed to
use a sunbed:
• increased sensitivity to UV -light
• allergic reactions caused by UV-light exposure
• skin diseases with contraindication of cosmetic
tanning
• coronary and circulatory diseases
• symptoms of disease or
• any other unidentified health problems or
• persons with pace-makers or
• under medication or using medication which may
have adverse effects in combination with UV-
light exposure.
The recommended exposure times must always be
observed. See recommended exposure schedules
in this manual – or, for export units – in a separate
attachment.
Use sunbed only with protective eye-wear.
This sunbed is designed exclusively for use in
commercial tanning salons, fitness centers and
beauty salons subject to the supervision and control
of specially trained operational staff.
The proper use of the sunbed includes to consider
with due diligence all the information provided in
this manual and – in particular – to observe all
safety instructions.
Every other use of the sunbed is regarded as
improper and unsuitable use of the sunbed and
may result in damage to goods or property or
eventually to serious personal harm. Advanced UV
Light GmbH is not responsible for damages or
injuries due to improper use.
Improper Use
The use of this sunbed
• by children
• by persons suffering from diseases
• by persons disregarding recommended
exposure times
• by persons not wearing protective eye-wear
are improper uses of the sunbed and may cause
personal injuries.
Advanced UV Light GmbH is not responsible for
injuries due to improper use.
Notice of Residual Risks
This sunbed is designed according to state-of-the-
art standards and acknowledged safety regulations
as well as all relevant technical standards to make
due provisions for eventual dangers.
The construction is designed to prevent potential
dangers or to make due provisions for eventual
dangers.
Despite of these provisions there still remain
residual risks when using this sunbed. Eventual
dangers for persons as well as goods and property
can be caused by
• operation of the sunbed in an improper way,
• use of the sunbed in an improper way, or
• transport of the sunbed in an improper way, the
start-up/turn-off of the sunbed in an improper
way, maintenance or cleaning in an improper
way.

Error! Style not defined.
6
Basic Safety Instructions
• Observe all Safety Instructions attached to the
sunbed and provided in this manual.
• Only authorized and skilled personnel is allowed
to transport, assemble, start-up and disassemble
the sunbed.
• Service personnel of Advanced UV Light GmbH
and its authorized distributors' are considered as
trained staff with the necessary expertise. This
also includes skilled electrical personnel who
due to their training and practical expertise
provide appropriate handling and service and
who are aware of potential dangers.
• Avoid any use or handling that may incur certain
risks.
• Transportation, disassembly, assembly,
maintenance and cleaning (i.e. of low-pressure
lamps) must only be performed after the unit has
completely cooled down.
Electrical Connection
• Operation of the sunbed is only allowed if the
unit is connected and secured on the site of
installation in compliance with the technical
requirements stated on the type label and in
accordance with local electrical standards.
• Operation of the sunbed is only allowed, if a
mains disconnection switch, FI-Safety switch
and a 30 minute automatic cut-off safety device
is installed at the site.
• Make sure that liquids (i.e. cleaning solution) do
not get into the sunbed. Stop the mains supply
immediately by activating mains disconnection
switch and secure it with lock and key in case
any liquids have entered into the sunbed.
• Prior to performing any jobs on the sunbed , e.g.
transport, assembly, disassembly, maintenance
and cleaning, the mains supply must be
switched off. In addition, the mains
disconnection switch must be secured with lock
and key against unauthorized or accidential turn
on.
Safety Provisions
• Use the sunbed only when in fault-free technical
condition All protection and safety devices must
be assembled and in working condition.
• Run the sunbed only with installed front cover
plate.
• All DANGER-labels and notices must be
immediately replaced when damaged.
• Do not use the sunbed with defective filter(s)
and/ or defective timer.
Suitable Site of Installation
• Do not instal the sunbed in damp rooms or in
rooms where there is a risk of explosions.
• Do not keep or store any containers with
explosive material, e. g. spray cans, close to the
sunbed.
• Smoking and open flames are prohibited within
proximity of the sunbed.
• Do not exposure materials that may suffer
damage from UV light exposure to the UV-rays
emitted from this sunbed.
Operation
• Prior to operation of the sunbed, check if the
sunbed is correctly connected and set-up and
that all safety provisions are in place, e. g.:
– Plexi of the sunbed
– Plexi of the top canopy
– Facial filters
– Ventilation (air entry and outlet)
• In order to avoid potential thermal damage, do
not cover or block ventilation (e.g. air entry) or
cooling devices.
• Before and after each use, check the sunbed for
obvious outer damage or defects and take care
to have eventual damages or defects repaired
immediately.
• Defects which may affect the safe operation of
the sunbed must be communicated immediately
to the responsible person in charge on the
owner/operator's behalf. Discontinue the use of
the sunbed until all of these defects have been
removed.
Transport
• All devices used for transport of the sunbed or its
components must be suitable for the weight of
the sunbed or its components.
• All valid standards and regulation to prevent
accidents at the work-place must be observed.
• All paths of transport must be blocked to
unauthorized trespass and clearly marked to
prevent injuries caused by transport vehicles or
the load.
Cleaning
• Clean and disinfect the sunbed prior to each
use. Remove rests of sanitary foils or other
substances
• Never clean the sunbed with abrasive or any
aggressive cleaning materials. Do not use tools
with sharp edges.

Error! Style not defined.
7
Maintenance
• All maintenance instructions and –intervals must
be diligently observed
• Use only original spare parts as provided by
Advanced UV Light GmbH or its authorized
distributors. In any other case you need
authorized service personnel to approve of these
parts being in compliance with technical
specifications as required by manufacturer.
Safety Instructions for Users
UV-light can cause damage to your skin and your
eyes.
• Persons with very light skin, many freckles, fair
to reddish hair and light eyes and nipples are not
allowed to use a sunbed.
• Always wear protective eye-wear during a
tanning session and close your eyes.
• Take out contact lenses prior to a tanning
session.
• Remove make-up or any cosmetics several
hours before taking a tanning session.
Cosmetics may have unwelcome side-effects
and can cause adverse skin reactions.
• Take only 1 (one) tanning session per day.
• For the first two sessions observe an interval of
48 hours.
• For the following sessions observe an interval of
minimum 24 hours between tanning sessions.
• After a tanning session, do not tan in the natural
sun on the same day.
• Stop exposure immediately when you notice
physical symptoms or adverse skin reactions. If
the symptoms do not disappear after a short
time, consult your physician.
• Do not use drugs which promise to tan the skin
without UV-light exposure in combination with a
tanning session. The combination may increase
the risk of a sunburn.
• Do not use any self-tanning creams or lotions.
These products may contain ingredients which
can increase the effects of UV-light exposure in
an unforeseen and unwelcome way.
• Do not use any creams or lotions with a
sunscreen designed for outdoor tanning. These
products may contain substances which can
influence the effects of artificial UV-light
exposure in an unwelcome way. Use only
products designed specifically for indoor tanning.
• Immoderate tanning results in overexposure. If
skin shows signs of blisters or irritation, consult
physician immediately.
• The unprotected eye can catch conjunctivitis and
in some cases overexposure can seriously
damage the retina. Repeated exposures
increase the risk of cataracts.
Safety Devices
Emergency Stop Button
In case of danger all high- and low-pressure lamps
can be switched off immediately by pushing the
Emergency Stop Button. The main ventilation will
switch off after a short delay time.

In case of danger, push the Emergency Stop
Button.
High- and low-pressure lamps will switch off.
Mains Disconnection Switch
The mains disconnection switch must be installed at
the site. During breaks of operation and after hours
the mains supply must be disconnected by the
mains disconnection switch. The switch must be
secured with lock and key against unauthorized re-
connection.
 If you want to disconnect the mains supply, turn the
mains disconnection switch into position „O“.
The mains supply is disconnected,

Put the lock into the opening of the switch.
 Fasten the lock.
 If you want to reconnect the mains supply, remove the
lock.

Turn the mains disconnection switch into position “I”.

Error! Style not defined.
8
Delivery
On delivery you will receive 1 box fixed to a wooden
pallet and 3 additional boxes. All pieces show
markings detailing the contents of the boxes.
 Check boxes immediately for signs of any
transport damages.
 Inform forwarder immediately if you notice any
relevant and obvious damages.
Components
1 Top Canopy
2 Sunbed
3 Front Cover Plate (in a separate box)
2 Exhaust Air Stacks , disassembled (in separate box)
not shown

Error! Style not defined.
9
Technical Data
L
Please see also technical data on the type label. For Northamerican equipment and other overseas
export units see separate data sheets enclosed as an Attachment to this manual
Depth 1610 mm
Length 2295 mm
Height (top closed) 1445 mm
Height (top open) 1690 mm
Dimensions
Entry level 600 mm
Unit, cpl. without AC unit ca. 450 kg
Sunbed ca. 150 kg
Top ca. 150 kg
Weight
Ballast Tray ca. 150 kg
20 x High-pressure lamps Dr Müller 300-500W E
4 x High-pressure lamps Dr.Müller 650W E
Configuration
(Standard Version) 24-21
21 x 180 cm Low-pressure lamps
Required access to open air 300 mm x 300 mm
Exhaustair volume 5000 m3/h
Room ventilation and
exhaust air Main exhaust air stack 2 x diameter 300 mm, length max. 4 m
Operational Voltage 400 V / 50 Hz / 3 ph NPE
Configuration – Model 24-21
Total Wattage (w/o AC) ca. 18000 W
Fusage on site 3 x 50 A
Required wire gauge on the site
Flex. Wire Europa HO5VV-F 5 x 10 mm2
Electrical connection
(only for EU-Standard
Versions)
FI-Switch on site 3 x 63 A

Error! Style not defined.
10
Room Requirements
Required space for operation and maintenance min. 2,5 x 2,5 m
Floor, level, load capacity min.1,8 kN/m2
Ambient temperature +10 °C bis +30 °C
Relative humidity max. 65%
The Control Panel
1 Tanning Session
Start / Stopp
2 AC unit On / OFF
Display
0000 Stand-by
Time – (counting
upwards) Dsplay of tanning time
FAN After cooling time
Information for
Service Personnel
3
Error code Helps to locate
errors and
malfunctions (see
page 36)
4 Body cooling fan top + and –
5 Body cooling fan sunbed + and –
6 Facials + and –

Error! Style not defined.
11
Transport
DANGER
Transport of the unit must be
performed by authorized and skilled
personnel.
The unit is delivered preassembled and fixed to a
pallet. After delivery
• Check immediately if delivery is complete and if
there are any signs of transport damage.
• If you notice any transport damage, please
inform forwarder immediately.
• Remove packing material in compliance with
applicable environmental standards.
WARNING
Moveable Load!
Risks of injuries by moving load or
transport vehicles. Block and mark
all transport paths to prevent
personal injuries caused by
transport vehicles or the load.
WARNING
Risk of Falling or Slipping!
Due to its great weight, the
components of the sunbed can
cause serious bruises when falling
down or slipping.
Wear safety shoes!
Transport with a fork-lift

If the sunbed is mounted to a pallet, drive the
forks carefully into the pallet openings.
 Two persons lift the separate boxes onto the
forks for further transport.
Warning
Toppling Load!
The heavy load can cause personal
injuries or other damages when
toppling down. Tilt the lift forks
slightly backwards to prevent the
load from toppling down.
 Lift the load with the fork lift only for a few
centimeters.
 Drive the load carefully to the place of
installation.
Transport with a trolley

4 persons lift a single box onto the trolley.
 Roll the box carefully to the place of installation.
 Four persons carefully lift the box from the
trolley.
 Repeat the same procedure for all remaining
boxes.

Error! Style not defined.
12
Assembly and electrical
Connection
WARNING
FAULTY ASSEMBLY!
Incorrectly performed assembly
and connection work can result in
serious damages and fatal injuries.
Only service technicians and skilled
electrical personnel are allowed to
perform assembly work and
electrical connection.
Four (4) persons are needed to perform the
assembly job.
For assembly of the sunbed, you need the following
tools.
• Allan key, 6 mm
• Screwdriver - philips
• Screwdriver - slot
Preparatory work at the site of
installation
Caution
Heavy Load!
Overstraining when carrying the
heavy sunbed components can
cause serious damages to your
health. Always carry the heavy
components of the sunbed with
four (4) persons.
 Bring the unit with the pallet to the place of
installation.
L
Initially, position the sunbed in such a way
that there is enough space for necessary
assembly work at the rear
 Check if shipment is complete.
Disassembly
Attention!
Some components may easily get
scratched. Do not kick against
components. Do not damage or
scratch surfaces, e.g. with
assembly tools.
L
In order to remove the unit from the wooden
pallet, the unit must be disassembled and
carried to the site of installation.
For disassembly and transport of single
components four (4) persons are necessary.
Removal of packing material

To remove the wood-cardboard packing take off
the top lid and the cardboard walls and finally the
wooden boards.
 Remove the styrofoam between sunbed and top
canopy.
 Leave the unit on the pallet for a while.
Removal of Sunbed Plexi

Lift the top.
 Pull out the sunbed plexi with 2 persons for
approx. 10 cm and then pull carefully forward. .
Remove Front Cover Plate
If the front cover plate is already shipped with the
AC-plexi in a separate box, skip these instructions
and continue with transport brackets.

Lift the front cover plate – 2 Persons.
 Remove the plug for the front cover backlights.
 To remove the plug, push the button between
the plug and the plug terminal downwards and
take plug out of plug-terminal.

Error! Style not defined.
13
Removal of transport brackets

Unscrew the bracket which fixes the unit to the
pallet (transport bracket).

Pull out the ballast tray for approx. 30 cm.
 Pull of the terminals at the ballast segments.
 Unscrew the four segments and lift them out.
 Take out the ballast tray.
 Take out the box with accessories and store at a
safe place for further use.
Remove the AC plexi

Two persons lift the AC plexi out of the sunbed.
 Store the AC-plexi on soft padding material.
Remove lamp covers at head- and footend
of the unit.
There are lamp covers at the top and footend of the
unit.
 In order to remove the lamp cover at the head-
end, lift up the lamp cover.
 Remove the plug which connects to the sunbed
plexi safety switch.

In order to loosen the plug, push the button
between the plug and plug terminal downward
and pull plug out of the terminal.

Error! Style not defined.
14
 The lamp cover at the footend is not connected
to a plug. Just take out the lamp cover.
Removal of air vents
At the headend of the sunbed, there are two air
vents. At the footend of the sunbed there are three
air vents.
 In order to disassemble the air vents at the
head- and footend, take a screwdriver and
loosen the screws.

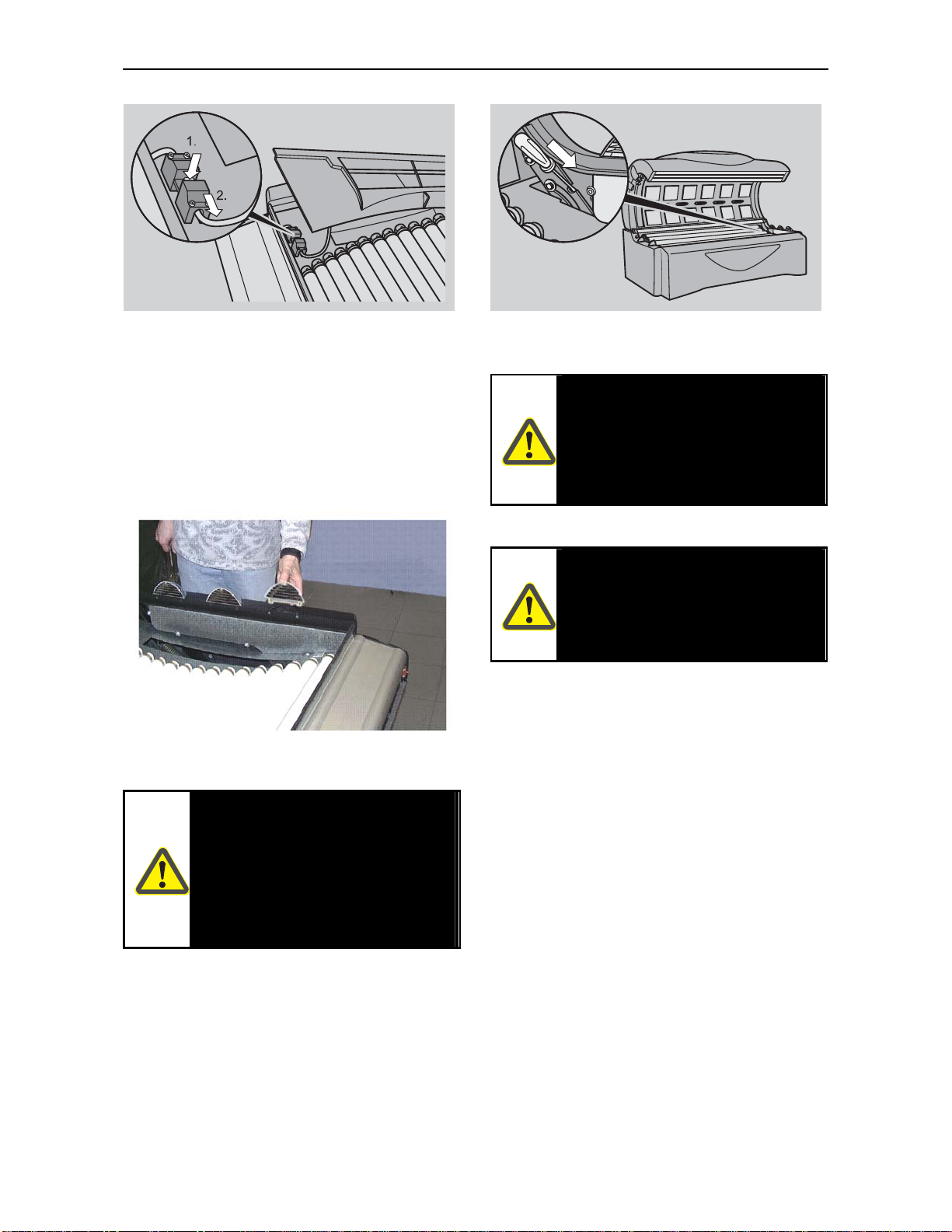

Disassembly of Top Canopy
CAUTION
RISK OF BRUISES!
There is a risk of hand bruises
when disassembling the top.
When lifting the top, do not hold on
to the hinge bolts

Disassemble the top canopy from the sunbed.
 At the head and footend, set a screwdriver into
the notch at the front lift arm and the rear hinge
bracket .
 Lever the screwdriver and lift the ball-bearings
out of the fork
Attention!
Take care that you do not scratch
the surface of the top canopy. Put
some Styrofoam on the sunbed
prior to slowly letting the top down
on the sunbed.
 Close the top canopy carefully.
Attention!
When carrying the top take care of
loose wire connections which may
catch your step and cause you to
slip.
 Four persons tilt the top slightly forward and take
it off the sunbed. The person at the rear foot-end
also pulls the wire connections from the top out
of the sunbed.
 Secure the wires and fasten.
 Let the top canopy rest on some soft and even
padding material.

Error! Style not defined.
15
Disassemble sunbed from pallet

Loosen the hexagonal screws at the right and
left angle on the metal groundplate. The female
screws are on the reverse side of the pallet.

Four persons lift the sunbed from the pallet.
 Turn the sunbed by 90°.
 Put the sunbed on a padded trolley or some
other suitable transport device.
 Move the sunbed to the site of installation..
Assembly
Preparing for electrical connection
WARNING!
The electrical connection has to be
performed by a certified electrician
according to EN 60204-1/VDE 0113
and applicable EVU-Standard – or
for export units - according to all
applicable local/national electrical
standards at the site of installation!
WARNING!
The mains supply system on the
site must be protected by a FI-
protective switch and a mains
disconnection switch installed on
the site as specified in the technical
data sheet.
WARNING!
Check if the local supply system
complies with the data on the type
label at the rear side of the sunbed.
If the supply data differ from the
data on the type label DO NOT
CONNECT AND OPERATE THE
SUNBED!
 Bring the sunbed close to the actual place of
installation
L
Position the sunbed in such a way that the
rear side of the sunbed is still accessible for
the electrical installation, the feeding of the
supply wires and the assembly of the exhaust
air stacks.

Feed in the supply cable fort he AC-unit through
the cable entry stud (1) at the rear side of the
sunbed.
 Feed in the supply cable of the time control
device through the cable entry stud (2) at the
rear side of the sunbed

Feed in the mains supply at the cable entry stud
(3) at the rear side of the sunbed.
 Push enough cable through the cable entry to be
able to connect to the terminals on the ballast
tray.
 Push all the screwed glands clock-wise until all
cables sit fast and tight .

Lay out cables in such a way that there is not
risk of tripping and slipping.

Error! Style not defined.
16
WARNING!
The unit must be grounded, else
there is a risk of electrostatic load.
When touching the unit or when
standing very close to it there is a
risk of an electric shock.
WARNING!
The first start-up of the unit must be
performed by an authorized service
technician.
WARNING!
Before you continue with the
assembly job, make sure that the
unit is secured against unauthorized
activation.
 Push the mains disconnection switch into
position „O“.
 Put the lock into the opening of the switch.
 Fasten the lock.
Sunbed assembly
Caution
Risk of Bruises!
When assembling the top canopy,
there is a risk of bruising your
hands. Do not hold on to the hinges
when lifting the top.

Push the ball bearings at the head- and footend
into the extreme outward position.
 Four (4) persons lift the top canopy.
 Watch out for the connection cables and carry
them with you to feed them into the sunbed.

Let the top canopy rest in level position on the
ball bearings.
 Push the top canopy carefully backwards, until
you hear the bearings at the head and footend
“click” in.

Error! Style not defined.
17
Assembly of Exhaust Air Stacks
At the rear side of the sunbed there are two (2) air
outlets (1 and 2). On these outlets you install the
exhaust air stacks. The air stacks are packed into a
separate box and contains the following parts
• Two bottom parts
• Two top parts
• A plastic bag with metal screws
 Open the box and remove box and loose
packing material.
 Put the bottom part of the exhaust air stack onto
the air outlet.

Fix the bottom parts (2) of the exhaust air stack
with 6 screws onto the air outlet (1) of the
sunbed.
 Put the top art of the exhaust air stack onto the
fixed bottom part of the exhaust air stack
 Fix the to part (2) with 3 screws to the bottom
part (1) and with 3 screws to the rear of the top
plate of the unit.
 For assembly of the second exhaust air stack
follow the same procedure.
Adjusting the unit at the site of installation

Move the unit to its final place of installation.
L
When positioning the unit take care that there
is a minimum of 5 cm distance to the wall.
In the groundplate of the unit there are 4 adjustable
screws.
 Adjust the screws in such a way that the unit is
in level position.

Error! Style not defined.
18
Assembly of air vents at the Top Canopy
At the headend of the top canopy there are three air
vents. The air vents consist of the following
components:
• three air vents
• three adjustable air nozzles
• three threaded bolts
• three screws
 Screw the bolts into the top canopy
 Put the air nozzle (2) into the air vent (1).
 Put the air vent (1) over the threaded bolt (2) into
the top canopy.
 Screw the air vent (1) with the screw (2) to the
top canopy.
 In order to assemble the remaining two air vents,
follow the same procedure.
Assembly of air vents at the Sunbed
At the headend of the sunbed there are two air
vents and at the footend of the sunbed there are
three air vents.
Take a screwdriver and screw the air vents to the
sunbed at the head- and footend.

Error! Style not defined.
19
Assembly of lamp covers at the head- and
footend of the sunbed

Take the lamp cover for the headend and put the
plug for the safety switch into the plug terminal
until you can hear it “click” in.
 Fit in the lamp cover.
 There is no plug connection for the footend lamp
cover. Take the lamp cover and fit it into the
footend.
Assembly of AC plexi

Two persons carefully lift the AC plexi and fit it
into the sunbed.
Assembly of Ballast Tray

Put the ballast tray for about 30 cm into the
guide rail and push it into the sunbed.
 If you have disassembled the four segments of
the ballast tray, re-install and fix them.
 Re-connect the plugs at the right hand side of
the ballast segments.
Electrical Connection
WARNING!
The electrical connection must be
performed by a certified electrician
according to EN 60204-1/VDE 0113
and all applicable EVU-standards –
for export units – in compliance
with all applicable local/national
electrical regulations and
standards.

Connect the mains supply.
 Connect the time control device at terminal X 20
as shown in the wiring diagram enclosed.

Pull the ballast tray out of the sunbed.
 Connect terminals X 1–X 22 of top canopy and
sunbed to the ballasts on the ballast tray.
 Connect the communication cable of the control
panel to the main PCB (Display).

Error! Style not defined.
20
WARNING!
When moving the ballast tray, take
care that wires and cables do not get
pinched and damaged. In case of
damage blank wires can get into
contact with other metal parts of the
unit and cause an electric shock.
 Push the ballast tray into the sunbed and take
care that cables and wires do not get pinched or
damaged.
Assembly of Front Cover Plate

Put the plug of the front cover plate backlighting
into the plug terminal until you can hear it „click“
in.
Assembly of Sunbed Plexi

Two persons lift the sunbed plexi and fit it into
the sunbed.
Assembly of Design Elements
At the front cover plate and at the front top canopy
there are “design” elements.
 Lower the top canopy.

Put in the fluorescent lamp for the backlighting.
 Take the design element and remove packing
material completely.
