ToBegin

Thesystemmaytakeupto5minutestopowerup



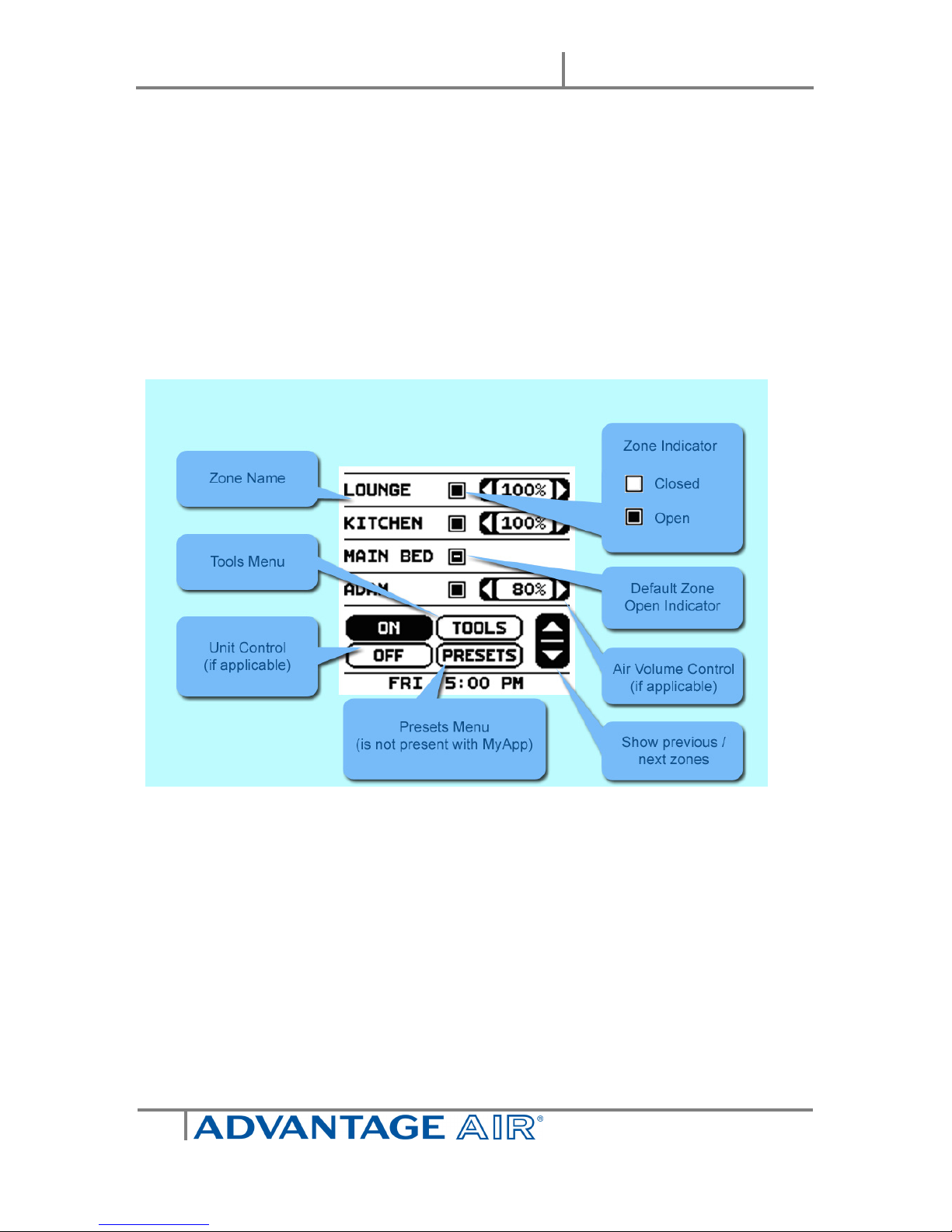

Aftersuccessfulpowerup,youshouldseeahomescreensimilartothis:



REVISION2.0–DEC2012Zone10.4UserManual


 
5




QuickStartGuide

IftheZone10TouchscreendoesnotdisplayON/OFFbuttons–thenallcontroloftheair‐
conditioningunitisdonebytheACcontroller.
IfyourZone10TouchscreendoeshaveON/OFFbuttons,then:
Onyourair‐conditioningunitcontroller:
Performyourseasonalset‐upbyselectingyourmode(e.g.COOLorHEAT),yourtemperatureset‐
point,andifapplicablesetyourfanspeed
OnyourZone10Touchscreen:
Performyourday‐to‐dayoperationofthesystemfromyourZone10touchscreen
PressONtoturntheair‐conditioningsystemon
Selectthezonestocondition,bypressingthezonenameorbyusingthestylus(storedinthetop
rightofthescreen)totapthesquarenexttothezonename
UsetheUPandDOWNarrowsatthelowerrightcornerofthescreentoscrolltothenextbankof4
zonenames
Usethesidewaysarrowsnexttoeachzonenametocontroltheairflowtothatzone












REVISION2.0–DEC2012Zone10.4UserManual


 
6




GettingStarted

Onyourair‐conditioningunitcontroller:
Selectyourmode(e.g.COOLorHEAT),setyourtemperature,andifapplicablesetyourfanspeed.
Youdonotneedtoturntheair‐conditioneronfromthiscontroller–yourZone10controllerwilldo
thatforyou
Note:SettingverylowtemperaturesonCOOLmode,orveryhightemperaturesonHEATmodewill
notcoolorheatyourzonesfaster,butwillcauseyourair‐conditionertorunlongertoachievethe
targettemperature,resultinginhigherenergyusage.

OnyourZone10Touchscreen:

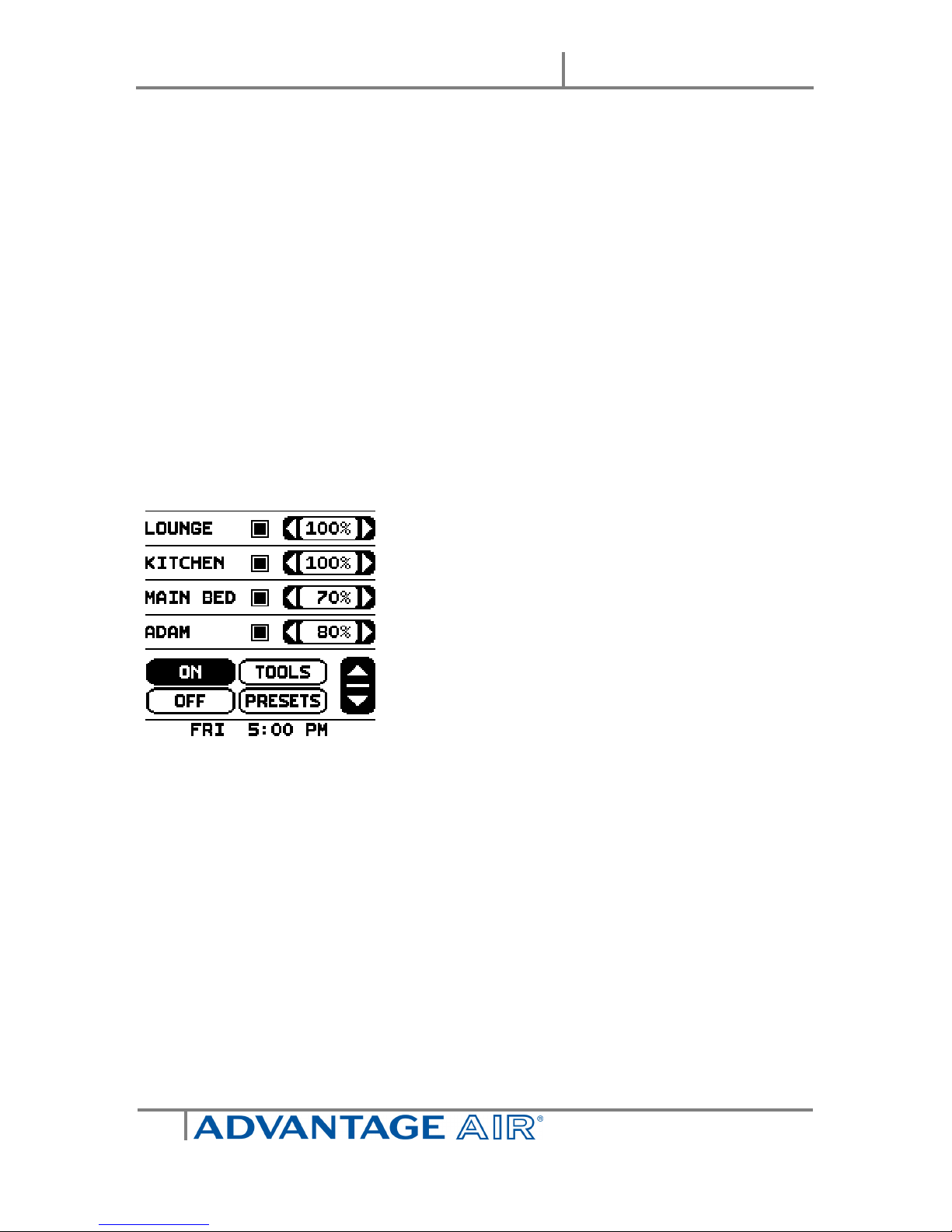

Thesystemmaytakeupto5minutestopowerup.Oncepowerupiscomplete,thehomescreen
belowshouldappear

PressONtoturntheair‐conditioningsystemOn
PressOFFtoturntheair‐conditioningsystemOff

SelectingZones
AstylushasbeensuppliedwithyourZone10touchscreentomakescreentapseasier–itcanbe
foundinthetoprightcornerofyourtouchscreen–simplyliftitout,alternatively,youcantouchthe
screenwithyourfinger.
Toopenorcloseazone,tapanywherealongthenameofthezone,orinsidethesquarenexttothe
zonename
Thefirst4zonesinyoursystemwillbedisplayedonthefirstscreen.Toviewmorezones,pressthe
downarrowinthelowerrightcornerofthescreen

REVISION2.0–DEC2012Zone10.4UserManual


 
7




Theairflowpercentagetoeachzoneisalsodisplayednexttoeachzone,andcanbeadjustedby
pressingthearrowsoneithersideofthe%number.

ConstantZones

YourZone10systemmaysetupwithConstantZones.Thesearepre‐programmedzonesthatopen
uptorelieveexcessairpressureinyourair‐conditioningsystemifinsufficientzonesareopen.
ConstantZonesarenotedbyadashappearinginthesquarenexttotherespectivezonename.

ChangeZoneNames


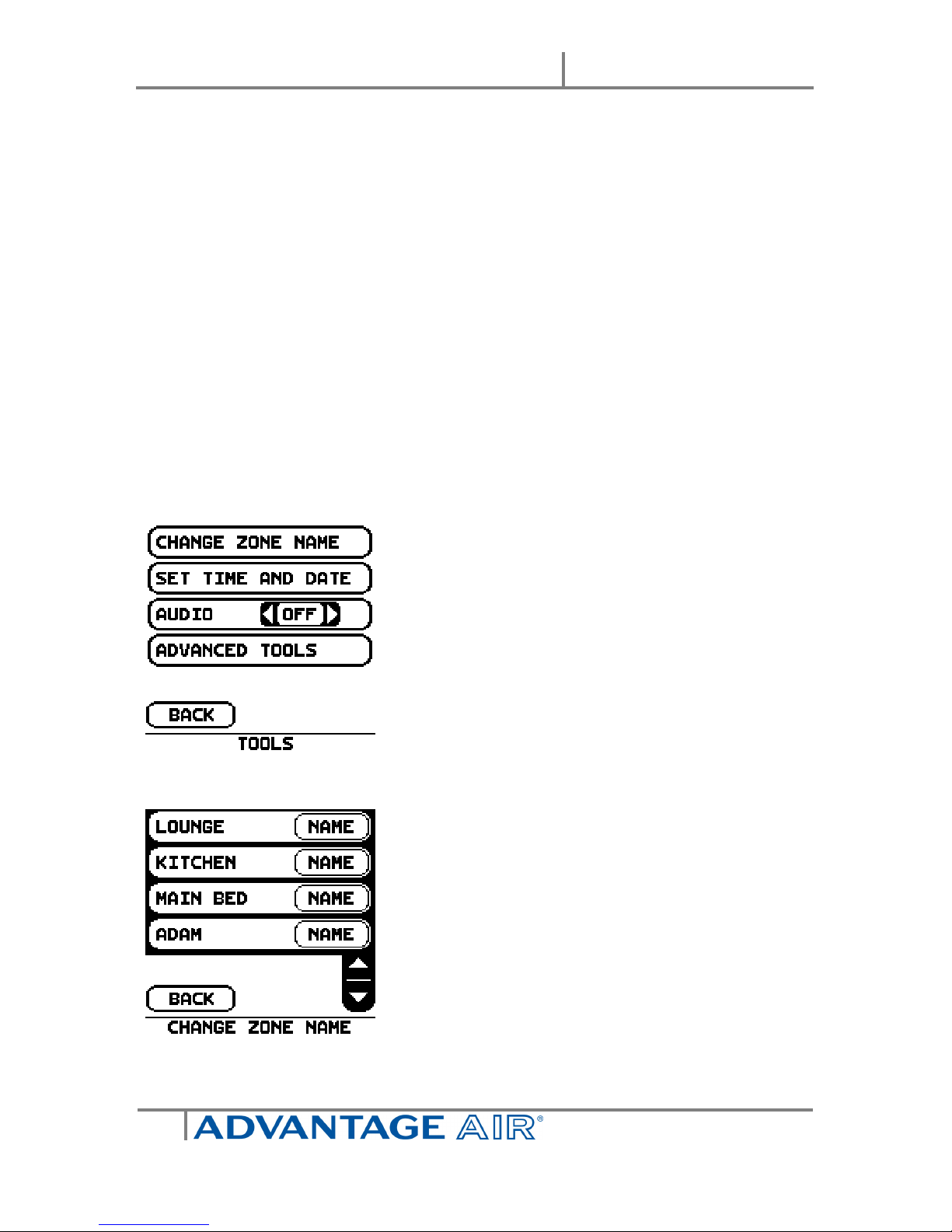

YourZone10systemallowsforcustomisablezonenames.PressToolsonthehomescreentodisplay
thescreenbelow:

PressChangeZoneNametodisplaythescreenbelow:



REVISION2.0–DEC2012Zone10.4UserManual


 
8





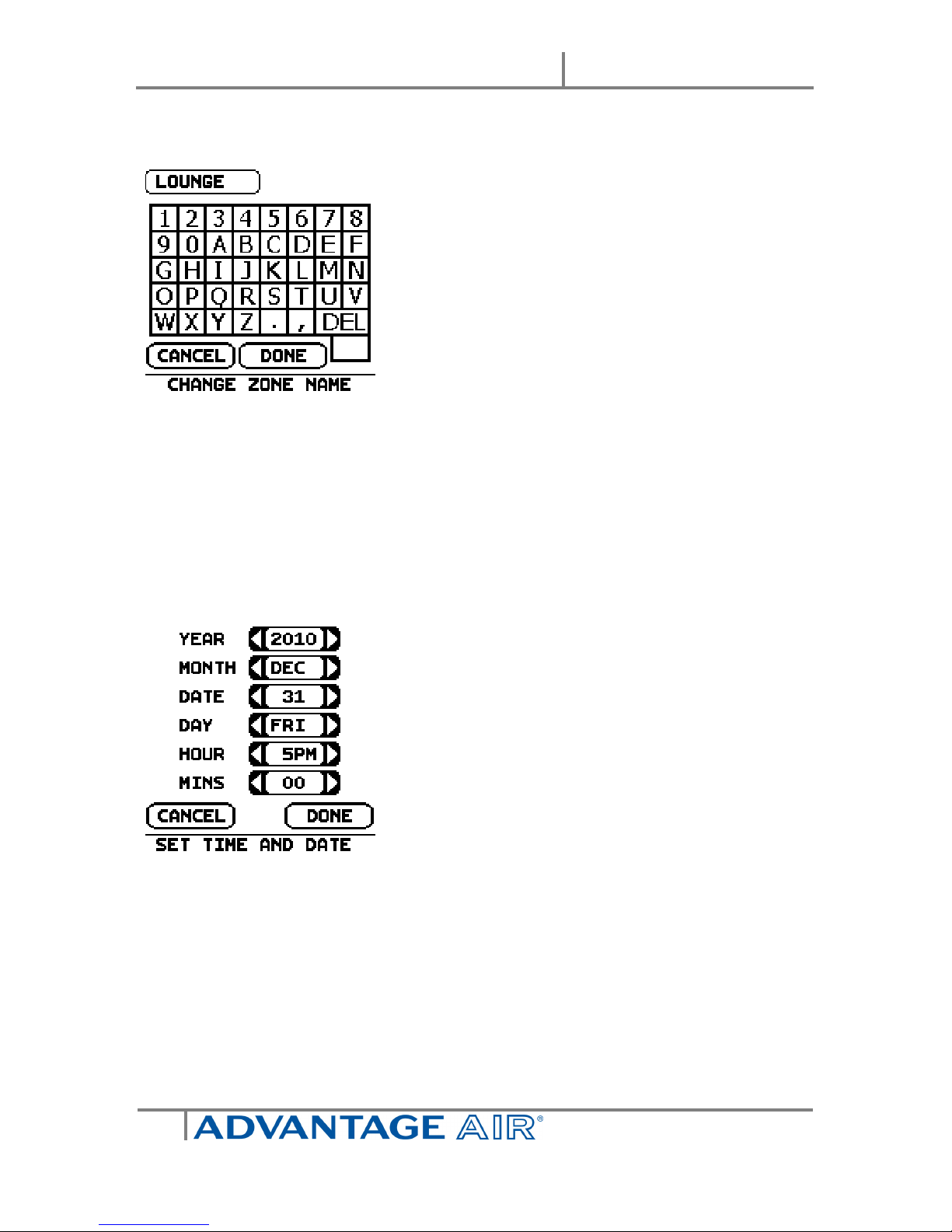

PresstheNAMEbuttonofthezoneyouwishtonametobringuptheonscreenkeyboard:

PresstheDELkeytoremovecharacters,andaddcharactersusingtheonscreenkeyboard
PressCANCELtoexitwithoutchanges,orpressDONEwhenfinished

ChangetheDateandTime

Inthetoolsmenu,pressSETTIMEandDATEtodisplaythebelowscreen:


Usethearrowsoneachsideofthedisplayedvaluestoadjust
WhenfinishedpressDONE



REVISION2.0–DEC2012Zone10.4UserManual


 
9




TurnSoundonandOff

Turnthescreenbeepsonorofffromwithinthetoolsmenubypressingthearrowoneithersideof
thedisplayedaudiovalueasshownbelow:


Presets

Upto8presetscanbeprogrammedintotheZone10system.Apresetallowsyoutoeasilyrevertall
orsomeofyourzonestoafavouriteorcommonlyusedsetting.

Toactivateapreset,pressthePRESETSbuttononthemainscreen:



NOTE:IFYOUHAVEAMyAppINTERFACEFORCONTROLBYHANDHELDAPPLEDEVICES,THEREIS
NOPRESETSBUTTON,ASTHEMyAppFEATURESAREMOREINTUITIVEANDARENOTCOMPATIBLE
WITHTHESTANDARDZONE10PRESETSFUNCTION.
Todisplaythebelowscreen:

REVISION2.0–DEC2012Zone10.4UserManual


 
10





Pressthepresetbuttonyouwishtoselect

Tochangeapreset,presstheCHANGEbutton,thenpressthebuttonofthePresetyouwishto
changetodisplaythebelowscreen:



IfyouwanttochangethepresetnamepressNAMEandthentypethenameofthepresettooneof
yourchoice

Selectthedesiredzonesconfigurationforthispreset‐foreachzone,youhavetheoptionofOPEN,
CLOSE,orN/A

OPENwillopenthatzonewhenthispresetisactivated,CLOSEwillclosethatzonewhenthispreset
isactivated,andN/Awillleavethatzoneunchangedwhenthispresetisactivated

UsethescrollbuttontoshowNext/Previouszones.

Whenfinished,pressDone

ToreturntotheMainScreen,pressDone


REVISION2.0–DEC2012Zone10.4UserManual


 
11




Timers

Eachpresetcanbescheduledtoactivateonceperdayontheweekdays,andindividuallyoneach
dayoftheweekend

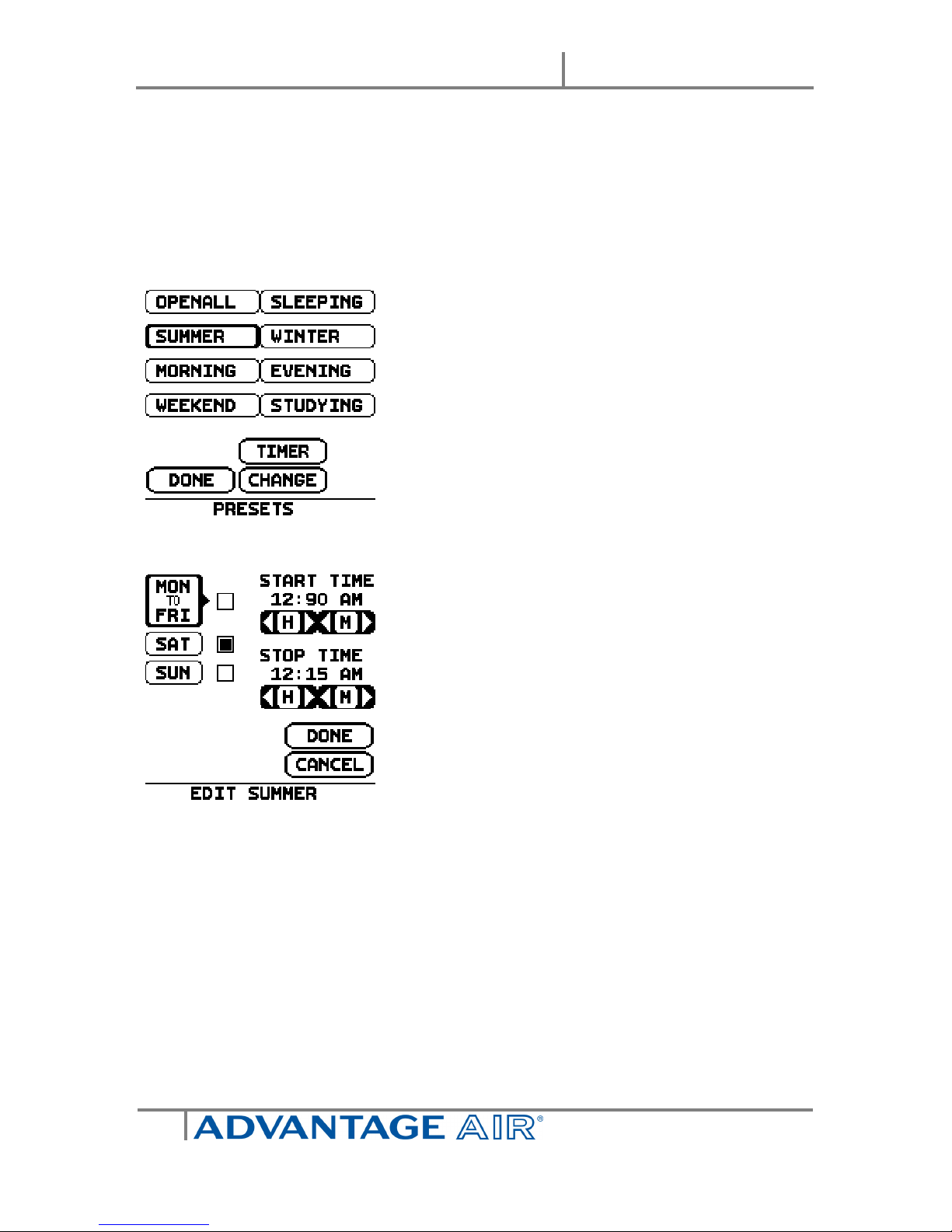

FromthePresetsscreen,pressTIMERandthepresetyouwishtoschedule:

Todisplaythebelowscreen:

Toactivateonweekdays,presstheboxnexttoMontoFri.SettheStartandStoptimesforthis
activationbyusingthearrowsnexttotheHandM,beneaththecorrespondingtime
ToactivateonSaturdayand/orSunday,presstherelevantbox(es),andsetStartandStoptimes
Whenfinishedpressdone
Ifmorescheduledactivationsarerequired,repeatabovesteps
InthePresetsmenu,aboldborderwillappeararoundanypresetthathasscheduledactivations

REVISION2.0–DEC2012Zone10.4UserManual


 
12




21DayTrial

YourZone10systemishasa21daytrialfeature,andifenabled,controlofthesystemwillbe
disabledafter21days.Oncedisabled,youwillneedtocontactthedealeryoupurchasedthesystem
frominordertoobtaina4‐digitcodethatwillenableyoutoresumeoperationofthesystem

Afterenteringthe4‐digitcode,pressDONEandthesystemwillresumenormaloperation.
Youmayalsoenteranactivationcodeatanytimepriortoexpiryofthetrialperiod.

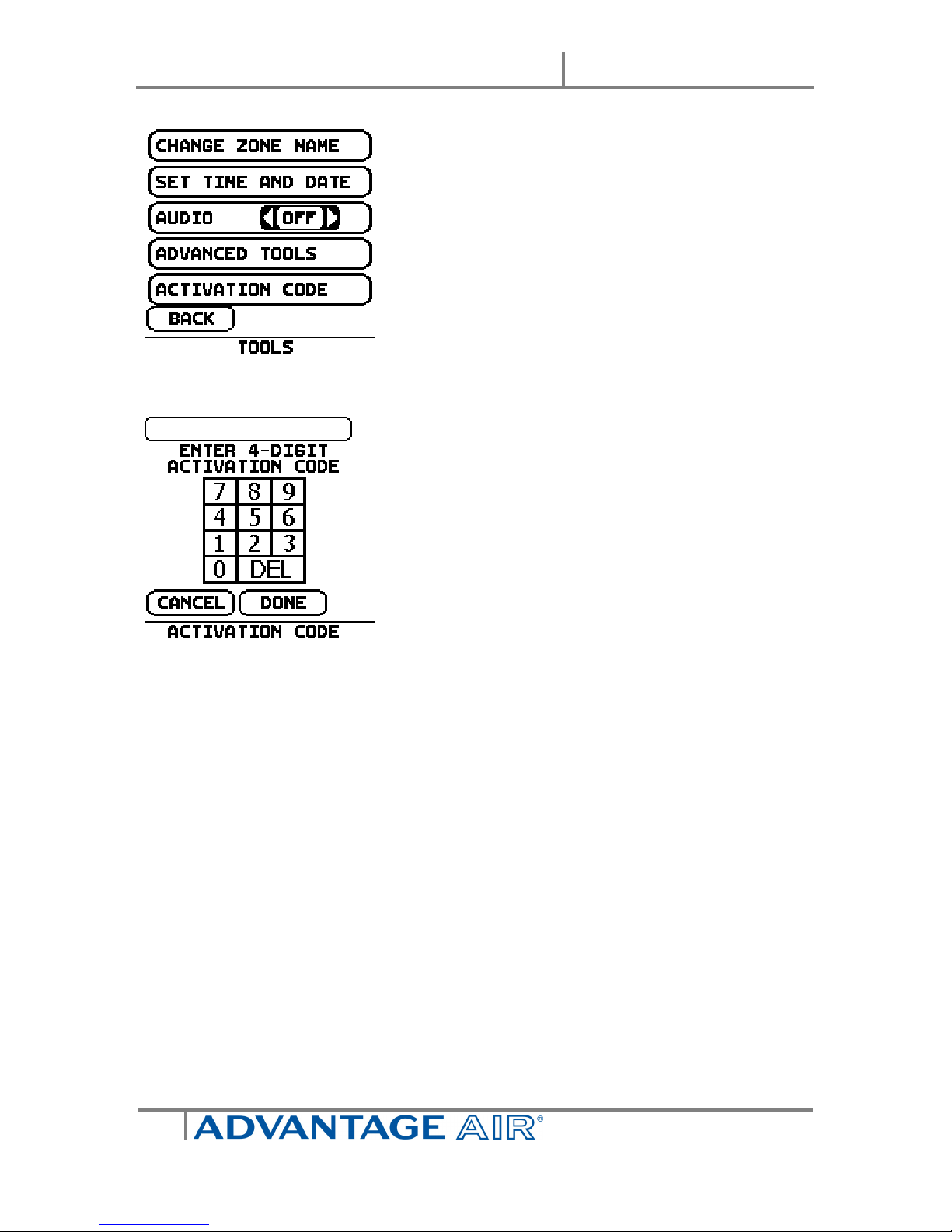

Toenterthecodebeforethesystemisdisabled,pressTOOLSonthehomescreen


Whena21DayTrialfeaturehasbeenenabledbyyourdealer,yoursystemwilldisplaythebutton
ACTIVATIONCODEundertheADVANCEDTOOLSbutton

REVISION2.0–DEC2012Zone10.4UserManual


 
13






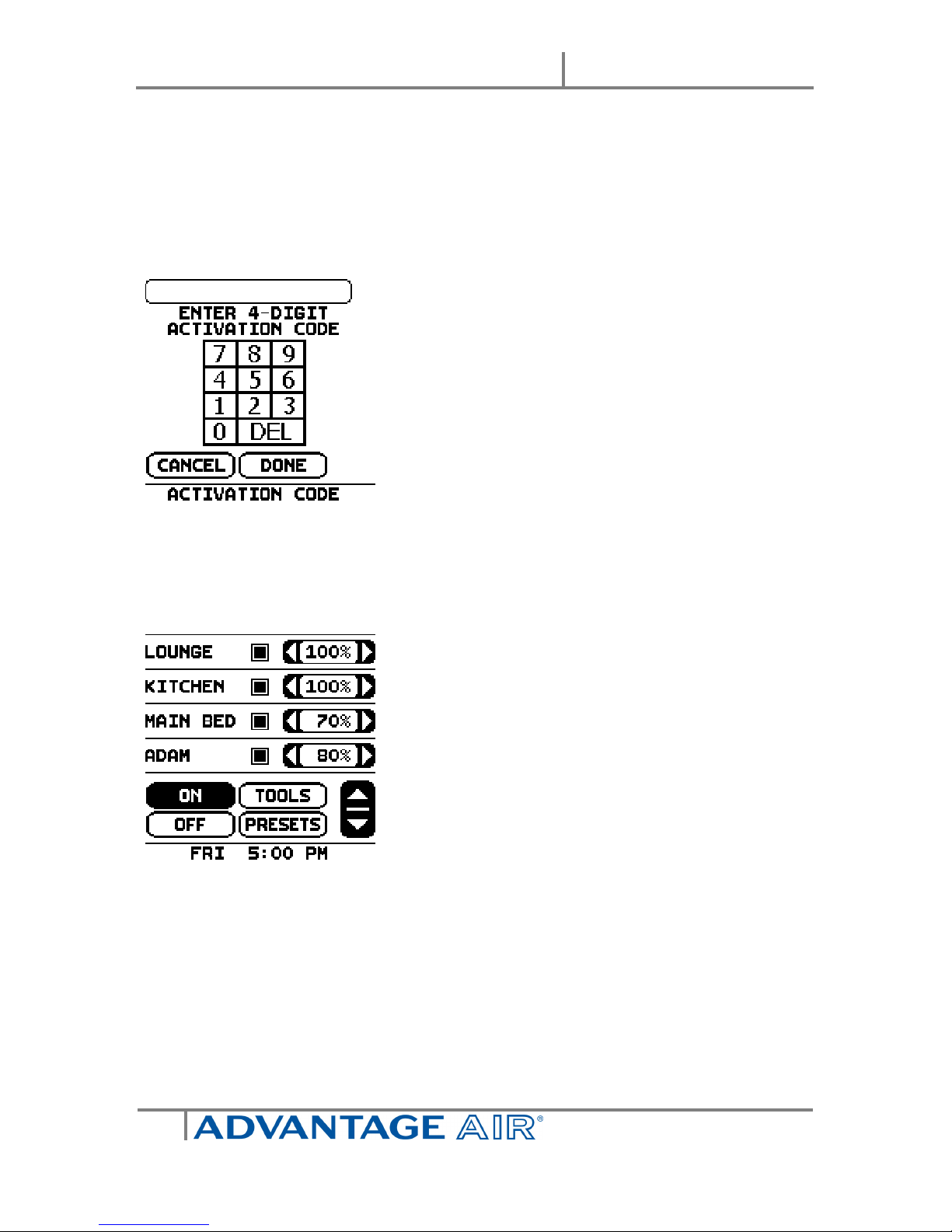

ThensimplyenterthecodeandpressDONE

IftheACTIVATIONCODEbuttonisnotpresent,thenyoursystemisalreadyfullyactivated

REVISION2.0–DEC2012Zone10.4UserManual


 
14




Troubleshooting

Ifanyproblemisexperienced,firstresetthesystem.Thiscanbedoneby:

•TheresetbuttonlocatedalongthebottomedgeofthetouchscreenOR
•Turningtheisolatingswitchontheoutdoorair‐conditioningunitofffor30seconds,then
turningbackonagain(ensurethatthisdoesturnoffthepowertothetouchscreen).

Alsocheck:
Ifairvolumecontrolisfitted,thenincreaseallzonesto100%
Checkpresetstoseeifanypresetsareprogrammedwithtimers
Checktheunitcontrollerforcorrectsetting(heat/cool)andthattheair‐conditioningunitis
operatingcorrectly
Iftheabovedoesn’thelp,contactthecompanyyoupurchasedthesystemthroughfor
furtherassistance

